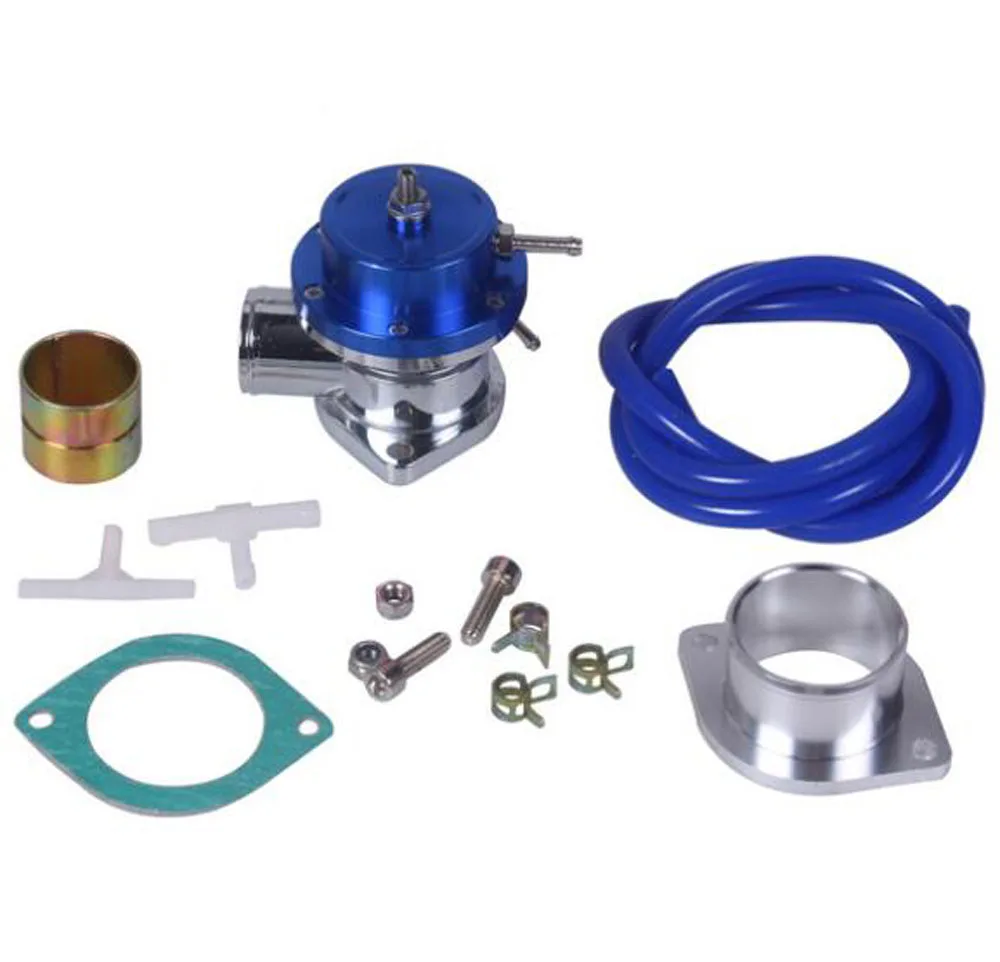

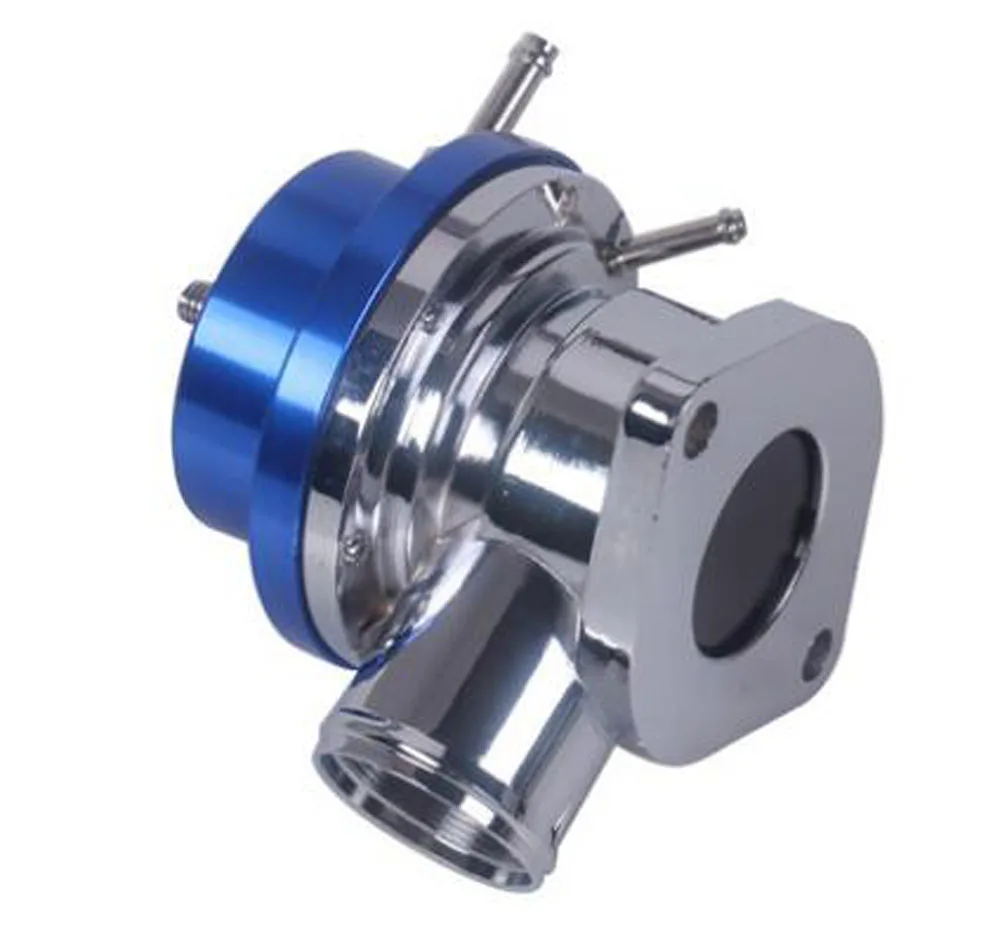

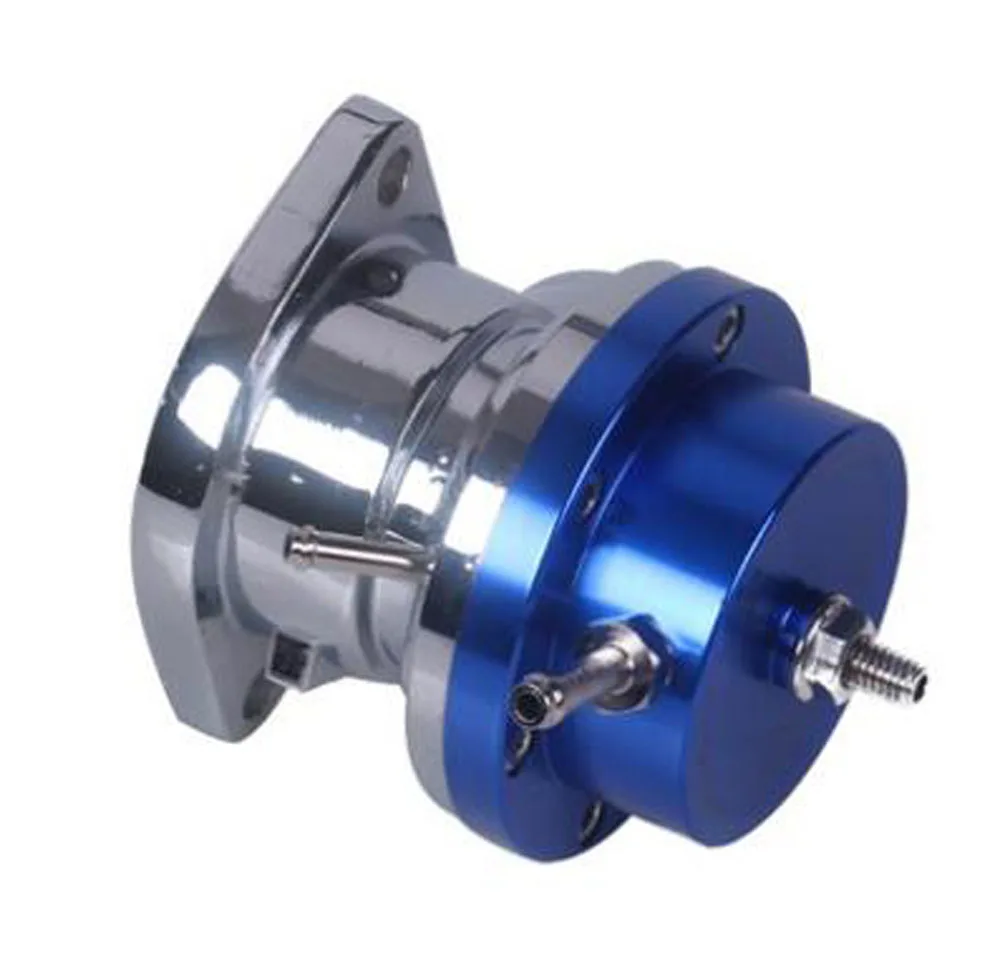

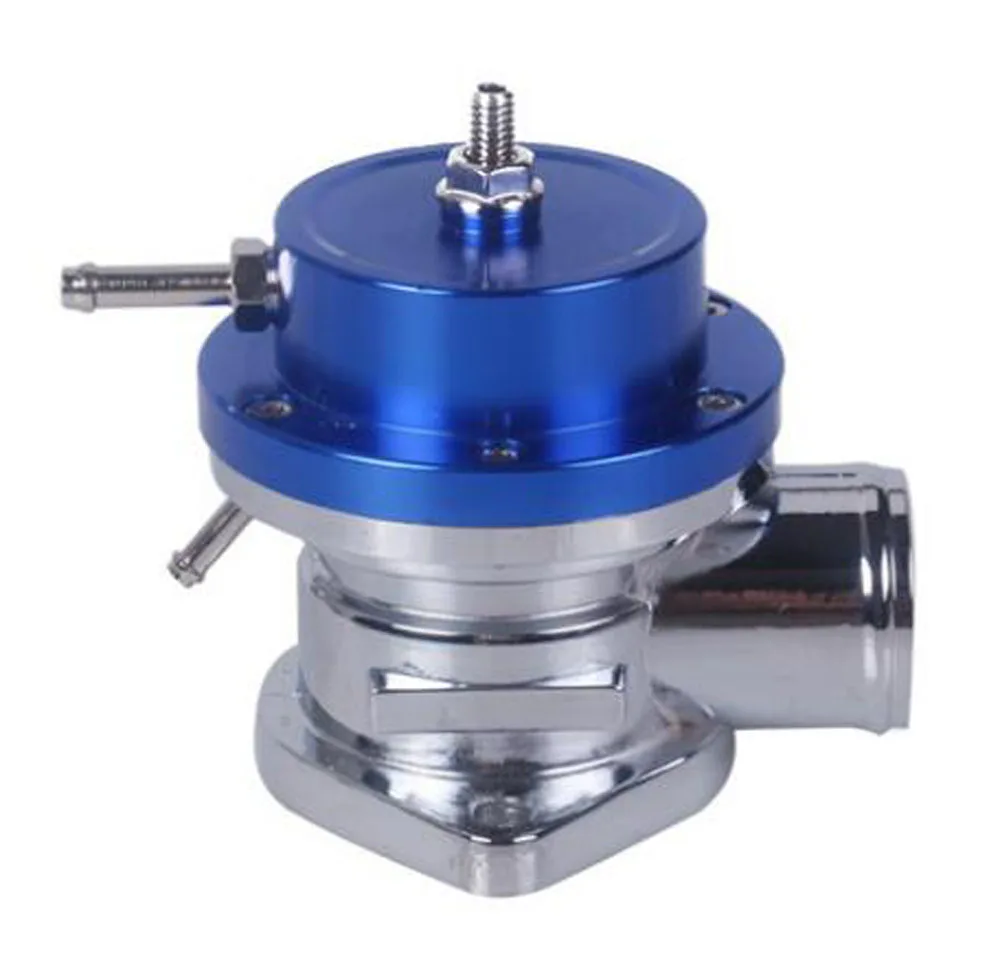

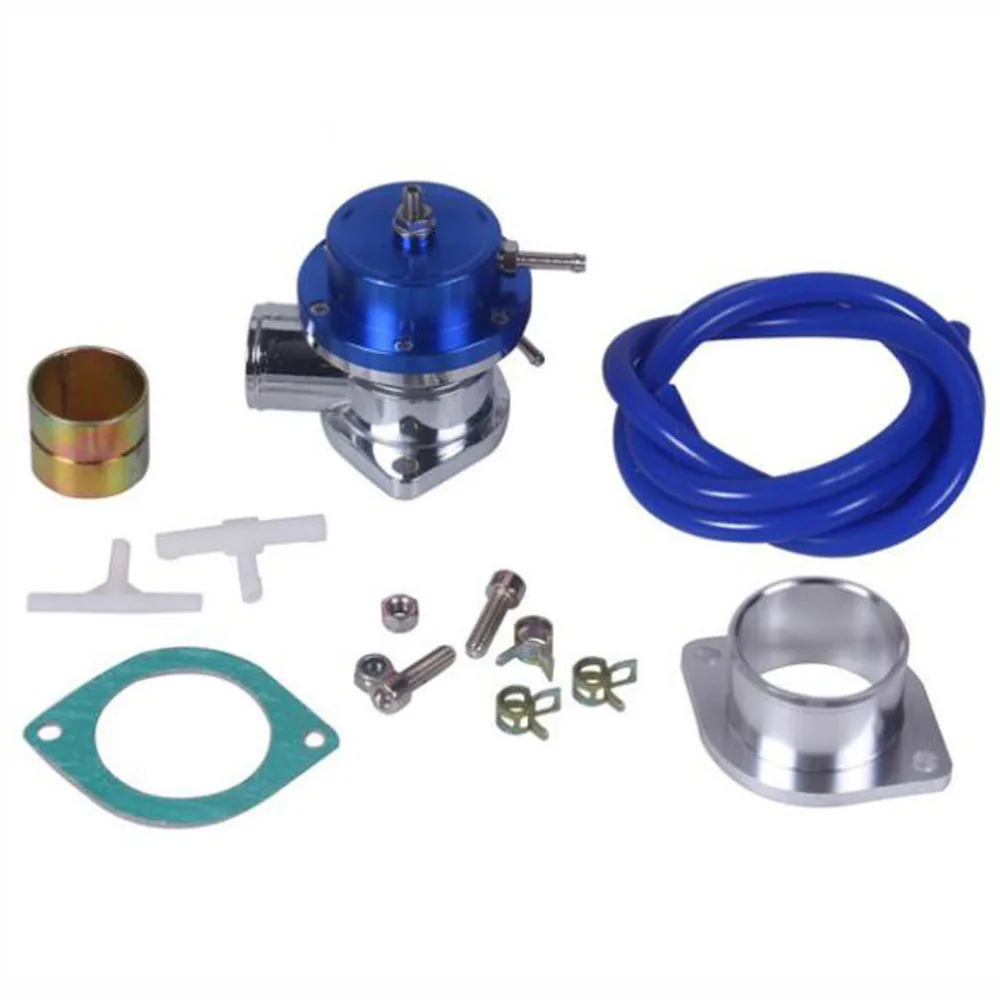

Car Accessories Parts Type-S Pressure Relief Valves Refit  Pressure Relief Valve Connection Base
Material: Aluminum
Color: blue
Pressure relief valve works
This sound is produced by all turbocharged engines, but for everyday civilian vehicles, the manufacturer will design this sound as noise and reduce it as much as possible. The practice is to vent pressure into the intake manifold, so the noise is small – this type of pressure relief is called internal venting.

When we step on the accelerator pedal to accelerate, the throttle will open and the engine will send out with the increase of the speed.
The sound of "Well...", the engine exhausts high-temperature and high-pressure exhaust gas energy to drive the exhaust turbine to rotate, when the turbocharger is running (that is, the turbine rotates at 100,000 rpm or more), the turbocharger The surrounding air is compressed to increase the engine intake and increase the engine's power.

When we close the oil, the throttle opening is rapidly reduced until it is in an idle state, that is, the engine does not need to be inflated, or the airflow in the intake pipe is blocked at the throttle. But at this moment the turbocharger did not stop working! Due to inertia, the turbocharger continues to rotate at a speed of more than 100,000 revolutions per minute. It is now conceivable that the air at this time will continue to be continuously compressed into the intake pipe. If this part of the high-pressure air in the intake pipe cannot be removed in time, the pressure in the intake pipe will rise rapidly, possibly causing the festival. Valve damage or bursting of the intake pipe. At this time, it is necessary to install a pressure relief device in the intake pipe to remove excess high pressure air from the intake turbine after the pipe is compressed. In fact, the pressure relief valve is a valve installed on the intake pipe to control the boost pressure. The opening and closing of the pressure relief valve is controlled by an electromagnetic coil operated by an ECU (Electronic Control Unit). The ECU will make a judgment based on the pressure of the turbo outlet boost. Once the pressure exceeds the critical value, the solenoid will be energized or de-energized to open or close the pressure relief valve.

When the pressure relief valve is closed, it is based on ensuring sufficient intake pressure in the intake pipe. When the valve is opened, excess gas can be released into the atmosphere, reducing the pressure in the intake port and protecting the intake pipe of the engine. Therefore, we heard the sound of on the modified car is the sound of the pressure relief valve when it is venting. By adjusting the position of the heat sink, when the pressure-reducing gas hits the heat sink at high speed, different pressure-reducing sounds are generated due to different frequencies.

The pressure relief valve is installed on the equipment or pipeline of the closed system. The protection system is safe. When the pressure in the equipment or pipeline exceeds the pressure set by the pressure relief valve, the pressure relief device is automatically opened to ensure that the medium pressure in the pipeline is below the set pressure. Equipment and piping to prevent accidents.

The purpose of the pressure relief valve:
1. Accurate and constant safety and stable pressure. Once overpressured, the pressure relief valve can fully open and release pressure in time.
2. The closing speed is adjustable to eliminate pressure fluctuations.
3. The diaphragm drive mechanism minimizes operational hysteresis.
