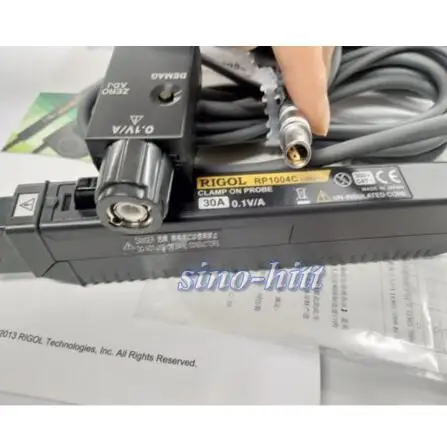

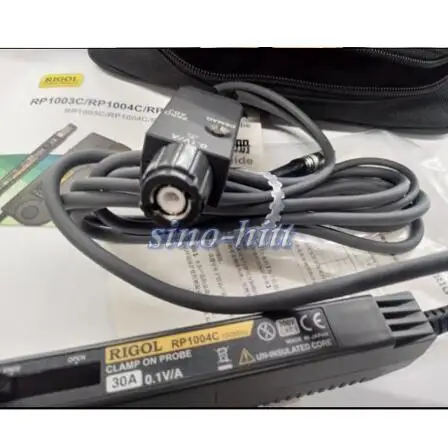

  Original Rigol RP1004C Current Probe DC-100 MHz 50A peak, must use with RP1000P power supply

We Promise All products in Our Store are Brand New From Original Factory.

Because this mode is optional part, usually 0-4 weeks production, pls contact us before place the order to confirm the delivery date.

this order is for RP1004C, pls contact us for more discount before you place the order.

Rigol Current probe overview:

thisThis device can be directly connected to a BNC input connector of a waveform measuring instrument, and by clamping on a conductor to be measured, allows the current waveform to be easily captured.

Main Features:

Highly accurate current detection

easy current measurement

broadband frequency characteristics

RP1003C: DC to 50 MHz

RP1004C: DC to 100 MHz

RP1005C: DC to 10 MHz

RP1003C/RP1004CL : Compact design, permits measurement of low current levels

RP1005C: Large diameter allows high-current measurements

Easy protect function at excessive input

unique thin film hall effect element.

RP1003C/RP1004C parts overview:

Parts Introductions/for more details pls contact me:

1, opening lever

2, sensor head

3,demagnetizing switch (DEMAG)

4, zero adjustment dial (ZERO ADJ)

5, coarse adjustment trimmer (only for Rp1003C / Rp1004C)

6, output connector

7, power plug

Specifications:



Because This Model is Rarely, so We Have Small Amount Stock, Usually 1-4 weeks production, Pls Contact Us Before Place The Order,
