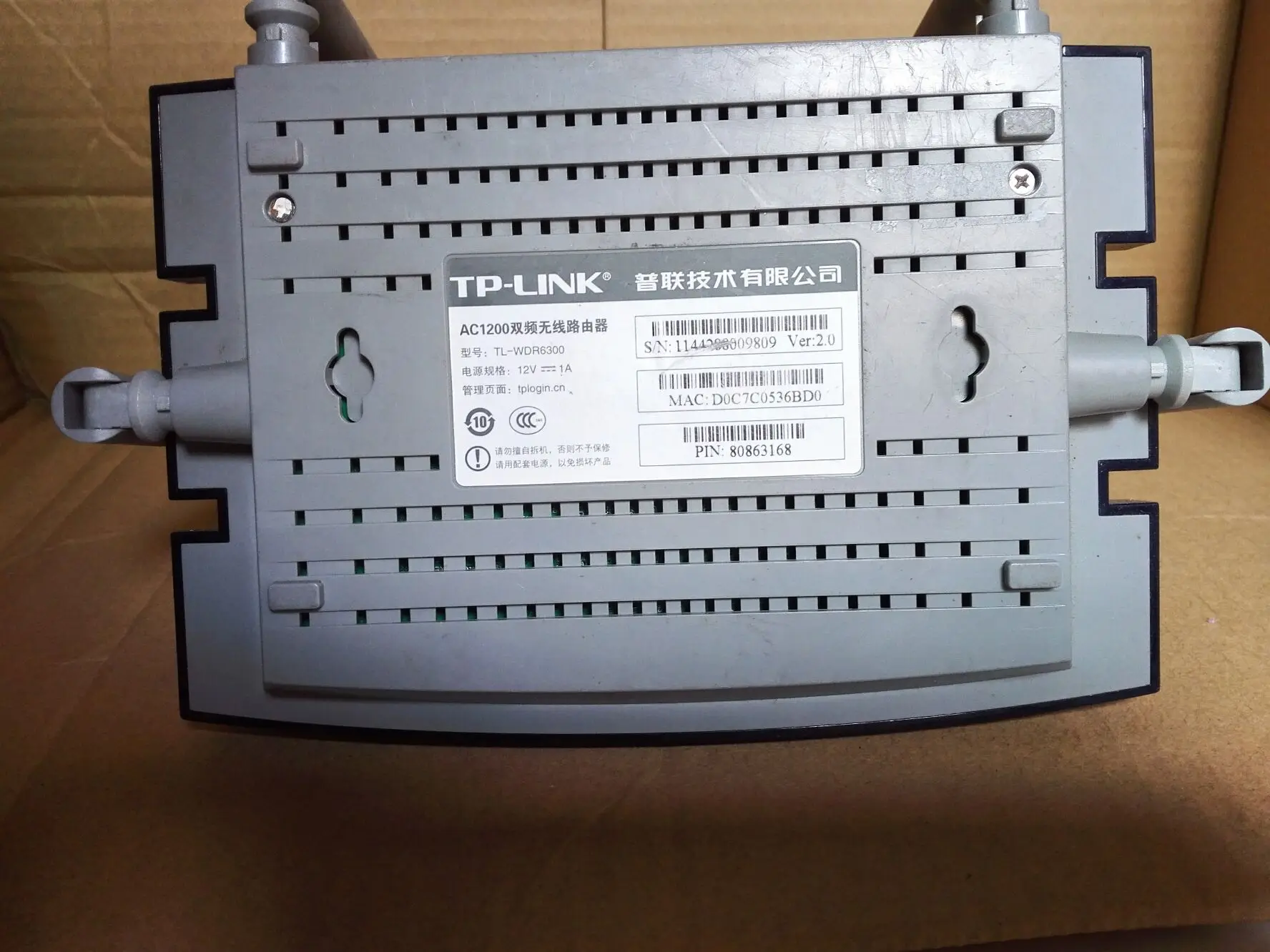

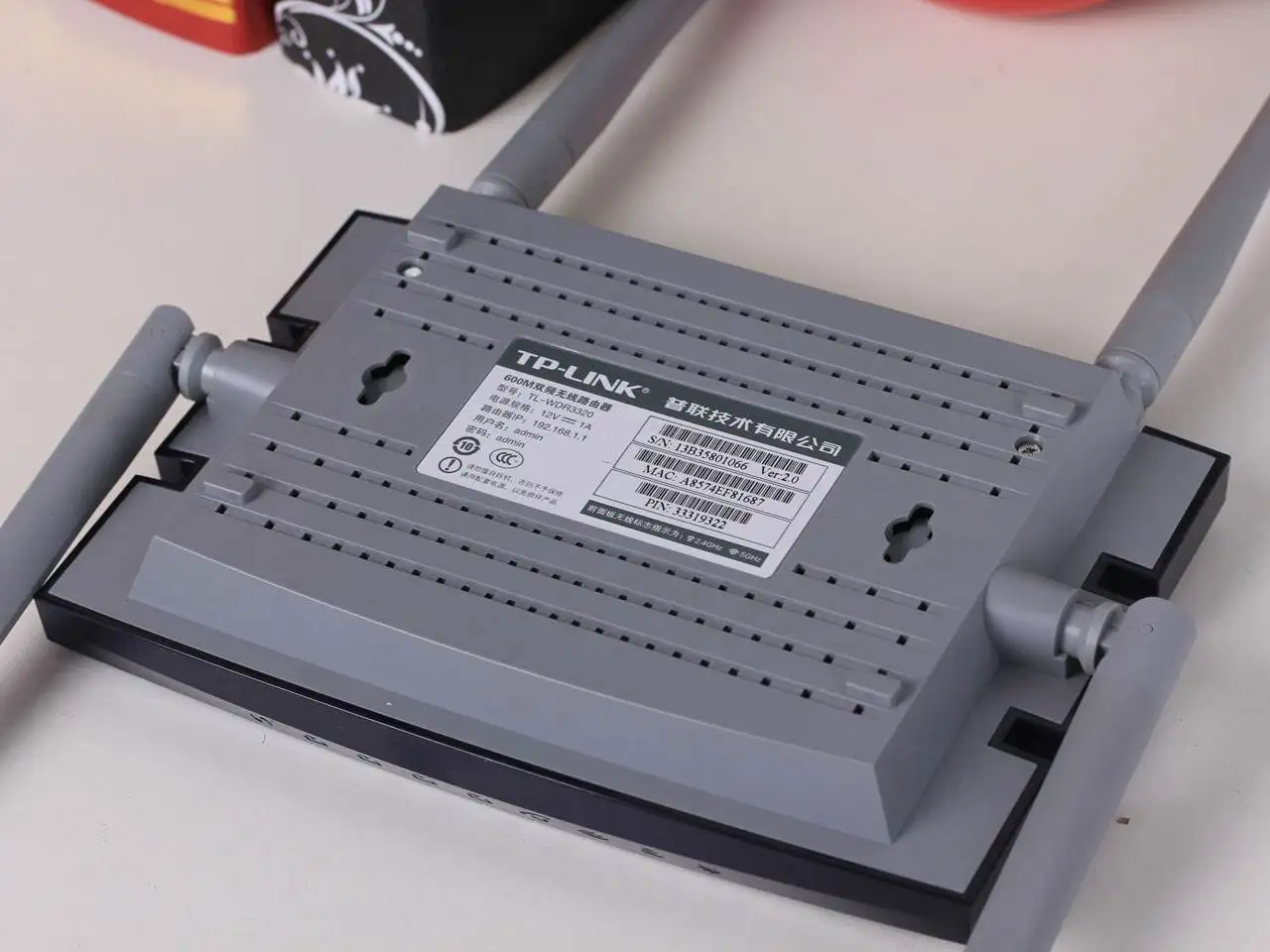

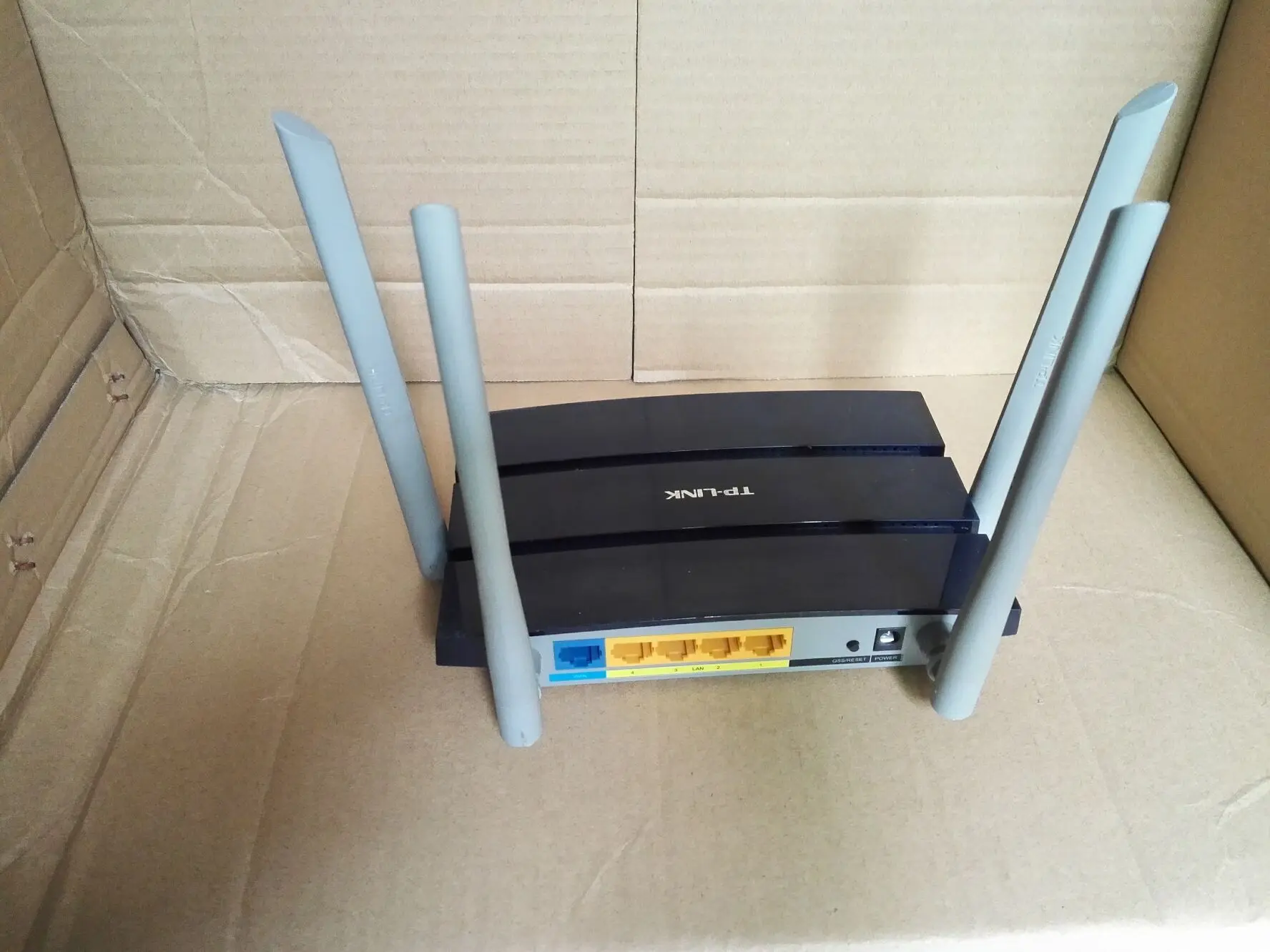

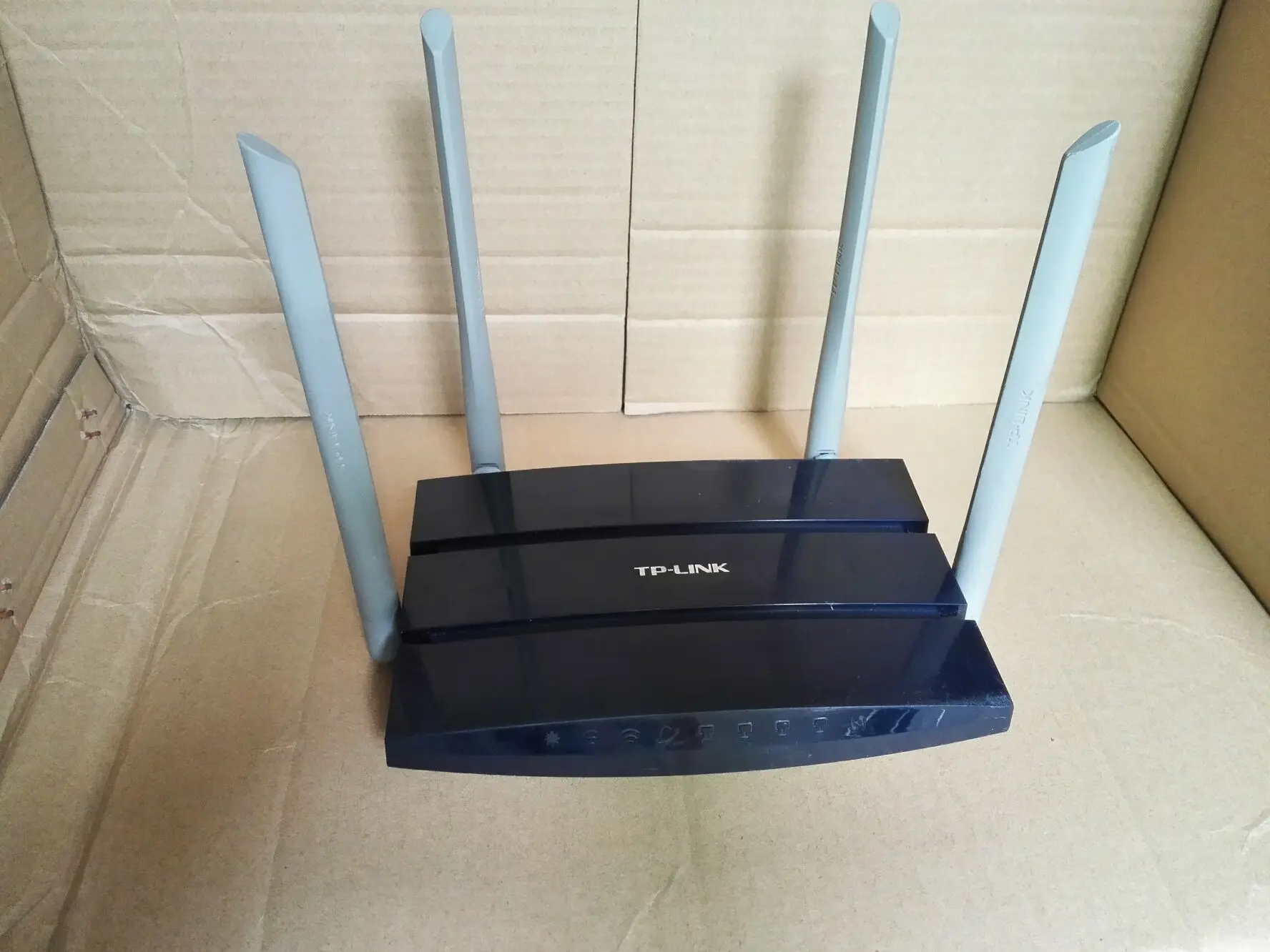

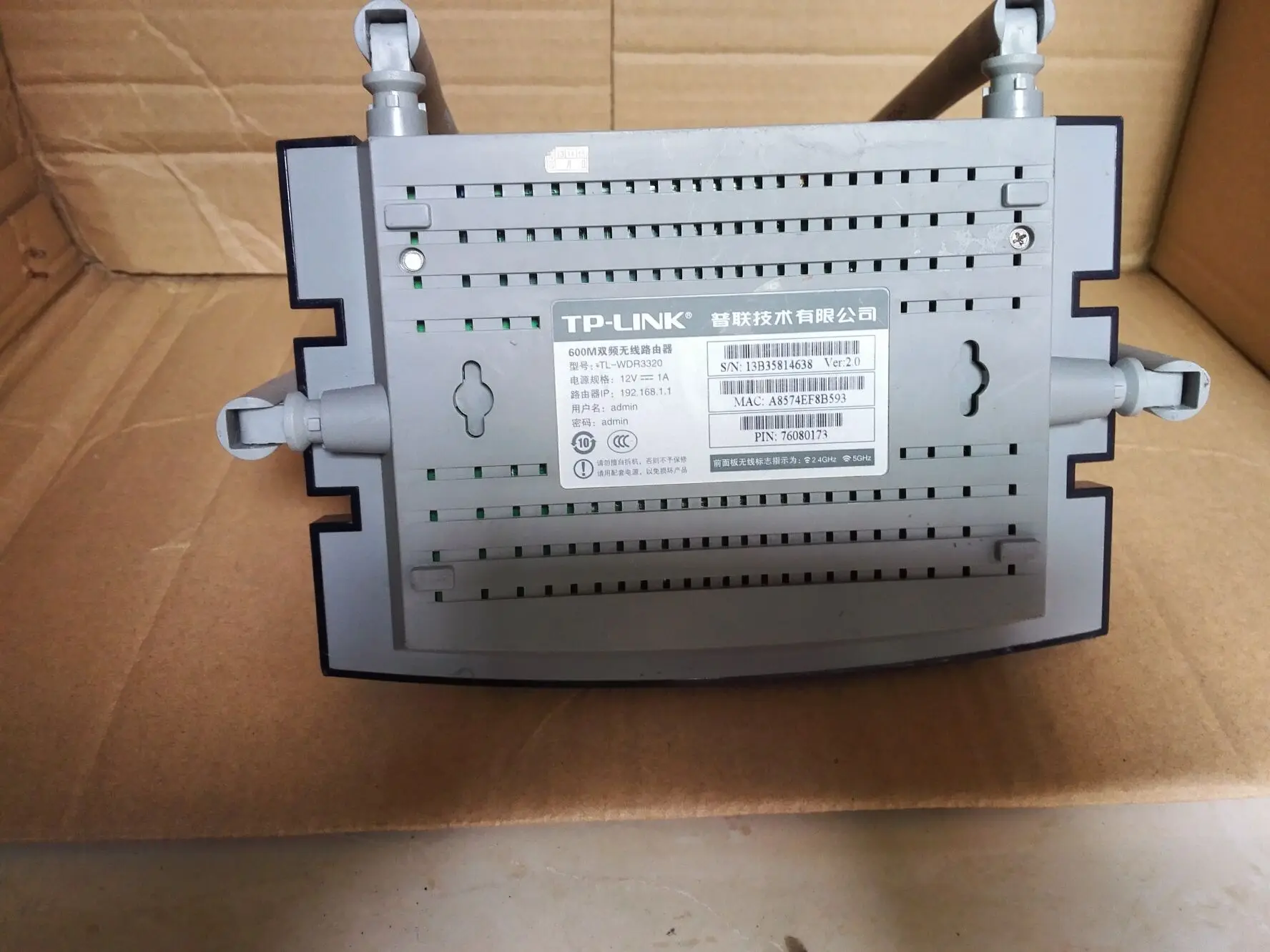

Беспроводной сетевой роутер TP-Link TL-WDR3320 600M 2.4/5 ГГц с двумя диапазонами и 4 антеннами (Б/У, имеет царапины)

Model NumberTL-WDR3320Brand NameTP-LinkFunctionFirewallTypeWirelessApplicationHomePackageNoStandards And ProtocolsWi-Fi 802.11gStandards And ProtocolsWi-Fi 802.11bStandards And ProtocolsWi-Fi 802.11nLAN Ports4WAN Ports1 x10/100MbpsMax. LAN Data Rate100MbpsWith Modem FunctionNoSupports WDSYesSupports WPSYesWi-Fi Supported Frequency2.4G & 5G2.4G Wi-Fi Transmission Rate450 Mbps5G Wi-Fi Transmission Rate867MbpsMeasurement unitpiece/piecesEach pack1

Unavailable in

Description

NOTE:ITS NO FULL NEW,AND ONLY CHINESE VERSION.NEED USE MANUAL COMPARE SETTING.100% TESTED GOOD.Only the US standard plug.
Its used so Dust and scratches are inevitable.u u mind pls don't pay.



Hardware

Protocol

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b; IEEE 802.3, IEEE 802.3u, IEEE 802.3ab;

Speed ratio

2.4GHz: 300Mbps 5GHz: 300Mbps

Port

4*10/100 Auto adaption LAN port, support auto MDI/MDIX 1*10/100 Auto adaption LAN port, support auto MDI/MDIX

Button

QSS/Reset button

LED

Power indicator SYS system indicator 2.4GHz status indicator 5GHz status indicator Port Link/Act indicator QSS safety status indicator

Antenna

4 external un

Dimension

182mm x 160mm x 33mm(L x W x H)

Wireless

Basic function

Wireless switch SSID broadcast switch Work frequency selection: 2.4GHz,5GHz; 2.4GHz channel selection: 1-13; 5GHz channel selection: 149, 153, 157, 161, 165; Bandwidth selection: 20MHz, 40MHz, Auto 2.4GHz wireless mode selection: 11n only, 11 bgn mixed(default, 11 bg mixed, 11g only, 11b only; 5GHz wireless mode selection: 11n only, 11 an ixed(default), 11a only; WDS wireless bridging

Security

Wireless MAC address filter Wireless safety switch 64/128/152 bytes WEP encryption WPA-PSK/WPA2-PSK, WPA/WPA2 safety system QSSquick safety setting

Others

Support wireless roaming Wireless host status display

Wired

Function

IP bandwidth control PeanutHull DDNS;

Network setting

WAN port support: PPPoE, dynamic IP, static IP; Dial: Auto, As need, Manual, Timer; MAC address modify and copy; VPN Pass-through; Static router

DHCP Setting

DHCP Server DHCP Client Client port list Static address distribution

Network share



Port transmission

Virtual server Special application DMZ Host UPnP Setting

Safety setting

IP/MAC Address binding to prevent ARP attach IP address filter Domain filter MAC address filter DoS attack prevention FLOOD attach prevention Ping Pack control

System tool

Traffic log Safety daily Remote Web management File inport/outport

Others

Package

600M Dual Band Router TL-WDR3320; Power adapter

Environment

Work temp.: 0℃~ 40℃; Storage temp: -40℃~70℃; Work humidity: 10%~ 90%RH no condensing Storage humidity: 5%~ 90%RH no condensing

---
