FULL-Ts982 5.8G Fpv 600Mw 1Km 48Ch Av Wireless Transmitter Single Digital Display With Mic | Электроника

5.8G aerial transmission transmitter, switchable selection 25MW or 600MW output power, 600MW output aerial photography above 1KM transmission distance, key switch selection frequency, single digital display, 48CH, ultra-small light, the total weight of 7g, superior performance, since With MIC, 12V power output.
The new 48-point 5.8G aerial map transmission TS982 transmitter with power regulation 25MW ~ 600MW.

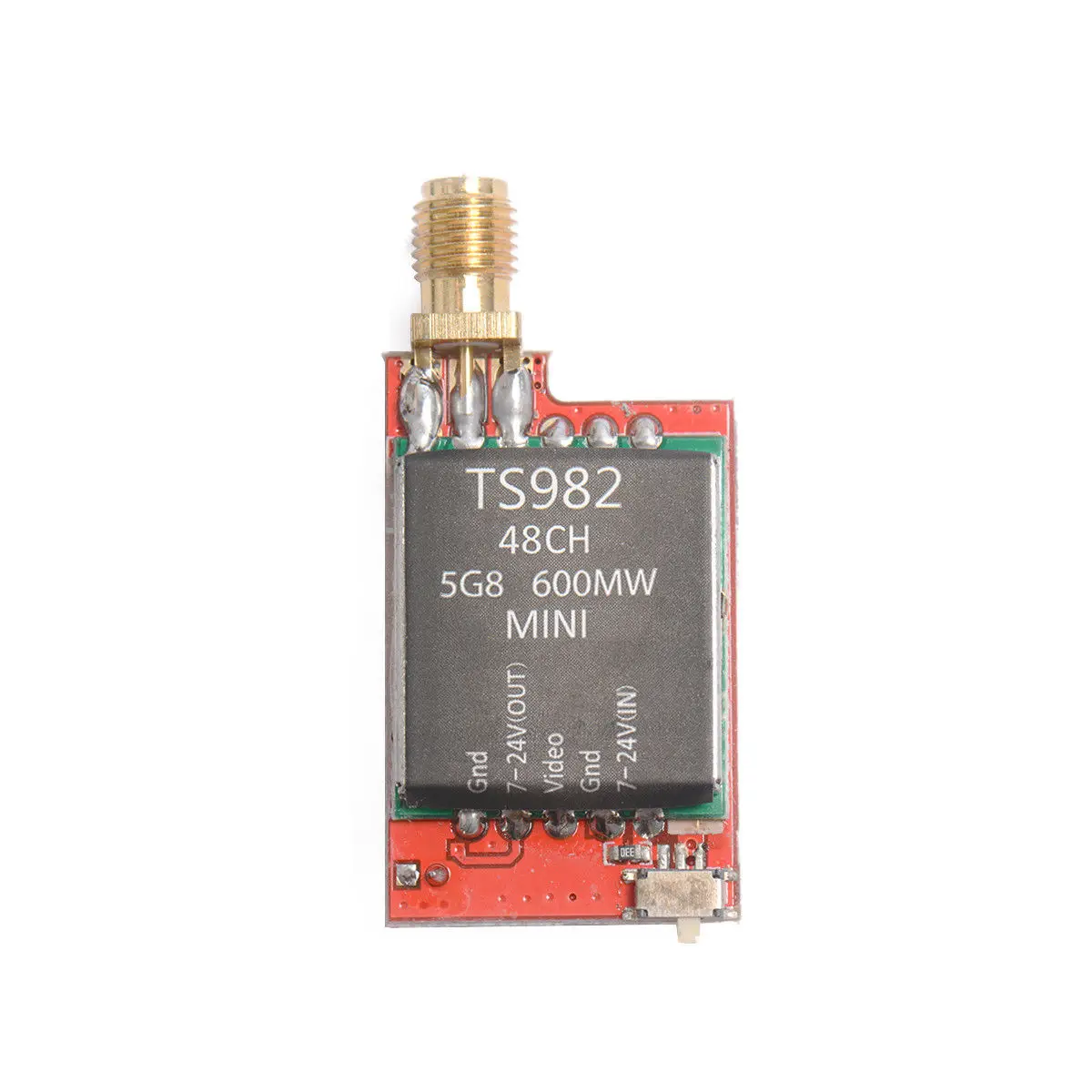

Mini TS982 ~ Figure transmission transmitter, shape and power, TS982 can enter 7-24V, TS982 output 12V voltage.

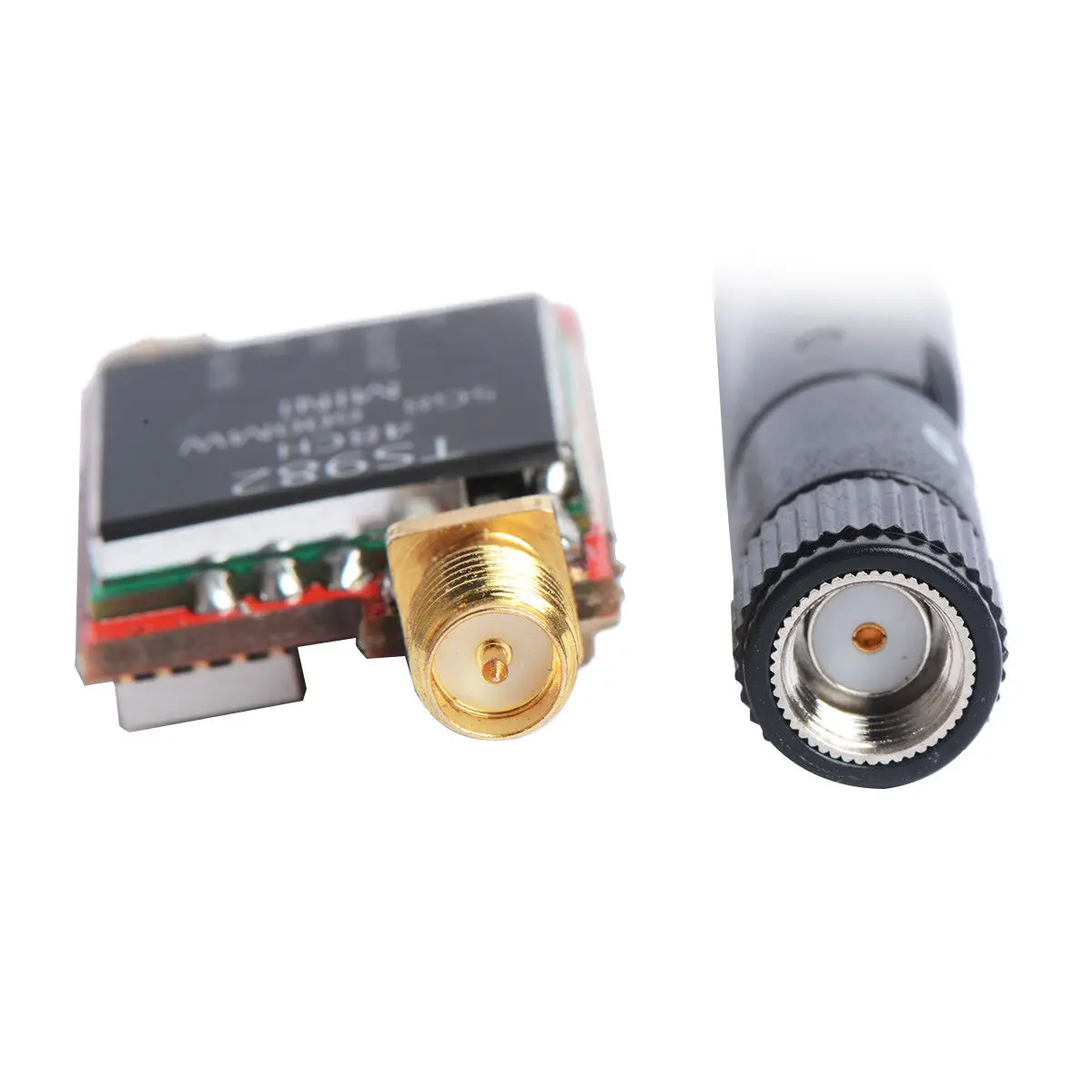

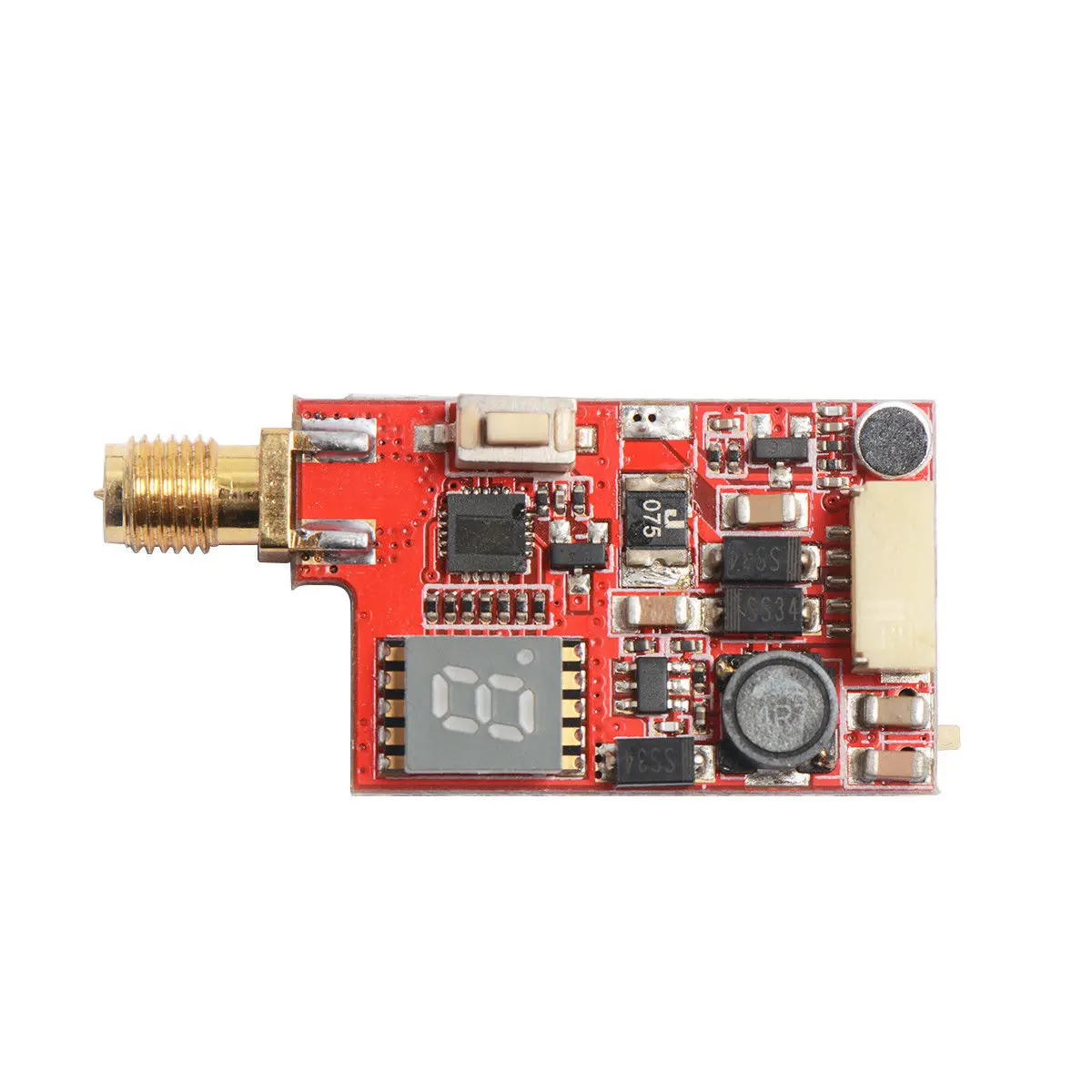

New design, rich frequency resources, mini upgrade, comes with MIC, launch and receive with LED digital display, to avoid the previous generation of products due to wrong code lead to close to the problem.Transmitter / receiver interface: SMA outer snail needle.The original antenna air-blocking distance of 1-2km or so, the transmitter using mushroom antenna, the receiver using 5.8G 14DB flat antenna can reach 5-6KM distance
How to use the display:1, the use of video cable to connect the receiver and the display interface, the receiver 5V power supply;2, the airborne map transmission equipment after power, in the figure on the long press 3 seconds function keys automatically search the frequency and automatically lock the signal the strongest frequency.
Requires antenna interface: SMA internal bore
How to use your on phone:
1, Andrews mobile phone installed APP download address: direct search download app "pocket FPV";
2, with OTG line to connect mobile phones and receivers (no external power supply);
3, the airborne map transmission equipment after power, in the figure on the long press 3 seconds function keys automatically search the frequency and automatically lock the signal the strongest frequency.
Computer use:
1, with the USB cable to connect the computer;
2, XP system (open the camera), WIN7 system (install amcap)camera software, WIN10 system to open the camera;
3, the airborne map transmission equipment after power, in the figure on the long press 3 seconds function keys automatically search the frequency and automatically lock the signal the strongest frequency.
colour:red + black
Material:Plastic + PCB
Size: 5*4*1.5cm
Weight: 8g

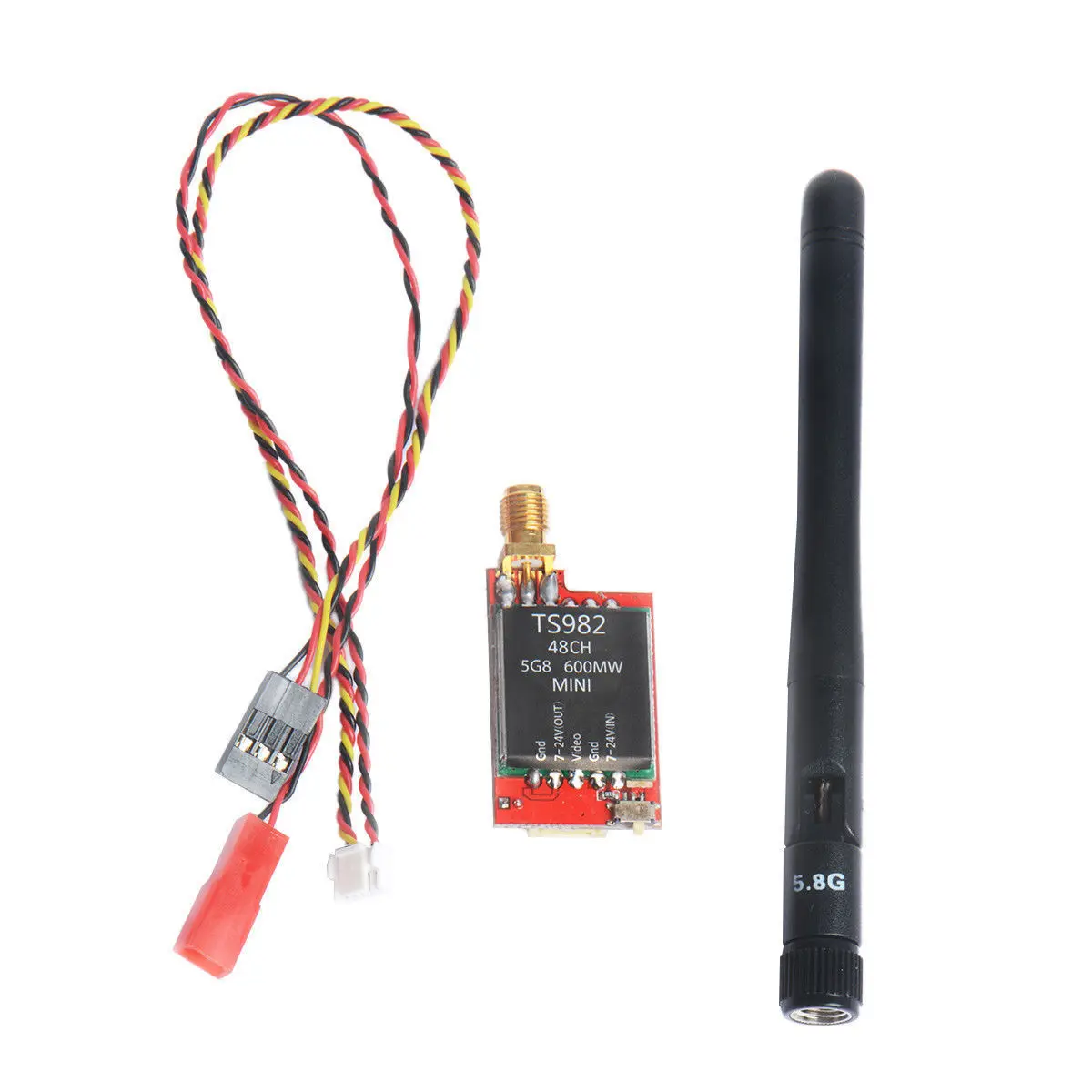

Package Contents:
1 * TS982 Transmitter
1 * Antenna
1 * Connect Cables
1 * Product manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
