Swivel Neck Thermostat Housing for K Series K20 K24 radiator hose k swap | Автомобили и мотоциклы

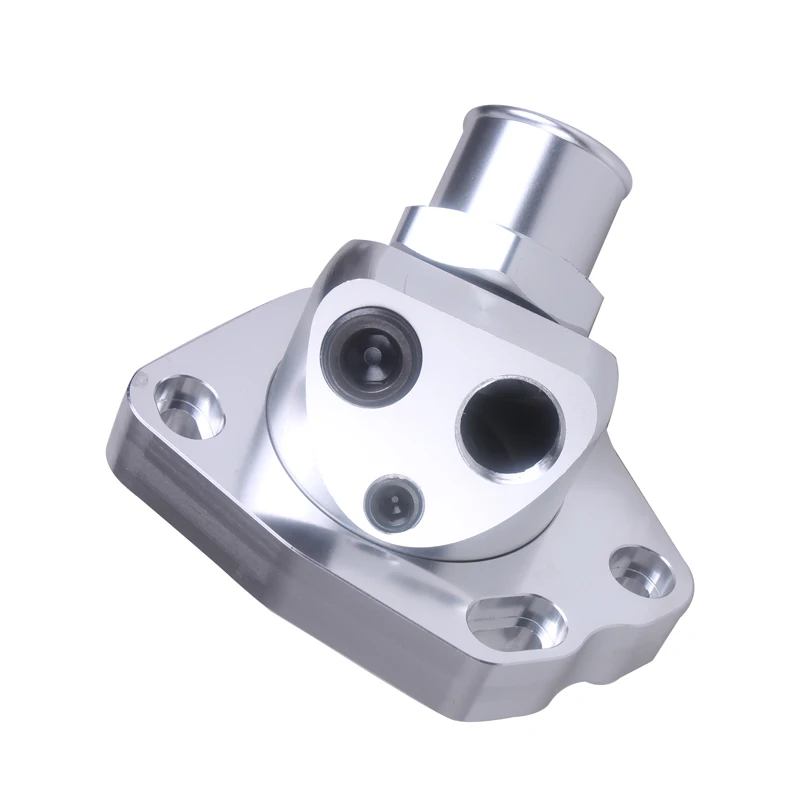

Swivel Neck Thermostat Housing for K Series K20 K20a K20a2 K20z1 K24A K24Z
the solution to your lower rad hose problems.
After that, you have to figure out where to put your fan switch and in the past the only option was to use a special inline aluminum hose adapter.
This product solves all these problems and gives you some options when doing your swap.
The housing swivels, allowing you to position the water outlet angle before it is tightened down.

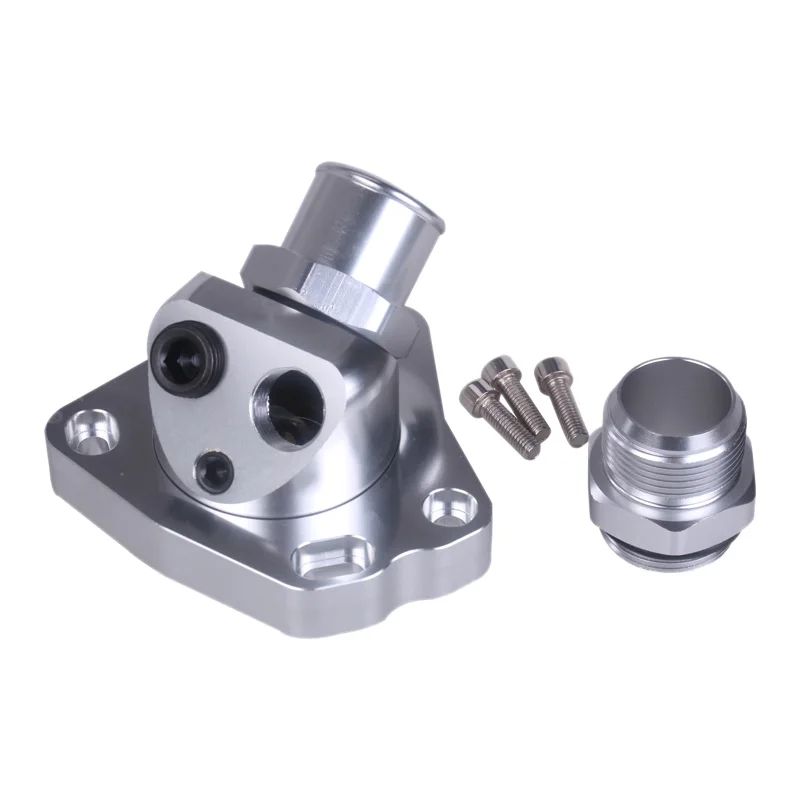

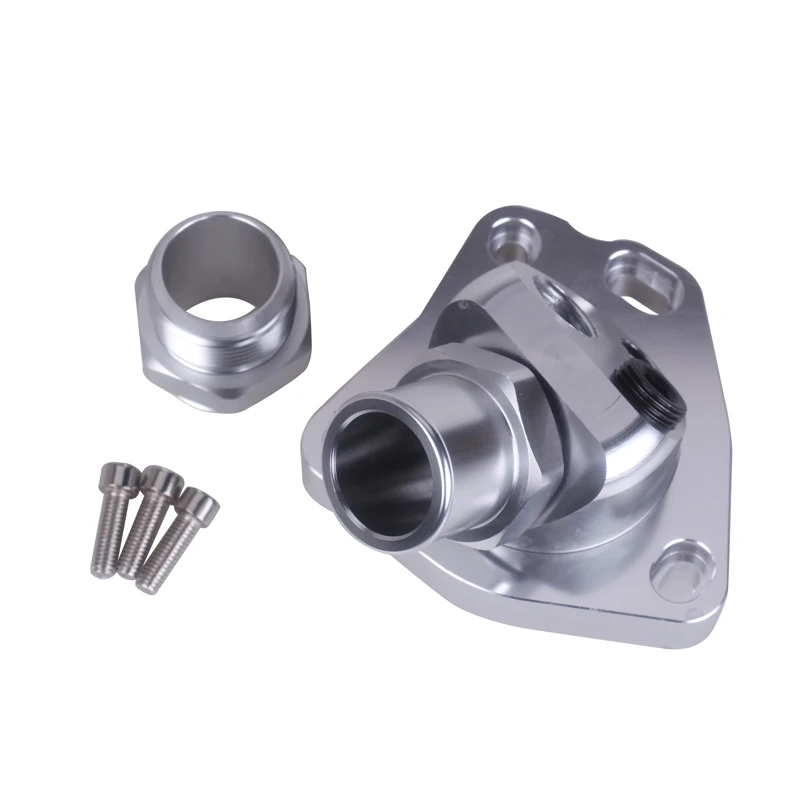

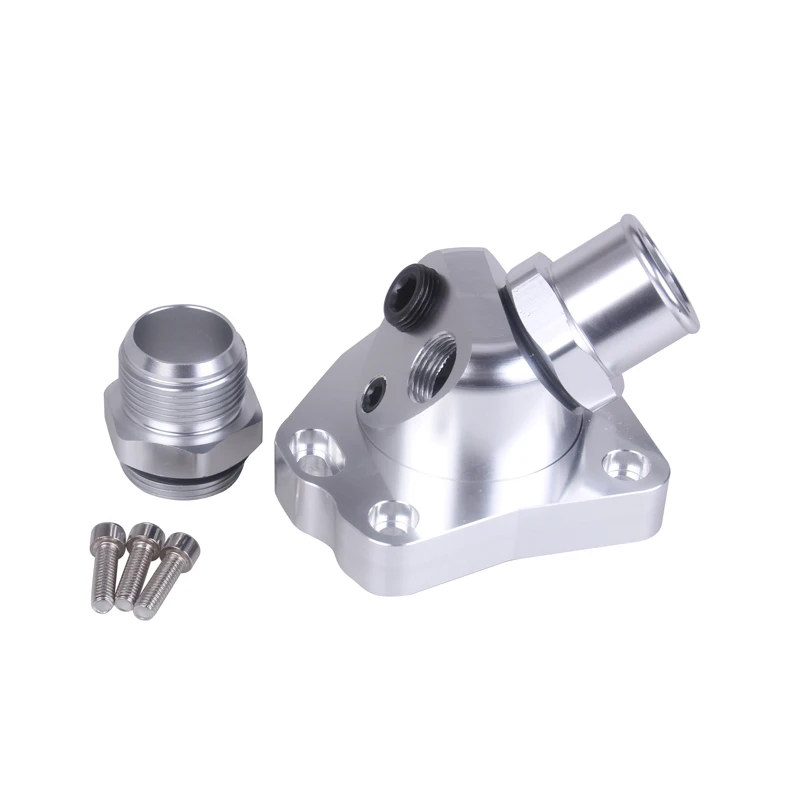

The provided custom made fitting is the same size as the hose on one end, and is threaded for an AN fitting on the other end.
This allows you to use whatever size fitting you need for custom installations. If you want to use braided hose with AN fittings, this housing will bolt on easily and with the right adapter threaded in, you’ll be all set.

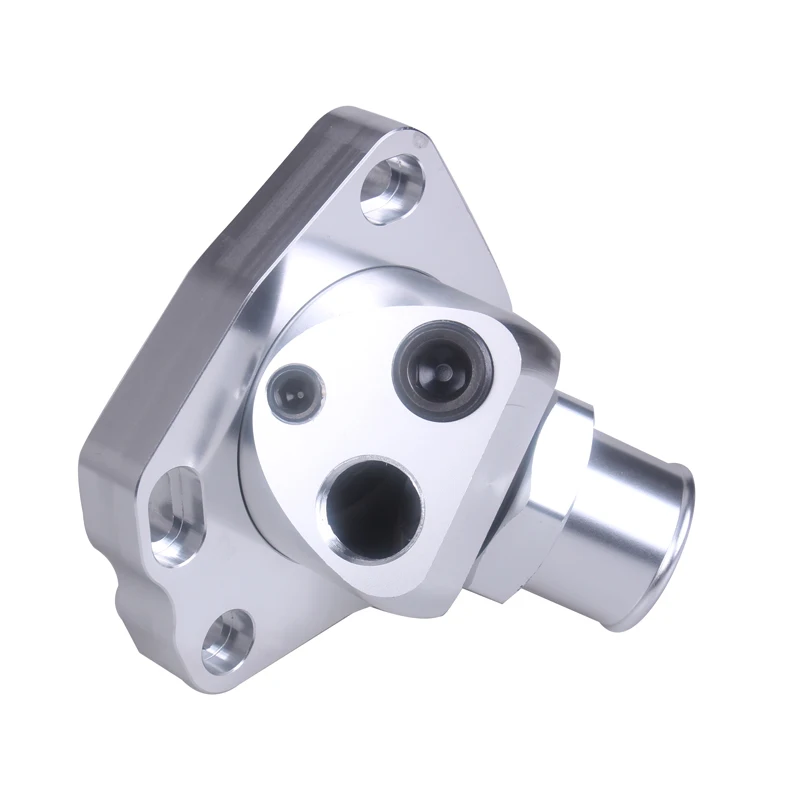

The housing has three ports in the body, one for your fan switch, a 1/8 NPT port for gauges etc. and also ½ NPT port for our optional recirculation fitting. 2 NPT plugs are included in case the ports remain unused.

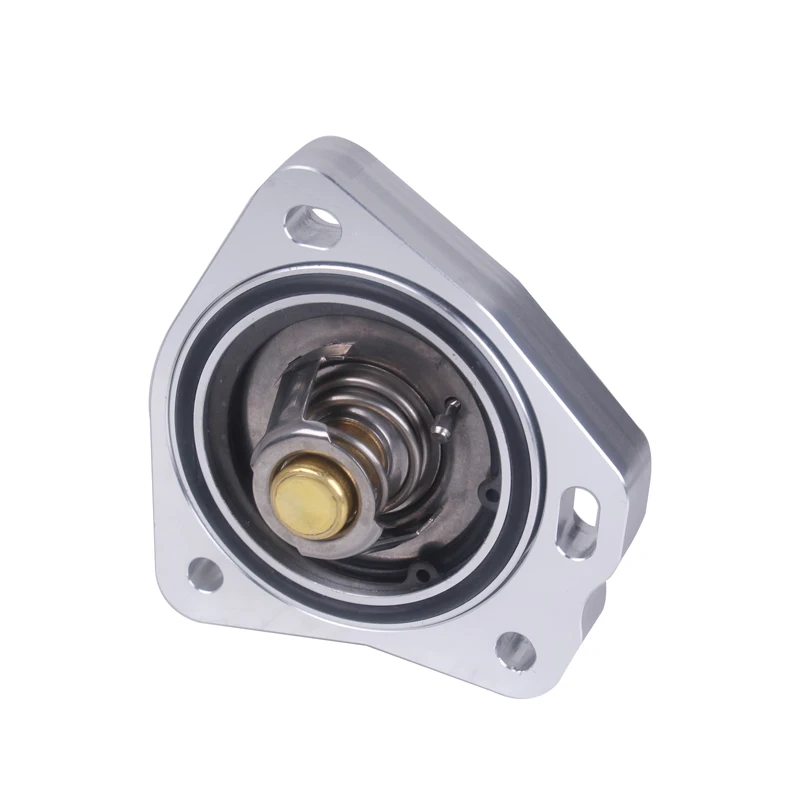

The swivel neck comes pre-assembled with a quality thermostat (180 deg.) which is held in place with a 'C' clip.
The kit uses a standard size thermostat that you can easily replace with anything in the 160-195 degree range.
Last but not least, this was a bonus we found while designing it.
We noticed that by adding one more hole to the flange you could completely remove the housing from the block and delete the heater core hoses.
When set up this way, our thermostat housing is bolted directly to the water pump housing. This is perfect for race car applications.
colour:Silver
Material:metal
size:12.5*11.5*8.5cm
Package Contents:
1x Cooling Components Swivel Neck Thermostat
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
