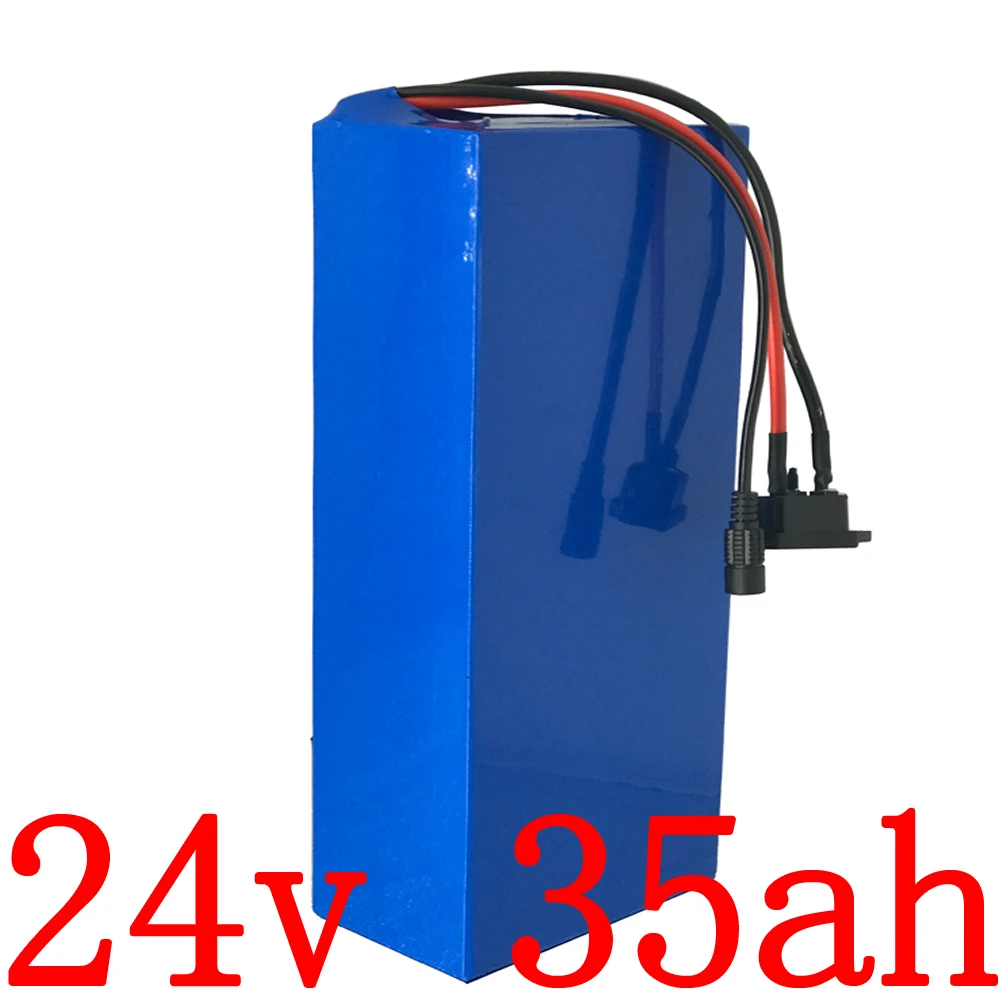

24V Ebike Batterie 500W 1000W electric bicycle battery 24Volt 20AH 25AH 30AH 35AH 40AH Lithium ion Scooter Battery Pack | Спорт и

24V Ebike Batterie 500W 1000W electric bicycle battery 24Volt 20AH 25AH 30AH 35AH 40AH Lithium ion Scooter Battery Pack | Спорт и

24Volt 20AH 25AH 30AH 35AH 40AH Lithium ion Scooter

Battery Pack

Parts included:

1. 24v 35ah Lithium battery pack

2. Built-in 50A BMS board

3. 29.4v 3A or 5A  Charger (With EU/US/UK/AU Adapter you can choose)

24V 20AH Size：165*145*70mm（+/-5mm）7S8P

24V 25AH Size：200*145*70mm（+/-5mm）7S10P

24V 30AH Size：235*145*70mm（+/-5mm）7S12P

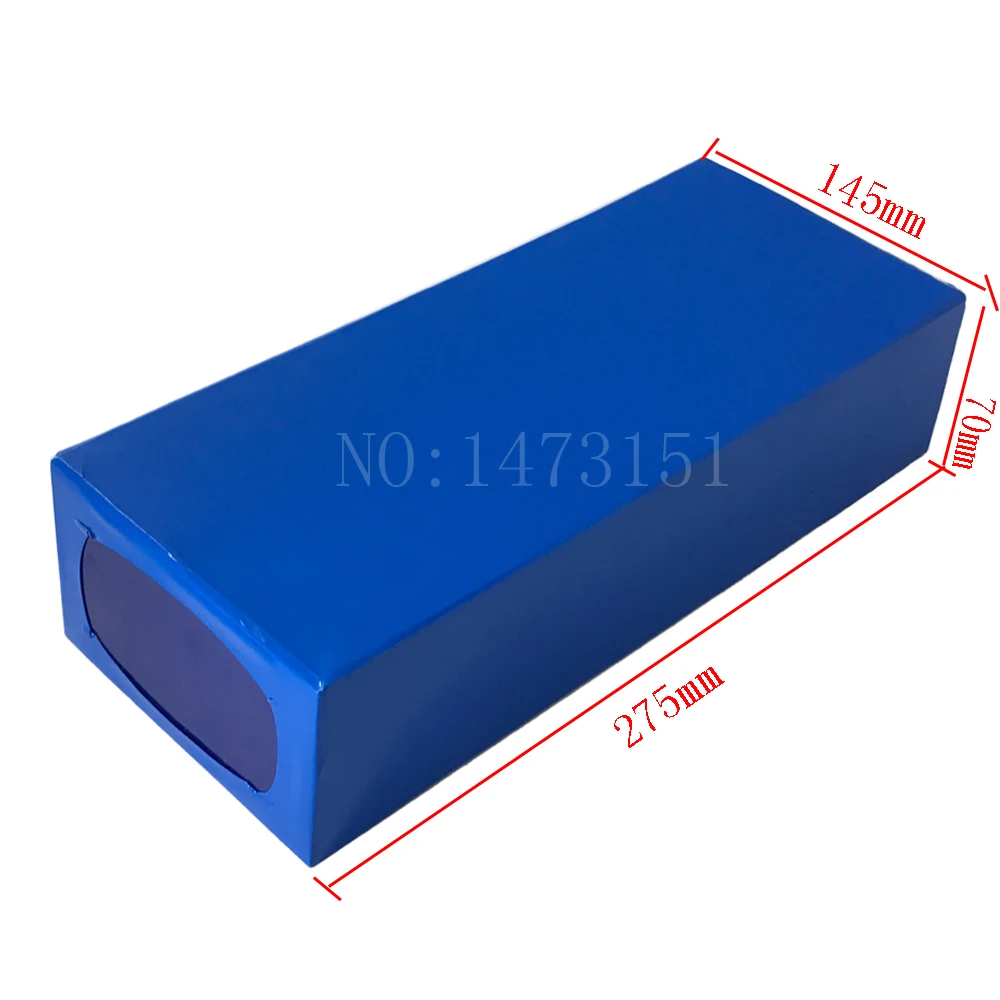

24V 35AH Size：275*145*70mm（+/-5mm）7S14P

24V 40AH Size：315*145*70mm（+/-5mm）7S16P

Product Specifications

Battery Model

24v 35ah

Nominal Voltage (V)

24v

Nominal Capacity (AH)

35ah

Source Resistance (mΩ)

about 40

Cell Specification

3.7V 2500mah

Cell Combination

14-parallel 7-series

Cell Si

3.7V 2500MAH 18650

Cell Quantity (parallel*series)

98pcs

Discharge Cutoff Voltage (V)

21+/- 1V

Charge Cutoff Voltage (V)

29.4v

Rated Discharge Current (A)

50A

instantaneous Maximum Discharge Current (A)

150A

Maximum Continuous Discharge Current (A)

50A

Maximum Continuous Charge Current (A)

5A

Charge Mode

CC-CV

Standard Charge Current (A)

5A

Charge Time under Standard Charge Current

17.5hours

Fast Charge Current (A)

5A

Charge Time under Fast Charge Current

8hours

Charge Temperature Range

-20-55°C

Cell Size (L*W*T )

275*145*70mm

Battery Weight

About 5KG

Battery Power

500W 750W 1000W

Feature:

1. Cells - A grade cells to make sure batteries in high and full capacity

2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger,

anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5.  Long life cycle, No memory, environment friendly.

Lithium battery features:

1.High energy density, Fast charging

2. Light weight, small size  Pollution-free, environment friendly

3. Long cycle life; It extends its cycle life up to 600-800 cycles

4. With short-circuit production function, safe and reliable

5. Large overcharge tolerance and safe performance the battery life is more longer

6. Simplifying battery management system (BMS such as overcharge/ discharge,over current, short circuit,

over temperature and balancing) and Battery Charger

Precautions:

1.Do not reverse the position and negative terminals.

2.Do not connect the battery electrodes to an electrical outlet.

3.Do not discard the battery in fire or a heater.

4.Does not use or leave the battery near a heat source as fire or heater

5.Do not short circuit, over-charge or over-discharge the battery pack

6.Do not strike, trample or throw the battery.

7.Do not directly solder the battery and pierce the battery with a nail or other sharp objects

8.Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

9.Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

10.Use the battery charger specifically for that purpose when recharging. Use a constant current, constant voltage

(CC/CV) lithium-ion (Li+)batterycharge controller

11.Do not immerse the battery in water or seawater, and keep the battery  in a cool dry surrounding if it stands by.

12.If shelve a long time suggested that the battery need for regular recharging (even if not use), must charge and

discharge for three months one time;

Payment:

1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment process or escrow

2) Payment must be made within 3 days of order.

3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be

completed with in 3 days.

4. Battery is a special product, all batteries need several cycle tests before delivery, All e-bike batteries will be produced

once confirm order.so production and test time need about 3-5 days

Guarantee

We provide 1 year warranty for all electric bike batteries.

Any battery with quality problem in one month we can return the money after you provide the proof.

After one month we can send BMS or cells to you for repairing, or you can send it back to repair as well.

All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping
