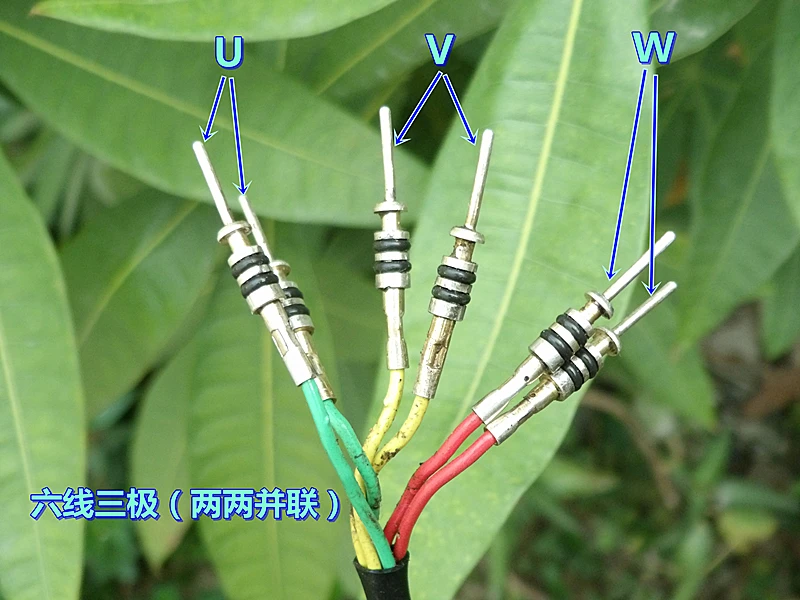

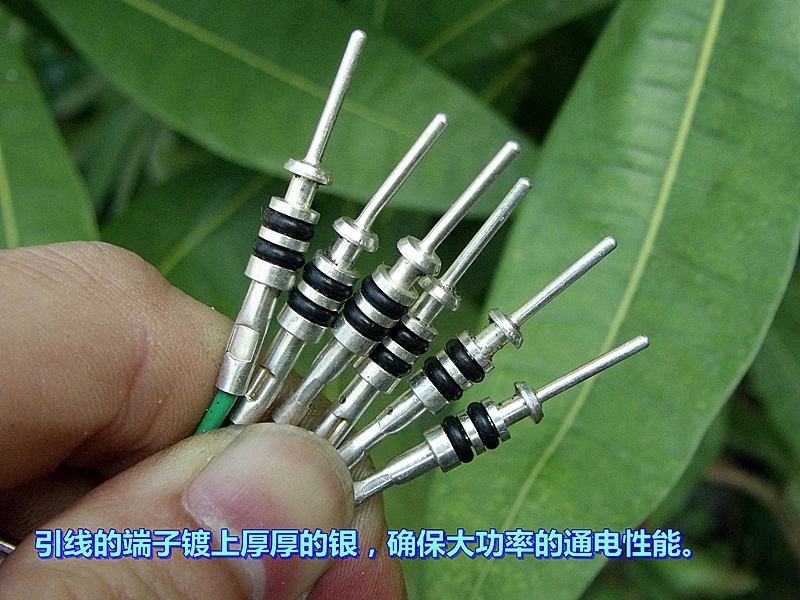

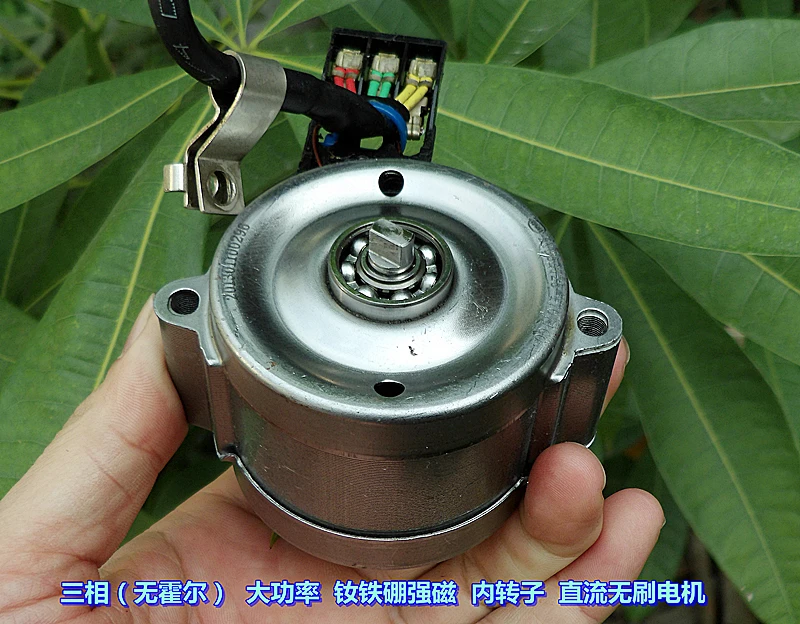

The lead of this motor is six wires, but it is connected in parallel, which is equivalent to the three-pole lead of the three-phase brushless motor of the motor. The two green lines are the U poles of the motor, the two yellow lines are the V poles of the motor, the two red lines are the W poles of the motor, and the six terminals are plated with thick silver. The motor power may be strong, so the two lines are connected in parallel. Silver plating ensures good electrical conductivity at high power.

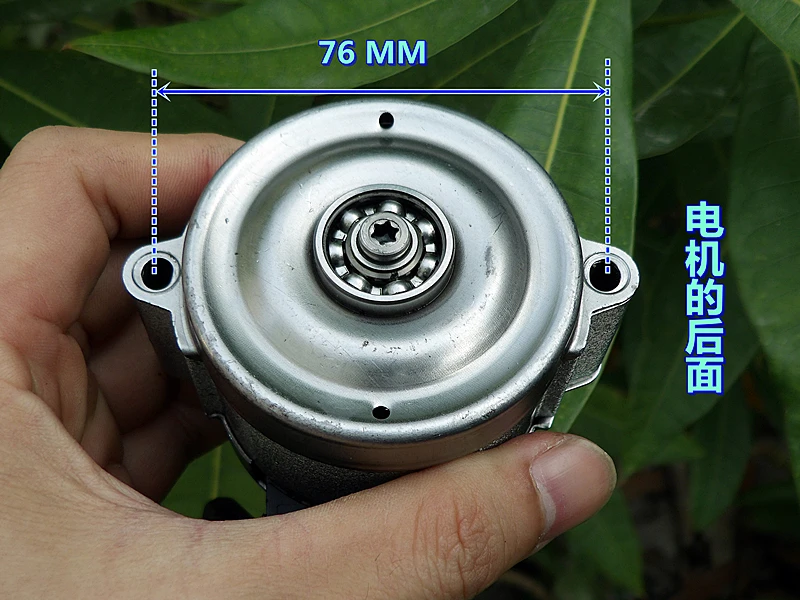

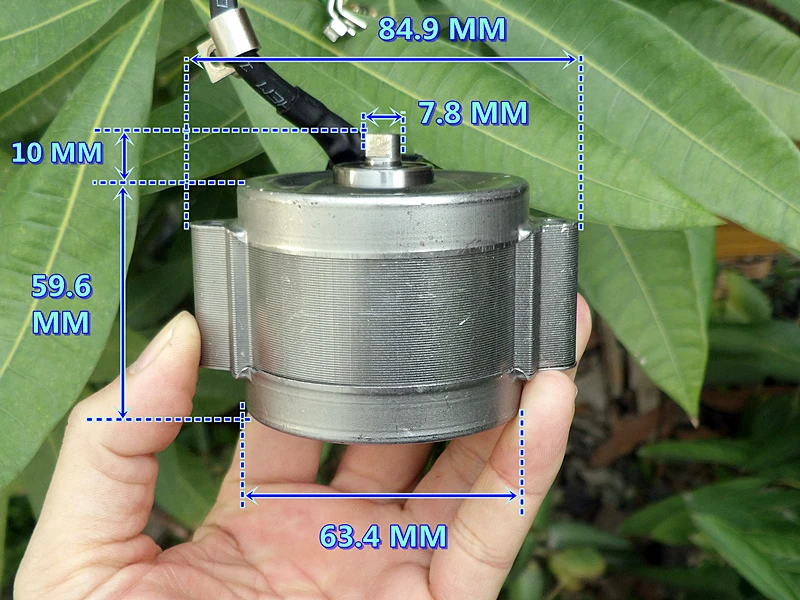

Motor diameter: 63.4 MM

Motor thickness : 59.6 MM

Output shaft: 7.8 MM (double flat position 3.9 MM)

Speed: 12V3600 rpm, 24V7200 rpm (requires brushless drive)

Weight : 757 grams

Now we can't find the name and purpose of this motor, but from the point of view of it, it is really used in high-end places. We are a layman in terms of technology, so we can't elaborate on the technical parameters. We can drive the motor with 24V drive. The speed has reached more than 7200 rpm, and the no-load current is 1.4 A. It is relatively easy to generate heat. Please take care of the buyer if you want to use it. We can't provide technical support, so we can't use it in the past.

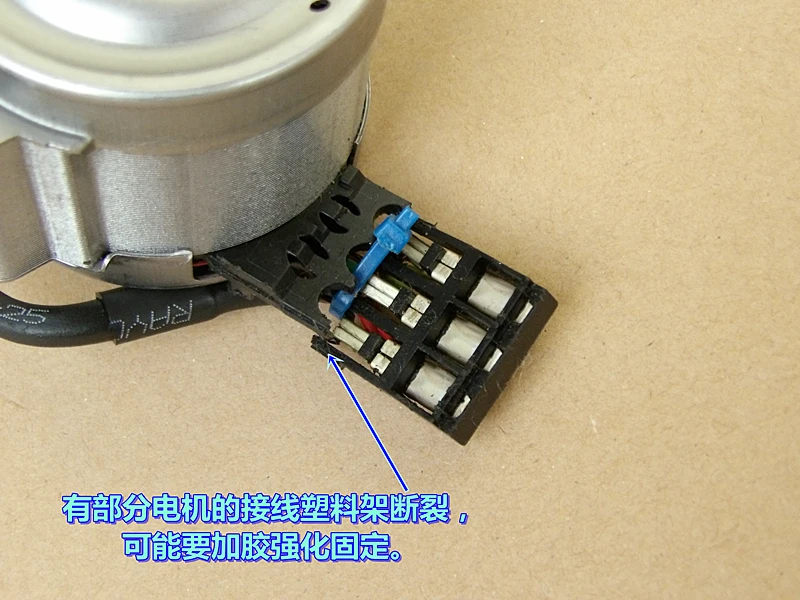

Some of the motor's wiring has broken plastic feet, but the motor can still be used normally. If it is not safe to use, you can also use a little hot melt adhesive to fix it.
