·     ·         Specification:

·         Model : GT-24

·         Module size: 30.3 × 14.5mm (including PCB antenna)

·         Operating frequency b and: 2.4GHz ~ 2.525GHz (adjustable, 1MHz step)

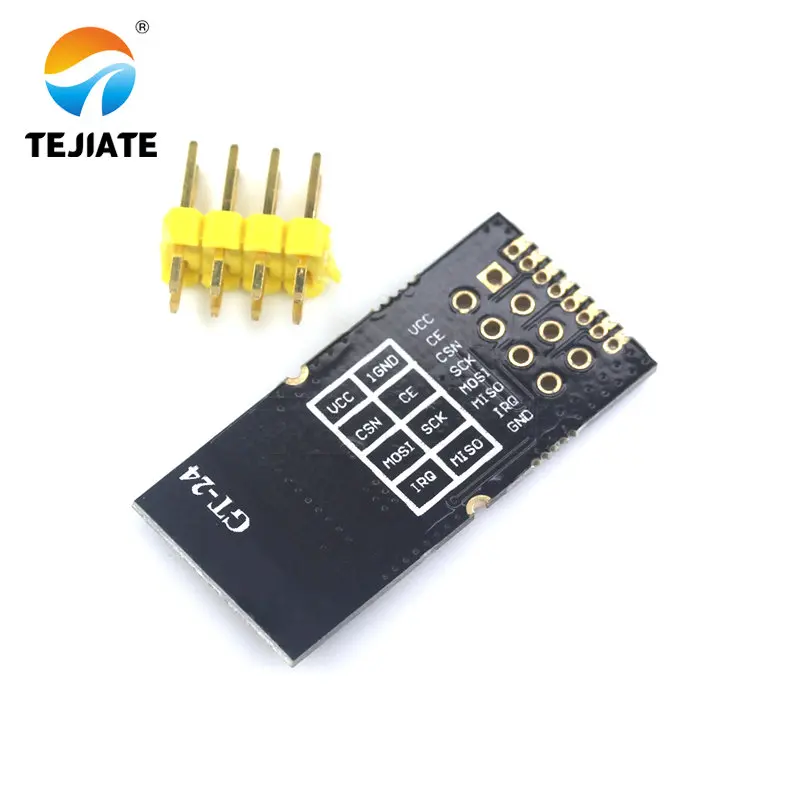

·         Interface mode: 1*8*1.27mm/2*4*2.54mm (The patch can also be used with the universal board and DuPont line)

·         Supply voltage: DC 2.0-3.6V (Note: above 3.6V, the module will be permanently damaged)

·         Communication level : 0.7VCC ~3.3V (VCC refers to the module supply voltage)

·         Measured distance: 1000m (clear open space, maximum power, height 2m, 250k air speed)

·         Transmit power: 4 levels adjustable (maximum 20dBm, approx. 100mW at maximum power)

·         Air speed 250k ~ 2Mbps / 3 levels adjustable (250kbps, 1Mbps, 2Mbps)

·         Shutdown current: approx. 30uA (test condition: CE=0, power-down mode, VDD=3.0V)

·         Emission current: about 90mA (power supply capacity must be greater than 250m)

·         Receive current: about 20mA

·         Antenna form : PCB antenna / ipex carrier antenna

·         Communication interface : SPI maximum speed up to 10Mbps

·         Transmit length: Single packet 1~32 bytes Level 3 FIFO

·         Receive length : Single packet 1~32 bytes Level 3 FIFO

·         RSSI support : Not supported (only simple packet loss statistics are supported)

·         Receive sensitivity: -94dBm@250kbp

·         Working temperature: -40 ~ +85 °C (industrial grade)

·         Storage temperature: -40 ~ +125 °C (industrial grade)

·         Features:

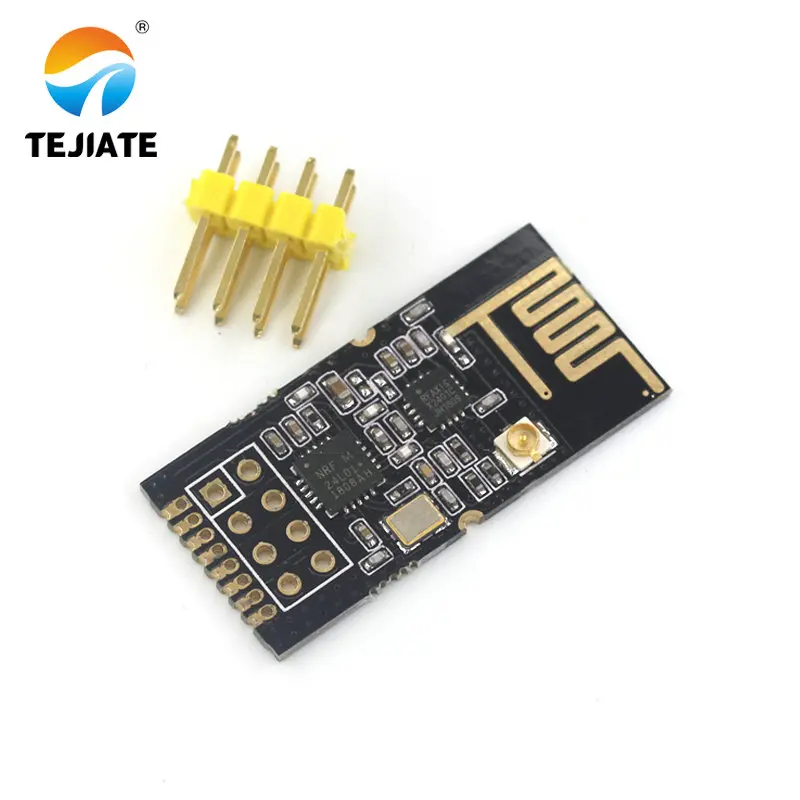

·         - The GT-24 module is a 2.4GHz, 100mW, high speed (up to 2Mbps airspeed), high stability, industrial grade wireless transceiver integrated data transmission module.

·         - The module comes with a high-performance PCB antenna, precise impedance matching, and the nRF24L01P RF chip, which has higher reliability, more power levels, and longer transmission distance and lower power than the nRF24L01.

·         - Also built-in RFX2401 power amplifier chip, built-in LNA, receiving sensitivity increased by 10dBm, working in the ISM b and of 2.4GHz~2.5GHz.

·         - The module has sufficient transmit power, good spectral characteristics, small harmonics, small channel crosstalk, and ultra-small size. It is a model of all Murata raw materials and industrial grade standards.

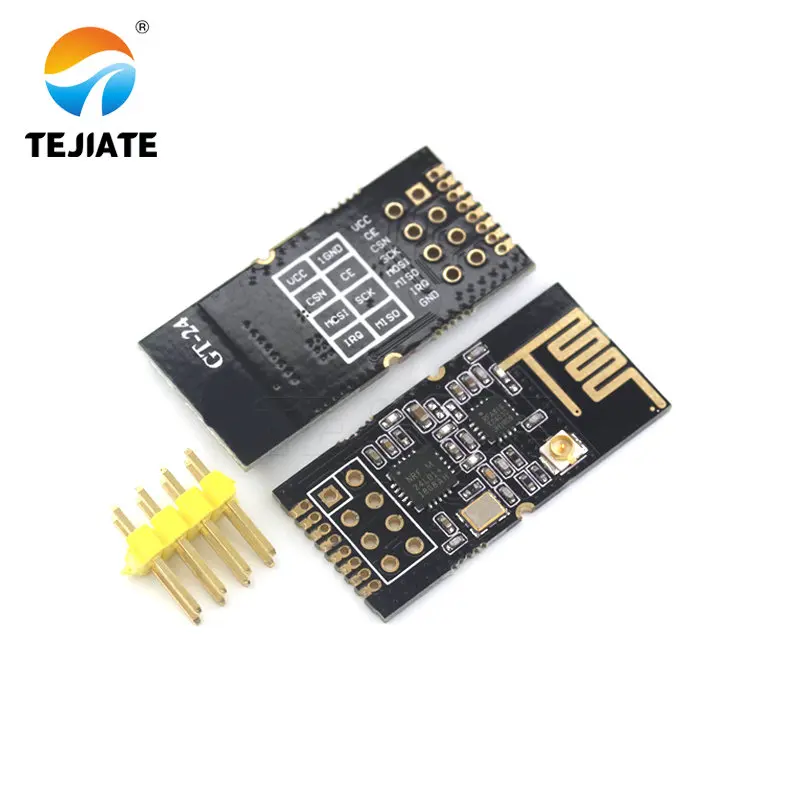

·         - It has a standard spacing of 2.54mm in-line interface and 1.27mm patch interface, which is convenient for users to use with various circuits.

- The GT--24 module also comes with a built-in PCB antenna and an ipx carrier external antenna, which greatly enhances the module's free characteristics and gives the user the greatest freedom.
