WCS2801 Bidirectional AC/DC current detection module
0-1A input -----0-4V output
Real-time detection of AC OR DC current range

1. Working voltage: 9-12v;

2. Input current signal range: 0-1A,Aout analog signal output 0-4v;

3. The analog output signal can be flexibly amplified: it can be achieved by multiplying the amplifier resistance

4. Accuracy within 1% of high precision grade;

Principle description:

The module can realize current sampling, the sampling the analog signal to the corresponding proportion of amplification processing,
formula to produce Aout=4*ia (ia current through the wire）

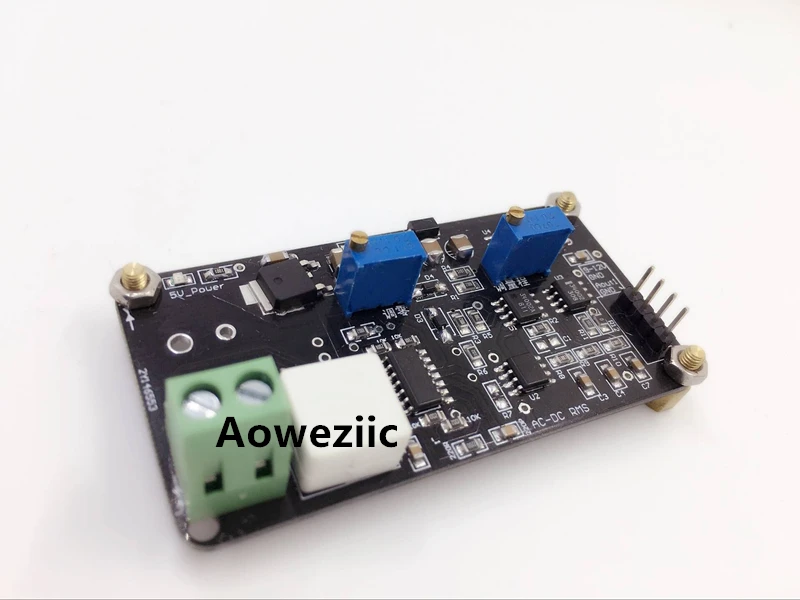

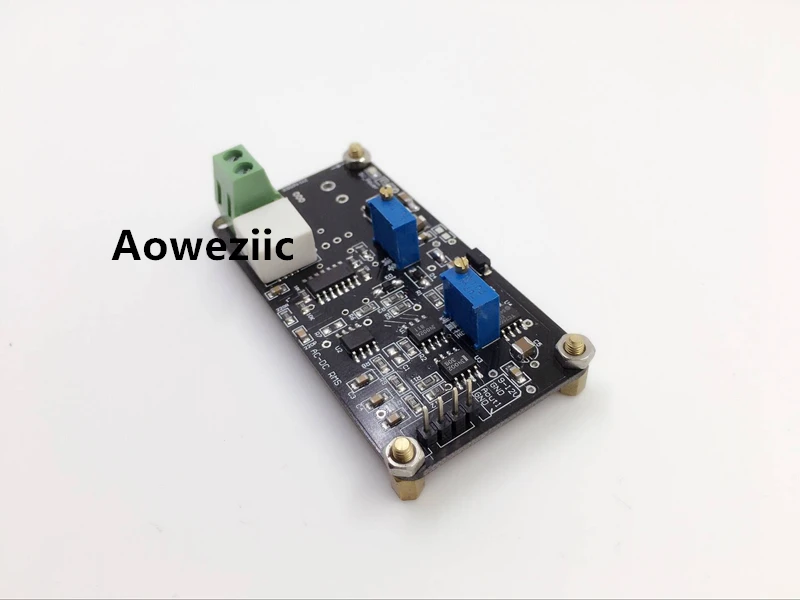

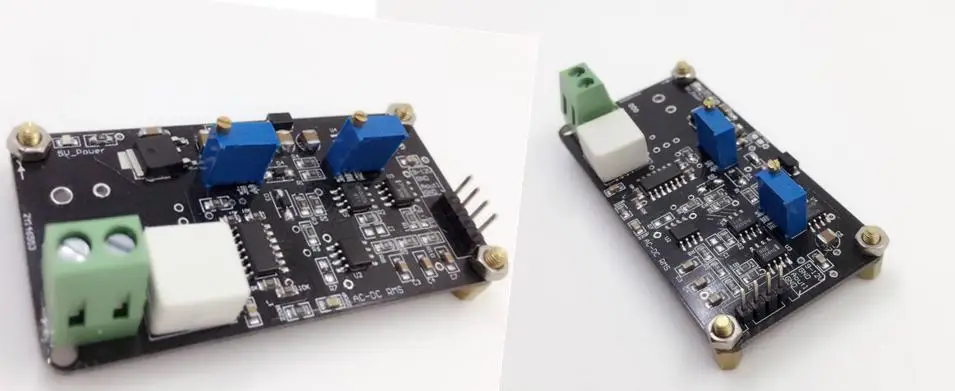

Physical module:

Figer1

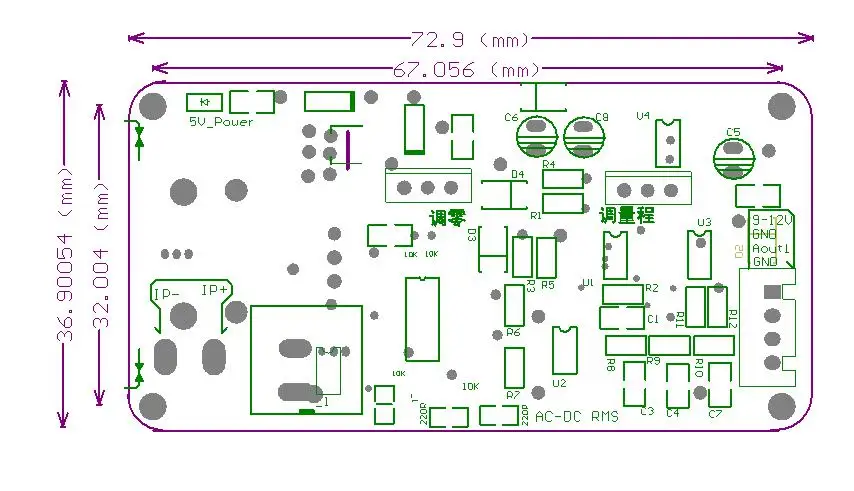

module size figure 2

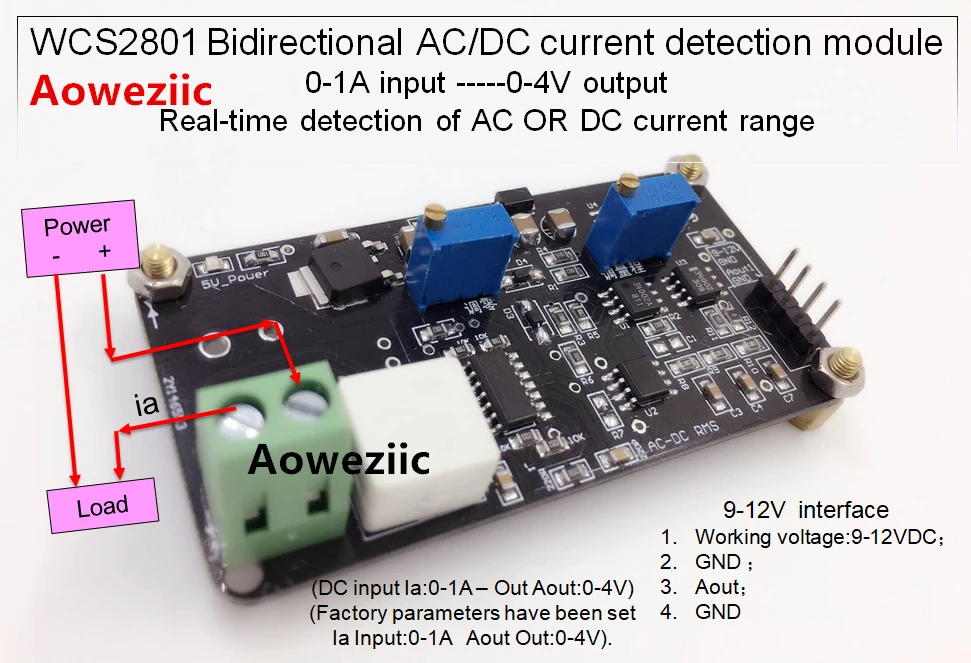

Dc current:

formula:Aout=4*ia

Forexampleif the current ia=1A ,Vout=4V;

AC test section:

The sinusoidal analog signal is used as a full wave rectifier. The following is the measured data section

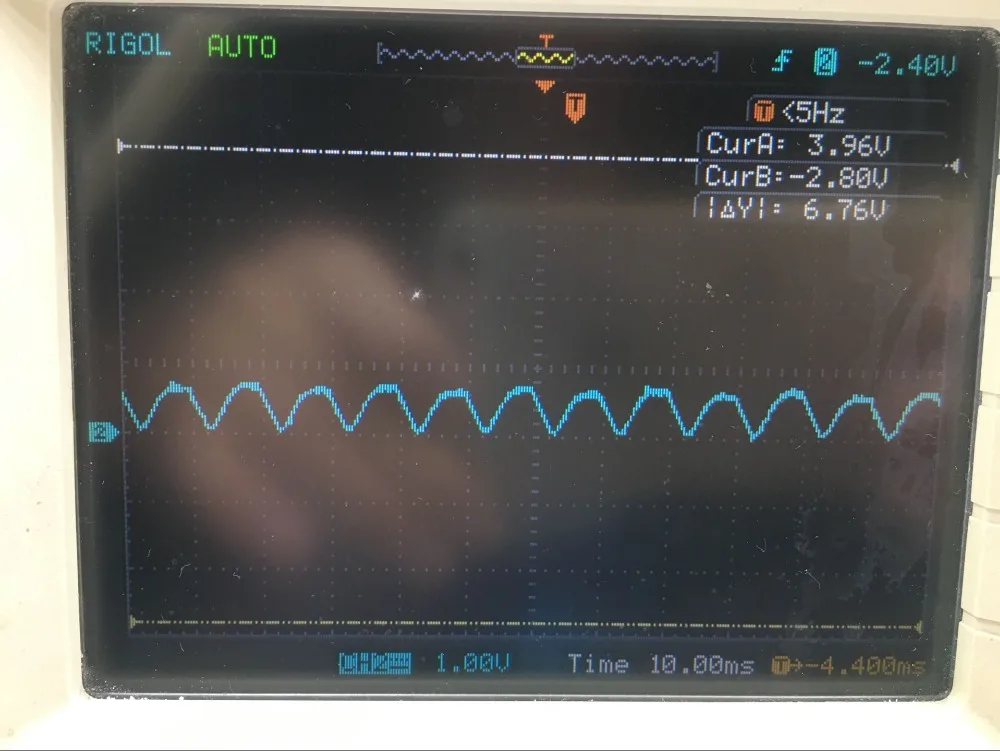

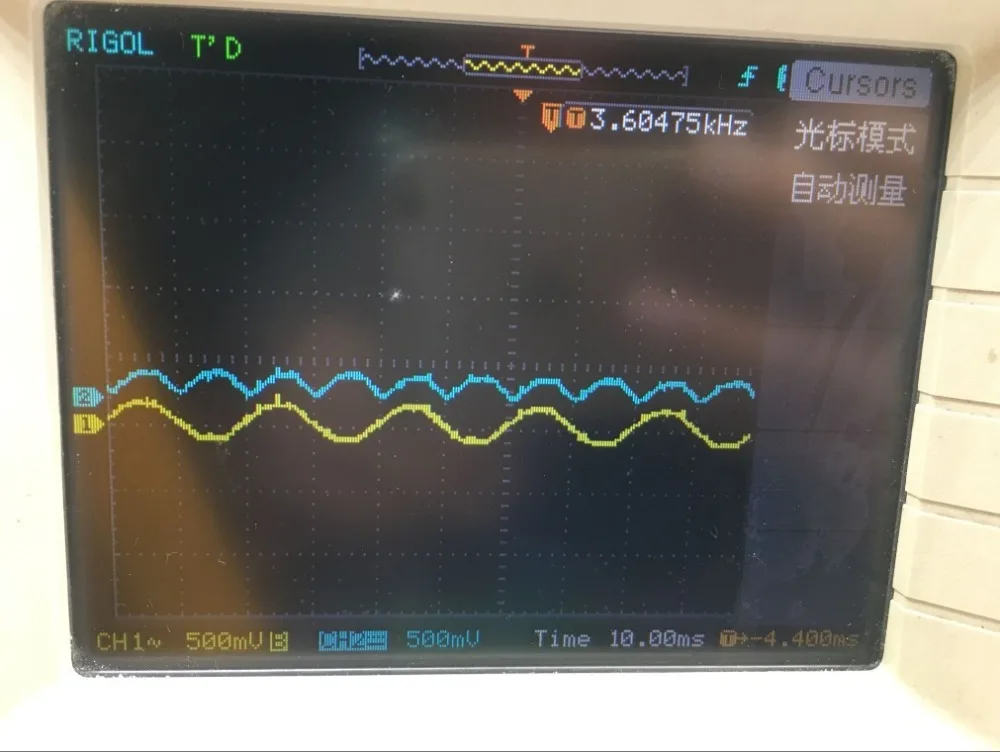

  Yellow is the input waveform and blue is the full waveform after the full wave rectifie

The output waveform of an ac signal after it is rectified by the full wave
