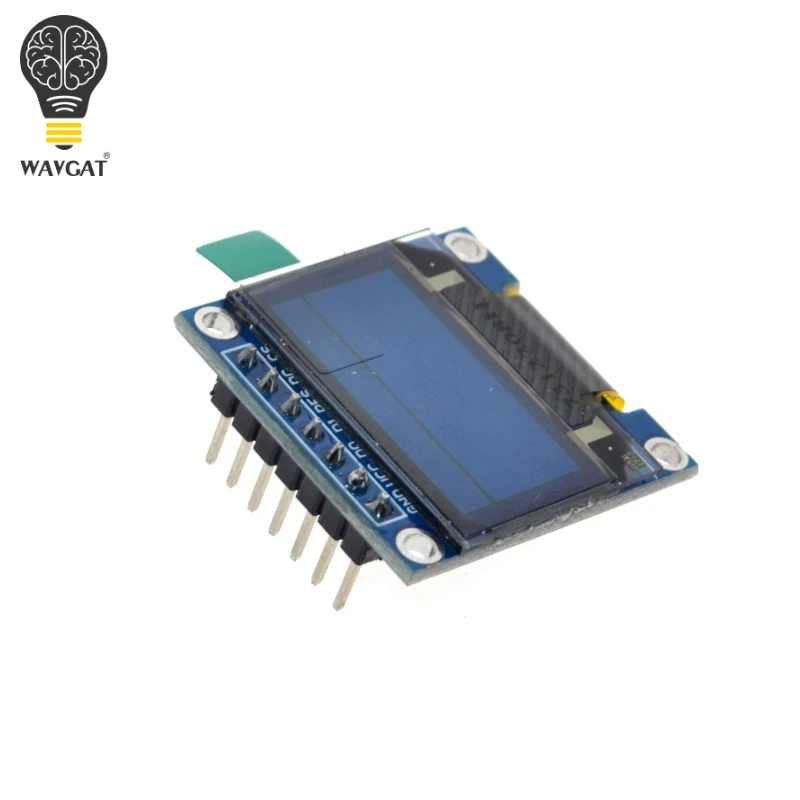

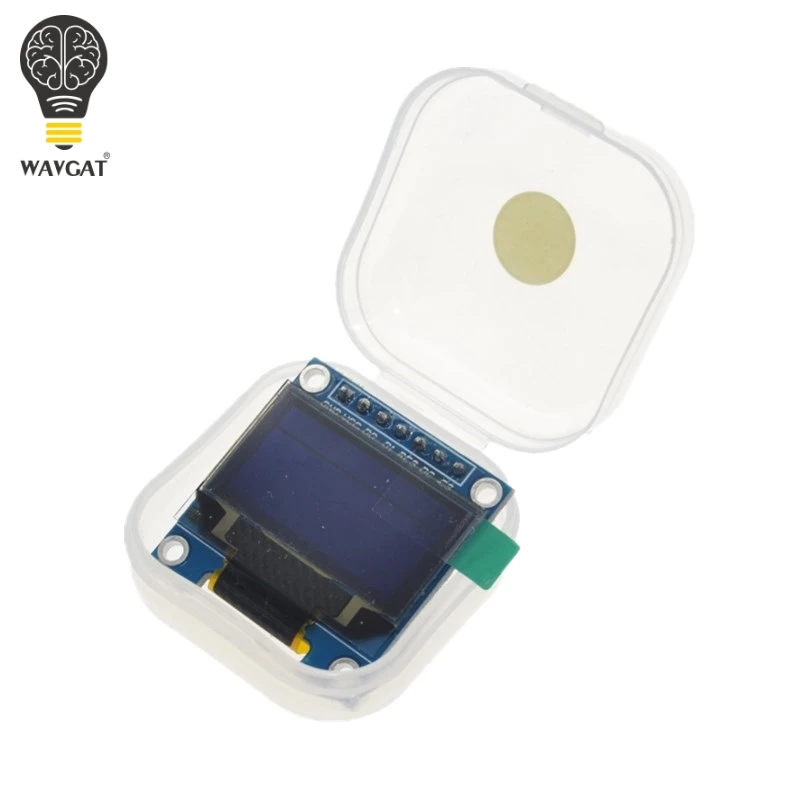

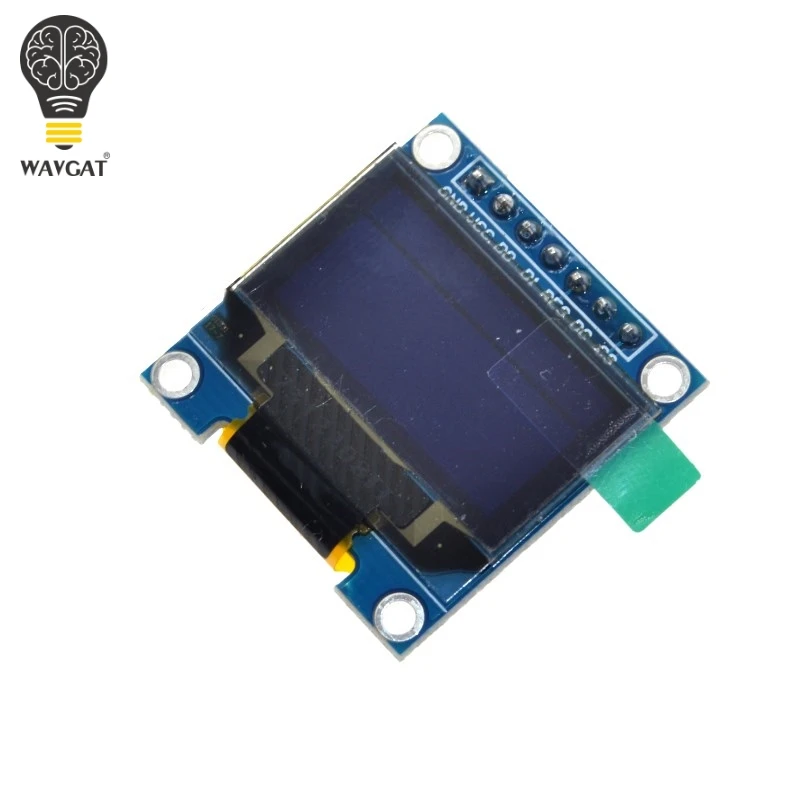

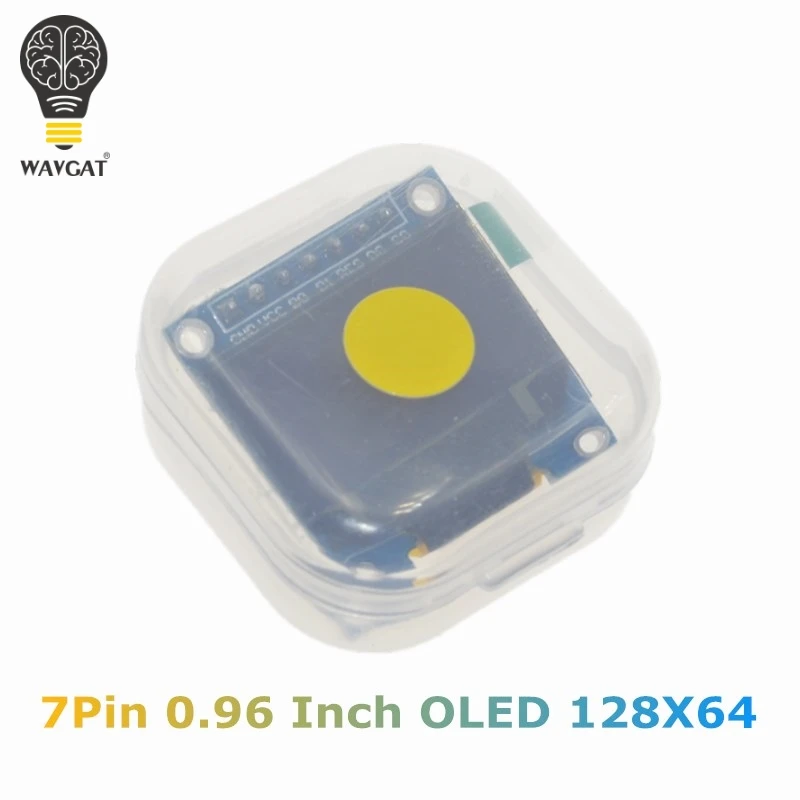

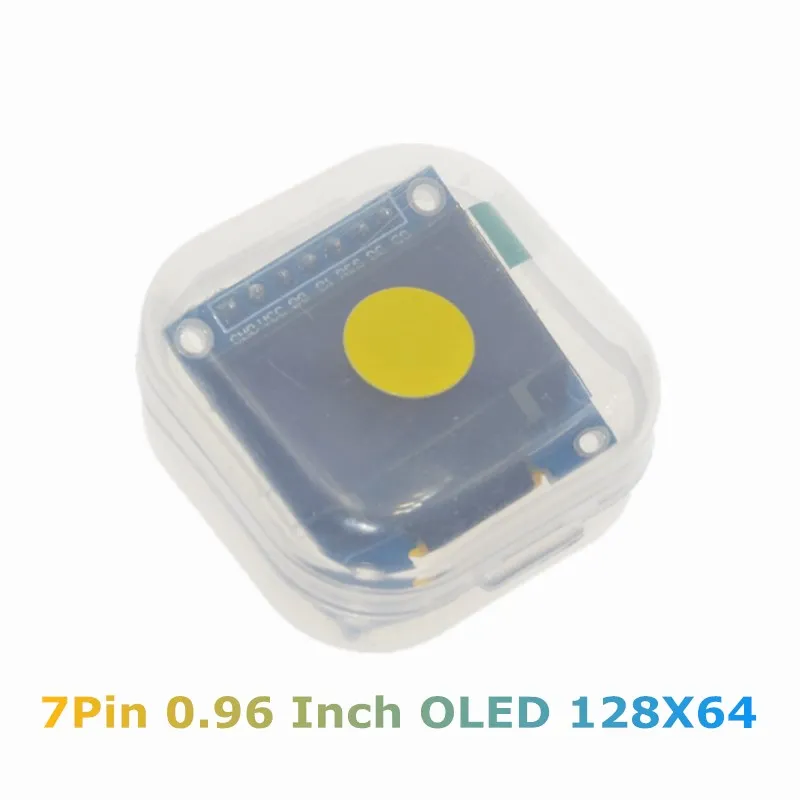

WAVGAT 0.96 Inch SPI OLED Display Module Yellow blue double color 128X64 7Pin Driver Chip SSD1306 for arduino | Электронные

843

We are electronic module manufacturer, welcome to wholesale!

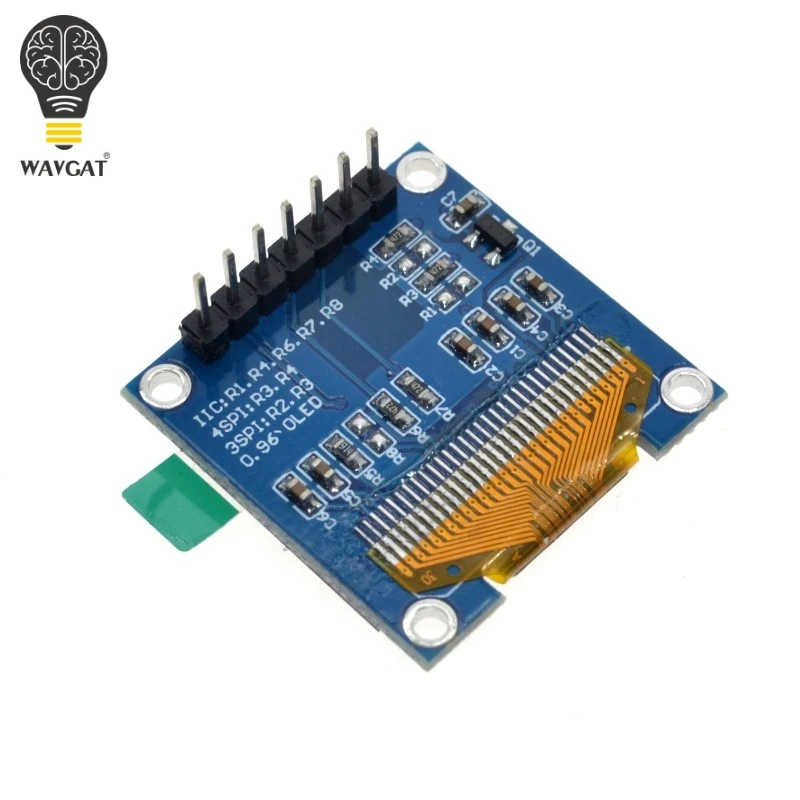

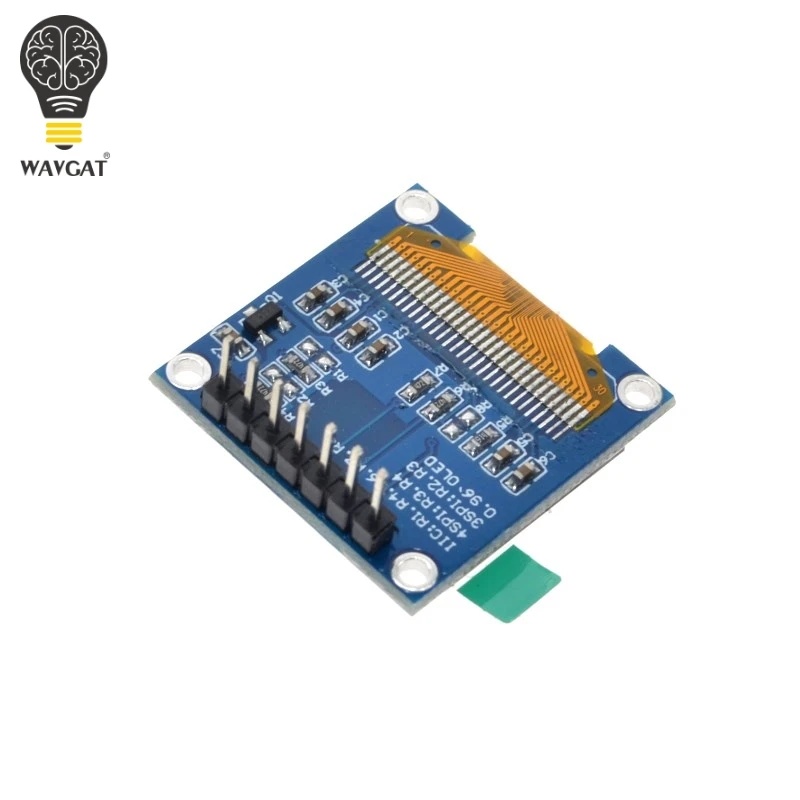

1, high resolution: 128X64 (and 12864LCD the same resolution, but the OLED screen more pixels per unit area)2, super wide viewing angle: more than 160 ° (maximum viewing angle display a screen)3, ultra-low power consumption: normal display 0.06W (far below the TFT display)4, wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)5, industrial grade: Operating temperature range -30 C ~ 70 C6, the ultra-small size: (length) 27.8MM * (W) 27.3MM * (thickness) 4.3MM7, support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC8, with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work9, compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)10, OLED screen, internal drive chip: SSD1306Pin Description:GND: Power groundVCC: 3.3V or 5V power supplyD0: CLK ClockD1: MOSI dataRST: ResetDC: data / commandCS: Chip select signalthe client application case:1, smart watches2, smart car camera image displayed in real time3, the battery management apparatus4, IPC handle5, MP36, feature phones7, portable medical instrumentthe module with information:1, C51 single-chip display routines2, STM32 display routines3, display routines4, Freescale XS128 real track display program5, Freescale K60 display routines6, OLED module specification7, OLED screen Data Sheet
