250W IRS2092S L15DSMD High Power Mono Digital Amplifier Board Class D Finished

Specification:

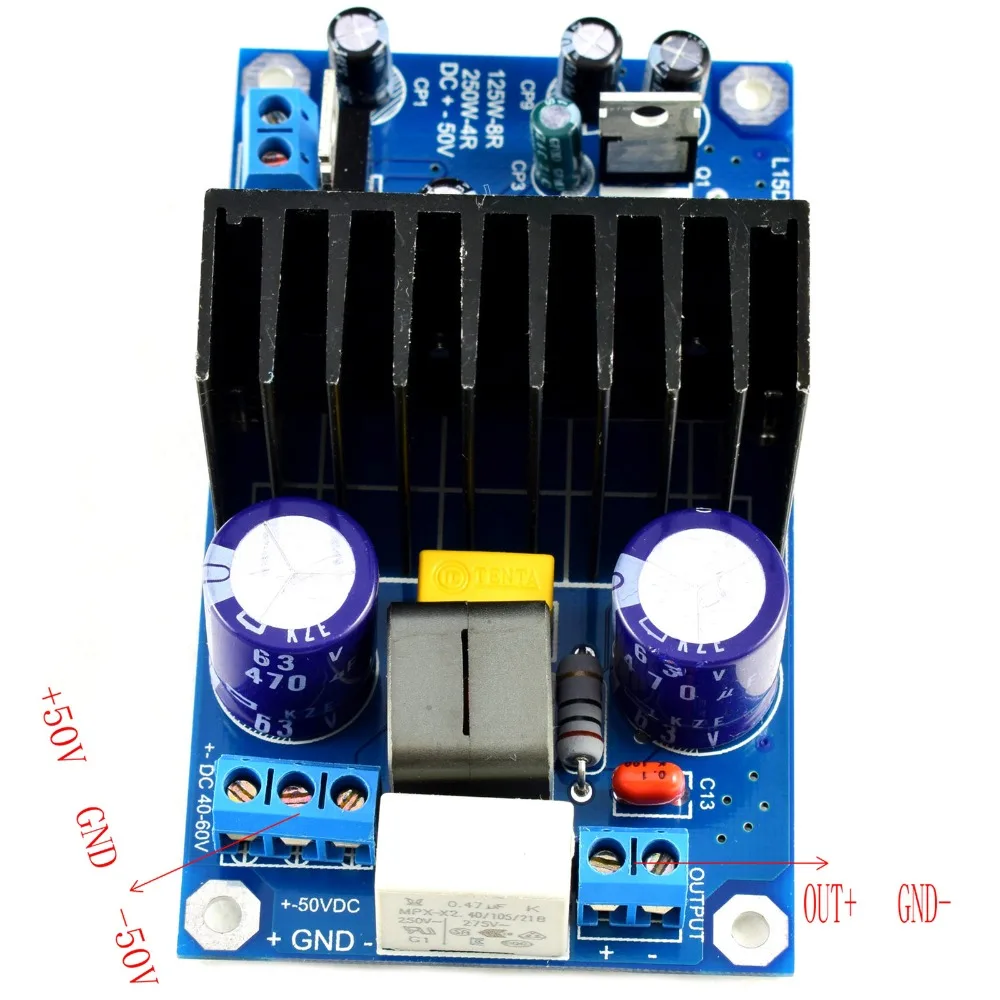

DC voltage + -50V (between + -33V to + -55V)
+ -50V OUTPUT power = 125W 8R RMS. 250W 4R RMS.

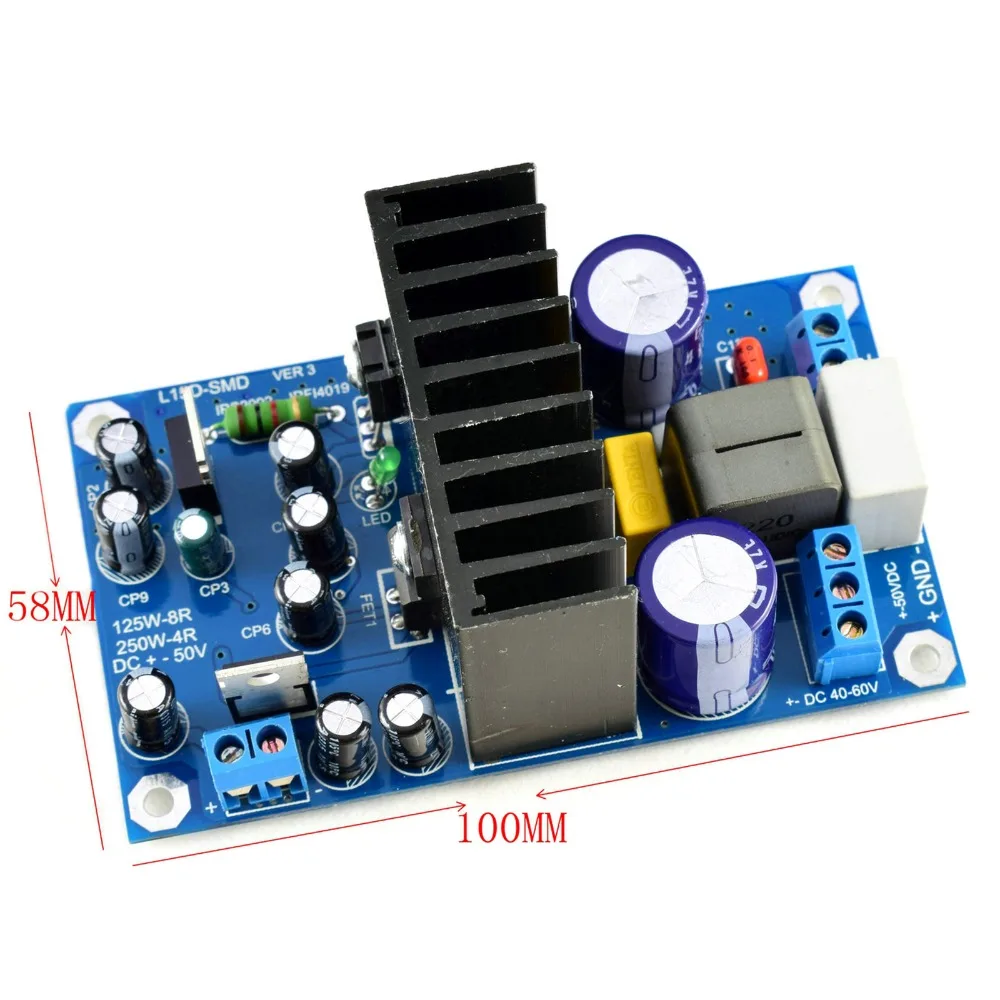

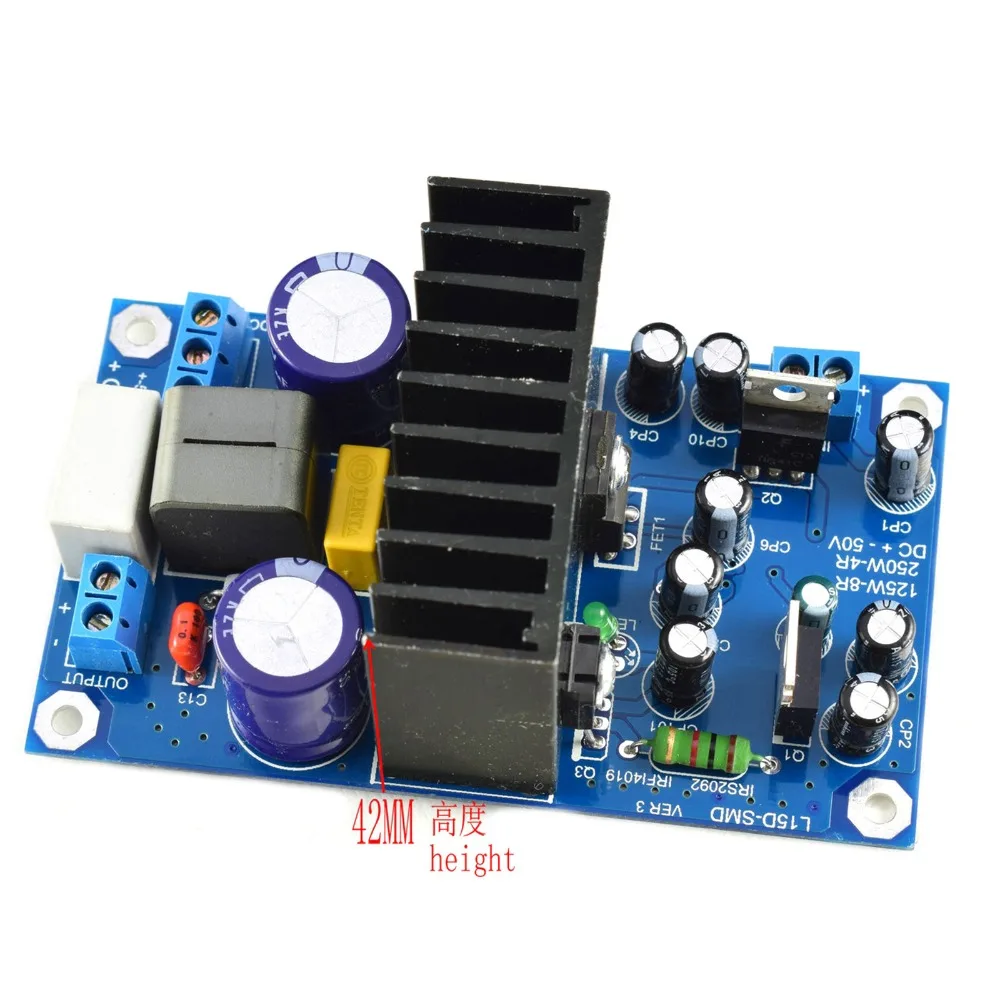

Size: LWH: 110MM * 58MM * 42MM
Weight: 120 grams

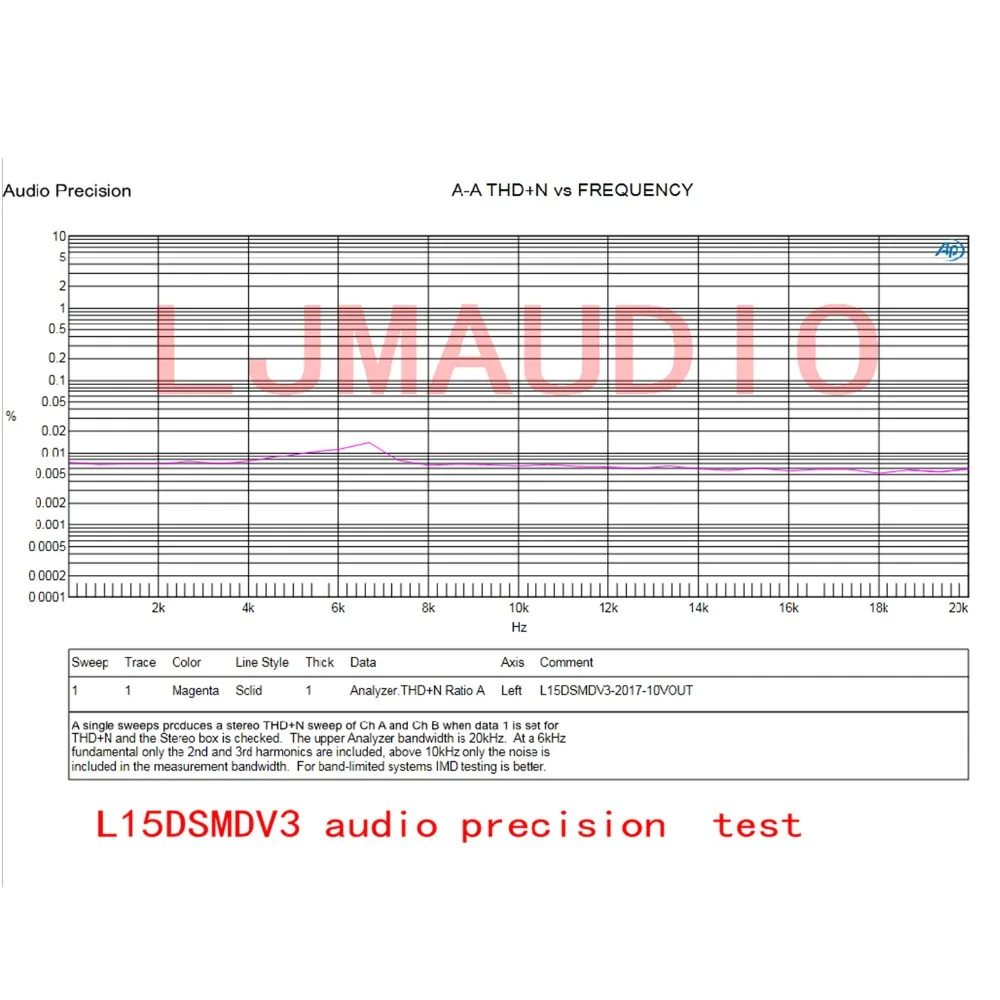

Distortion: Distortion: 0.007% THD + N 60W, 4 ohm
Voltage gain: Voltage Gain 36
Load Impedance driving impedance: 4 ohm
Total Idle Power Consumption, idle no-load power consumption: 7W
Channel Efficiency Efficiency: 90% 250W 4 ohm
Dynamic Range Dynamic range: 101 DB
Residual Noise residual noise: 200UV

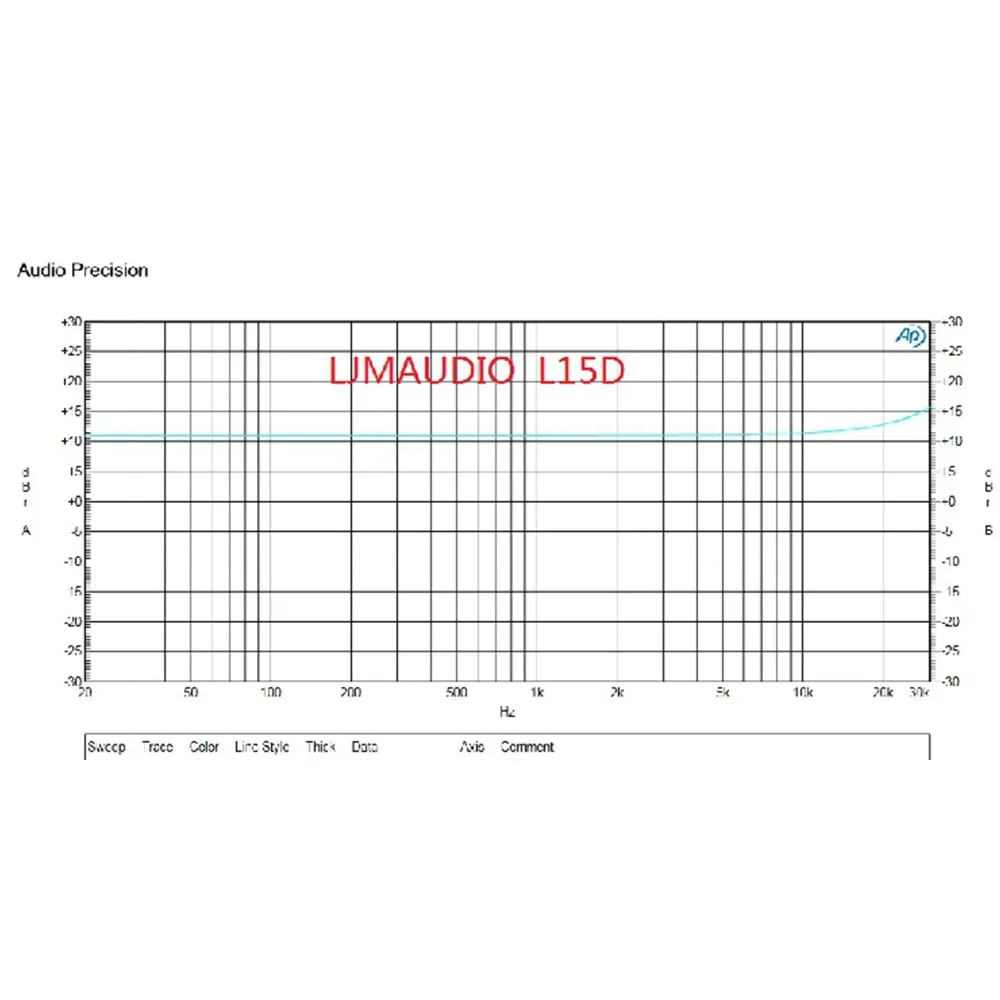

Frequency Response Frequency response: 20HZ-35K HZ + -3DB
Temperature Performance: Thermal Performance: 30W power, 55C degrees
250W power, 90C degrees

Applications:
AV receivers
Home theater systems
Mini component stereos
Powered speakers
Sub-woofers
Musical Instrument amplifiers
Automotive after market amplifiers

Features:
Output Power: Scalable output power from 25W- 500W (see Table 1)
Residual Noise: 200 μV, IHF-A weighted, AES-17 filter
Distortion: 0.007 % THD+N 60W, 4 R
Multiple Protection Features: Over-current protection (OCP), high side and low side MOSFET
Over-voltage protection (OVP),
Under-voltage protection (UVP), high side and low side MOSFET
DC-protection (DCP),
Over-temperature protection (OTP)

Note :
 Recommendations of the working voltage, and power transformers.
8 ohms load transformer voltage AC dual 40V, + -DC 55V, power 150W sound track. 300W two-channel. Filter capacitor 6800UF * 2 or more
4 ohm load transformer voltage AC dual 35V, + -DC 48V power 250W sound track. 500W two-channel. Filter capacitor 10000UF * 2 or more
4 ohm load + -58V DC, 300W 4R mono power. 700W two-channel power. Recommended transformer voltage AC dual 41V 1000W.

Package:
1pc 250W IRS2092S L15DSMD Mono Digital Amplifier Board Class D Finished
