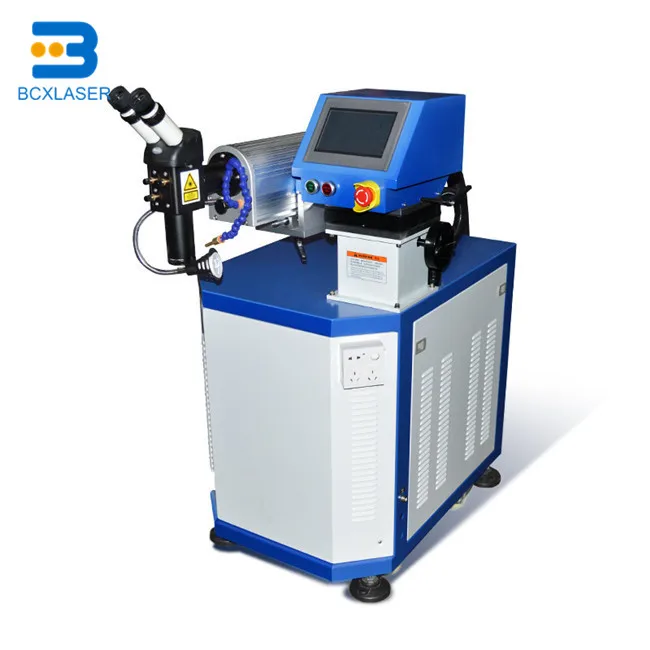

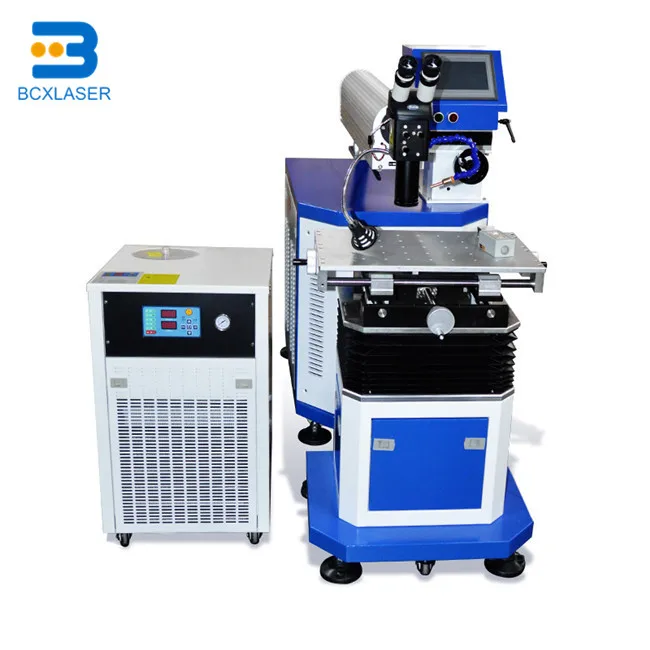

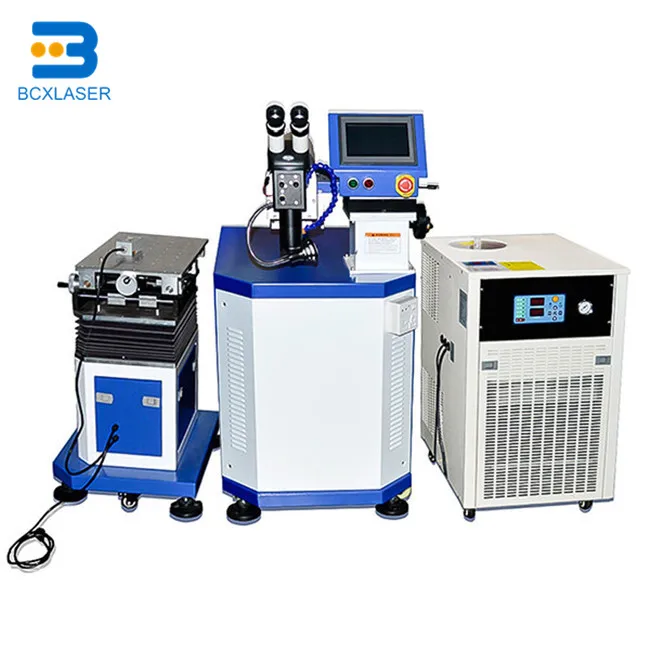

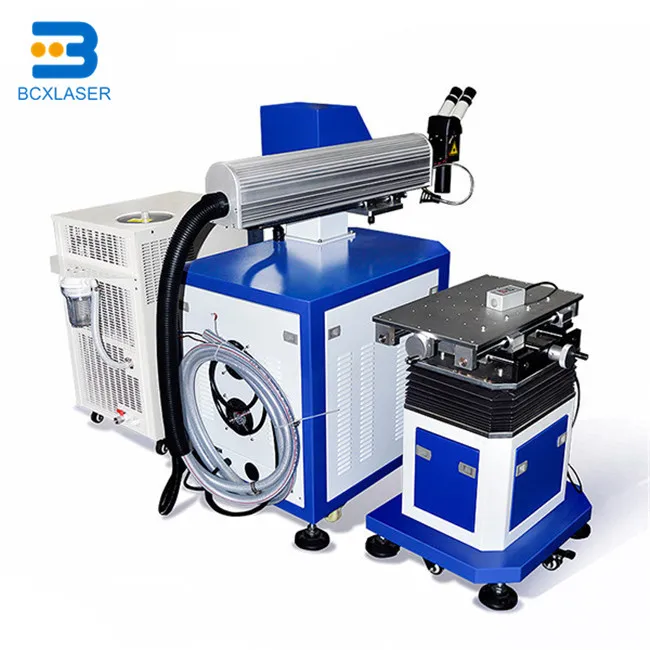

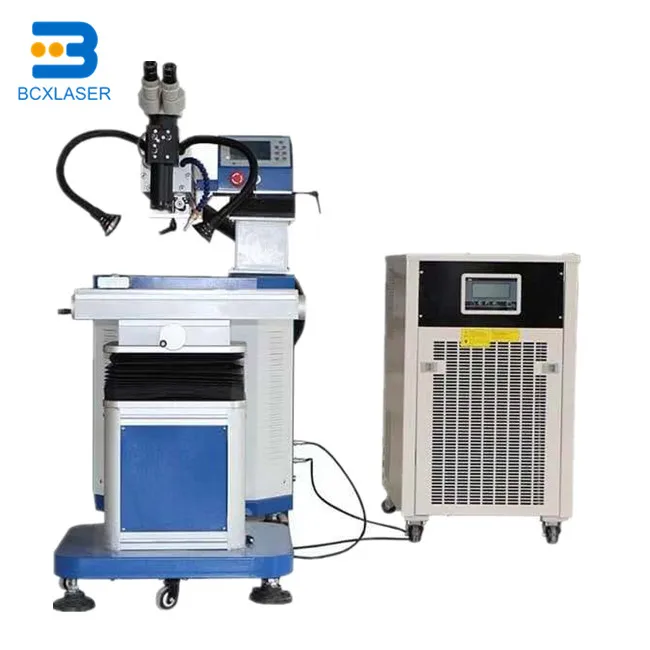

BCX-300W MOULD  laser welding machine using Nd3 +: YAG solid-state laser, after beam expander,  reflection (or optical fiber transmission) , the pulsed laser focused on object to be welded,  work pieces can hand-held or fixture with clamps , Then the laser trigger foot switch effect on the work piece, moreover, it also can be an external control system for automatic welding. Frequency, pulse width, table speed, the moving direction of the pulse laser welding controlled through computer, the power of the laser frequency, pulse width can be adjusted to different settings to control the laser pulse energy.



Model BCX-W200 BCX-W300 BCX-W400

Laser Type

YAG

Laser wavelength

1064nm

The maximum laser output power

200W 300W 400W

Maximum peak power laser

6-7KW

Max. Laser Pulse Width

30J/6ms(Optional 60J/12ms)

Pulse Width

0.5~20ms

Pulse frequency

0.5~20HZ

Number of Pulse Shape

50 groups

Closed Loop Feedback Function

Current Feedback

Aiming Position

MOTIC/LEICA Microscopy

Repeat positioning accuracy table

0.02MM

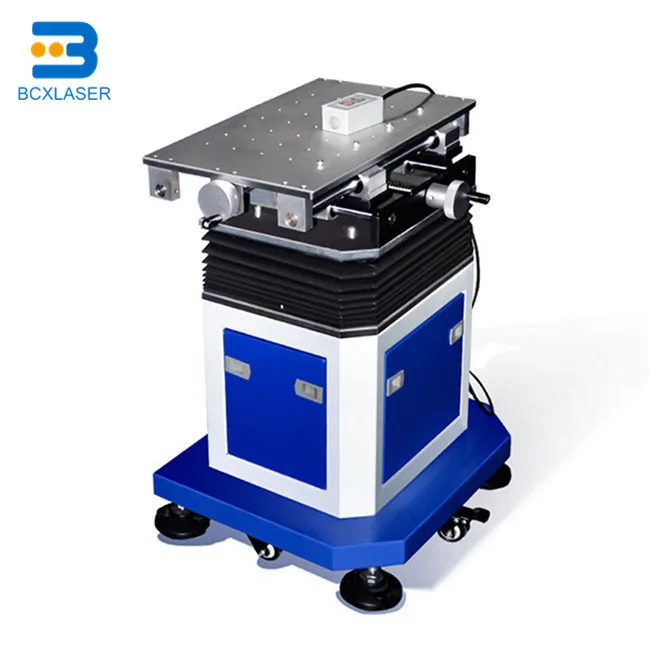

X / Y / Z table size (manual)

250mm×140mm×230mm (Auto Optional)

The maximum laser pulse energy

50J/10ms

The minimum spot diameter

0.2mm

Z-axis main beam Lift (electric motor)

110mm

 Worktable load

250kg

 Observation Systems

Microscope(10X)

Working drive

hand wheel and motor drive

Cooling Method

 water cooling

Electricity demand

 220V±5% / 50HZ /15-32A  Machine maximum power consumption  1.8-6KW  Machine Dimensions  1250mmx620mmx1240mm
