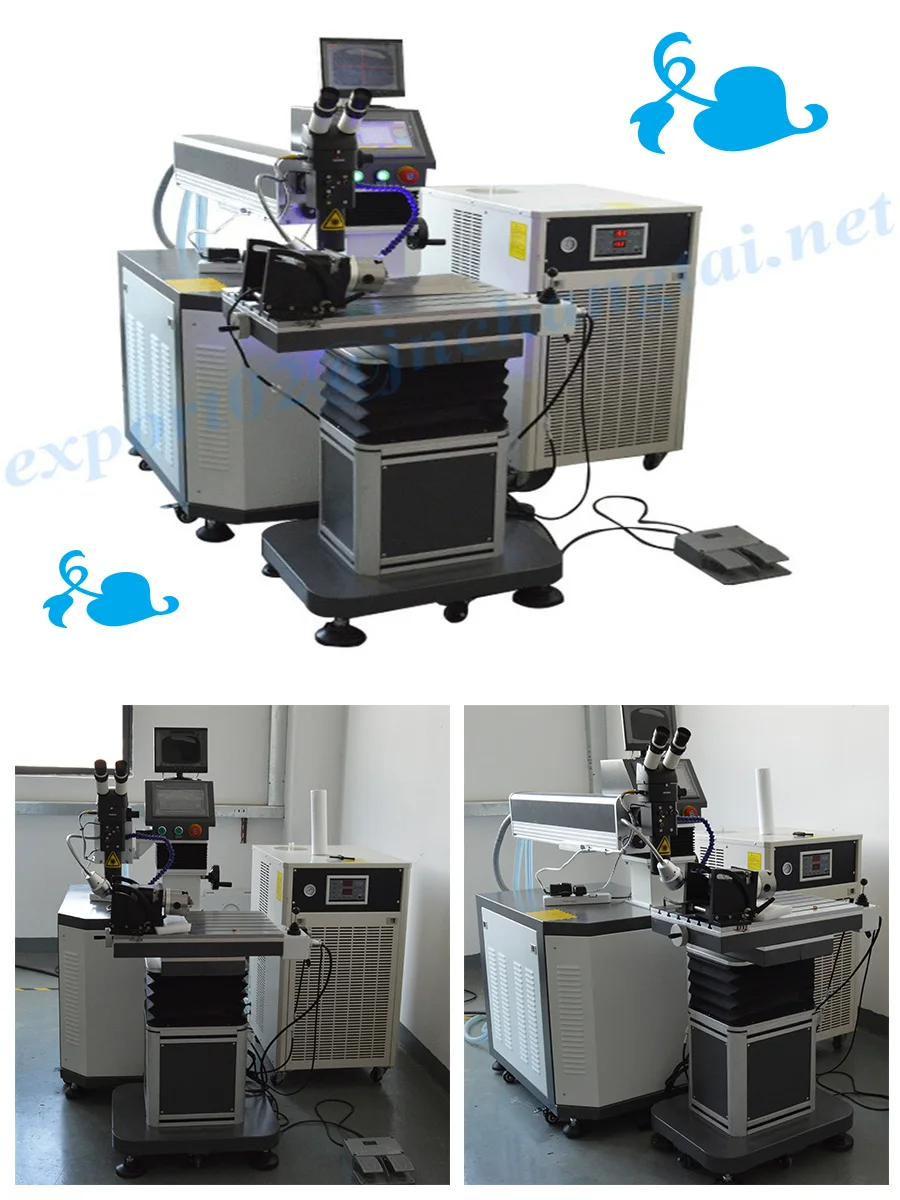

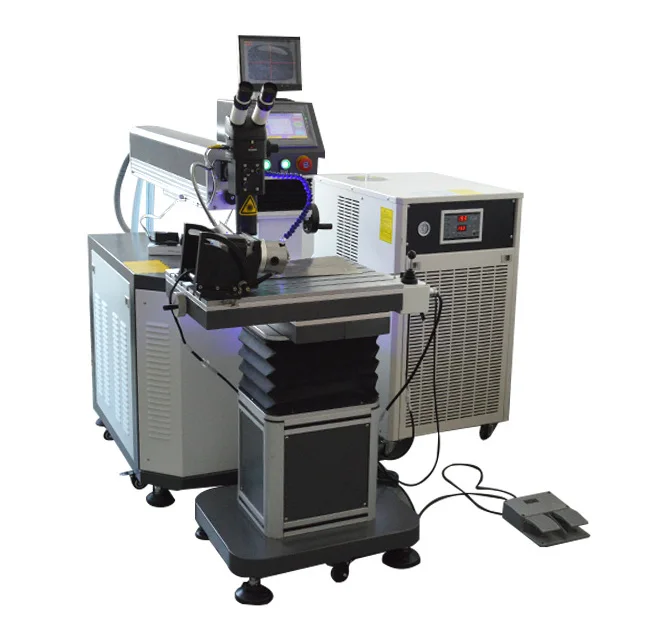

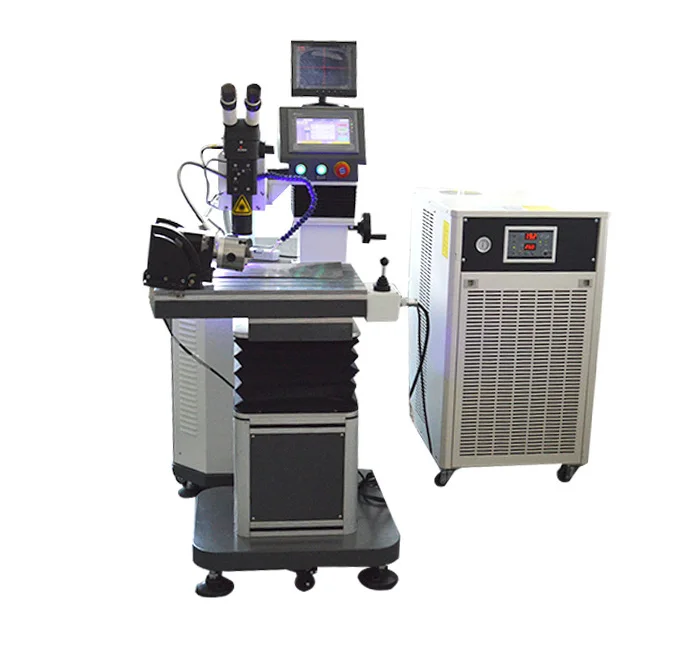

Mould Laser Welding Machine use YAG solid-state laser, after beam expander, reflection (or optical fiber transmission) , the pulsed laser focused on object to be welded, work pieces can hand-held or fixture with clamps , Then the laser trigger foot switch effect on the work piece, moreover, it also can be an external control system for automatic welding. Frequency, pulse width, table speed, the moving direction of the pulse laser welding controlled through computer, the power of the laser frequency, pulse width can be adjusted to different settings to control the laser pulse energy.

This mould laser welding machines were designed and Produced by our Company directly .It can repairing the general size mould (mold) very well and smooth. Our this kind of laser welding machines use the most best quality Laser power supply for it . Feedback laser Energy system keep welding effects stable during the welding action and EMI technology with it .

 Parameters

Model

TPW200W/400W

Average laser power

200W/400W

Max peak power

6KW/12KW

Laser wavelength

1064nm

Pulse width

0.3-20ms

Laser welding frequency

0.5 -100HZ

Spot size range

0.2-2mm

Welding wire

0.1-0.4mm

Power Supply

AC220V/50HZ/60A

Power Consumption

≤6KW

Water pressure protection

 ≤ 0.025MPa

Cooling water temperature

≤ 35 degrees

Temperature protection

45 degrees

Cooling water flow

 10L/min

Dimension

1600mm x 900mm x 1400mm

Weight

250kg-300Kg

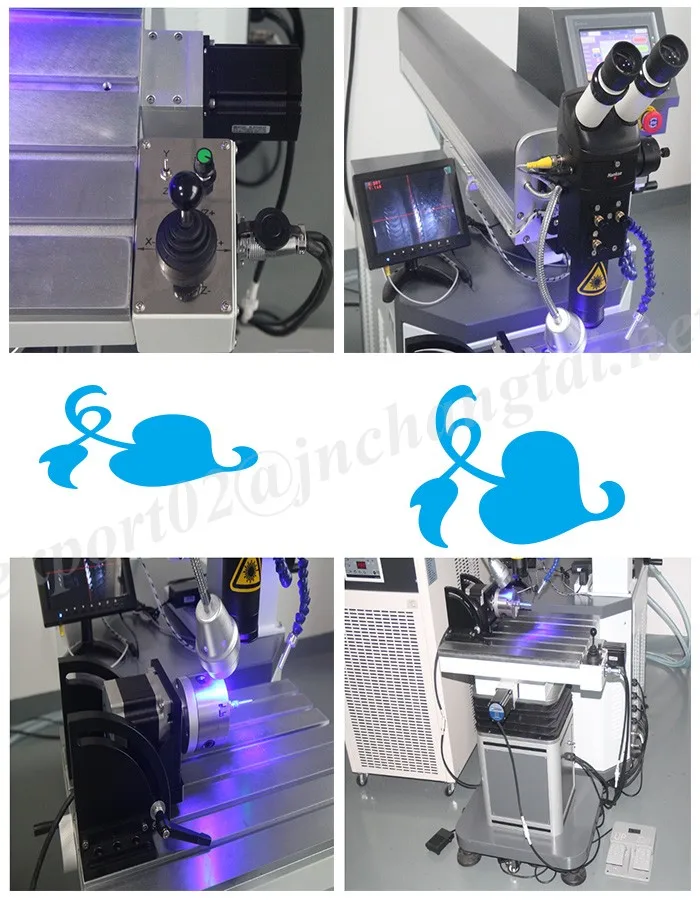

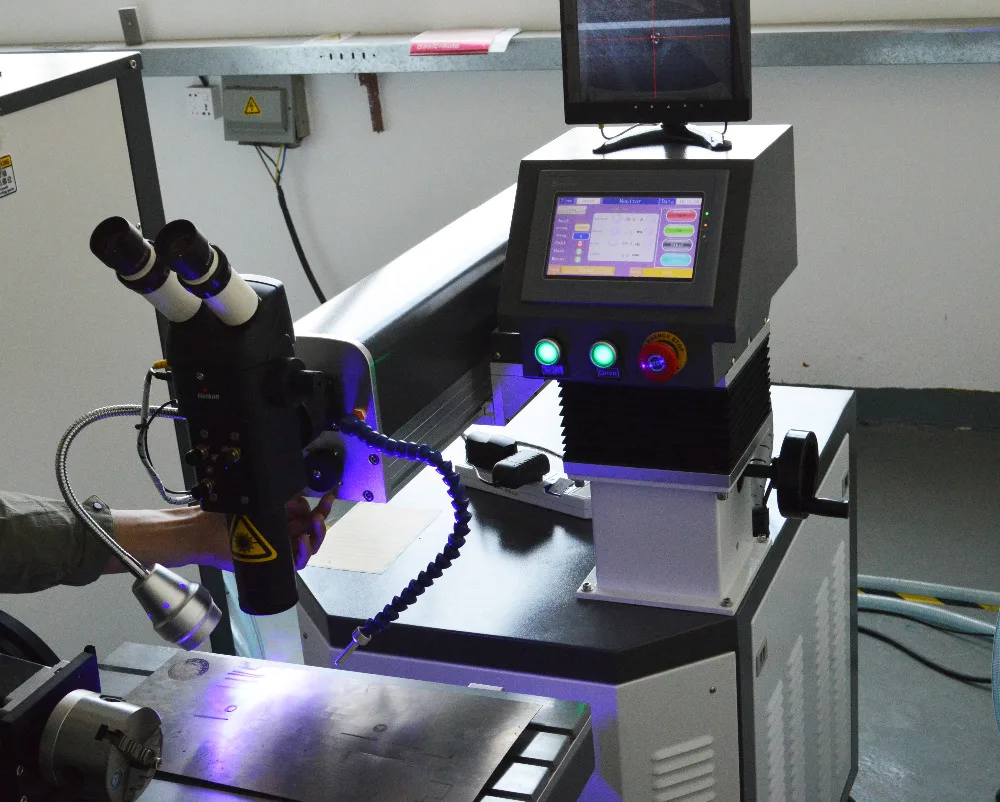

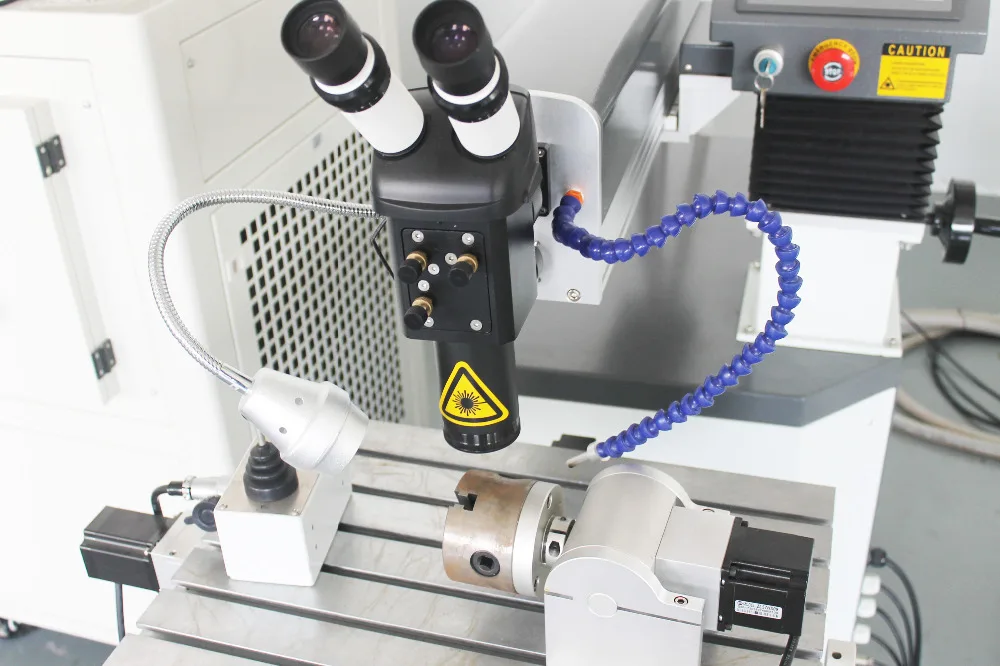

1) Microscope and CCD can be used alone;

CCD cross - wire welding convenient, adjustable focal lengthMicroscope and CCD can be used alone

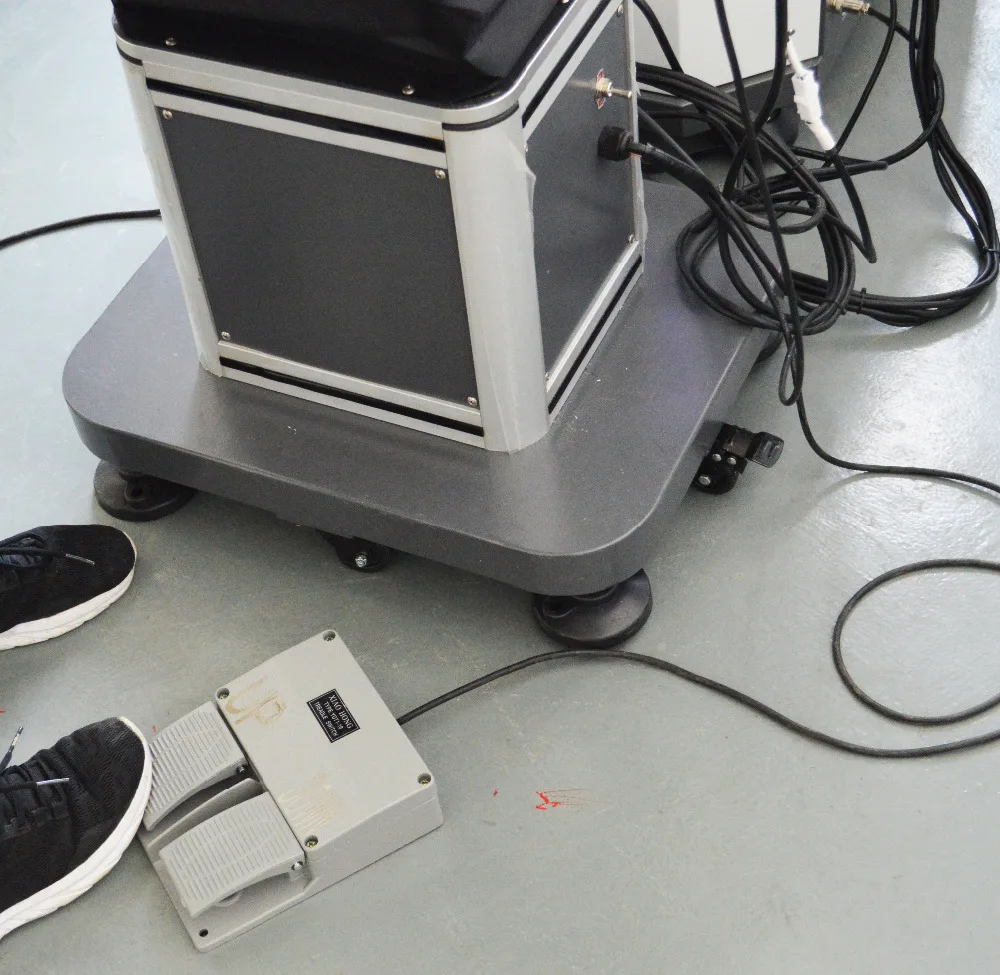

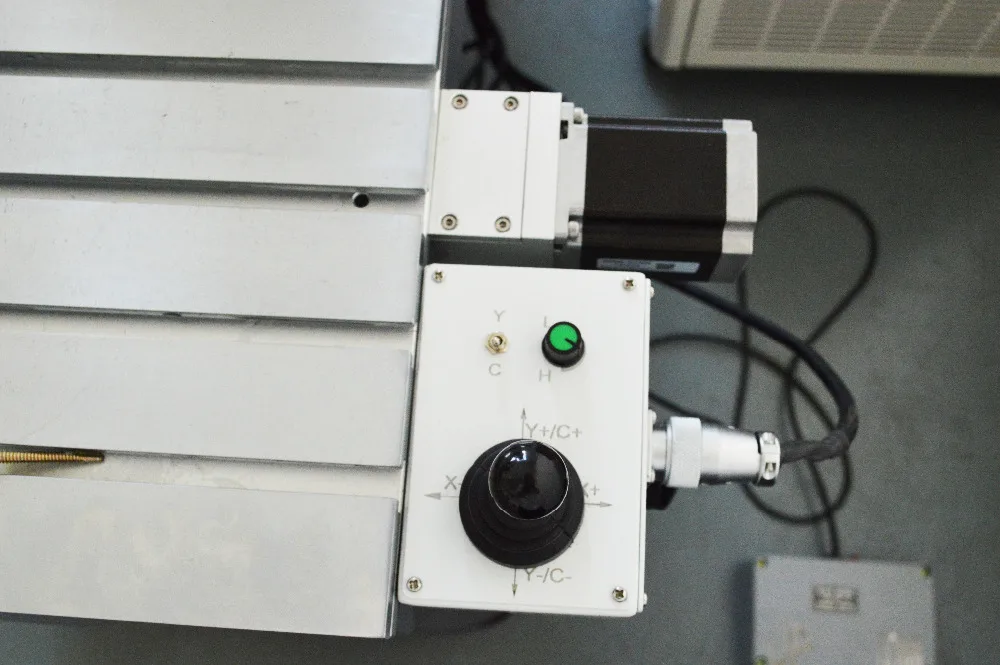

2) Foot step switch, easy to operate

3) The rotating fixture can be adjusted at 90 degrees

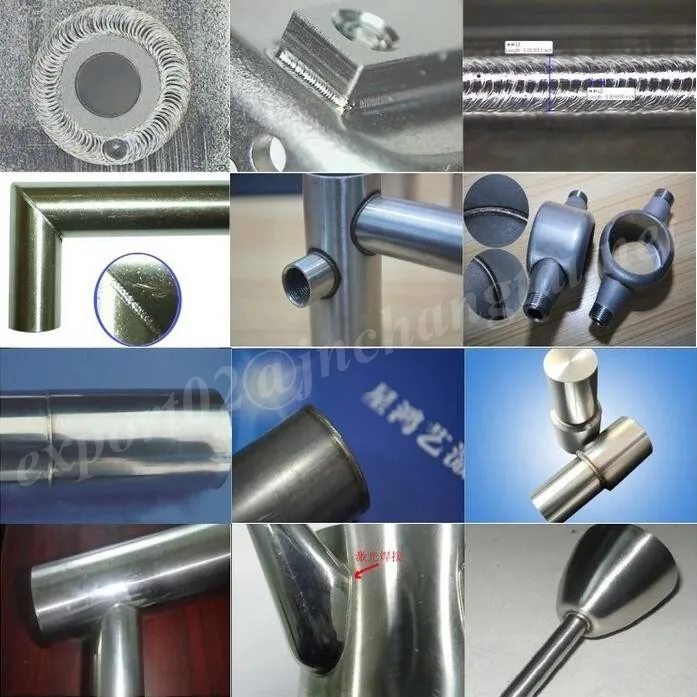

The mould laser welding machine was originally designed for mould industry for molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds,rubber molds, molds of digital products / mobile phone / toy / automobile / motorcycle / etc.

By applying suitable soldering wires, it is possible to fill the crack or blowholes and reuse the mold which saves production cost and improves working efficiency significantly.

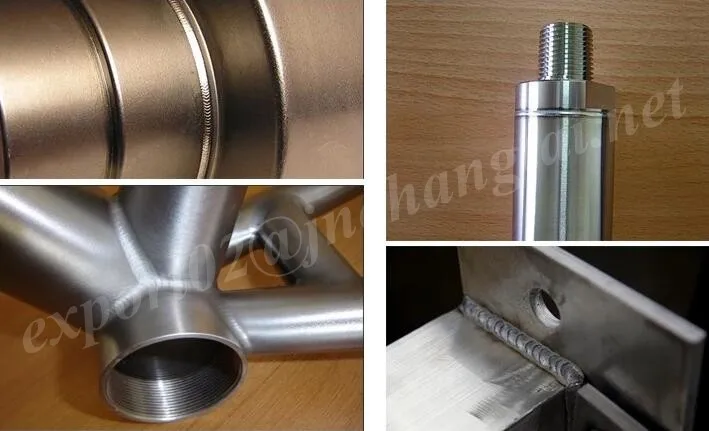

General laser mould welder also can be used in metal sheet stitching welding, pipe/

tube conjunction welding, and manufacturing of sensor, level switch and fine auto parts, etc.

Q: Are you a factory or a trading company?
A:Machines are designed and manufactured ourselves;perfect OEM and after-sale service are provided.

Q: How can I know your machine works well?
A: Before delivery, we do test the machine working condition for you.

Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it with machine.

Q: Do you have a CE/FDA certificate?
A: Yes.

Q: If we do not know to use the machine, can you teach us?
A: Yes, we will, if you come to China, we will offer you free training until you can use machine freely. And if you are busy, we will have our professional engineer to your country, you only need pay for some fee, like tickets, hotel and meal.Online support or free online training can be offered if needed

Q: When the machine can't work well, what should i do?
A: 1.The engineer is online for 24-hours, they can check the problems and then give you soultion way very soon.

    2. All our machines have one-year warranty. If there is any problems of machine parts under "normal use", new machine parts will be sent to you but your side should pay the shipping cost

   3. Please rest assured that operation CD and manual will be offered along with machine, ensuring you can operate the machine easily.

Standard 3 layer export package
1, Outerside plywood package with metal belt
2, Middle size foam
3, Inner side waterproof film
