1PCS Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module For 1527 learning code 433 Mhz Transmitter |

4914954415354553

18650 Rechargeable battery 2PCS 5000M Mobile charging battery Power bank USB 18650 3.7V 3500mAh Intelligence Li-ion Rechargeable Battery 4 LED Indicator US $ 5.00 /piece 10PCS Liter energy battery USB 18650 3500mAh 3.7V Li-ion battery USB 5000ML Li-ion Rechargebale battery + USB wireUS $ 48.99 /piece 1pcs Liter Energy Electronic Cigarette Battery 18650 3.7V 40A 3000MAH Li-mn Battery And Battery Case For Vtwo Rx2/3 Rx200sUS $ 9.20 /piece 6pcs/lot 100% New Original 3400MAH 3.7V NCR18650 Lithium Rechargeable Battery for tablet pc inch Diy Nickel Sheet BatteriesUS $ 25.99 /piece Liter energy battery 8 pcs/ Lot VariCore New original 18650 lithium-ion Rechargeable battery NCR18650B 3.7V 3200MAH BatteriesUS $ 34.99 /piece 1PCS New Original Liter energy battery 18650B SD18650 Rechargeable Li-ion battery 18650 3.7V 3000MAHUS $ 5.70 /piece 7.4V 1800mAh lithium battery For Udi U12A Syma S033g Q1 Tianke H100 7.4 lithium Battery 18650 7.4 V 1800mah 15CUS $ 12.50 /piece Liter energy battery 2PCS/LOT 100% Original 3.6V US18650 VTC6 18650 battery 3100mAh 30A for Electronic cigarette power batteryUS $ 14.46 /piece

Dear friend, thank you for your order!

If the order is under $5 or less, we will give you arrange China Post Ordinary Small Packet Plus or 4 px Singapore Post OM Pro.

The channel only provide Chinese period of mail of Posting, dispatching, plan to have the information such as navigation, alibaba flat network rules approved use the logistics channels!

If the order is above > $5, we will give you arrange AliExpress Standard Shipping or China Post Registered Air Mail.

The channel provides "postal registered parcel" to provide domestic and Posting, dispatching, pay to navigation for information such as the destination.Alibaba flat network rules approved use the logistics channels!

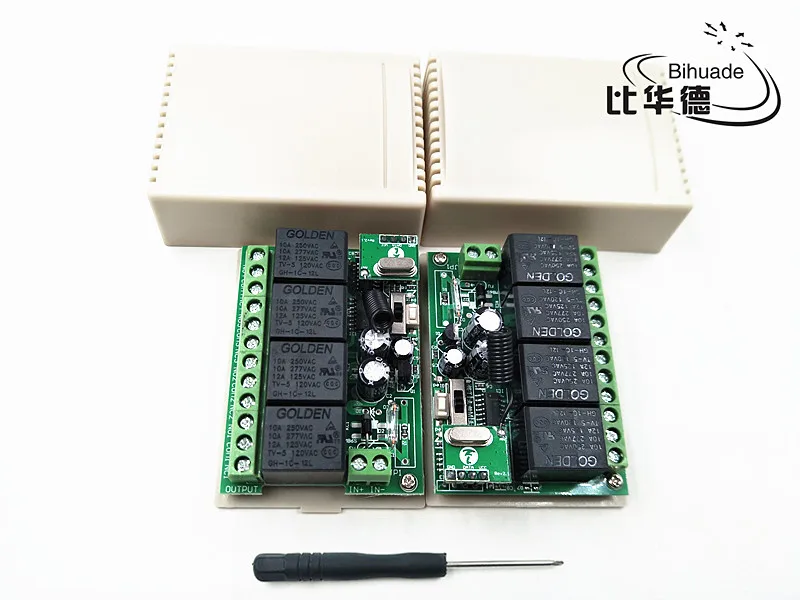

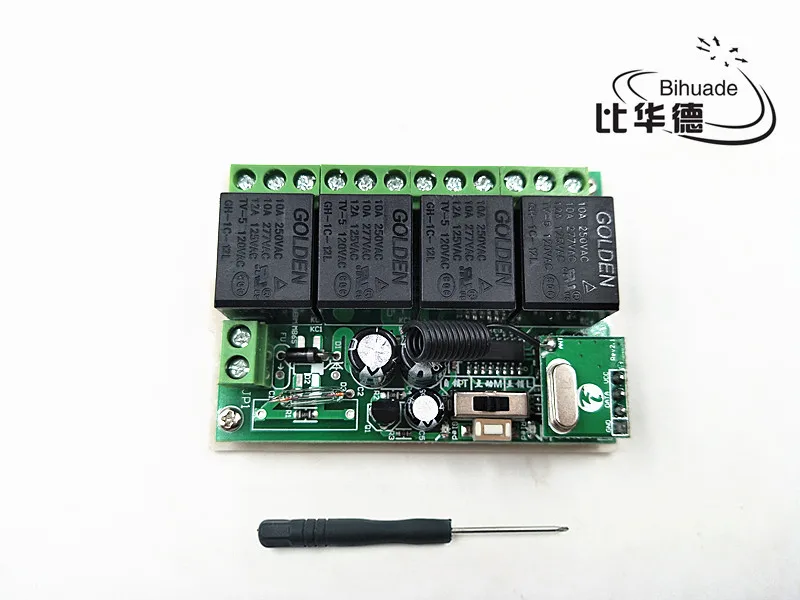

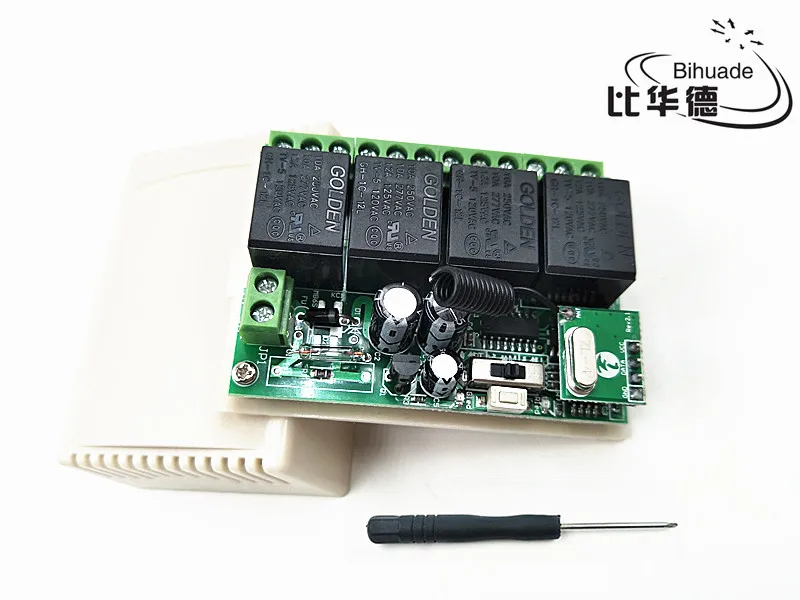

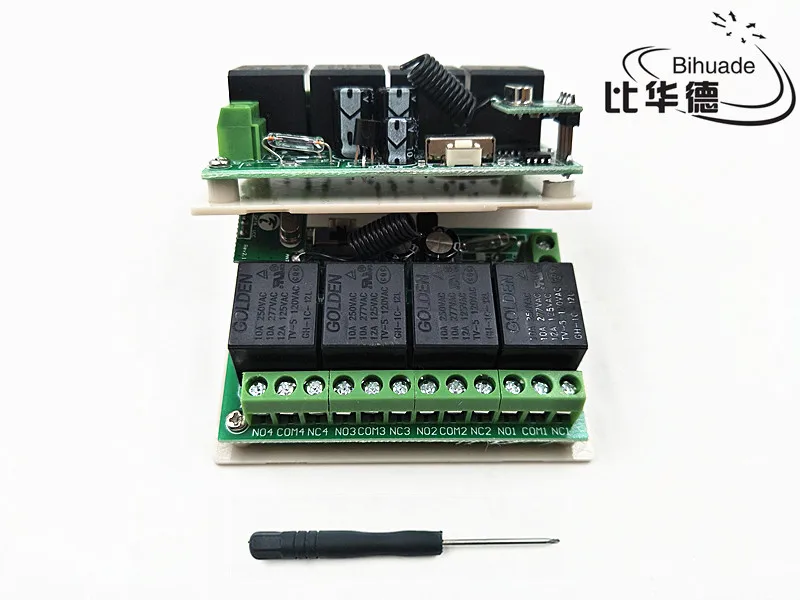

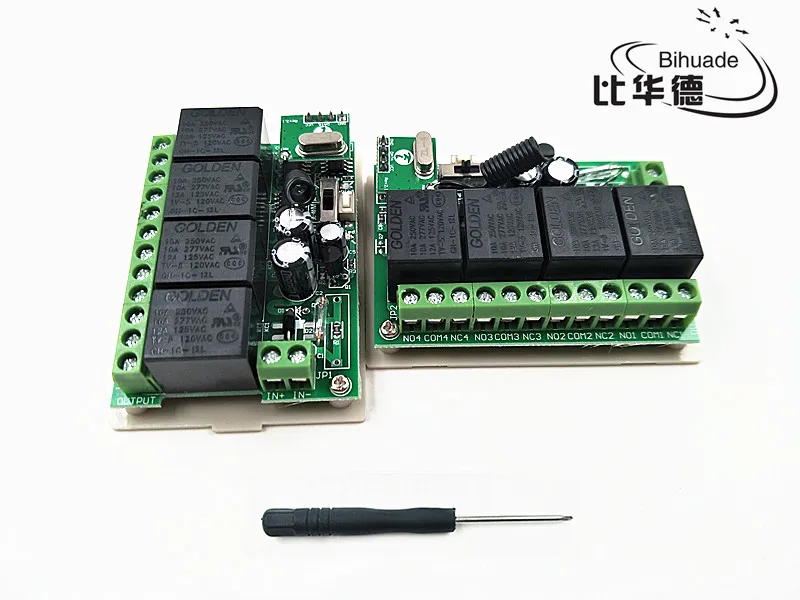

    Package Included:   Receiver module (KR1204-4 ) * 1pcs ( include Shell )       SPECIFICATION 1. Working Voltage:DC12V 2. Quiescent Current:5mA 3. Working Frequency:433Mhz 4. Receiving Sensitivity:-104dBm 5. Function option:Momentary/Toggle/Latching/Time delay( 5,10,15,20s available) 6. Modulation Mode:ASK 7. Matching Mode: Intelligent Learning code 1527 8. Output Mode:Dry contact /Voltage output 9. Shell:Yes 10. Working temperature : -30~+80 11. PCB dimension:68.2x48.2(mm) Compatible with remote control coding: 1527 encoding   OPERATION   1. Momentary Mode: pressing one time the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting momentary mode successfully . 2. Toggle Mode: pressing two times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting toggle mode successfully . 3. Latching Mode:pressing three times the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press first remote button ,follow on second remote button , signaling three times by remote\'s LED indicator informs about setting latching mode successfully ( first button stands for on , second button stands for off ). 4. 2CH momentary + 2CH Toggle :pressing four times the learning key button on the receiver board(Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting 5-second delay successfully . 5. 2CH Momentary + 2CH Latching :pressing five times the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting 10-second delay successfully . 6. 2CH Toggle + 2CH Latching :pressing six times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting 15-second delay successfully . 7. 2CH Latching + 2CH Latching :pressing seven times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting 15-second delay successfully . 8. Deleting existing remote controls data: pressing eight times the learning key button on the receiver board , the LED indicator on receiver board will flash for eight times , the existing remote controls are deleted successfully .   TERMINAL INSTRUCTIONS   +V - Positive pole input GND - Negative pole input 1 -KC1 Normal Closed of relay 2 -KC1 Common of relay 3 -KC1 Normal Open of relay 4 -KC3 Normal Closed of relay 5 -KC3 Common of relay 6 -KC3 Normal Open of relay 7 -KC2 Normal Closed of relay 8 -KC2 Common of relay 9 -KC2 Normal Open of relay 10 -KC4 Normal Closed of relay 11 -KC4 Common of relay 12 -KC4 Normal Open of relay   NOTES   1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity. 2. Please promptly change battery when remote control voltage is insufficient, (when the battery voltage is insufficient, generally get close transmitting ) 3. Please pay attention to avoid metal mask,large equipment ,strong interference electromagnetic filed when using wireless RF products,and avoid too short distance between the remote control and receiver board . 4. Please avoid abnormal using of the product.Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe .
