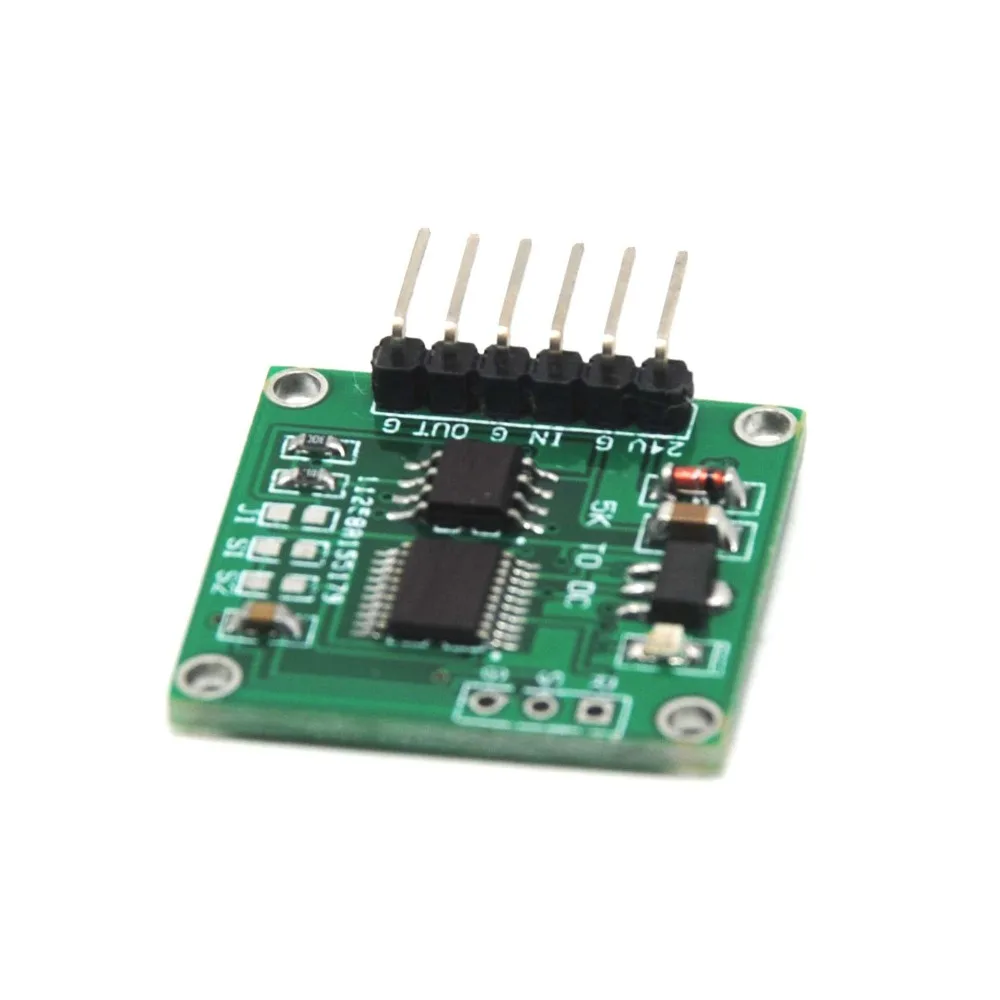

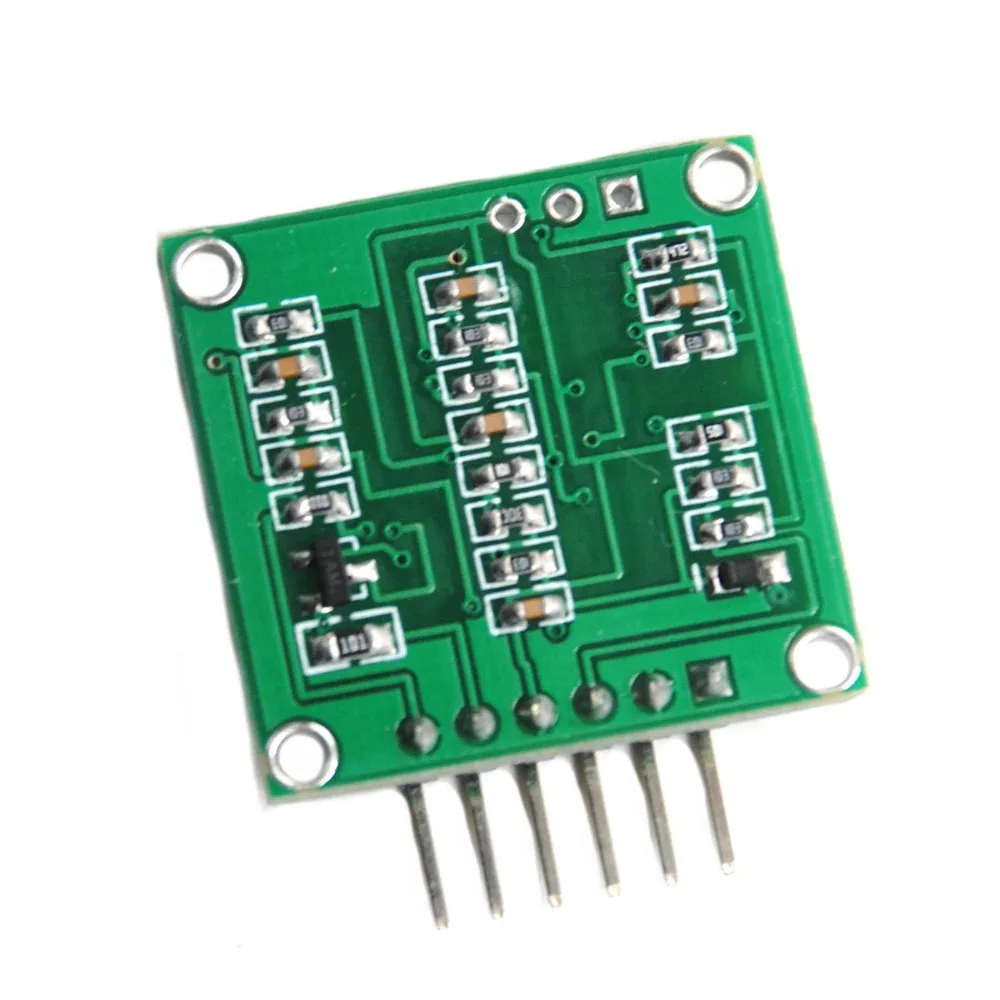

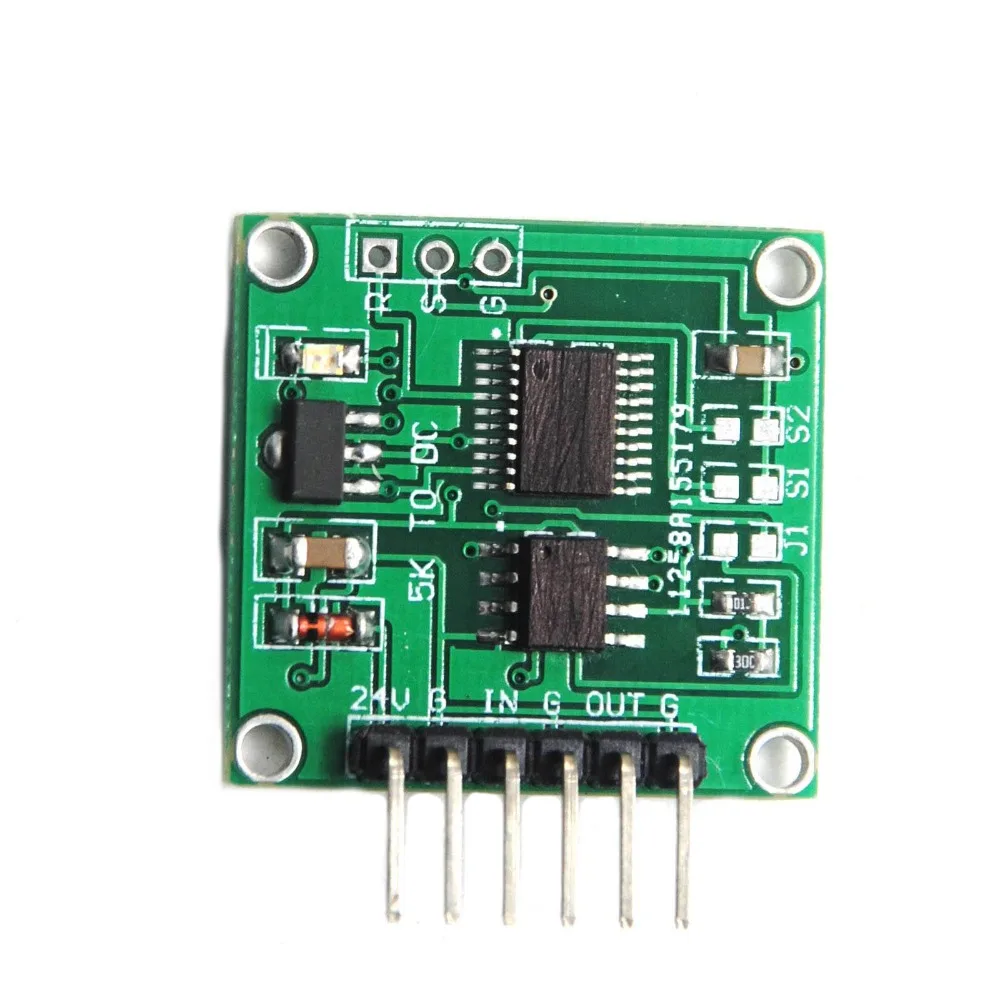

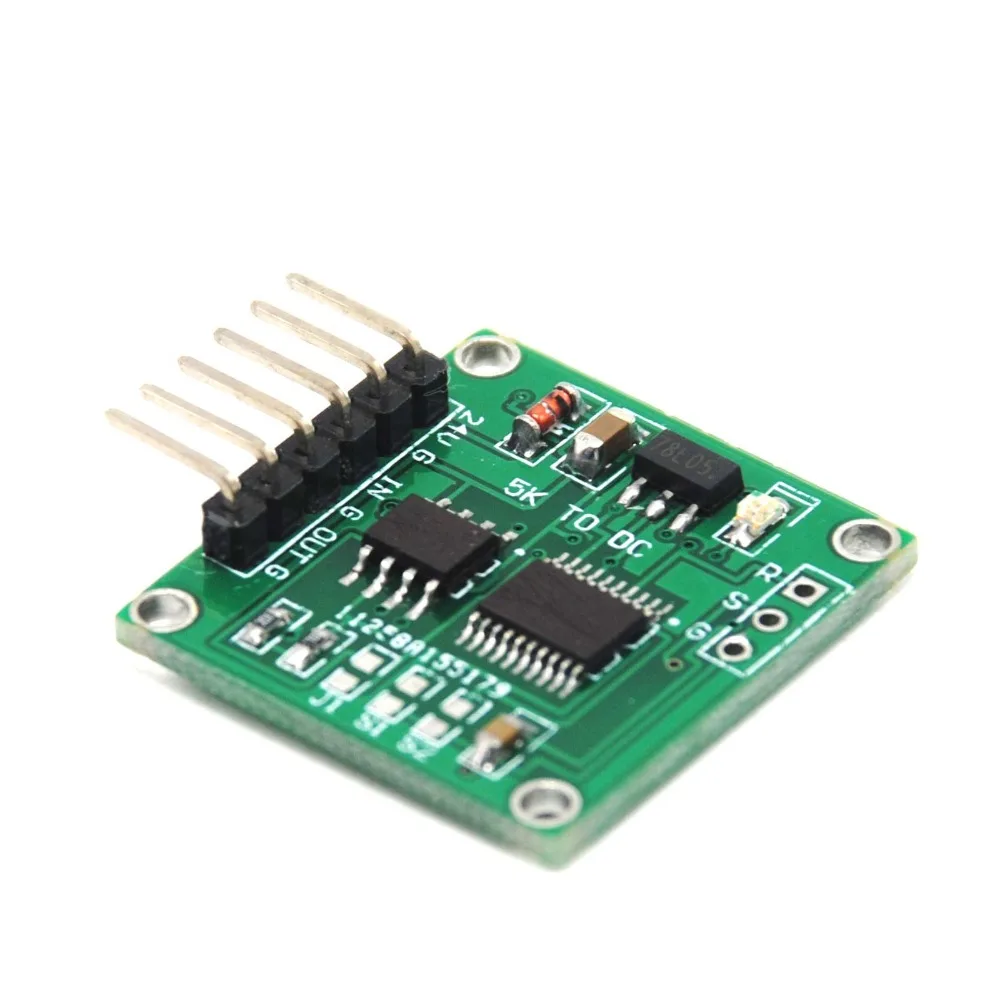

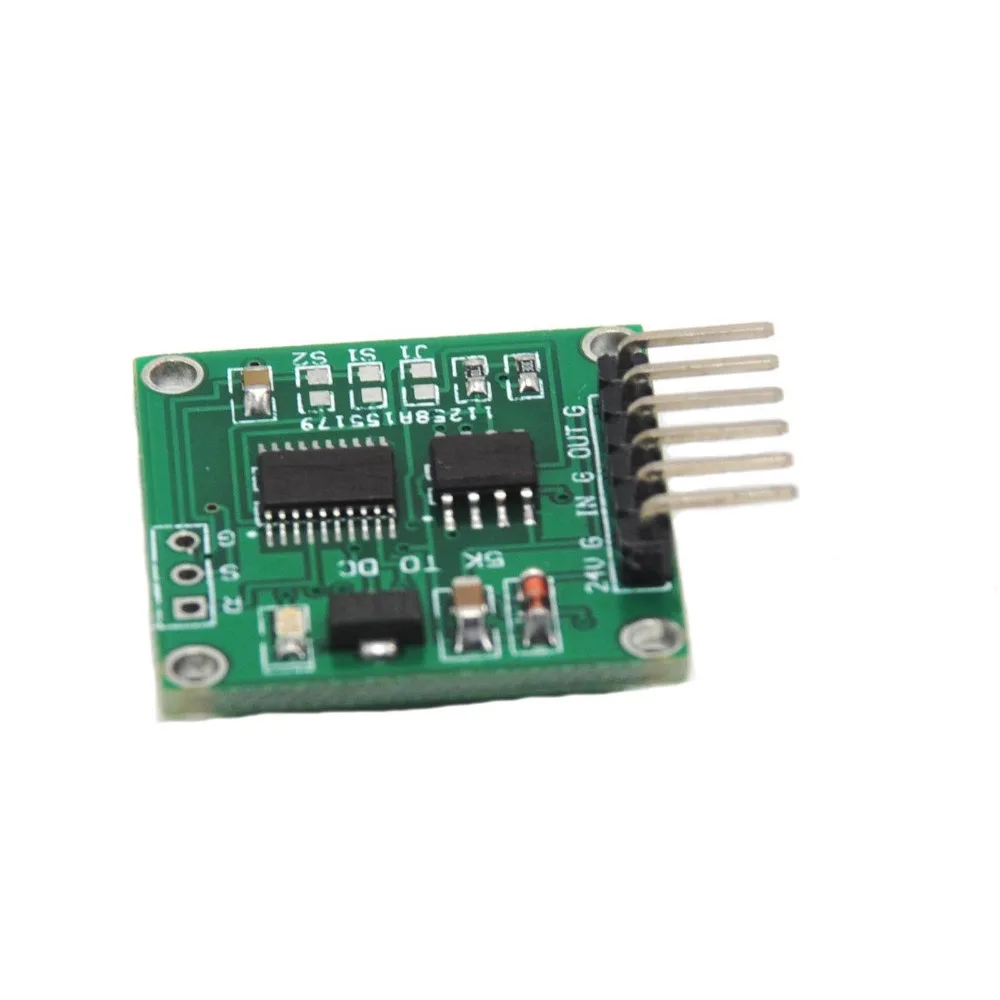

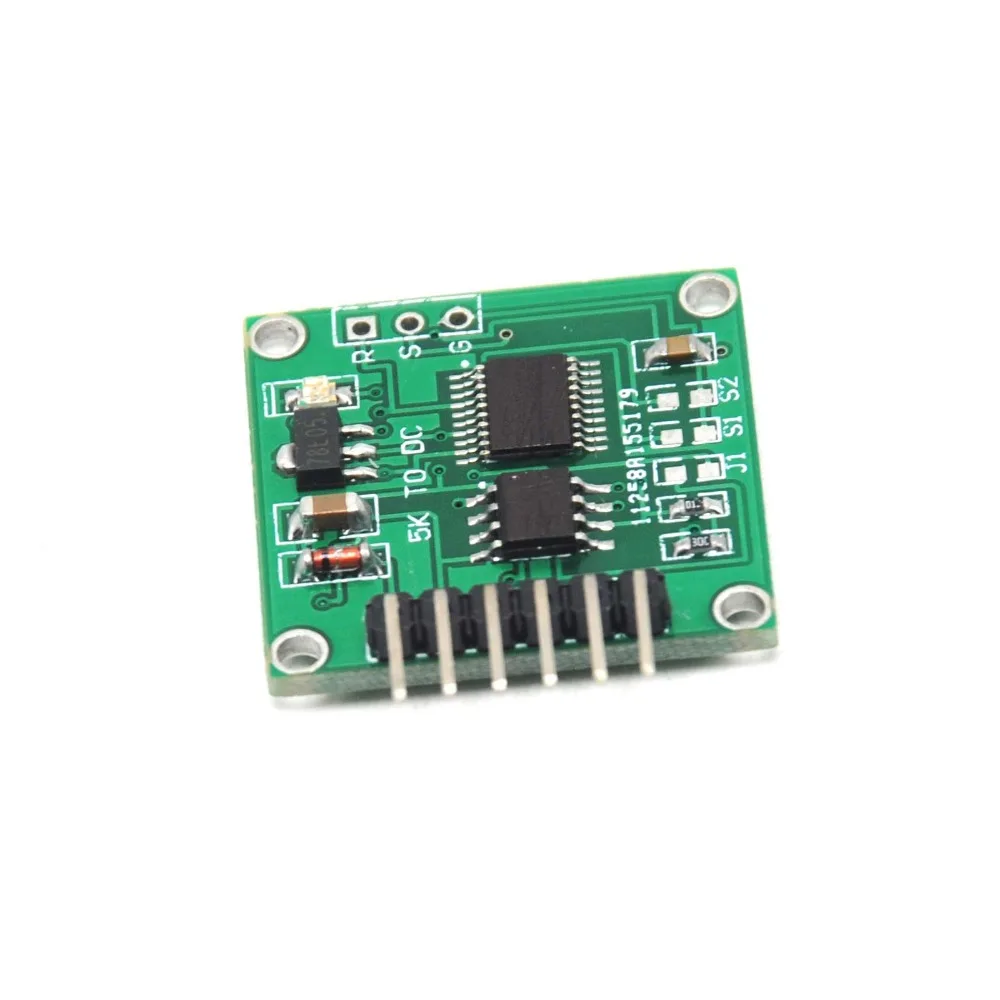

Resistance to voltage 0-5K to 0-5v 0-10v linear conversion converter module


Module parameters:
1, the working voltage: DC9V ~ 24V
2, the input resistance: 0-5000 Europe
3, the output voltage: 0.00V ~ 5.00V /.00.00 V ~ 10.00V
4, the output: the circuit board S2 pad: open (output 0.00V ~ 5.00V); shorted (output 0.00V ~ 10.00V), the default is open.
5, size: (long) 26mm * (width) 23mm * (high) 10mm
6, drive: no drive
7, the scope of application: potentiometer, resistance to voltage signal; remote data acquisition and control equipment

The module interface:
24V: positive power connector (9V ~ 24V).
       G: Power ground interface.
       IN: Resistance input interface (0 ~ 5000 ohms).
       G: Power ground interface.
       OUT: Signal output interface (0.00V ~ 5.00V /0.00V ~ 10.00V).
       G: Power ground interface.

Package:
1pc Resistance to voltage 0-5K to 0-5v 0-10v linear conversion converter module
