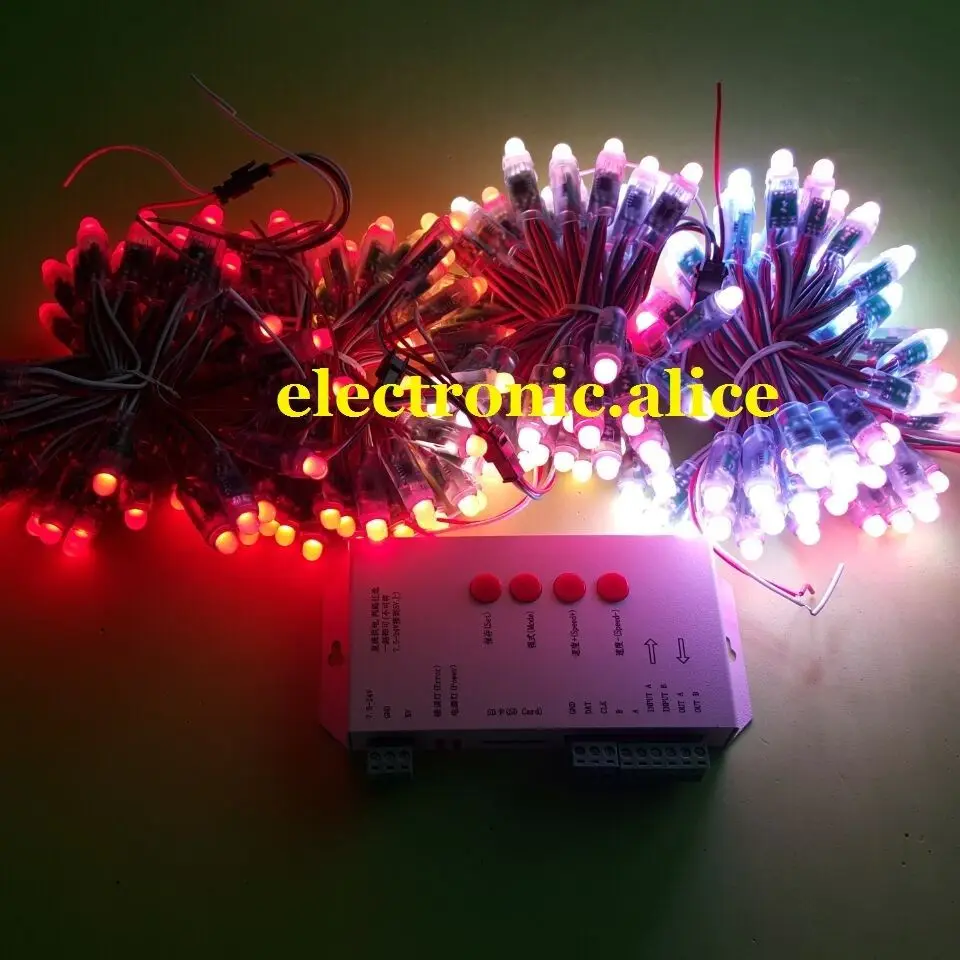

50pcs-250PCS WS2811 RGB Full Color Pixels 12mm Addressable LED String+T1000S Controlle |

50pcs-250PCS WS2811 RGB Full Color Pixels 12mm Addressable LED String+T1000S Controlle |

Specifications:

free  shipping with tracking numbe


Input voltage: 5V-24V

Dimensions: 6.30 in x 2.95   in x 0.91 in (16.0 cm x 7.5 cm x 2.3 cm)

Weight: 230 g

Number of programs: 16 MAX

MAX number of pixels: 2048

Compatible with single  line  or double line chips.

32—256 Gray, Support   software Gamma correction.

Support the rules and   special-shaped handle.

Single-port output, can   support 2048 lights.

Off-line(SD Card) control,   play back content stored in the SD card.

T-1000S store a maximum of   16 programs, copy multiple files to the SD card in order  after formatting  the SD card as "FAT" format.

The program must be named  in  orders . Ex. : 00_1.led, 01_1.led, 02_1.led.

NOTE

1. When T-1000S controller   less than 512 pixels the frame rate can reach 30fps. When  T-1000S control  more than 512 pixels the frame rate will  slow down automatically.

2. T-1000S must use the  new  software Led Edit 2012.

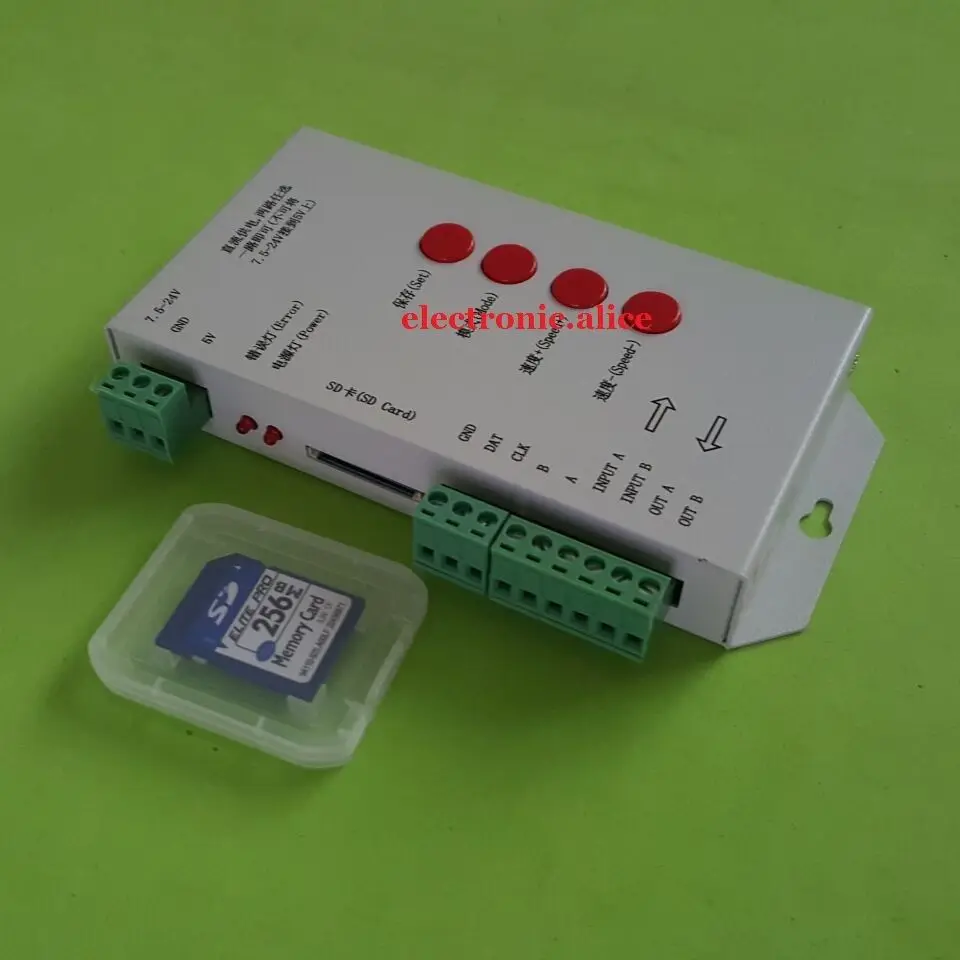

Definition of  buttons:

NOTE:

For the TTL(SPI) signal, the controller signal ground  must connect to the LED  ground directly.

Mode of connection

1.Multiple T-1000S controllers can be cascaded together  and work synchronous.

2.T-1000S one TTL(SPI) signal and one RS485 signal port  output can control 2048  pixels

3.When the chip for LED is single line chip just with  data, then just need to be  connected with DAT and GND of  the controller. If the chip for LED is double line  chip  with DAT and CLK, then need to be connected with DAT, CLK,  and GND of the  controller.

4.If you need to use RS485 signal you need to connect  controller A with LED A (DMX+),  controller B with LED  B(DMX-),

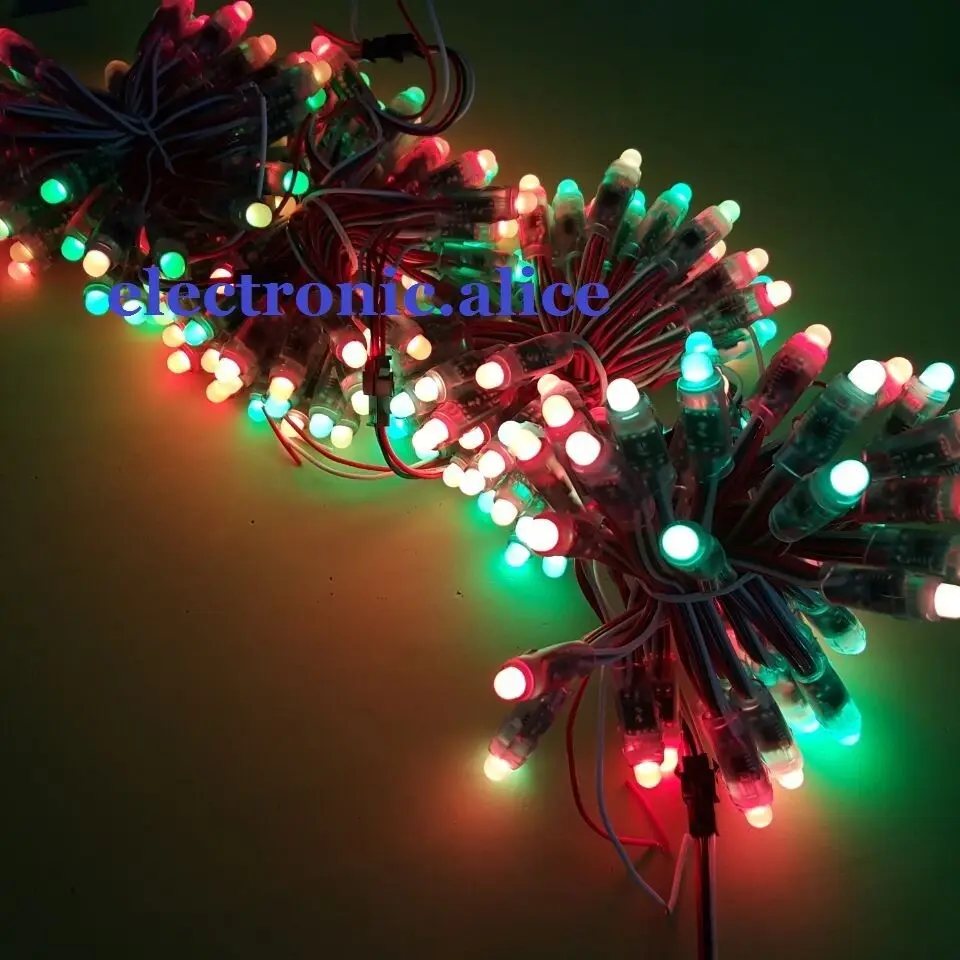

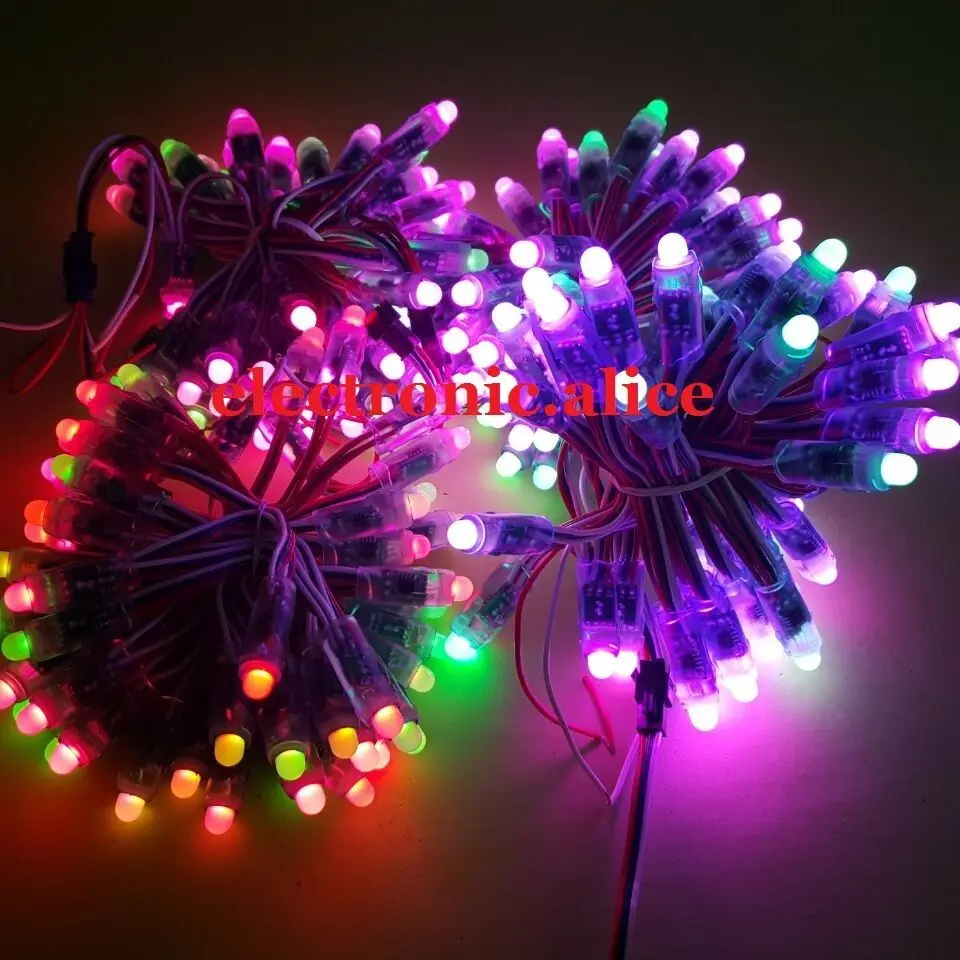

250PCS   WS2811 RGB Full Color 12mm Pixels digital Addressable LED   String DC 5V

Features:
Working voltage: DC5V
Working current: 60mA
Power: 0.3W/LED
Working temperature: -40°C- 60
IP grade: IP68
Dimension: 12 mm
Lifespan: MTBF>50000h
Viewing angle: > 90
Applications

Outdoor advertising,
Christmas decoration.
Cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archwa
DIY Lights for home use
Marine light
Task lighting
Replacement of Fluorescent light
Decorative lights for holiday, event, show, exhibition

Package:

1

.1x T-1000S  RGB LED Pixel controller  1PCS

2.

50pcs WS2811   RGB Full Color Pixels digital Addressable LED String DC 5V

3.

1x T-1000S  RGB LED Pixel controller

250pcs WS2811   RGB Full Color Pixels digital Addressable LED String DC 5V
