 Digital Controller/Relay Module/Relay Switch/Relay Control Module for timing, delaying, cycle timing, intermittent timing, etc

    　   Description: Features:


"Timing range: 0~999ms, 0~999s, 0~999m, 0~999h"
Input voltage: AC85-265V/5V /12V /24V
Power dissipation: <0.6W
Maximum power: < 2000W
Maximum current: 10A
Product weight: 45g

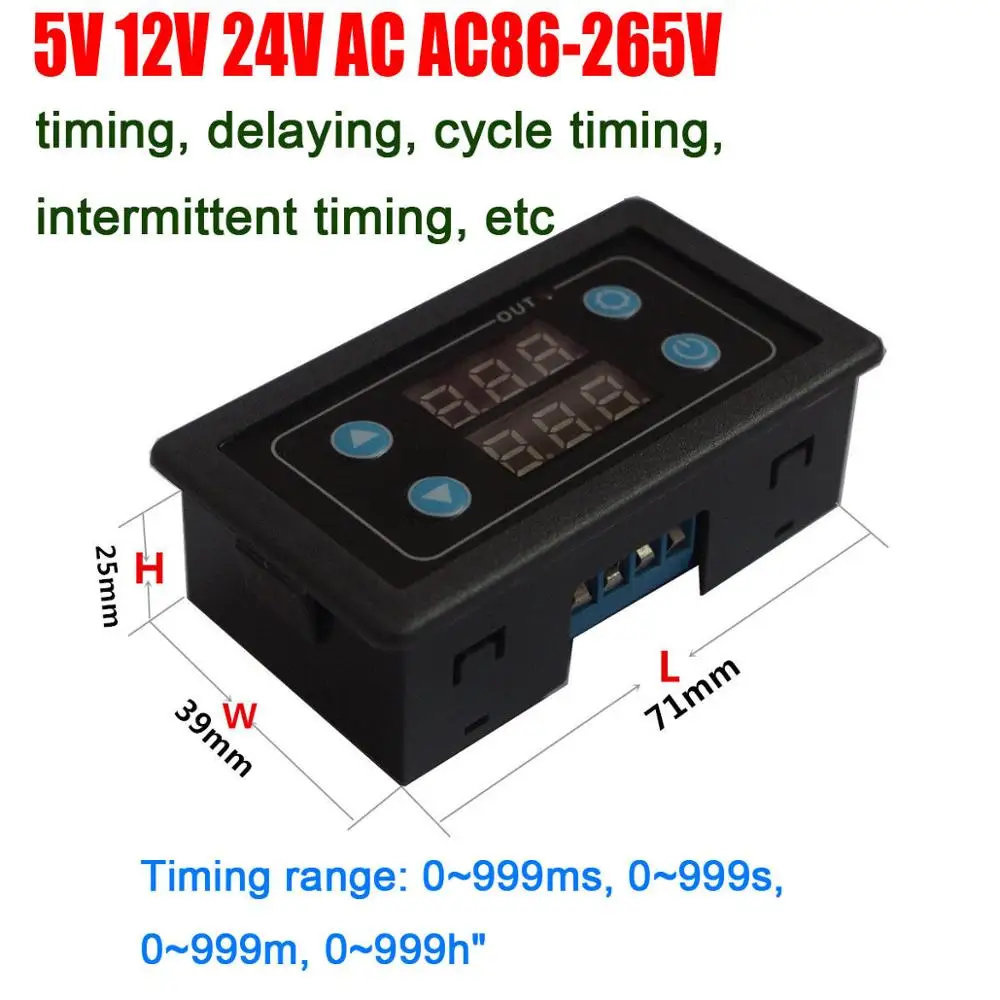

Dimension: 71mm*39mm*25mm

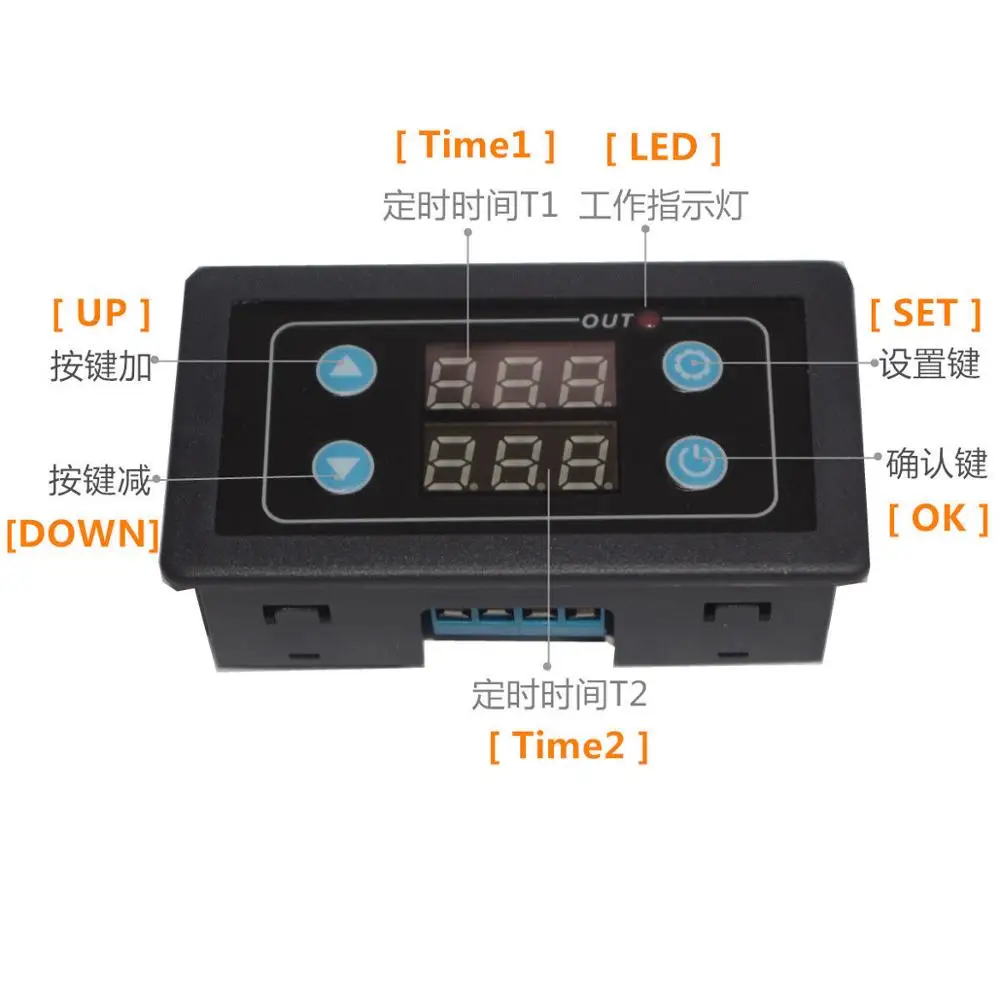

Time setting: Short press set button, T1 LED will flash, during flashing time, press button to add or subtract to set timer time T1. After setting, short press setting button again, T2 LED will flash, during flashing, press button to add or subtract. Set the timer time T2. There are two ways to save data after setting. The first one can wait for 6 seconds, the digital tube stops flashing, the system automatically saves the setting time, and the second can short press the setting button again to save the data.

Parameter setting: long press the setting key to enter the parameter setting mode, there are three groups of parameters for the user to set P0, P1, P2.

P0: timing range, P1: working mode, P2: display brightness adjustment. P0, P1, and P2 can be switched by short-pressing the setup key. Under the corresponding parameters, the corresponding parameters can be set by pressing plus or minus.

P0--0 represents the timing range is 0.1 seconds.

P0--1 represents the timing range is seconds.

P0--2 represents the timing range is minutes.

P0--3 represents the timing range is hour.

P1--0: After the delay time T1, the relay pulls in (T1 timing).

P1--1: The relay releases after a time delay T1 (T1 timing).

P1--2: After the time delay T1, the relay pulls in (T1 timing), and after a delay T2, the relay releases (T2 timing) and ends.

P1--3: After the time delay T1, the relay is released (T1 timing), and after the delay T2 time, the relay is closed (T2 timing) and ends.

P1--4: After the time delay T1, the relay pulls in (T1 timing), and after the delay T2 time, the relay releases (T2 timing) and repeats the cycle.

P1--5: After the time delay T1, the relay releases (T1 timing), and after the delay T2 time, the relay pulls (T2 timing) and repeats the cycle.

P2--0 to P2--5 are display brightness adjustments that the user can set based on comfort.

P2--OFF: Low-power mode, the user will set P2 to OFF mode, the system will automatically turn off the display after 10s, enter the low-power mode, press any button to wake up.

The confirmation key has two major functions:

Function 1: After all parameter settings are completed, press the ENTER key to save the setting data and start working. Press the confirmation key again during work to implement the pause function, the relay is disconnected, and press the key again to resume the timing function.

Function 2: Trigger the function again. After the timer finishes work normally, it needs to work again. Short press the confirmation key to restart the timer.

u For example: For example, a customer needs to power on for 10 seconds at regular intervals and 20 seconds to turn off. Set as follows:

 T1 setting time 10, T2 setting time 20

P0—1 (T1 timing range is second)

 P1 - 5 (Timer operation mode is to stop after the first work cycle)
Package Contents
100% Brand New
1 x Digital Display Relay Module
