Hantek 6204BE 200MHz Automotive oscilloscope 4 Channels 1Gsa/s Portable USB PC Handheld Digital Osciloscopio Diagnostic-tool

Feature:

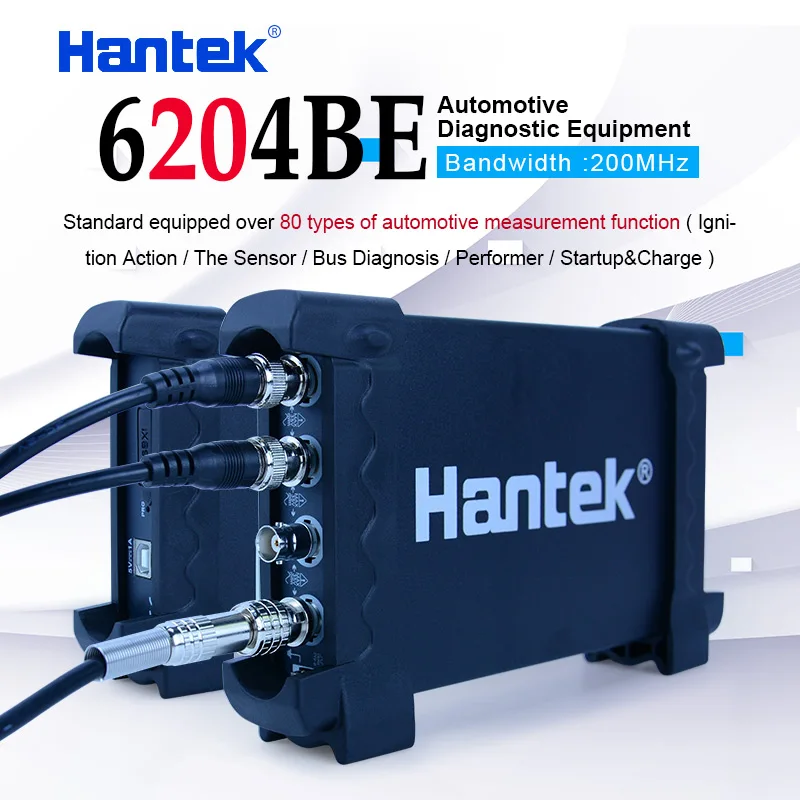

Standard equipped of automotive measurement function;
First Diagnosis: Intake manifold vacuum & ignition,Petrol fumes adjusting valve vacuum & ignition,Idle exhaust ignition, Starting exhaust ignition

Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starter and charging circuits

Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
USB 2.0 interface plug and play, and no need extra power supply;
Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

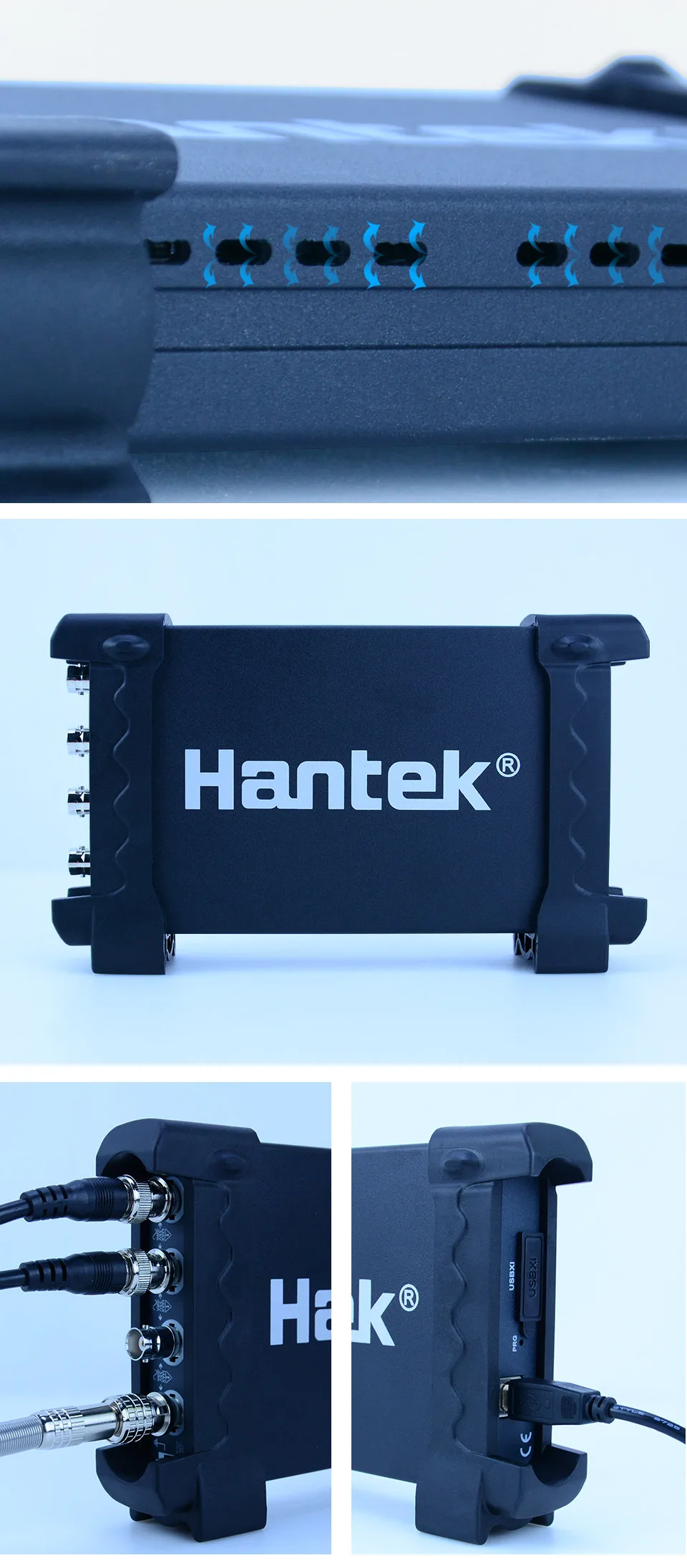

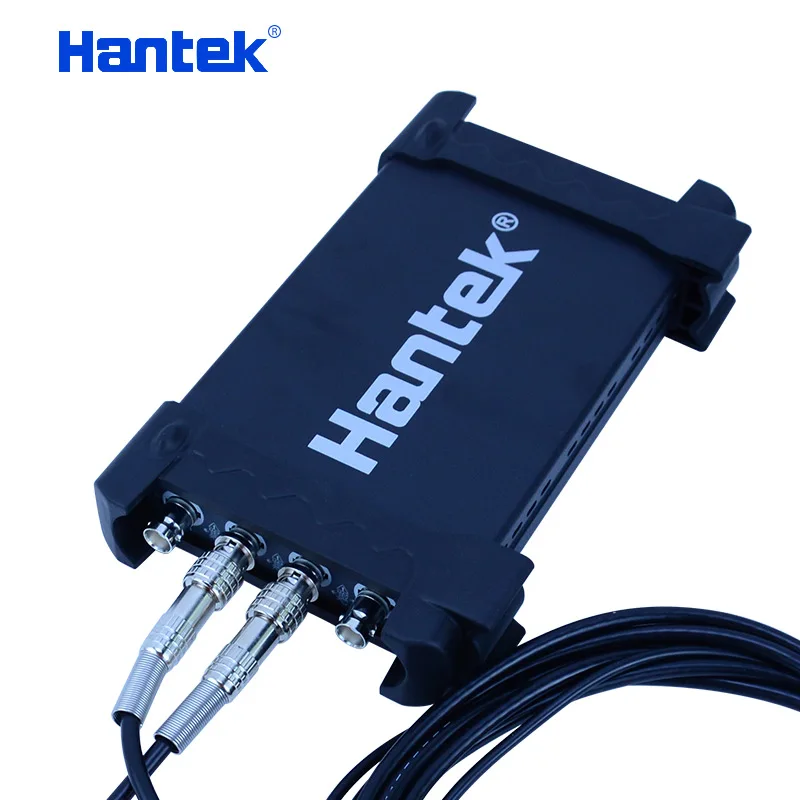

Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

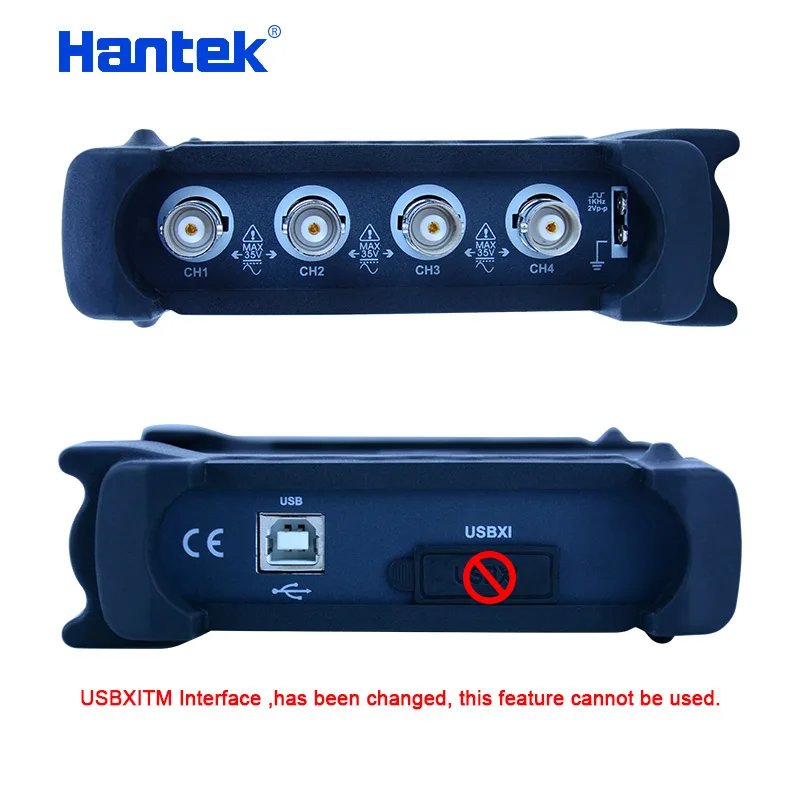

4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 200MHz high bandwidth,

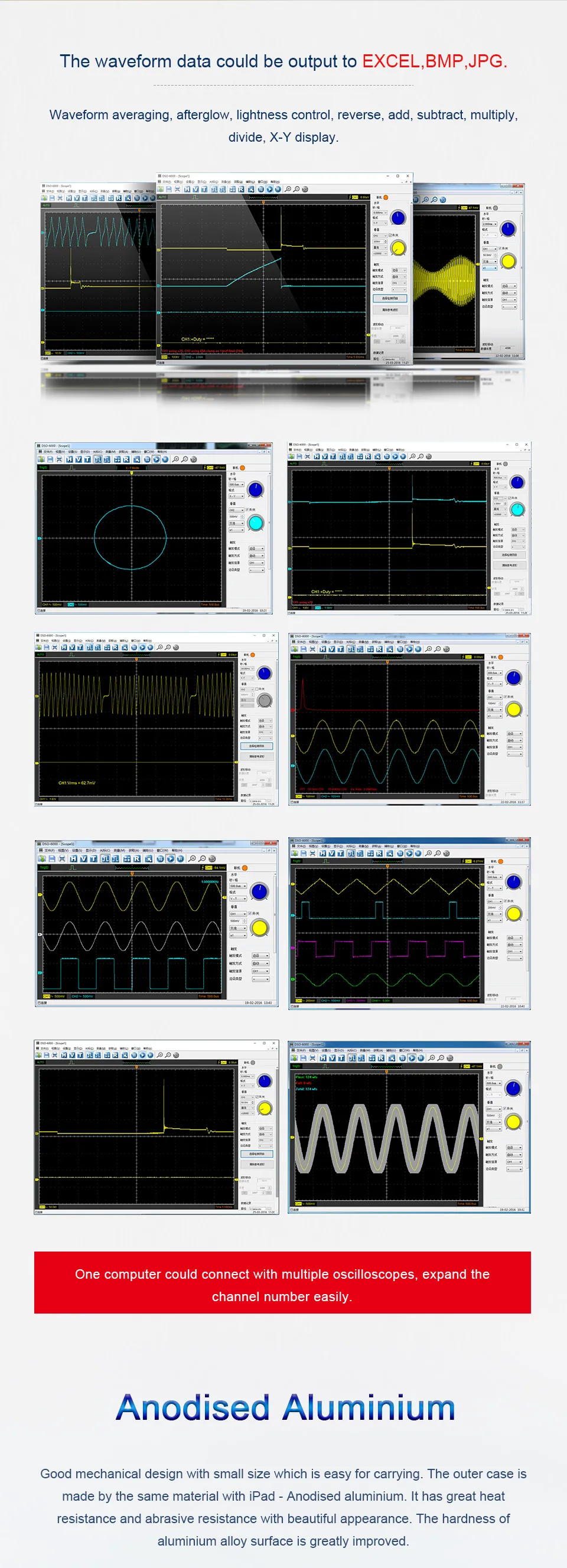

The waveform data could be output to EXCEL,BMP,JPG.
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display. FFT spectrum analyzer
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples

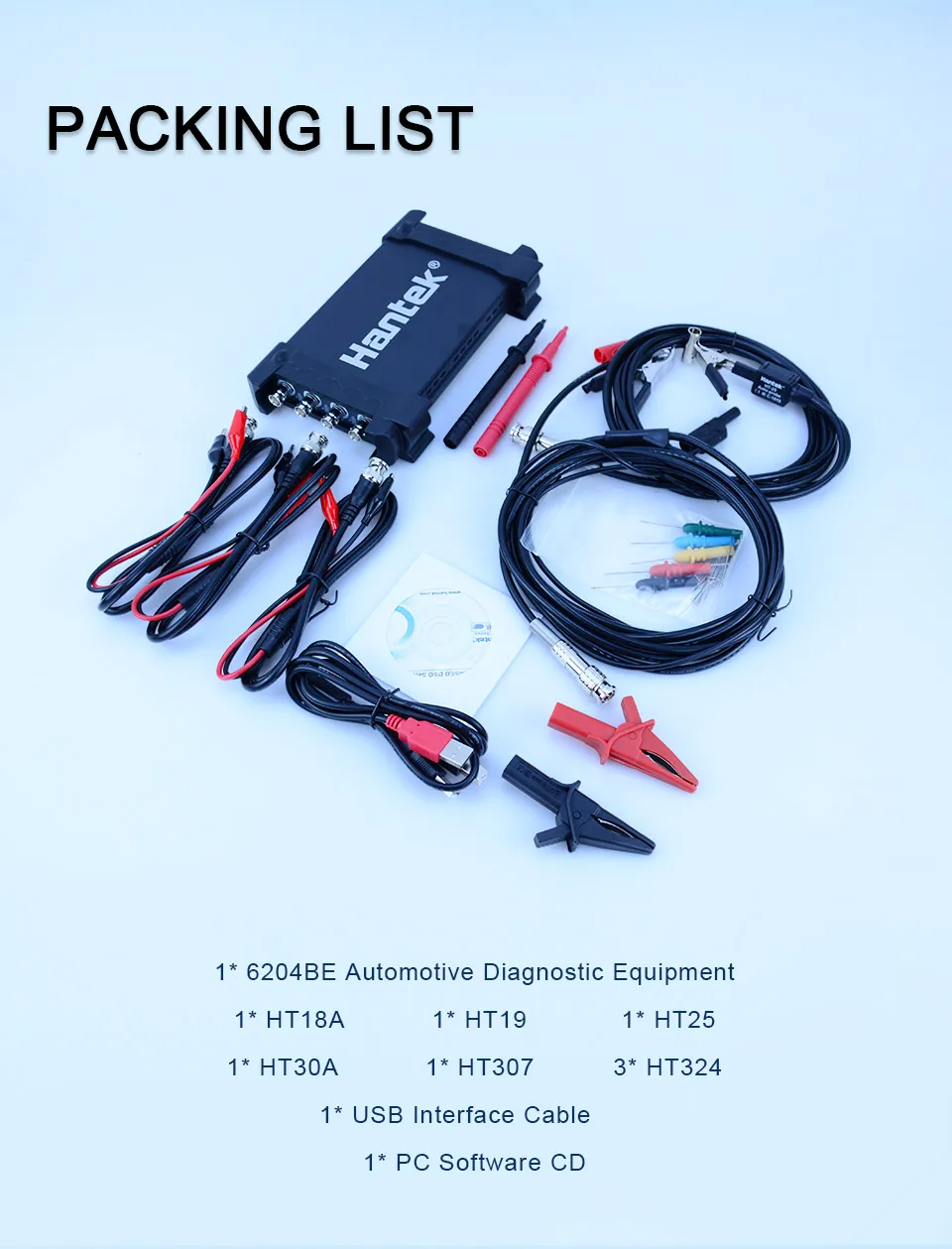

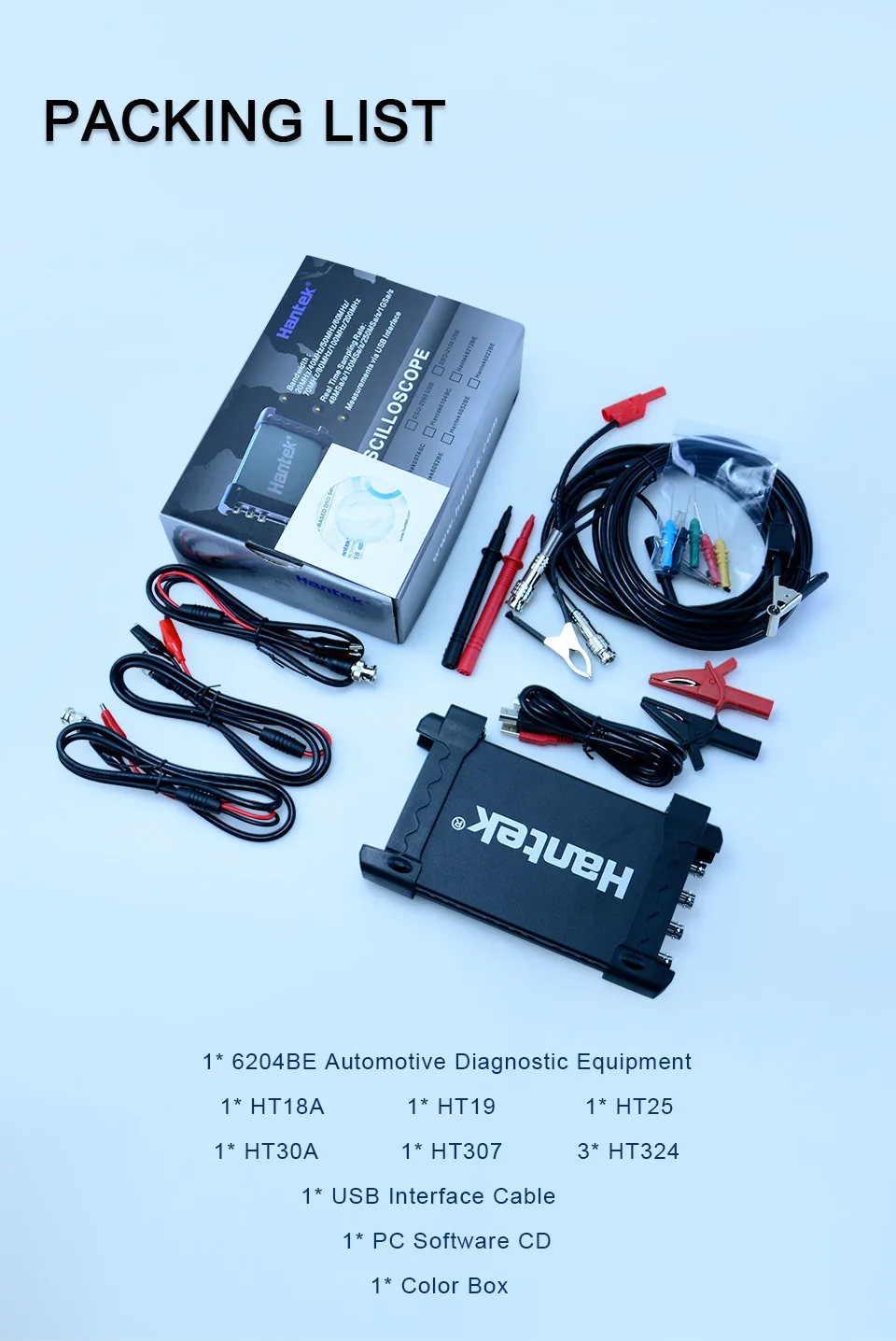

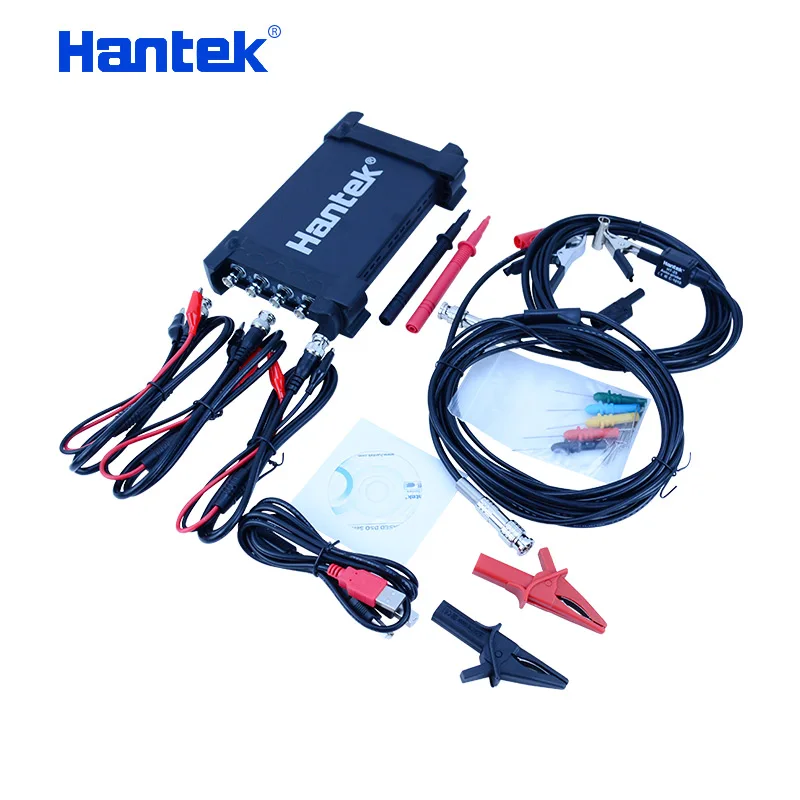

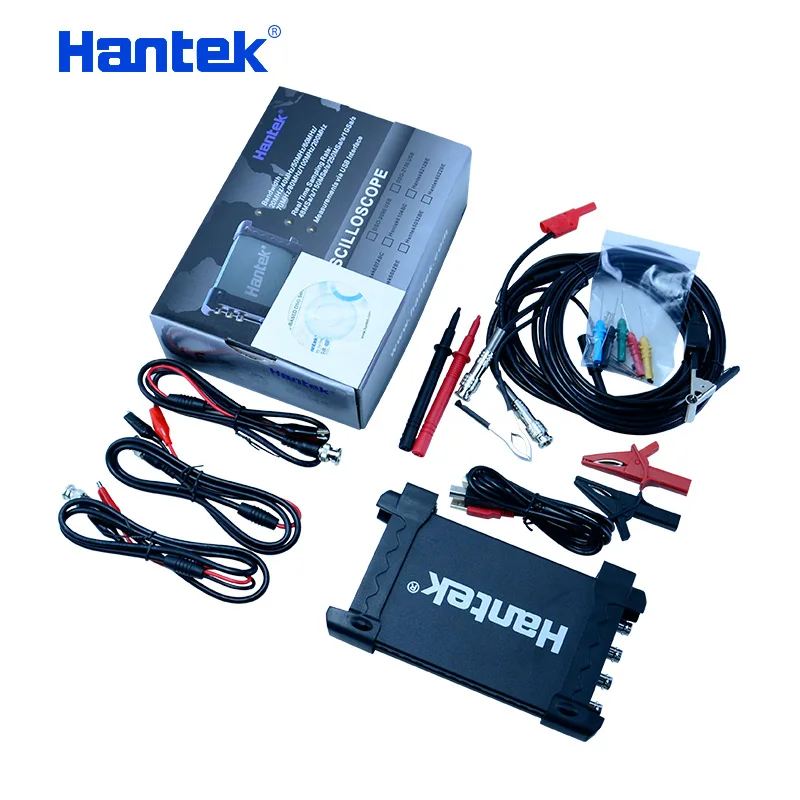

Accessory:

HT307*1,HT19*1,HT18A*1,HT30A*1,gator clip lines HT324*3,HT25*1,USB,CD,Manual

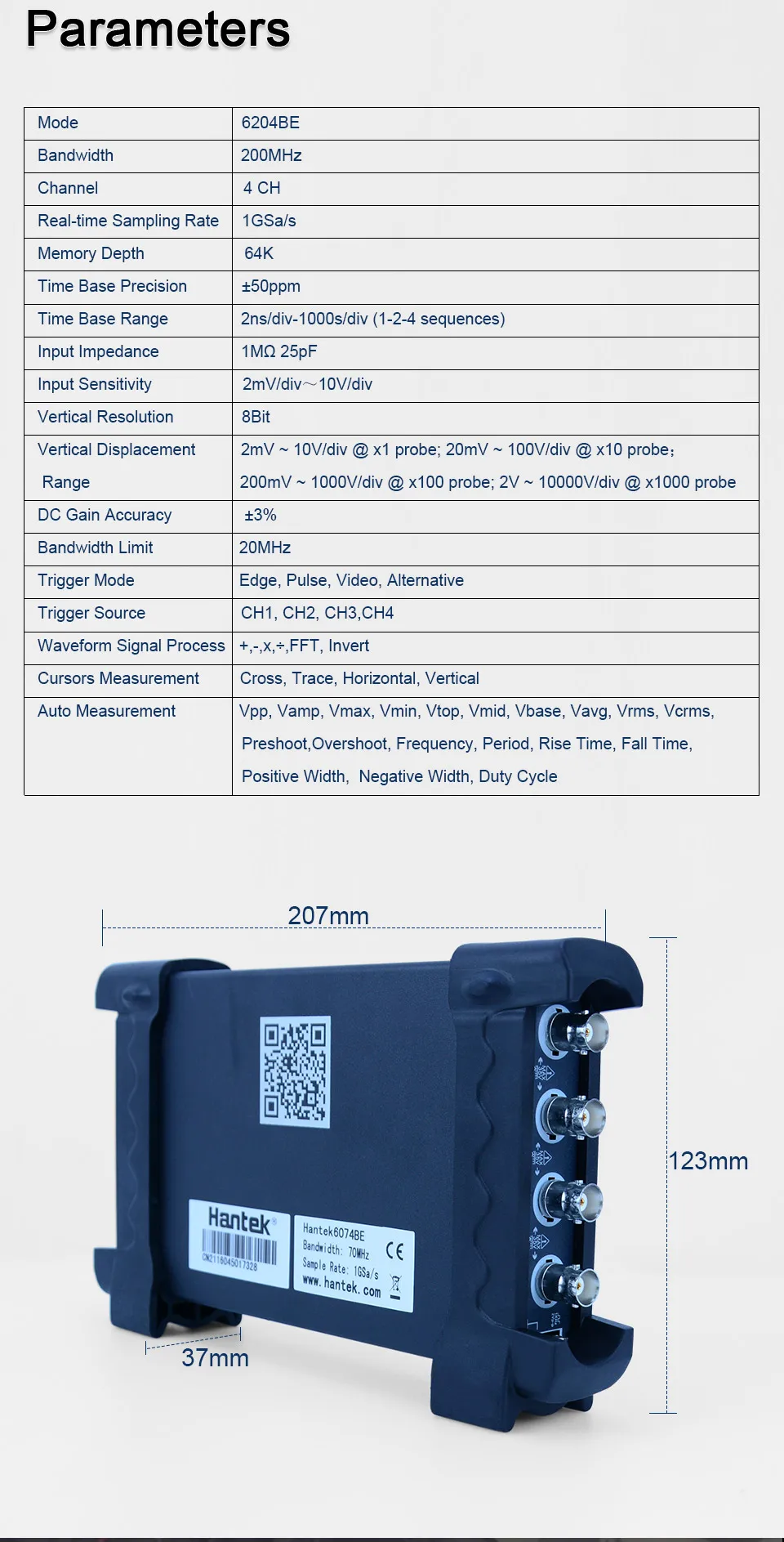

Model

Hantek6204BE

Bandwidth

200MHz

Channel

4 CH

Real-time Sampling Rate

1GSa/s

Memory Depth

64K

Time Base Precision

±50ppm

Time Base Range

2ns/div-1000s/div (1-2-4 sequences)

Input Impedance

1MΩ 25pF

Input Sensitivity

2mV/div~10V/div

Vertical Resolution

8Bit

Vertical Displacement Range

2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe;
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe

DC Gain Accuracy

±3%

Bandwidth

20MHz

Trigger Mode

Edge, Pulse, Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform Signal Process

+,-,x,÷,FFT, Invert

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Volume

175mm * 105mm * 25mm

Weight

0.9KG
