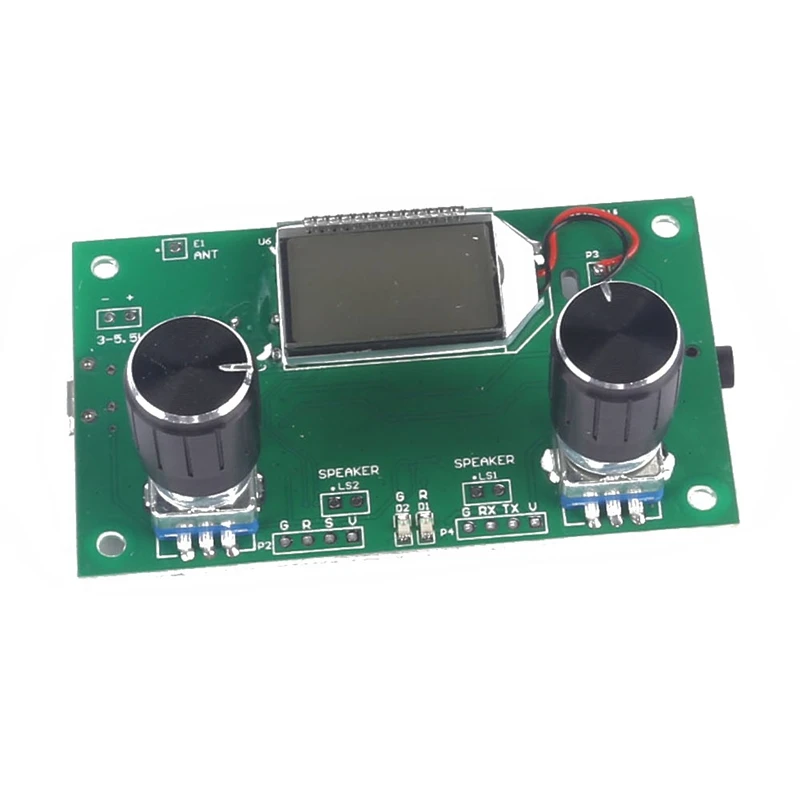

DSP & PLL Digital Stereo FM Radio Receiver Module 87-108MHz with Serial Control | Электроника

Module with USB Micro interface, Can use the computer USB power supply.
Module corresponding port,it’s marked on the PCB board, - + respectively connected with negative electrode and positive electrode of power supply (battery).
Suggested that use the battery or other regulated power supply as the power supply.
Switching power supply without filter is not recommended , such as Mobile phone charger, Mobile power supply and other switching power supply.
Otherwise, the normal operation of the module will be affected by the interference of the power supply. This module works properly Voltage is 3.0-5.0V.
Note that the power supply voltage should not exceed this range.
100% Brand New
Antenna
FM_ANT port used to connect FM antenna, Recommended external pull rod antenna with length 75cm In order to better receive the FM signal.
Earphone / speaker output
This module comes with 3WX2 channel audio amplifier, connect speaker port if required, proposed to using 4 /3W speakers. Audio automatically switches to headphone channel when the headset is plugged in, speaker channel auto shutdown at the same time.
Volume adjust
Turn VOL encoder to adjust the volume, LCD screen display volume series at the same time.
Frequency regulation
Turn FRE encoder to adjust the launch frequency, LCD screen displays the current frequency at the same time.
Auto search
Short press FRE encoder, local radio stations are automatically searched until the search to a valid radio, LCD screen displays the current frequency at the same time.
Mute
material: metal
Package Contents
1 x DSP & PLL Digital Stereo FM Radio Receiver Module 87-108MHz with Serial Control
