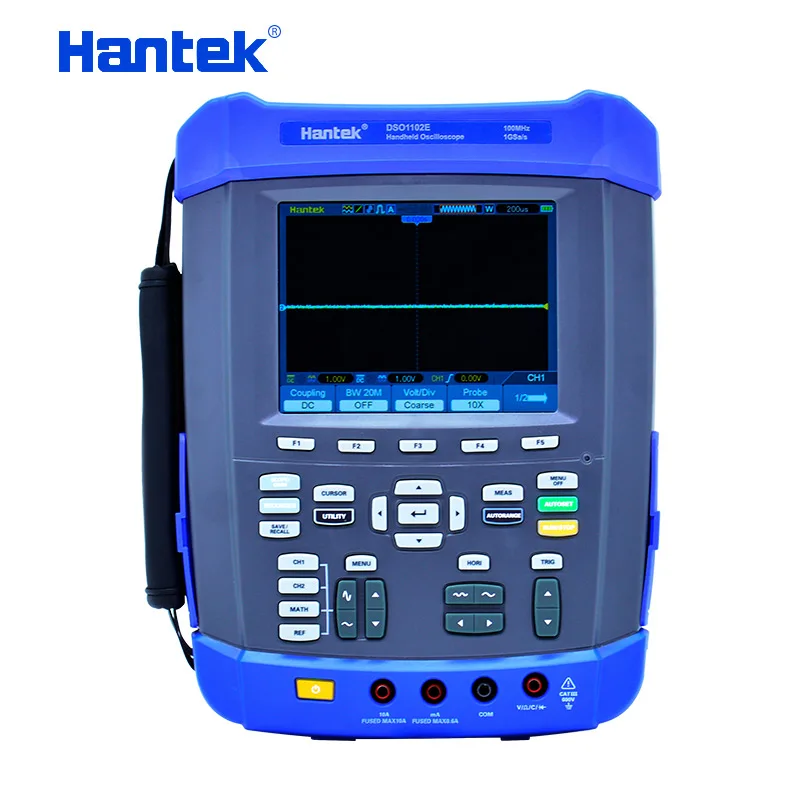

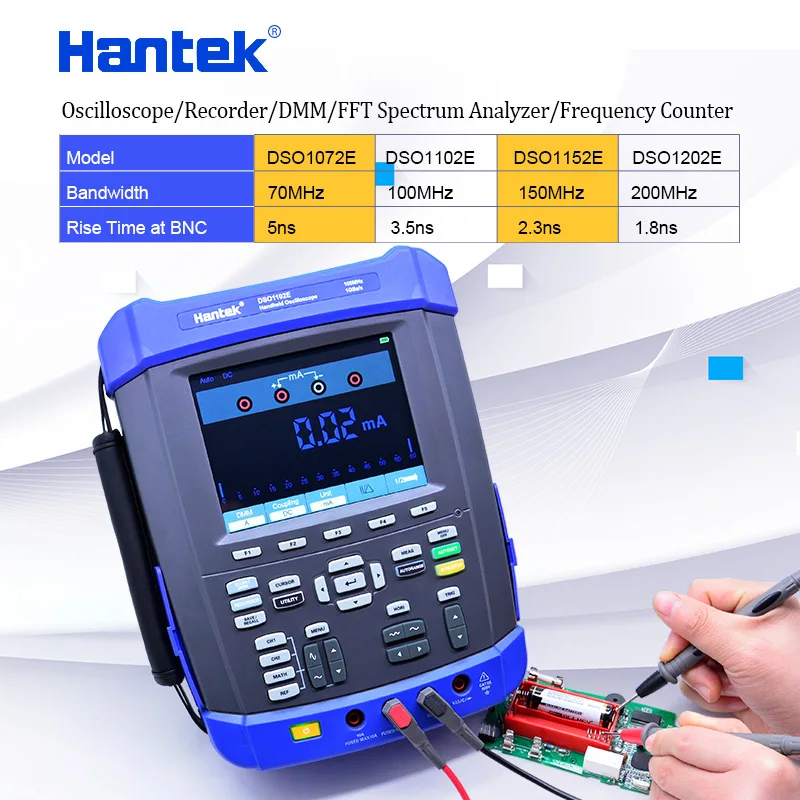

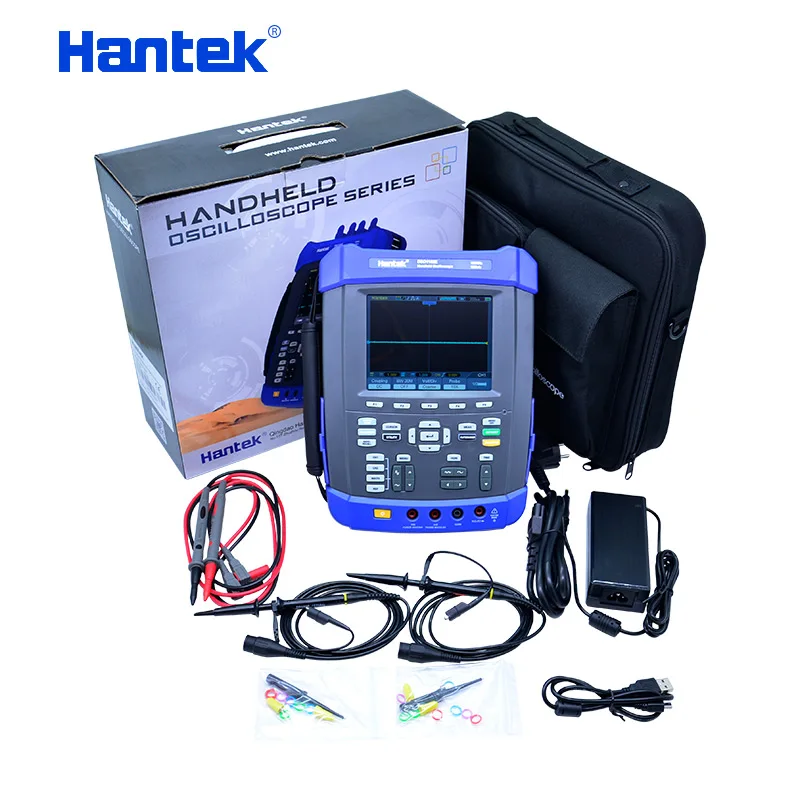

Hantek DSO1000E Digital handheld oscilloscope 70MHz~200MHz Oscilloscope/Recorder/DMM/FFT Spectrum Analyzer/Frequency Counter

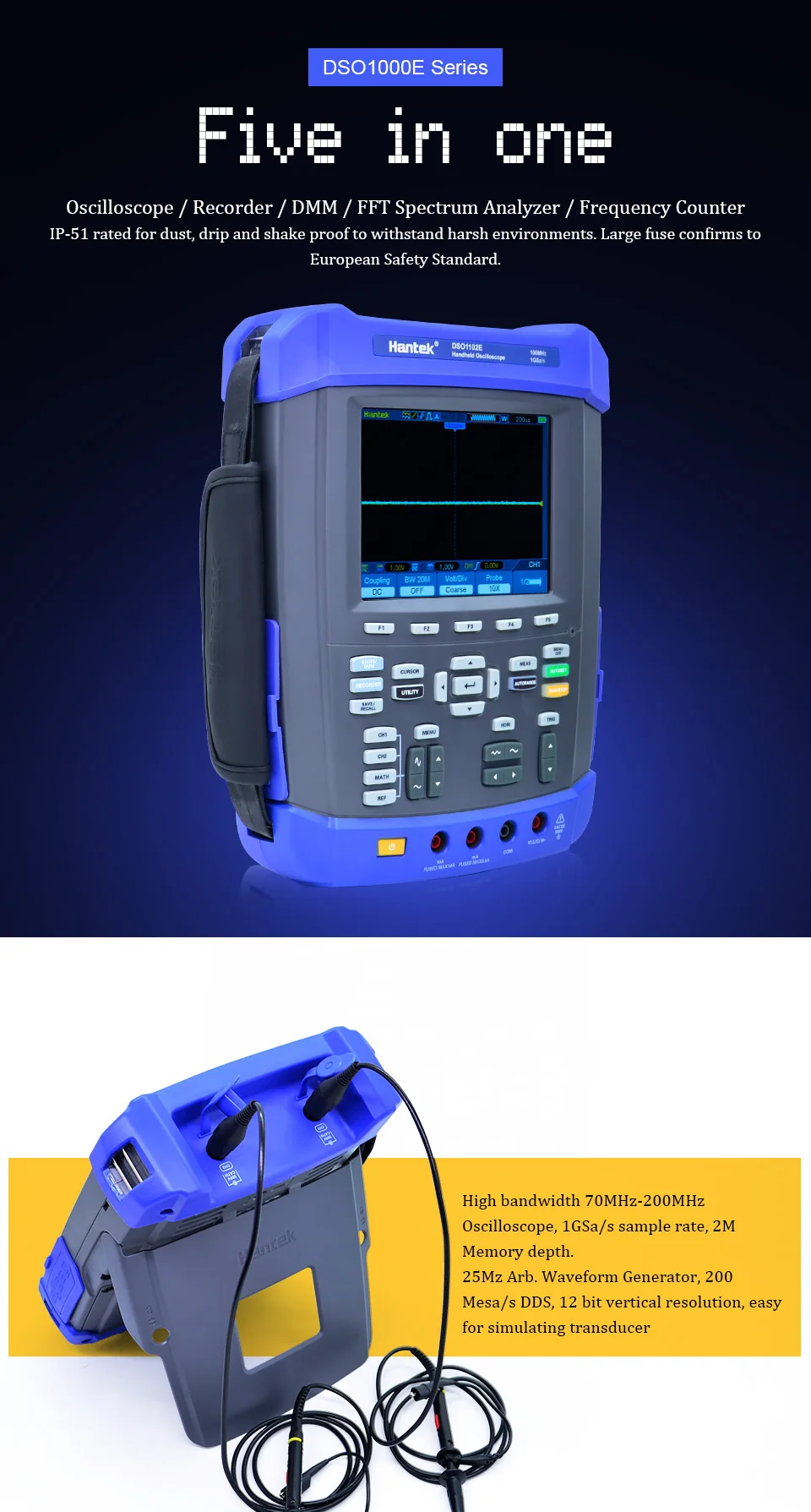

Five in one: Oscilloscope/Recorder/DMM/FFT Spectrum Analyzer/Frequency Counter.

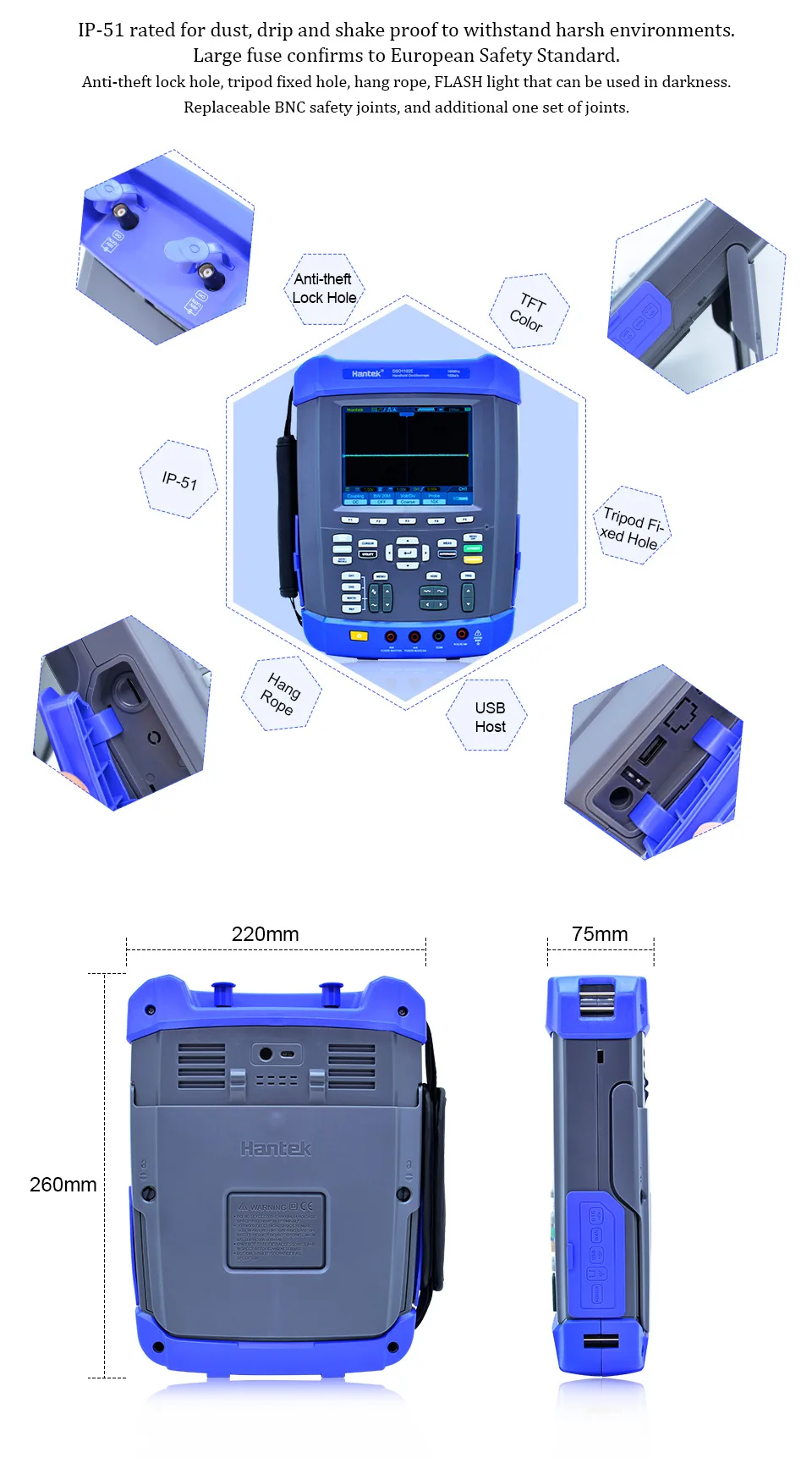

IP-51 rated for dust, drip and shake proof to withstand harsh environments.
Large fuse confirms to European Safety Standard.

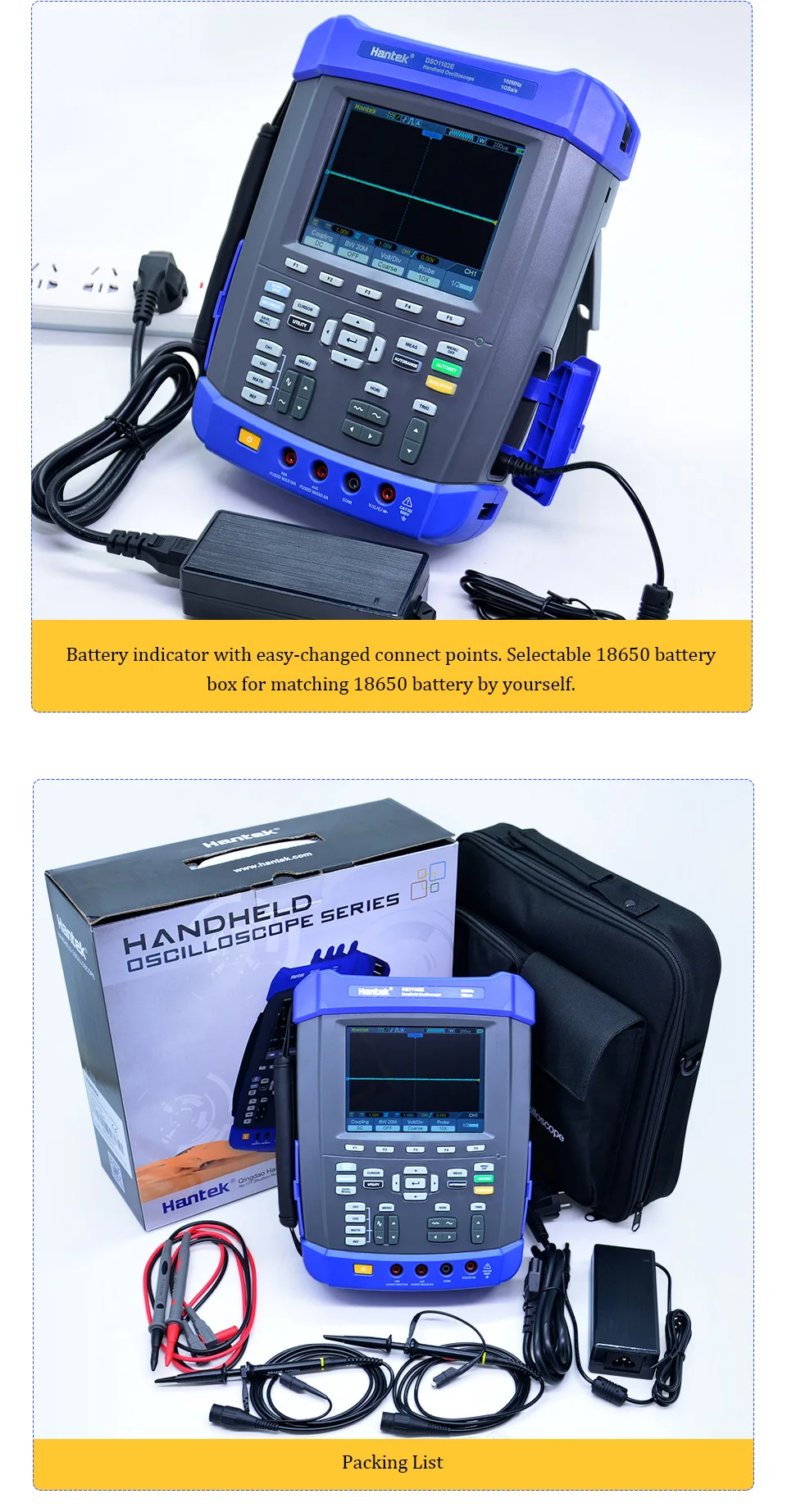

Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself.
Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness.

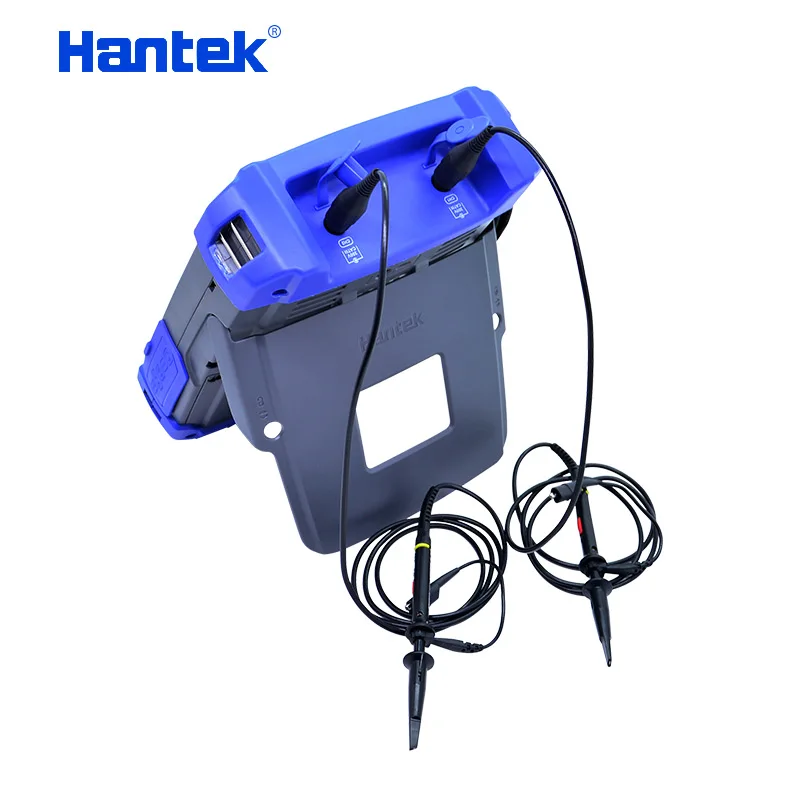

Replaceable BNC safety joints, and additional one set of joints.
High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth.
25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer

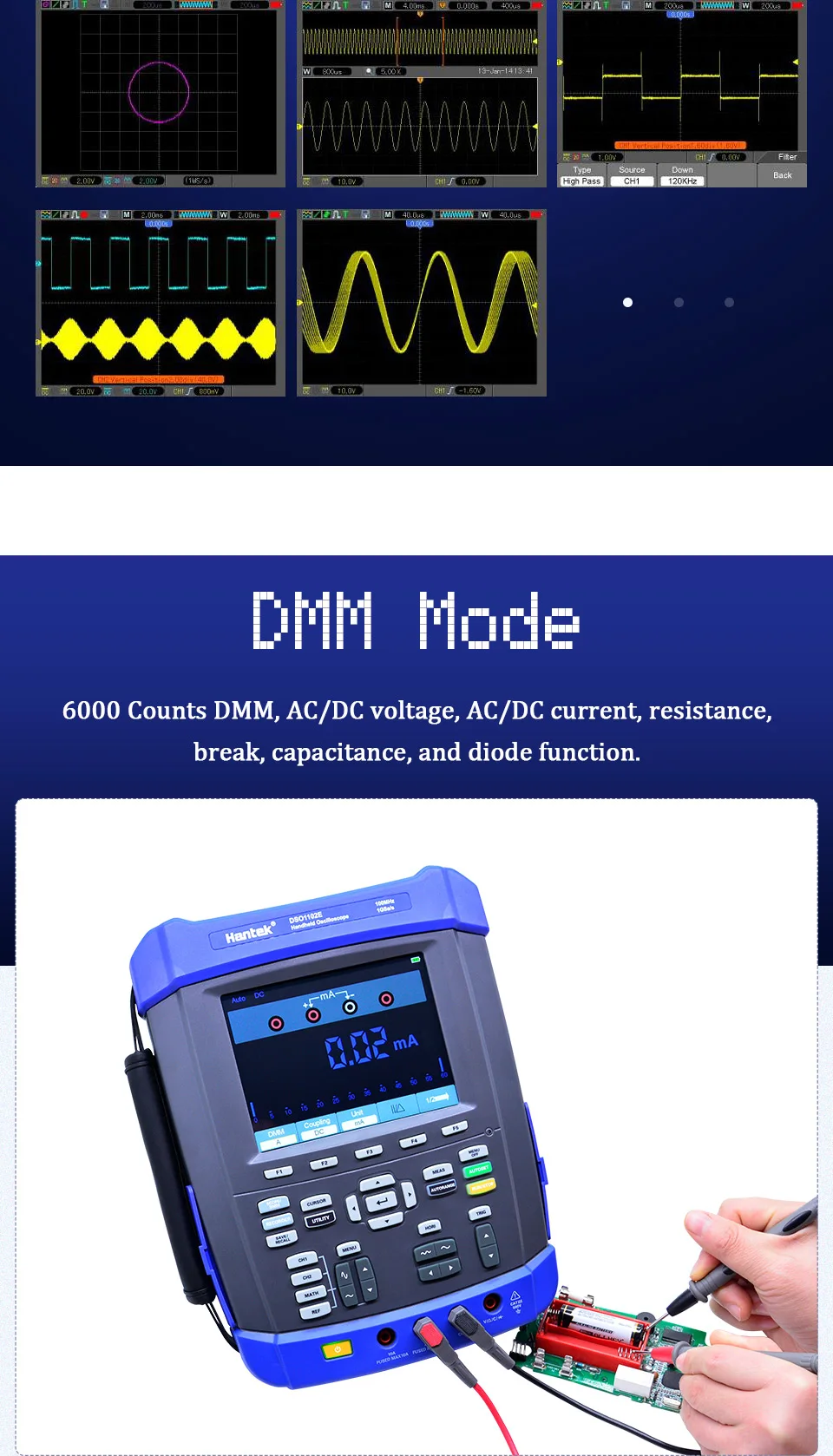

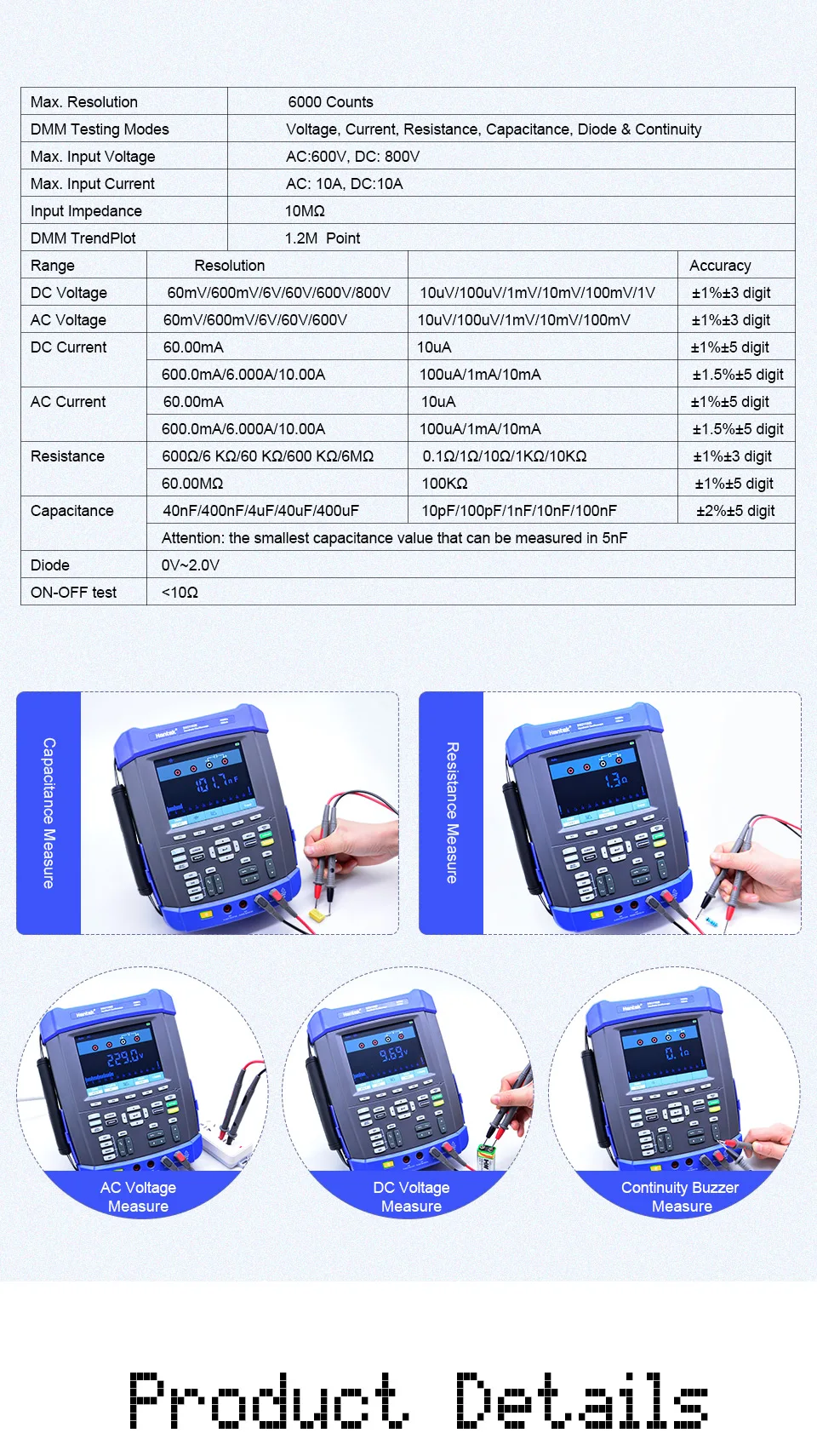

6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function.

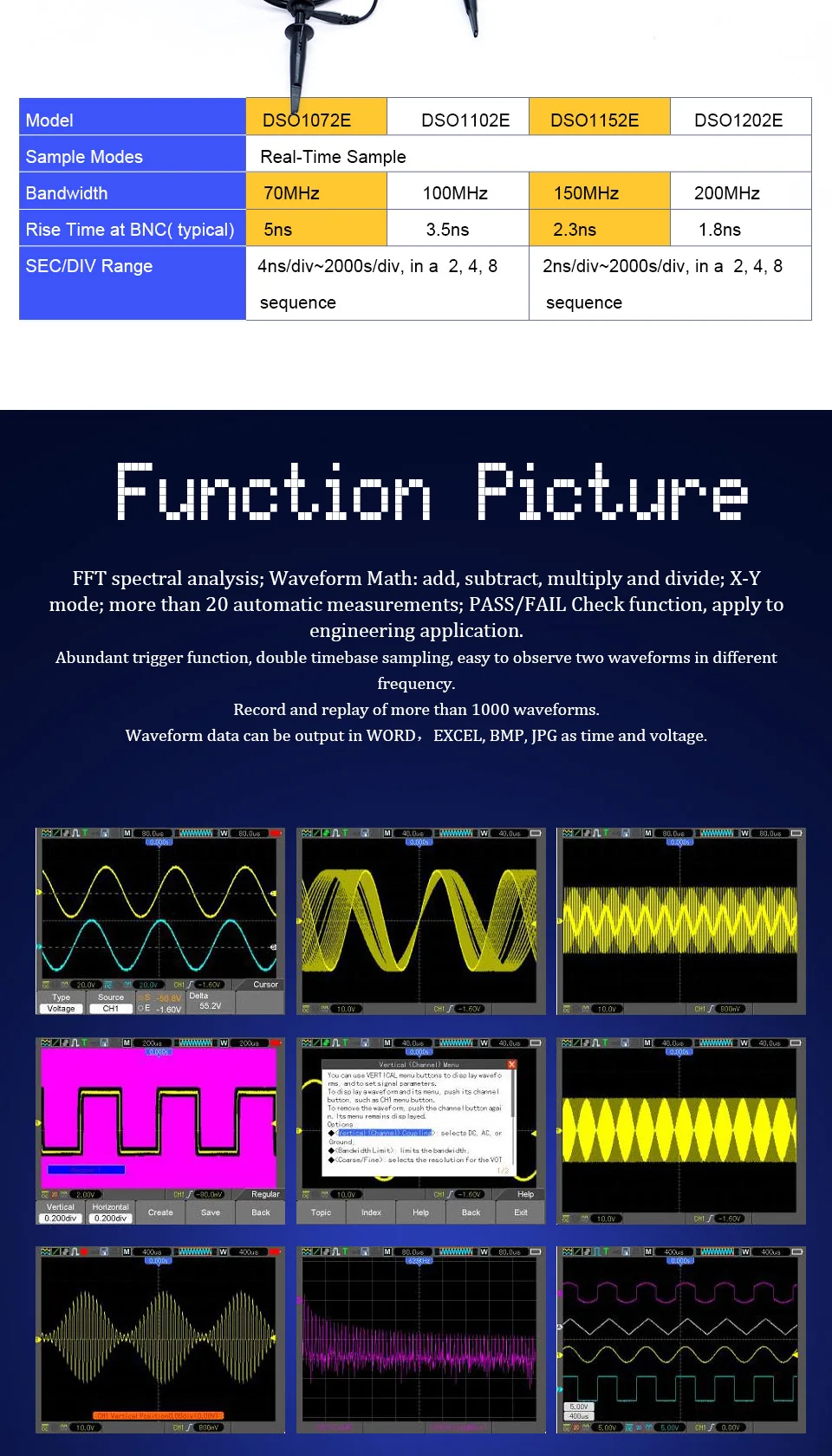

FFT spectral analysis; Waveform Math: add, subtract, multiply and divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check function, apply to engineering application.
Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency.
Record and replay of more than 1000 waveforms.

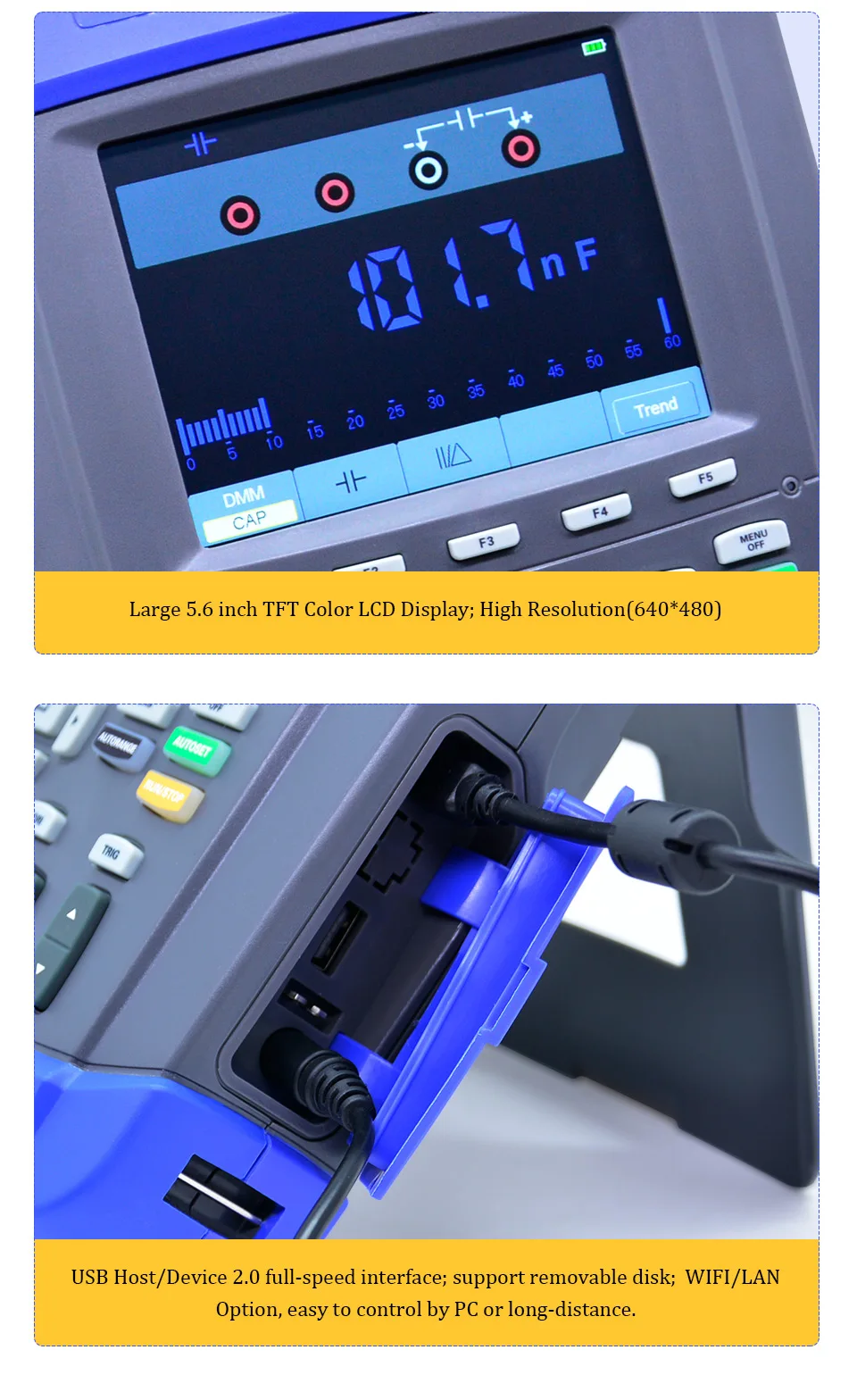

Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)

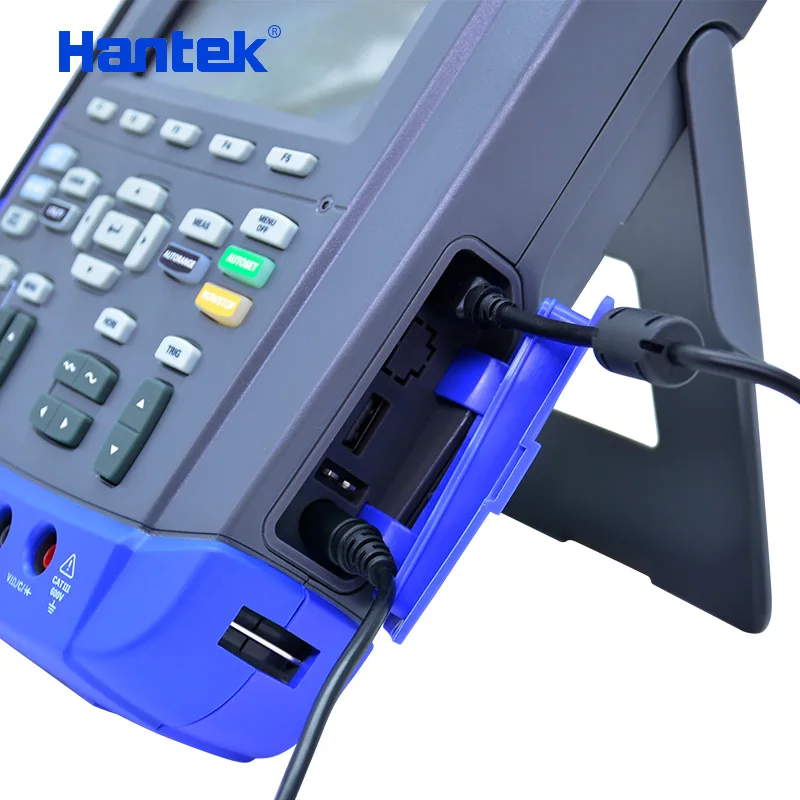

USB Host/Device 2.0 full-speed interface; support removable disk;  WIFI/LAN Option, easy to control by PC or long-distance.
Waveform data can be output in WORD,EXCEL, BMP, JPG as time and voltage.

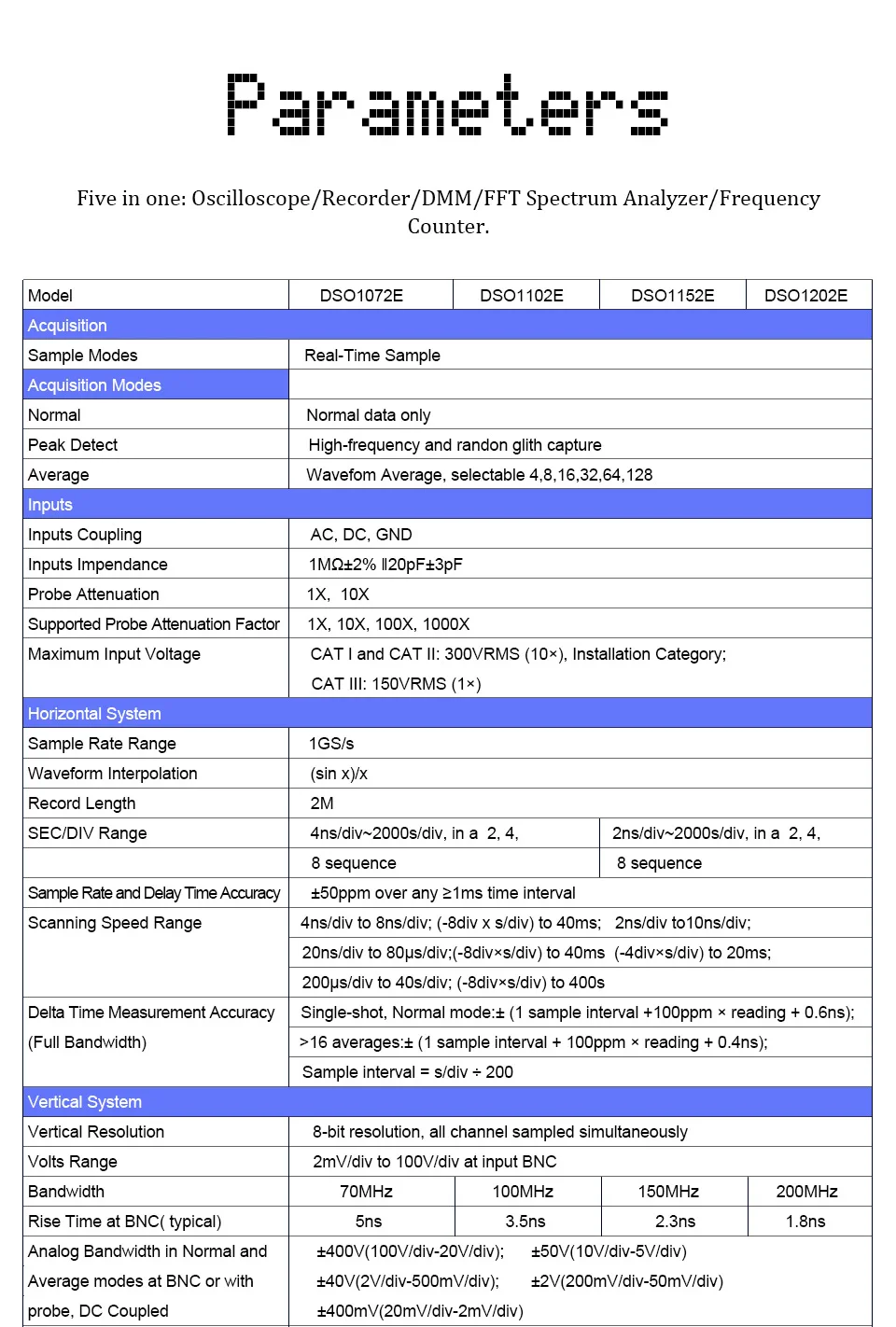

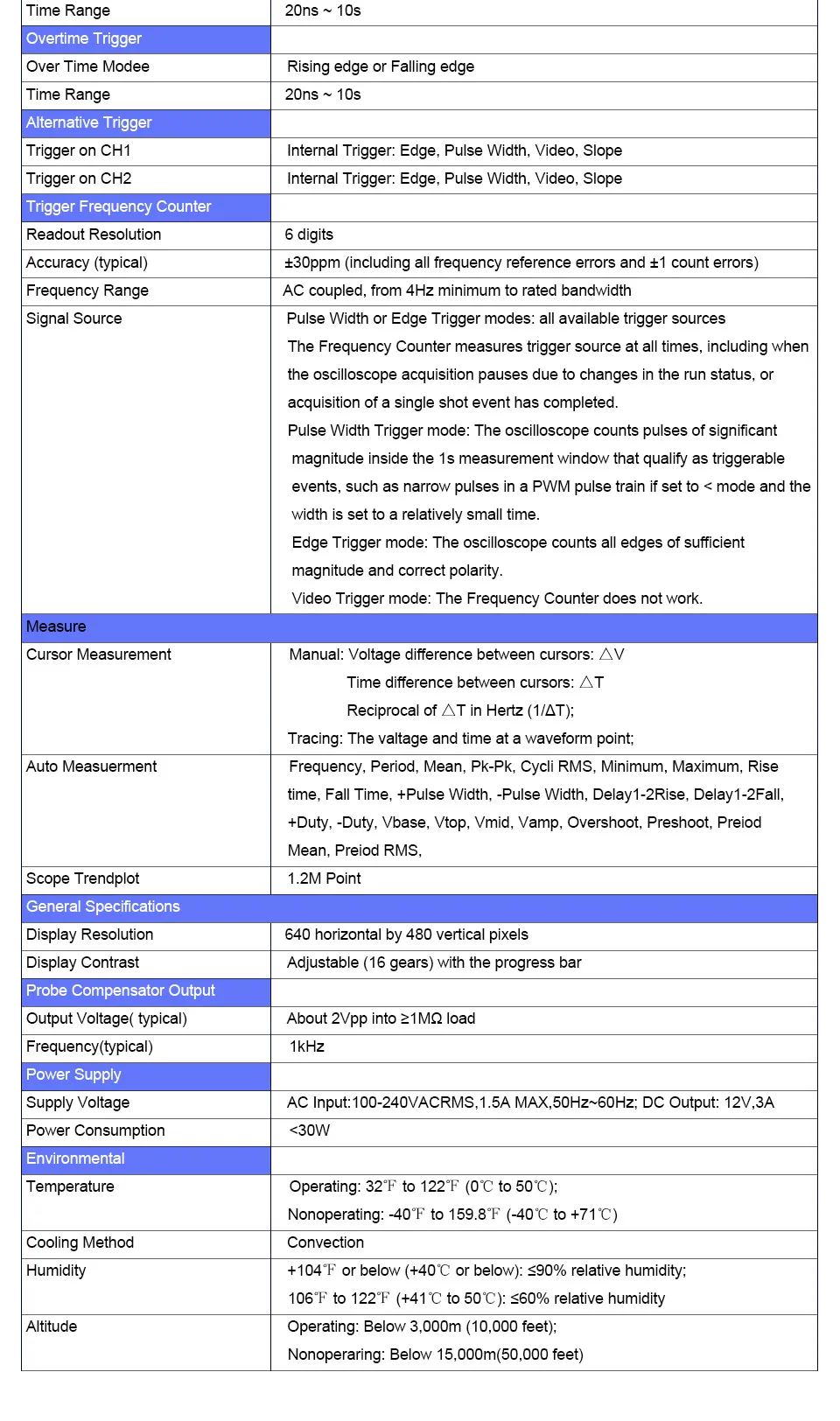

Model

DSO1072E

DSO1102E

DSO1152E

DSO1202E

Acquisition

Sample Modes

Real-Time Sample

Acquisition Modes

Normal

Normal data only

Peak Detect

High-frequency and randon glith capture

Average

Wavefom Average, selectable 4,8,16,32,64,128

Inputs

Inputs Coupling

AC, DC, GND

Inputs Impendance

1MΩ±2%‖20pF±3pF

Probe Attenuation

1X, 10X

Supported Probe Attenuation Factor

1X, 10X, 100X, 1000X

Maximum Input Voltage

CAT I and CAT II: 300VRMS (10×), Installation Category;CAT III: 150VRMS (1×)

Horizontal System

Sample Rate Range

1GS/s

Waveform Interpolation

(sin x)/x

Record Length

2M

SEC/DIV Range

4ns/div~2000s/div, in a2, 4, 8 sequence

2ns/div~2000s/div, in a2, 4, 8 sequence

Sample Rate and

±50ppm over any≥1ms time interval

Delay Time Accuracy

Scanning Speed Range

4ns/div to 8ns/div; (-8div x s/div) to 40ms;

2ns/div to10ns/div;

20ns/div to 80μs/div;(-8div×s/div) to 40ms

(-4div×s/div) to 20ms;

200μs/div to 40s/div; (-8div×s/div) to 400s

Delta Time Measurement Accuracy(Full Bandwidth)

Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);

>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);

Sample interval = s/div ÷ 200

Vertical System

Vertical Resolution

8-bit resolution, all channel sampled simultaneously

Volts Range

2mV/div to 100V/div at input BNC

Bandwidth

70MHz

100MHz

150MHz

200MHz

Rise Time at BNC( typical)

5ns

3.5ns

2.3ns

1.8ns

Analog Bandwidth in Normal and Average modes at BNC or with probe,DC Coupled

±400V(100V/div-20V/div);

±50V(10V/div-5V/div)

±40V(2V/div-500mV/div);

±2V(200mV/div-50mV/div)

±400mV(20mV/div-2mV/div)

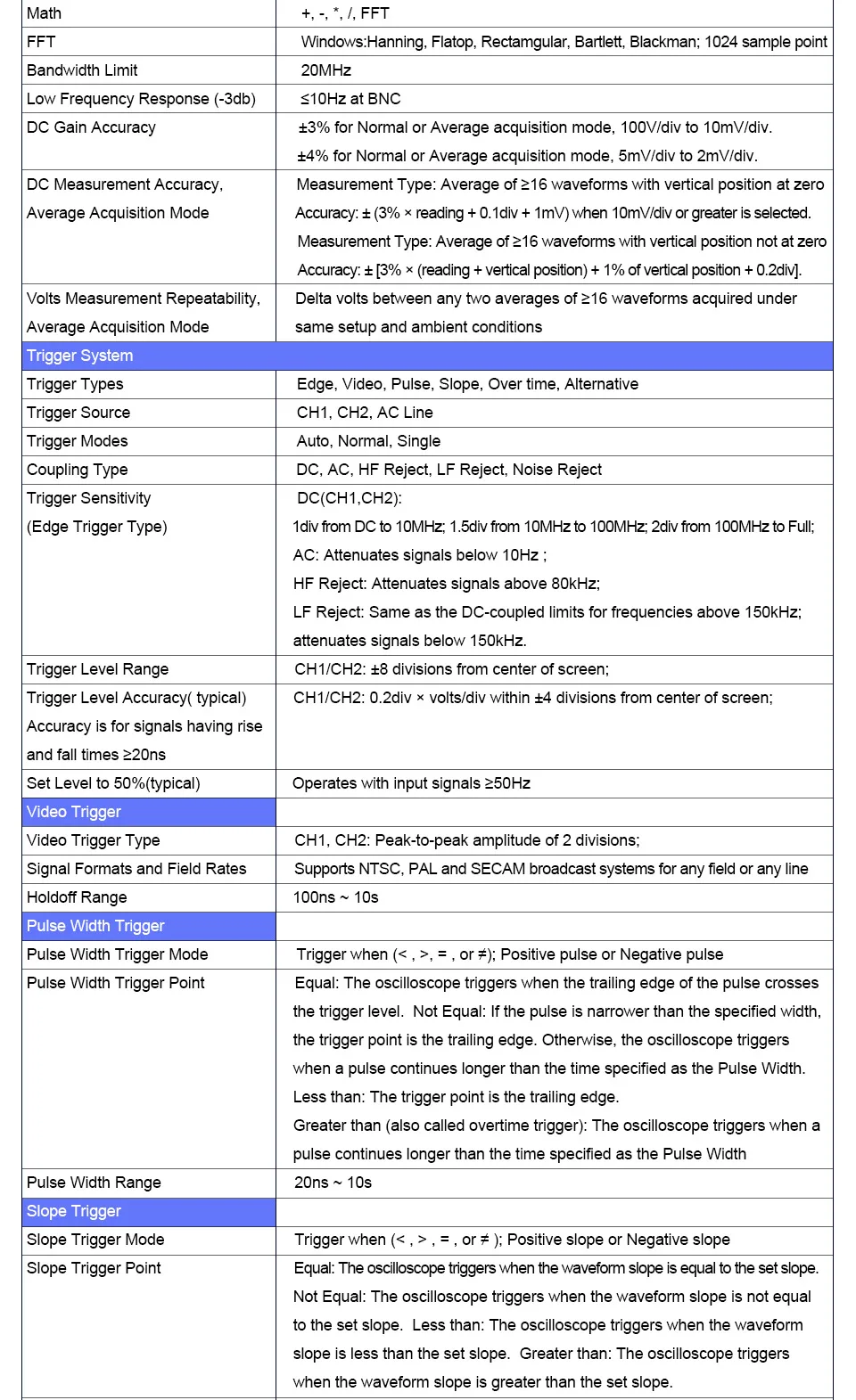

Math

+, -, *, /, FFT

FFT

Windows:Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point

Bandwidth Limit

20MHz

Low Frequency Response (-3db)

≤10Hz at BNC

DC Gain Accuracy

±3% for Normal or Average acquisition mode, 100V/div to 10mV/div.

±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div.

DC Measurement Accuracy,Average Acquisition Mode

Measurement Type: Average of≥16 waveforms with vertical position at zero

Accuracy: ± (3% × reading + 0.1div + 1mV) when 10mV/div or greater is selected.

Measurement Type: Average of≥16 waveforms with vertical position not at zero

Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div].

Volts Measurement Repeatability,Average Acquisition Mode

Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions
