Hdmi Dvb-T Modulator Convert Extender Signal To Digital Tv Receiver Support Rf Output Eu Pl | Электроника

Hdmi Dvb-T Modulator Convert Hdmi Extender Signal To Digital Dvb-T Hdmi To Dvb-T Modulator Tv Receiver Support Rf Output Eu Pl CATV transmission mode. The product applies RF modulation technology characteristic to realize the HD signal to HD digital TV signal conversion and transmit via coaxial cable over long distance up to 500 meters.By a CATV network mixerthe Modulator over Coaxial cable supports pair to pair and multiple to multiple video matrix.Supports a HDMI input and a F type/BNC RF output.Support HDMI resolution up to 1080P/60Hz.it can be compatible with any DVB-T TV or receiver.
Transmission distance up to 500 meters by SYV-75-5 coaxial cable and no need amplification.Support 80 channels for option; frequency ranges 139MHz~950MHz.Products using the broadcast signal transmission mode, only one line can transmit 48 channels of high-definition video signal at the same time.By a CATV network mixerthe Modulator over Coaxial cable supports pair to pair and multiple to multiple video matrix.
Plug Type :EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
The use of digital TV communication protocol, anti interference and error correction capability is very strong.Installs in minutes.The use of the existing CATV transmission network, no need wiring.By using a special receiver (HDEX009M1),you can decoding DVB-T signal and output HDIM HD signal for non DVB-T TV/Monitor.
FTA(Free To Air): Yes
High Definition: No
Type: Digital
With USB Wifi: No
Type: DVB-T
SPECIFICATIONS:HDEX0011M1
HDMI resolution ..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
HDMI Audio Format..LPCM
RF frequency range...139950 MHz
RF Channel B/W..................7/8 MHz
The number of Channel............................80
RF Output power..............................-6dBm
RF Connector typeThe imperial F type/BNC
Coaxial cable Characteristic impedance75
Coaxial cable typesSYV-75/RG59 etc.
RF transmission distance500mSYV-75-5 coaxial standard cable
TX Max working current .... 650mA
Power adapter format Input ............ AC 100V240V 50HZ/60Hz, DC5V/2A
Operating Temperature range .... -10 to +45
Storage Temperature range. -20 to +60
Operating Humidity range ....10 to 90%RH (No Condensation)
Storage Humidity range...5 to 95%RH (No Condensation)
Weight:120g
colour:black
Material:metal
size:Case Dimension (L x W x H):94x74x28 (mm)

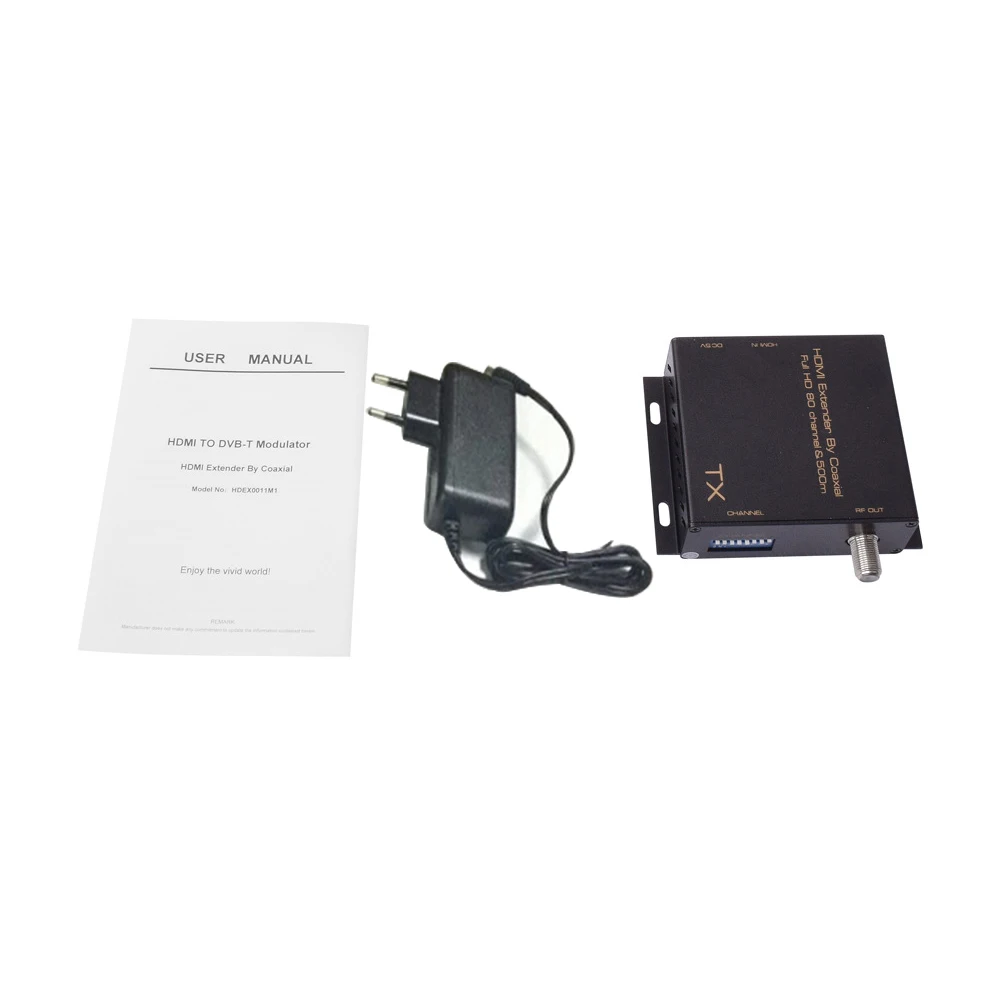

Package Contents:
1 X HDMI DVB-T Modulator
1 X AC power adapter
1 X User manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
