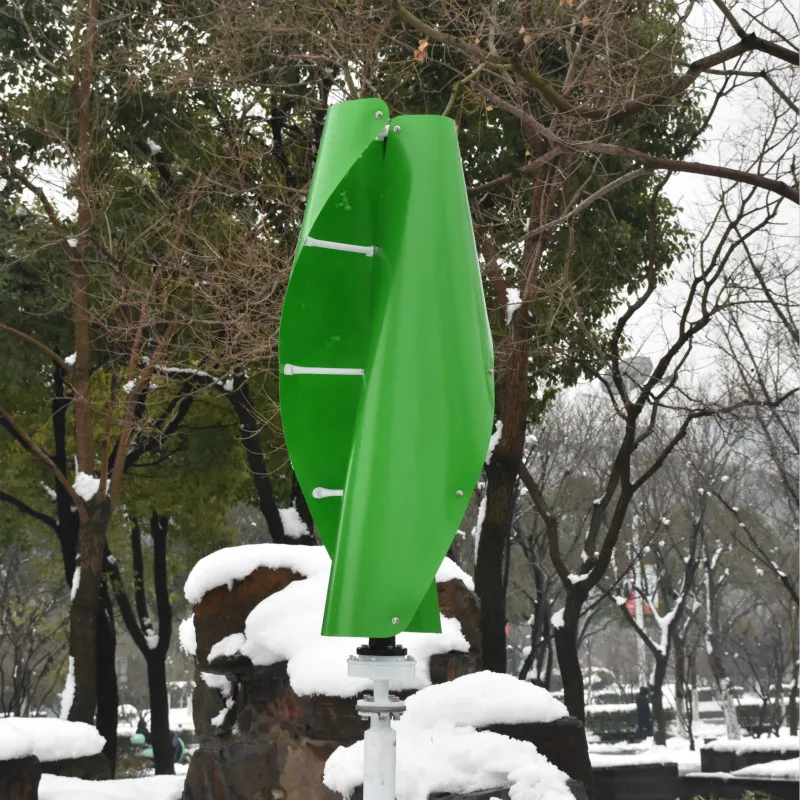

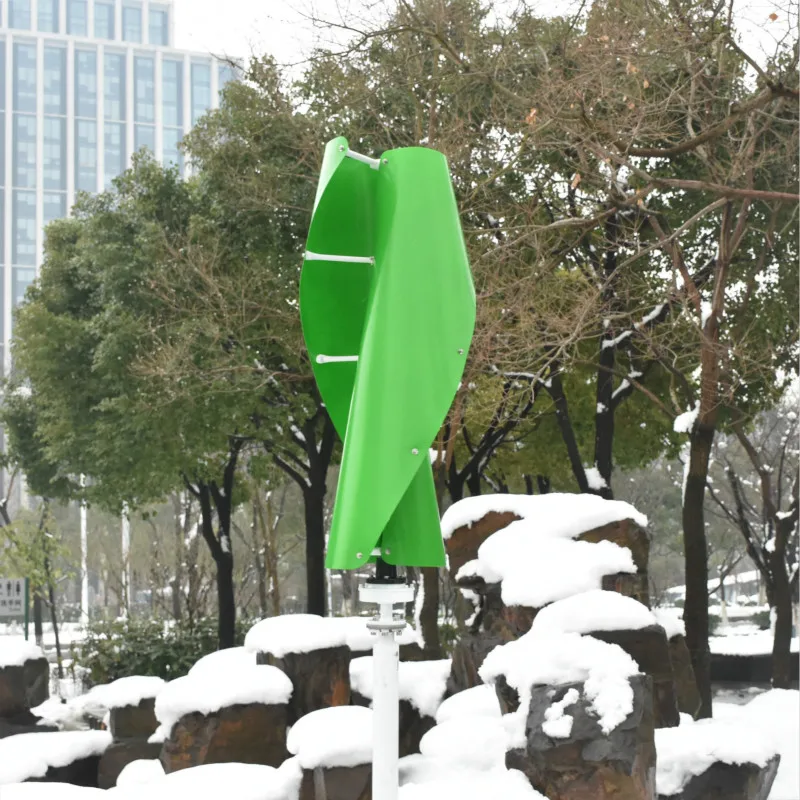

R&X 500W Green Wind Turbine Power Generator Maglev with Free Controller Vertical Axis Windmill 12V/24V Noiseless for Home lights |

R&X 500W Green Wind Turbine Power Generator Maglev with Free Controller Vertical Axis Windmill 12V/24V Noiseless for Home lights |

R&X Energy Technical Group Co., Ltd

We specialize in supplying renewable energy products (solar power, wind power, electrical accessories, etc.) around the world. There are about hundreds of types of wind generator available in our company. We owns seven branch companies in Zhejiang, Guangdong , Jiangsu and overseas. Also, R&D, studying, producing, sales and after-sales services have been integrated in its whole product chain. Hope to be your trustworthy supplier in China.

Features

1)Rich colors: white, orange, yellow, blue, green, mixed, customizable. 

2)One-piece Blade design ensures higher rotational stability. 

3)Coreless PMG provides lower start torque/wind speed and longer service life. 

4)Maximum RPM protection. No higher than 300RPM, regardless of the wind speed. 

5)Easy installation, Screw & Play. 

6)48V could be customized. 

7)Design service life 10~15 years.

Product technical data

RX-500SPL

Started wind speed (m/s) 1.3 m/s Cut-in wind speed (m/s) 2.5 m/s Rated Wind speed (m/s) 11 m/s Safe wind speed (m/s) Max wind speed：≤40m/s OR instantaneous maximum wind speed≤45m/s Rated voltage（DC） 12/24V Rated power（W）500W Max power（W）550W Rotor Diameter of Blades 0.52m Blades Height（m) 1.3(no generator) Blades quantity 2pcs Blade material glass/basalt Generator type Three phase permanent magnet suspension motor Control System Electromagnet Mount Height（m) 7~12m （9m） Generator protection grade IP54 Work environment temperature VAWT -25~+45℃ /Controller -10~+45℃ /Inverter 0~+40℃ Work environment humidity VAWT ≤90%/ Controller and inverter≤80% Altitude ≤4500m Product assembly weight (Kg) <25Kg verspeed protection Electromagnetic brake verload protection Electromagnetic brake and unloading unit

RX-300SPL

Started wind speed (m/s) 1.3 m/s Cut-in wind speed (m/s) 2.5 m/s Rated Wind speed (m/s) 11 m/s Safe wind speed (m/s) Max wind speed：≤40m/s OR instantaneous maximum wind speed≤45m/s Rated voltage（DC） 12/24V Rated power（W）300W Max power（W）350W Rotor Diameter of Blades 0.52m Blades Height（m) 1.05(no generator) Blades quantity 2pcs Blade material glass/basalt Generator type Three phase permanent magnet suspension motor Control System Electromagnet Mount Height（m) 7~12m （9m） Generator protection grade IP54 Work environment temperature VAWT -25~+45℃ /Controller -10~+45℃ /Inverter 0~+40℃ Work environment humidity VAWT ≤90%/ Controller and inverter≤80% Altitude ≤4500m Product assembly weight (Kg) <23Kg verspeed protection Electromagnetic brake

RX-100SPL

Started wind speed (m/s) 1.3 m/s Cut-in wind speed (m/s) 2.5 m/s Rated Wind speed (m/s) 11 m/s Safe wind speed (m/s) Max wind speed：≤40m/s OR instantaneous maximum wind speed≤45m/s Rated voltage（DC） 12/24V Rated power（W）100W Max power（W）150W Rotor Diameter of Blades 0.52m Blades Height（m) 1.05(no generator) Blades quantity 2pcs Blade material glass/basalt Generator type Three phase permanent magnet suspension motor Control System Electromagnet Mount Height（m) 7~12m （9m） Generator protection grade IP54 Work environment temperature VAWT -25~+45℃ /Controller -10~+45℃ /Inverter 0~+40℃ Work environment humidity VAWT ≤90%/ Controller and inverter≤80% Altitude ≤4500m Product assembly weight (Kg) <21Kg verspeed protection Electromagnetic brake

Please refer to the actual size.Manual measurement errors cannot be avoided.The error of 1-2cm is within the normal range.

RX-500SPL

RX-300SPL

RX-100SPL

What is MPPT?

Maximum power point tracking (MPPT) is a technique used commonly with wind turbines and PV solar systems to maximize power extraction under all conditions. For 12V wind turbine, it begin to charge at 8-9V For 24V wind turbine, it begin to charge at 17-18V

Connection

There are total 5 wires output of the controller 3 blue wire : connect with wind turbine 1 red wire: connect with battery "+" 1 black wire: connect with battery"-"
