Dahua IP камера 4MP star light IPC-HFW4438M-I2 4шт./лот без PoE сетевая камера H.265 IR 80м Встроенные два светодиода Пуля на

Dahua IP камера 4MP star light IPC-HFW4438M-I2 4шт./лот без PoE сетевая H.265 IR 80м Встроенные два светодиода Пуля на

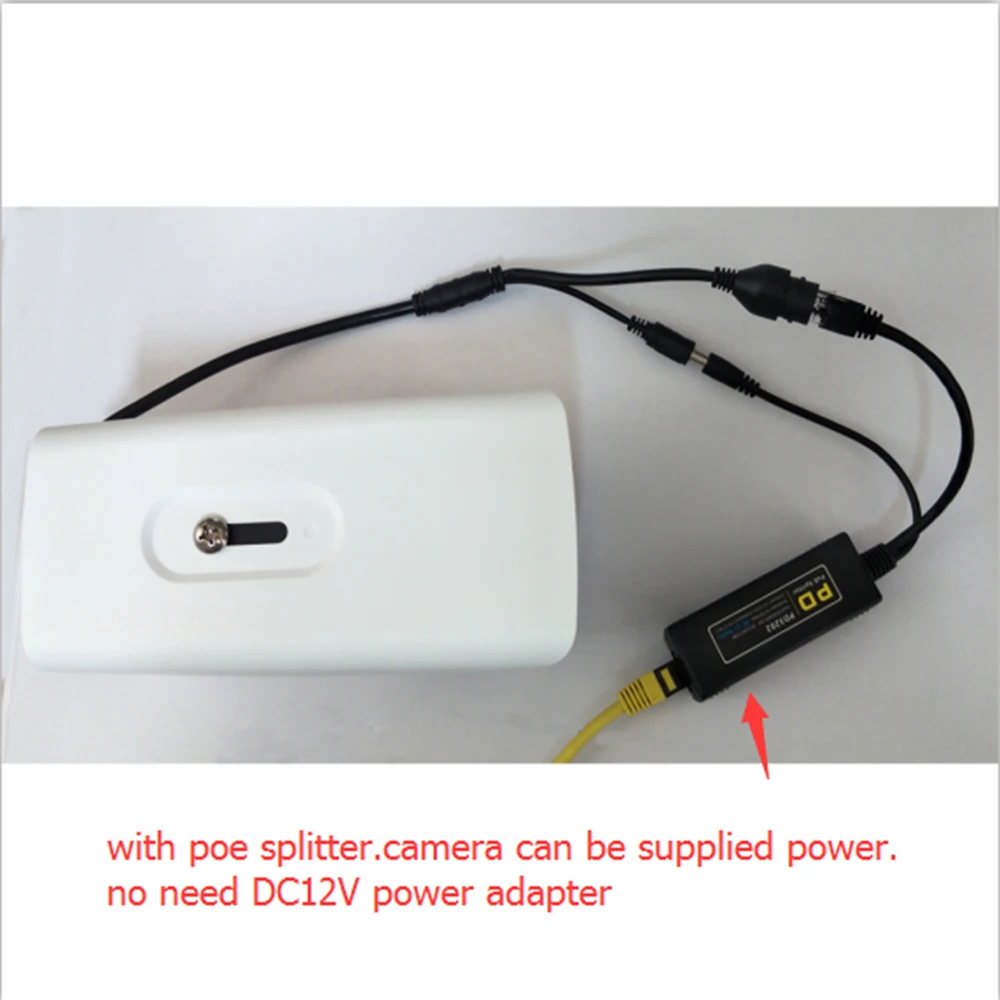

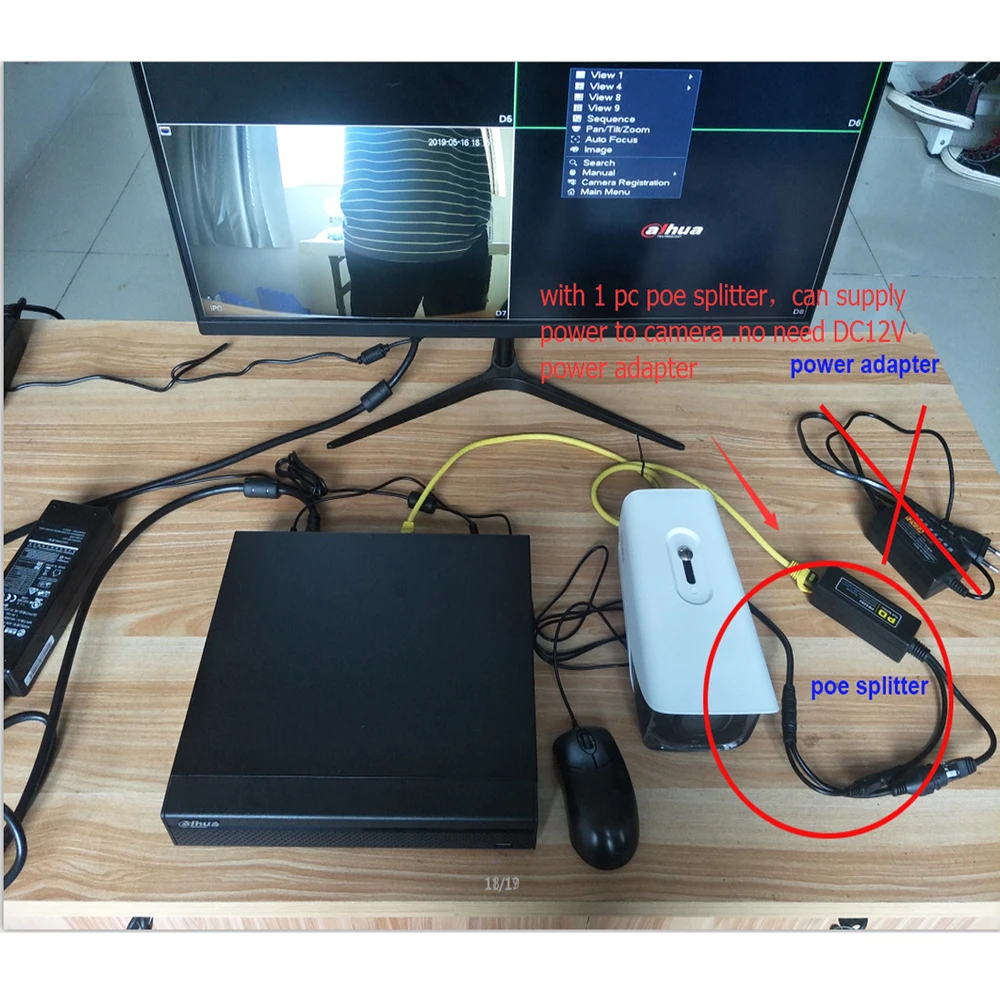

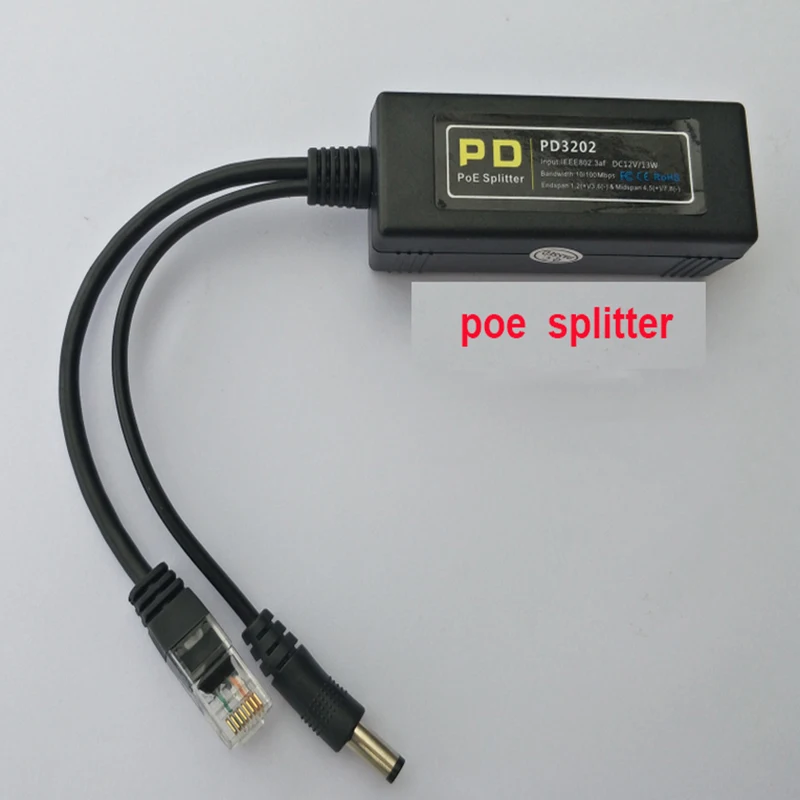

Note： this camera it is not poe model ，it need to work with DC 12V  power adapter .it can be supplied power by poe splitter

Ultra-low-light 4 million (2592x1520) CMOS image sensor, low-light effect, high-definition images

Can output four million (2560x1440) 25fps, to achieve real-time high-resolution images or high frame rate output

Supports H.265, H.264 High profile, H.264 Main profile, H.264 Baseline, MJPEG encoding formats, can be three yards stream simultaneous output, flexible use of various

model

DH-IPC-HFW4438M-I2

System parameters

The main processor manufacturers and models

Ultra-high-performance processor

Video camera

sensor type

1/3 inch CMOS

Sensor Effective pixels

2592x1520

Electronic Shutter

1 / 3s ~ 1 / 100000s; can be adjusted manually or automatically

Minimum illumination

0.001Lux F1.2 (color mode); 0.0001Lux F1.2 (black and white); 0Lux(Infrared light is turned)

Maximum IR distance

80 meters

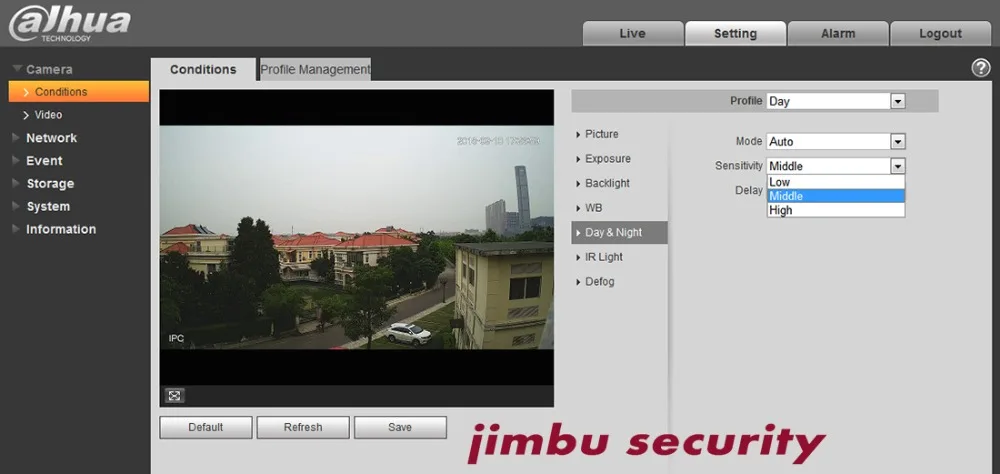

Day & Night

IR-CUT automatic switching

scanning method

line-by-line scan

Noise Reduction

3D Noise Reduction

WDR

120dB

SNR

> 56dB

Gain Control

Manual / Auto

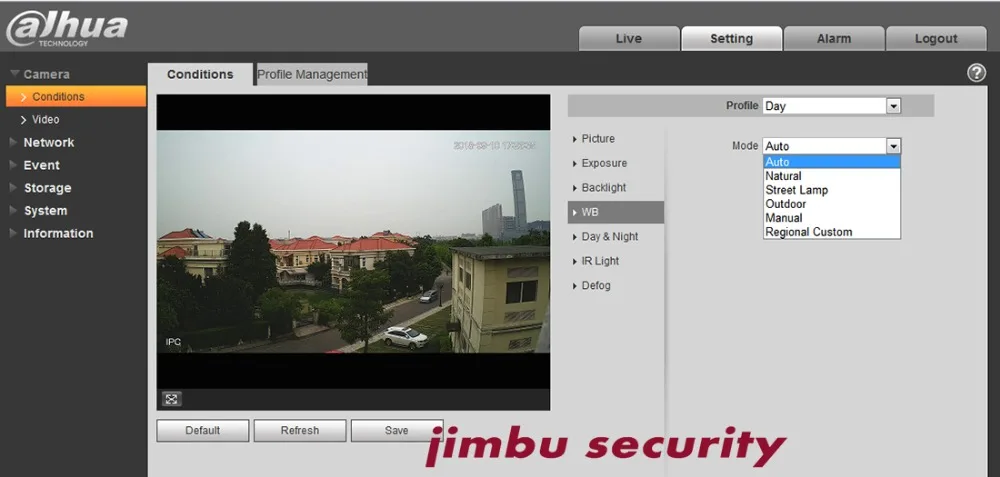

White Balance

Manual / Auto

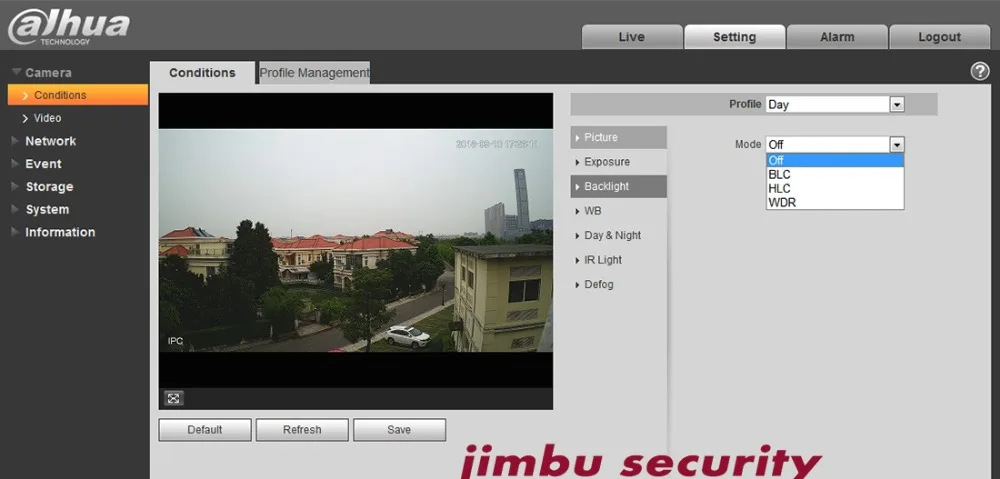

BLC

Support, choose region

Strong inhibition

stand by

Lens parameters

Lens focal length

3.6mm / 6mm

Lens Mount

M12

Lens aperture

F2.1 / F1.9 / F1.8 / F1.6

Iris control

fixed

Zoom Type

focus

FOV

Level 81/55 / ​​37/26

Minimum focusing distance

1.1m / 2.4m / 3.8m / 7.5m

Video parameters

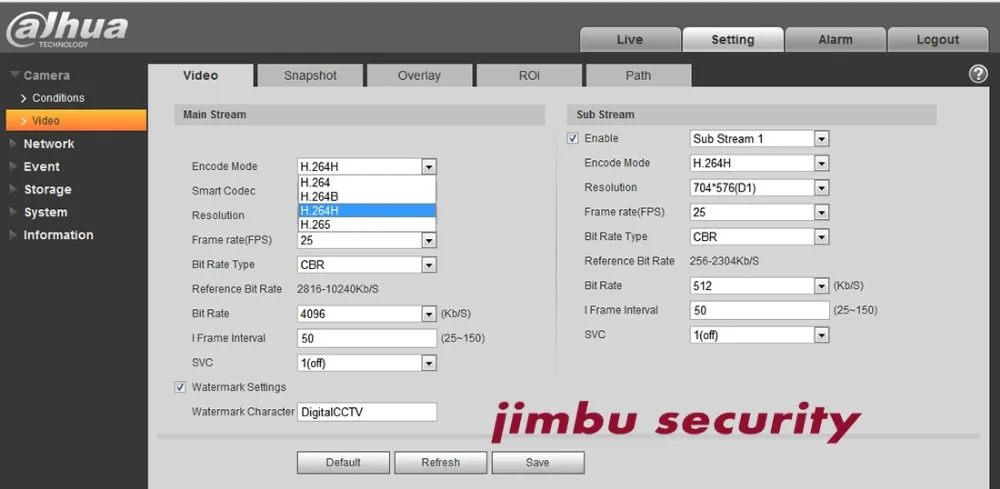

Video compression standards

H.265; H.264; H.264H; H.264B; MJPEG

Video bit rate

8Kbps ~ 11.25Mbps

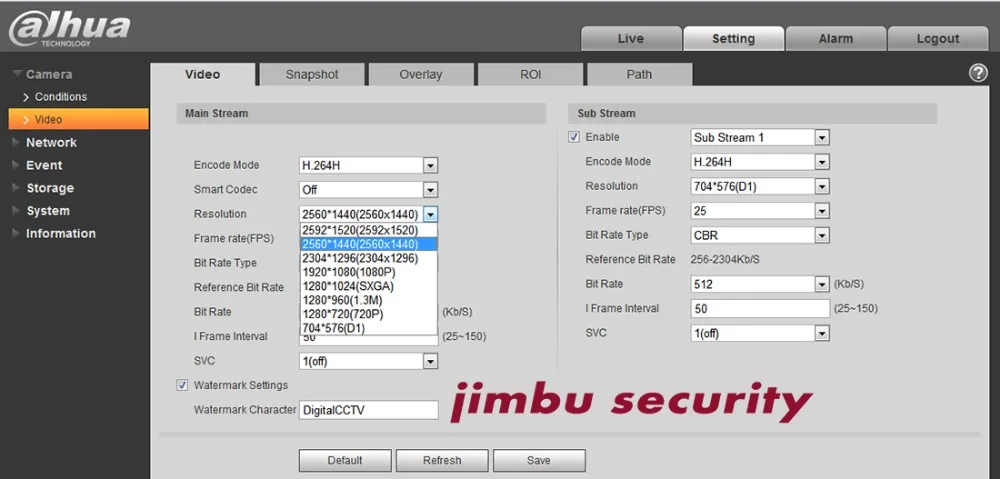

Video frame rate

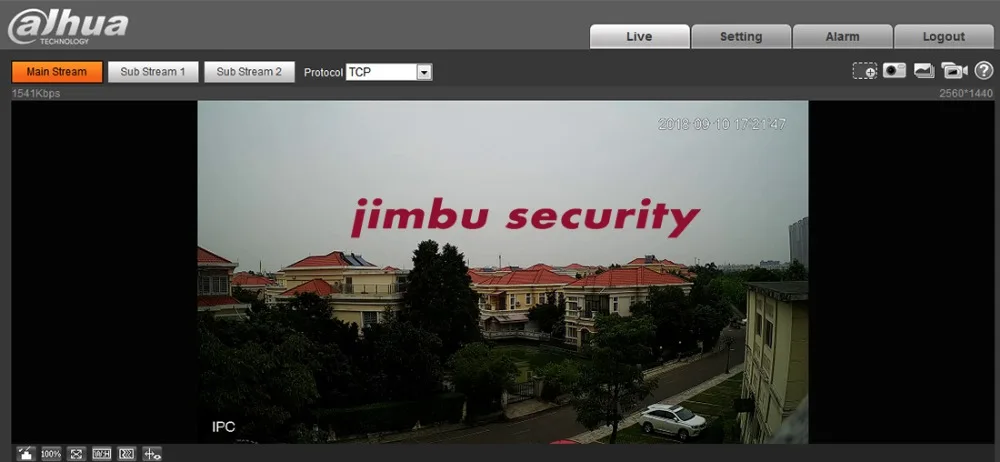

P system: the main stream (2592x1520   20fps), secondary stream 1 (D1   25fps), secondary stream 2 (1280 * 720   15fps)

Main stream (2560x1440   25fps), secondary stream 1 (D1   25fps), secondary stream 2 (1280 * 720   1fps)

N system: the main stream (2592x1520   20fps), secondary stream 1 (D1   30fps), secondary stream 2 (1280 * 720   15fp)

Main stream (2560x1440   25fps), secondary stream 1 (D1   30fps), secondary stream 2 (1280 * 720   1fps)

Main stream (2304x1296   30fps), secondary stream 1 (D1   30fps), secondary stream 2 (1280 * 720   4fps)

By default resolution default stream

4096kbps(2560x1440)

Features

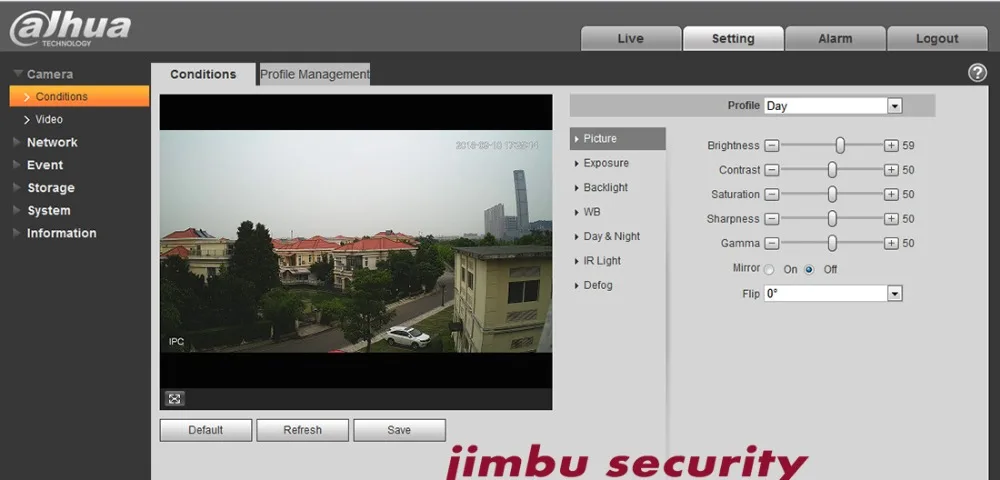

Image Settings

Brightness; contrast; sharpness; saturation; gamma

OSD superimposing

Time; channel; location; pictures;

Mirror image

stand by

Negative image image

stand by

Heartbeat mechanism

stand by

Video mode

Manual recording; video detection recording; time recording; alarm recording

Video descending order of priority manual / external alarm / Video Detection / Timing

Maximum number of users preview

20

reset

Support for a key to restore the default configuration

Browser

Support IE7; IE8; IE9; Chrome8 +; Firefox3.5 +; Safari5 + browser

User Management

Maximum support 32-user, multi-level user rights management

Safe Mode

Authorized user name and password; MAC address binding; HTTPS encryption; IEEE 802.1x; network access control

Through fog

stand by

Low stream

4M: 4Mbps

3M: 4Mbps

1080P: 2 ~ 4Mbps

720P: 1 ~ 2Mbps

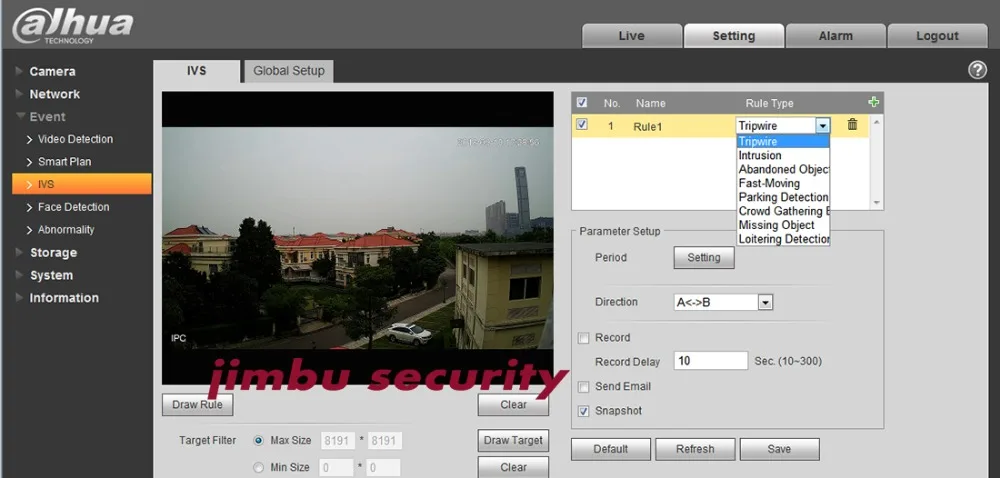

Insight

Support regional invasion; mix line intrusion; articles legacy / disappear; scene change; audio anomaly detection; face detection; wandering detection; people gather; fast-moving; vehicle detection, and can be linked with the alarm; support for multiple rules trigger linkage operation; support the goals filter

Face Detection

stand by

PRIVACY

4 area

Corridor mode

stand by

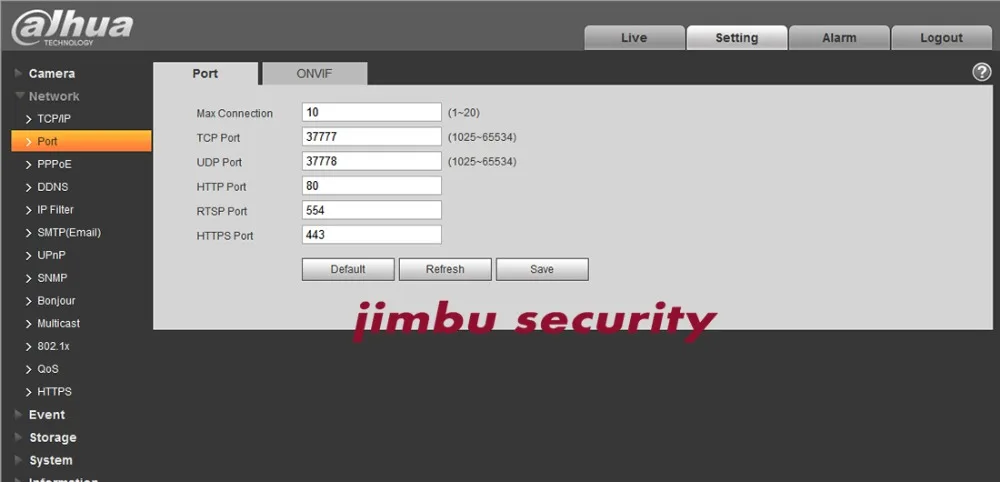

Network interface

Network Interface

1, 10 / 100M Ethernet port

Network protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4 / v6; SNMP; QoS; UPnP; NTP; Bonjour; 802.1x; multicast

Access Standard

ONVIF; GB / T28181; CGI; PSIA

General parameters

powered by

DC12V

Power

2.3W (Normal) /5.6W (maximum)

Operating temperature

-40 ° ~ + 60 °

Working humidity

95%

Protection class

IP67

Housing Material

Half plastic half metal

size

194mm96mm89mm

weight

620g(Without packaging)

Mounting

Wall

This product is not POE function, if you want POE camera, you can buy our IPC-HFW4433M-I2.

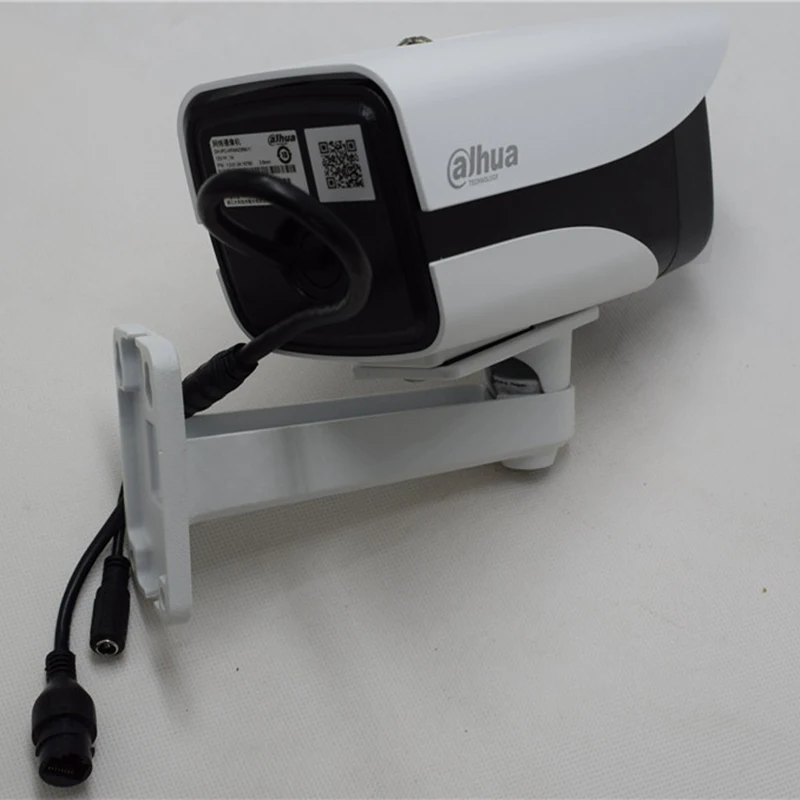

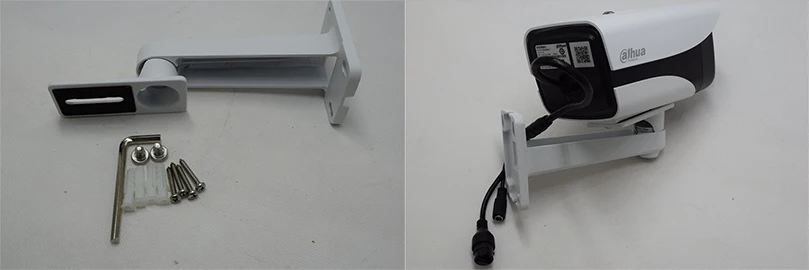

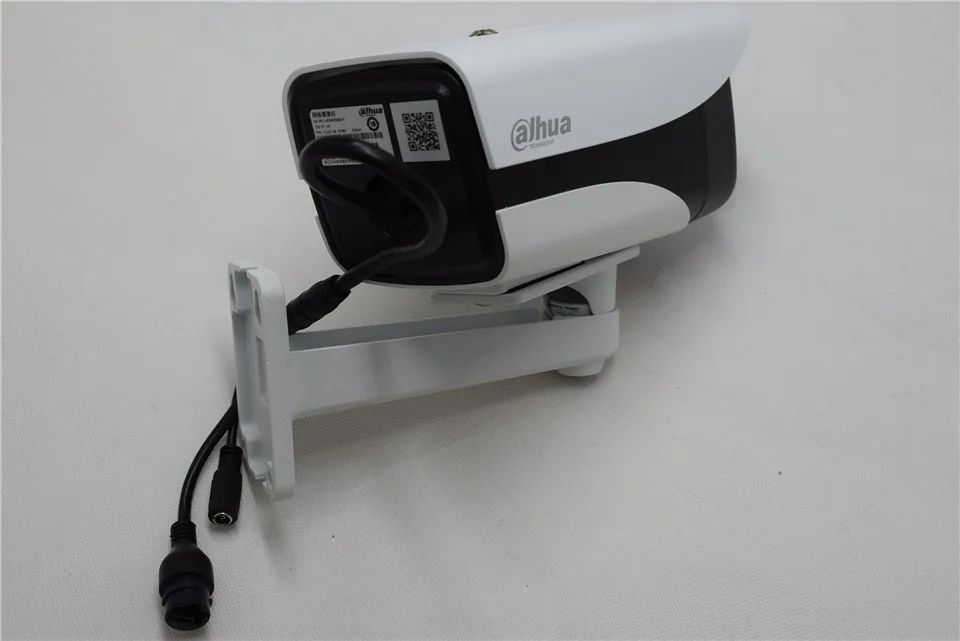

Not include bracket, you can click the picture to buy this bracket.

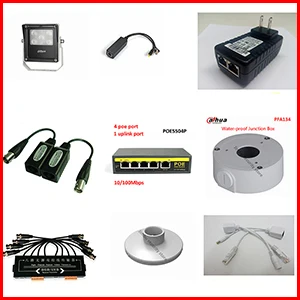

Also, you can click picture to buy our adapter and cctv accessories.

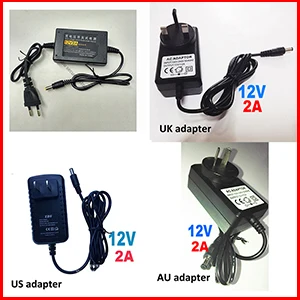

               Adapter                                                       cctv accessories
