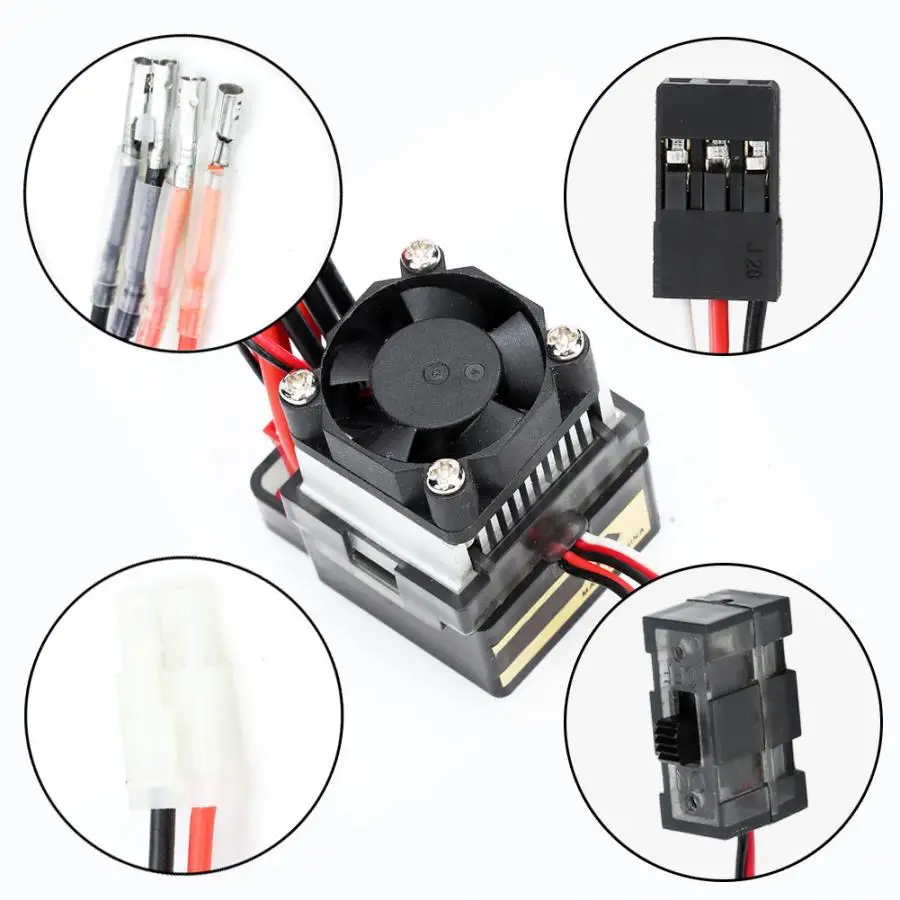

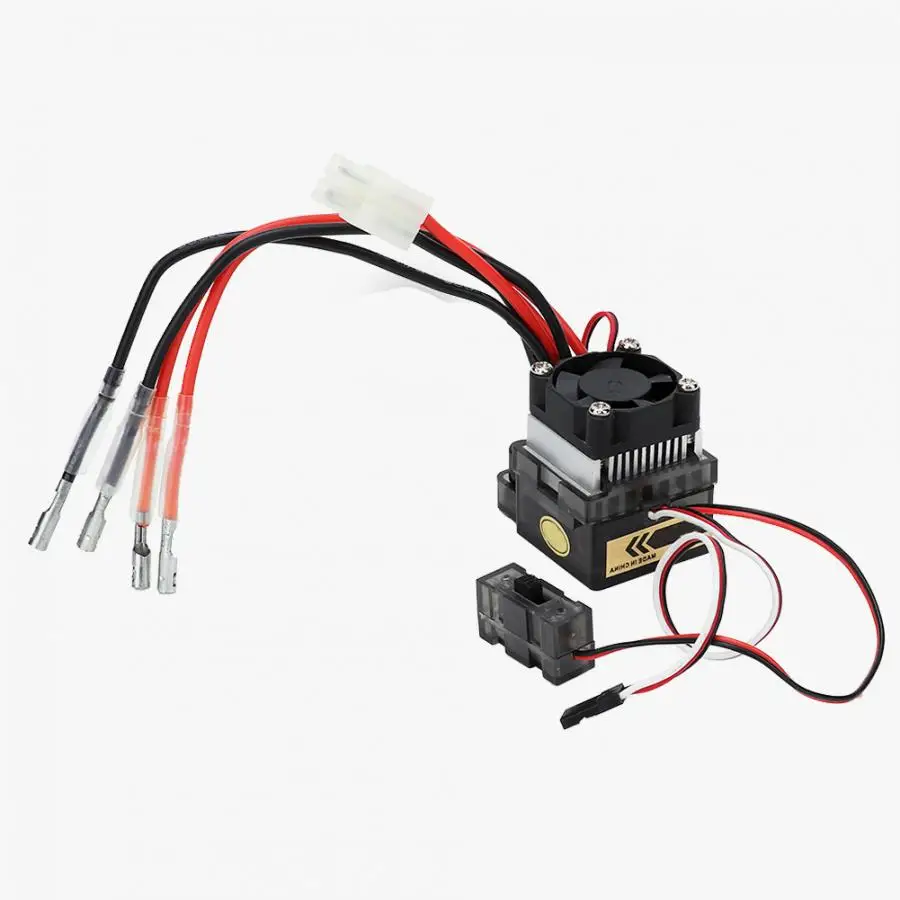

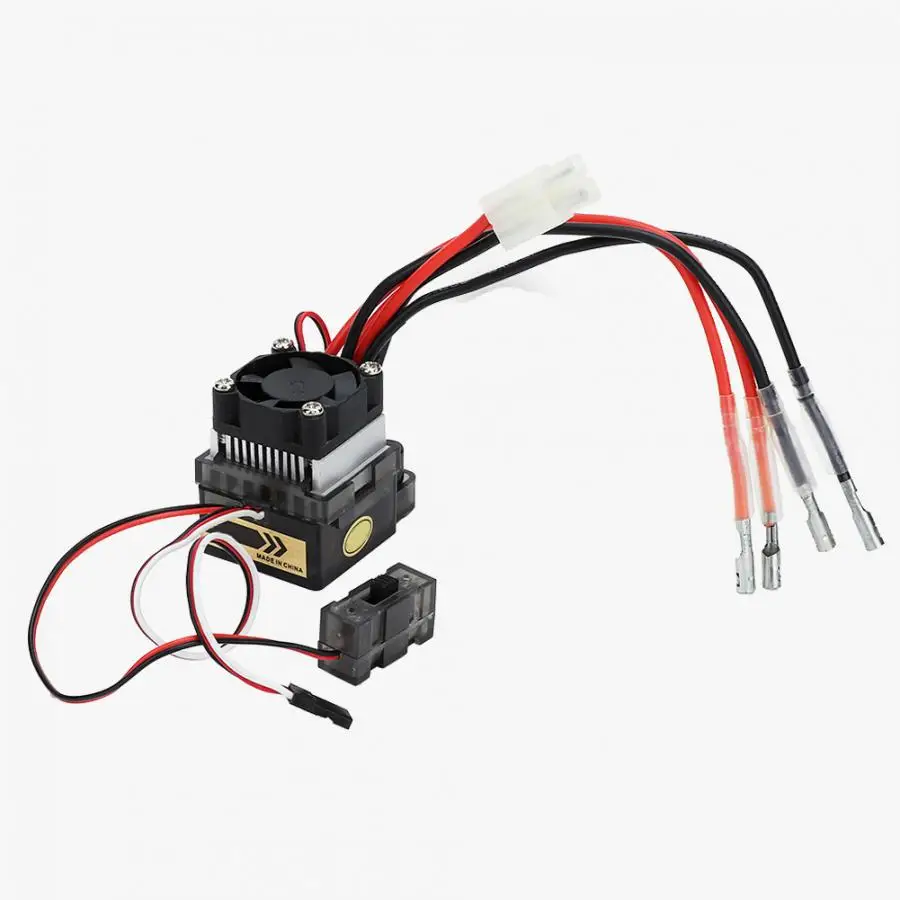

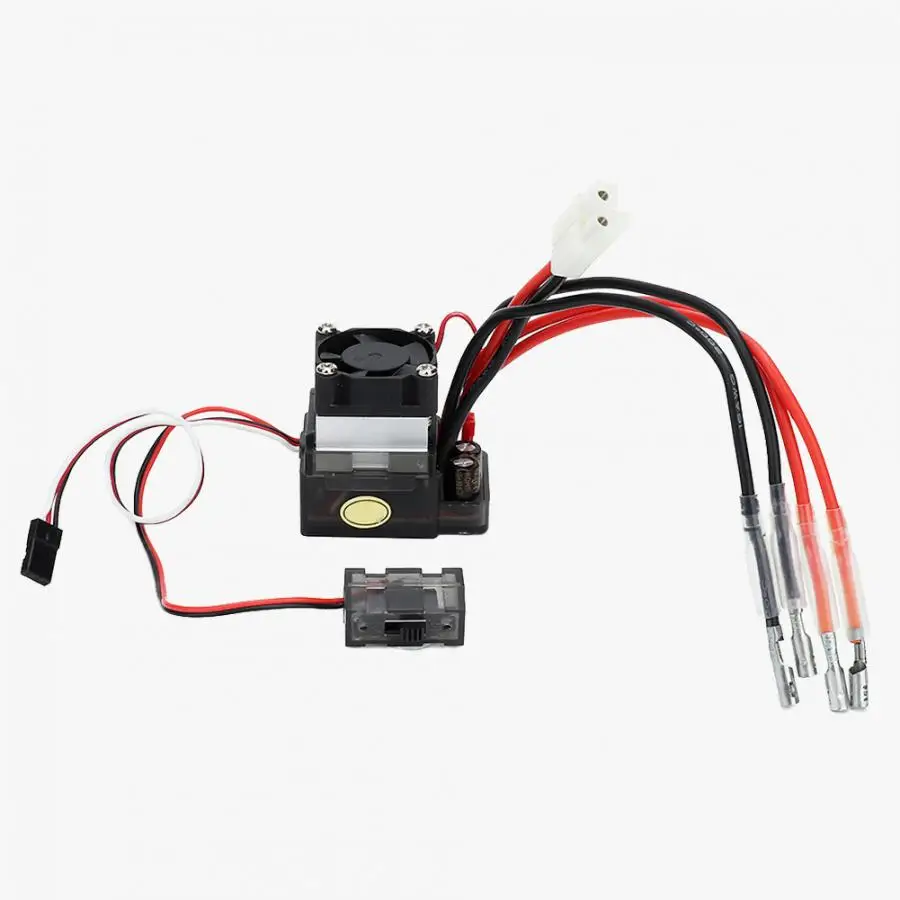

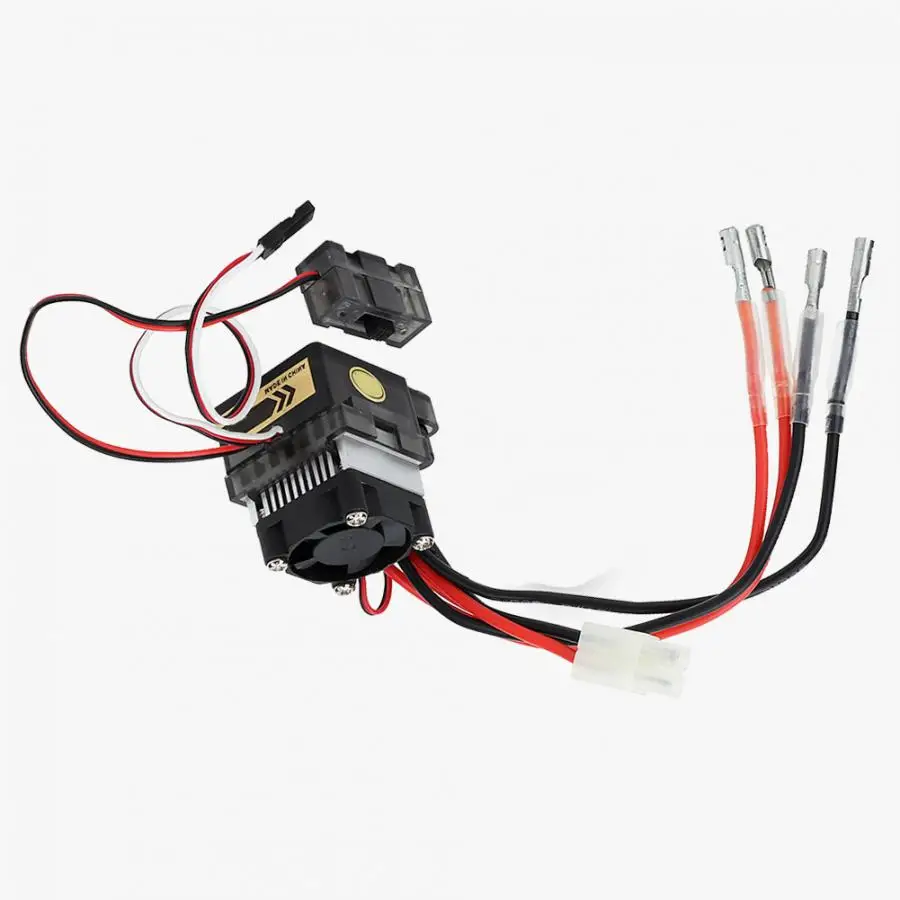

High Voltage 320A Brushed Electronic Speed Controller for RC Car Model

Features:
1. Automatically find center position, and high frequency drive system.
2. With multiple protection functions, low voltage cut off protection and over-thermal protection.
3. Use low resistance field-effect tube. Suitable for car, the ship model use.
4. Unique circuit design with strong anti-interference.
5. Fast throttle response and very smooth speed control linearity.

Specification:
Condition: 100% Brand New
Item Type: Electronic Speed Controller
Operating System: Forward, Back, Brake
Power Range: 7.2V-16V
Input Voltage (Recommendation): 6-12 NiMH/NiCd batteries or 2-4 LiPo batteries
BEC: 5.6V 2A
Output Current: Forward 320A

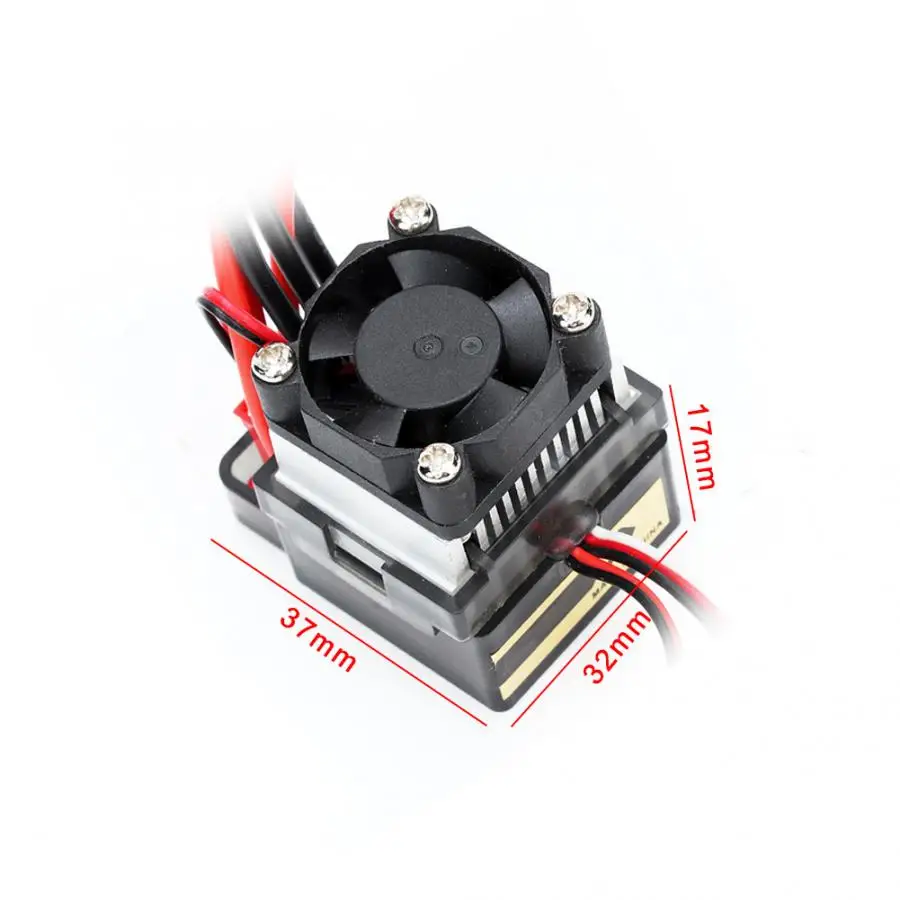

Size: 32 * 17 * 37mm / 1.26 * 0.67 * 1.46in
Current Capacity: Forward = 320A, Reverse = 300A
Weight: 97 g / 3.4 oz(approx.)

Package list:
1 * Electronic Speed Controller

Operational Guidelines:
1. Correctly connect to power battery. Strips on both ends of the red line is positive, black for negative.(or connect standard DC battery plug, field plug / T / banana plug)
2. The red and black line of electric speed controller output connect the car 540 motor red and black line.
3. Switch on electricity the power switch, the motor issued a "do" sound, then open the transmitter power, the motor will be "Do, Re, Mi" sound, prove that remote signal is connected and electrically controlled successfully.
4. Throttle operation, push to advance mode, before back to brake mode, after to back mode.
(Avoid by all means accelerator directly push-pull midpoint  in the process of  car fast movement , prevent motor caused by blocked too much current instantaneous burning electrically controlled)
