Характеристики

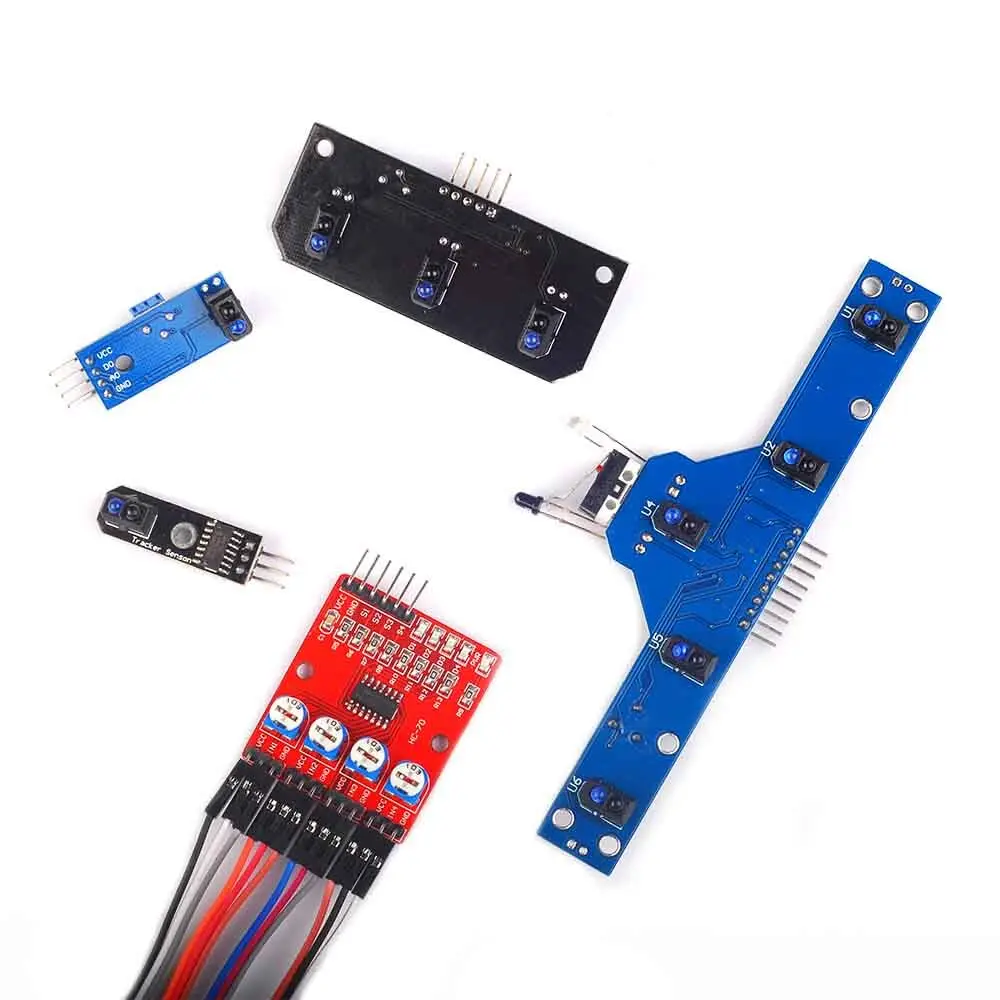

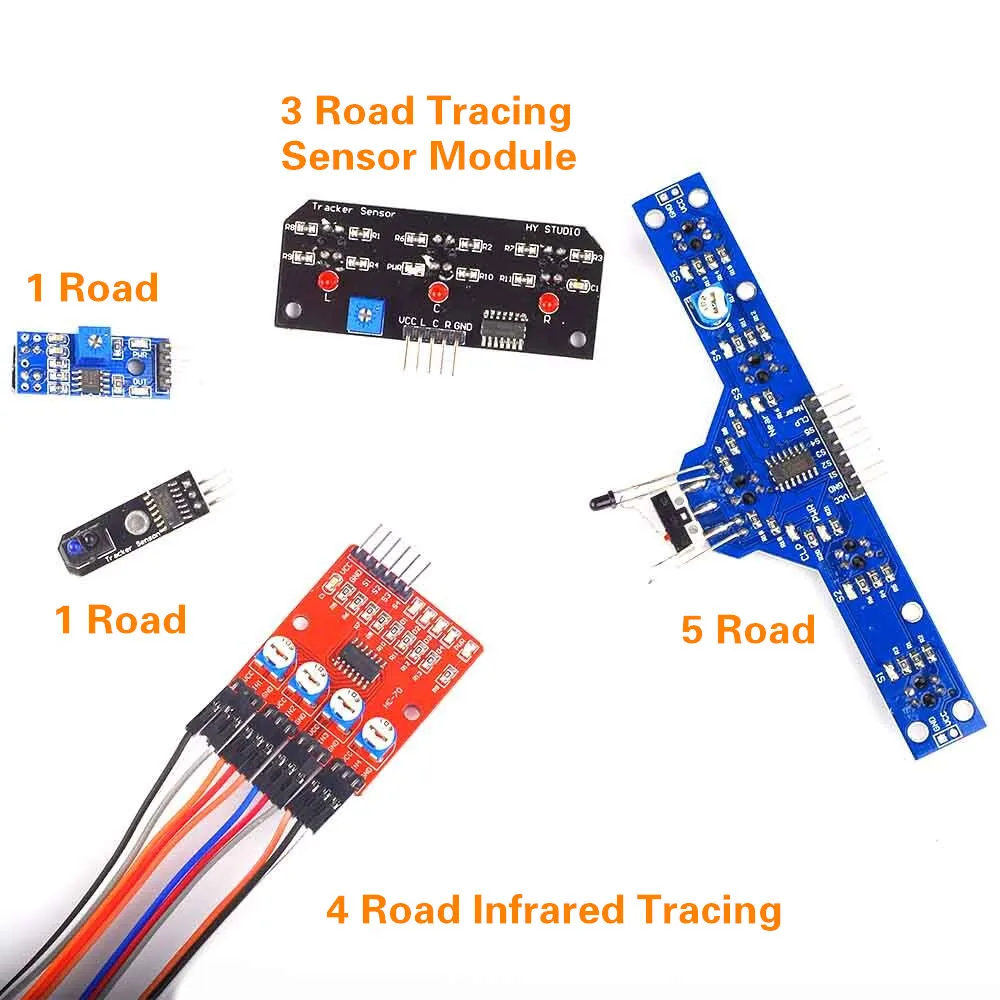

Infrared Tracing Sensor Module Obstacle Avoidance kit 1~5 Road 1 Channel 3 4 5 Total 5pcs | Электронные компоненты и
Описание товара
Product Usage:
1. Meter pulse data sampling
2. Fax machine shredder paper detection
3. Obstacle detection
4. Black and white line detection
product description:

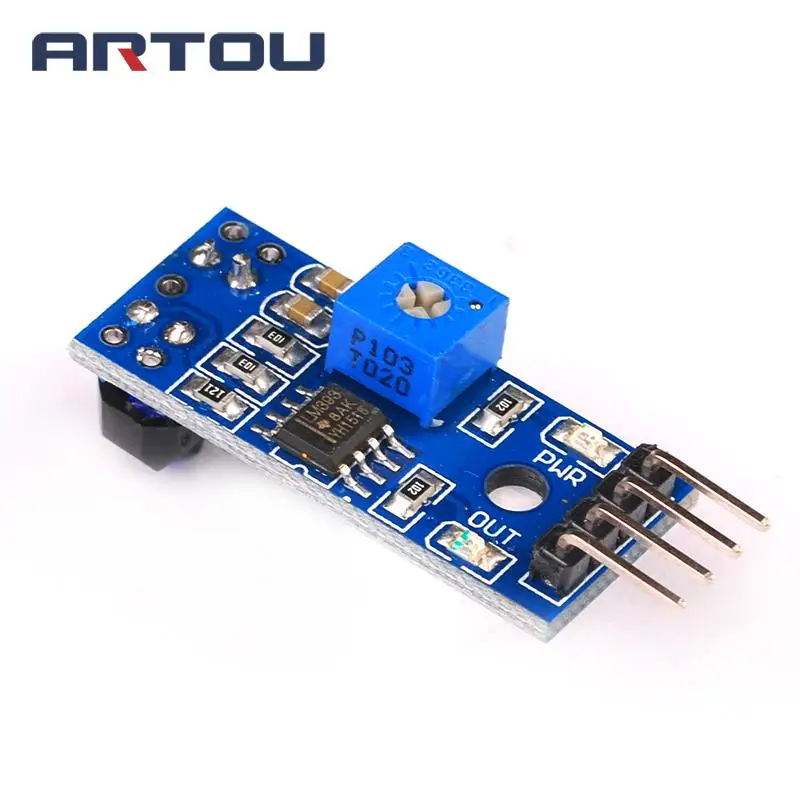

1. Adopt TCRT5000 infrared reflection sensor
2. Detection of reflection distance: 1mm~25mm
3. Comparator output, the signal is clean, the waveform is good, the driving ability is strong, more than 15mA.
4. With potentiometer to adjust sensitivity
5. Working voltage 3.3V-5V
6. Output form: digital switch output (0 and 1)
7. With fixing bolt holes for easy installation
8. Small board PCB size: 3.2cm x 1.4cm
9. Use wide voltage LM393 comparator
Features:
The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not large enough, the infrared receiving tube is always in the off state, and the output end of the module is at a high level, indicating The diode is always off; when the detected object appears in the detection range, the infrared light is reflected back and the intensity is large enough, and the infrared receiving tube is saturated. At this time, the output end of the module is low, indicating that the diode is illuminated.
Wiring:
VCC: Connect the positive pole of the power supply (3-5V)
GND: Connect the negative pole of the power supply
DO: TTL switch signal output
AO: analog signal output (different voltages output at different distances, this pin can generally not be connected)

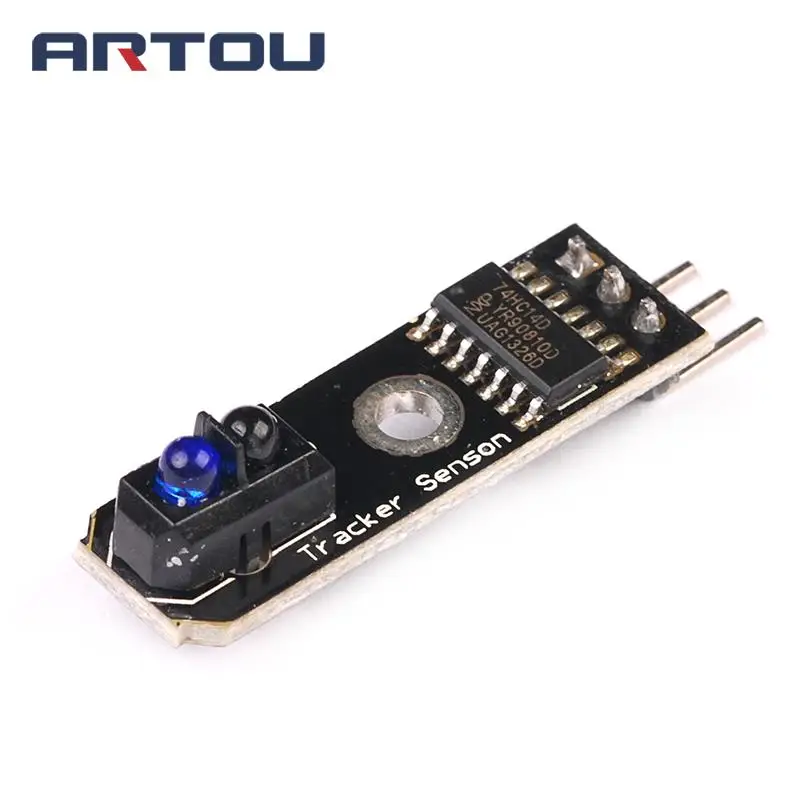

1 Road(Black)
Product Usage:
1. Meter pulse data sampling
2. Fax machine shredder paper detection
3. Obstacle detection
4. Black and white line detection
product description:
1. Adopt TCRT5000 infrared reflection sensor
2. Detection of reflection distance: 1mm~25mm
3. Working voltage: 5V
4. Output form: digital signal (0 and 1)
5. With fixing bolt holes for easy installation
6. Small board PCB size: 3.5cm x 1cm
7. Single weight: 4.5g
Features:
The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not large enough, the infrared receiving tube is always in the off state, and the output end of the module is low level, indicating The diode is always off; when the detected object appears in the detection range, the infrared light is reflected back and the intensity is large enough, and the infrared receiving tube is saturated. At this time, the output end of the module is high, indicating that the diode is illuminated.
Wiring:
1.VCC: Connect the positive pole of the power supply (5V)
2.GND: Connect the negative pole of the power supply
3.OUT: high/low level switching signal (digital signals 0 and 1)

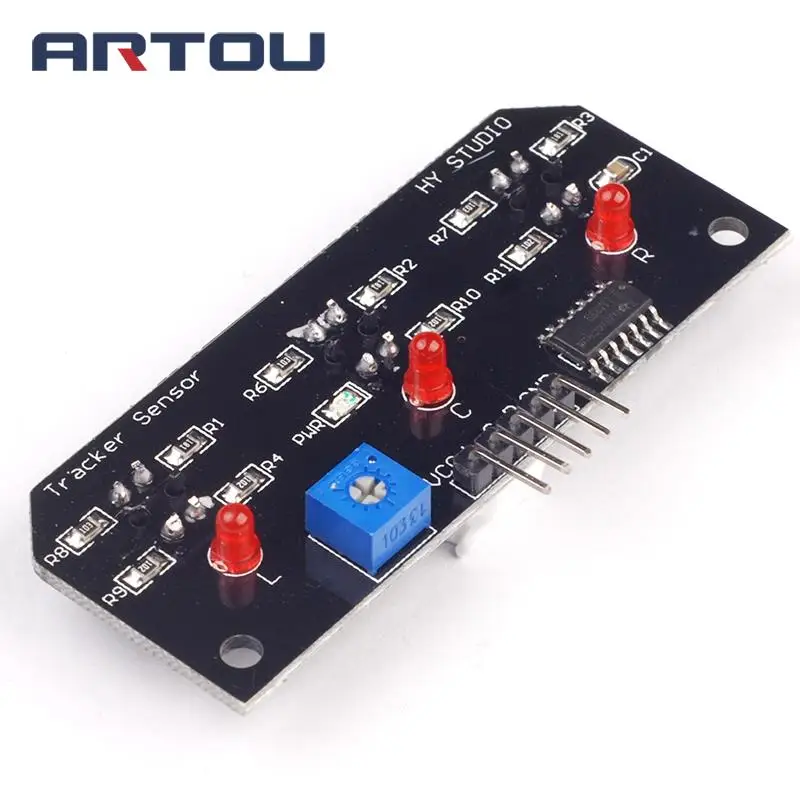

3 Road
1.3 road tracking sensor, robot production must
2. Using infrared light detection, strong anti-interference ability, using CTRT5000 sensor, adjustable sensitivity, stable performance
3. Working voltage 5V, white line output low level
4. Exquisite workmanship, with indicator lights, fixed bolt holes for easy installation

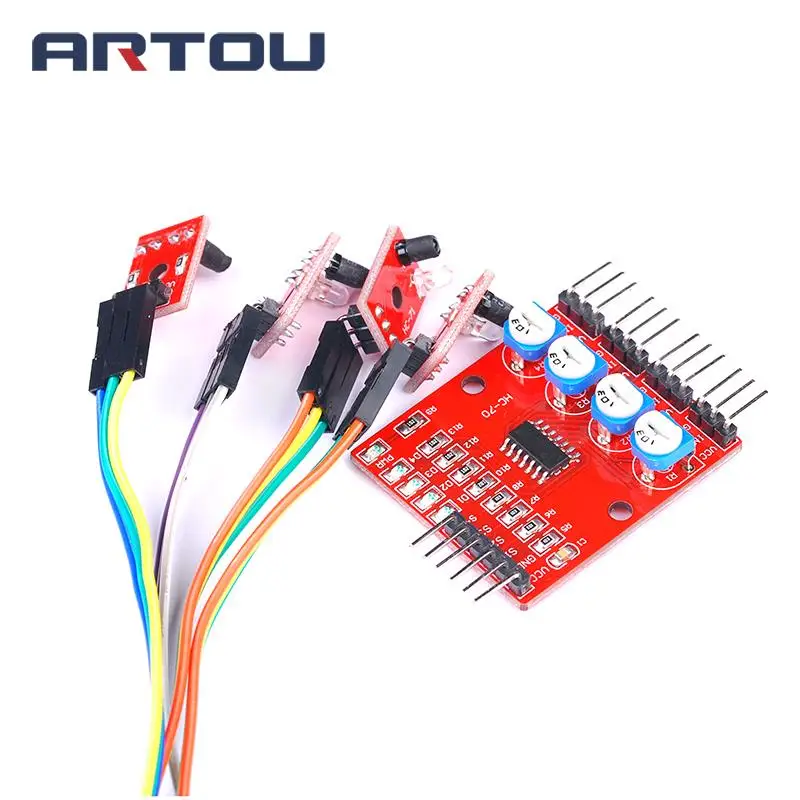

4 Road
Specifications:
1. Working voltage: DC 3.3V-5V
2. Working current: try to choose more than 1A power supply
3. Working temperature: -10 °C - +50 °C
4. Mounting aperture: M3 screw
5. Detection distance: 1 to 6CM is adjustable, the closer the distance is, the more stable the performance is, and the white reflection distance is the farthest.
6. Size: Central control board 42mm × 38mm × 12mm (length × width × height)
Small plate forward 25mm × 12mm × 12mm (length × width × height)
7. Output interface: 6-wire interface (1234 is 4 signal output, positive power supply, - negative power supply is ground wire)
8. Output signal: TTL level (can be directly connected to the I/O number of the single-chip microcomputer. When the infrared light reflected from the sensor is sensed, the red indicator light is on and the output is low level; when there is no infrared light, the indicator light is not on, and the output is high. level.)
Application range:
1. Smart car or robot hunt (including black and white lines), along the black line path, also known as tracing.
2. The smart car avoids the cliff and prevents falling.
3. Smart car avoids obstacles

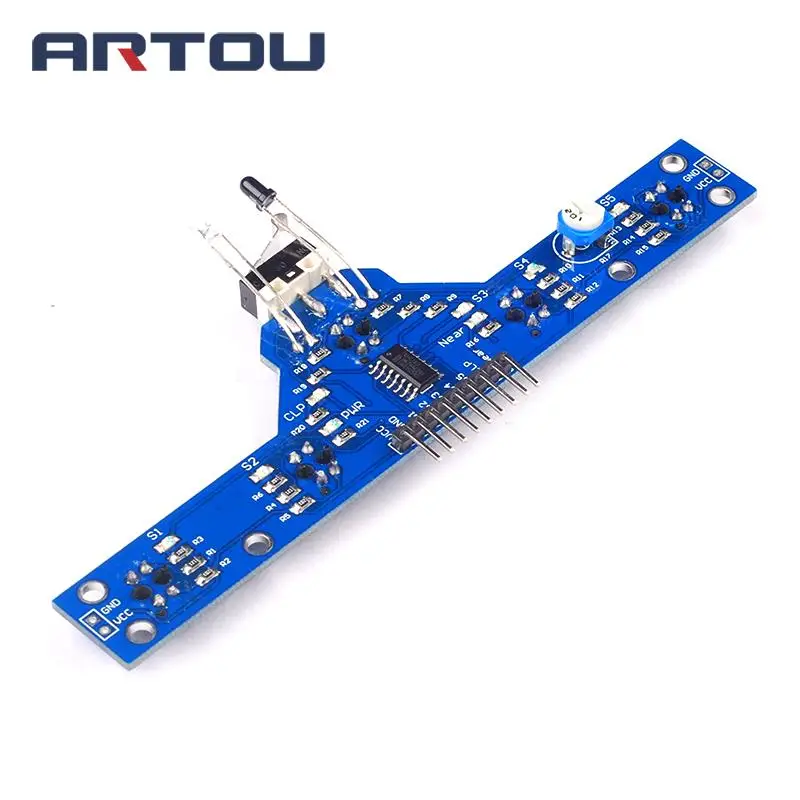

5 Road
The BFD-1000 is specially designed for black (white) line search. It is especially suitable for the detection of complex black and white lines and cross black and white lines. It has 6 high-sensitivity infrared sensors (5-way inspection line, 1 way barrier). It can accurately identify black and white lines, and it has the following functions and features:
1. Integrated 5-channel high-sensitivity tracking sensor, which has little impact on the environment, can accurately track complex black lines (white lines), and is more convenient for simple black line tracking. The black output is low and the white line is output high.
2. Integrated one-way infrared obstacle avoidance sensor, the obstacle avoidance distance can be adjusted by adjustable varistor (0-10CM), and output high level when there is obstacle.
3. Integrate a specially designed touch detection sensor to make the design of the shuttle robot easier.
4. The output of this module is all high and low level signals, which is convenient to connect with the single chip microcomputer.
5. All sensor output states have LED lights as an indication for easy debugging.
6. Operating voltage is 3.0-5.5v to meet most system requirements.
Reason for selection:
1. The module integrates 7 sensors reasonably and is cost-effective.
2. Reasonable layout of the sensor on a module, no need for more DuPont lines when connecting, so that your design is simple and generous, reducing the probability of wrong errors, and finding errors more quickly when troubleshooting errors, saving time and effort .
Technical Parameters:
Input voltage: 3.0-5.5V
Tracking distance: 0-3 cm (black and white line sensor)
Barrier distance: 0-6 cm (distance detection adjustable)
Output form: high and low level signal
Packing list
Infrared Tracing Sensor Module Obstacle Avoidance kit 1~5 Road 1 Channel 3 Channel 4 Channel 5 Channel Total 5pcs
