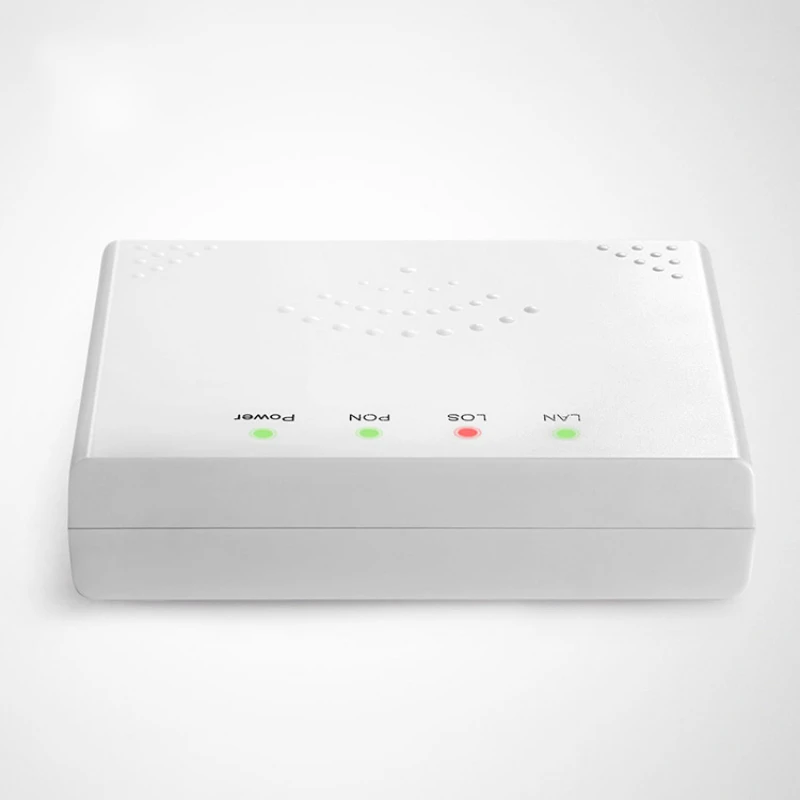

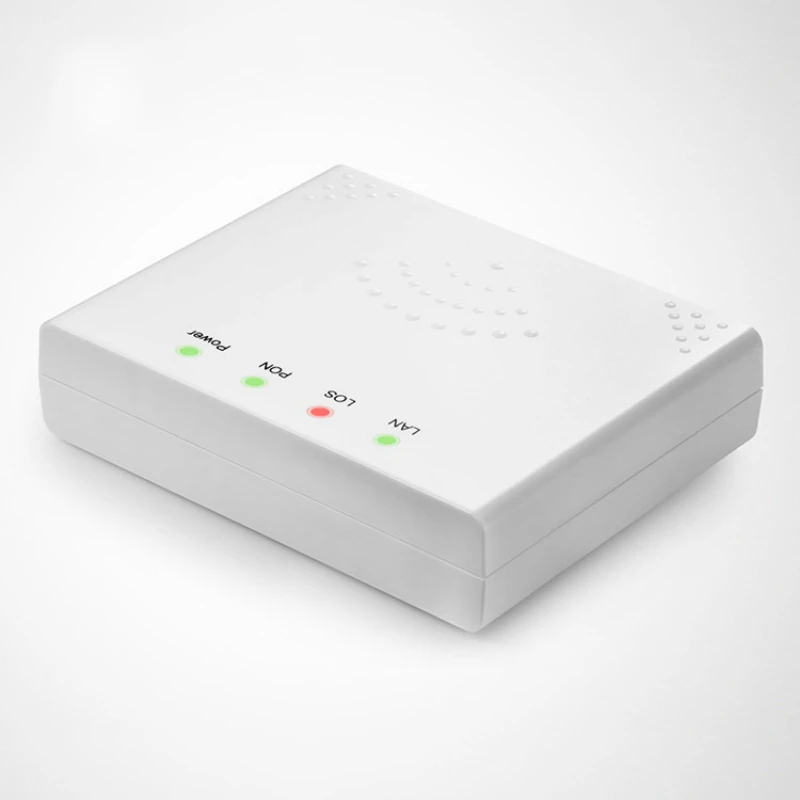

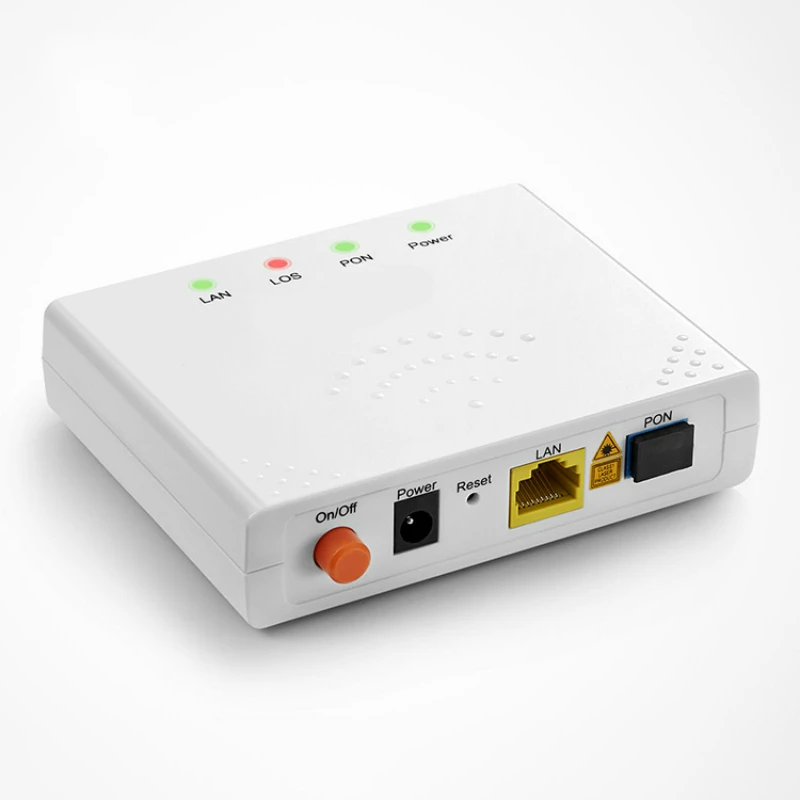

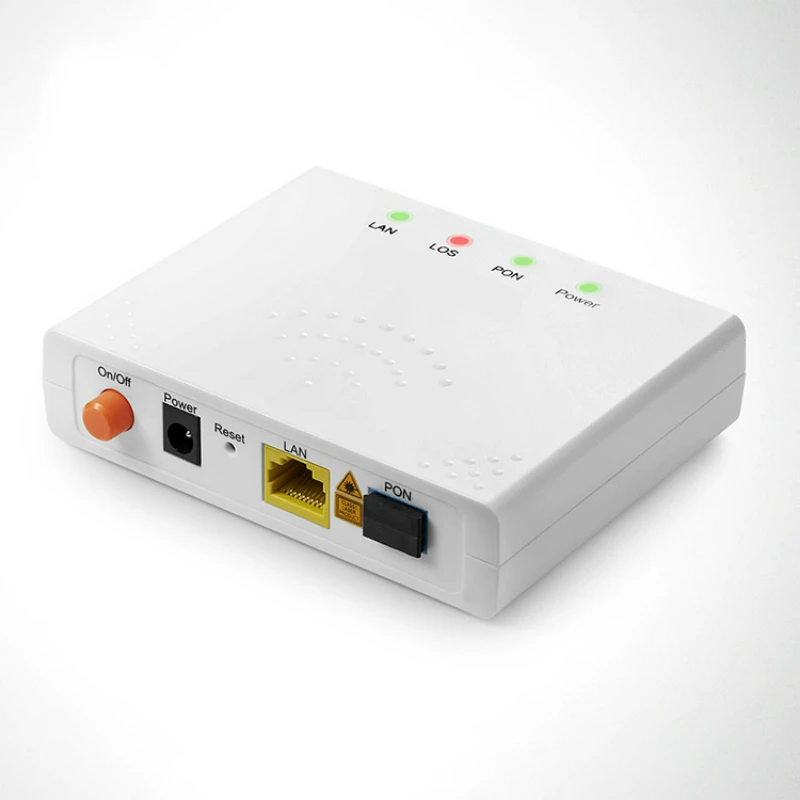

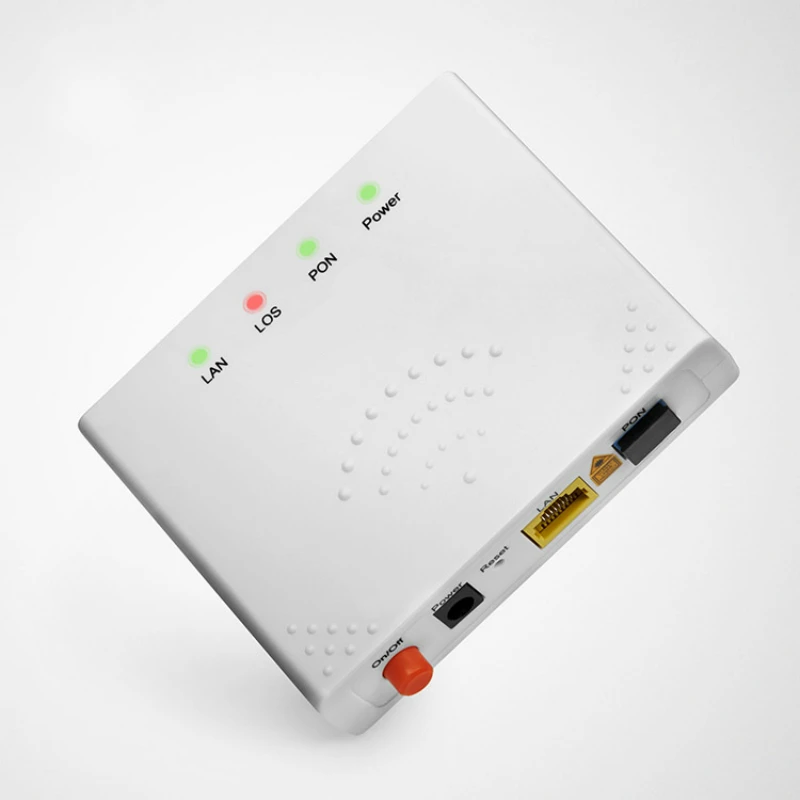

GPON 2.5G Gigabit gpon ont 1 ge Realtek GPON ONU

GP is a new GPON ONU production of HS Fiber Communication which
passive optical network terminal series. It provides one 10/100/1000Mbps base-T
interface, one optical interface, and it is very impact. Suitable for home and small
business users, can meet the FTTH high-speed data transmission of the application.

Module

GPON

User
interface

1 10/100/1000M RJ45 port

PON

Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps
Network coverage radius: 20KM
Optical receive sensitivity:≥-28dBm
C ontinuous light power: 0.5 dBm~+5dBm
Security: ONU authentication mechanism

Route

Support NAT
Support PPPOE
Support Server Client
Support Route

VLAN

Port-based VLAN
GVRP
IEEE 802.1Q VLAN

QOS

Backpressure flow control(half-duplex)
IEEE 802.3x flow control(full-duplex)
Prevent Head Of Line
IEEE 802.1p, CoS
WR,SP and FIFO queue scheduling algorithm
Port rate limit

Safety

IEEE 802.1x, access control based upon Port; support local and remote RADIUS.
CHAP,EAP certification;
Storm control, port protection,.

Management

Various management modes such as Web, TELNET
Debug function

Environment

Operating temperature:0℃~60℃;
Operating humidity:10%~85% non-condensing

Storage temperature:-40℃~80℃;
Storage humidity:5%~95% non-condensing

Power supply

110~240VAC 12V/0.5A DC
power interface size:2.1mm/5.5mm

Power
Consumption

2.5W
