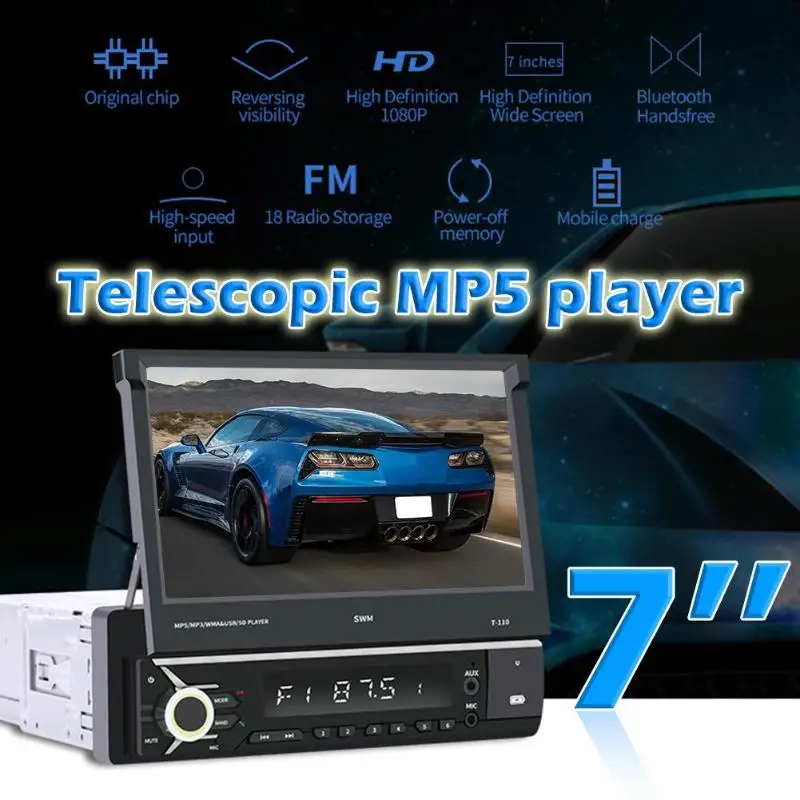

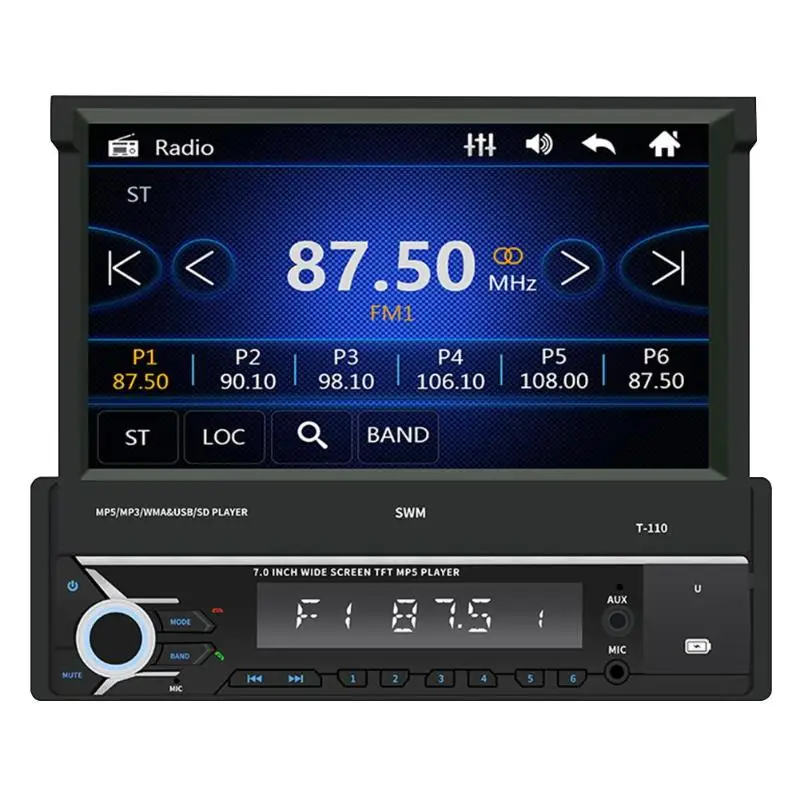

SWM T-110 Bluetooth Car Stereo MP5 Player 7 inch Retractable Screen AUX USB Radio Receiver In Dash Head Unit
Features:

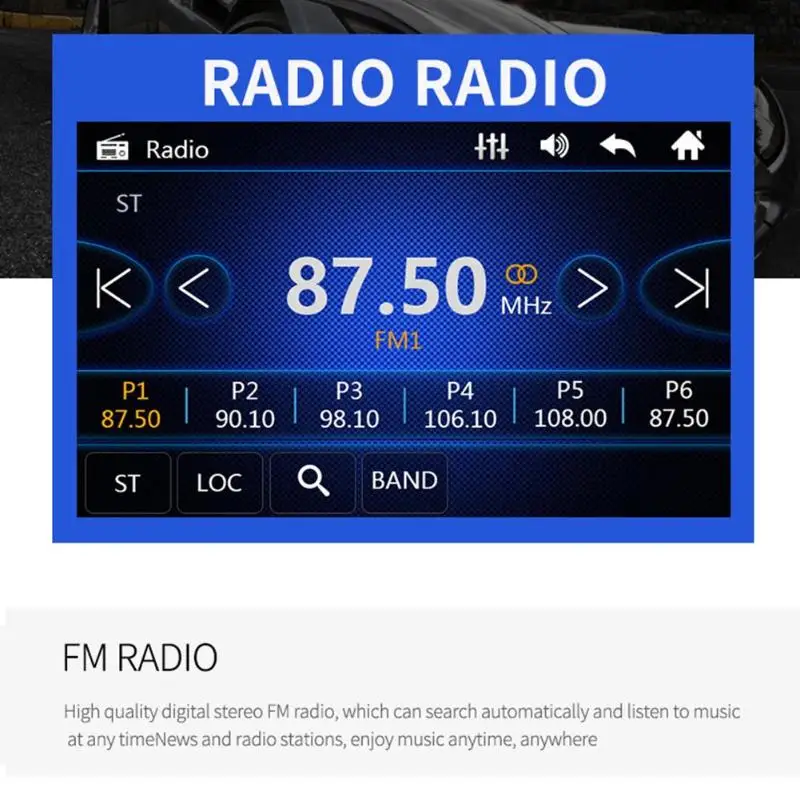

1. Radio (FM)
2. Support reading memory cards and U disks (audio / video / picture)
3. AUX function
4. Bluetooth function
5. RCA audio output can be connected to subwoofers
6. Rear view function (camera NOT included)
7. Video input
8. Original car steering wheel learning function

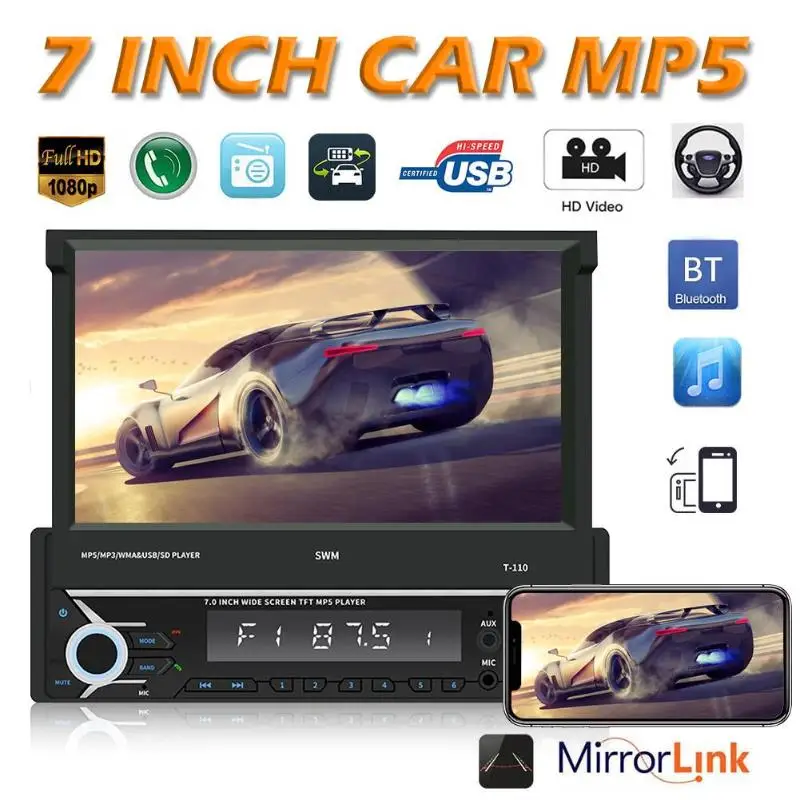

9. Mirror link (for iOS/Android)

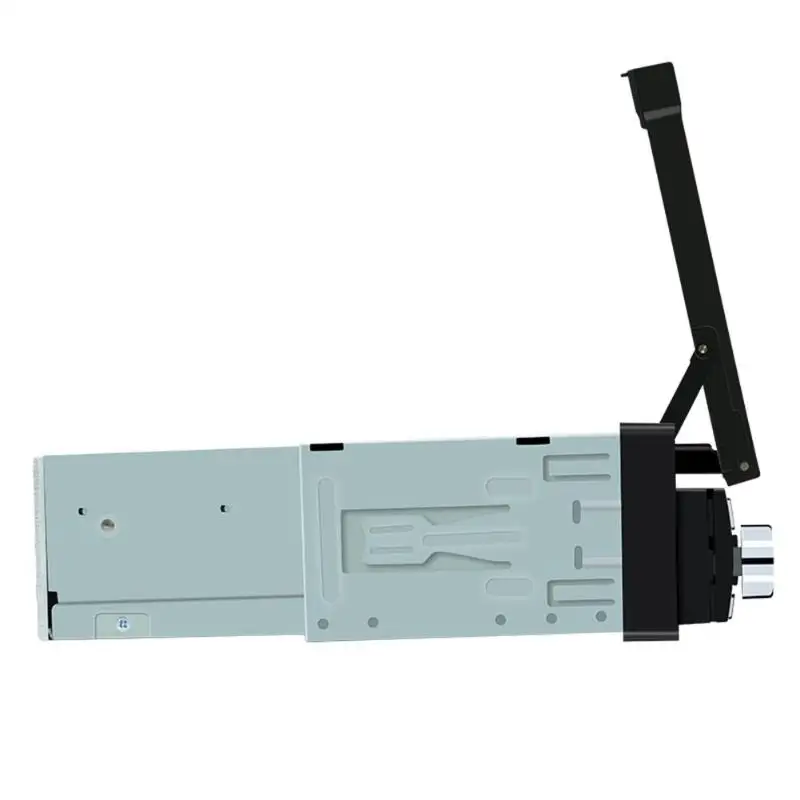

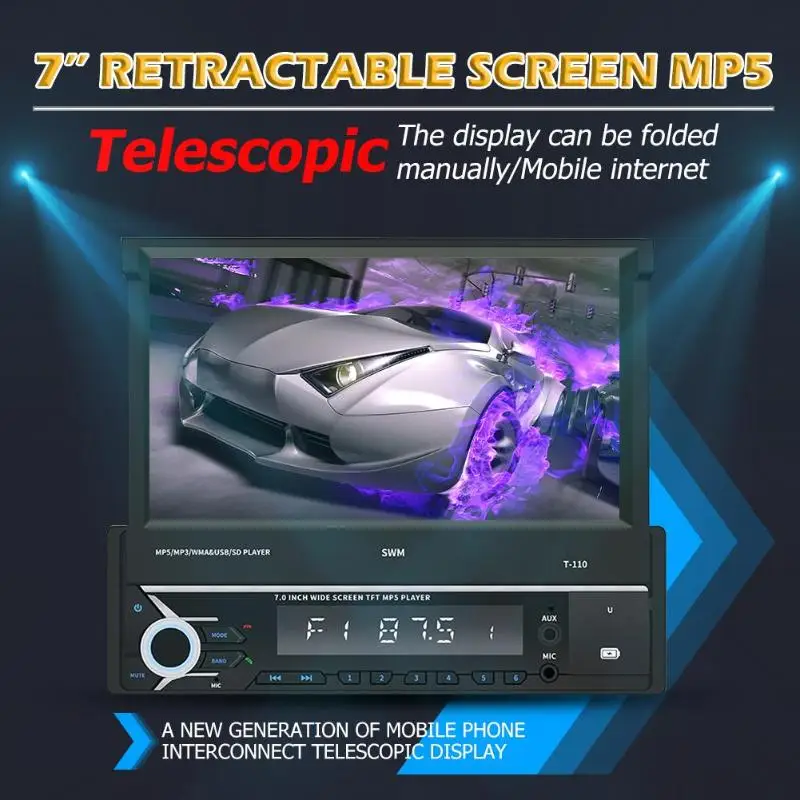

10. The display can be folded (manual)
11. Support external Bluetooth call microphones

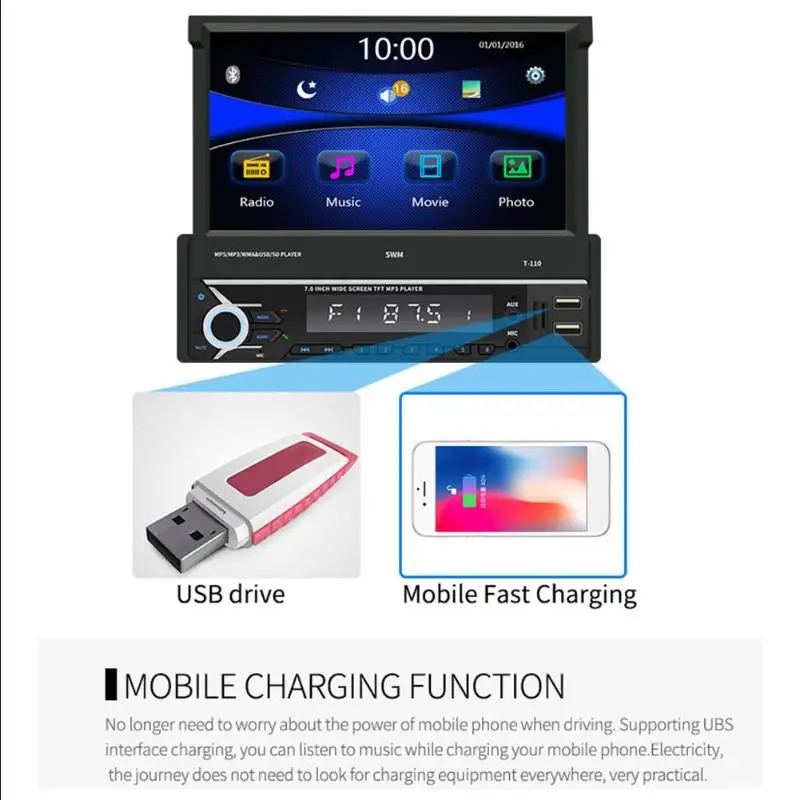

12. Support mobile phone charging function

Specifications:
Model: SWM T-110
Voltage: 12V
Type: Car MP5 Player-Retractable Screen (Manual)
OS: WIN-CE
Software solution: C200S

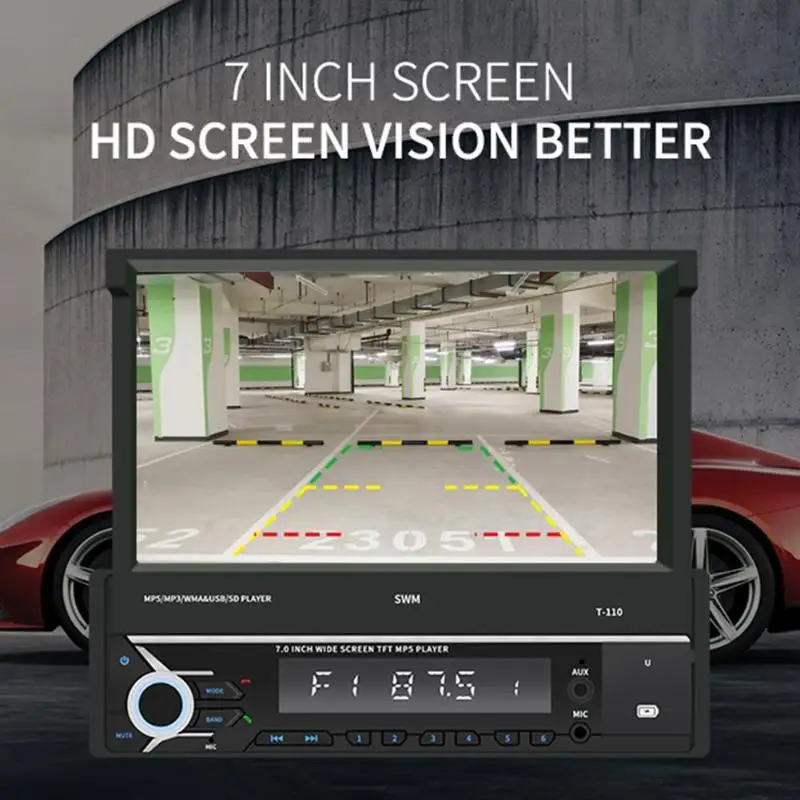

Screen model: 7 inch standard definition

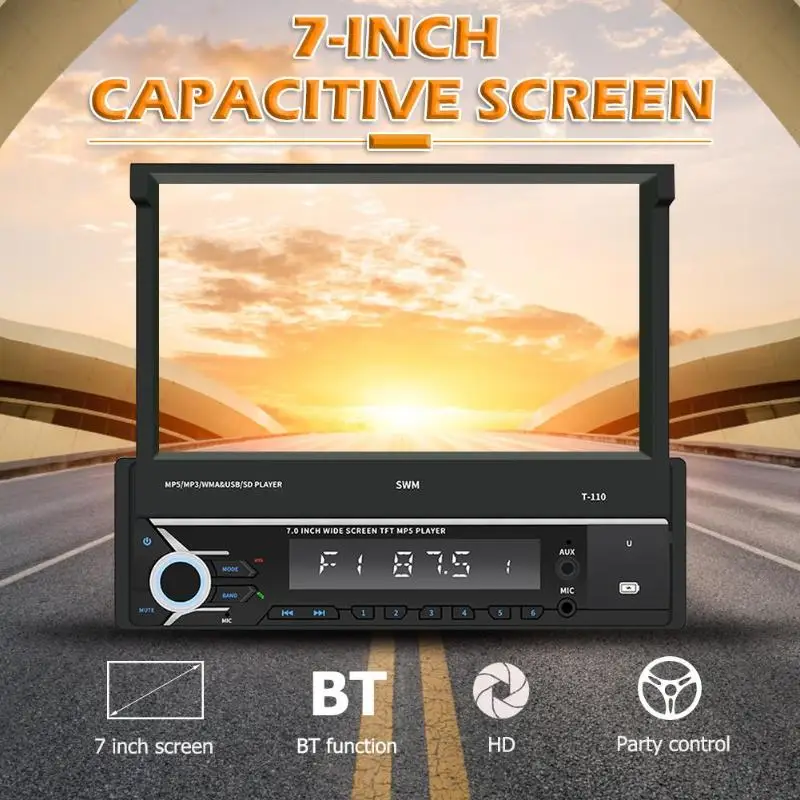

Screen size: 7 inch resistance screen
Screen resolution: 800*480

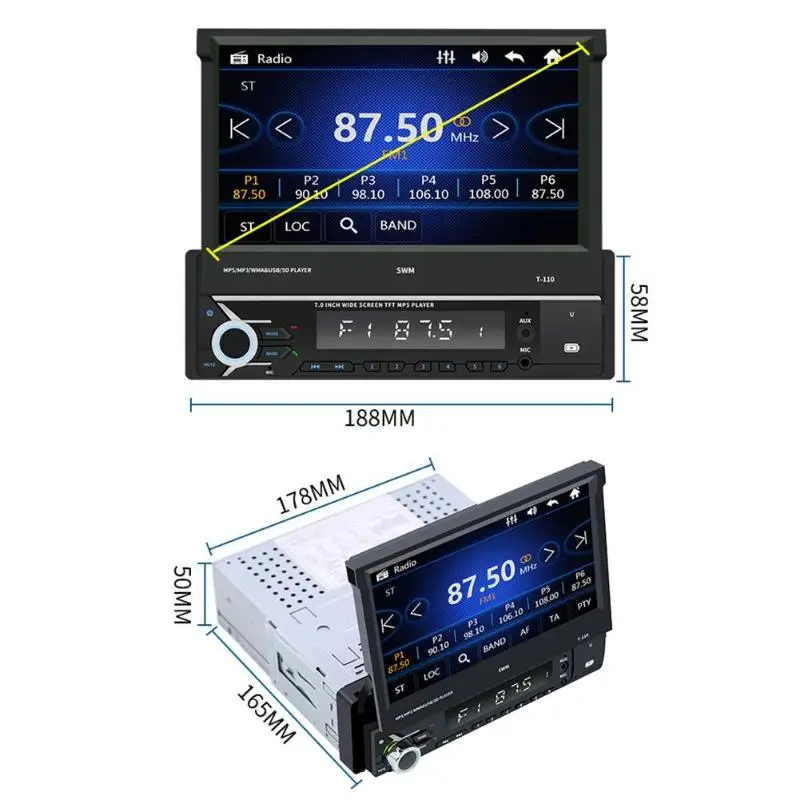

Panel size: 188*58mm/7.40*2.28"

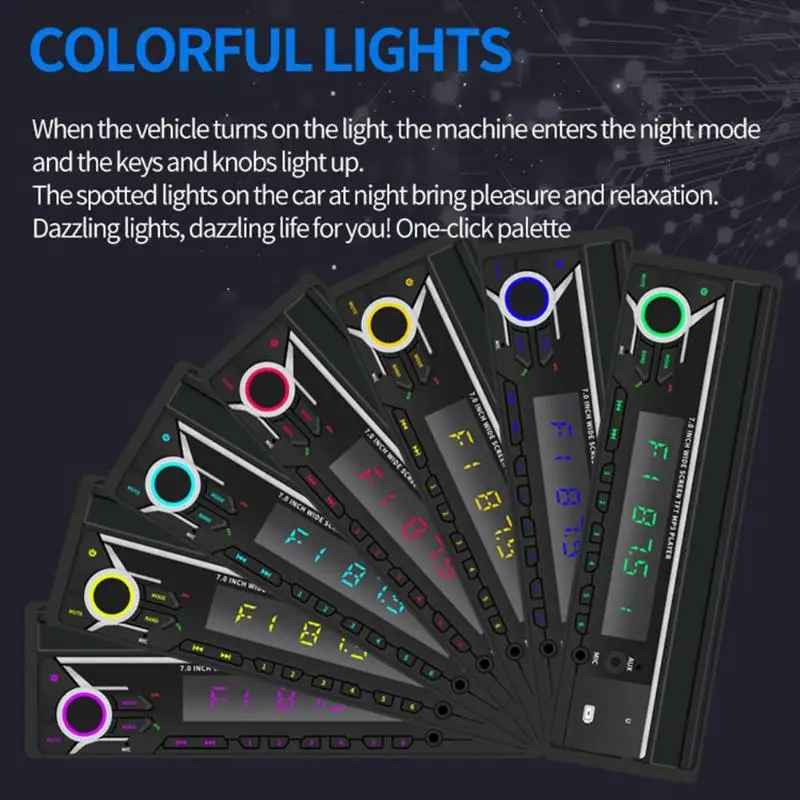

Panel light: colorful lights
Color box size: 210*95*260mm/8.27*3.74*10.2" (kraft box)
Host depth: 165mm/6.50"
Single machine weight: 1694g
Mirror link: support (for iOS/Android)
GPS navigation: not supported
Radio band: FM
Radio chip: QN8035

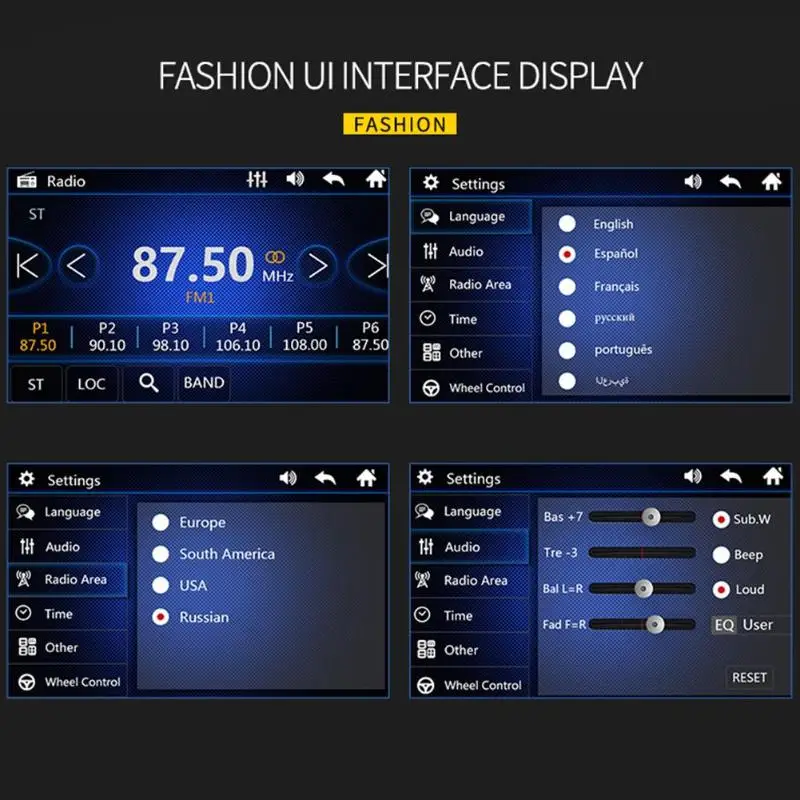

Languages: English / Chinese / Spanish / Portuguese / Russian / Italian / German / French / Turkish / Czech / Arabic / Hebrew / Polish / Hungarian
Power: 60W
Working temperature: -10~60°C
Reversing image: support (camera NOT included)
Brake reminder function: support (default on)
Steering wheel remote control: support
Bluetooth model: V4.0
Amplifier chip: TDA7388
Radio frequency: 87.5~108MHz
Video output: support
Dual screen simultaneous display: not supported
Built-in offline map: no
Wireless WiFi: not supported
TF card slot: Yes
GPS card slot: no
Remote control: Xiaomi remote control
Steering wheel controller: no
USB interface and version: 2x front panel USB 2.0
Reset button: Yes
Button: physical button

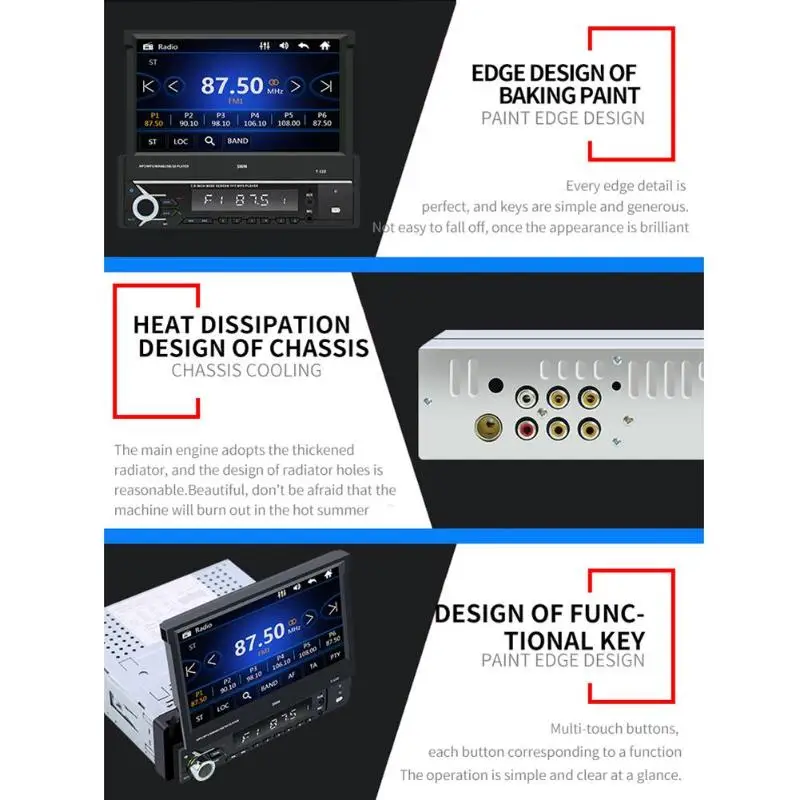

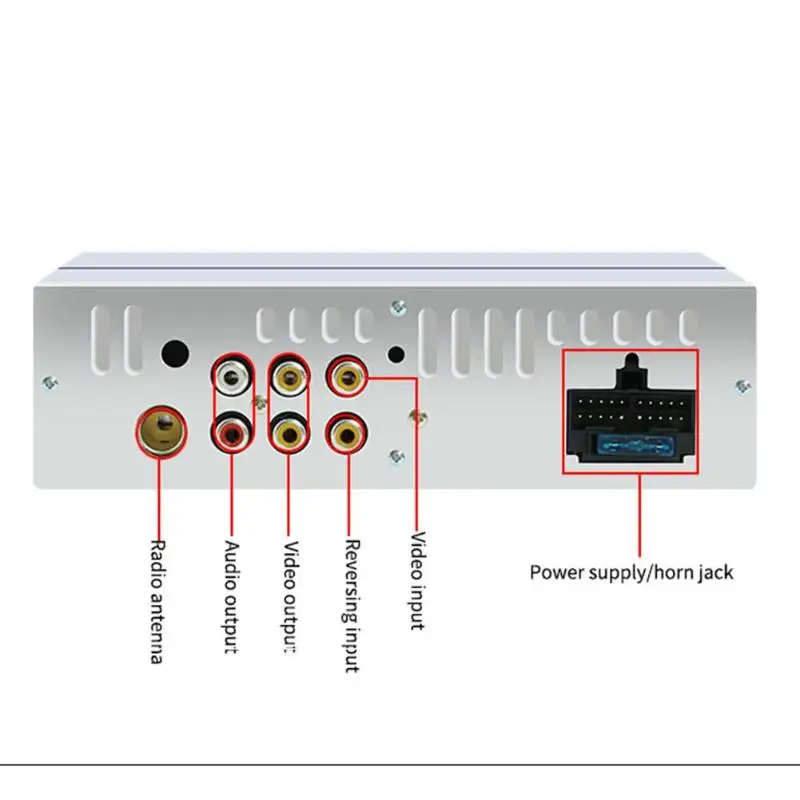

RCA terminal introduction: 2 channels of audio output, 1 channel of reverse input, 1 channel of video input, 2 channels of video output
Front AUX audio input: Yes
DVR function: not supported
DAB function: not supported
OBD function: not supported
TV function: not supported
DVD movement model: no
4G/3G: no
Logo replacement: not supported
Supported audio formats: MP3/WMA/WAV/APE/FLAC

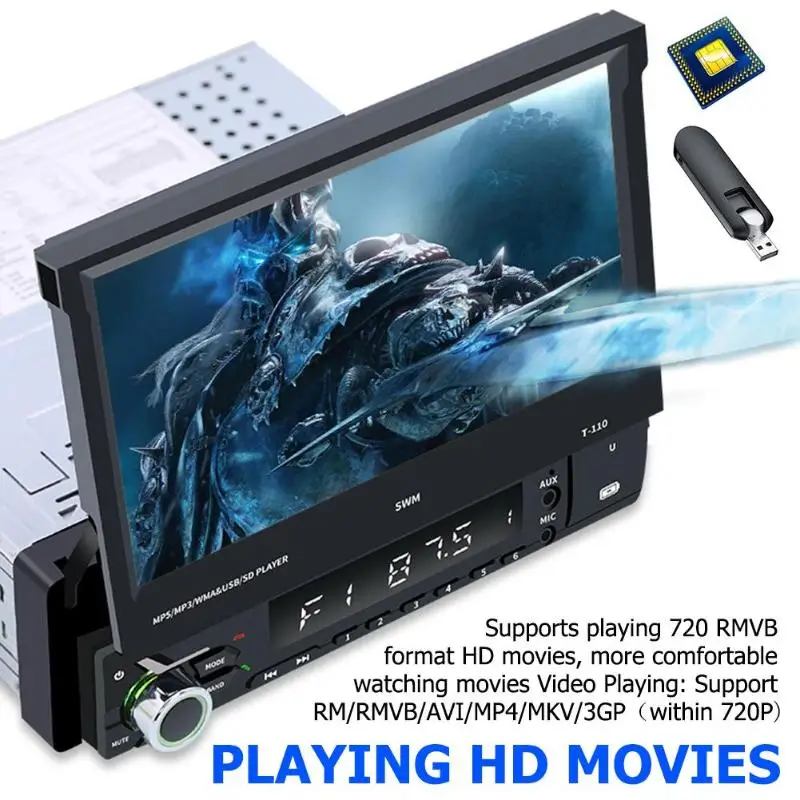

Supported video formats: RM/RMVB/AVI/MP4/MKV/3GP (within 720P)
Supported image formats: JPG
Factory password: not supported

Notice:
1. It has a retractable screen which needs to be pulled out manually. Compared with automatic screen, it is more flexible, convenient and durable,
2. As long as the car stereo's installation size and machine size match, it can be installed and used.
3. When installing the machine, be sure to connect the wire correctly. If the installation does not power on the machine, please connect the red wire and yellow wire to the 12V power supply positive pole, the black wire to the power supply negative pole, try to see if the machine can normally power on. If it can be powered on normally, then it may be due to the problem of wiring, you can ask for our help, so that you can use the product better.

Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

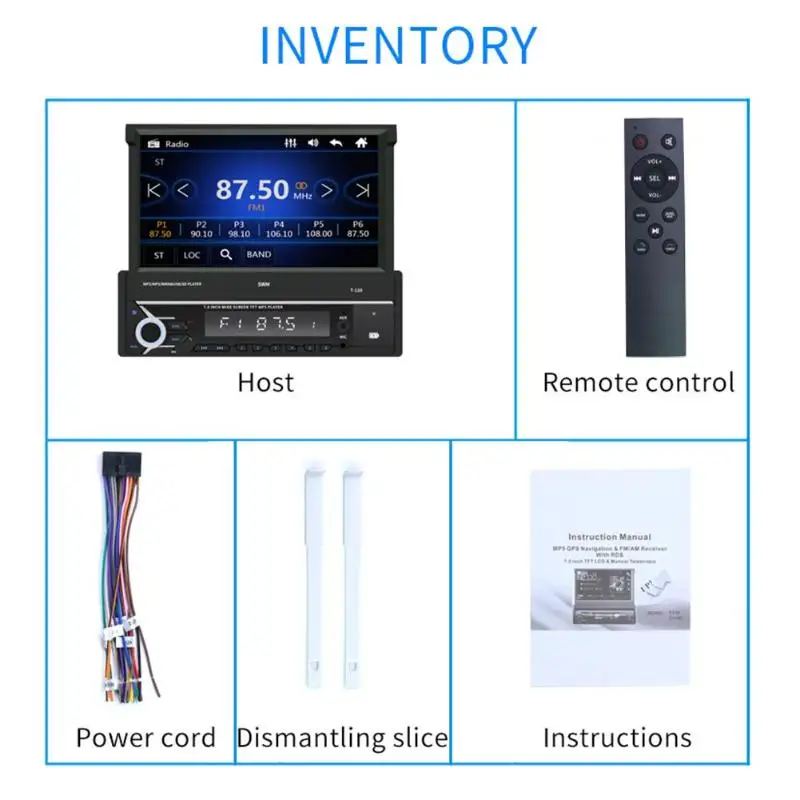

1 X Host
1 X Power Cord
1 X Remote Control
2 X Disassembly Keys
1 X Manual
