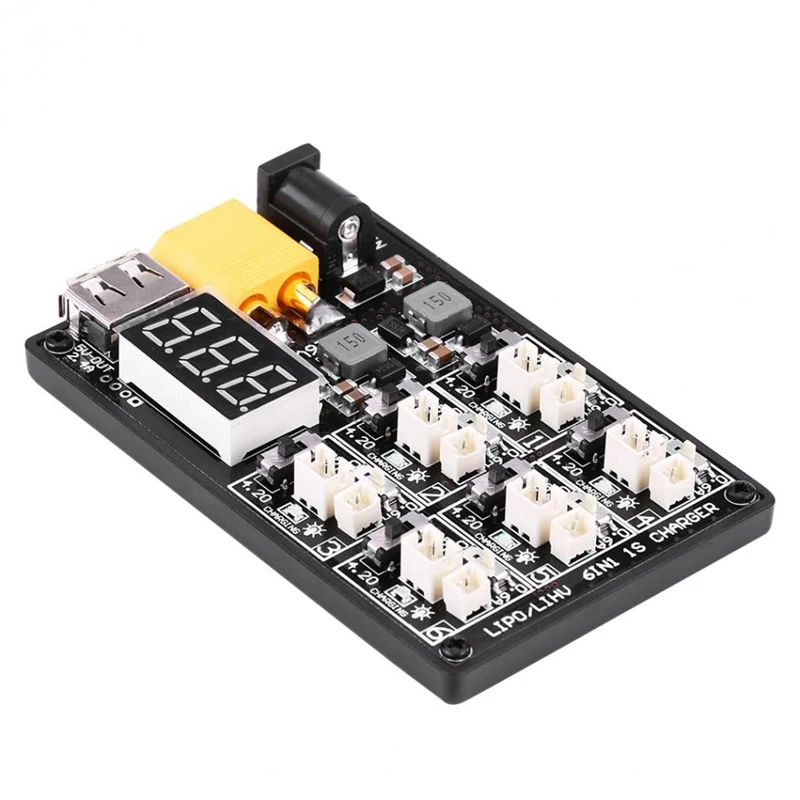

6In1 LiPo Charging Board 1S Battery Charger RC Accessory with USB Interface | Электроника

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } LED light will indicate charging status, slow flash green light for 4.2V unloaded state, quick flash green light for 4.35V unloaded state and steady green light for charging.
Can show input voltage for INP, output voltage for CH1-CH6 and USB. USB interface is for charging mobile phone, tablet and power bank.
Can charge 4.2V or 4.35V Li-Po at the same board by a switchable switch.
0.2A / 0.6A switchable current per charge port can charge up to 6pcs batteries with Picoblade 1.25 or JST PH2.0 power plug at once.
2-6S LiPo or DC 12V/3A adapter for field charging and home charging. Can charge with an XT60 connector and plug into this charger or a wall adapter as supply power.
Colour: Black
Material: Composite
Adapter Input: 12V / 3A
Li-Po Input: 2-6S
USB Input: 5V
Output Voltage: 4.20V / 4.35V
USB Output: 5V / 2.4A
Output Current: 0.2A / 0.6A
Voltage Error: ±0.5%
Size: 8*5cm
Weight: 40g
Type: RC Accessory
Function: Charging Multiple Lithium Batteries Simultaneously
Package Includes:
1 x LiPo Charger Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
