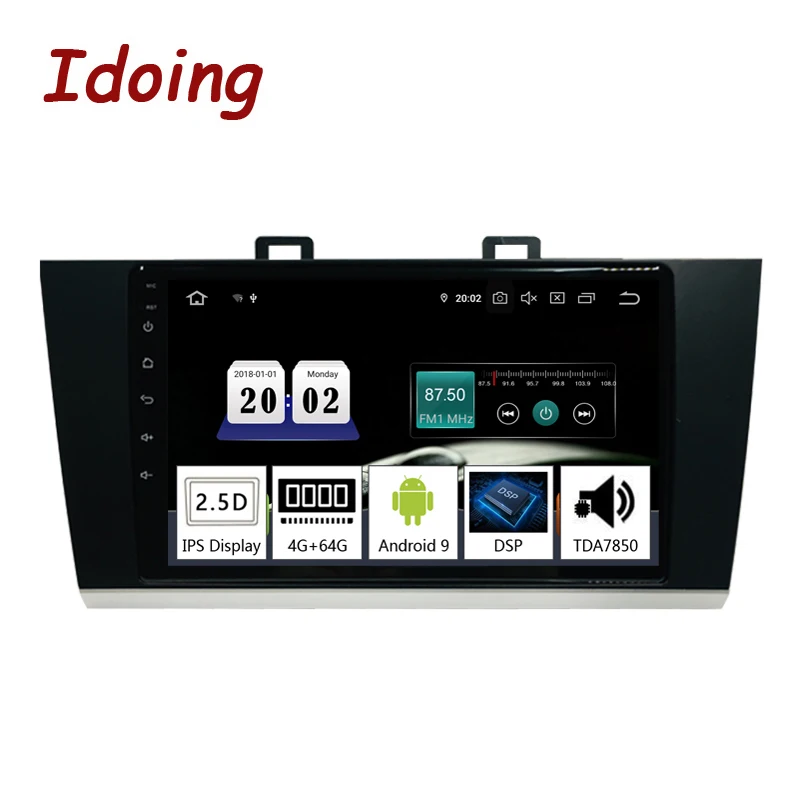

Idoing 9"Car Android 9.0 Radio Multimedia Player For Subaru Outback Legacy 2015-2018 PX5 4G+64G Octa Core GPS Navigation 2.5D |

Idoing 9"Car Android9.0 Radio Multimedia Player For Subaru Outback Legacy 2015-2018 PX5 4G+64G Octa Core GPS Navigation 2.5D

Brand Idoing Din One din Operating System Android 9.0 system CPU Rockchip PX5 64-bit 8core Cortex-A53 Structure Frequency 1.5G DDR

SAMSUNG DDR3 4GB



EMMC 64GB   Max External Memory 128G Radio FM/AM/RDS Screen 2.5D IPS Full Touch Screen Screen Resolution 1024*600 GPU G6110 GPU   Radio IC NXP6686 Power amplifier IC TDA7850 Bluetooth IC BC 6 Power supply 4*50W max Video Decoder 1080P HW DSP Build-in Digital Signal Processing (DSP) OSD Language

English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages

Built in Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI Support

Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR

Multi media Parameters Music Format MP3,WMA,AAC,RM,FLAC etc Video Format MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip Picture Format JPG/BMP/JEPG/GIF/PNG Radio Parameters Frenqency Range FM:76.0MHz-108.0MHz Frenqency Range AM: 522KHz-1620KHz Country Australia,Europe,Russia,USA1,USA2,       Amplifer Parameters Test Voltage 14.4V Max output power 4*50W GPS Parameters Support Map Android 9.0 Map:google/here/sygic/tomtom/waze/igo... Main Frenqency 1.575GHz WIFI Parameters Power supply Vcc_3.3V Suppoted Protocol/standard IEEE802.11B/g/n compatible WLAN Interface type USB2.0 Frequency 2.4-2.484GHz Modulation OFDM/DBPSK/DQPSK/CCK RF Power 15dBM


Note: This radio without AV-OUT function to back seats.If you want this funcion,contact Idoing team before ordering.

Could you please take a picture to show your car center dash console if you are confused

Idoing 9" The Latest Android Car GPS System

Vehicle Fit List and Installation TIPS:

car model number and year for your reference:

For Subaru Outback 2015 2016 2017 2018

About The Tablet



Provide you with more choices,for up to 70 national languages.

​2.5D+IPS Display Screen

2.5D,prevent scraping,IPS screen for all viewing angles very clear.

What is 2.5D?Please check this video. //youtu.be/klQffAjZ4fc

Build-in Digital Signal Processing (DSP)

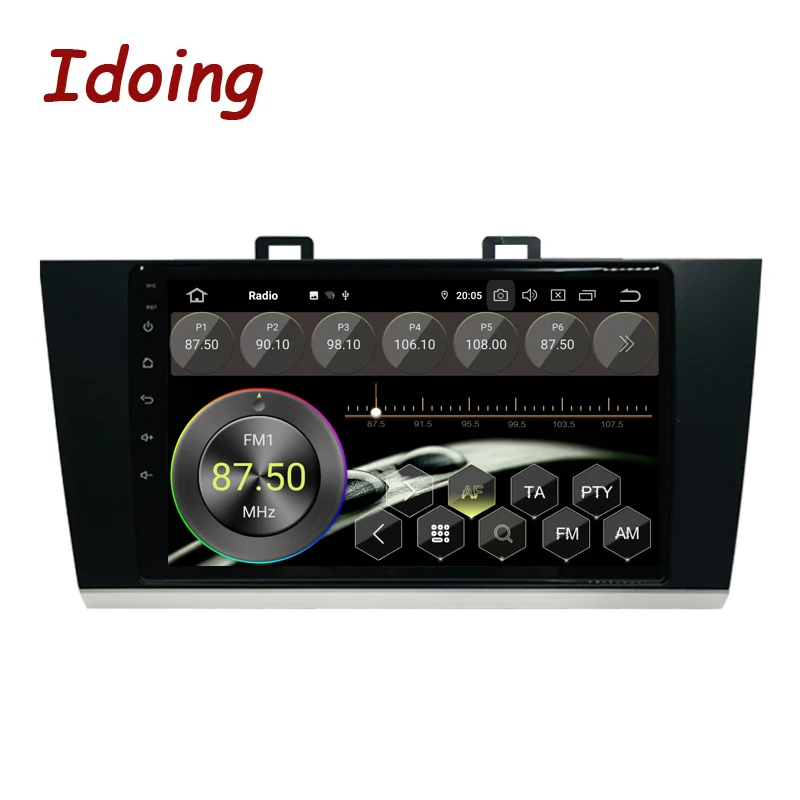

FM/AM/RDS Radio

1.Automatic or manual station search function.

2.Support RDS function.

3.AM/FM radio (AM 2 bands,FM 3 bands).

Bluetooth 4.0

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing. ​

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

QC 3.0(Quick Charge) for you andriod phone and iphone

Quick 2A charge(for premium/pro version)via USB-A cable allows user to replenish phone battery power while streaming bluetooth audio or using WiFi Easy-Connect(Mirrorlink) easily.

Cool 3D Navigation (GPS+Glonass Dual Satellites)

1.Built-in GPS+GLONASS dual satellites positioning system,more accurate positioning,stronger GPS signal.

2.Map can be run the background to achieve music navigation functions.

3.Support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

Screen Mirror Link

Using Easy-Connect APP,via USB charging cable and Bluetooth,you can mirror the android phone display such as main menu,photos/videos,Online navi maps.also you can control the Android Phone on this unit.can support the most Android Phone.

For Iphone,use wifi connection,you can mirror the unit,but can not control.

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,can only work with the car which support analog signal.

Multimedia Function

Support 9 EQ Equalizer for music,video display album art,songs title,singer name,lyric info from default player.

Support full HD resolution 1920*1080P pixels videos.

Support media format: MP3,VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.

Support breakpoint memory play.

Support 7 kinds of button colors

7 colors of button indicator for your multiple choice.

Support OBD2

You can connect a bluetooth OBD2 scanner tool to use this function.

Tips: OBD2 is optional,Suggest you buy it from us.pls click this picture:

Support external 3G/4G Modem

Support EX-3G/4G(WCDMA/CDMA2000/TD-SCDMA standard). Tips: 3G/4G cable not including,suggest you buy 3G modem from us.

Support Rear View Camera (can not support original car rear view camera)

1.Support reversing mirror, mirror horizontally,rear automatically enter the rear video.

2.Support radar display.

3.Support backing track(track data to provide auto protocol).

Tips: Not including rear view camera,suggest you buy it from us.

Support DAB+

1.connect with a DAB+Box via USB port to use DAB+ function.

2.support input digital radio programs and touch operation.

3.support touch screen to search programs.

Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
