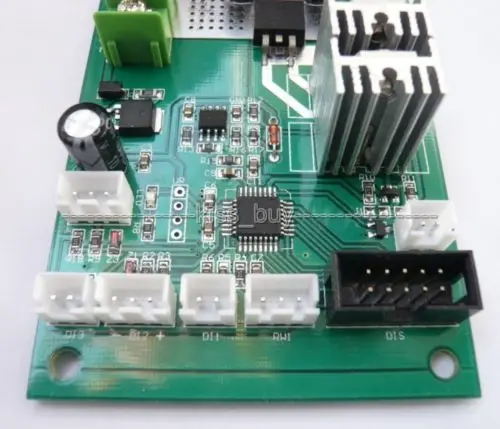

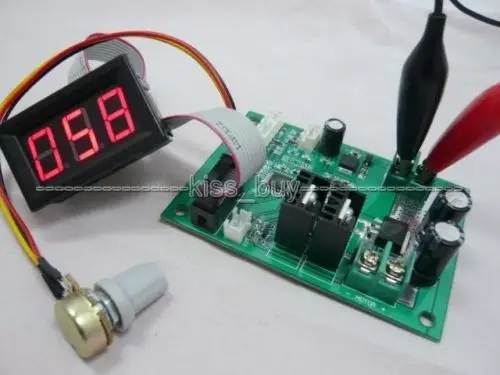

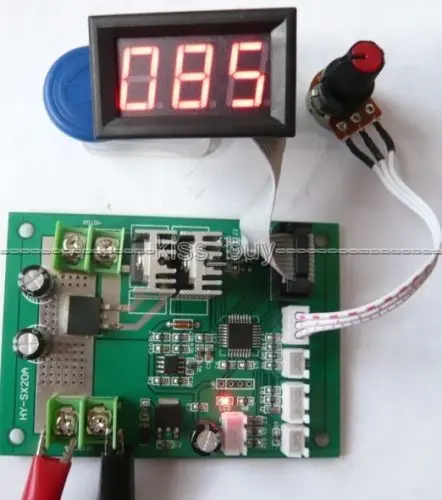

500W 20A DC Brush Motor governor PWM Speed Controller with led Digital Display Governor Driver 12V-24V short circuit protection |





 0.01-500W DC brush motor speed controller 12-24V governor pwm with display
    　   Description: Features:


Brushed DC motor speed controller, high efficiency, torque, low fever, with display, short circuit protection, can be between the motor speed from 0% to 100% of the original Promise change and increase the speed control 0-5V function can be used to directly control the motor speed PLC has been widely applied in industrial production stabilized

Technical Specifications:

(1) Operating voltage: DC9V-DC24V (can be customized according to user requirements)


(2) Control power: 0.01-500W

(3) quiescent current: 0.015A (standby)

(4) PWM duty cycle: 0% to 100% with digital display
(5) PWM frequency: 15khz
(6) Control voltage: 0-5v (voltage-controlled, can be used to directly control the motor speed PLC

(7) Size: 9.8CM (length) * 6.5CM (width) * 1.6CM (H)

(8) Display Size: 4.8cm (length) * 2.85cm (width) * 2.5cm (H)

(9) Speed ​​knob line long 20cm display line length 20CM

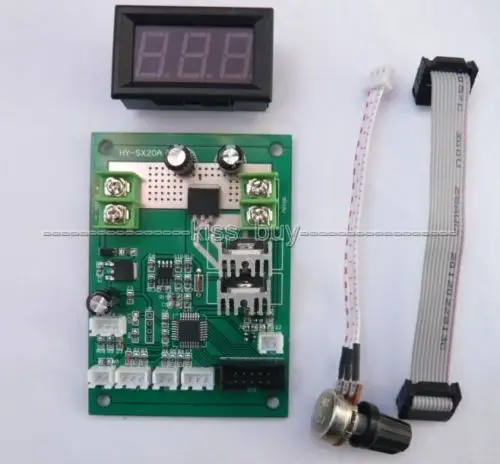

Shipping list:

1: a governor Motherboard

2: Speed ​​dial 1 (with 20CM wire)

3: Digital display 1 (with 20CM wire)



Protection current adjustment method: Before the power, the speed knob clockwise to maximum, after power display 511, and begin to blink. Within three seconds can be adjusted from between 1-511, 1-255 corresponding current of 1-20A. When adjusted to the required value, stop adjusting automatically saved after 3 seconds. Set value exceeds 255 within three seconds if not adjusted current will not protect locked. Once set, if not re-adjust the current settings will be saved previous value, with power saving. (Default is not protected)


Package Contents
100% Brand New
1 X 0.01-500W DC brush motor speed controller 12-24V governor pwm with display
