Description:
Compact and lightweight, easy to install and use.
Suitable for car or boat using.
Electric speed controller with brake.

Features:
It's bidirectional miniature brushed ESC with brake for DIY mosquito/mini-z car.
Designed for receiver and steering SERVO.

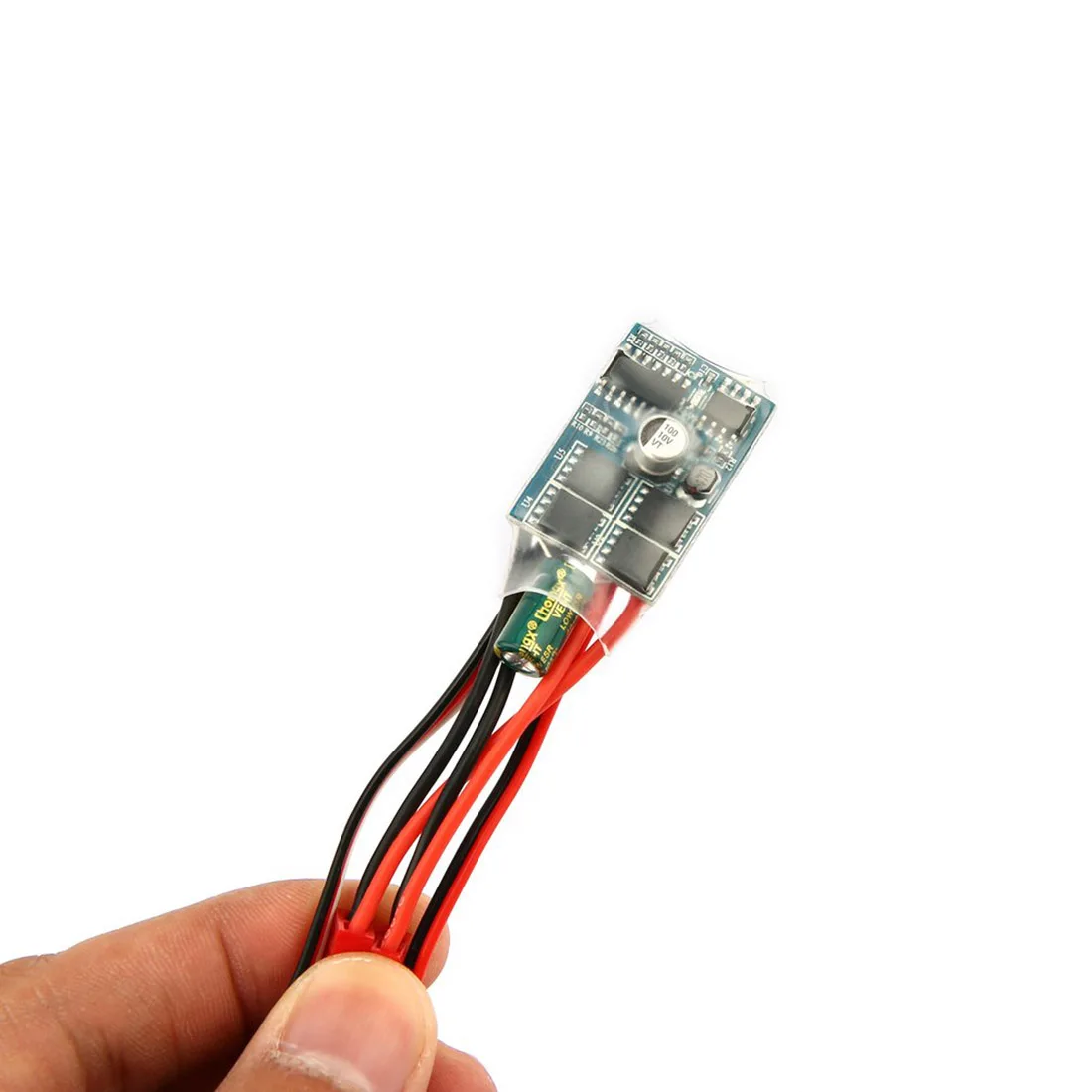

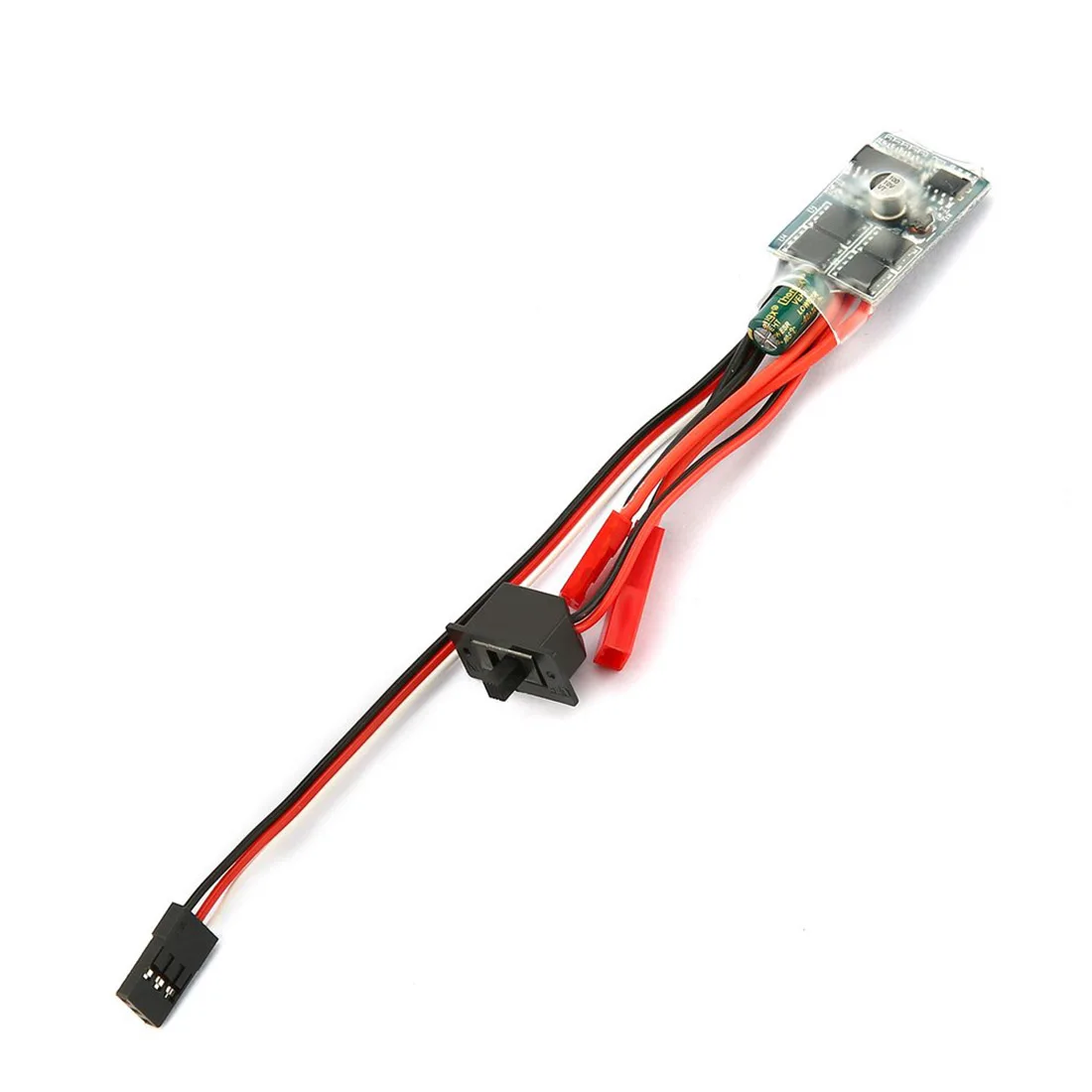

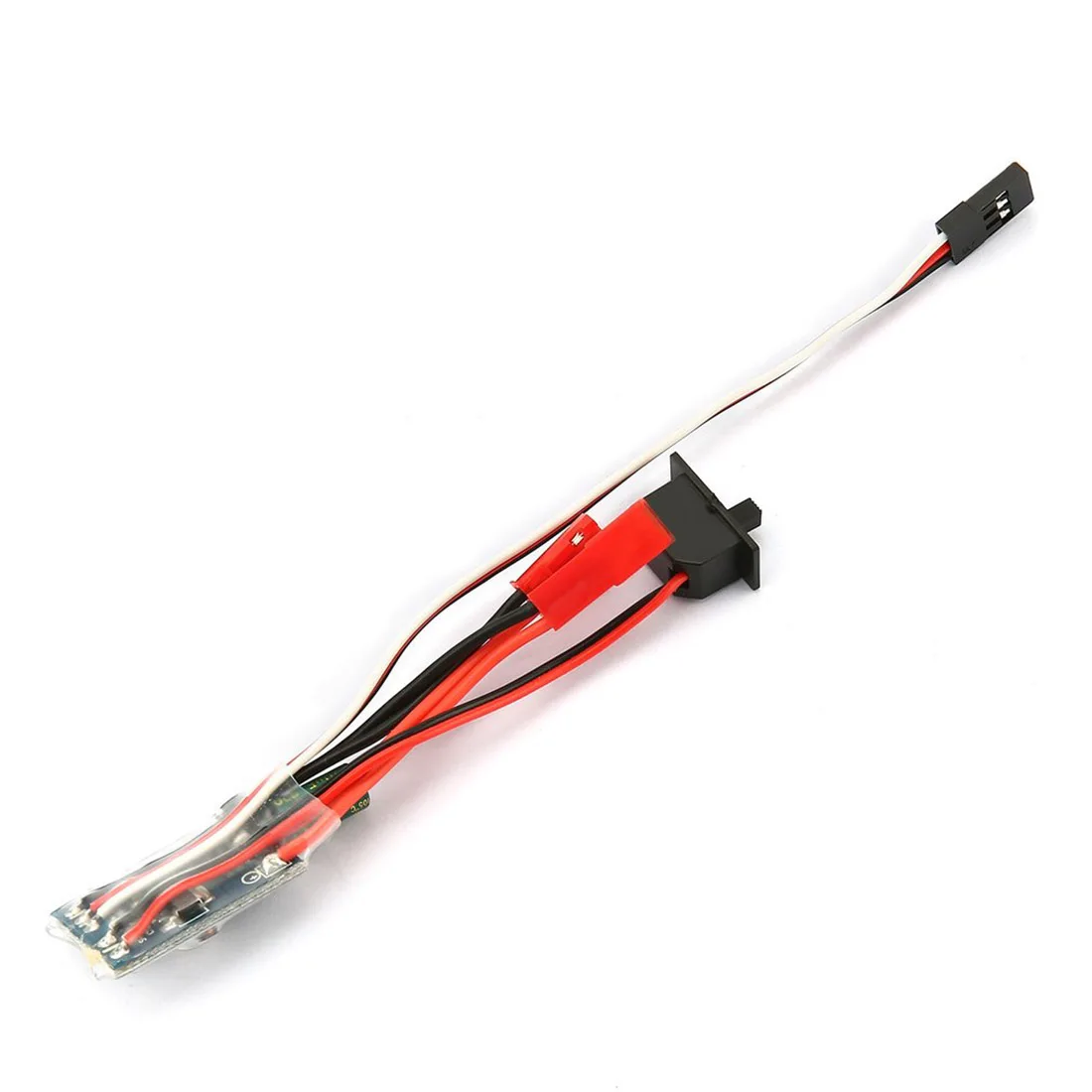

Specification: 20A Brushed ESC
Function: forward, reverse, brake
working voltage: 3.0V---9.4V.
Diaensions(L*W*H): 30*23*5MM
Weight: about 11g with plug and cable
Input signal type: PPM
Current(A): 20A
Driver frequency: 2KHz
Input: Li-Po 2S / Ni-Mh/Ni-cd 4-7cell
Constant current 20A Max 25A< 30s Pulsed 50A< 5s
Brake On / with brake
This ESC can work with 130/180/260/280/380 Brush Motor

Cable with JST Plug, red is positive and black is negative
1*3P cable black (negative), red wire (positive). White line (signal line)

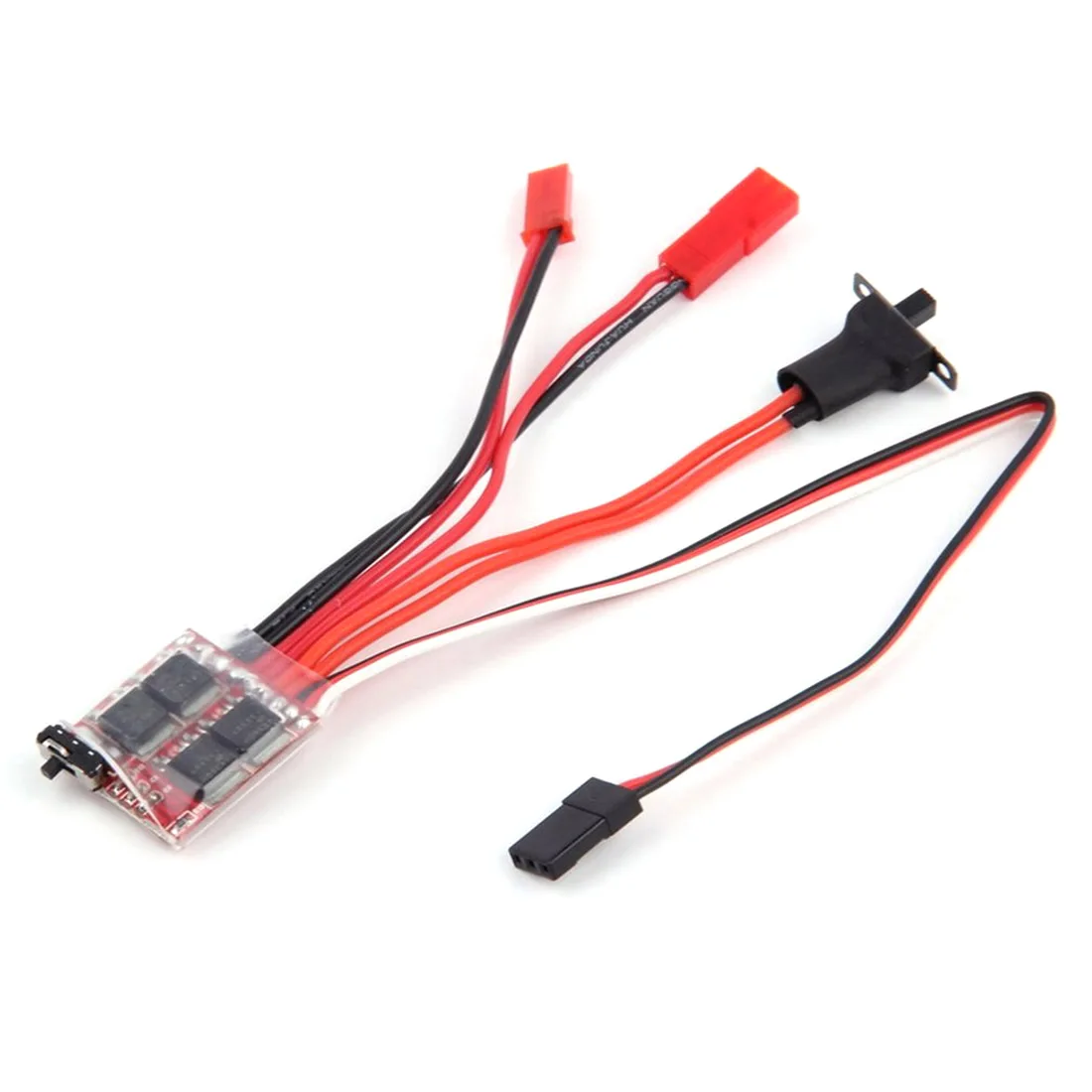

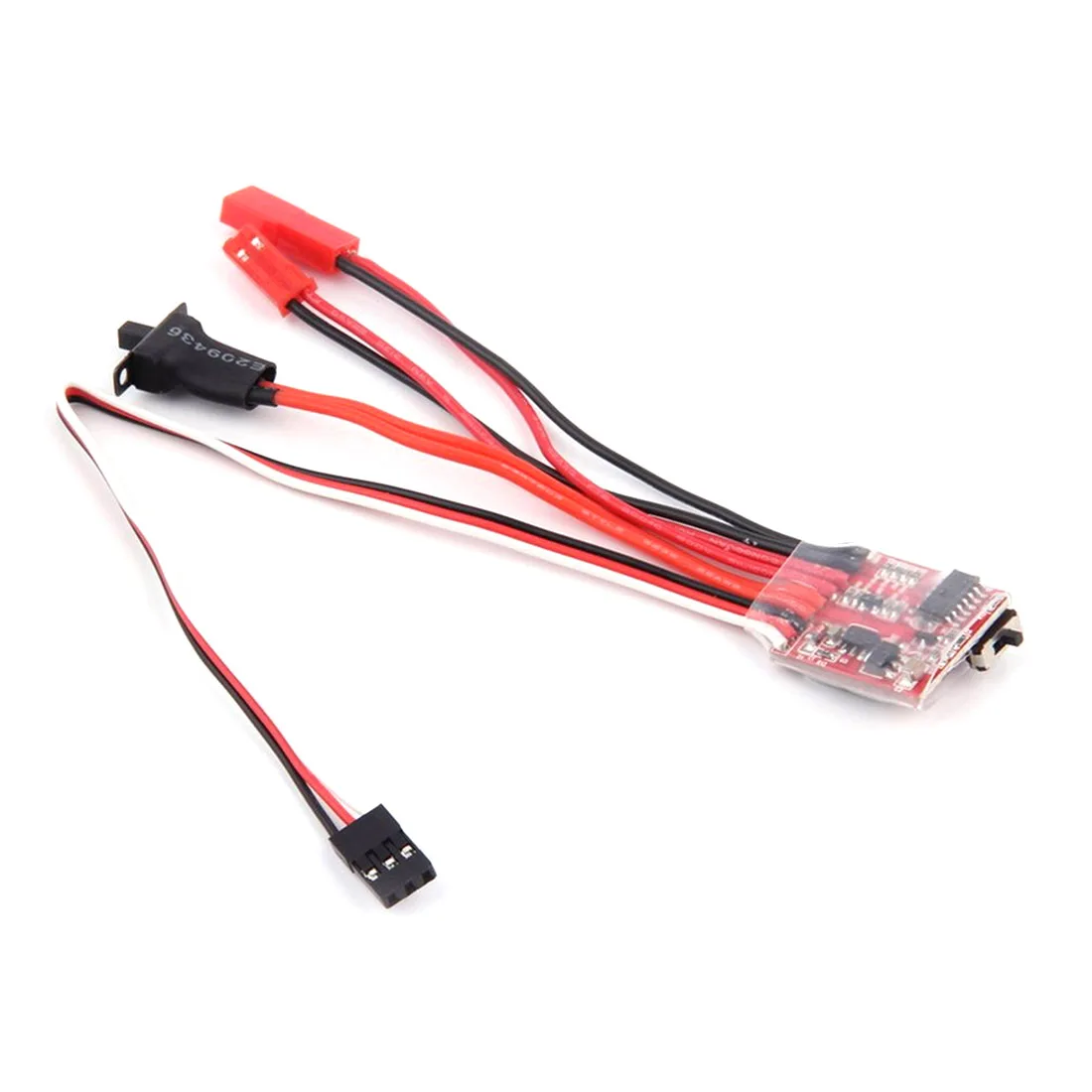

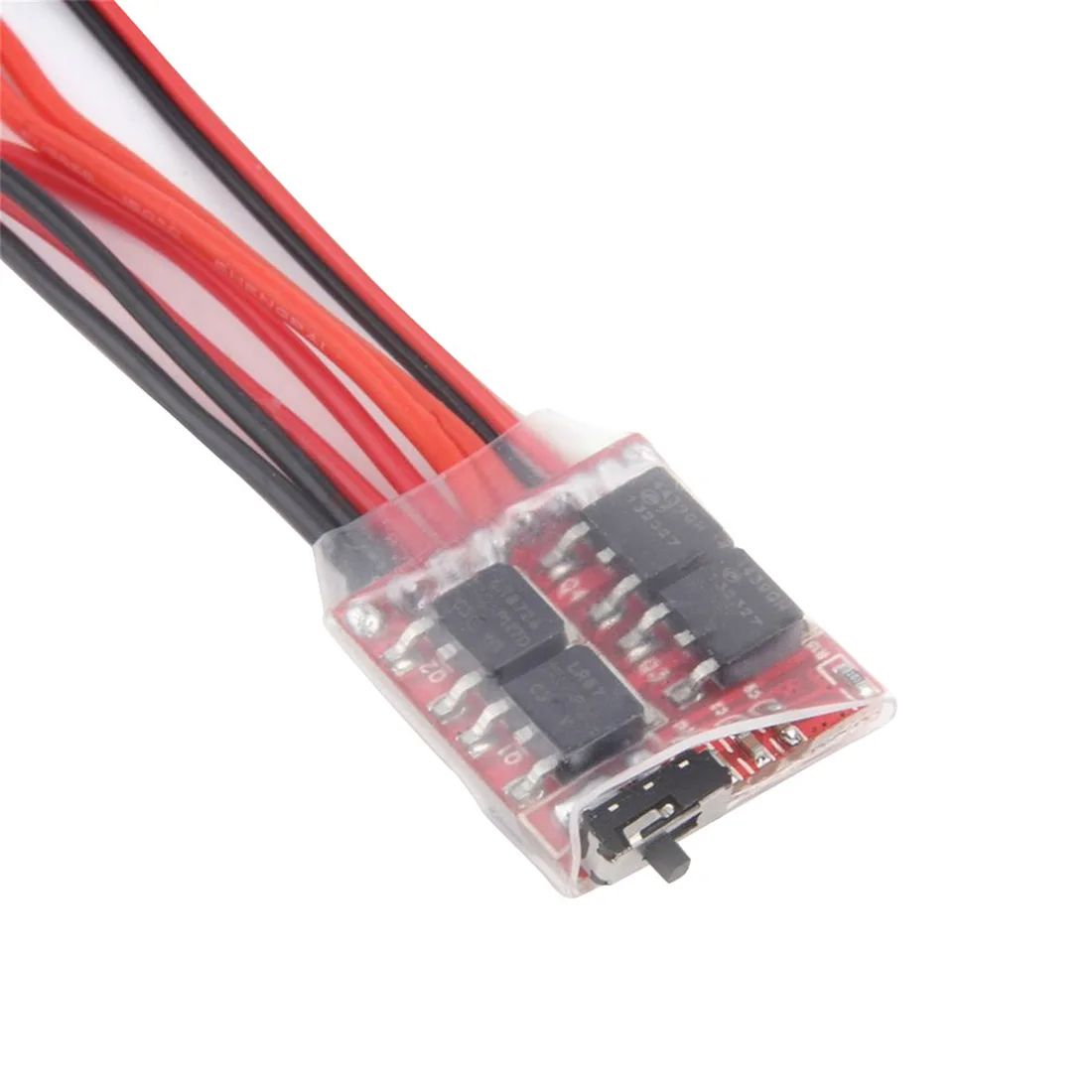

Specifications: 30A Brushed ESC
Material: Composite material
Color: black & red
Size: 40*19*10mm
Input voltage: 4-8V
Electric current: go forward: 30A;
                        instant for peak value: 40A;
                        go backward: 20A;
                        braking value: 40A
UBEC output voltage: 5.7V
Output current: 1A
Suitable battery type: 2S Li-ion(7.4V)
Connecting rod: short red (positive) and black (negative)------battery;
                       long red and black(positive or negative is random)------motor;
                      black red and white three-one line------ch2 of receiver.

Package Includes:
1x Mini Brushed ESC

More information:
1. Two-way ESC with brake, the handle is up, the motor is moving forward. When the car wants to brake, the handle is turned to the downward reversing position. At this time, the motor does not move and is in the braking state. If you want to move forward or backward, the handle will return to the middle and then move forward or backward.
2. Two-way ESC without brake, the handle is up, the motor is moving forward, the handle is back, and the natural speed stops. The handle is down, the motor reverses backwards, the handle returns to the middle, and the natural speed stops. When the vehicle and the ship are in the forward state, stop or reverse, turn the handle down, and the ESC reverses backwards; if it is to stop, when the motor just reverses, the handle returns to the middle and the vehicle stops.
3. For climbing car, with handle back to the middle automatic brake function, suitable for climbing car half slope parking and starting.

How to Connecting:
1. Connect the power supply and connect the motor. After plugging in the receiver, there will be a sound of DO, indicating that the ESC is powered up normally.
2.  If in the center position, the motor immediately sends DO BE MI. If it is not in the center, the motor will emit DO .DO ....
The user is prompted to stop the DO BE MI immediately after the user mediates to the center position. The center position learning is completed and can work normally.
3. LED status, when the remote control is in the center position, the LED is half-bright or off. When the current is in or out, the LED is fully illuminated, and the LED flashes when there is no signal.
