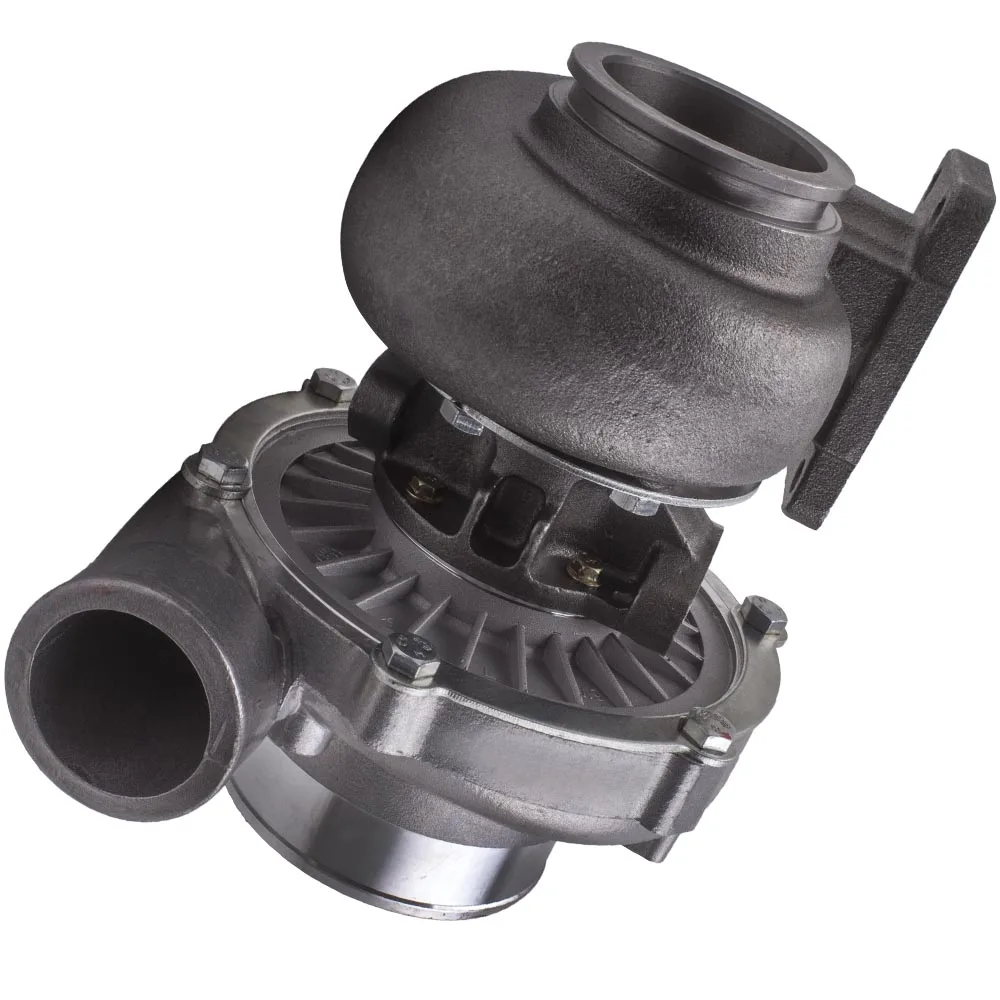

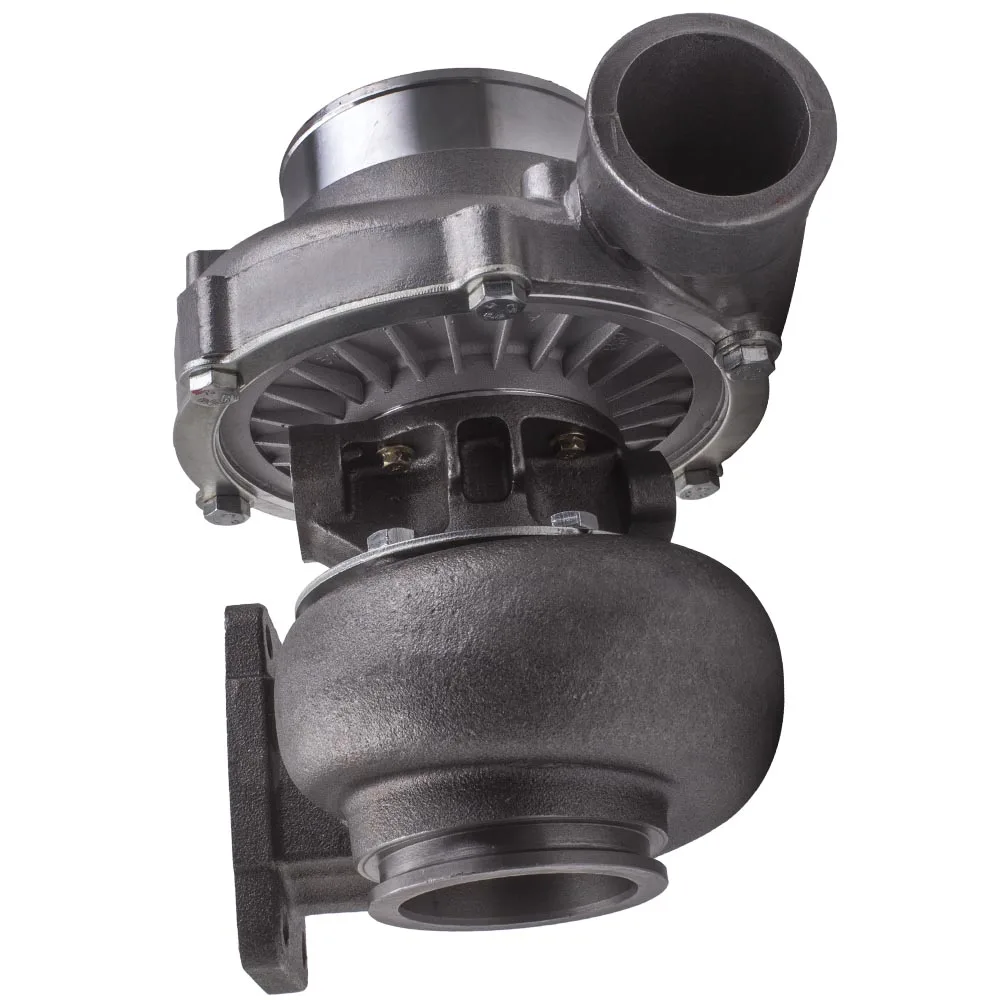

T70 .70 A/R T3 V Band Flange Oil Universal turbo turbocharger 600HP 1.8L to 3.0L

This T70 Turbo is capable of generating 600+HP, depending on application and with the correct tuning. The T70 is generally used for large displacement engines of 1.8L-3.0L. This is the Universal Application Turbo, Professional Installation is highly recommended; some modification may be required for individual vehicle, please consult professional turbo installer for details before purchasing.

Universal for Turbo Manifold with T3 Flange. Perfect for all 1.8L-3.0L engines.

Compressor Size:

* Trim: 57

* Inducer Diameter: 56.6 mm

* Exducer Diameter: 75 mm

* A/R: 0.82

Turbine Size:

* Exhaust (Turbo Manifold) Flange: Standard T3 Flange

* Exhaust (Downpipe) Flange: V Band Flange

* Trim: 62

* Inducer Diameter: 74.4 mm

* Exducer Diameter: 58.4 mm

* A/R: 0.7

 *Flange: T3 Twin Scroll

 *Outlet: 2.5'' V band

Product Material：

1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

3. Compressor housing：ZL104 aluminum with lightweight

4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance

Product  Performance：

1. cost effective turbocharger give your car 20-40% more total power

2. Rich Experience In Turbo Production And Own Factory

3. Quality Assurance

4. High Performance Rotor

5. High-Speed Oil Seal Ring

6. Strict Quality Inspection

7. Precision Clearance

8. High-speed Accessories

9. Improve Emissions & Save Oil

Key Feature：

1. High Quality Material, Cast Housing with Durable Steel

2. Boost Engine Horsepower Significantly

3. Increase Engine Power and Torque Outpout;

4. Maintain Combustion Chamber Pressure and Fuel/Air Load

5.Contructed with High Quality Material

6. Built for Durability and Strength

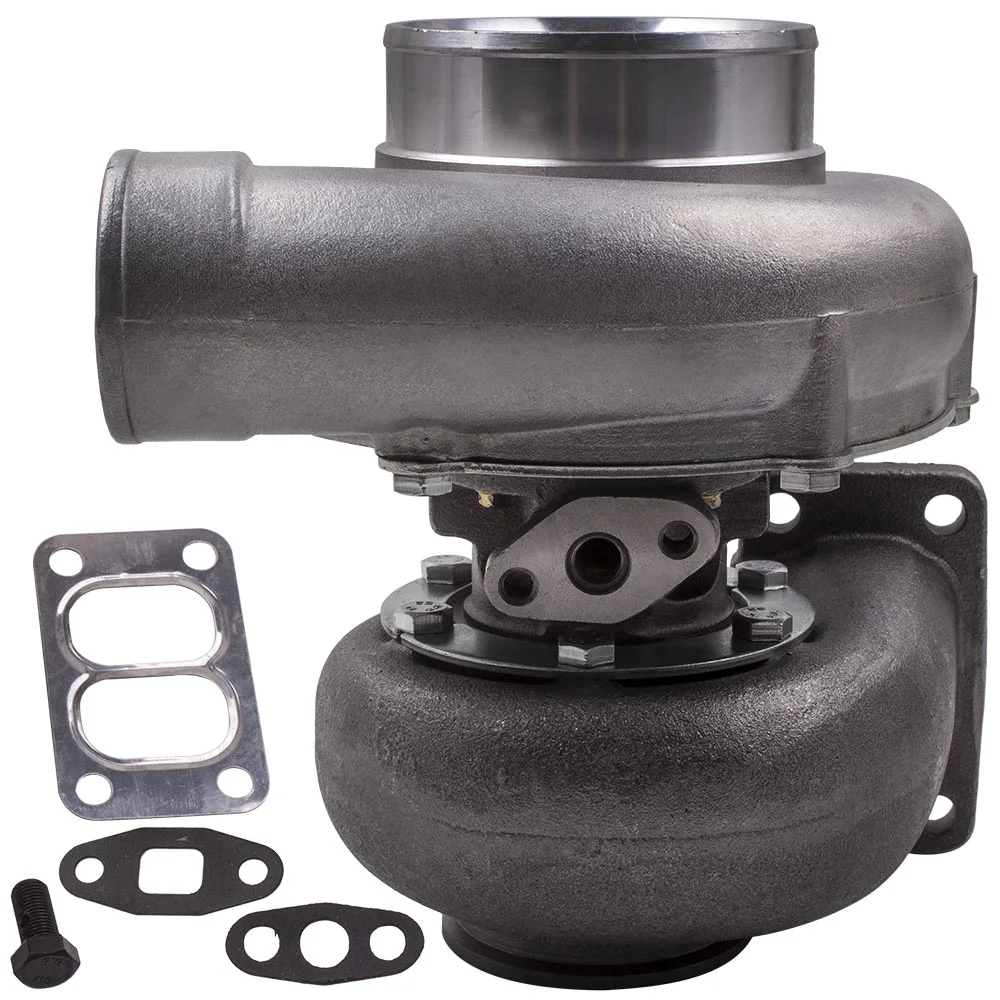

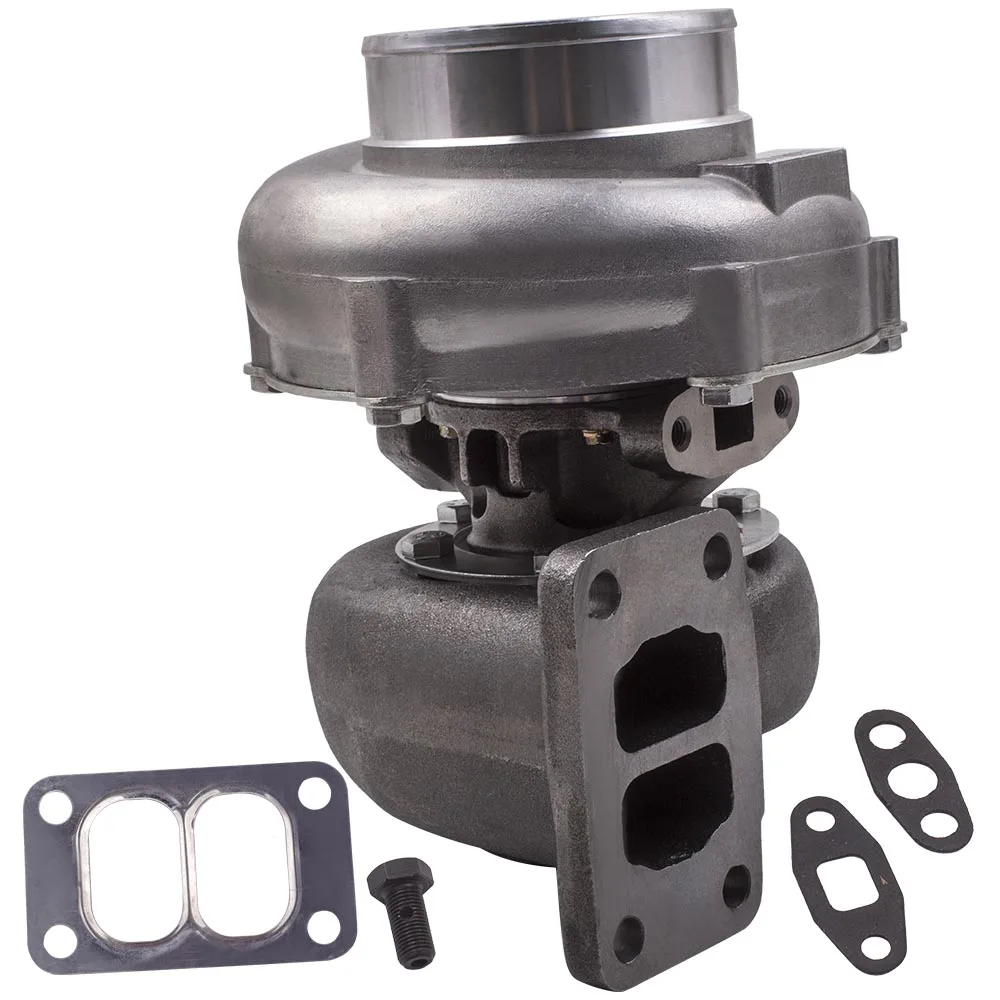

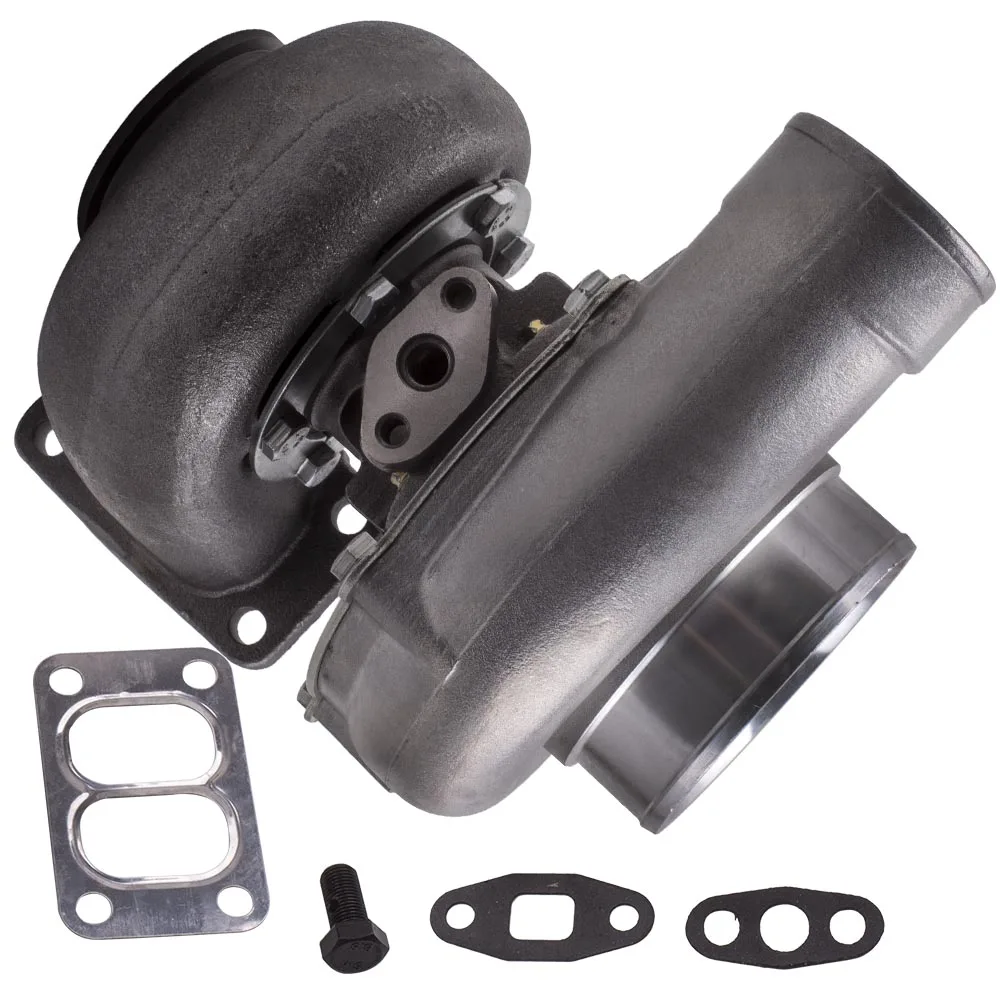

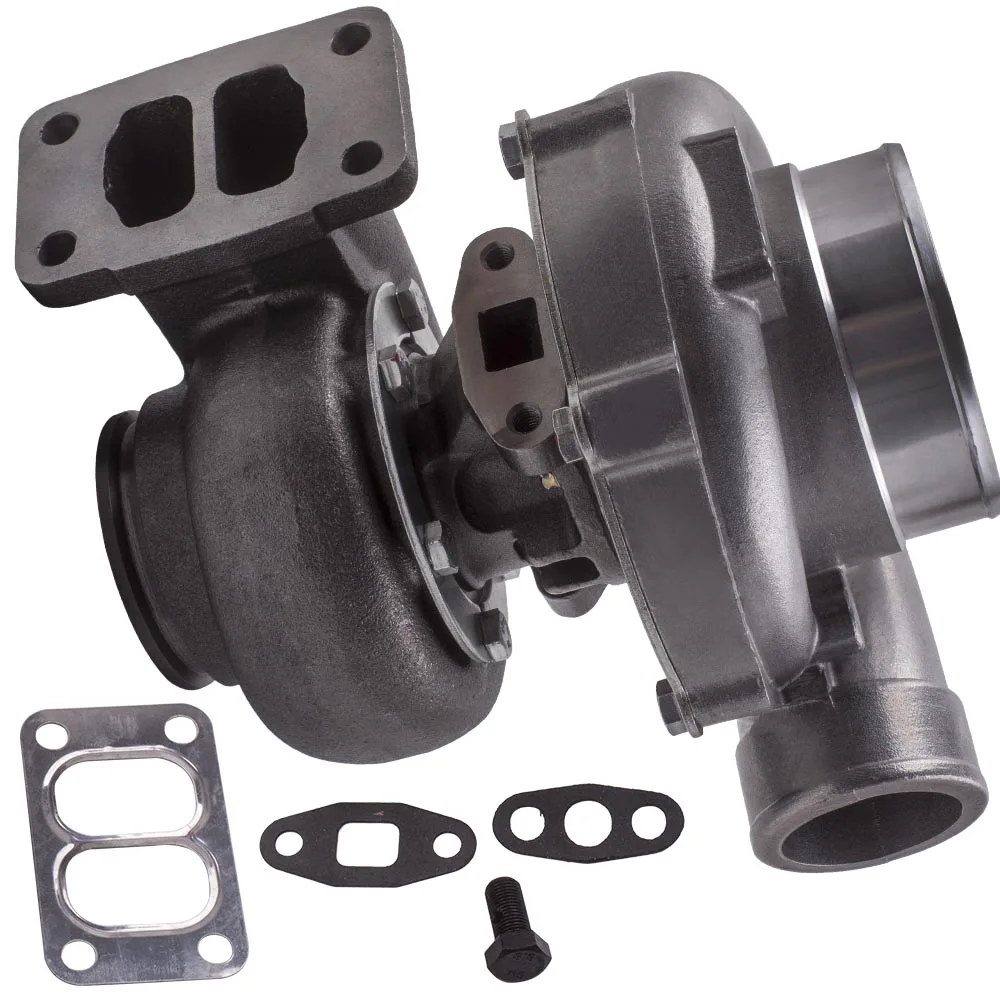

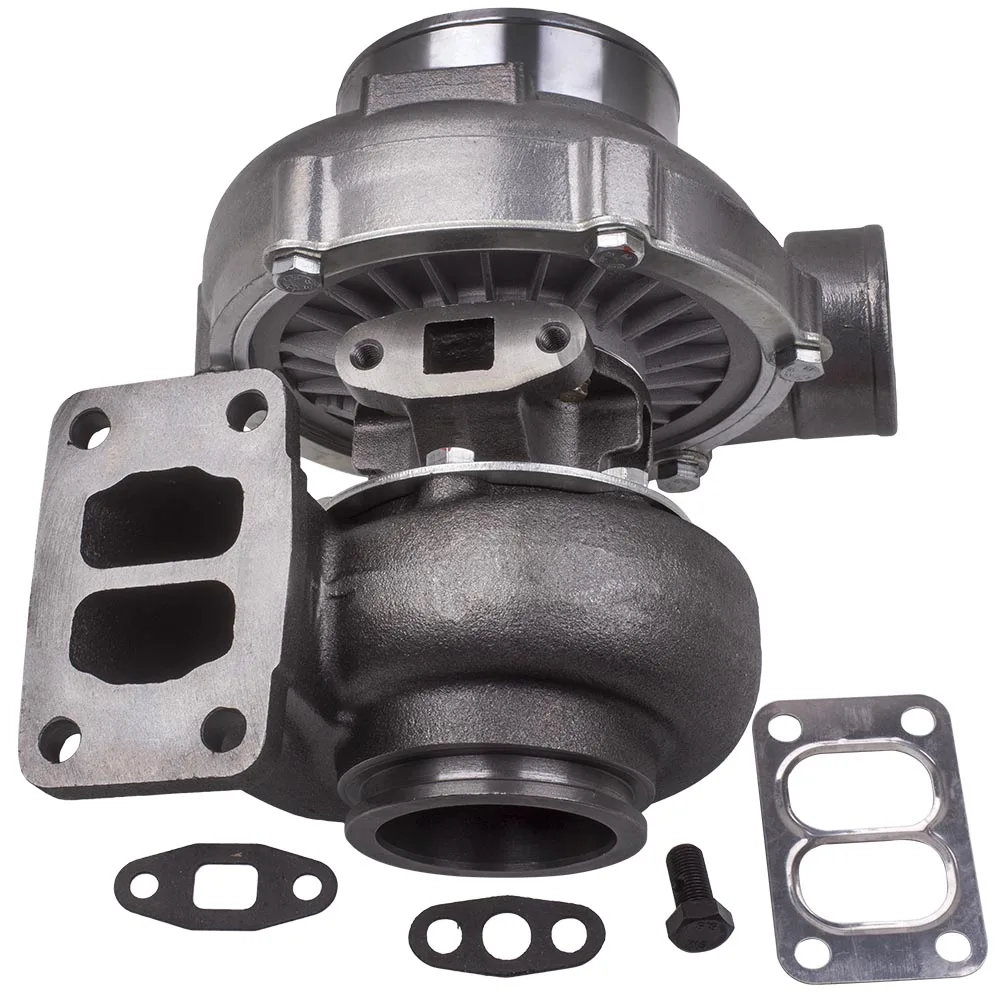

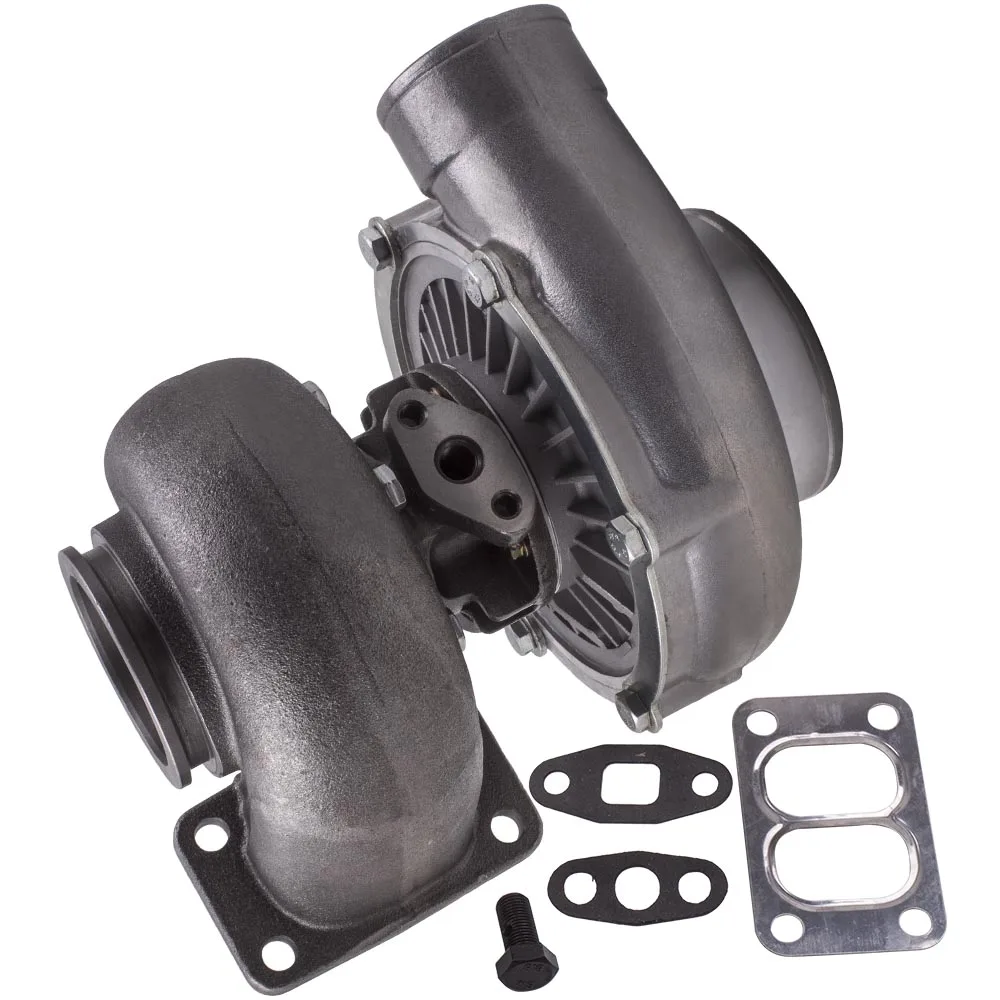

All necessary gaskets included for ease of installation

1. 100% balancing Test by TURBOTECHNICS  VSR3

This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer：

electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

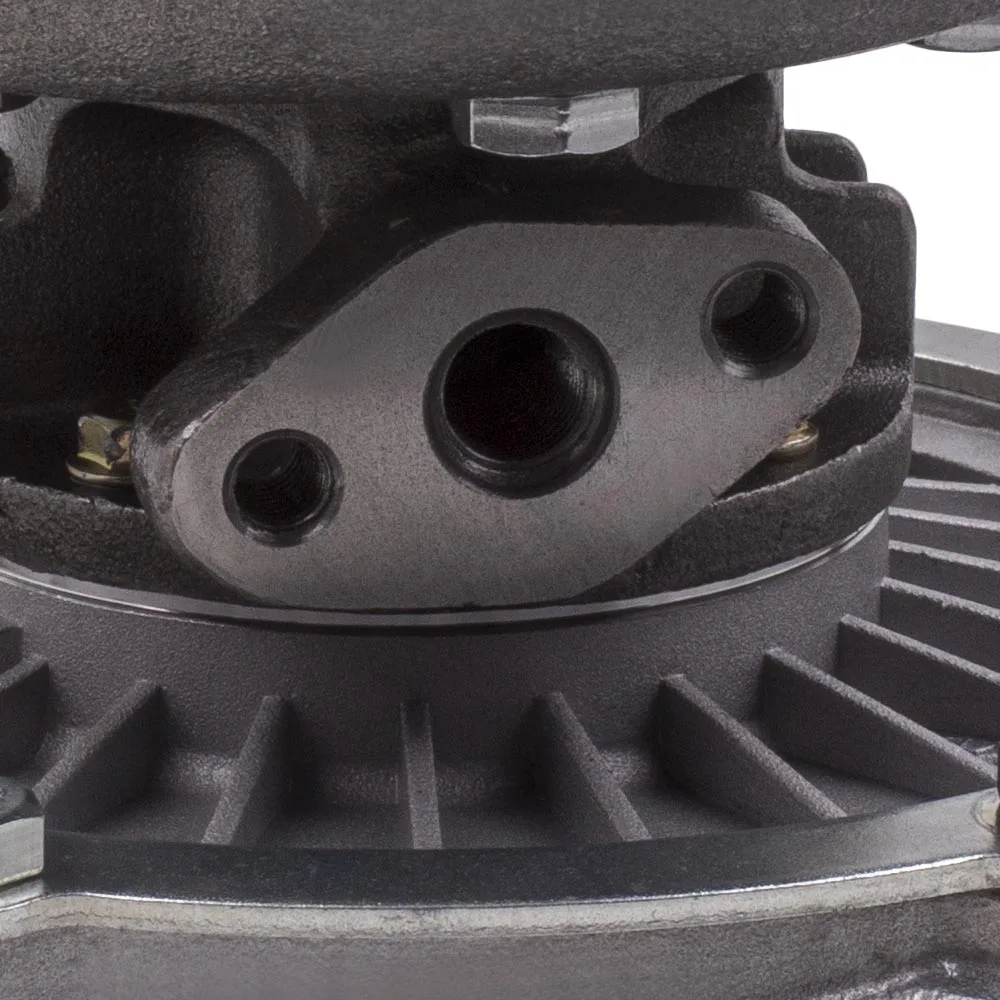

Cooling Type:  Oil Cooled

Horse Power:  Turbocharger was balanced, Boost Horse Power up to 600HP

Bearing Type:  Floating Bearing

Notice

* Professional installation is highly recommended (No Instruction Included)

* For any needs please contact us

* This is universal application turbo, so modification might be required for some vehicles.

* Please allow 0.5-2 cm differences due to manual measurement.
