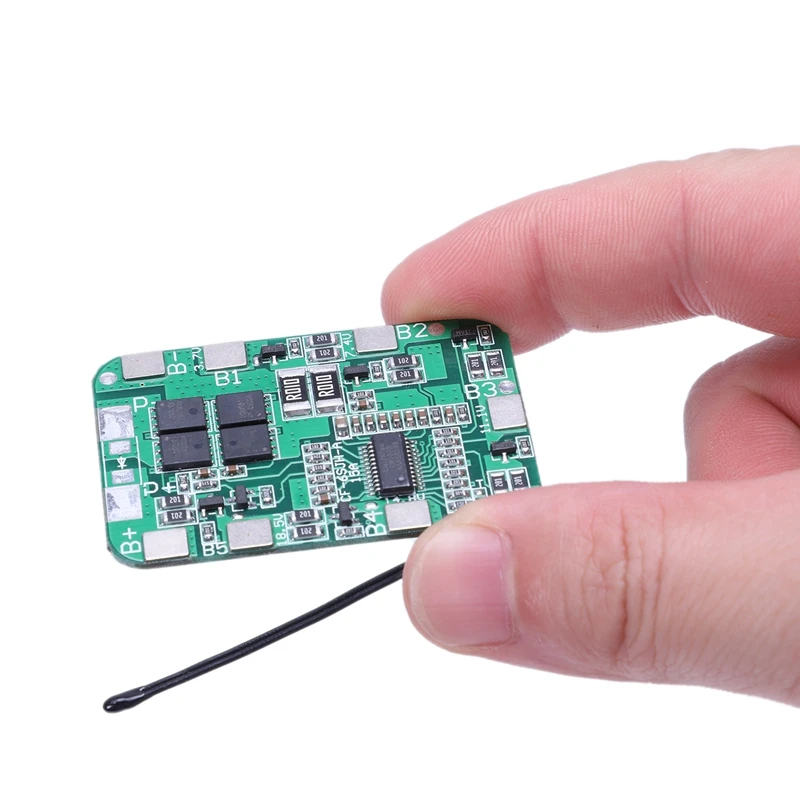

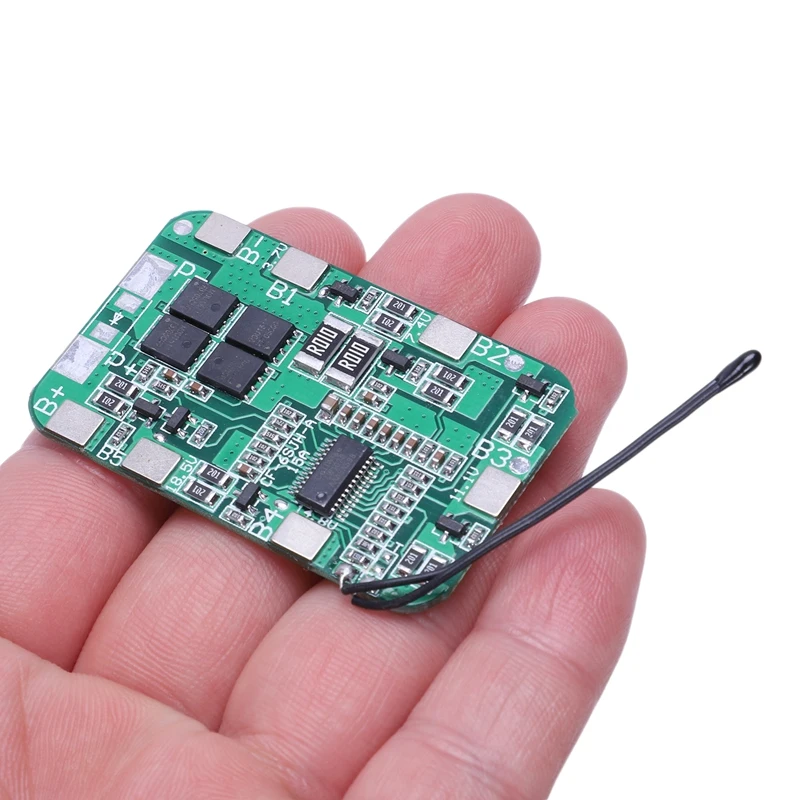

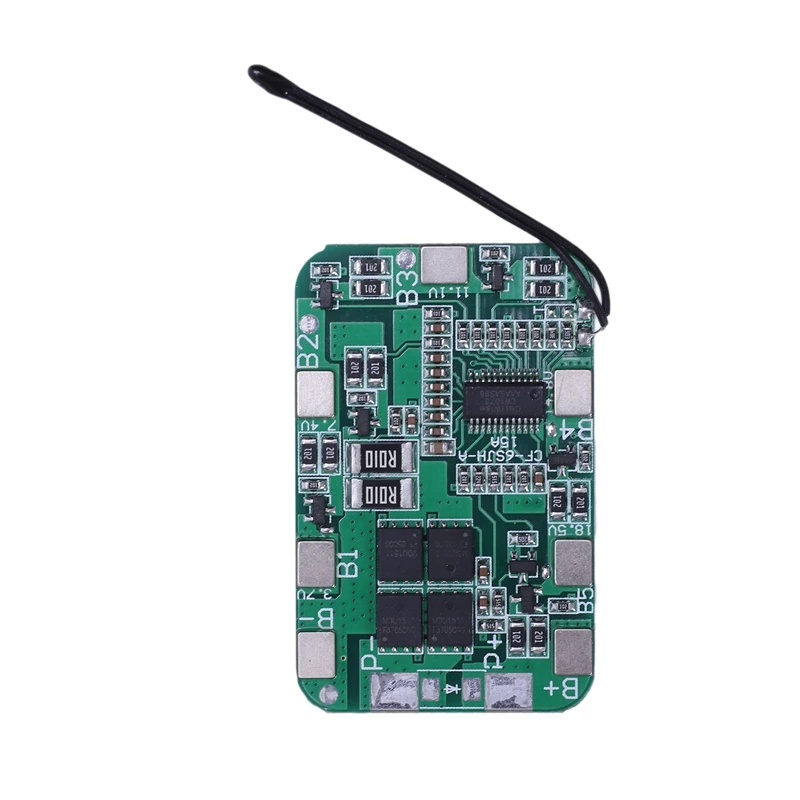

6S 22V 24V 15A 18650 Li-Ion Lithium Battery Protection Pcb Board With Balance Bms Cell Module | Электроника

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 6S 22V 24V 15A 18650 Li-Ion Lithium Battery Protection Pcb Board With Balance Bms Protection Pcb Board Cell Module       Continuous Discharge Current: 15A
Momentary Discharge Current: 20A   Charge Voltage: 25.2V
Charge Current: 15A(MAX)
Overcharge Detection Voltage: 4.255±0.025V
Overcharge Protection Delay: 1.0±0.3S
Overcharge Cancel Voltage: 4.15±0.1V   Balance Detection Voltage: 4.125±0.025V
Balance Cancel Voltage: 4.125±0.05V
Balance Current: 41±5mA   Over-discharge Detection Voltage: 2.7±0.1V
Over-discharge Detection Delay: 1.0±0.3S
Over-discharge Cancel Voltage: 3.0±0.1V
Overcurrent Detection Voltage: 100mV
Overcurrent Detection Delay: 1.0±0.3S
Overcurrent Protection Current: 20±3A   Protection Cancel Condition: Disconnect Load
Short Circuit Protection Condition: Outside Load Short Circuit
Short Circuit Detection Delay: less than 250uS
Protection Cancel Condition: Disconnect Load
Main Circuit Conduction Internal Resistance: less than equal 20mΩ   Working Current: less than equal 30uA
Sleeping Current(Battery Over-discharge): less than equal 10uA
Operating Temperature:-30℃~﹢80℃

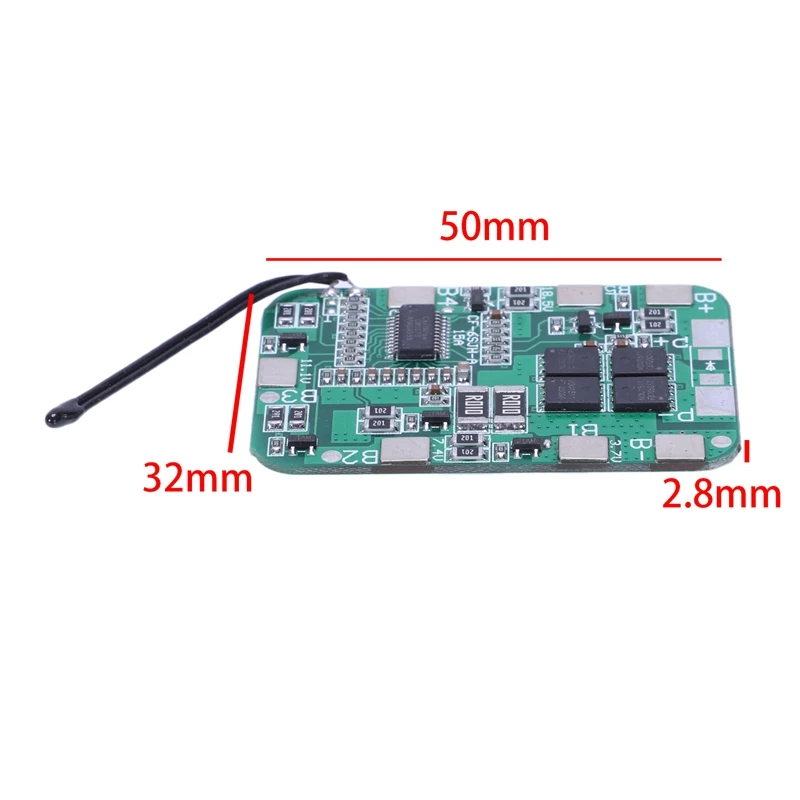

Size: 50*32*2.8mm
colour:green
Material: PCB
  Package Contents:
1 * Protection Board
Only the above package content, other products are not included.   Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
