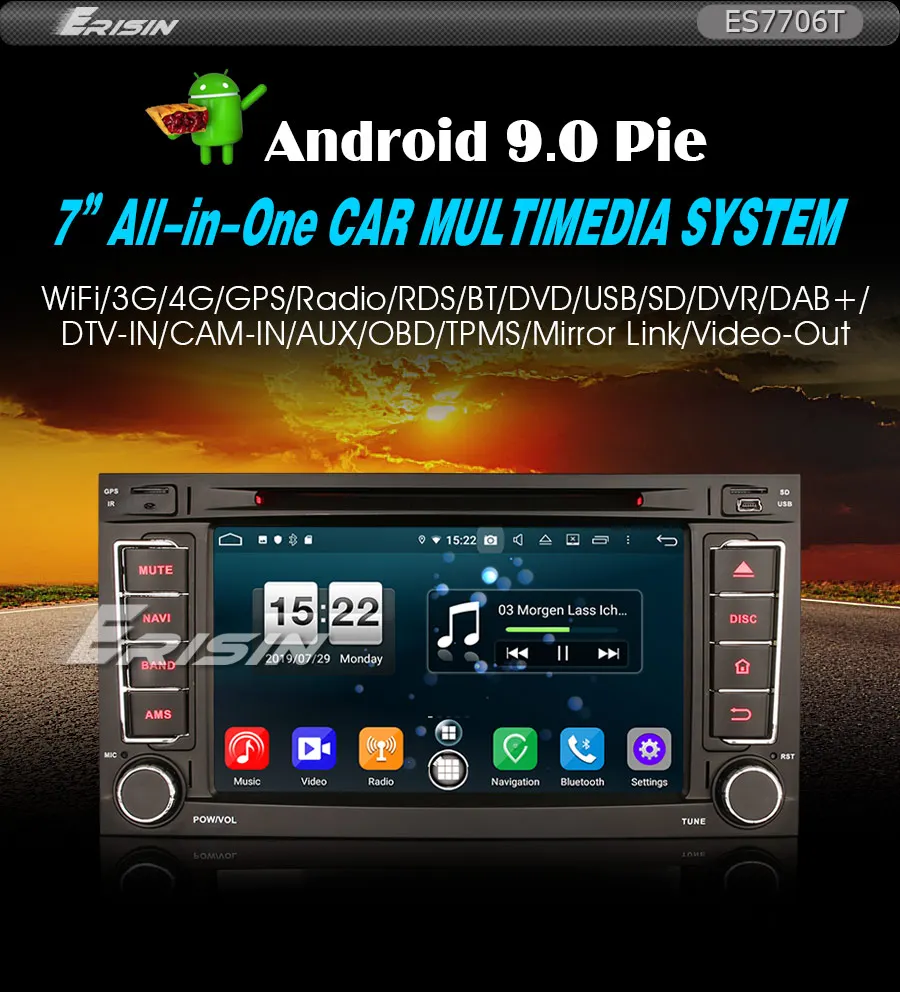

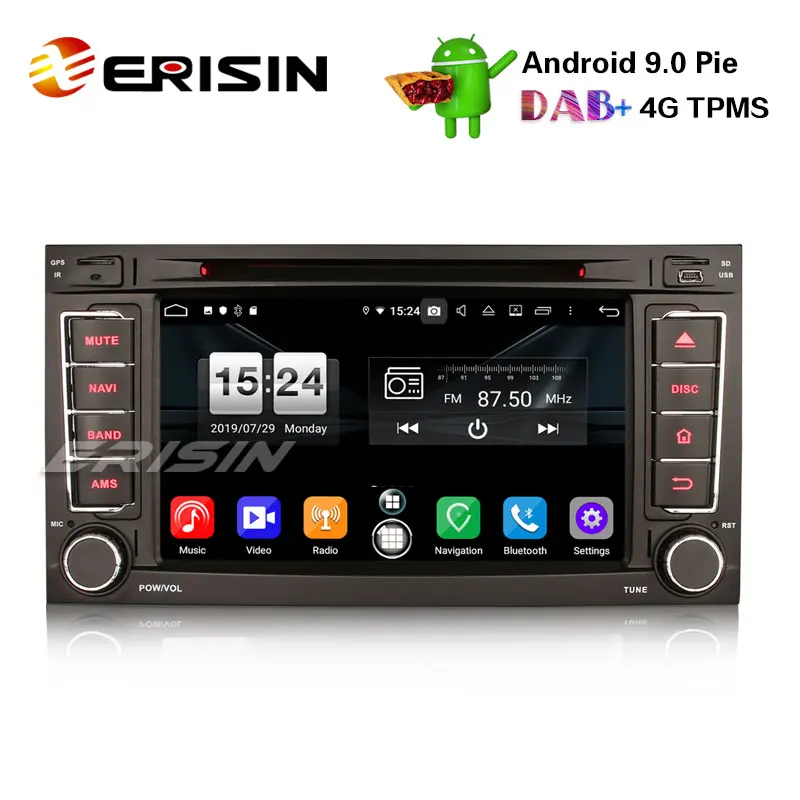

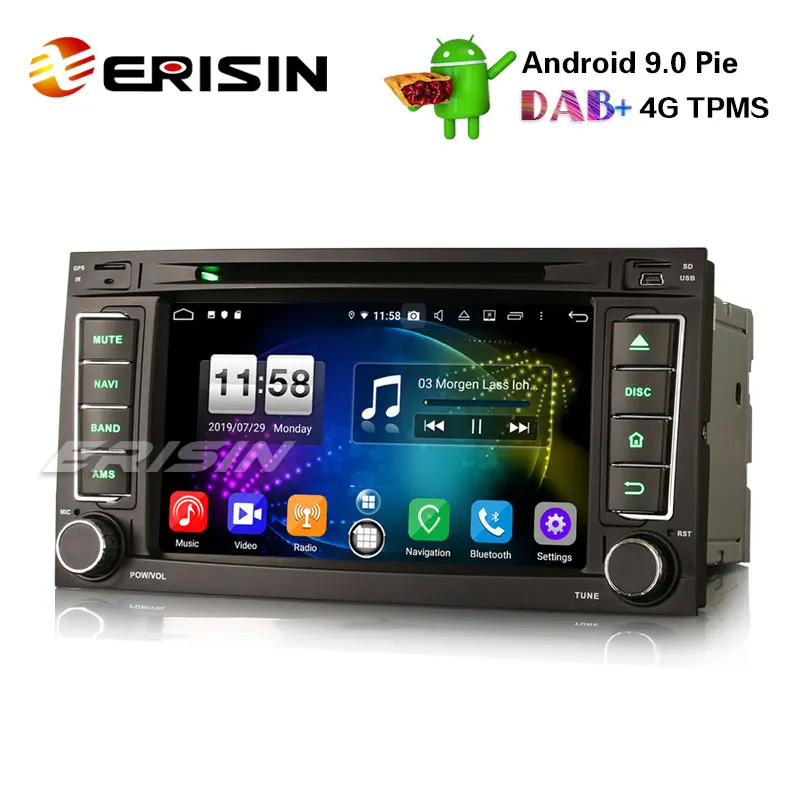

ES7706T 7" Octa-Core Capacitive Android 9.0 Car Multimedia Player GPS 4GB+32GB OBD2 DAB+ Canbus WiFi 3G/4G USB DVR DTV-IN TPMS Bluetooth...

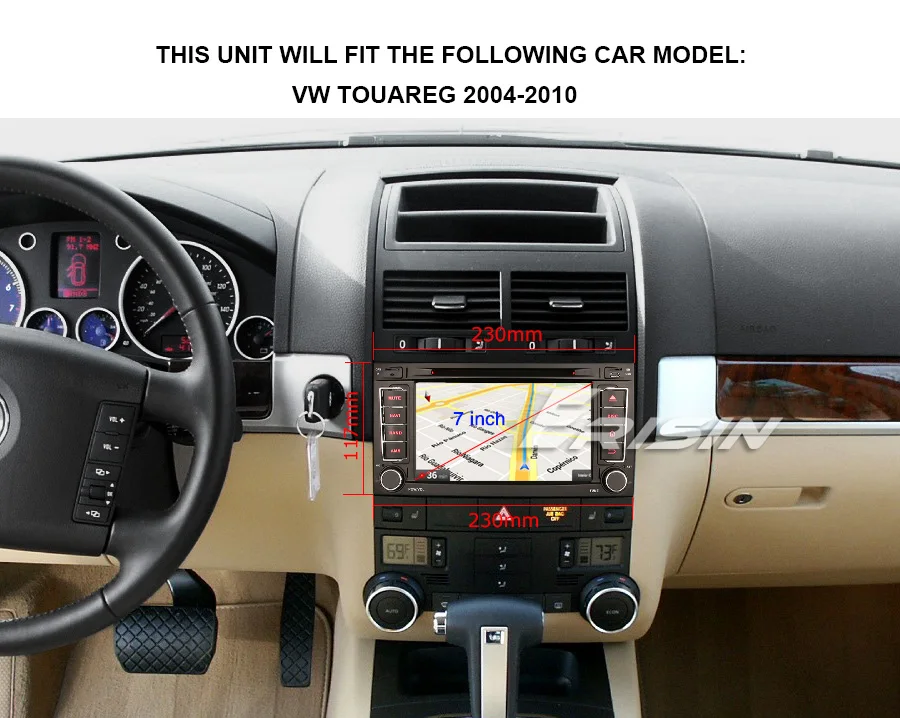

  This unit will fit the following car model:

  For VW TOUAREG 2004-2010

  Important Note:

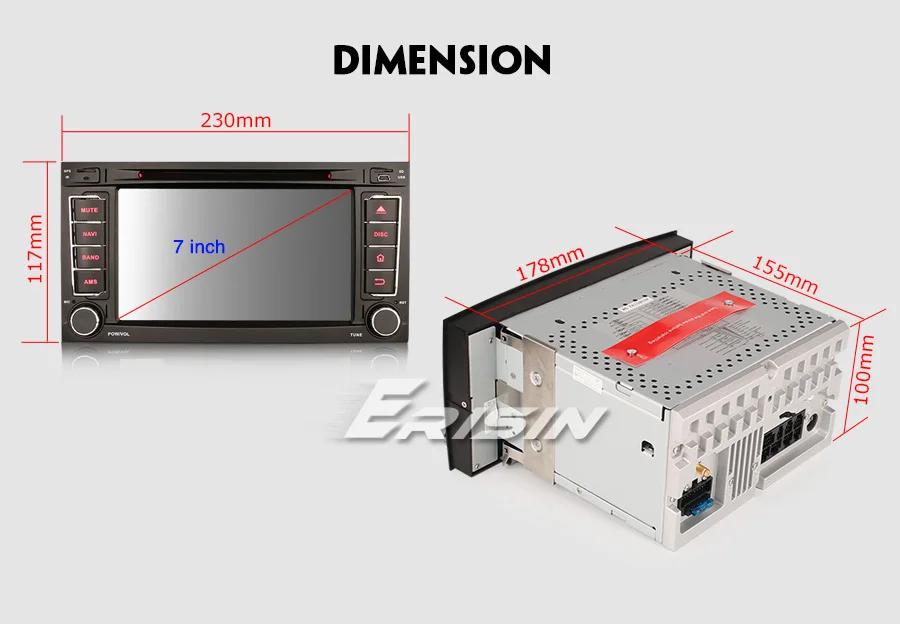

  1. This unit has front panel size 230mm wide * 117mm high. To make sure the item fits your car, please check your
  dashboard size and make sure your car dashboard is same as the dashboard photo in our listing before bidding.
  2. For few car models, we don't guarantee the MFA Display function is 100% compatible. which depends on your car
  3. This unit doesn't support your car's Dynaudio Sound System, it may cause no sound


If you want to buy the Optional Functions, you can add to cart via the link below directly

For more Optional Items Pls click this link: All Optional functions and Items

KEY FEATURES:

This unit is the best android car multimedia system on the market, 8-Core with high-speed processing, benchmark score does go above 45000, the most functions can be compared with your smartphone
7" All-in-One Design for VW TOUAREG Cars with Dual Channel CanBus Decoder Box, which support OPS/Radar/OBD/Reversing Trajectory/Air Climate Control Display. Unique design with two UI styles. Adopt the newest Android 9.0 Pie OS, 1024*600 HD Capacitive Touch Screen, Octa Core 1512MHz CPU, 4GB RAM and 32GB Internal Storage, Support extended 2 Card/3 USB Stick up to 5*64GB. it has special Port for Digital TV Box, you can connect our Digital TV Box to achieve touch operation, and this item can power on the connected DTV Box. built-in DAB+ App, just connect with our DAB+ Box to use this function. built-in TPMS App for display Tire Pressure Monitoring System, just connect with our TPMS product through USB to use this function, and built-in DVR App, just connect with a USB Camera to use Car Record function. the records will be saved in Card/USB Storage automatically, and you can play saved record on this unit directly. Support Mirror Link for iPhone and Android SmartPhone. Support Torque Pro (OBD2 & Car), you can connect a ES350 Bluetooth OBD2 Scanner Tool to use this function.  Control Video Output to Dual Headrests independently. most popular and strongest function:
Support 1080P Videos/live images/2160P Photos, support PDF/WORD/TXT/EXCEL, Audio/Video/Photo media Player, surf Internet through 3G/4G or WiFi, support Google online maps and Free Android offline maps GPS Navi, get access to thousands of apps, games on the Google Play Store, keep connected through Twitter, Facebook, Gtalk, Gmail, WeChat, Skype and other services, play popular games like Fruit Ninja, Feed the Candy, Angry Birds, Big Fish, Air Attack...  Radio, RDS, Bluetooth, DVD, USB, SD, CAM-IN, AUX, Steering Wheel Control, RGB Panel LED colors, Live Wallpaper, DIY Wallpaper


- Dual Channel CanBus Decoder incl. support display Car OPS/Radar, A/C Control and Reversing Trajectory

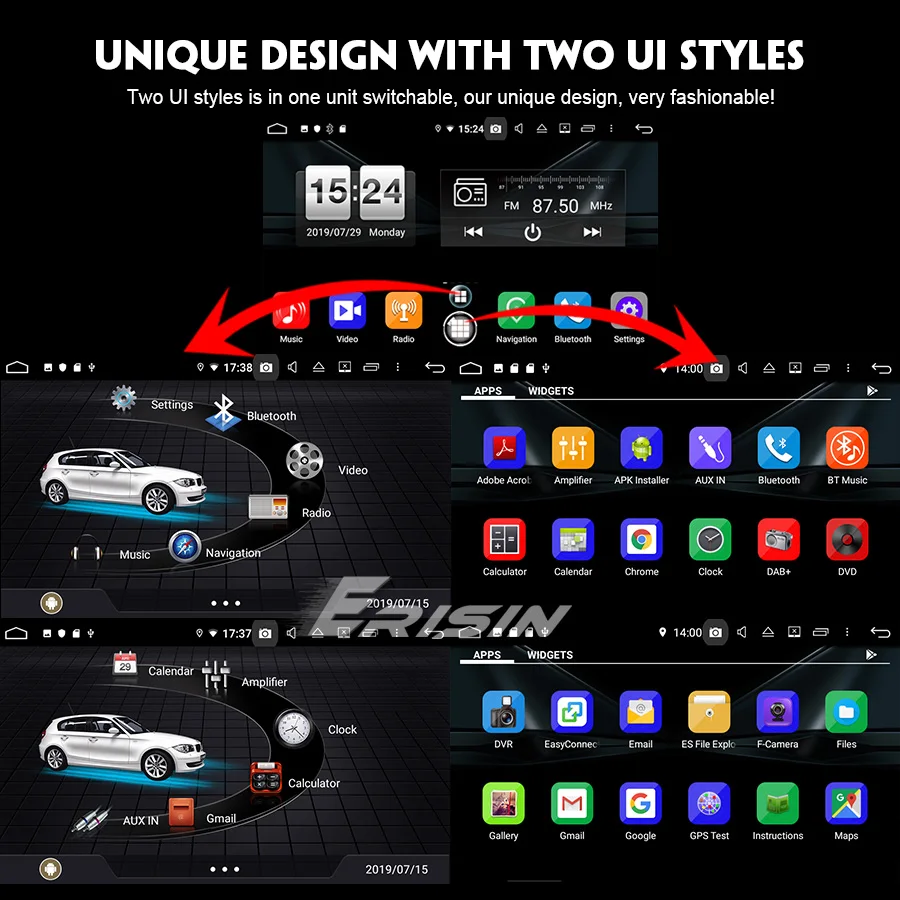

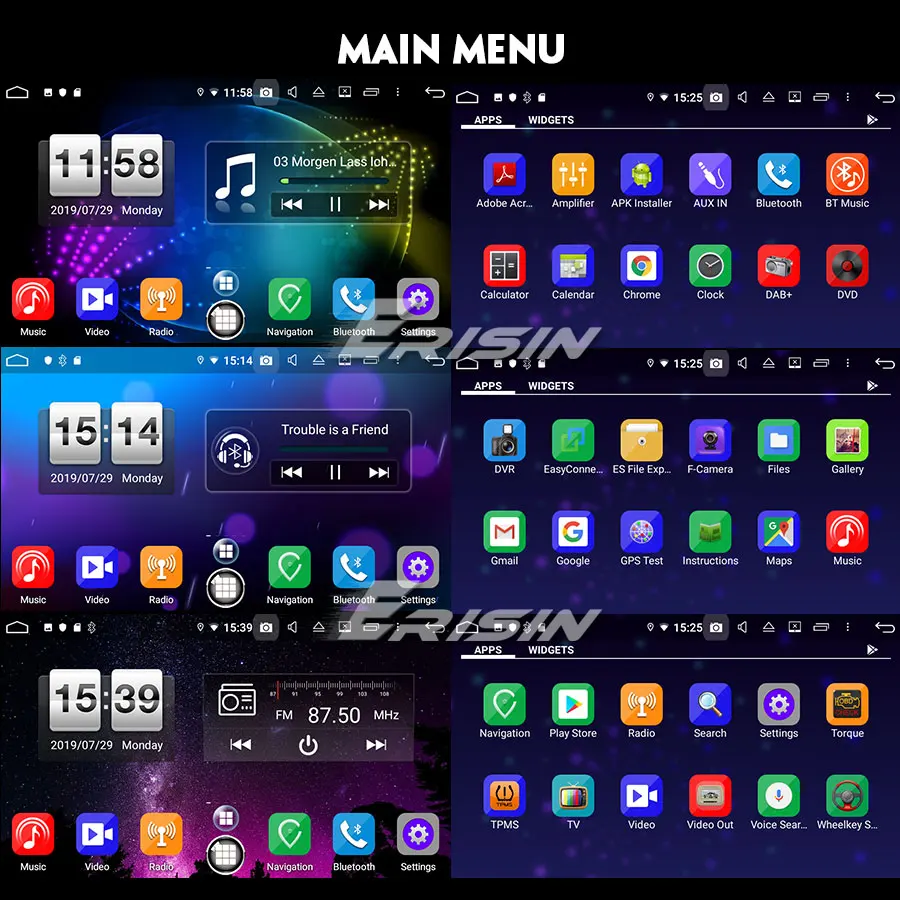

- Google Android 9.0 Pie Operation System, Two UI styles switchable, very beautiful and fashionable Design
- 7" Five-Point Touch Capacitive Screen, 1024*600 HD Digital Screen

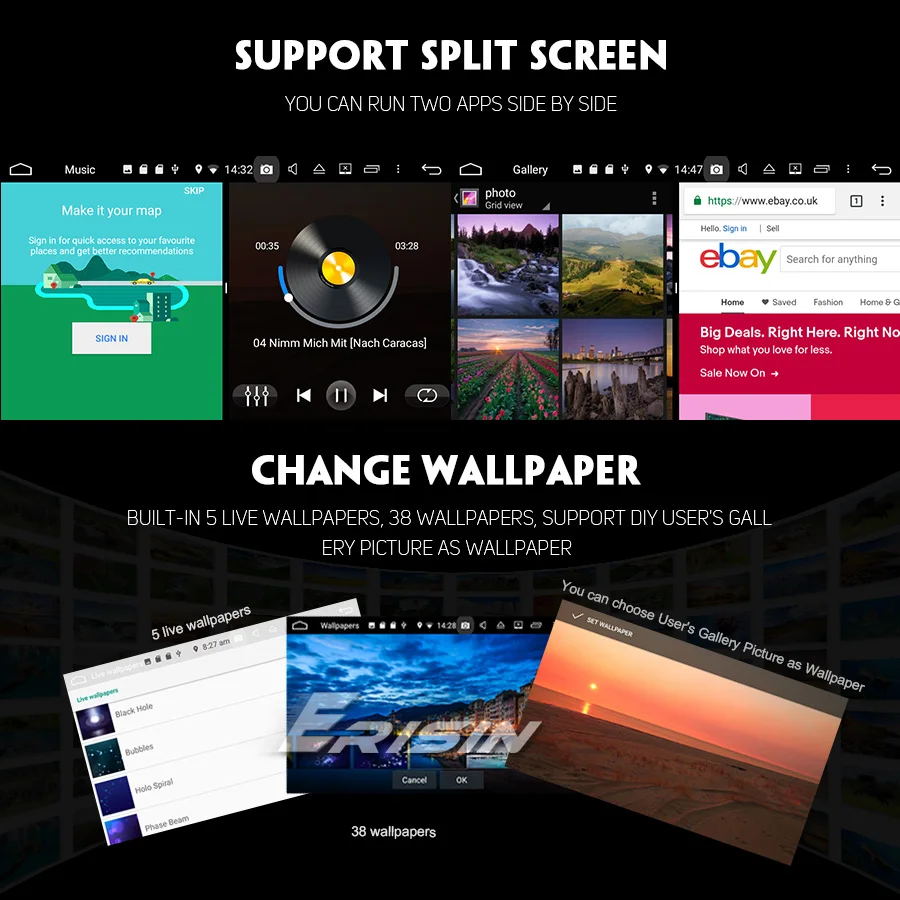

- Support Split Screen, you can run two apps side by side
- Octa-Core Rockchip PX5 Industrial-grade Chips, 1512MHz Cortex A53 CPU
- 4GB RAM, 32GB Internal Memory, support extended 2 Card/3 USB Stick up to 5*64GB
- Music/Radio/BT-Stereo Player and Clock/Date/Week can be displayed on Main Menu Status Bar
- Built-In Clock and Calendar, Clock/Date/Week/Time Zone adjustable, can use GPS or network-provided time
- Multi-Languages: it has more than 180 languages to select

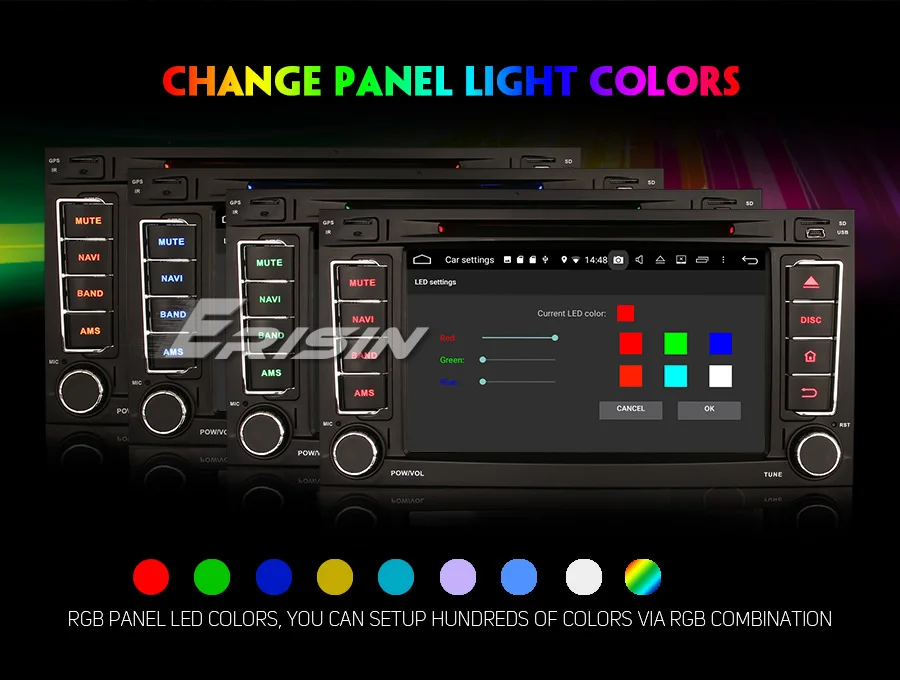

- RGB Panel LED colors, you can setup hundreds of colors via RGB Combination
- 5 live wallpapers, 38 wallpapers, support DIY User's wallpaper from Gallery Pictures
- Built-in WiFi Internet and support external 3G/4G Internet, 3G/4G Dongle is not included

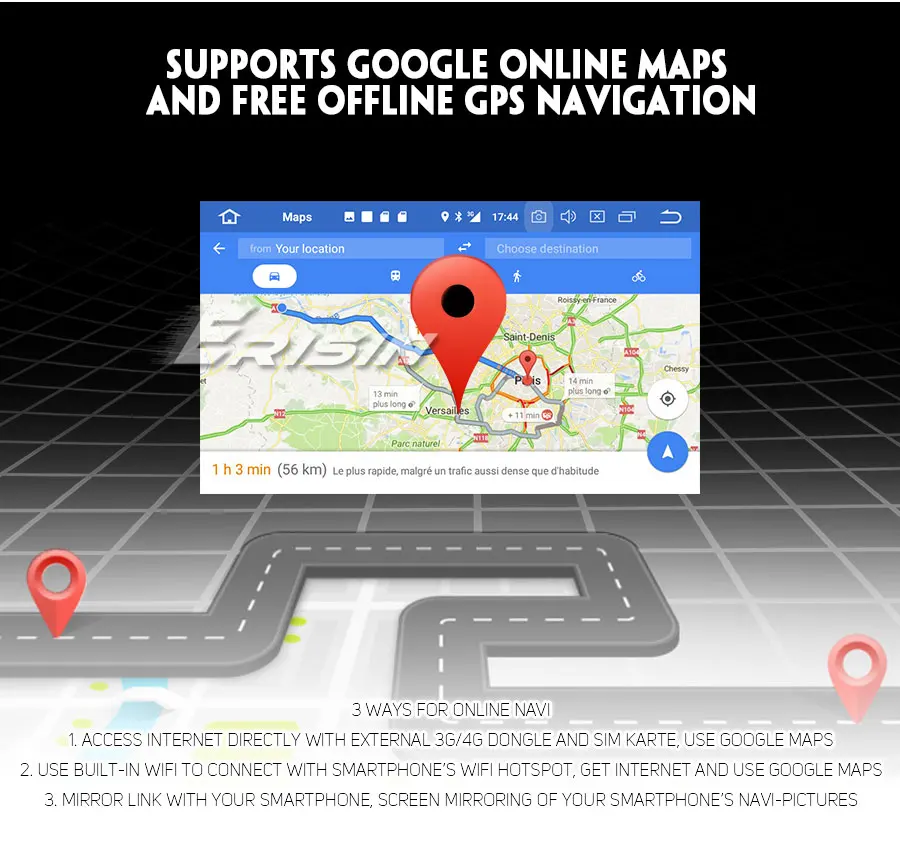

- Support Google Maps online Navigating, you can use GPS Navigating if you are in Internet
- Support Android Maps Navigation, you can use Free offline maps navigation.
- Support Android Multimedia Player, it can play Music/Movie/Photo from local Disc or USB/SD.
- Online Entertainment, support online video, TV, movie, music, radio, Youtube, Yahoo, MSN
- Online Communication, keep connected through WeChat, Twitter, Facebook, Gtalk, Gmail and other services
- Support read and edit Official Software, WORD/EXCEL/POWERPOINT/PDF/TXT.
- Support Google Play Store, you can download thousands of Apps and Games from here.
  like Fruit Ninja, Feed the Candy, Angry Birds, Fieldrunner, speed forge 3D...
- Support 3D Games, HD Video, 1080P, H.264, Divx Live images Formats
- Support HD Videos up to 1920*1080 pixels, Photo up to 4096*4096 pixels

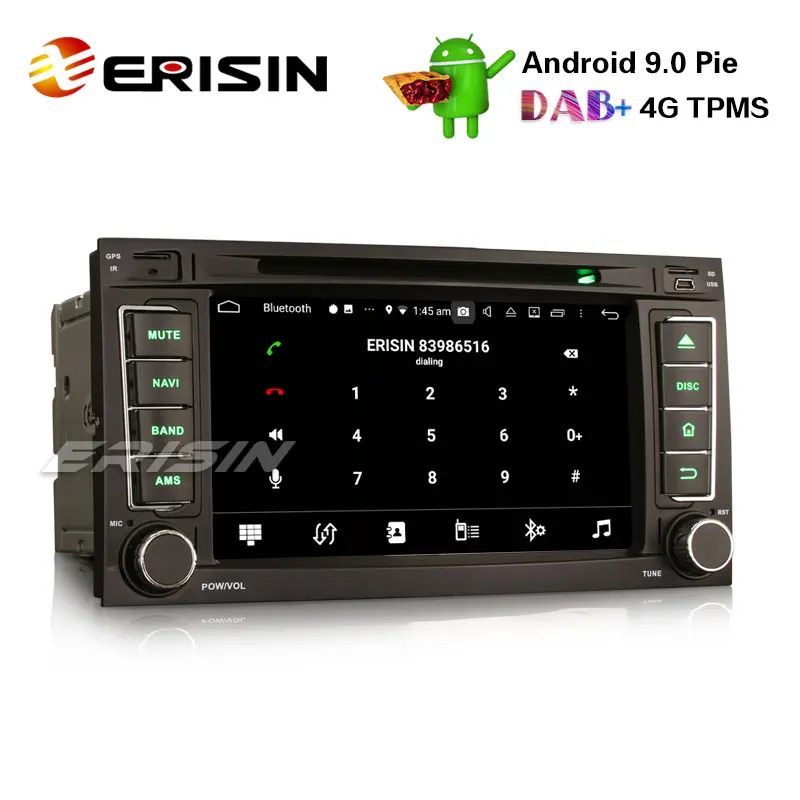

- Support Bluetooth hands-free function, built-in microphone and external microphone Jack.
- Support A2DP Bluetooth, can play stereo music through Bluetooth from your mobile Phone
- Support Download phone book and Phone Book Search function, support internet connection by BT

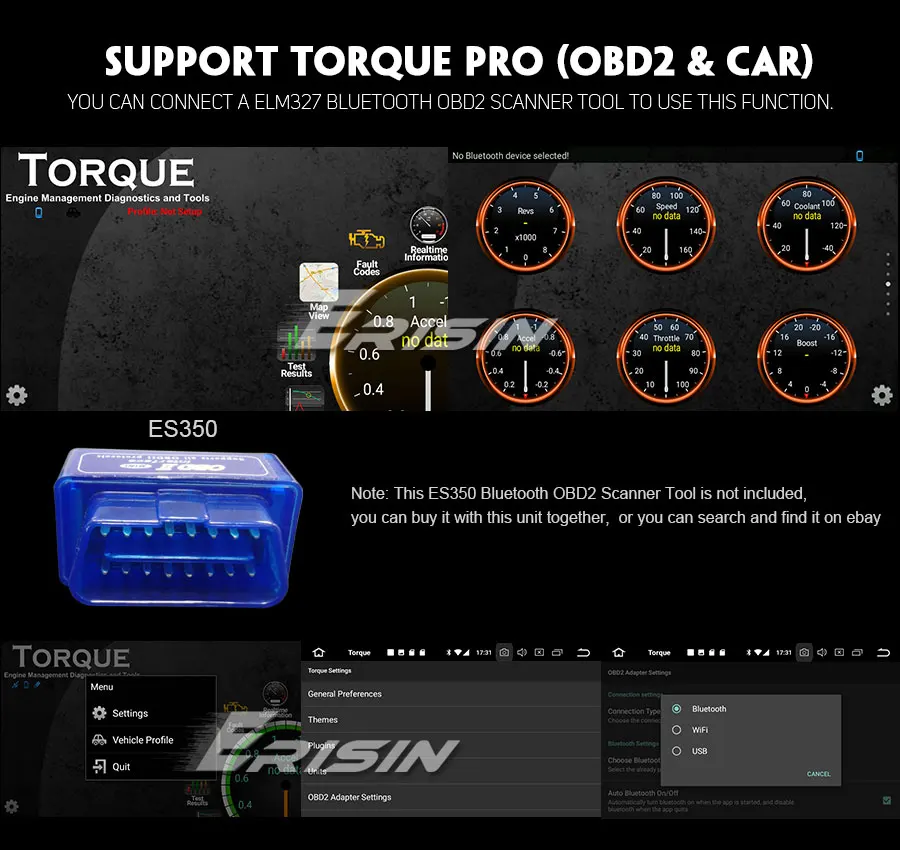

- Support Torque Pro (OBD2), you can connect a ES350 BT OBD2 Scanner Tool to use this function.
- Support the newest Mirror Link with iPhone via WiFi and with Android Smartphone via USB or WiFi

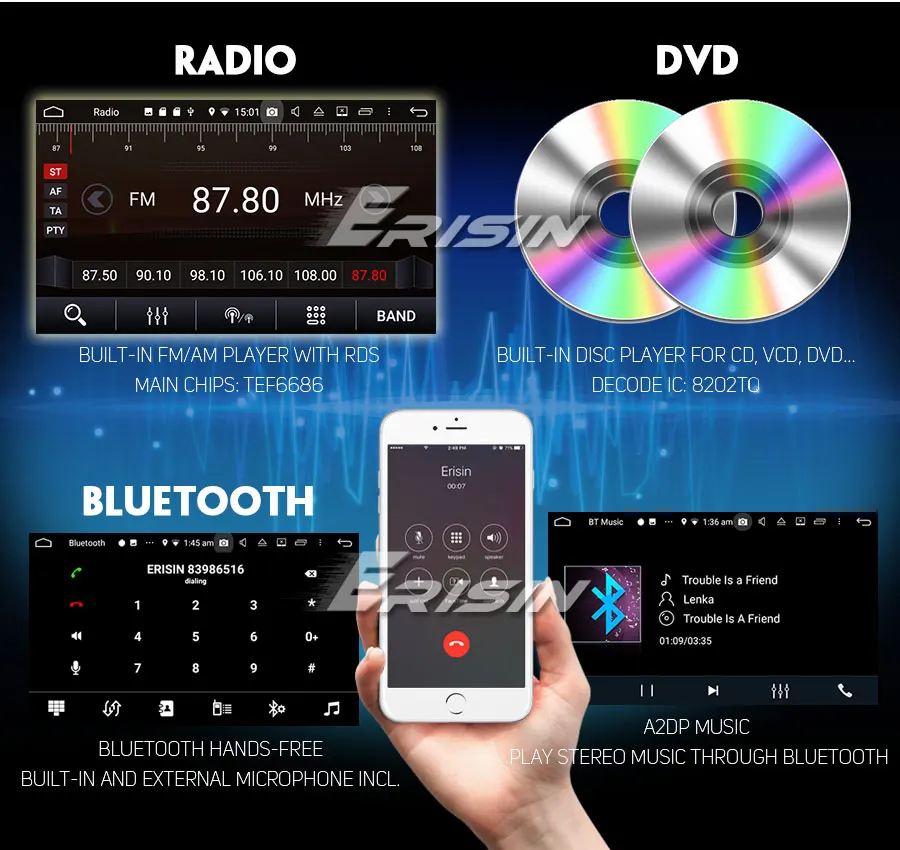

- Built-in Disc Player for your CD, VCD, DVD..., Decode IC: 8202TQ
- Radio Tuner with RDS, 30 Preset Radio Stations (FM: 3*6, AM: 2*6), Main Chips: TEF6686
- USB Port and Micro SD Slot, Support USB Stick and Memory Card up to 64GB

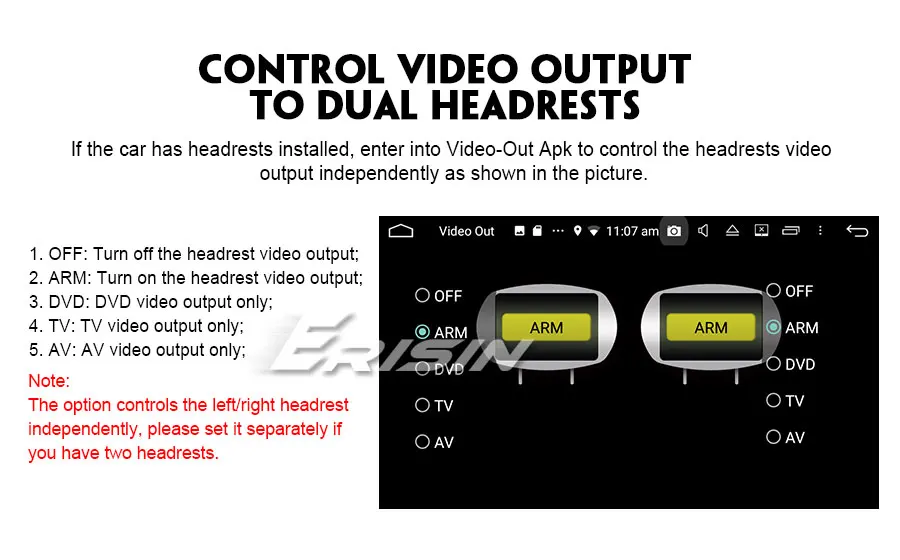

- Built-in Video-Out APK, can control Video Output to Dual Headrests independently.
- Built-in DVR APK, just connect with a USB Camera to use Car Record function.
- Built-in TPMS APK, just connect with a TPMS product through USB to use this function

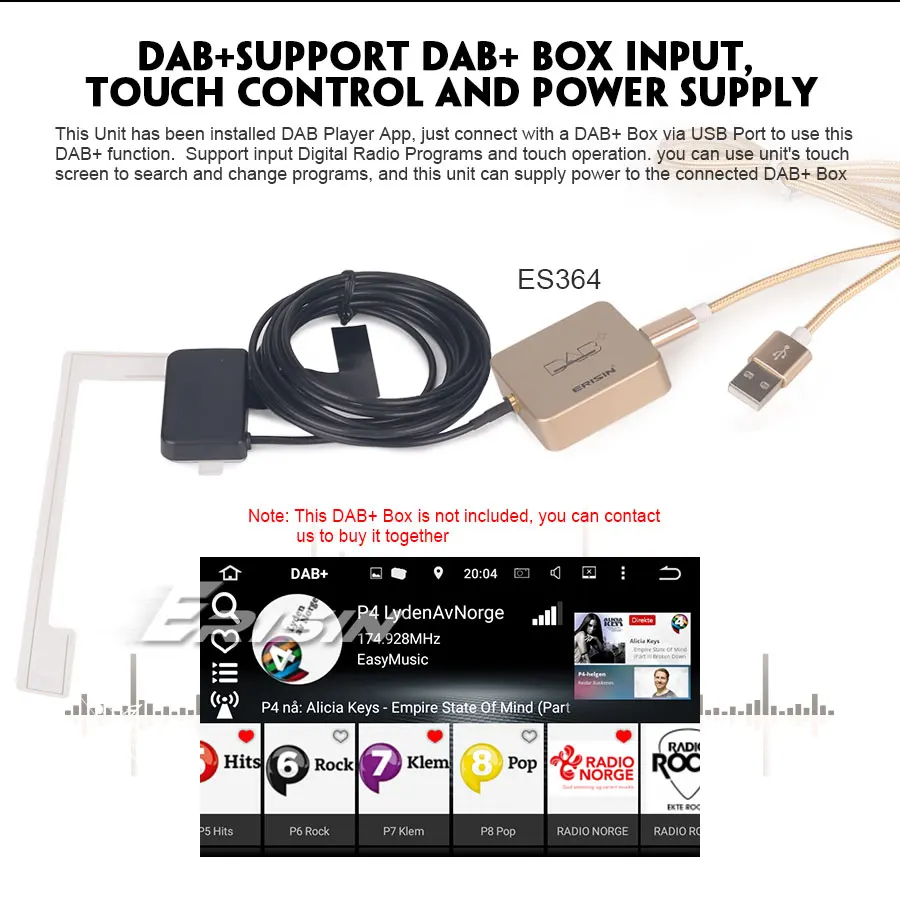

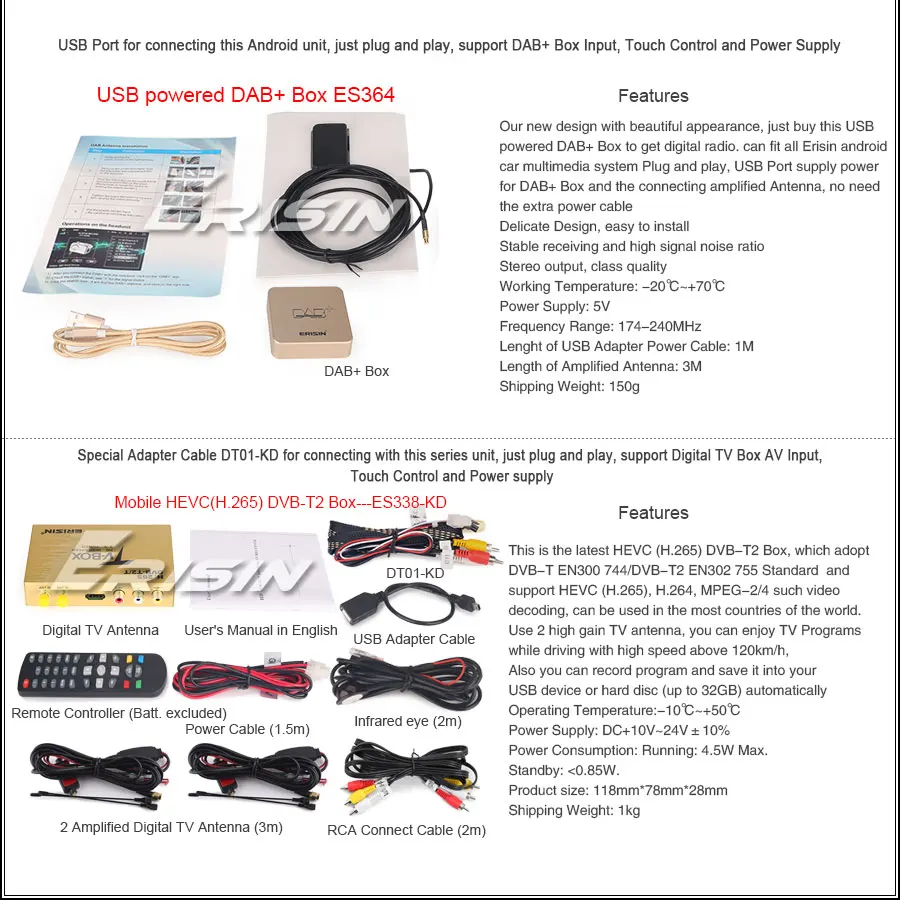

- Built-in DAB+ APK, just connect a DAB/DAB+ Box with USB Port to use this function.

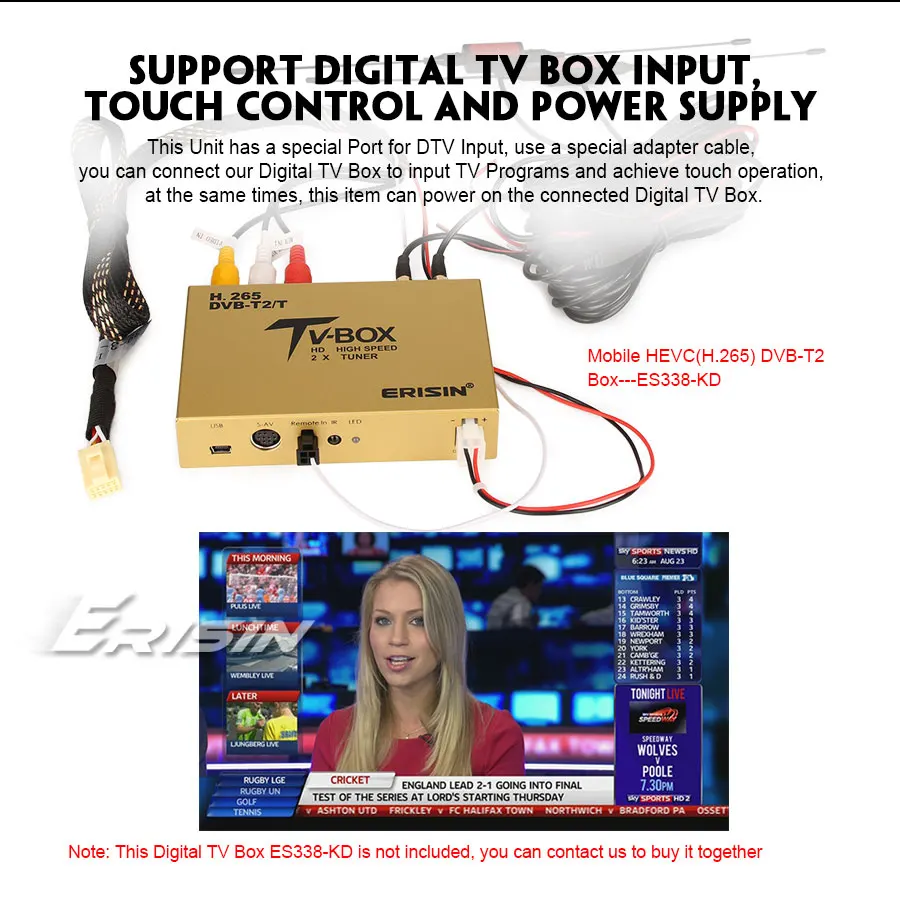

- Built-in DTV APK, just connect a DVB-T/T2 Box with Special Port to use this function.

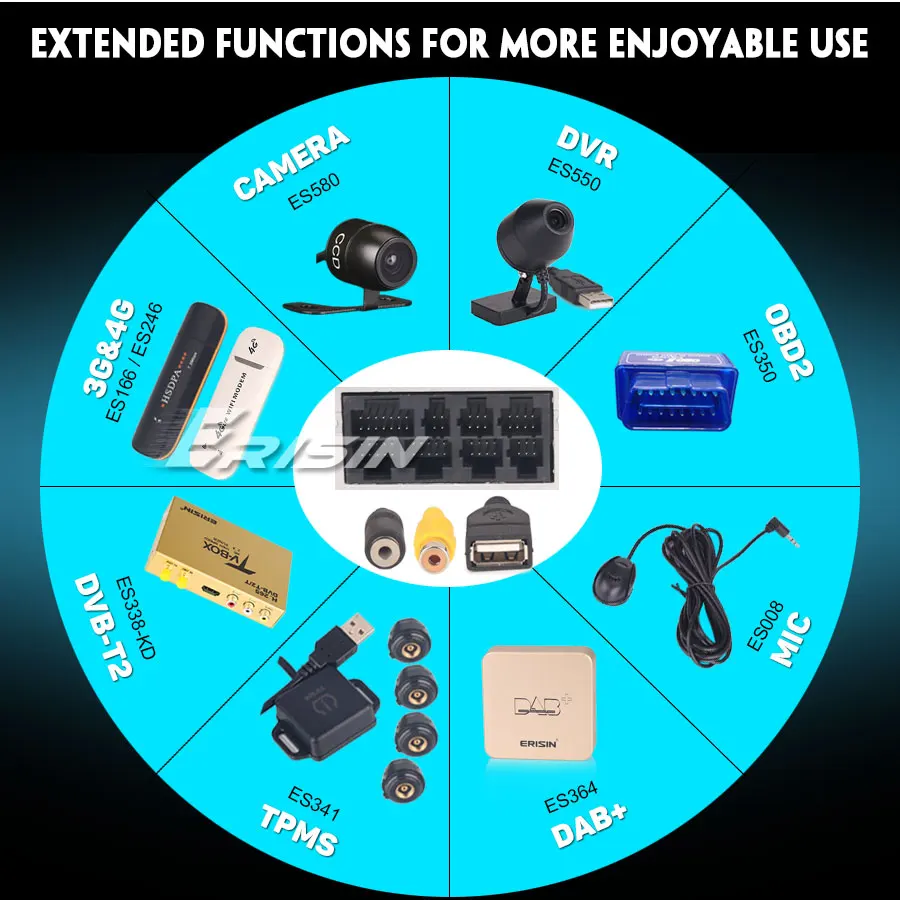

- Support external DVR/TPMS/DAB/DVB-T/T2 Device AV input, Touch Control and Power supply

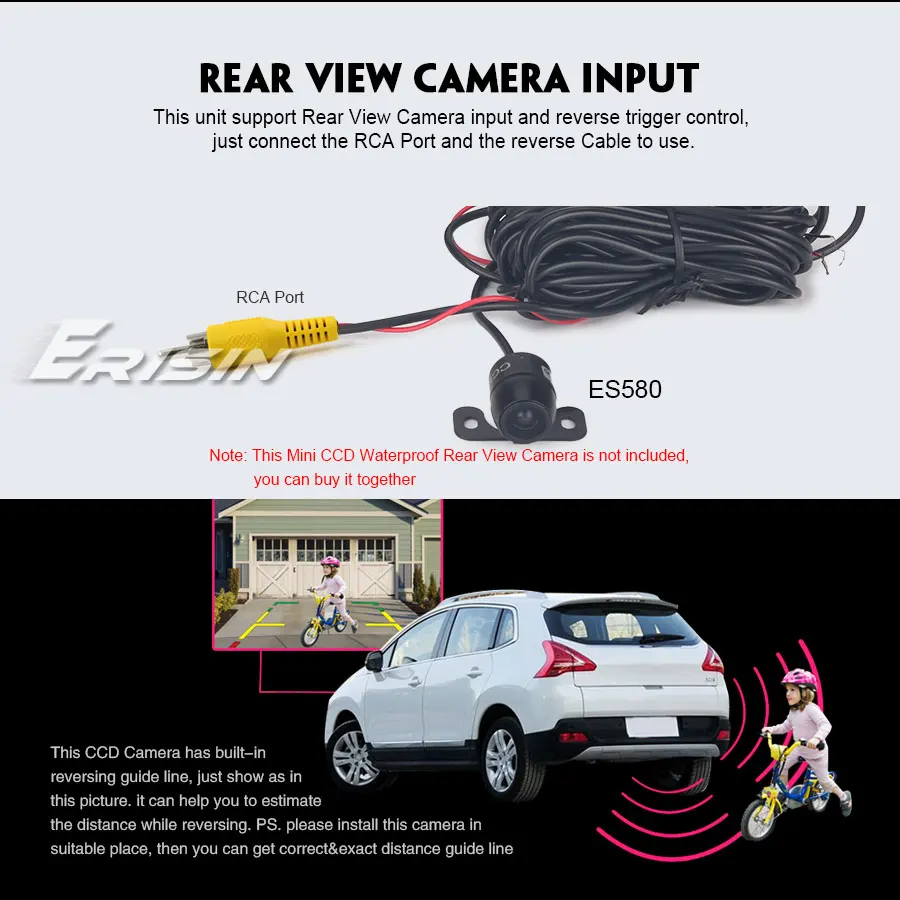

- Support Rear View Camera Video input and reverse trigger Control, Front View Camera Video input
- Support Steering Wheel Control, Hand Brake Control
- Electronic Anti-Shock, Last Position Memory

  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch
- Front panel Size: 230mm wide * 117mm high
- Package Size: 300mm*260mm*190mm
- Shipping Weight: 4.0kg

  System
- Operation System: Google Android 9.0
- CPU: Rockchips PX5 1512MHz Cortex A53
- RAM: 4GB
- Internal Memory: 32GB
- Extended Card/USB: Support USB/SD up to 64GB

  Display
- Touch Screen: Yes
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Apps-Icon Position: Yes
- Two UI styles switchable: Yes

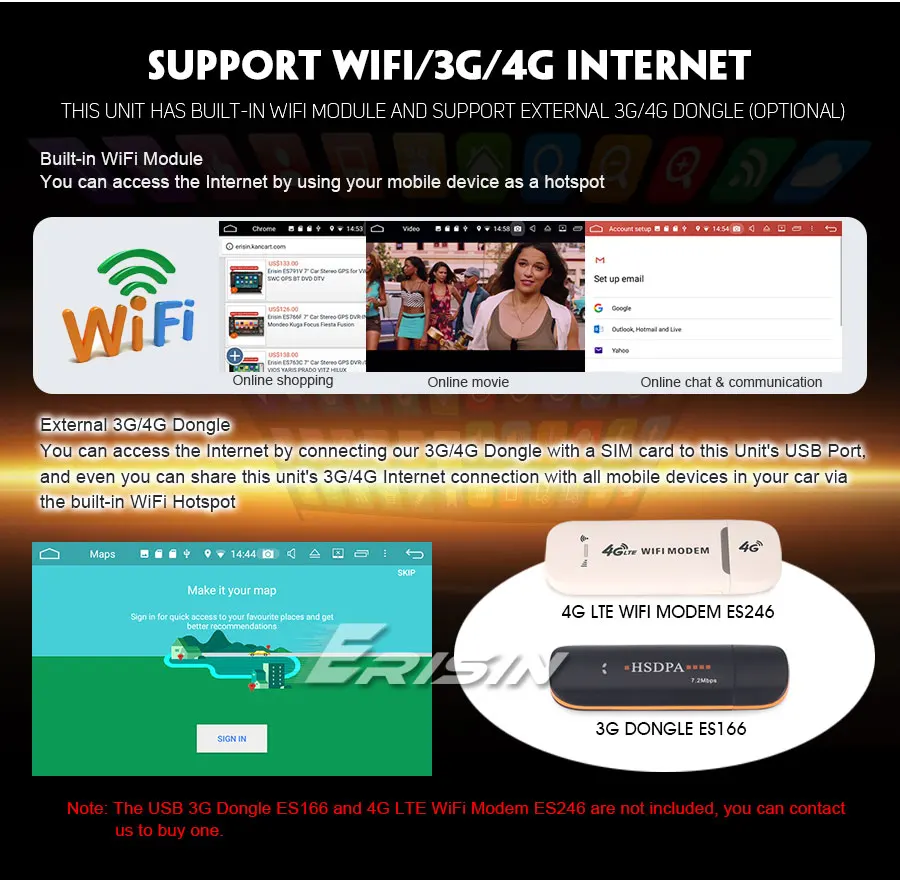

  Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
- 3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
  DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
  MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV), Support Dual Headrests Video Output independently

  GPS
- Operation System: Android 9.0
- Support Maps: IGO, SYGIC maps for Android 9.0
- Ready to use: Yes
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support google maps online navigating

  DVD
- Decode IC: 8202TQ
- Compatible Format: MP4, AVI, DIVX, DVD, VCD, MP3, CD, WMA, JPEG
- OSD/Audio/Subtitle Language: English, Italian, French, Spanish, Portuguese, German, Russian...
- Auto-Save Function: Yes, expediently watch all kinds of disc continuously

  Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- Support internet connection by Bluetooth: Yes
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back

  Radio
- Main Chips: TEF6686
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

  USB
- Position: 2 USB On the Back, can be connected with Media, 3G/4G, TPMS, Camera, DAB+ Box, Smartphone
- Capacity: 64GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes

  CARD
- Position: On the front panel, Media or GPS Card Slot optional
- Capacity: 64GB micro SD/TF Card
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes

  Car DVR
- Built-in DVR App: Yes, just connect a USB DVR Camera to use this function
- Connection Port: USB
- Storing Position: Card/USB Storage can be changed
- Touch Control DVR-Camera on unit: Yes
- DVR-Camera incl.: No, you can contact us to buy it together

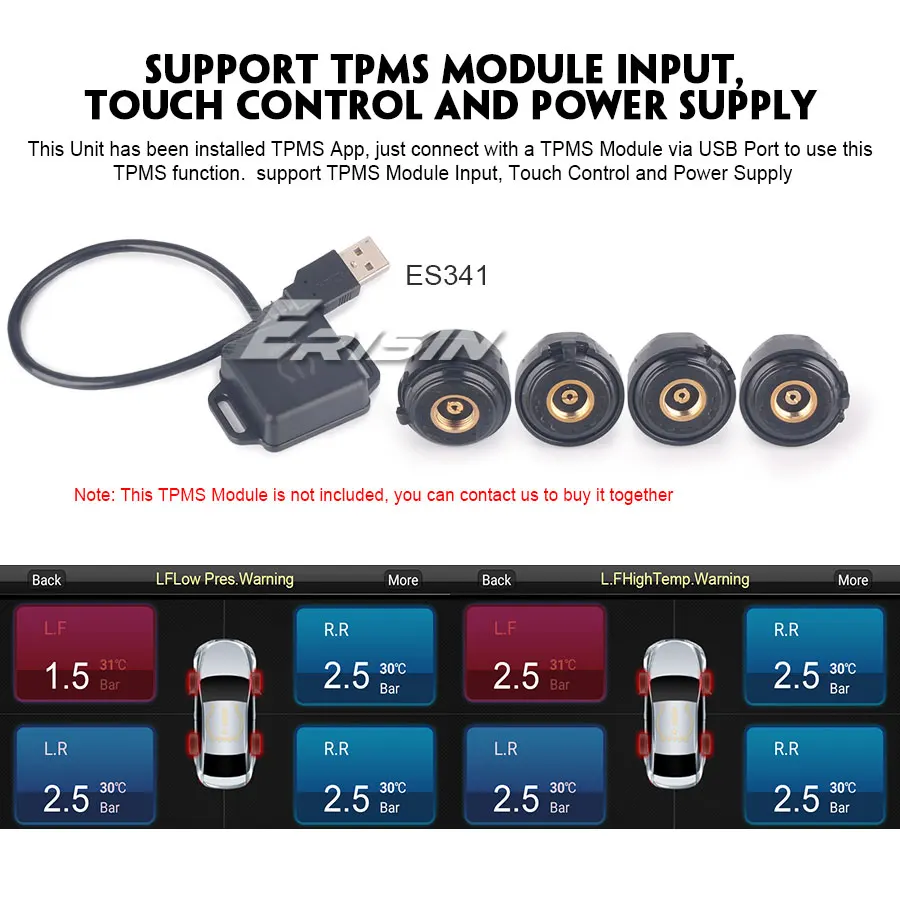

  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together

  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
- DAB+ Box incl.: No, you can contact us to buy it together

  DTV-IN
- Built-in DTV Player App: Yes, just connect a DVB-T/T2 Box to use this function
- Connection Port: USB
- Power Supply to DVB-T/T2 Box directly: Yes
- Touch Control DVB-T/T2 Box on unit: Yes
- DVB-T/T2 Box incl.: No, you can contact us to buy it together

  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- Wallpapers: 5 live wallpapers, 38 standard wallpapers, support DIY wallpaper from Gallery
- APK Installer: Support Android Package installer
- Support Split Screen, you can run two apps side by side
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support Mirror Link function: Yes, support screen mirroring from iphone and Android Smartphone

  Setup
- Network & Internet: WiFi/Data usage/Hotspot & tethering/VPN
- Apps & notifications: Apps Info/Notifications/App permissions/Default apps, Special app access
- Car settings: Personal settings, Navigation settings, Driving settings, Factory settings, upgrade and restore factory settings
- Personal settings: Auto playing music, Power off delay if ACC OFF, LED settings, Auto illumination...
- Navigation settings: Set a navigation software, choose Mix navi sound level
- Driving settings: Reversing volume, Allowed to watch video while driving, Rear view ruler, Steering wheel control...
- Factory Settings: Code 126, choose Radio Band, Voice levels, CanBus types, App on/off...
- Display: Brightness level, Night brightness level, Wallpaper, Font Size, Display Size.
- Wallpaper: Wallpapers, Live Wallpapers, Gallery
- Sound: Touch Sounds, Do not disturb preference, Default notification sound, Default alarm sound.
- Storage: Device storage, Internal shared storage and Portable Storage
- Security & Location: Security status, Privacy, Device admin apps, Apps with usage access
- Users & accounts: Add account/Automatically sync data
- Accessibility: Yes
- Google Services & preferences
- System: Languages & input/Date & time/Backup/Reset/About machine
- Languages & Input: more than 180 Languages and choose input method
- Date & Time: Setting Date&Time by yourself or choose GPS/network-provided time & time zone
- About machine: Display Parameter Info.

  Input
- AUX Video In: One
- Front-View Camera Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- TPMS Box In: One
- DTV Box In: One
- DAB+ Box In: One
- Car DVR In: One

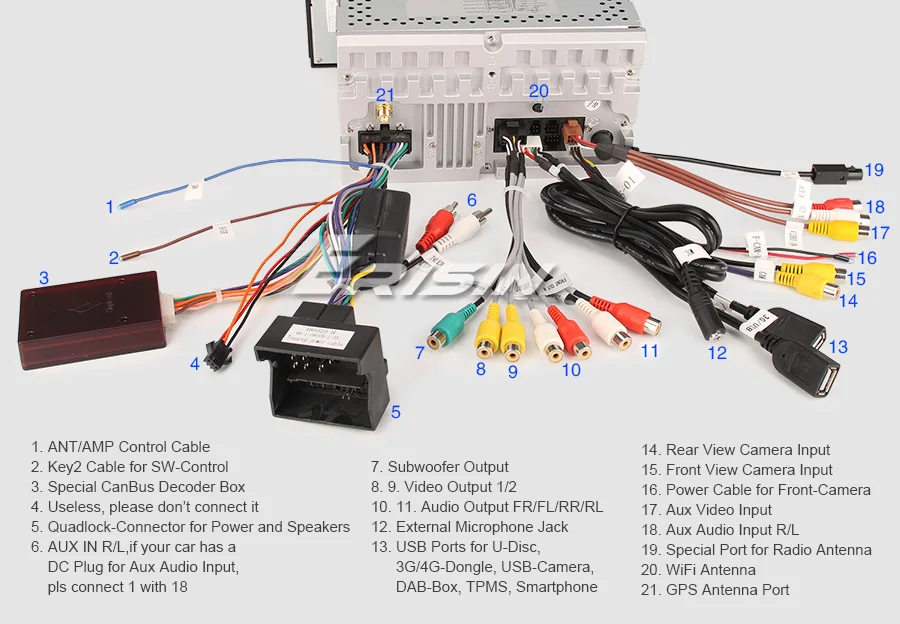

  Output
- Video Out: Two
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

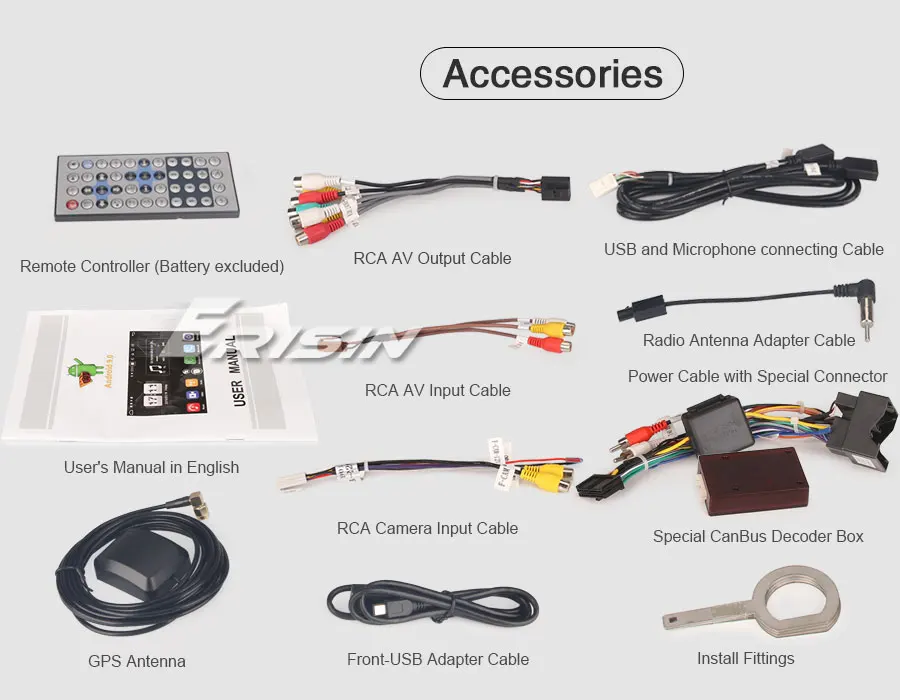

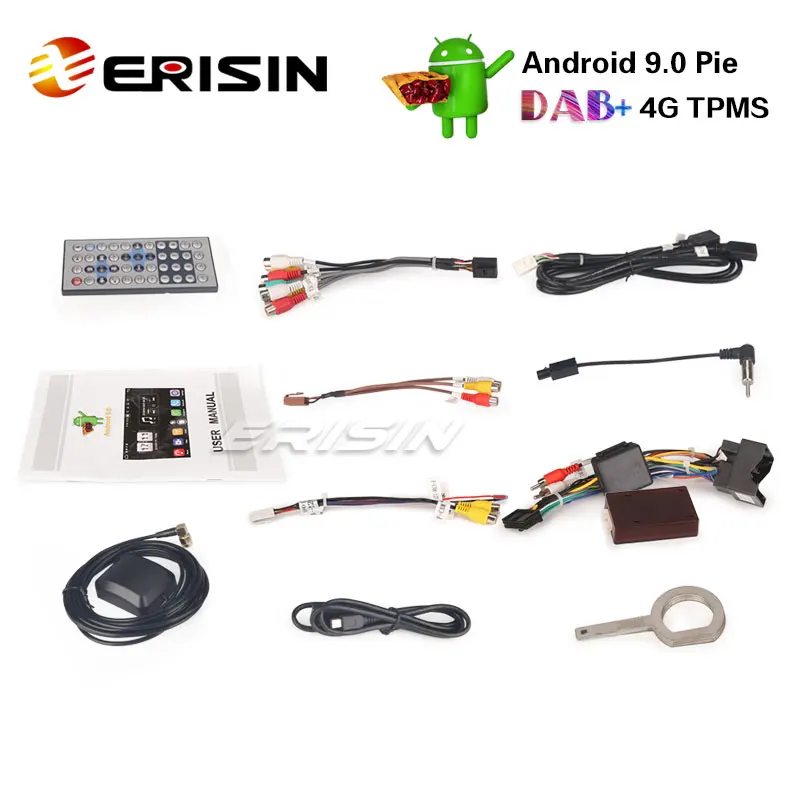

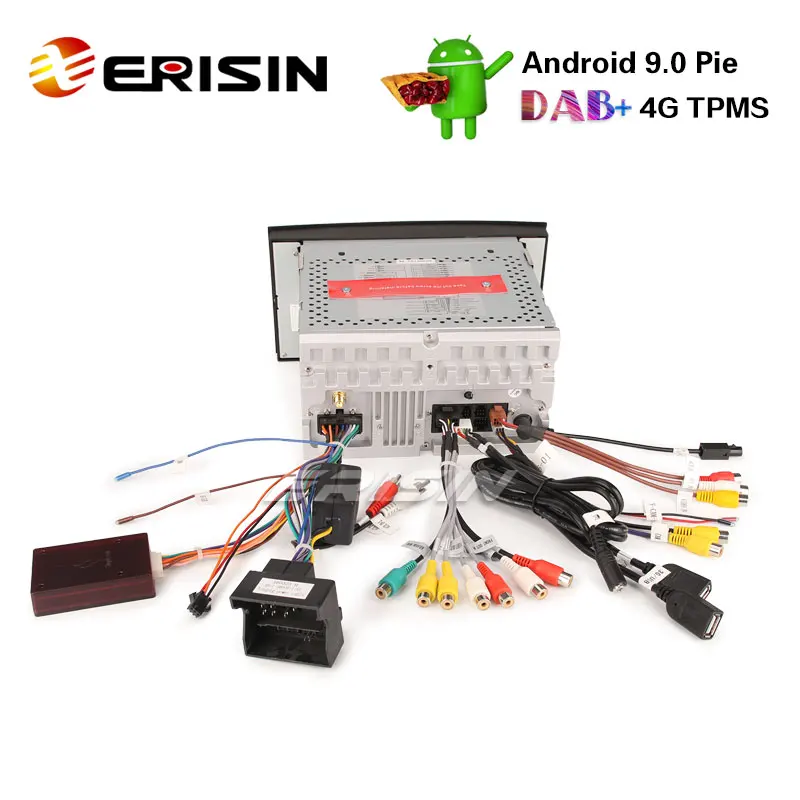

  Accessories
- 1*User's Manual in English
- 1*RCA AV Input Cable
- 1*RCA Front & Rear View Camera Input Cable
- 1*RCA AV Output Cable
- 1*Power Cable with Quadlock Harness
- 1*Special CanBus Decoder Box
- 1*Front USB Adapter Cable
- 1*USB and Microphone connecting Cable
- 1*Radio Antenna Adapter
- 1*GPS Antenna
- 1*Remote Controller (Battery excluded)
- 1*Install Fittings
