>>>Ship from EU warehouse.
>>>About 3 ~ 6 working days to reach EU countries
>>>No any more extra cost for EU countries

​>>>2 years warranty service

​

Our product support all BMW NBT and CIC models. Please choose the relative product.

*Support BMW models

BMW 1 Series F20/F21 (2011-2017) requires a screen

BMW 2 Series F23 Convertible (2013-2016) Original NBT System

BMW 2 Series F22/F45 MPV (2013-2016) original NBT system

BMW 3 Series F30/F31/F34 (2013-2016)

BMW 4 Series F32/F33/F36 (2013-2016) original NBT system

BMW 5 Series F10/F11 (2013-2016) original NBT system

BMW 5 Series F07 GT (2013-2017) original NBT system

BMW 7 Series F01 F02 (2013-2015) original NBT system

BMW X1 F48 (2016-2017) original NBT system

BMW X3 F25 (2014-2016)

BMW X4 F26 (2014-2016) original NBT system

BMW X5/X6 F15 (2014-2016) original NBT system

​BMW MINI F56 6.5/8.8 inch screen with NBT System

* Product appearance size

Product model: EW-BMCP-NBT01A

Product size: 14.5cm *9cm *2.3cm

Product weight: 1.1KG/pcs (including accessories)

*Product Features

1. Support Apple mobile phone wireless / wired CarPlay system

2. Support Android mobile phone wireless / wired Android Auto system

3. Support VGA, 360 camera input.

4. Support Apple mobile phone wireless projection technology (mirror LINK)

5. Support high quality sound quality, EQ adjustment.

6. Support front camera input, rear camera/radar/track display.

NOTE:

 * When using the CarPlay system,

   Need to set AUX, the CarPlay system will have sound.

 *USB HD playback function introduction

Insert the USB flash drive into the USB port and click the USB icon in the main menu. The system will play it automatically.

*Setting function introduction

Voice input menu: English

Display menu: support for adjusting brightness

Audio menu: You can adjust the system volume

Microphone volume: You can adjust the Mic volume

EQ: The sound mode can be adjusted

Loundness: can turn the bass mode on and off

Rear view camera: You can switch between the original rear view camera and the carplay box rear view camera.

User upgrade: Upgrade the CarPlay system and MCU software

* Apple AirPlay Mirror link function introduction

1. Click on the AirPlay option in the main menu and the following prompt appears.

2. Find the corresponding SSID in the phone Wifi, such as Gplink_b5b876, enter the password 8888888. On the Apple phone

Slide up at the bottom of the screen, select AirPlay in the menu option that is pulled out, and then click the appropriate device to complete

Mirroring. The image was successful.

*Wired Android auto function introduction

Download Android auto software for Android phones;

Click the Android auto icon in the main menu; use the USB cable to connect to the phone and wait for the connection to succeed.

*Home key function description

In the CarPlay menu: Click the Home button to evoke voice

In other menus of the system: Click the Home button to return to the system main menu

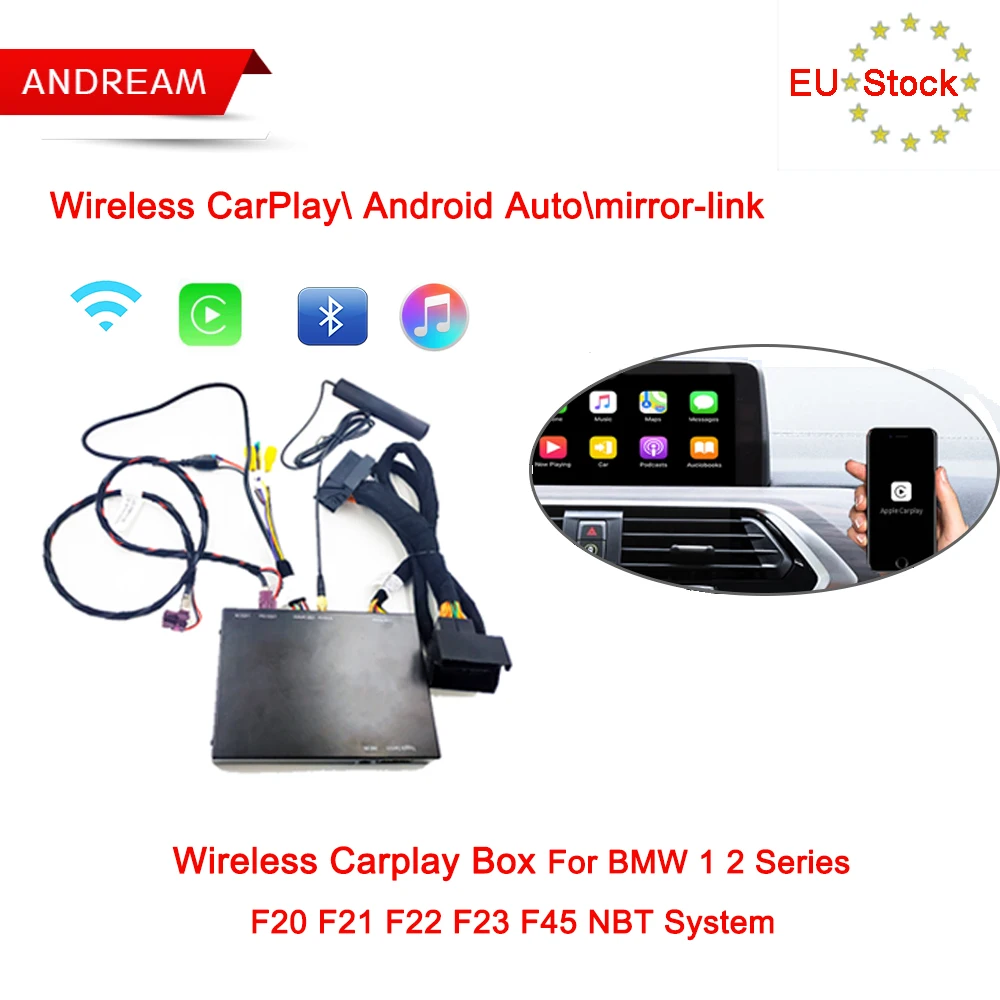

*Product Image

​

NOTE:

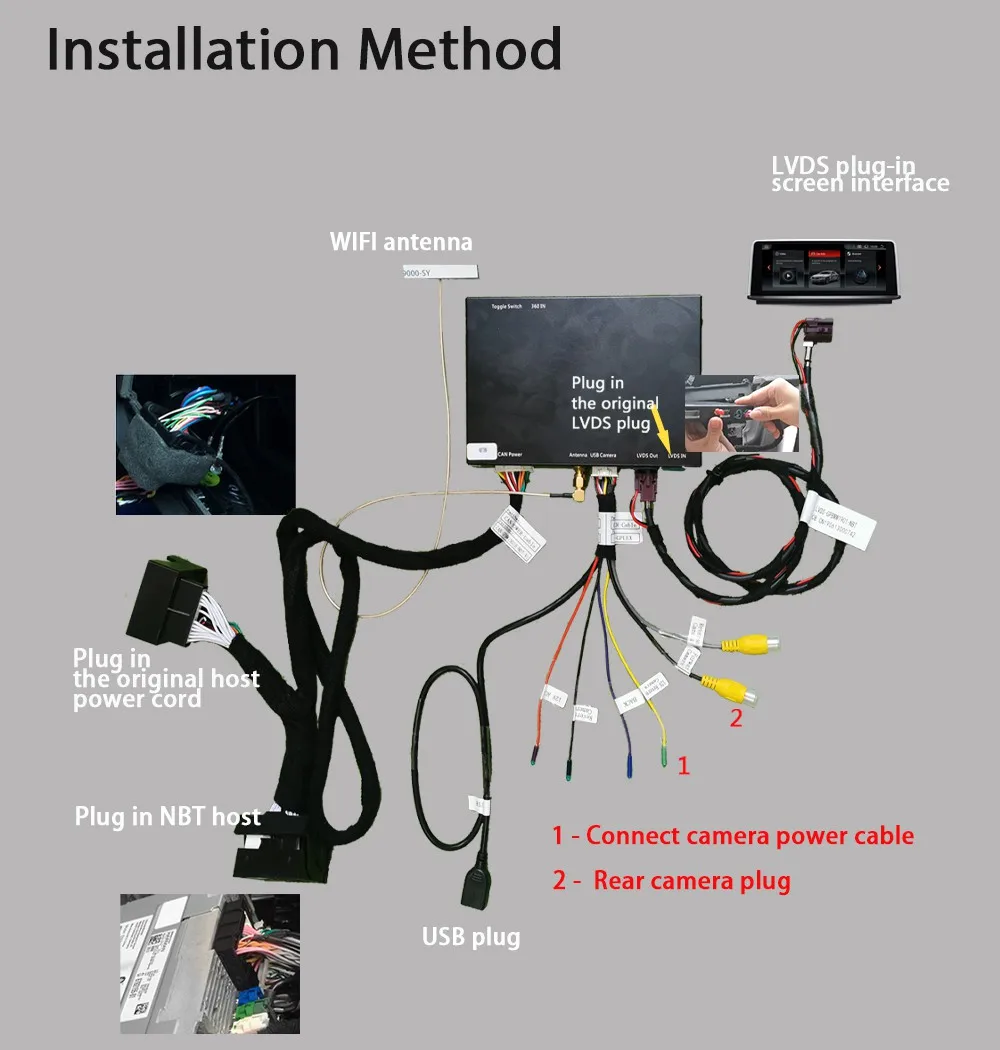

*The installation process requires a fiber optic cable
