Mini UVC OTG 5.8G 150CH Full Channel FPV Receiver For Android Mobile Phone Smartphone Tablet with Auto-scan Snowflake Function

 Search term:

FPV Receiver, 5.8G 150CH, Full Channel, Auto-scan, Snowflake

Features:

This is the newest and best version OTG FPV Receiver, add auto sweep and matc frequency,Graphical interface,Snow screen 0.1s Delay.

We increase the channel to 150CH. The accuracy is 2m, which is the highest accuracy of the chip in the world.

Sail model of affection and dedication, support any flight control,150 frequency points + automatic sweep frequency + spectrum instrument graphical interface + snow display +...... more simple and beautiful appearance.

With a high accuracy, then the abstract radio,this thing is the mobile spectrum instrument, you can detect the quality of the antenna, the transmitter to do horizontal comparison, the factory's electromagnetic environment testing, aircraft, etc.

Description :

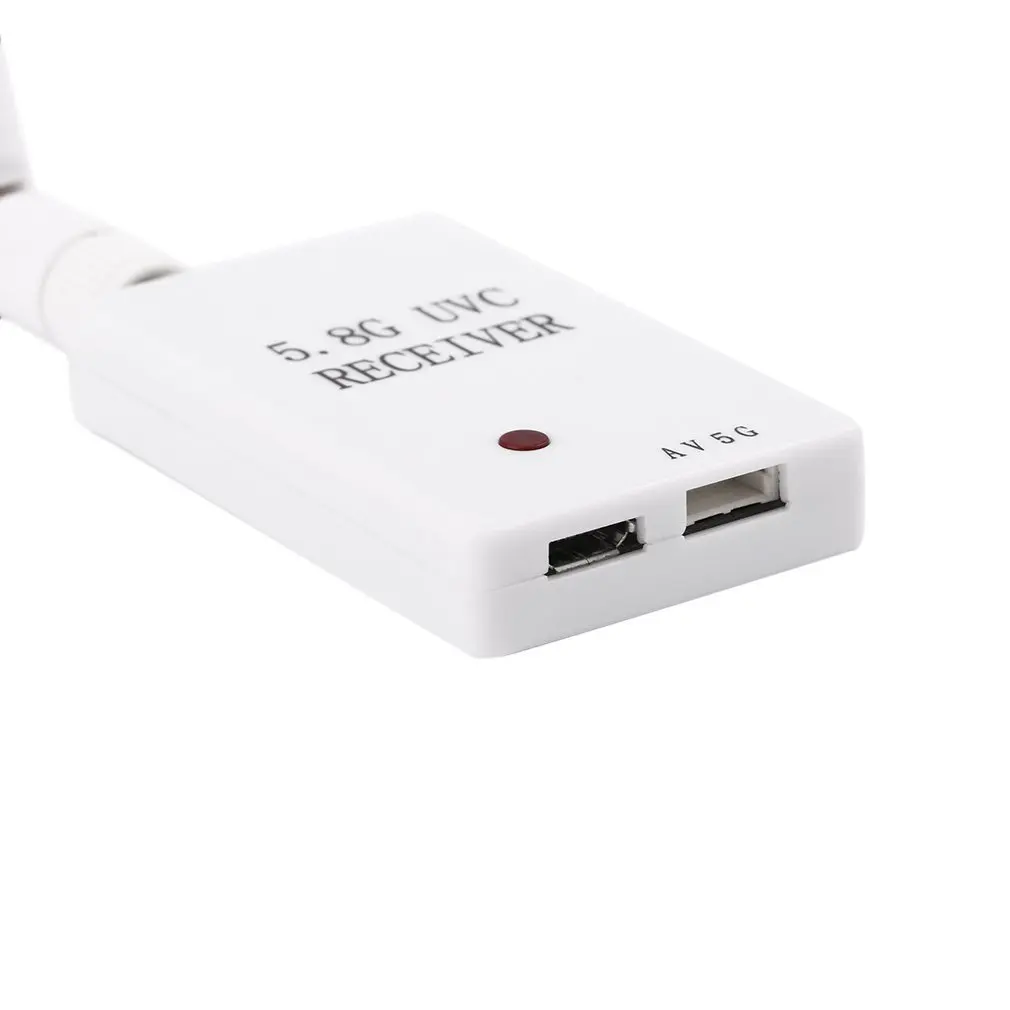

UVC receiver is a new receiver that you can connect to your smart phone directly instead of heavy monitor and good for those who feel dizzy when wear FPV goggles. It has low latency around 100ms .150CH auto search allows to cover all 5.8G frequency bands.

Please note:This Reciever only suits for Android phone that support UVC and make sure your phone can work with OTG connector.

Specifications:

Color: White, Black

Channel: 150CH

Frequency Range: 5645~5945MHz

Sensitivity: -90dBm

Working Current: 200mA/5V

Power Supply: 5V(by smart phone)

Operating Temperature: -10~60℃

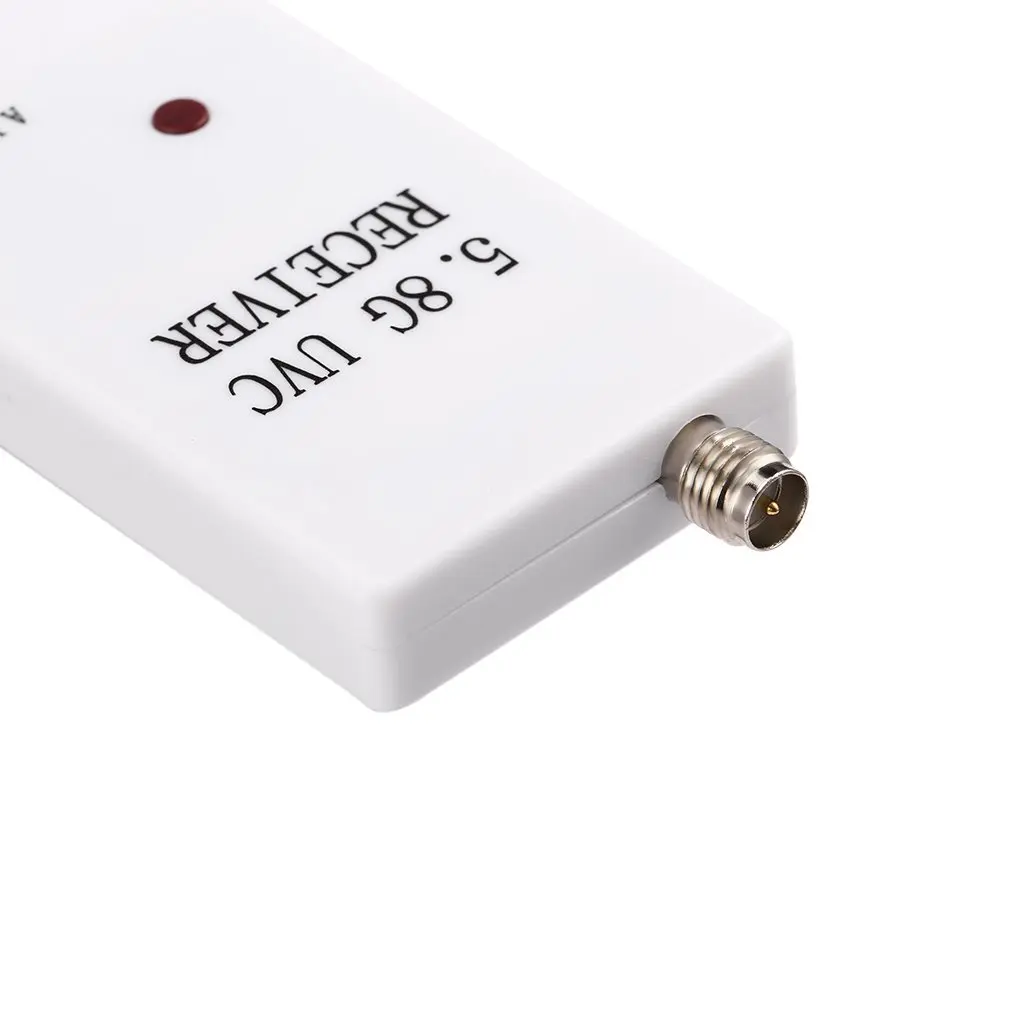

Connector: SMA Female

Resolution: 640 * 480 30fps

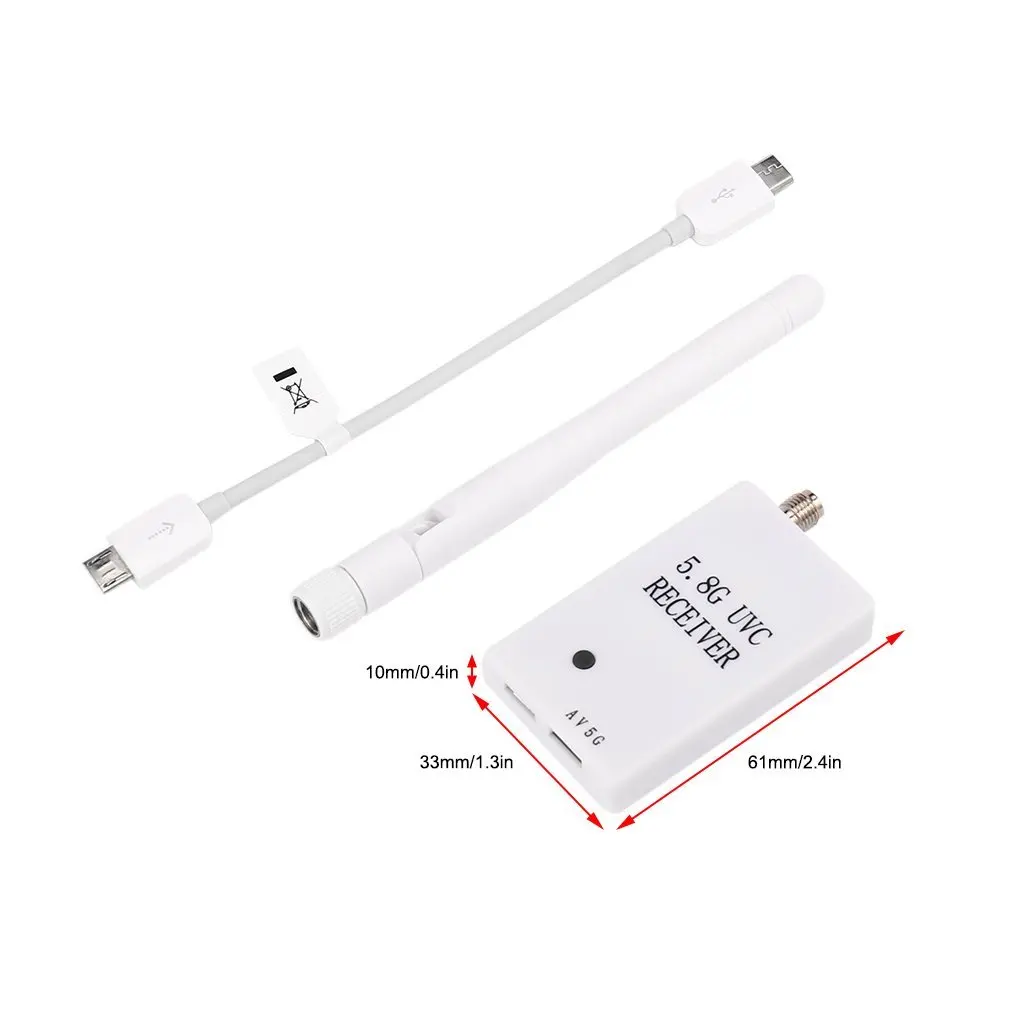

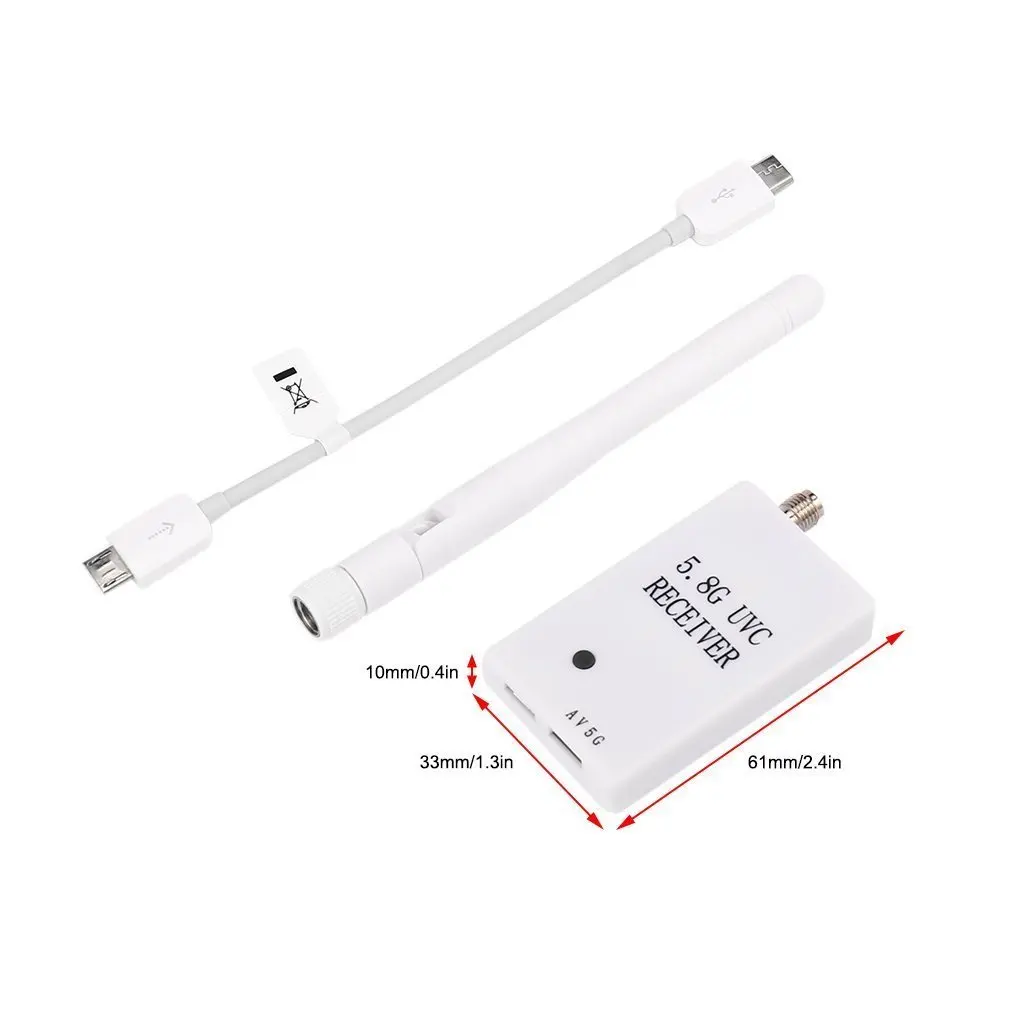

Size: 61*33*10 mm

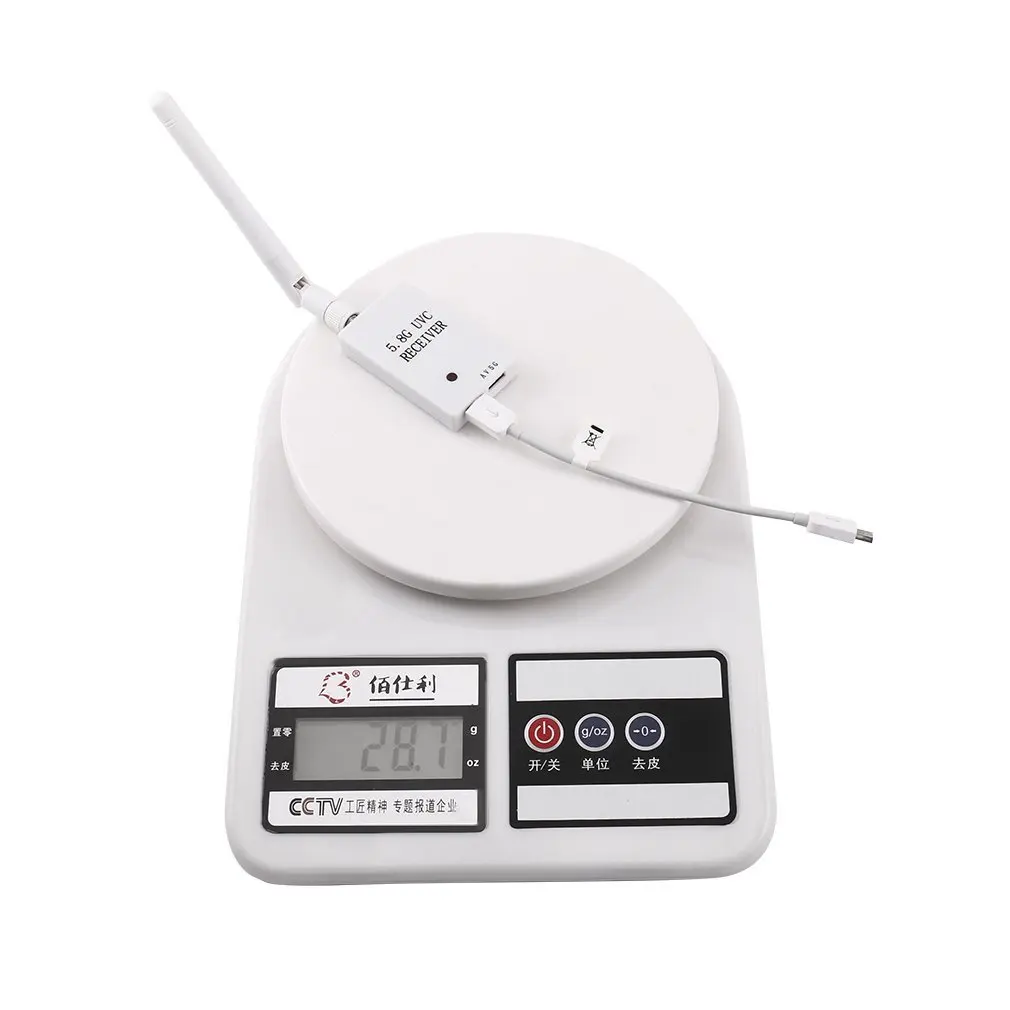

Net weight: 28g

Here's the phone list support this receiver that we have test .

For Sumsung: S3(I9300,I9308) S4(I9500,I9507V,I9508,S5,S6,S6 for edge+, forS7edge, NOTE3,NOTE4,NOTE5,A5100,A8000,ON7,P600,N7100,N5100,Tab S2..)

For OPPO: A31, A31C, A33, A51, A53, A33M ,A51, A53, A5M, N3, FIND7, R7005, R7007, 3007, R2017, R8000, R8205, R8207, R7SM, R7 PLUS, R9 PLUS, ect..

For XIAOMI: For XIAOMI 3, For XIAOMI 4,For XIAOMI 4C, For XIAOMI5, For XIAOMI pad, For XIAOMI Red Note, For XIAOMI Red Note3, ect...

For HUAWEI: MATE8, C199, Honor8

for lg: GPRO2, G3, NEXUS5, L24, GPAD8.3, ect..

for motorola: XPRO,NEXUS6, MOTO E, MZ617,ect..

for sony:Z1, Z2, Z3, C3, SGP321,ect..

Note:

There are 2 same connecters on USB cable, but in different function.  One side is special for mobile, the other is special for receiver. Please connect them correctly. If it doesn't work , please try to plug them in reverse.

Pacakge Included:

1 x 5.8G 150CH Mobile Receiver

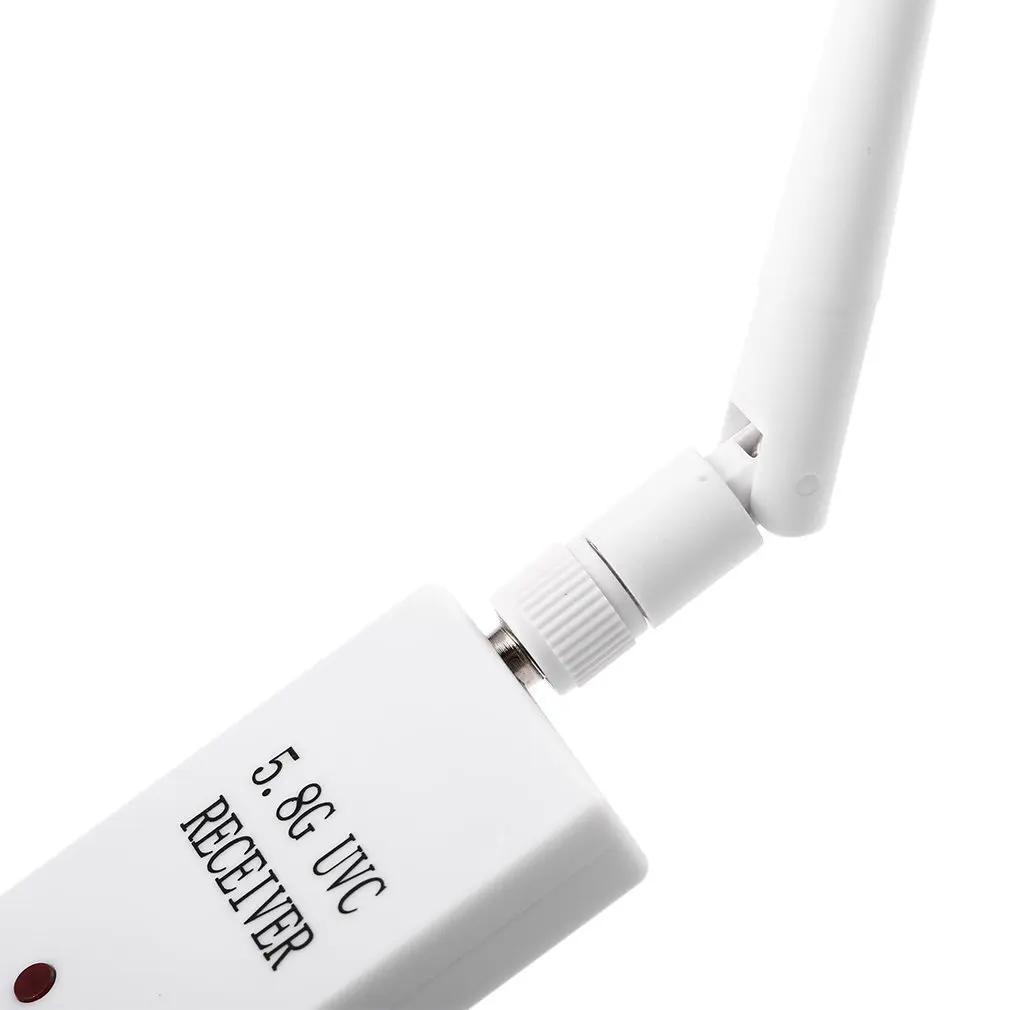

1 x SMA-Antenna

1 x USB Cable
