LOBOT Metal 17kg High Torque Serial Bus Servo Robotic Servo with Debug Board and Servo Controller Robot Toy Product description

Important:
LX-16A Bus Servo use our private serial protocol, so you must use our TTL/USB debug board(compatible for Arduino) to control bus servo, otherwise you cannot do anything with the bus servo.
The debug board required to purchase separately from our store. (no matter how many servos you control, you only need a debug board)
Features:

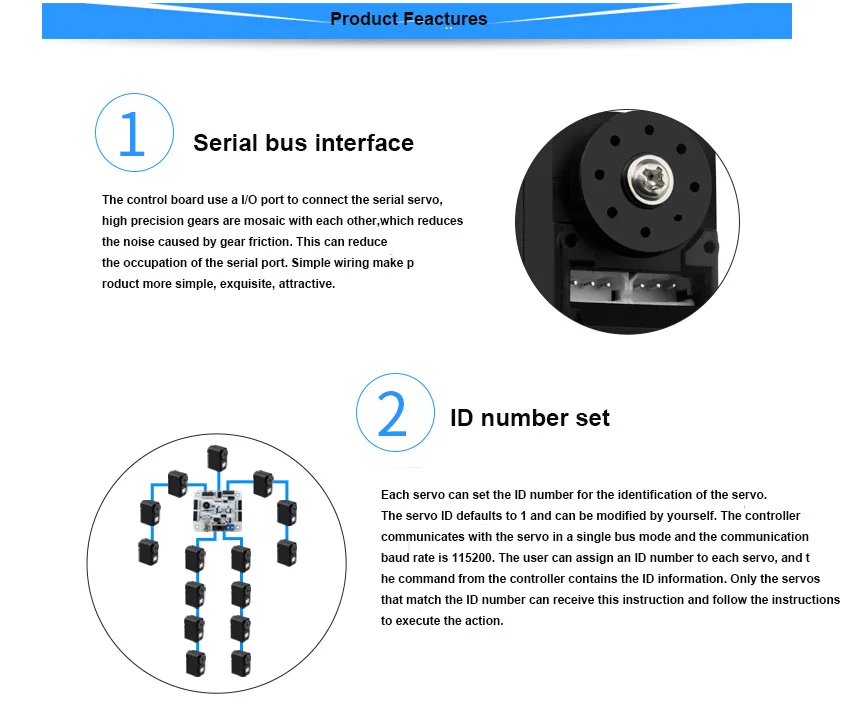

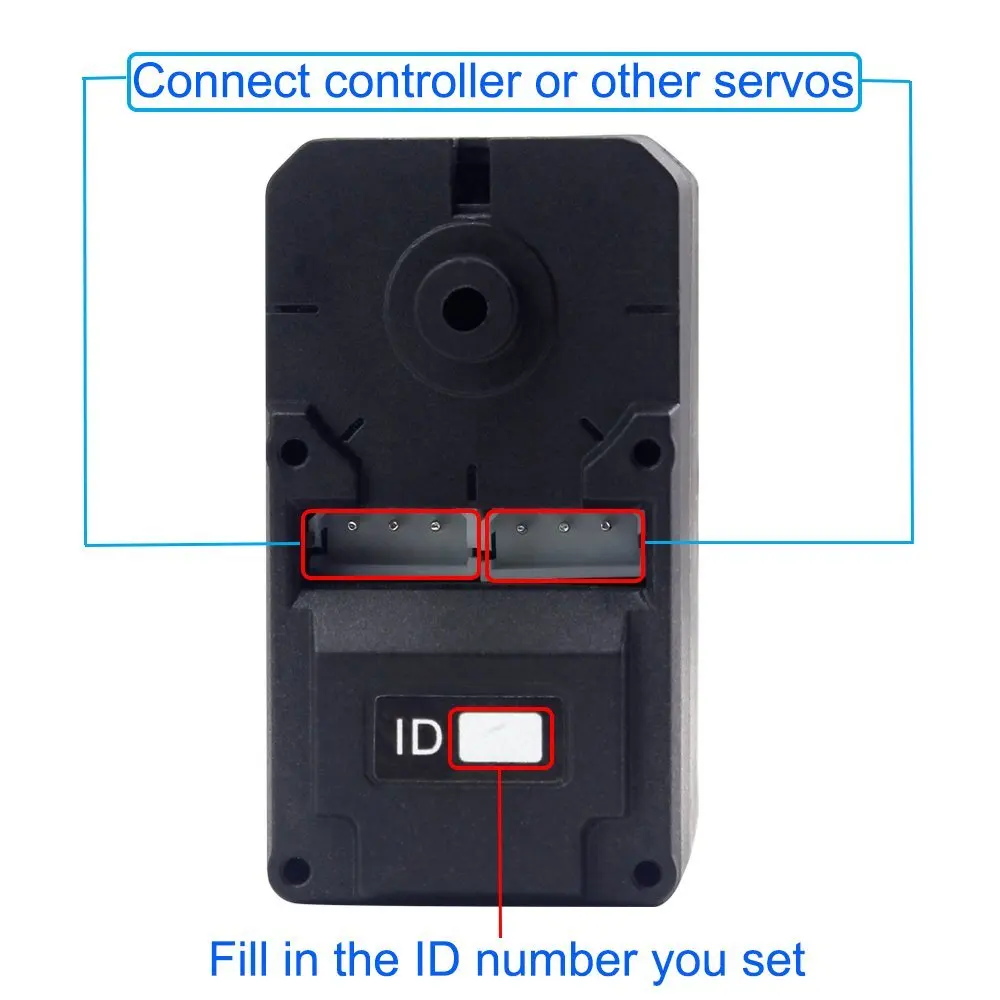

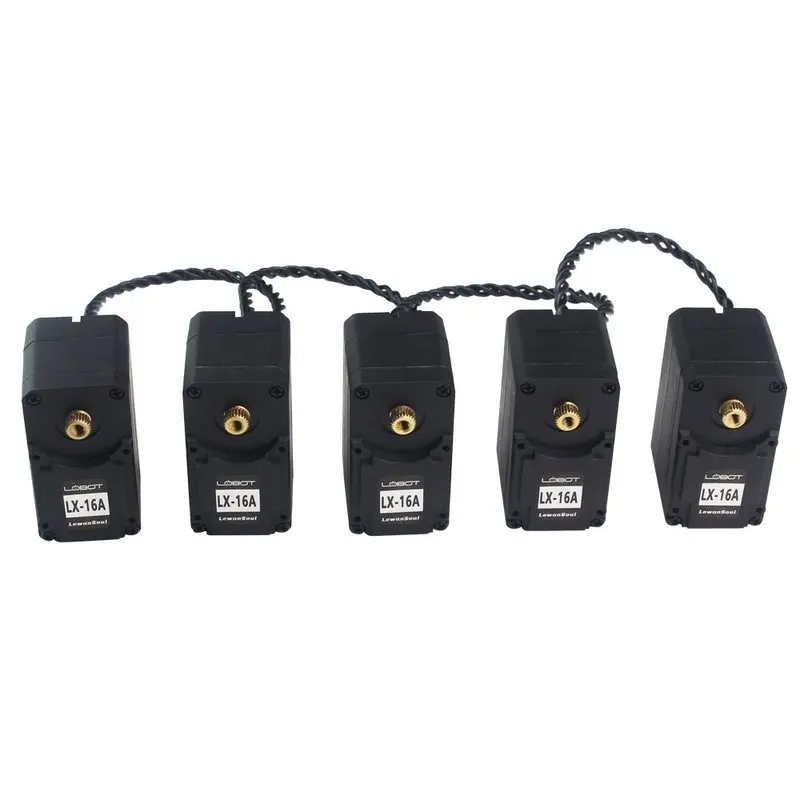

Each servo can set the ID number for the identification of the servo, the ID defaults to 1.

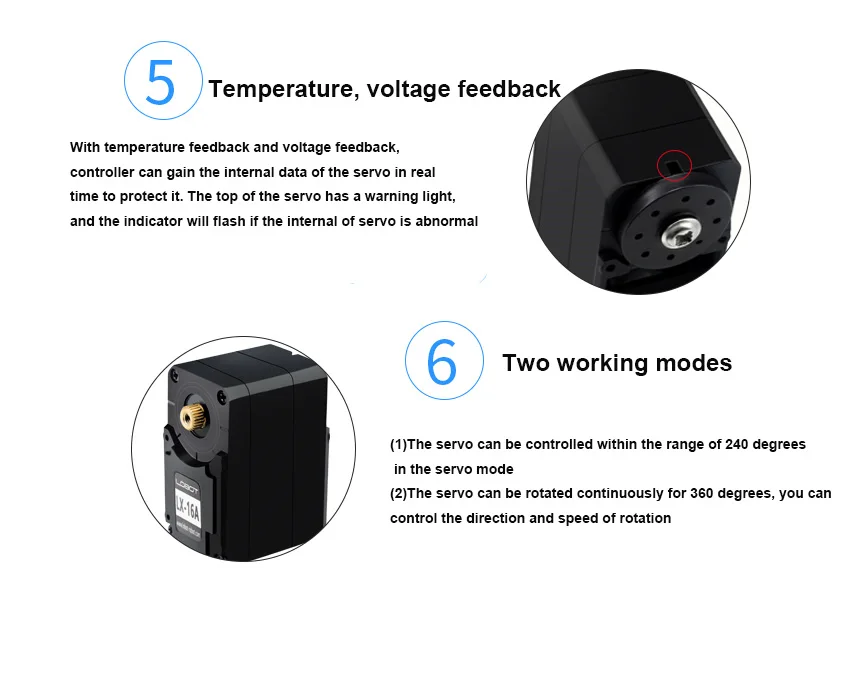

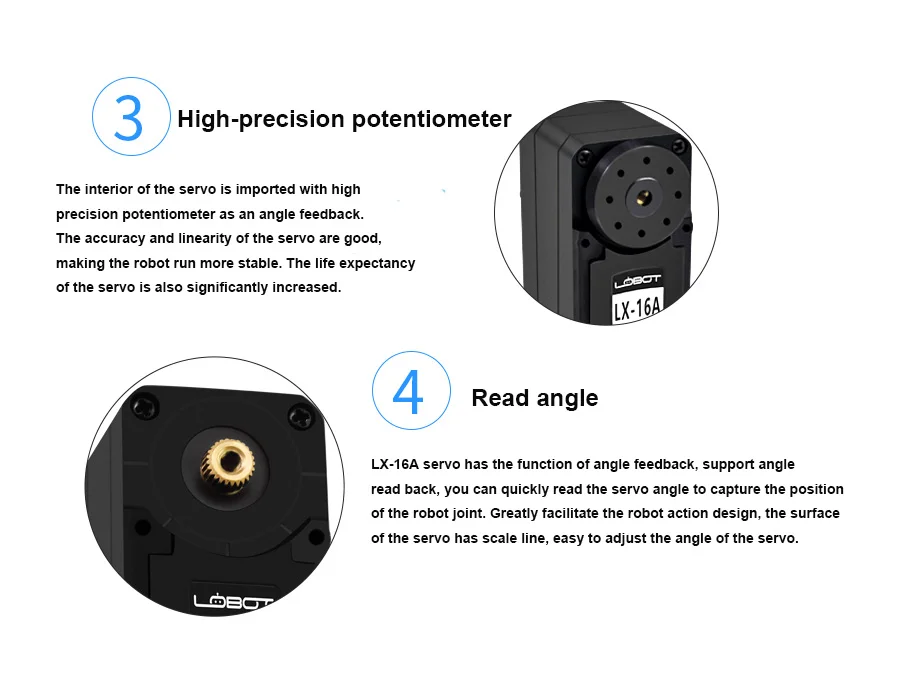

240 degree rotation. Controllable angle range from 0 to 240 degrees, Excellent linearity, precision control. Can be rotated within 360 degrees when power off.

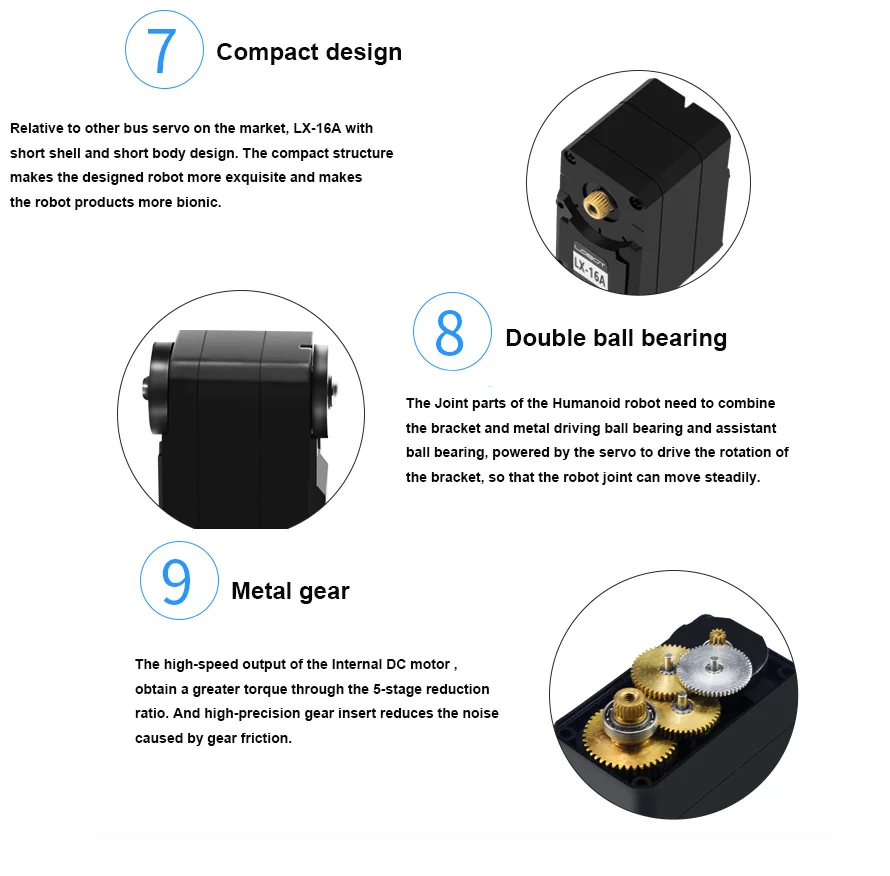

Dual ball bearing: one is the driving shaft, one is the assistant shaft(support role)

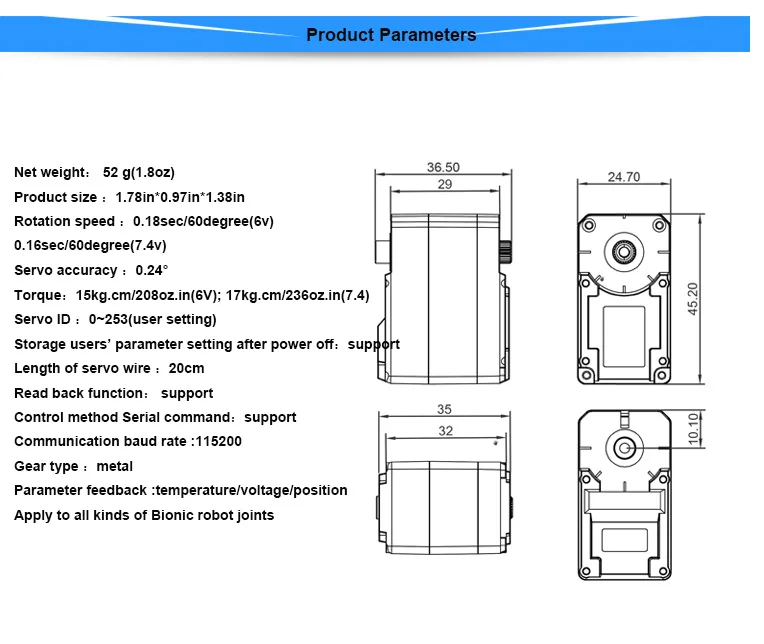

Specifications:
Weight: 52g(1.8oz)
Dimension: 1.78*0.97*1.38inch
Speed: 0.18sec/60° 6V; 0.16sec/60°7.4V
Servo accuracy: 0.24°
Torque: 15 kg·cm (208 oz·in) 6.6V; 17 kg·cm (236 oz·in) 7.4V
Minimum working current: 1A
Servo ID: 0~253
Storage users' parameter setting after power off: support

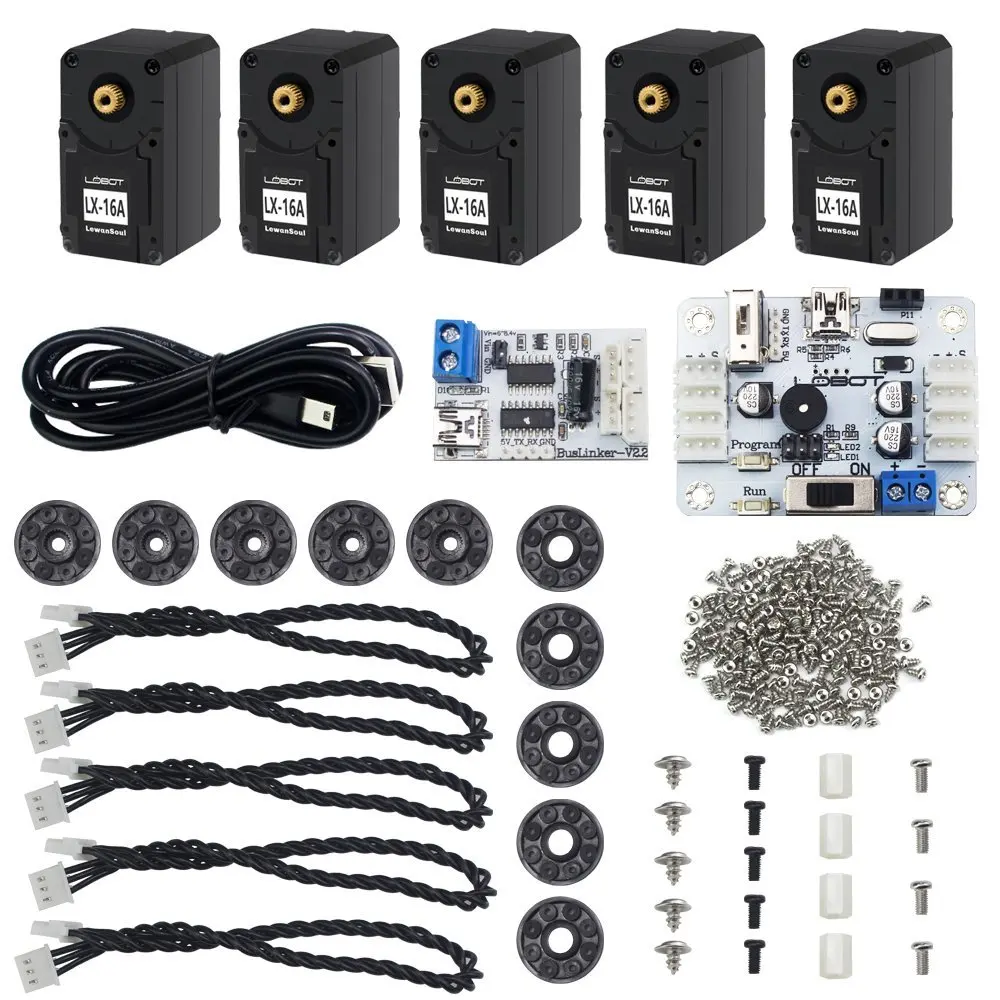

Package Contents:

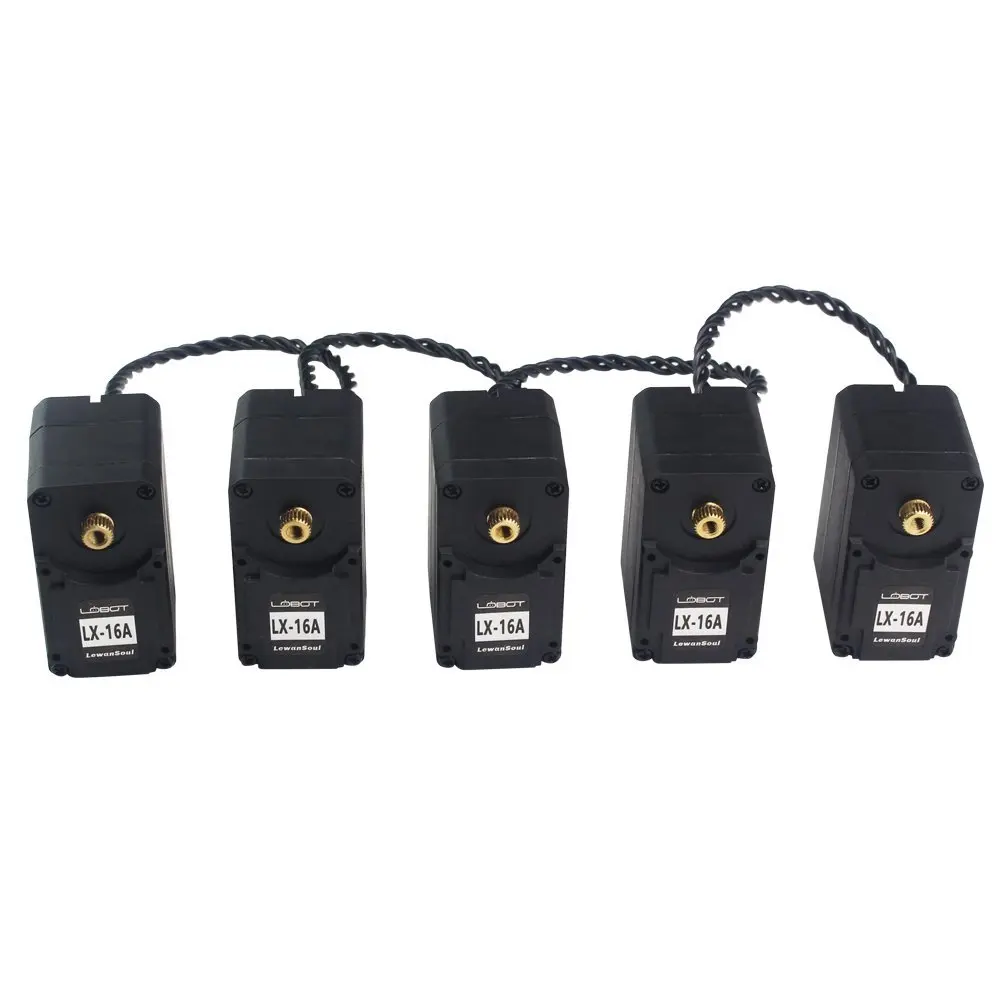

5 x Bus servo

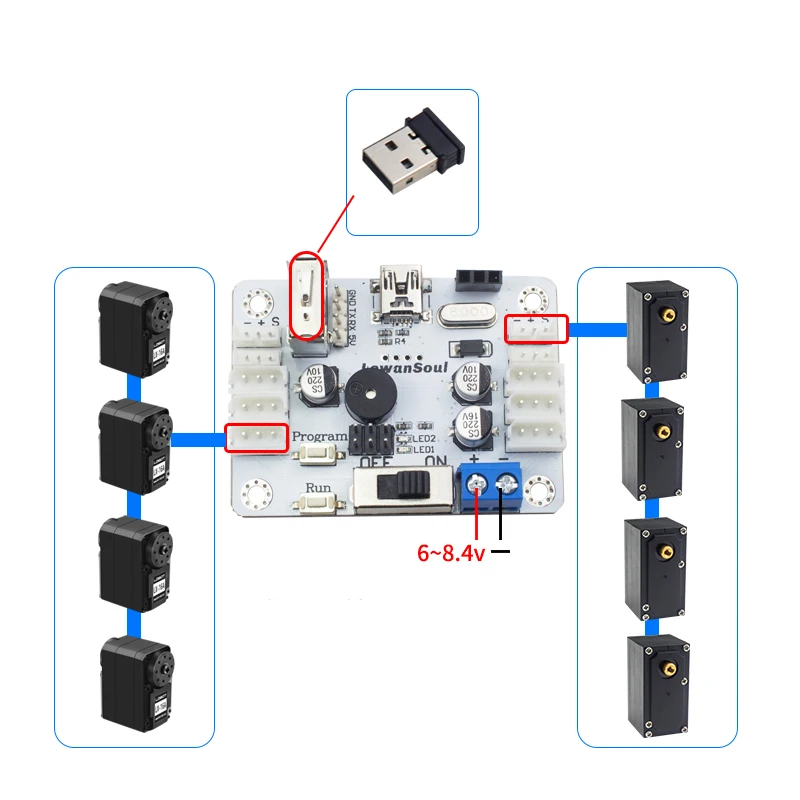

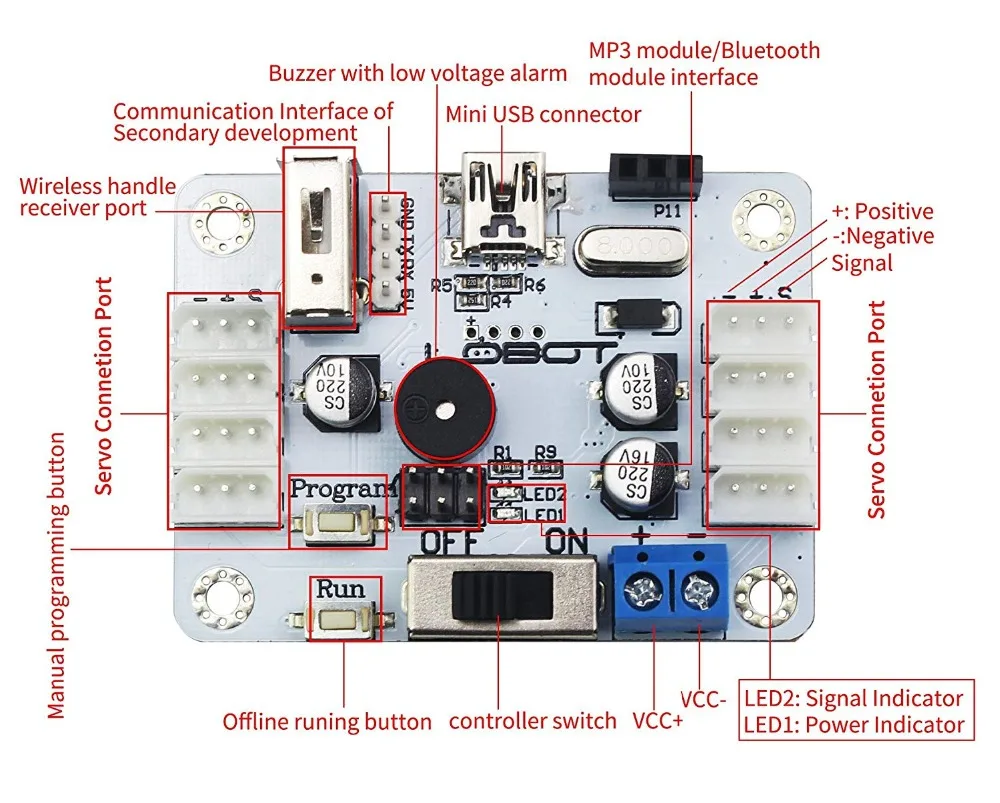

1 x Bus servo controller

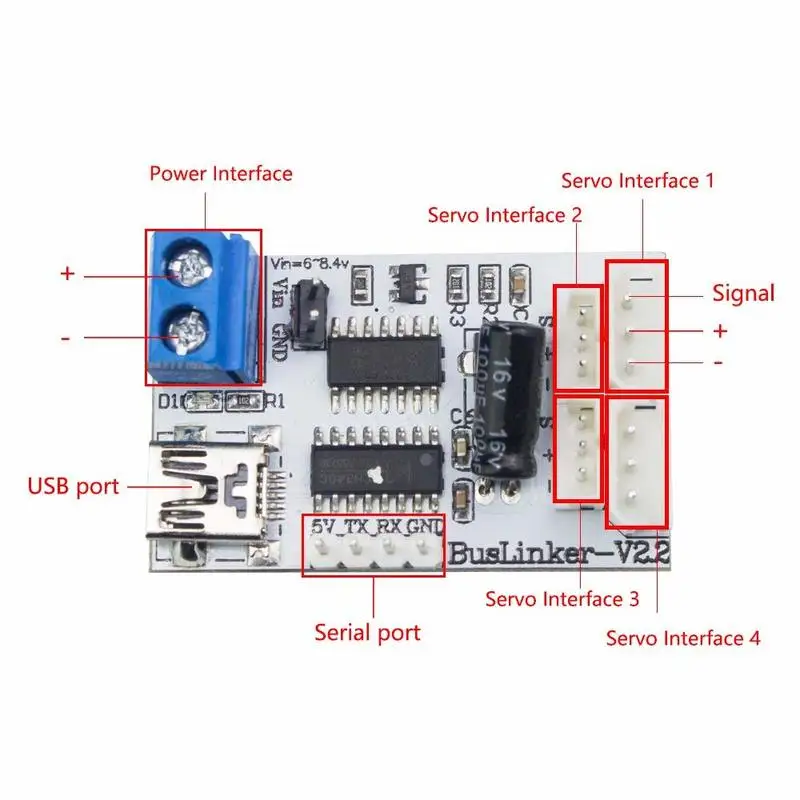

1 x TTL/USB debug board
10 x Servo Horn
5 x Main Screw
5 x Deputy Screw
75 x M2*4 Self-Tapping Screw
4 x M3*6 Machine Screw
4 x M3*8 Nylon Column Screw
5 x 20cm(7.87inch) Servo Wire
1 x Service Card
Note:

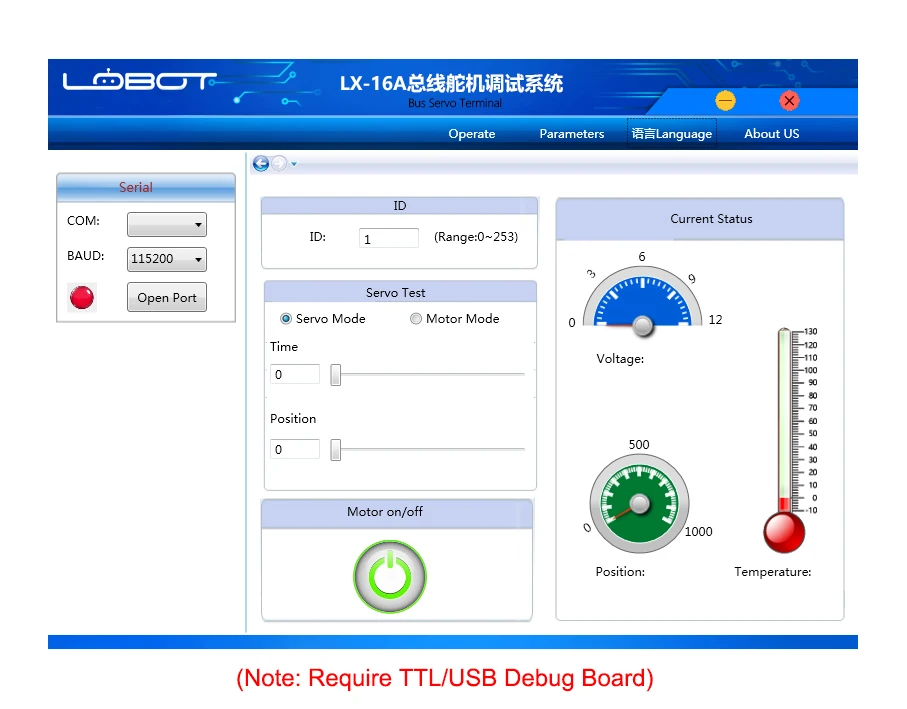

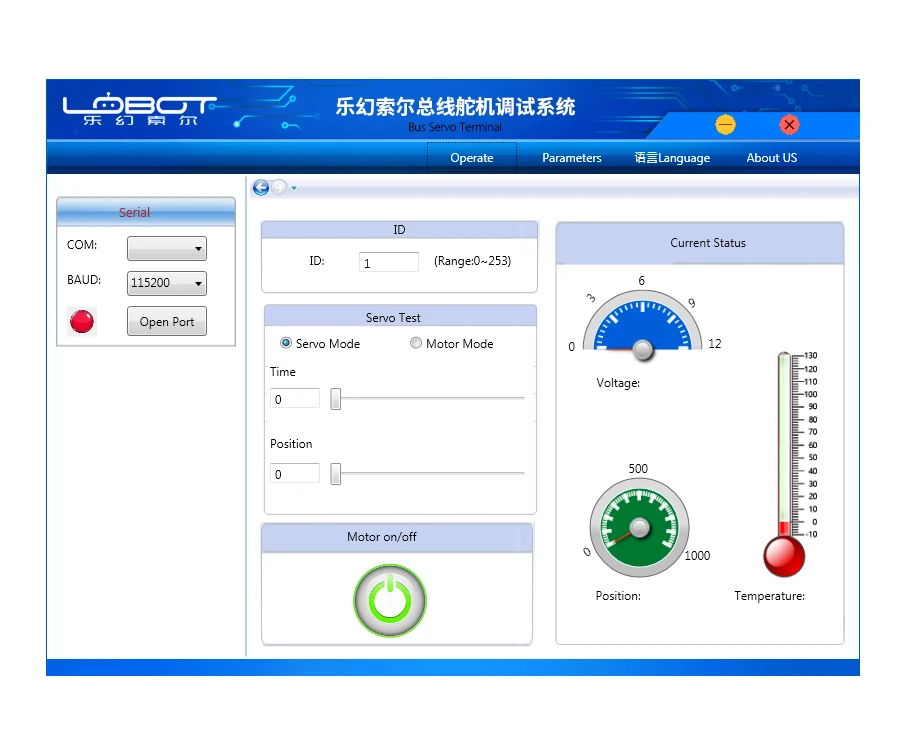

1, Please access the link in the service card to get all informations, contain user manual, testing software, pc software, communication protocol, video tutorials(Windows only)
2, Please ignore the website on the label of product.
3, Please refer to the torque parameter in our "Product Description"(it's accurate).

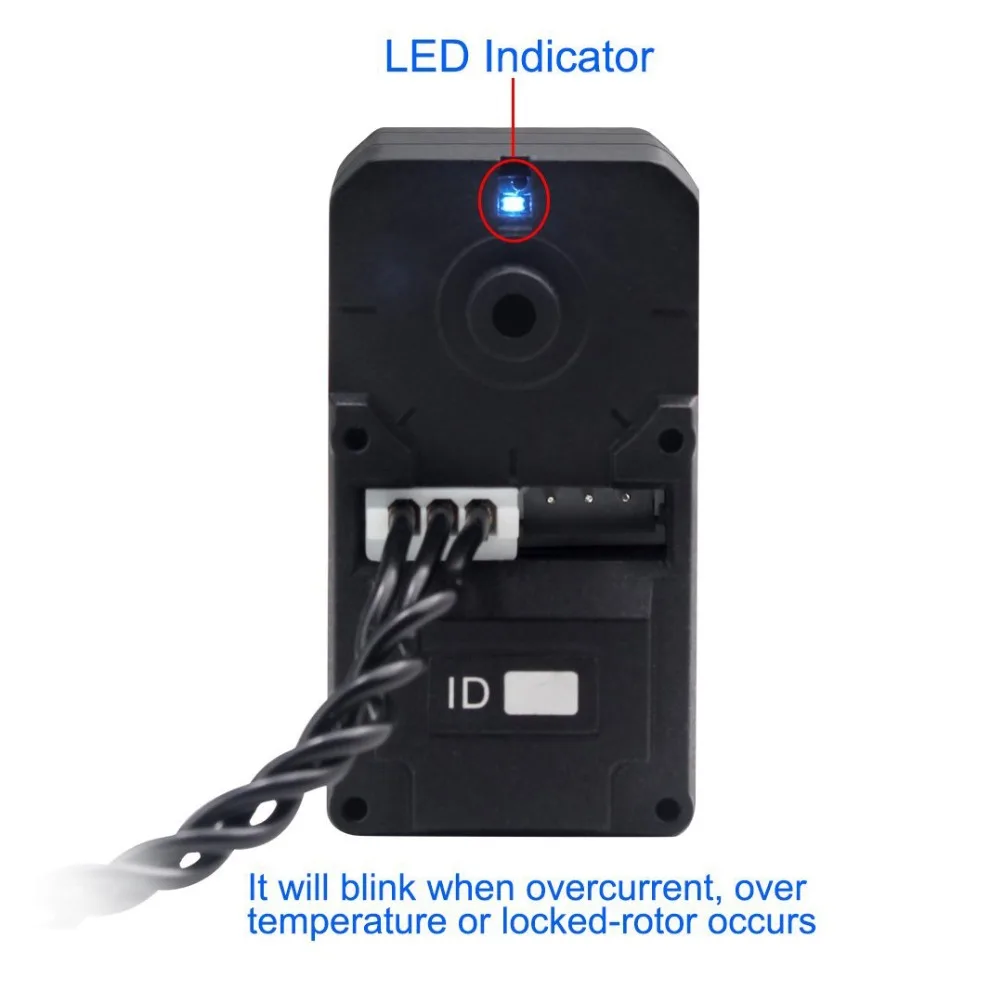

Please be sure to avoid locked-rotor when using servo.
