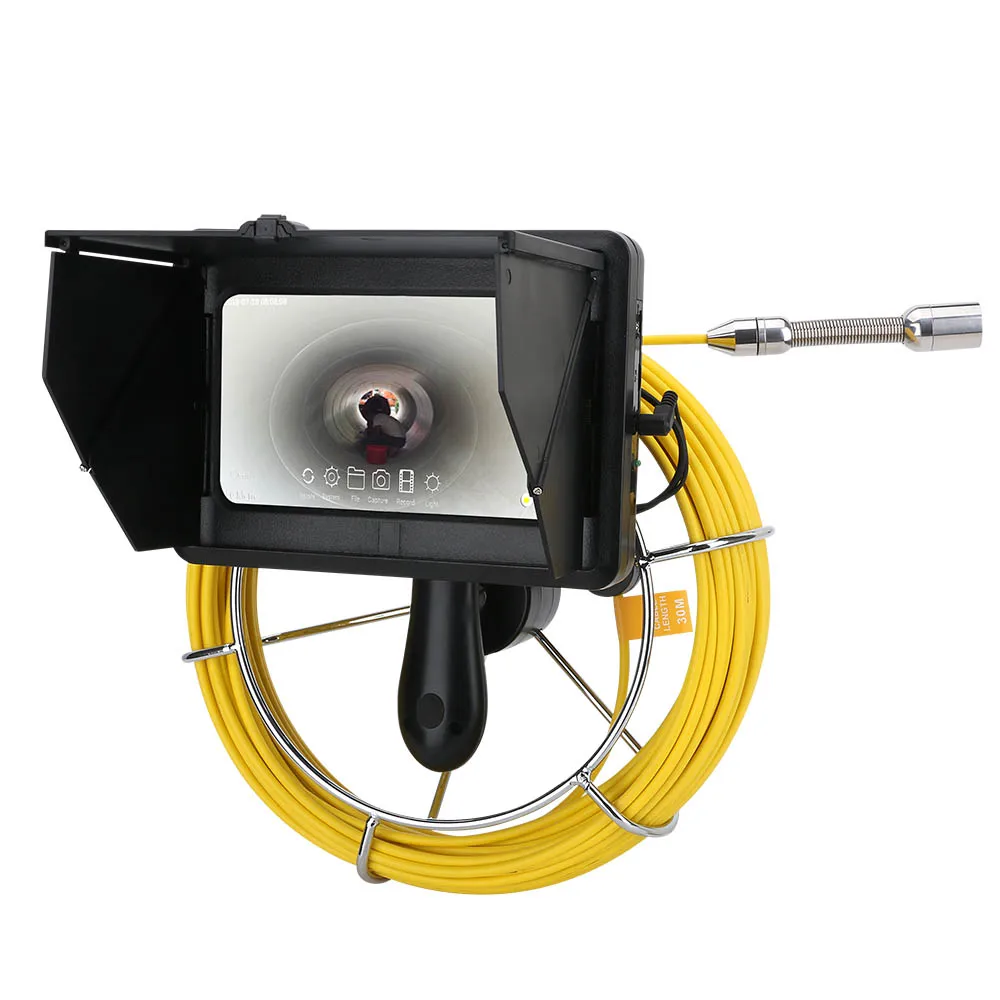

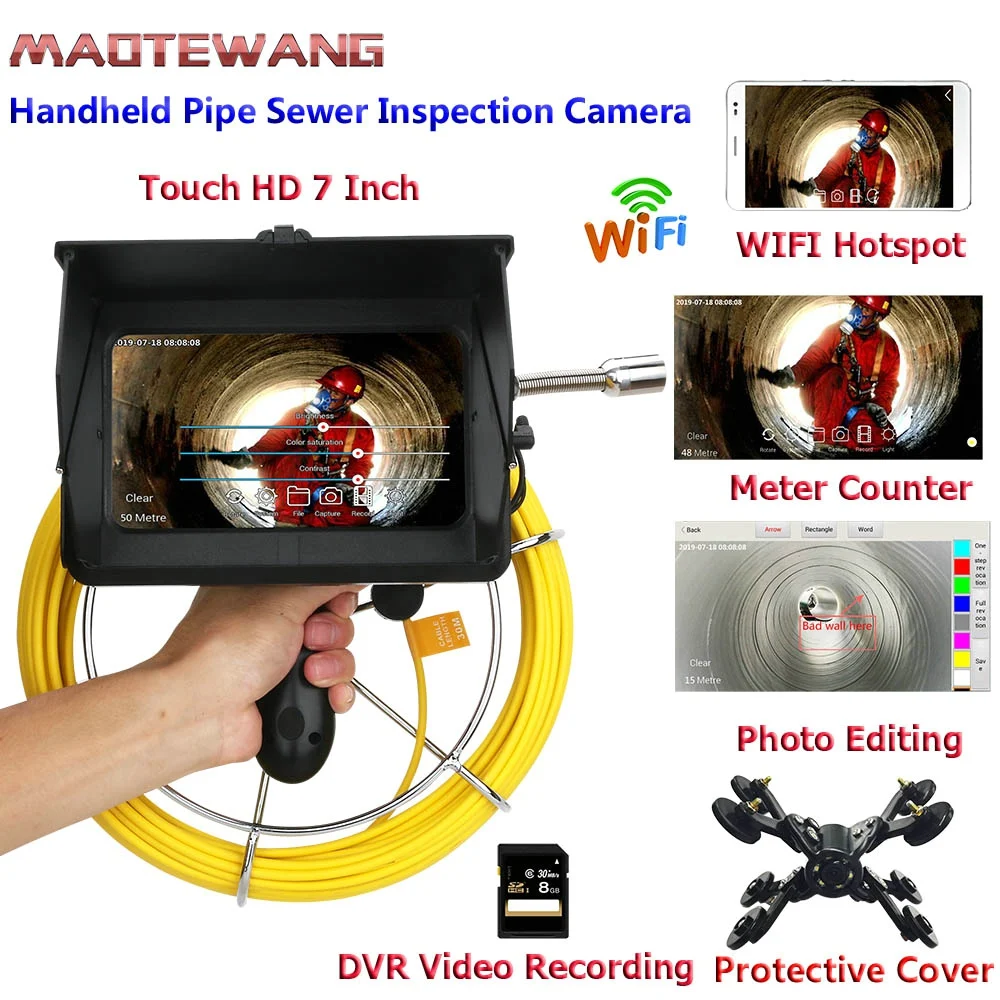

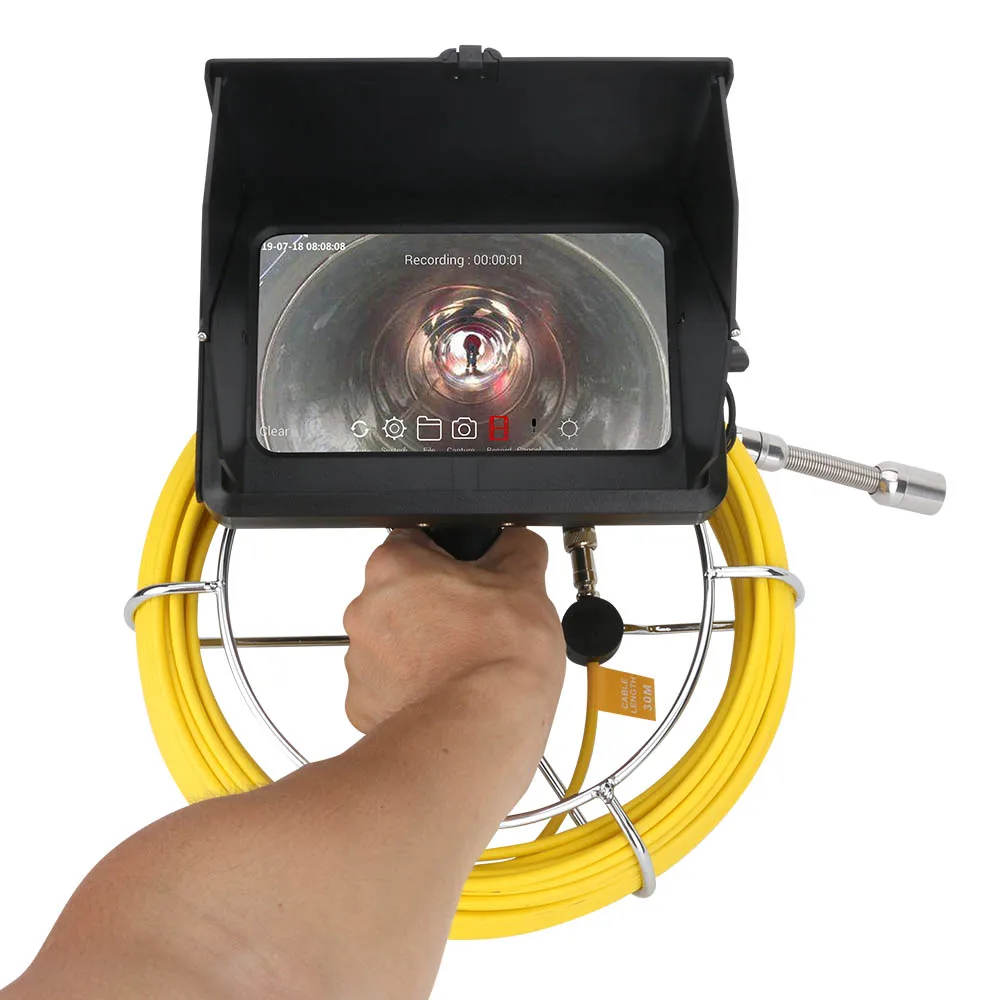

Handheld Industrial Pipe Sewer Inspection Video Camera with Meter Counter / DVR Video recording / WIFI wireless /  Photo Editing(Chinese and English character input and arrow event record)/23mm HD 1080P Camera /10M /7inch Touch screen / 6W LED Lights

1.The pipe cable length has 10M/20m/30m/40m/50m optional.

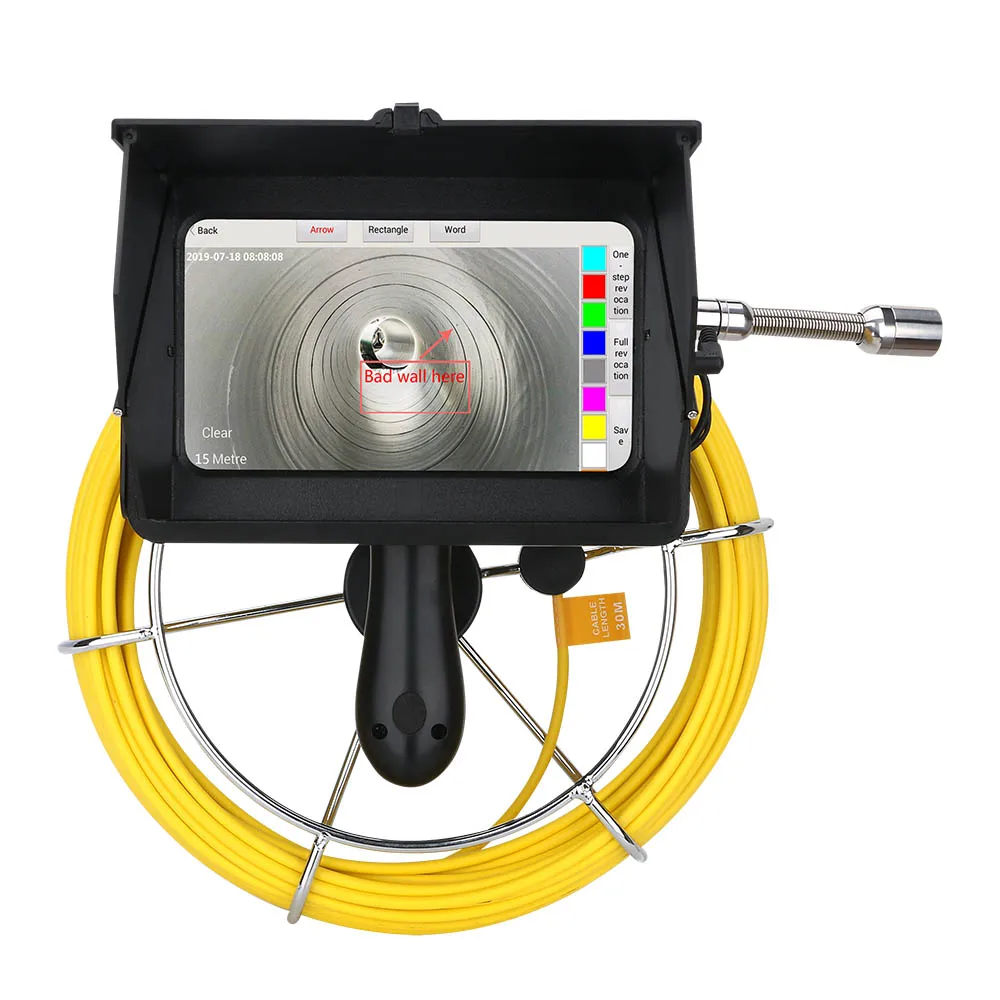

2.7inch Touch screen/ Video Record/Audio Record/Photo/ Chinese and English character input and arrow event record Photo Editing/Meters Counter/Playback/WIFI Wireless hotspot/6W LED Lights white LED, brightness of LED is adjustable/8GB free TF Card in the packing list, at most support 32GB TF card

3.The  sun visor provides clear viewing in outdoor inspection and extra protection for the monitor.

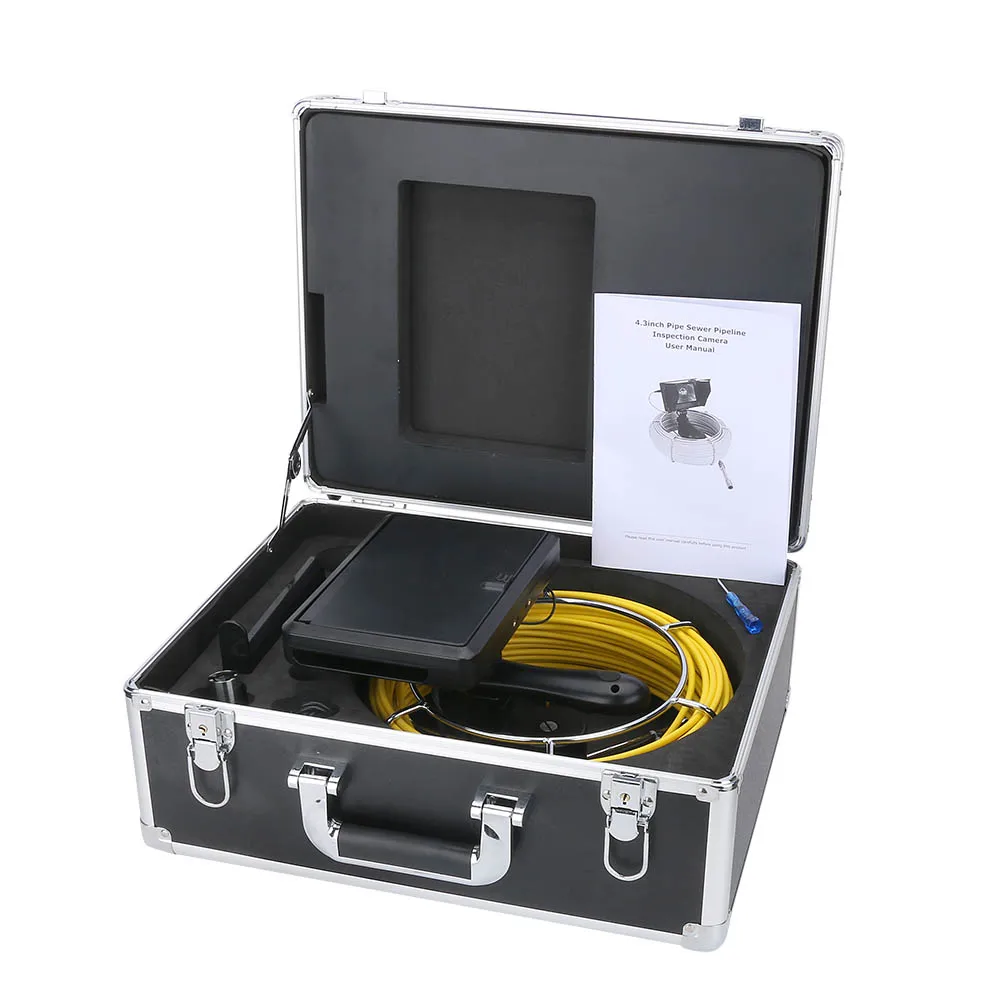

4.It comes with a fully padded case which stores all kits for easy transport and use.

5.10000MAH power bank,after testing,the battery can be used more than 6 hours

6. It eliminates the needs of tearing drywall to locate leaks and helps to solve pipe problems. It is a must have for any homeowner, contractor and even professional plumbers!

Applications:

 Water supply pipelines, air conditioning pipeline, cable ducts, pipeline vacuum systems, lead industrial pipelines, underground pipelines for construction, rescue work in small spaces, underground cave exploration, underwater research.

Specification:

Camera and cable：

Sensor  Resolution :1/3 CMOS AHD 1080P

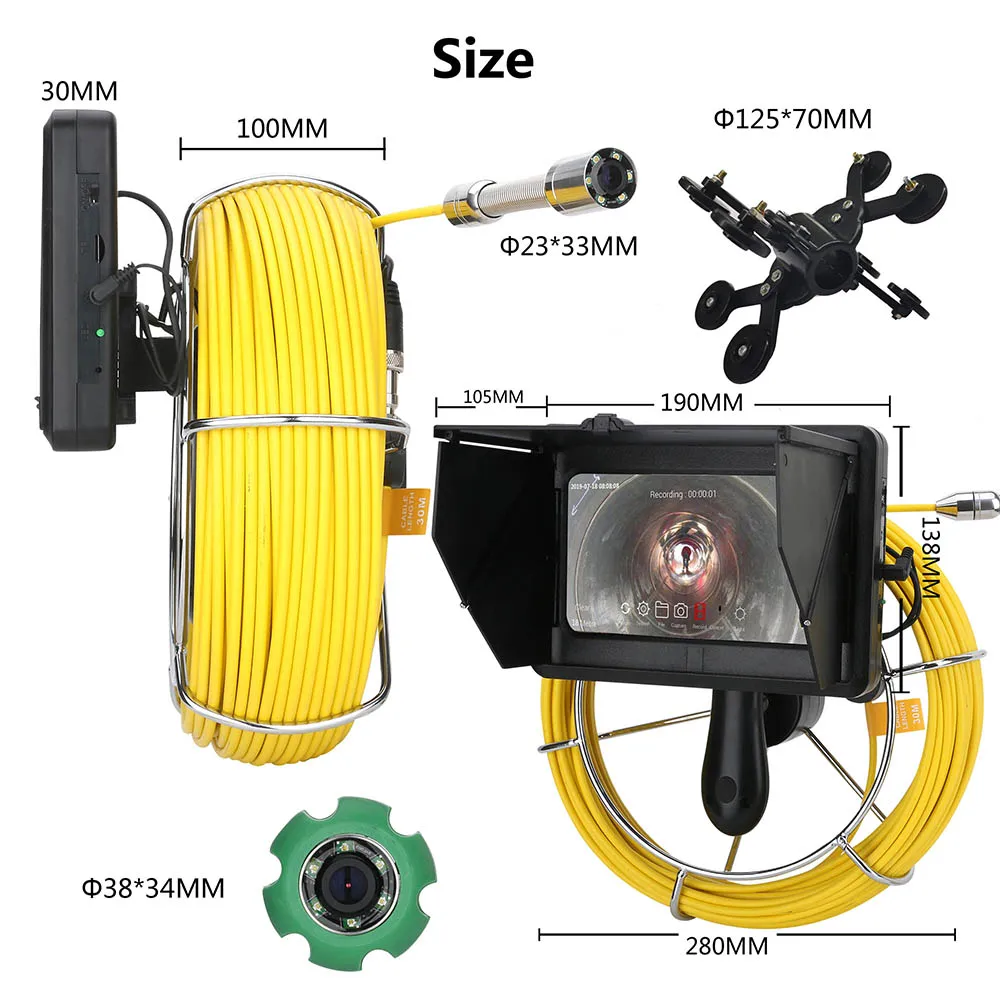

Camera Diameter:23MM

Camera Diameter：23（MM）*34（MM）

Depth/Material: 10M/20M/30M/40M/50M (optional)/fiber  tube（diameter: 5MM)

LED: 6pcs 6W LED（Brightness can be adjustable）

Angle: 145 degree

Camera Material: stainless steel

Waterproof Level: IP68

Monitor：

Size：7 inch  Capacitive touch screen

Display Resolution: 1024*600

Function: Video Record/Audio Record/Photo/ Chinese and English character input and arrow event record/Meters Counter （meter/inch optional）/Playback/WIFI hotspot

WIFI Hotspot distance: about 80m

Mobile APP: support 8 users

APP: Support Android & IOS

Record / Monitor Image: Color

Video Resolution: 1280*700

Photo Resolution: 1280*700

Event record photo resolution: 904*540

TF Card: Max support 32GB TF card; includes 8G TF card

Menu：Chinese /English Optional

Packing Size:400*310*185(MM)

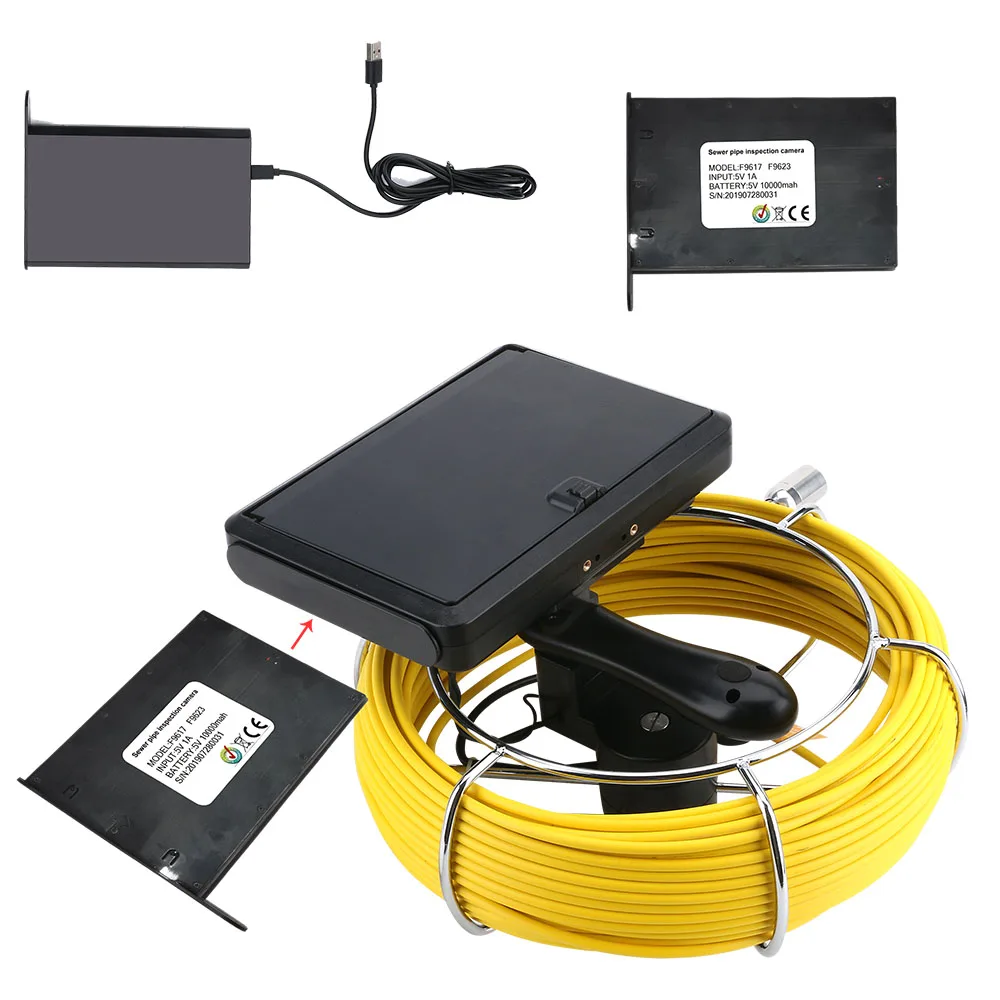

Power Bank：

Recharger: DC 5V 1000mA  Support power bank、mobile phone recharger、

car recharger、computer USB port

Recharge time: about 10 hours

Battery capacity: lithium battery 3.7V 10000AH

Battery working time: about 6-8 hours

Aluminum box size: 400 *310 *185 (mm)

Package size: 410*318*185mm

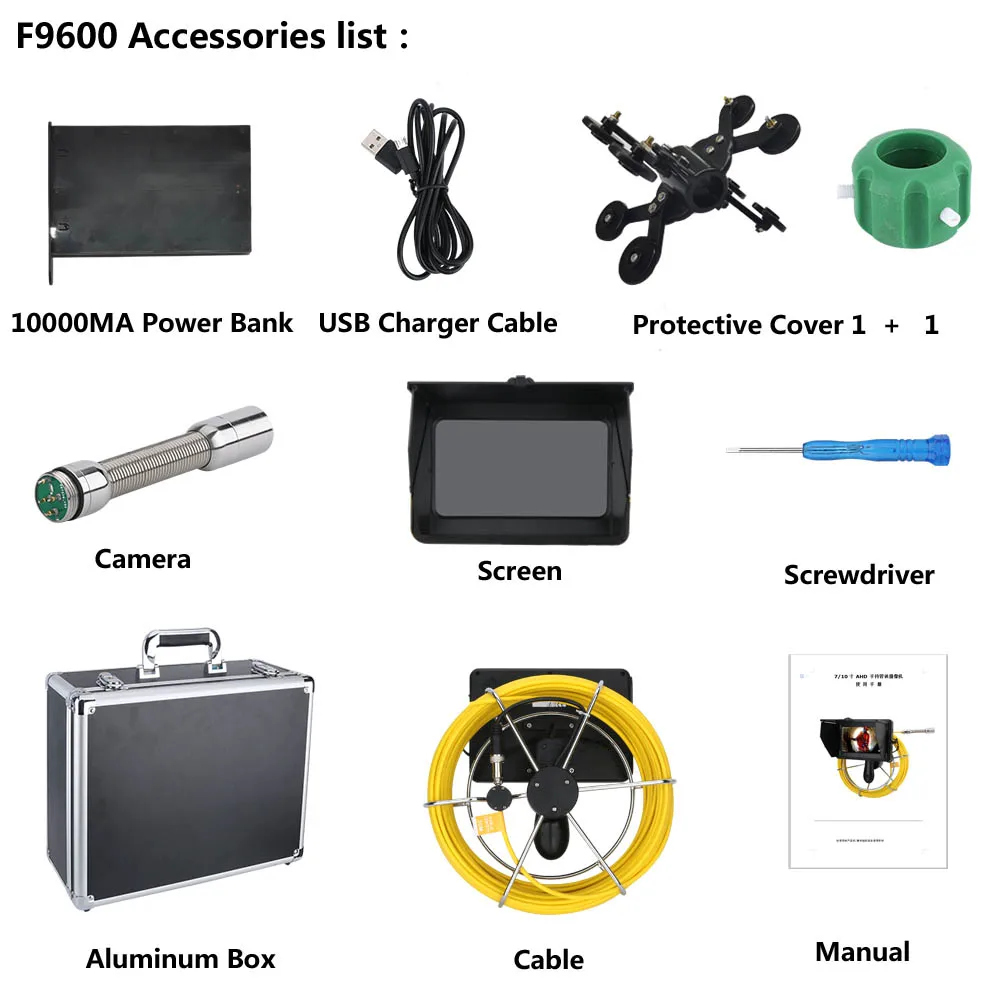

Package List:

 1 *  7 inch LCD Monitor

 1 *  8GB TF Card

 1 *  HD 1080P Camera

 1 *  10M Fiberglass Cable

 2 *  Camera Proof Cover

 1 *  10000mah Power bank

 1 *  USB charging cable

 1 *  Screw Driver

 1 *  Aluminum box

 1 *  User Manual (English)
