OOTDTY 10MHz-6000MHz 6GHz Wideband Amplifier Broadband RF Feeder Isolator Bias Tee A5YD |

OOTDTY 10MHz-6000MHz 6GHz Wideband Amplifier Broadband RF Feeder Isolator Bias Tee A5YD |

100% brand new and high quality

Features:
First, the product application:
A) Broadband amplifier
Some broadband amplifiers, the internal non-blocking capacitor, and the output needs of the power supply, the need for bias.
Some amplifiers are internally assembled with no capacitance, and no additional bias is required.
B) optical fiber communication, laser drive
The required driving current for the laser diode is injected through the DC end of the bias device;
The communication data is injected through the RF side.
Second, the product principle:
Broadband amplifier feed circuit, high frequency parasitic capacitance parameters affected by the sharp decline in performance, so the need to use BiasTee feed.
Bias Tee consists of ultra-wideband, close to idealized, high-frequency inductors and capacitors without resonant points.
DC blocking capacitor: DC blocking, to prevent the DC voltage leakage to the follow-up circuit or test equipment;
High frequency inductance: isolated AC information to prevent high frequency signal leakage to the power supply system.

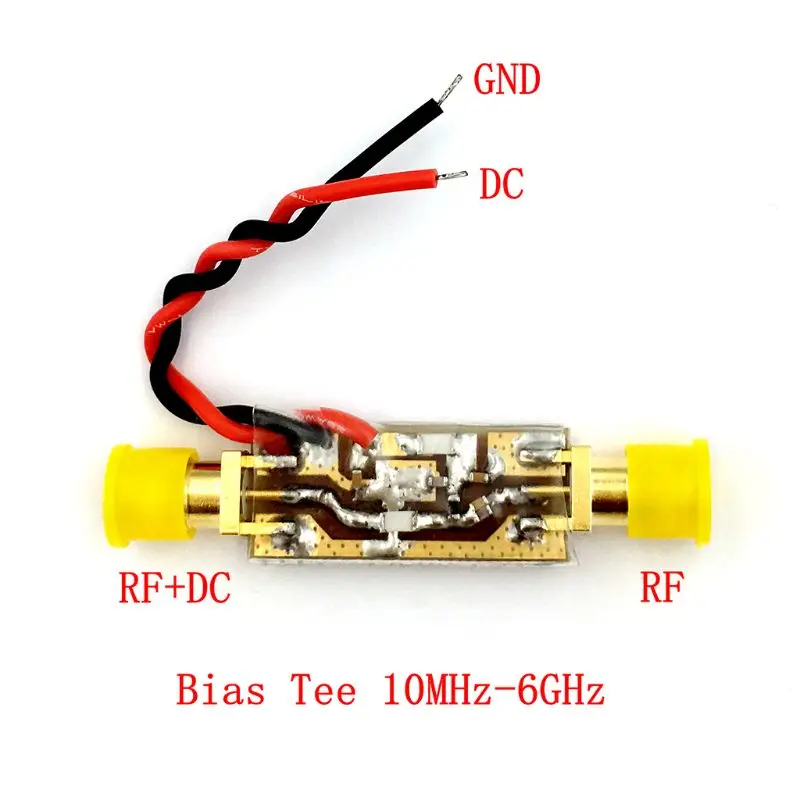

Third, ports: RF port: RF, DC bias: DC, RF and DC: RF + DC

Specification:
Frequency: 10MHZ-6GHz

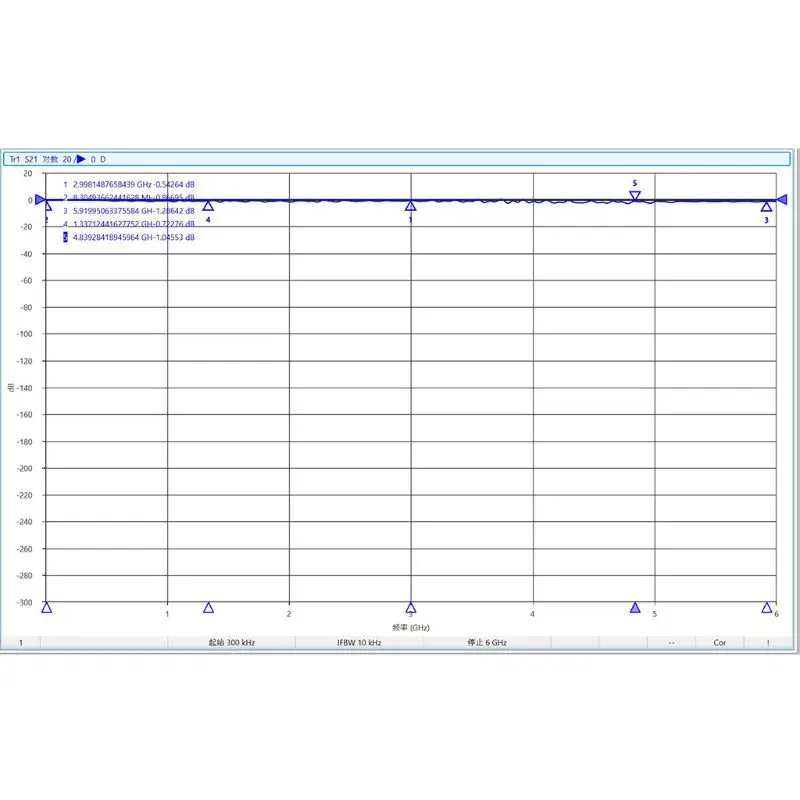

Loss: 0.5dB@3GHz 1.2dB@6GHz
Withstanding voltage: DC 50V
Limit current: 200MA
Material: Metal&plastic

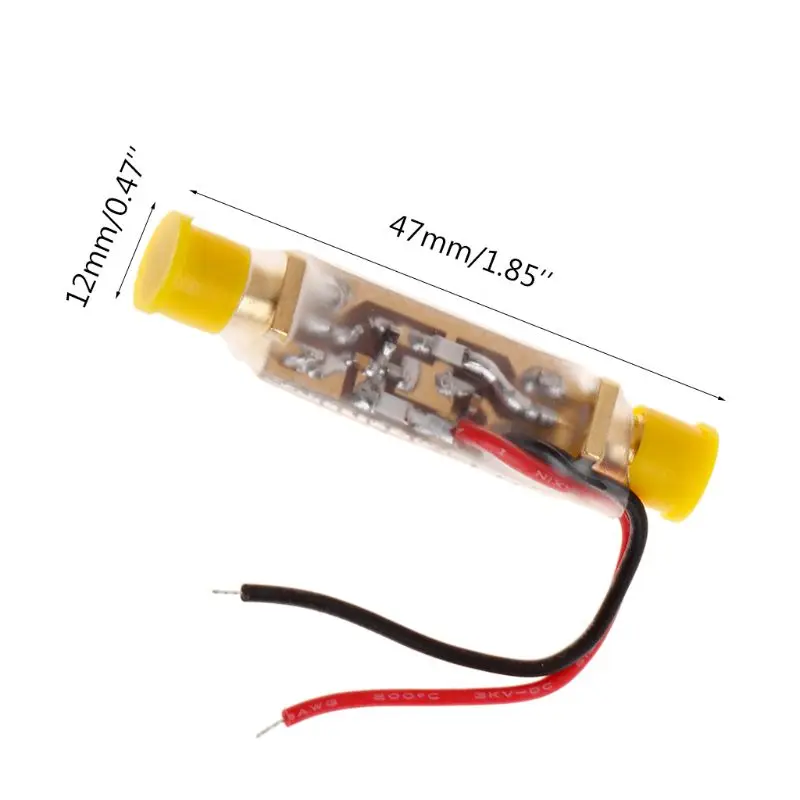

Dimensions: 47x12mm/1.85x0.47inch
Color: Gold&yellow
Quantity: 1 Pc
Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x 10MHZ-6GHz Radio Frequency Transformer Bias Feeder Bias Tee
1 x Anti-static packaging
