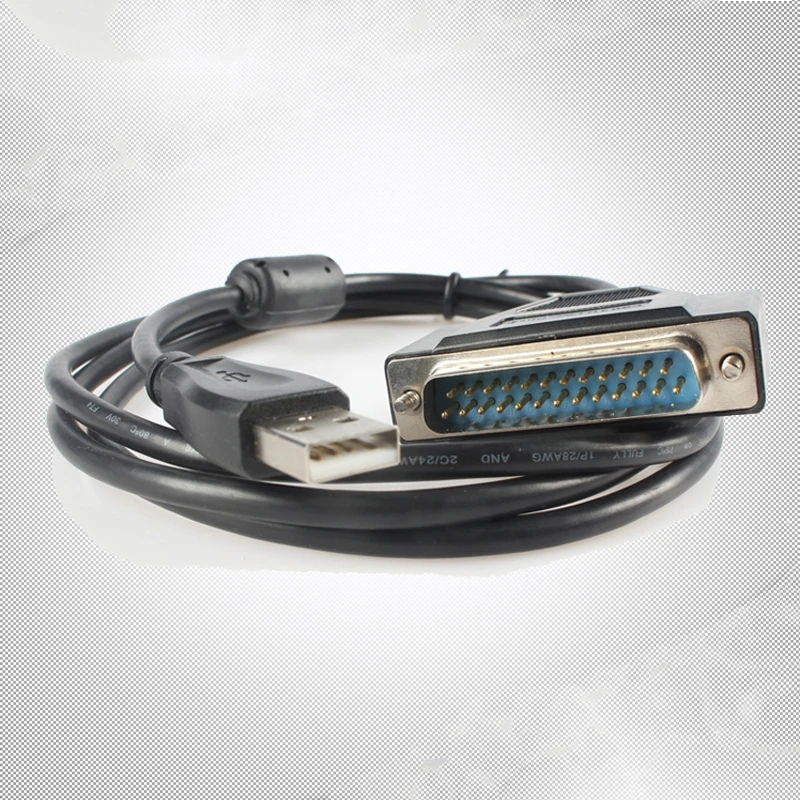

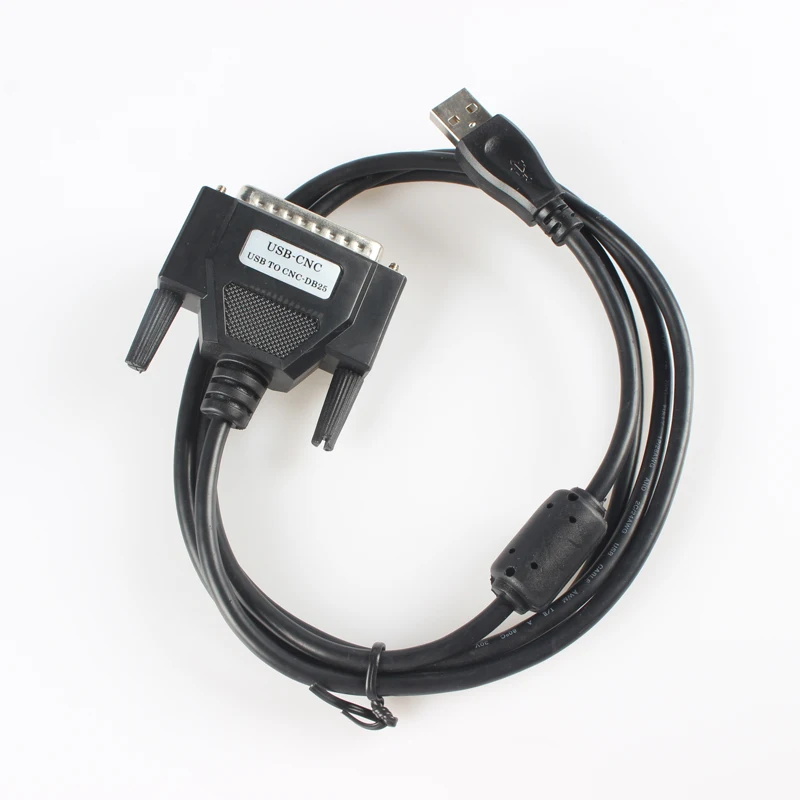

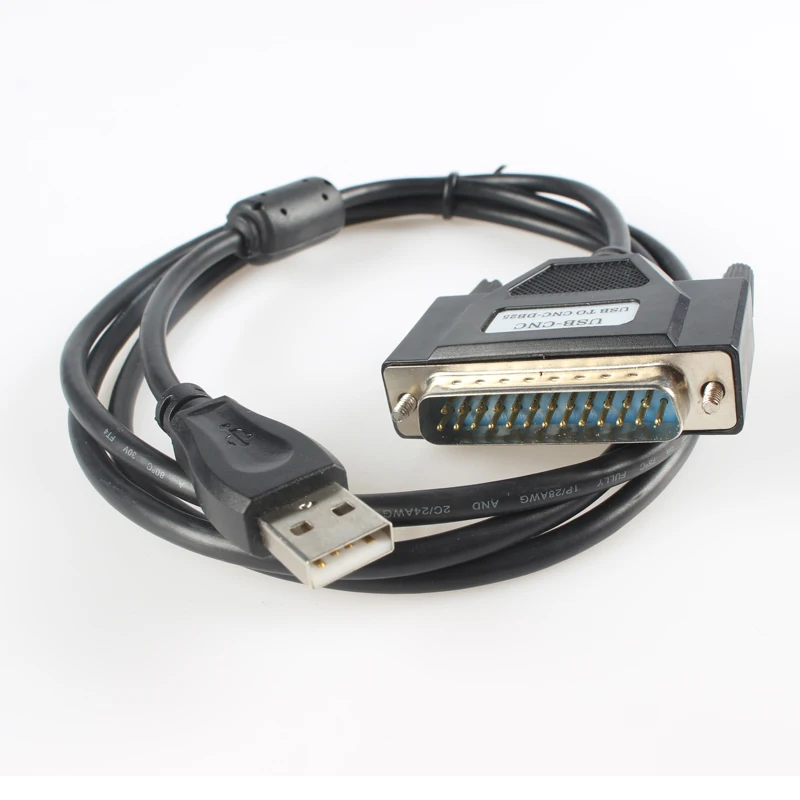

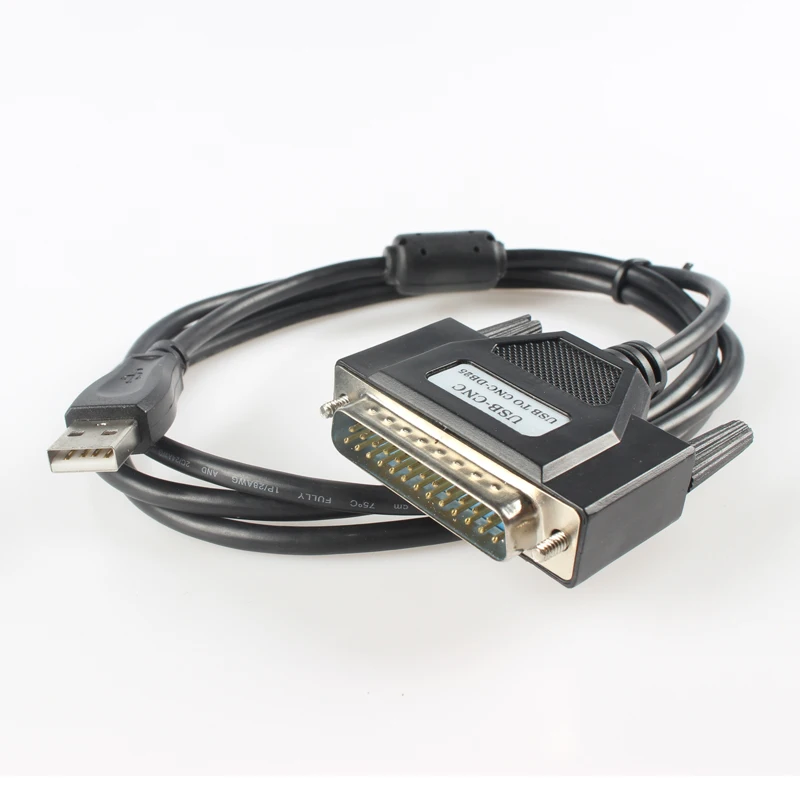

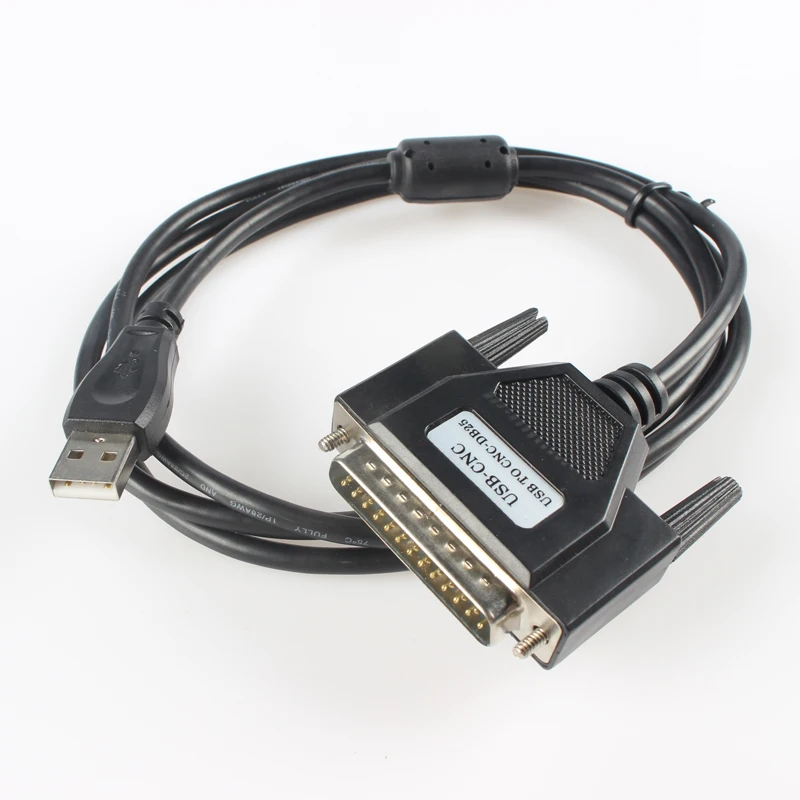

USB CNC Stepper Motor Parallel Data Lines for CNC Router Engraving Milling Machine Original Version

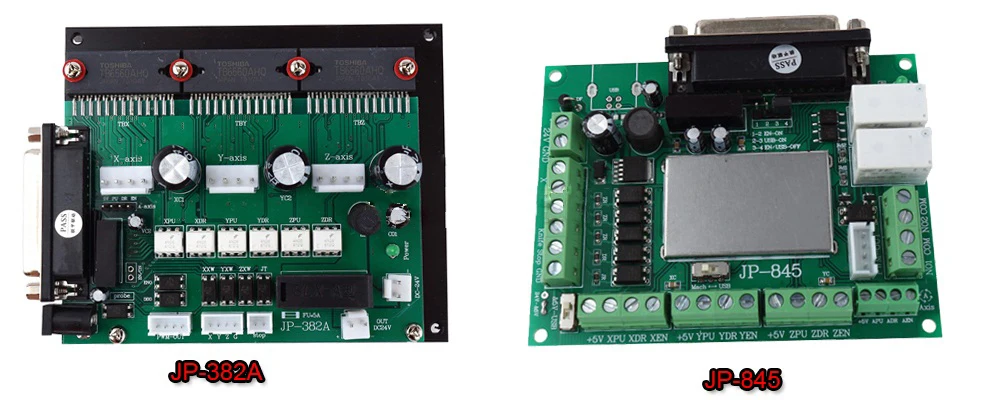

Special Note: This USB parallel port line can only match our JP-382A drive and JP-845 drive
, Not suitable for other sellers's drive board, please confirm your purchase before
Three-axis drive for the JP-382A drive and JP-845 drive or contact the owner whether to support !!!!

Computer hardware requirements: CPU ---- frequency 1.6G or more; memory --- 1G or more
Computer system requirements: only support WINDOWS system operating system, xp, win7-32 ​​bit, win7-64 bit
Support for standard G code files, such as *. Nc, *. Tap and other knife path files; carved, SW, UG, PW, and other software generated knife road are supported
Supports 4-axis, single-axis output frequency up to 25K. 4-axis simultaneous output maximum frequency of 100K Hz
Support DXF file generated by CAD software; PLT / HPGL
Support tool change (requires self-study)
Support wire cutting (need to self-study)
Support 4-axis limit function
Support for knife function
Support homing function
Support spindle switch control, water cooling, spray control
Support all functions custom keyboard shortcut
Support breakpoint carving feature
Support most of the commonly used CNC system functions: mirror, pan, loop, and other functions

The output inputs are the highest performance buffers
Advanced interpolation algorithms
You can start, stop, pause, and resume programs on your computer
RS274 / NGC G code (EMC2 compliant)
Support for advanced G-codes - G40, G41, G42 (tool radius compensation)
Advanced G-code - G43, G49 (tool length compensation)
Support for advanced G codes - G54, G59.3 (origin of coordinate system)
Supports 4-axis and 3-axis G codes
You can import toolpaths from DXF files
You can import the toolpath from the PLT / HPGL file
You can import toolpaths from image files
You can use the NC drilling tool path file
Tool path simulation
Advanced tool change procedures
Automatic tool length measurement
Key functions can be defined externally
The foam can be cut

Maximum stride frequency 25 kHz
Minimum pulse width 12
All axes can be operated manually
All axes can be connected to limit
You can control the I2C protocol of the external device

Purchase USB CNC data cable, comes with the software and instructions for use, because the NC system is the mechanical and electrical integration
Crystallization, the user's skills and knowledge have certain requirements, if you do not understand, need to self-charging
Learning, as long as I know to, will make the greatest efforts to provide better services.

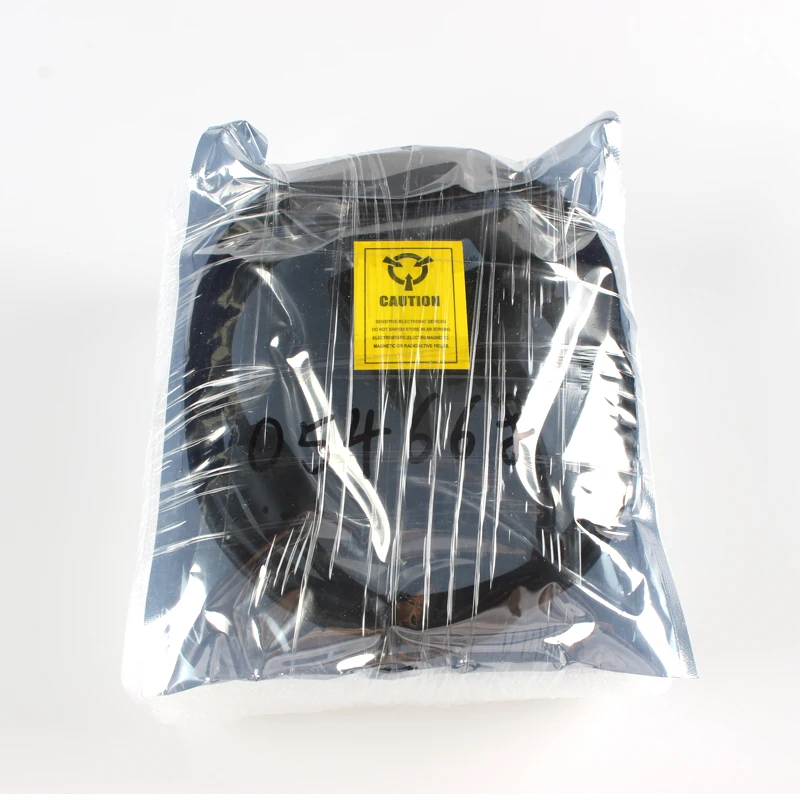

 Packing list  :

1 * USB CNC Parallel Data Lines(Don't include the drive)
