Description:

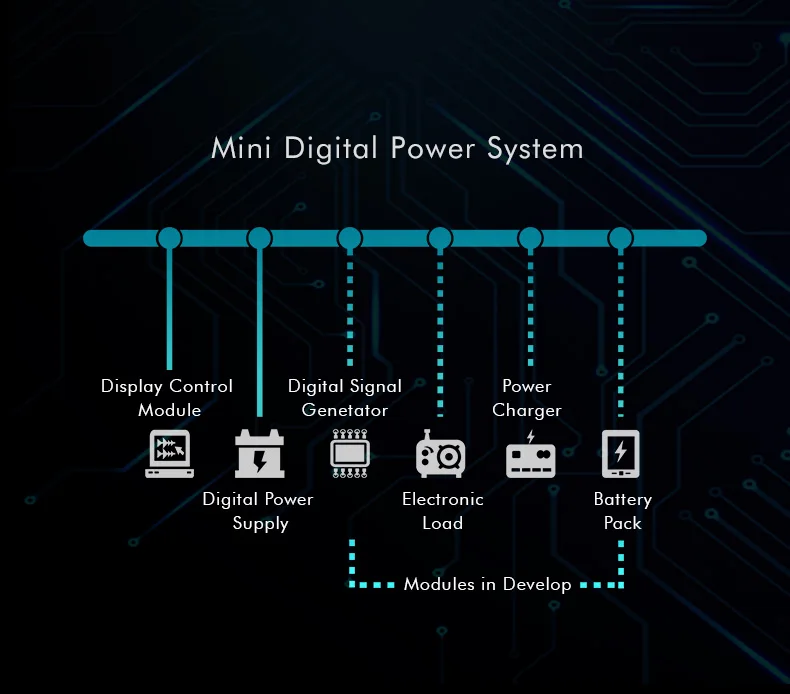

MDP (Mini Digital Power System) is a system of programmable linear DC power supply based on modular design, capable of connecting different modules for use as needed.
MDP-XP consists of a display control module and a digital power module. Through 2.4G wireless connection, it achieves multichannel free combination at the power of 90W per channel. MDP-XP is a high cost-effective programmable linear DC power supply, featuring indicators, stability, reliability and distinct user interface comparable with professional power supplies; it also provides programmable output, timing output, sequential control, automatic compensation and other powerful functions, so as to meet diversified testing needs.

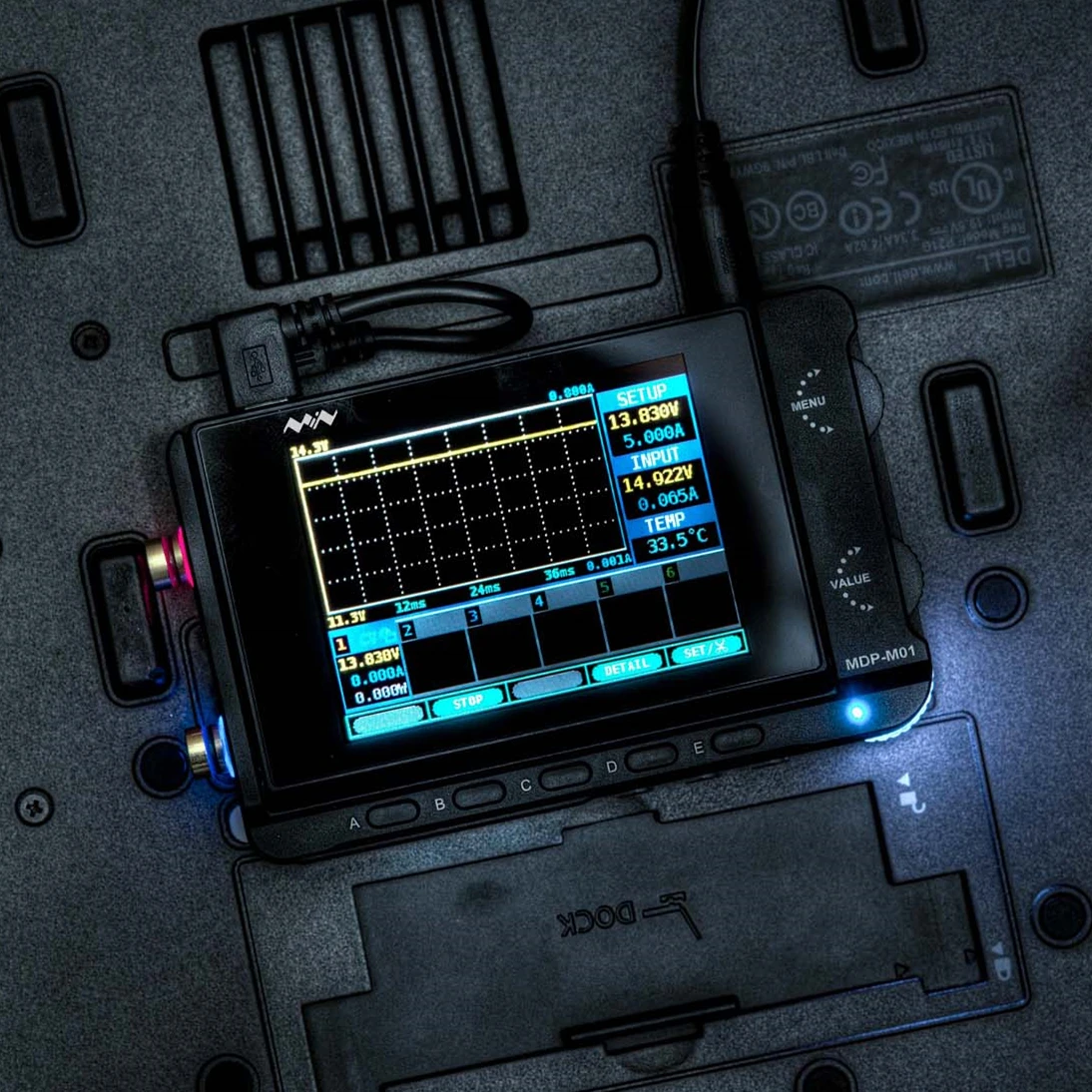

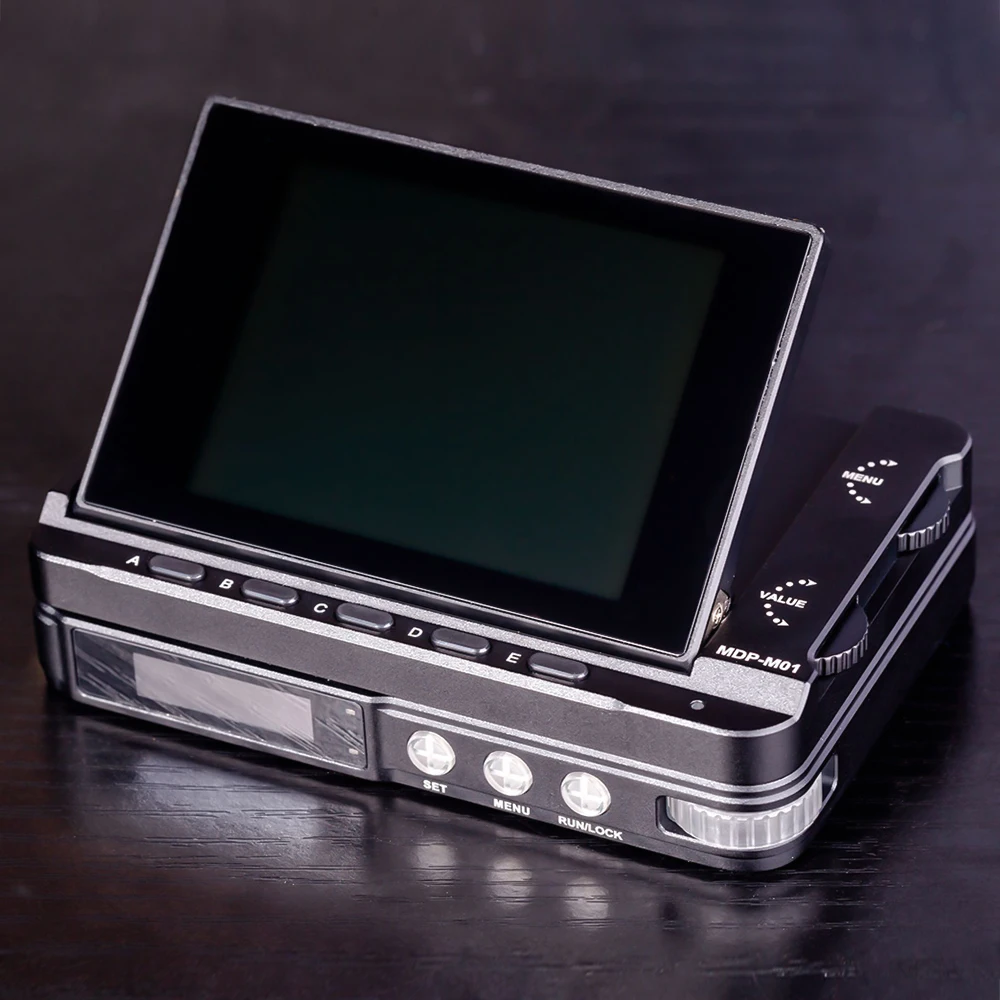

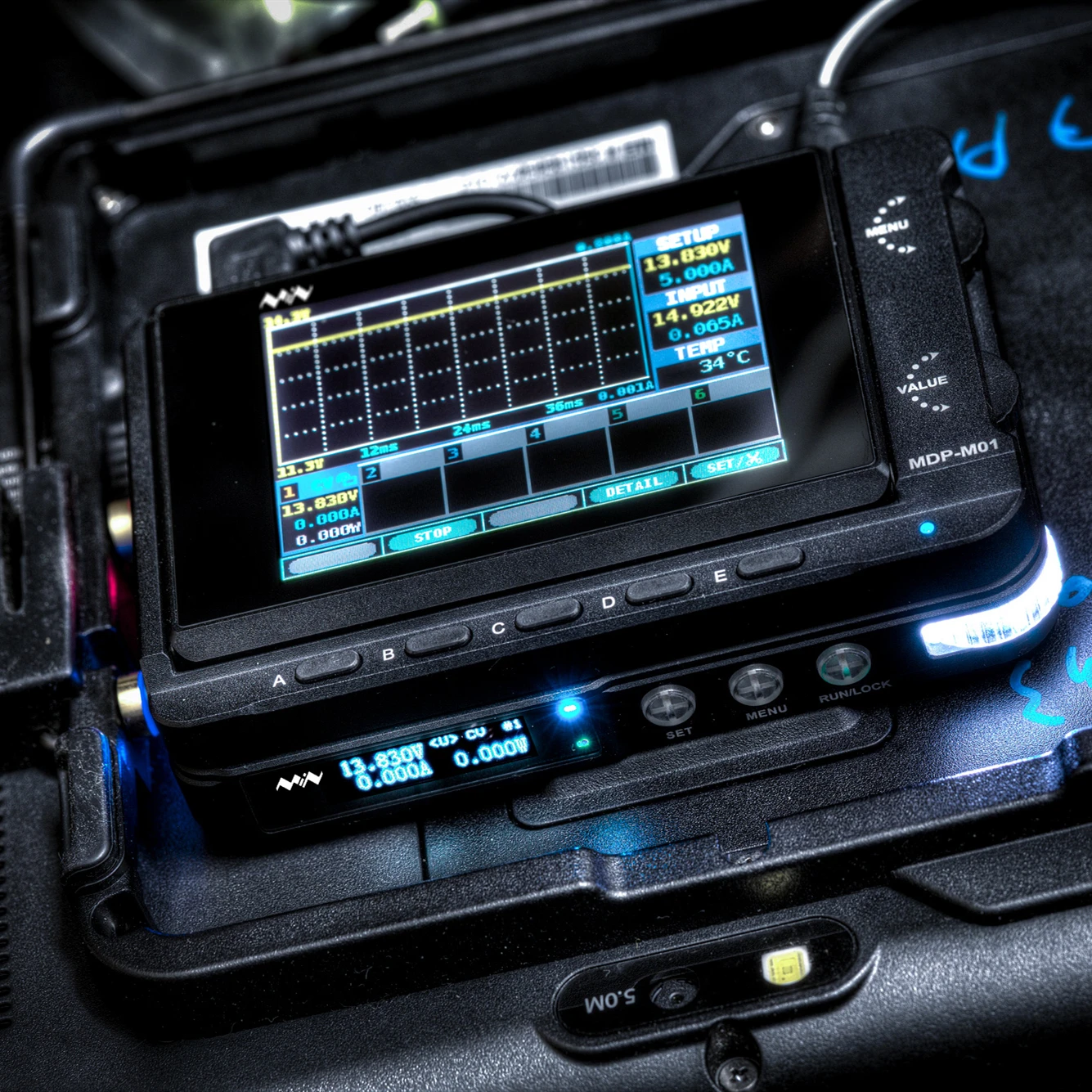

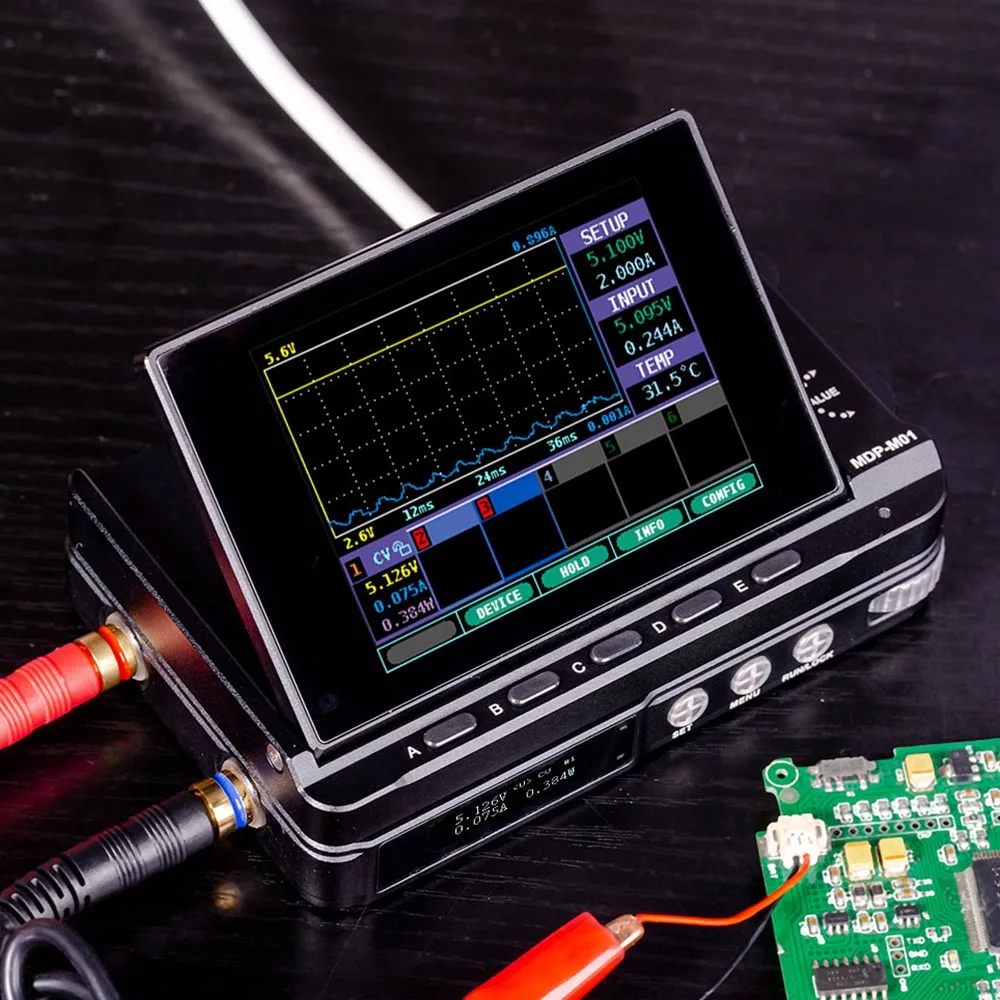

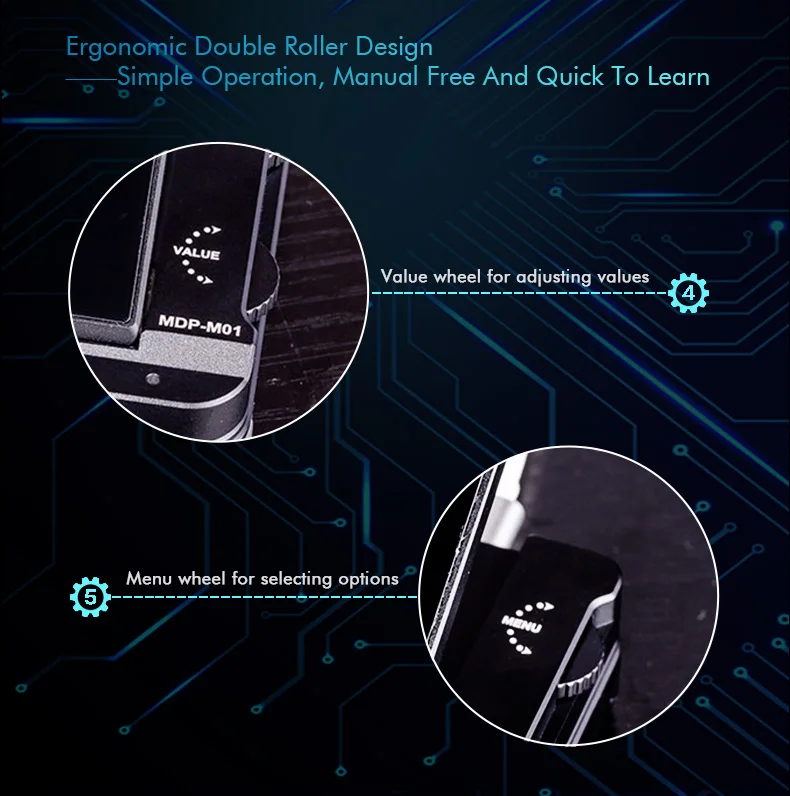

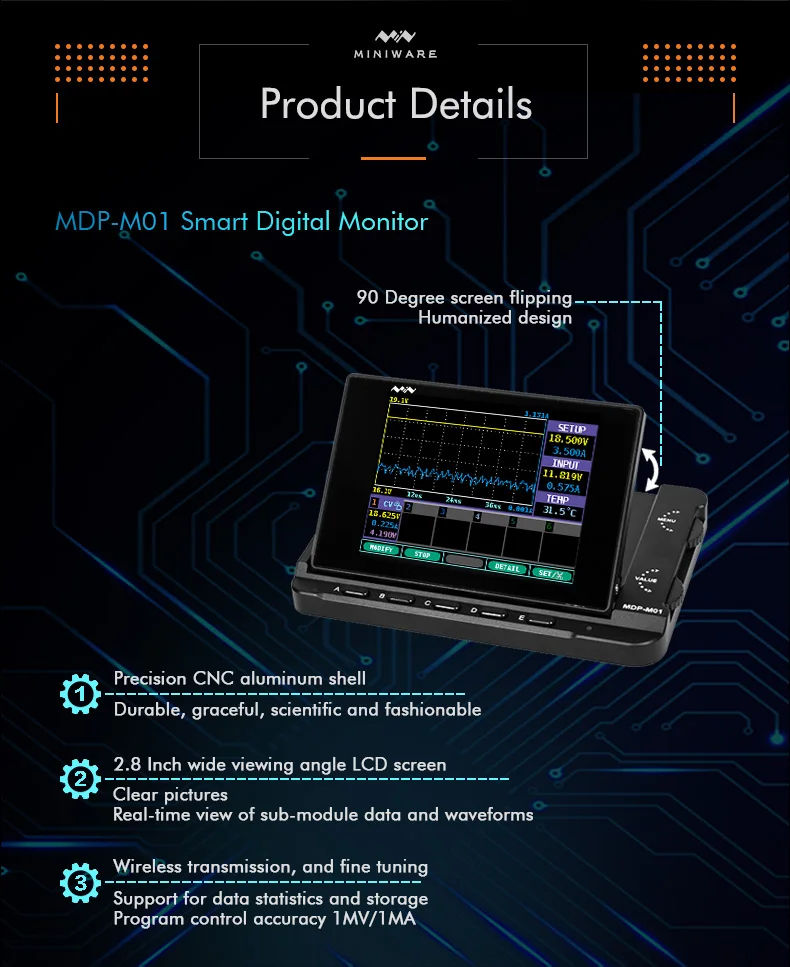

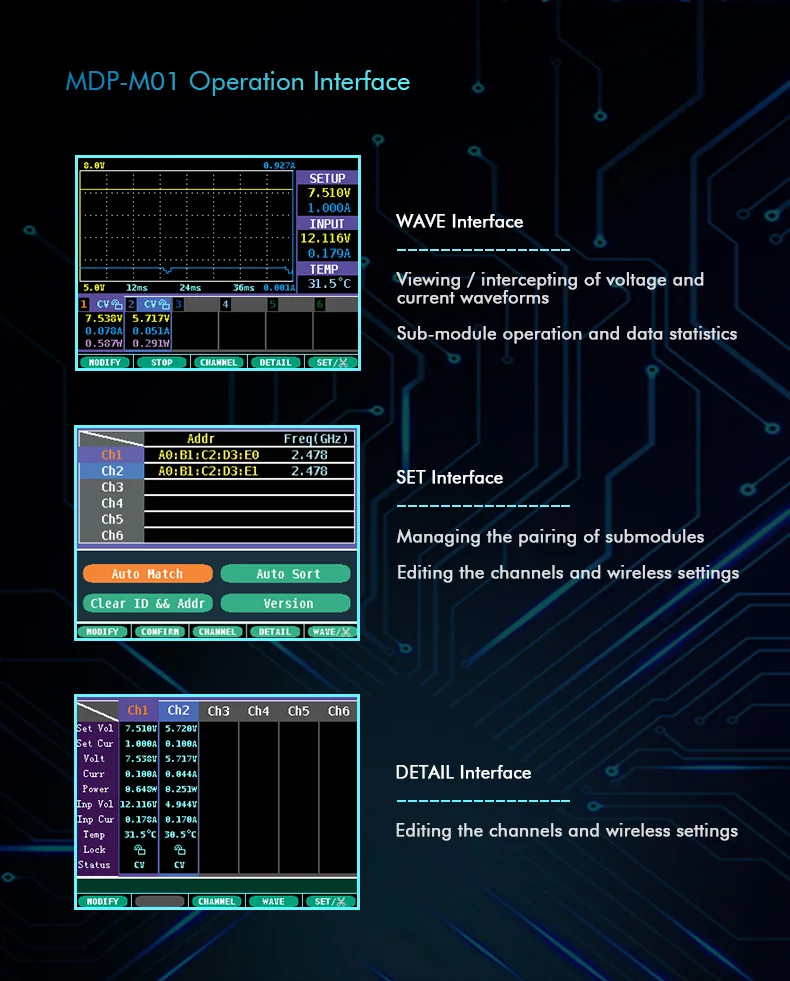

Display Control Module: equipped with a 2.8-inch TFT screen, it can display the voltage-current waveform in real time, support data statistics, and automatically pair with and control six sub-modules (digital power modules), with dual thumb wheels and 90-degree scrolling user-friendly design.
Digital Power Module: high efficiency linear output, 0.25mV ripple wave, high-speed transient response, and supporting precise fine-tuning.

Features:

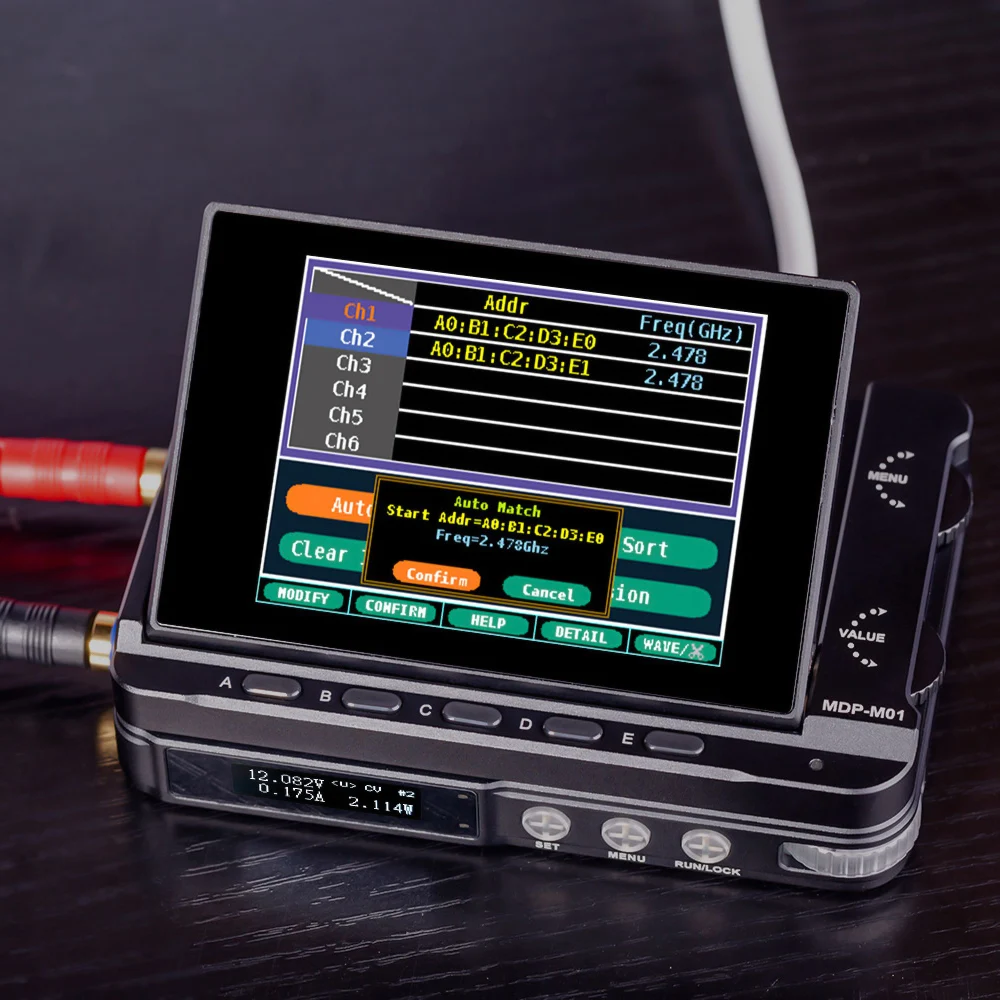

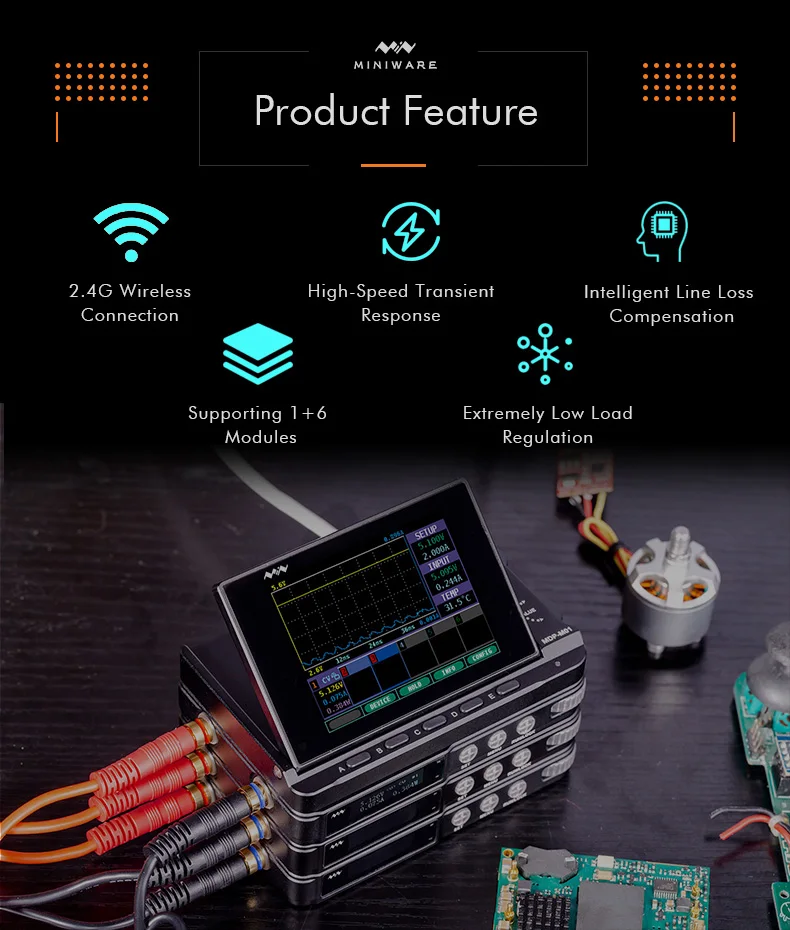

2.4G wireless connection, supporting a Display Control as well as six Digital Powers.

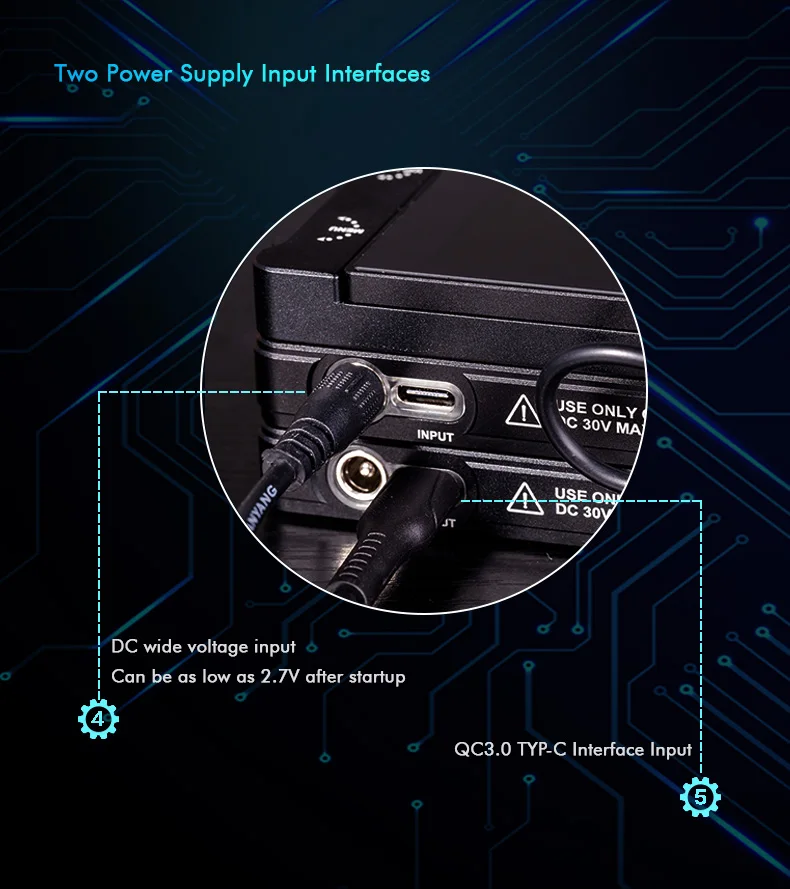

DC wide voltage input between 4.2V and 30V, reduced up to 2.7V after startup.
High-speed transient response and over current protection, as fast as 4uS
Extremely low load regulation and intelligent line loss compensation.
High efficiency and natural heat dissipation with 90W of capacity load.

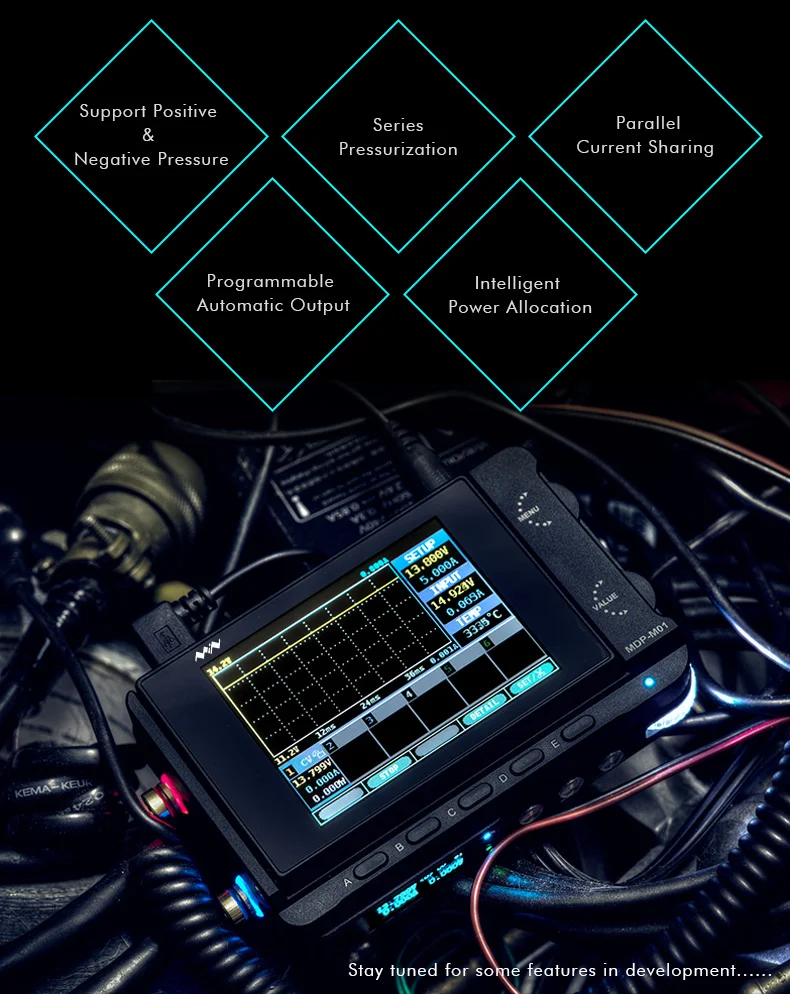

Support positive & negative pressure, series pressurization, parallel current sharing, free combination of collaborative load, and intelligent power allocation.

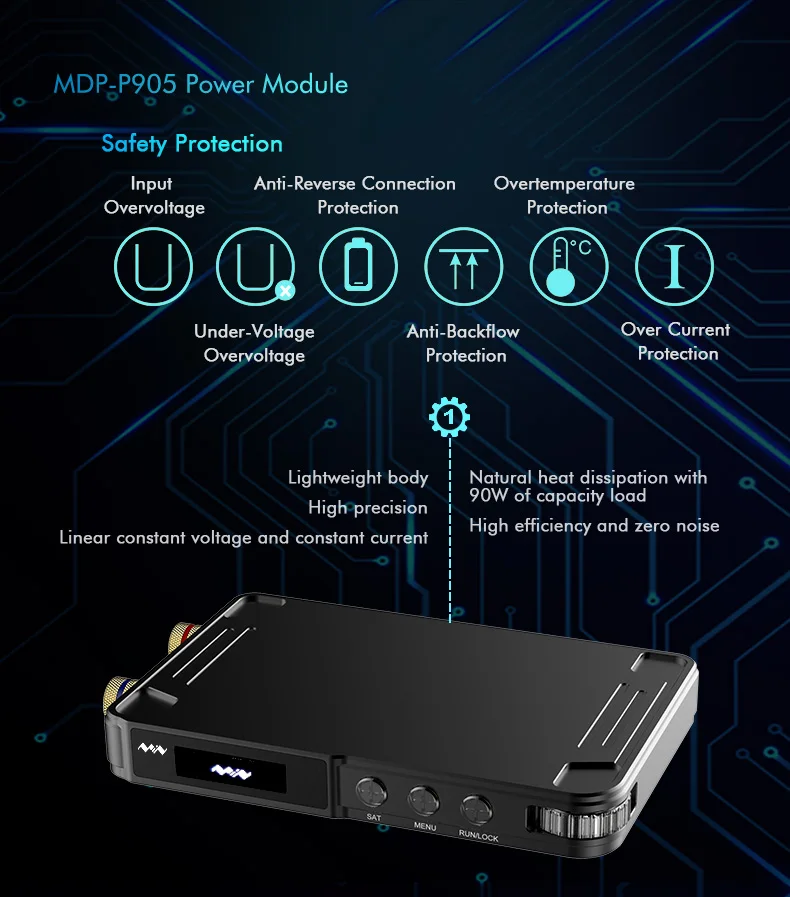

Security Protections: input overvoltage, under-voltage protection, anti-reverse connection protection, anti-backflow protection, overtemperature protection, and over current protection.

Applications:
General tests and teaching experiments in R&D laboratory.
Maintenance of cellphones, laptops and other digital products.
Power supply testing and data logger of RF and microwave circuits or modules.
Supply purified power for high-accuracy digital-analog h'ybrid circuits and Hi-Fi audio devices.
Property verification and fault diagnosis of devices and circuits.
Quality control and quality inspection.
Emergency power supply for model airplanes and vehicles.

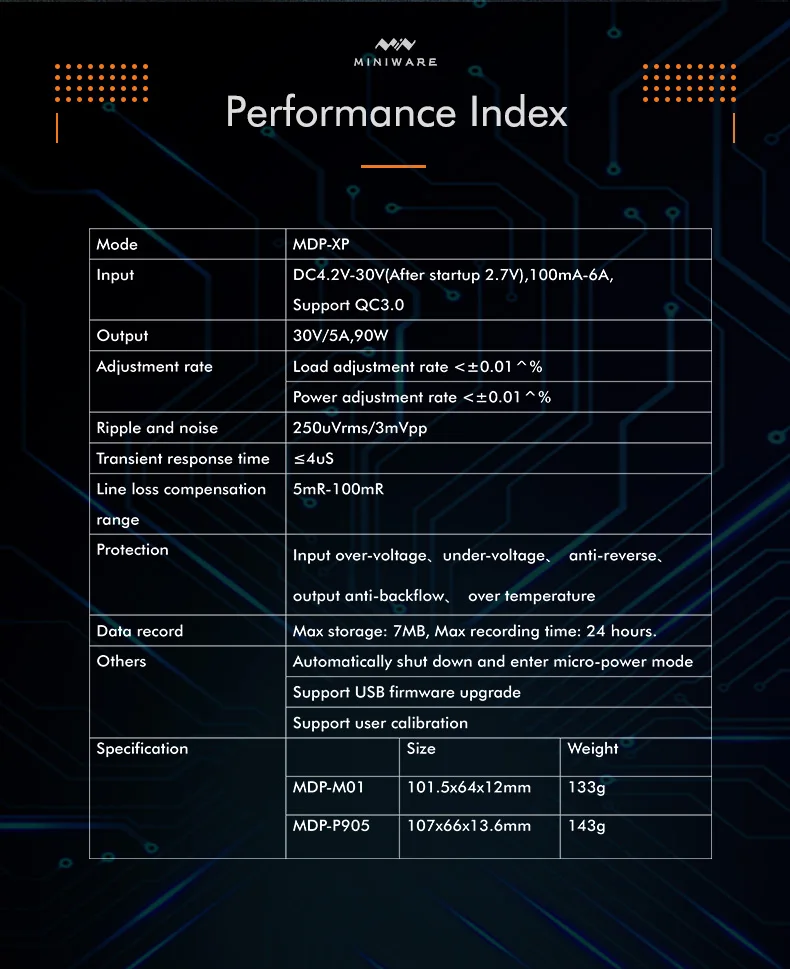

Specifications:
Mode: MDP-XP
Material: Metal
Input: DC4.2V-30V(after startup 2.7V), 100mA-6A, support QC3.0
Output: 30V/5A,90W
Adjustment Rate: Load adjustment rate <±0.01^%; power adjustment rate: <±0.01^%
ripple and Noise: 250uVrms/3mVpp
Transient Response Time: ≤4uS
Line Loss Compensation: 5mR-100mR
Protection: Input over-voltage,under-voltage, anti-reverse, output anti-backflow, over temperature
Data Recording: Max storage: 7MB, max recording time: 24 hours.

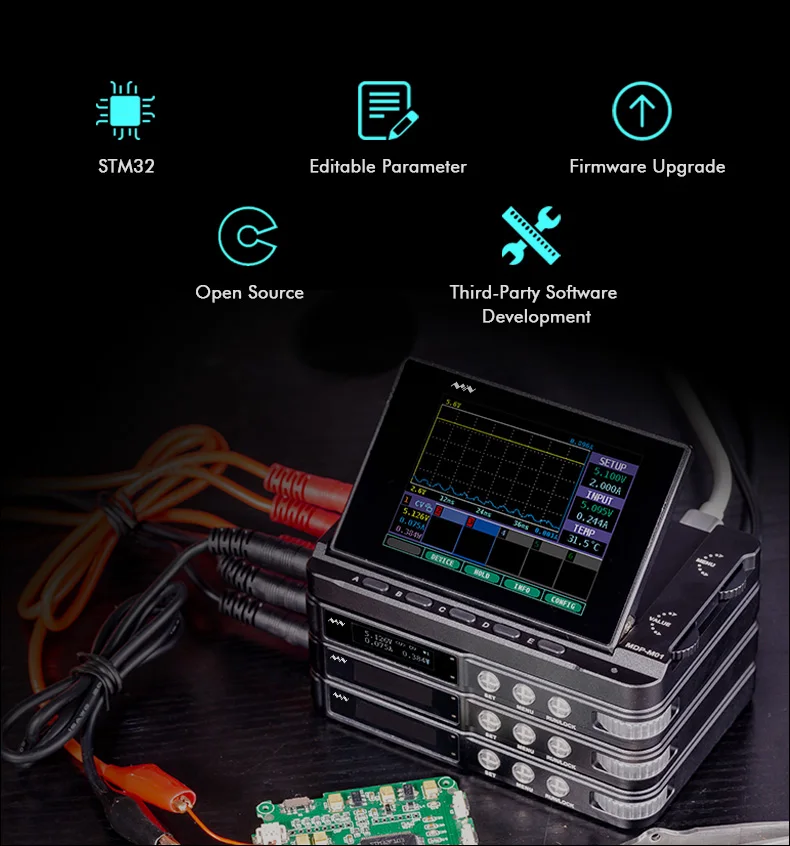

Others: Automatically shut down and enter micro-power mode; support USB firmware upgrade; support user calibration
Item Size: Approx. MDP-M01:101.5 * 64 * 12mm / 4.0 * 2.5 * 0.5in; MDP-P905: 107 * 66 * 13.6mm / 4.2 * 2.6 * 0.5in
Item Weight: Approx. 276g / 9.8oz
Package Weight: Approx. 516g / 18.2oz
Package Size: Approx. 16 * 3.5 * 14cm / 6.3 * 1.4 * 5.5in

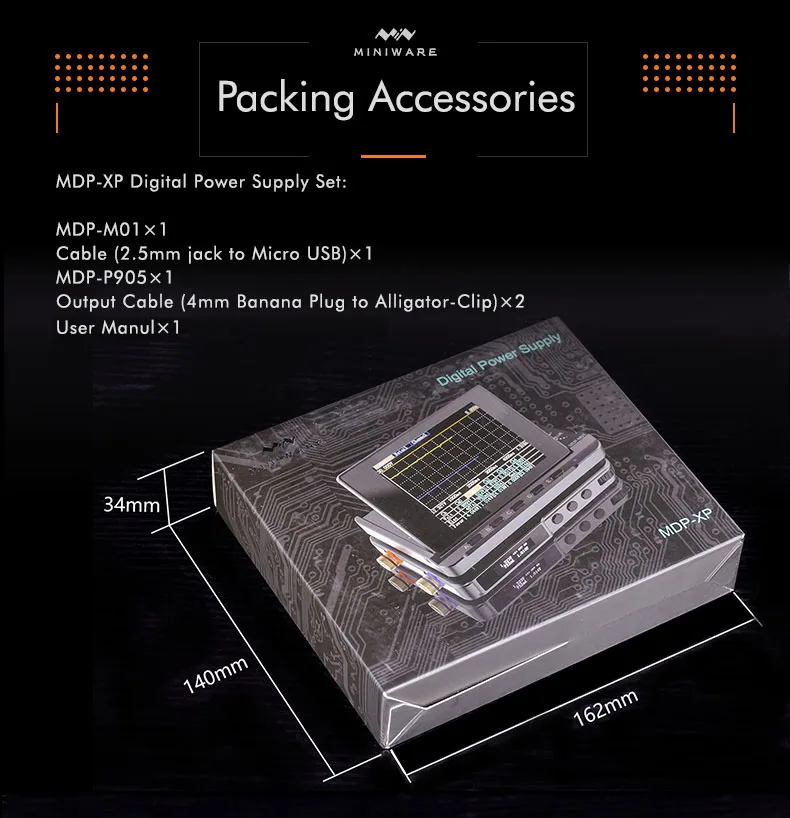

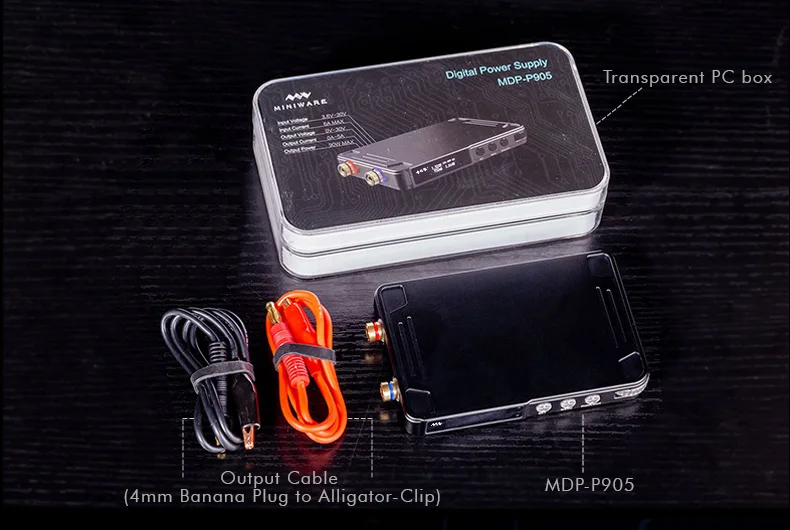

Package List:

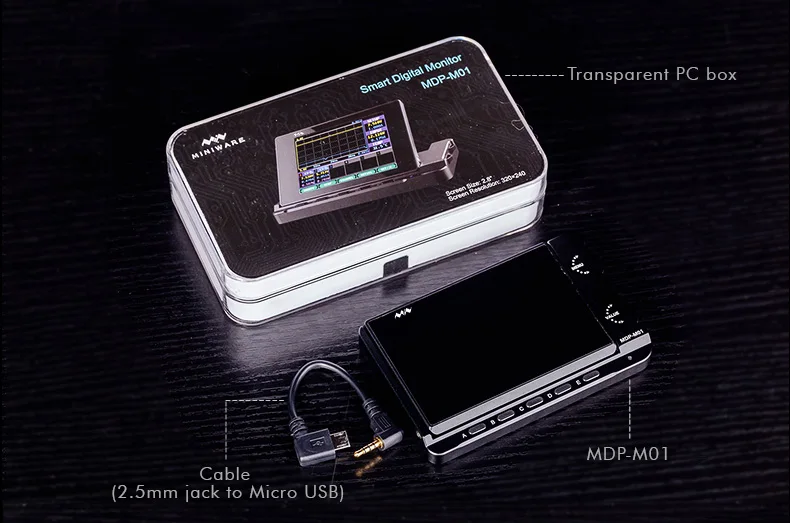

1 * MDP-XP Power System(1 x MDP-M01 Smart Digital Monitor + 1 x MDP-P905 Digital Power Supply)
1 * Cable (2.5mm audio head to Micro USB)
2 * Output Line (4mm banana head to crocodile clip)
1 * Data Cable (2.5mm audio head to USB A)
1 * User Manual (English)
