Original 36V 20Ah 15Ah 720Wh Aluminum alloy E-Bike Battery With Luggage Hanger for Bafang BBS01 250W 350W BBS02 500W TSDZ2 Motor | Спорт и

36V 15Ah 20Ah ebike Back Rack Battery Lithium ion Batteries Pack for 500W 350W 250W Bafang BBS01 BBS02 Electric Bicycle



Product Main Features

1. Built-in A grade high quality brand 18650 lithium cell

2. Waterproof IP65 and solid aluminium case, stronger a lot than normal plastic case 3. With on/off switch, can help you save more battery power

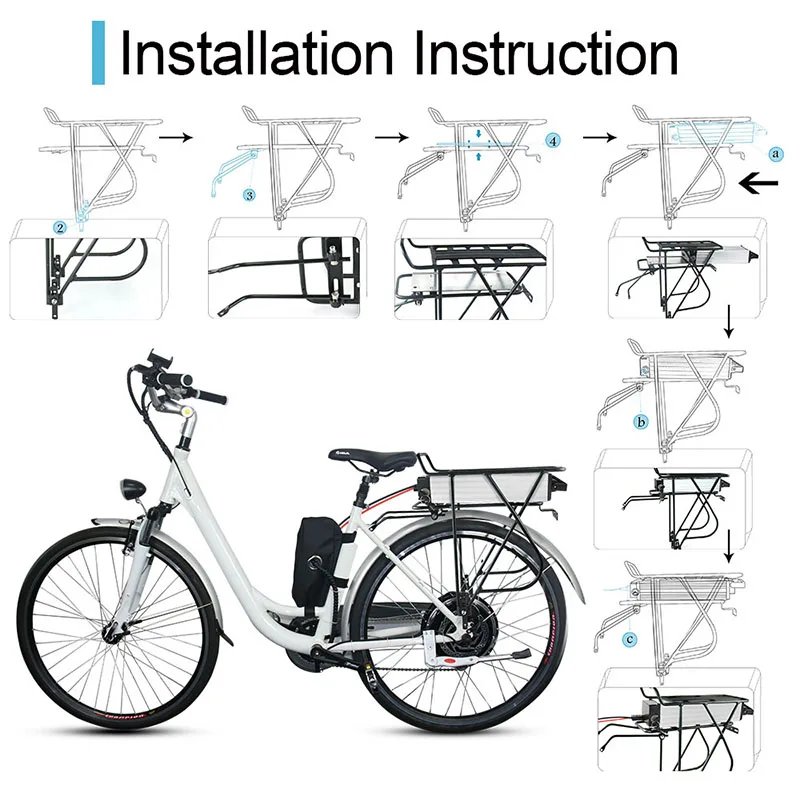

4. Can be install in the rear of your ebike, have no size or space restrictions

5. With handle for easier install and carring

6. Lock with keys securely locks the mount on bike frame

7. Each cell has its own fuse for ultimate in safety 8. Commercial insurance have been purchased before each battery send to your hand (you can see the insurance policy at the bottom of the page)

9. Each pack have ran through a full charge and discharge test in produce, to make sure you are getting every amp hour you paid for.



Battery Specification



Parameter

36V 15Ah

36V 20Ah

1

Nominal Capacity

15Ah

20Ah

2

Nominal Voltage

36Volt

3

Nominal Power

540 Watt Hours

720 Watt Hours

4

Composed Type

10Series 6Parallels 10S6P

10Series 8Parallels 10S8P

5

Battery Pack Cell

Powerful Brand 18650 3.7V 2500mAh 3C Cell

6

Built-in BMS

20Amp continuous 60±10Amp maximum

7

Fit Motor Power

36V 180W 250W 350W 500W

8

Riding Mileage

32km~54km

43km~72km

9

Charge Current

2~3A

10

Charge Cut-off Voltage

42V

11

Discharge Cut-off Voltage

30V

12

Battery Weight

4.5kg(9.92lb)

5.5kg(12.13lb)

13

Battery Charger

2A Standard Charger

3A Fast Charger

14

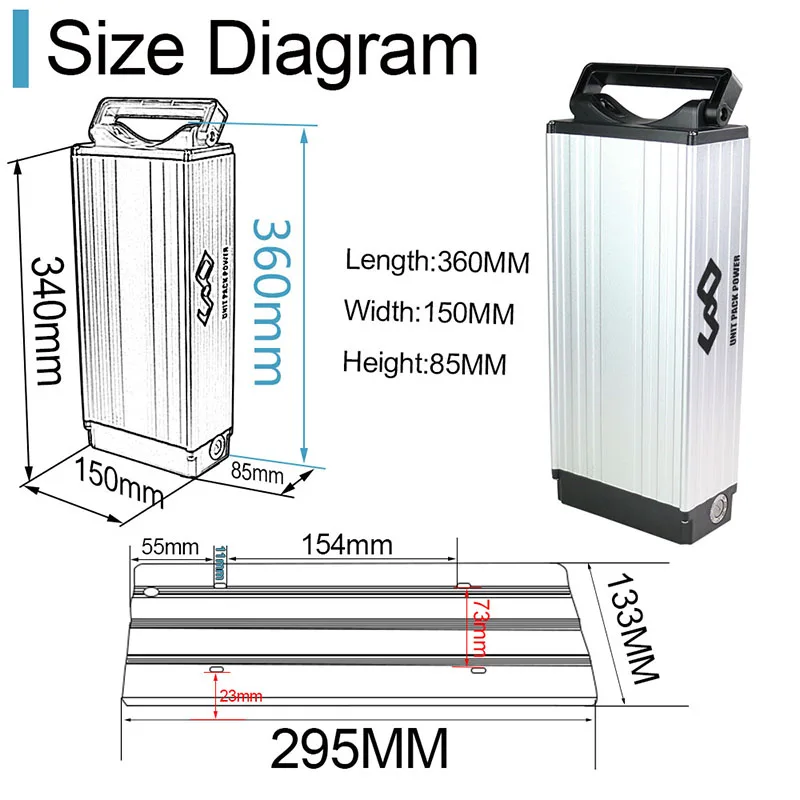

Dimensions

360*150*84mm

15

Charge Temperature

0 to 45°C

16

Discharge Temperature

-20 to 65°C

17

Cycle Life

≥80% Capacity After 800 Cycles

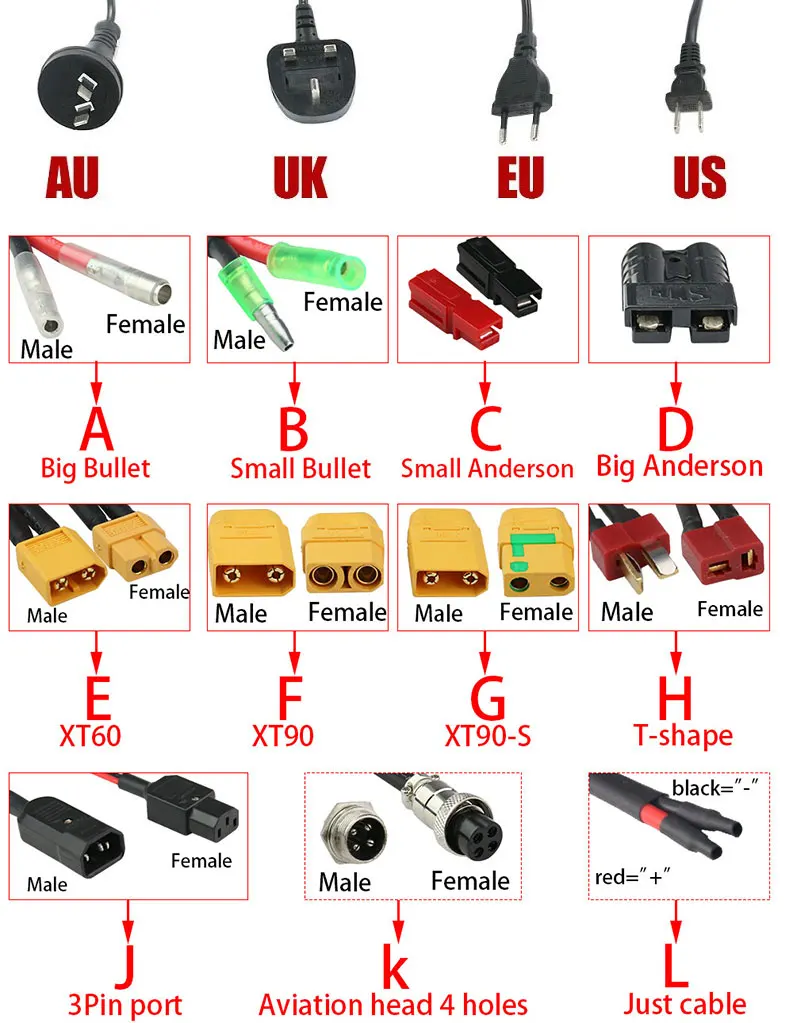

Charger plugs and Discharge connectors optional 1. Charger Plug:  US EU UK AU  plugs optional, will provide according to delivery country if without requested. 2. Discharge Connector: There are 11 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested. 3. If you have any requirement about this, please leave message in your order.



Battery Display

Shipping Ways Battery is a special product, all batteries need several cycle test before delivery, so the produce time is 3~4 workdays. For EU Countries customer: Shipping by UPS/DPD, tracking number can be track able online after arriving Europe. Shipping time is usually 7-12 working days( not including Sat Sun) after delivery. For USA Customers: Shipping by Fedex/UPS, Shipping time is usually 6-12 working days after delivery. Special Line: 1)Shipping by Special Line to Australia, Malaysia, Thailand, Taiwan, Shpping time is usually 4-12 working days. 2)Shipping by Specail Line to Russia, tracking online update after arriving Moscow. Shipping time is usually 18-28 working days. Please note: battery can't be sent to any island address, if you're from a Island address, please check with us before make order. UnitPackPower also have warehouse and maintenance center at USA and Germany, if you want quicker shipping.   Guarantee 1) We provide 1 year warranty for all electric bike batteries. 2) Any battery with quality problem within one month we can resend you a new one after provide your proof. 3) Any battery with quality problem within one year, we provide free repaired. 4) All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping. Top brand lithium battery manufacturer in China, rest assured to buy.   We don't supply warranty service for the following situation: 1) The battery goes over the water. 2) The battery is broken by man-made. 3) The cells are burnt out after incorrect using. 4) Return the battery without reason. 5) Open a dispute without contacting us. Feedback 1) Our battery can fit most of motor kit, exclude(not only) these: B0SCH, SHIMANO, YAMAHA, Panasonic . 2) Please contact us If you can't confirm whether our battery can fit your motor. 3) If you have any problems please feel free to contact with us BEFORE you leave negative feedback or file a dispute. 4) Any problem is not a problem, as long as you contact us. 5) Your satisfaction and positive feedback is very important to us. 6) Please kindly leave us a positive feedback and 5 Stars if you are satisfied with our items and services.



Company Information     FAQ   Q: What type of this electric bike battery? A: It is li ion battery,Chemical is Li(NiCoMn)O2.   Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery? A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.   Q: What's temperature range of charge and discharge? A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C   Q: What kind of cells used on this electric bicycle battery? A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.   Q: Do your e-bike battery come with charger? A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.   Q: Do your electric bike batteries come with BMS? A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.     Q: Can you provide OEM and ODM service? A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.     Lithium Battery Features   1) Longer battery life, the life expectancy is two times that of lead-acid batteries. 2) Rechargeable and no memory effect. 3) The weight is more lighter than other batteries. 4) Smaller dimensions and can be customized. 5) Safer and more environmentally friendly, No heavy metals and hazardous substances. 6) BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current, over-heat, short circuit.     Warnings   Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding. Does not use or leave the battery near a heat source as fire or heater. Use the battery charger specifically for that purpose when recharging. Do not reverse the position and negative terminals. Do not connect the battery electrodes to an electrical outlet. Do not discard the battery in fire or a heater. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc. Do not strike, trample or throw the battery. Do not directly solder the battery and pierce the battery with a nail or other sharp objects.   UnitPackPower batteries have insured to China Ping An Insurance, rest assured to buy.
