1U EPON OLT 4 Port For Triple-Play olt epon 4 pon

1U EPON series is a high integrated, medium capacity box ERON OLT switching equipment developed by Hongsheng Guang Shenzhen for the operator access and enterprise park network. The product follows IEEE802.3ah technical standard and meets the requirements of EPON OLT equipment in "YD/T 1475-2006 access network technical requirements". It has good openness, large capacity, high reliability and complete software functions. It is widely used in the construction of network coverage, special network construction, enterprise network park access and other access network construction.

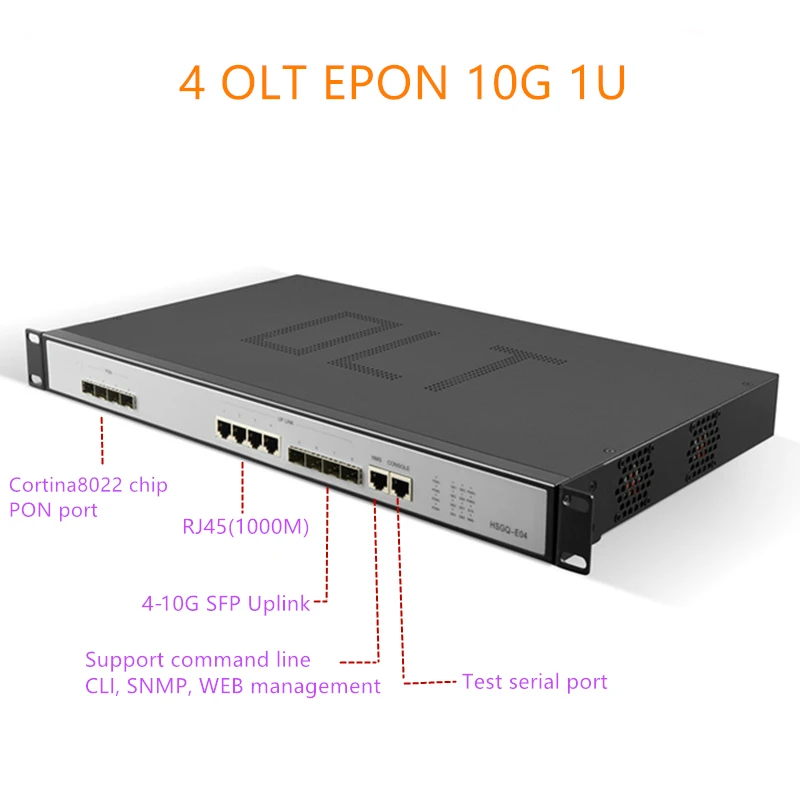

4PON+4(1000M)RJ45+4(1.25G/10G)+1NMS+1CONSOLE

Advantage:

 EPON:OLT follows the technical standard of IEEE802.3ah and China telecom. (YD/T 1475-2006)

l Capacity: Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration.

l Uplink: support electrical and optical modules, can be flexibly configured according to different networking.

l Dimension: 1U cassette save space, low power consumption and save cost.

l Optical Line Protection: support automatically switch when the line is debug.

l High reliability: supports dual power supply(Default single power supply).

Model

E04-1U

DDR

512M

FLASH

16M

Size (L*W*H)

Product size:442mm×260mm×44mm

Package size:520mm×372mm×87mm

Weight

<5kg

Uplink

QTY

8

Copper

4*10/100/1000Mauto-negotiable,RJ45

SFP

4 SFP slots

PON

QTY

4

PhysicalInterface

4 SFP slots

Connector Type

1000BASE-PX20+/PX20++/PX20+++

Max splitting ratio

1:64

Management Ports

CONSOLE port/NMS PORT

Power Input

AC: 100V~240V AC 47/63Hz

Support standard

IEEE 802.3ah EPON

IEEE802.3(10Base-T)

IEEE802.3u(100Base-TX)

IEEE802.3z(1000BASE-X)

IEEE802.3ab(1000Base-T)

IEEE802.1Q(VLAN)

IEEEE802.1d(STP)

IEEEE802.1W(RSTP)

IEEE802.1p(COS)

IEEE802.1x(Port Control)

IEEE802.3x(flow-control)

Each OLT interface supports at most 64 ONU;

Transmission distance of each OLT is at most 20Km

PON function

Support auto register and confirm

Blacklist and whitelist onu

DBA configure

P2P

ONU authorization

Layer 2/3 function

VLAN,QinQ,link convergency, broadcast strom control

Support at most 4094 VLAN;performance statistic

16K MAC address;mac address management

Port mirror / Static Trunk

Support RSTP

Storm control

Support IGMP Snooping/proxy

Support 512 router hosts

Support 64 router subnets

Limit quantity of maximum user at each port

Port isolation

Packe storm control

ACL access control based on data stream

QoS based on port, VID, TOS and MAC address;

Encrytion of PON port transmitting data

Support 802.1X authentication

Configuration and Management

SNMP/NMS

WebGUI management

CLI, SNMP, TELNET,cluster etc.

SSHv1/v2

Software and bootrom upgrade by TFTP and FTP

Local server syslog to record system log

Chinese/English command prompt

Ping and  traceroute

Debug/Log management

User management;

Alarm management.

Lightning

Service port has lightning protection

Maintenance

Telnet remote maintenance

Temperature

-10℃~60℃

Humidity

5%~95%
