High Precision Wireless LCD Temperature and Humidity Transmitter Sensor for Greenhouse US 100-240V | Дом и сад



Feature:

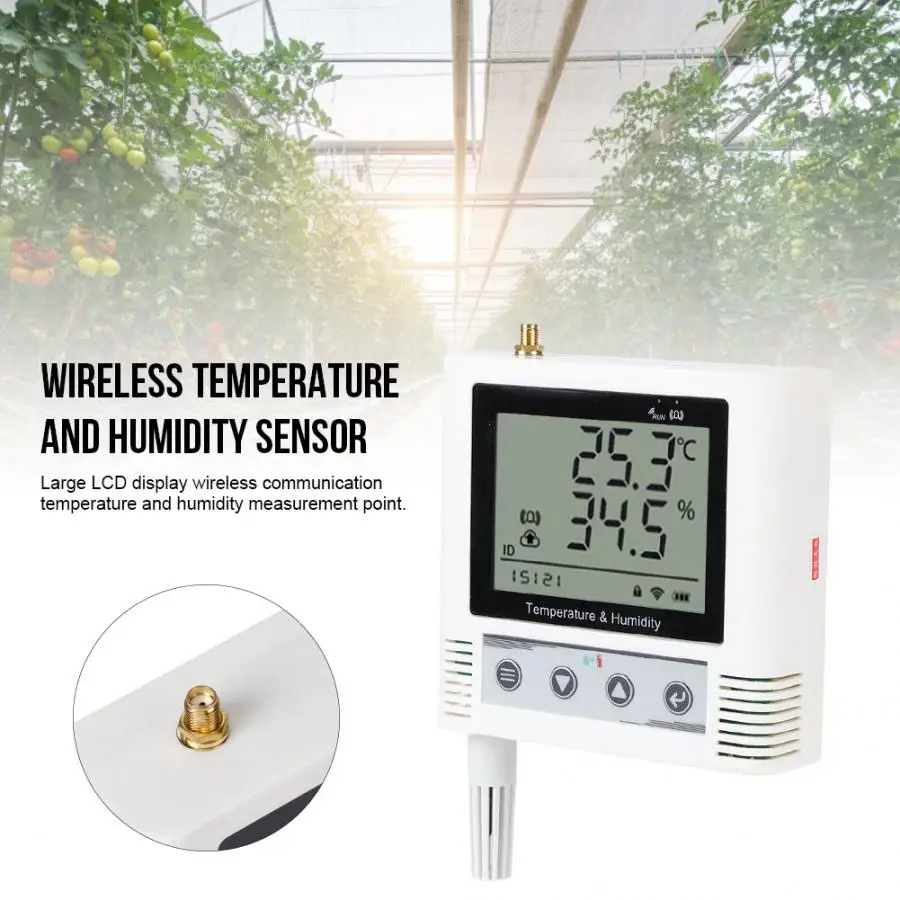

1. Large LCD display wireless communication temperature and humidity measurement point.
2. Easy to install, wall-mounted installation, can be pasted on site to the wall or the outside wall of the refrigerator.
3. It adopts unique wireless spread spectrum technology, with long communication distance, 800m/2624.7ft of line of sight, strong penetrating power, unique frequency hopping technology, and strong communication anti-interference ability.
4. It can set the upper and lower limit alarm value of temperature and humidity, built-in high-decibel buzzer, with the function of local sound and light alarm, the limit can be set freely, the temperature and humidity are calibrated by password.
5. Built-in battery power, data is transmitted once every 1 minute, and can be used continuously for 6 months on a single charge.
6. The external probe type probe line can be up to 30m/98.4ft long and a variety of probes are available for different applications.
7. Widely used in the drug warehouse, dust - free workshop, machine room, shade cabinet, greenhouses etc.



Specification:

Condition: 100% Brand New
Item Type: Wireless Temperature and Humidity Sensor
Material: Polyester Plastics
Color: As shown in the picture

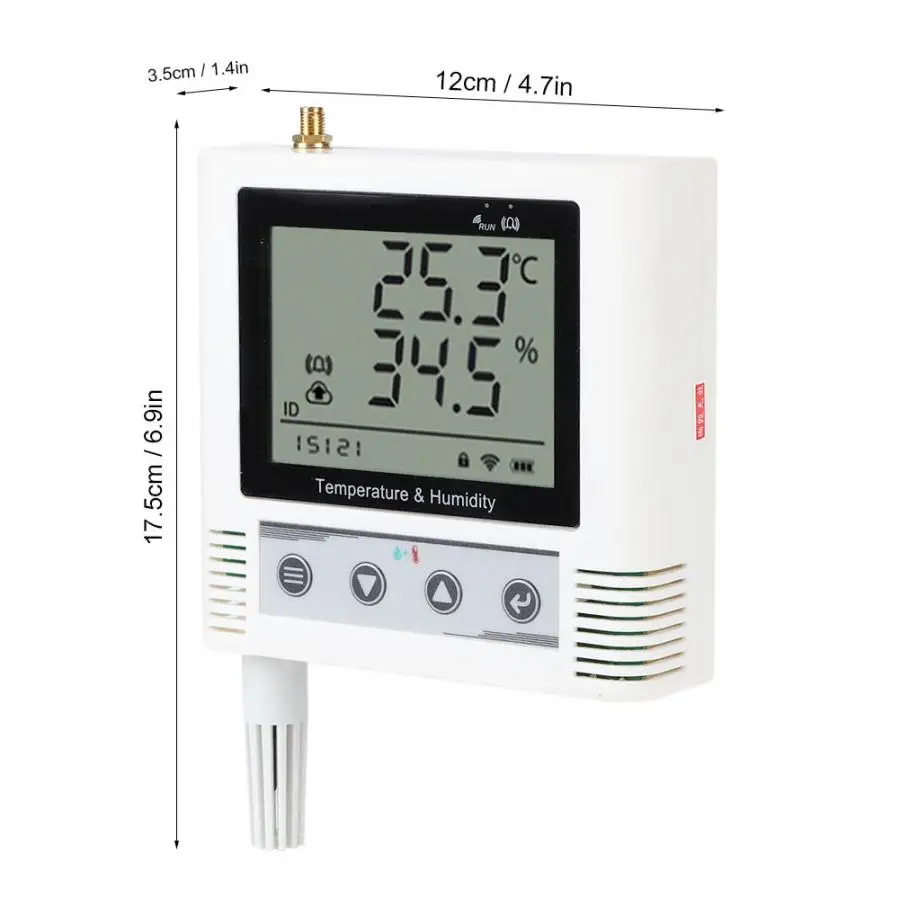

Size: Approx.17.5x12x3.5cm / 6.9x4.7x1.4in
Weight: Approx.405g/14.3oz

Plug&Voltage:  US 100-240V

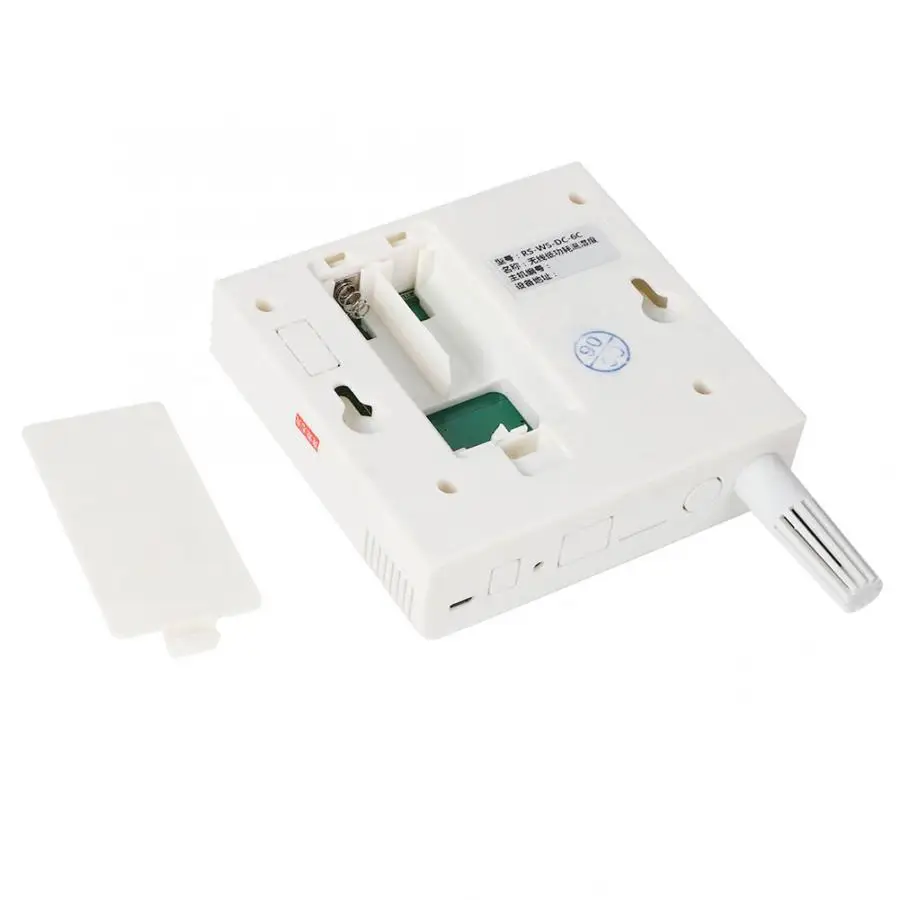

Battery: 18650 lithium battery(Not included)
Battery Capacity: 2500MAH(1-2 pcs can be used)

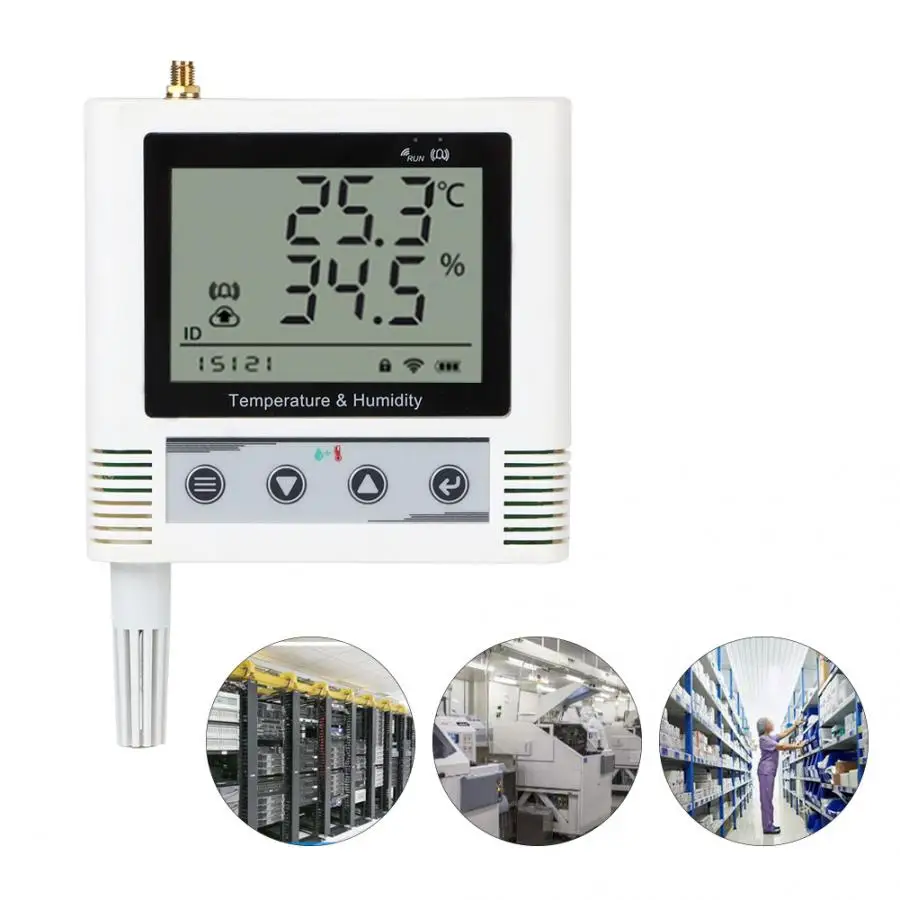

Scene Application: For drug warehouse, dust-free workshop, machine room, shady cabinet, greenhouse
Power Supply: 5V external power supply or built-in battery
Power: 0.002W (when built-in battery power supply)
Quasi-precision Humidity: ± 2% RH (5% RH ~ 95% RH, 25 ° C)
Quasi-precision Temperature: ±0.4°C (25°C)
Quasi-precision (default) Humidity: ±3%RH (5%RH~95%RH, 25°C)
Quasi-precision (default) Temperature: ±0.5°C (25°C)
Transmitter Circuit Operating Temperature and humidity: -20 ° C ~ +60 ° C, 0% RH ~ 80% RH
Probe Operating Temperature: -40°C~+80°C
Probe Working Humidity: 0~100%RH
Temperature Display Resolution: 0.1 °C
Humidity Display Resolution: 0.1%RH
Temperature and Humidity Refresh Time: 1s
Long-term Stability Humidity: ≤1%RH/y
Long-term Stability Temperature: ≤0.1°C/y
Response Time Temperature: ≤25s (1m/s wind speed)
Response Time Humidity: ≤8s (1m/s wind speed)
Output Signal: Radio signal
Transmission Distance Indoor: can wear 3~4 concrete wall
Transmission Distance Outdoor: line of sight is greater than 800m/2624.7ft
Alarm Function: Built-in buzzer



Key Function Description:

Function Description Key operation mode Reset key Exit when setting parameters Short press Backspace key Return to main menu when setting or viewing interface Short press On button Press this button in the shutdown state to start the device Long press Off button Press this button when the device is turned on Long press Add button Menu view when the front page button Short press Front page Parameter modification when the data increase button Short press Open Open the shortcut key of alarm in the main interface Long press Page backward Menu view when the front page button Short press Reduce key Data reduction button during parameter modification Short press Close Turn off the shortcut key for alarm in the main interface Long press Menu button Enter the menu selection key of the setting interface Short press Enter key Confirmation key after parameter modification is completed Long press

Overall Installation Instructions:
As far as possible, it should be placed at a higher and more open place. It is recommended to be 1m/3.3ft above the ground; avoid placing metal objects around the sensor to prevent the wireless signal from being weakened by shielding; electronic interference will be caused by the following various objects, so Should be avoided: generators, high-current equipment, high-voltage relays, transformer, etc.; vibration or blow may also become a source of interference, so the equipment should be as static as possible when the equipment is installed.
Do not install the device outside of the sensor's measurement range, as this will prevent the product from working properly and cause permanent damage to the sensor.
Please do not tear up the label on the product case with important information such as the product ID.
Please do not disassemble the product, and the company will not be responsible for any damage caused.





Package List:

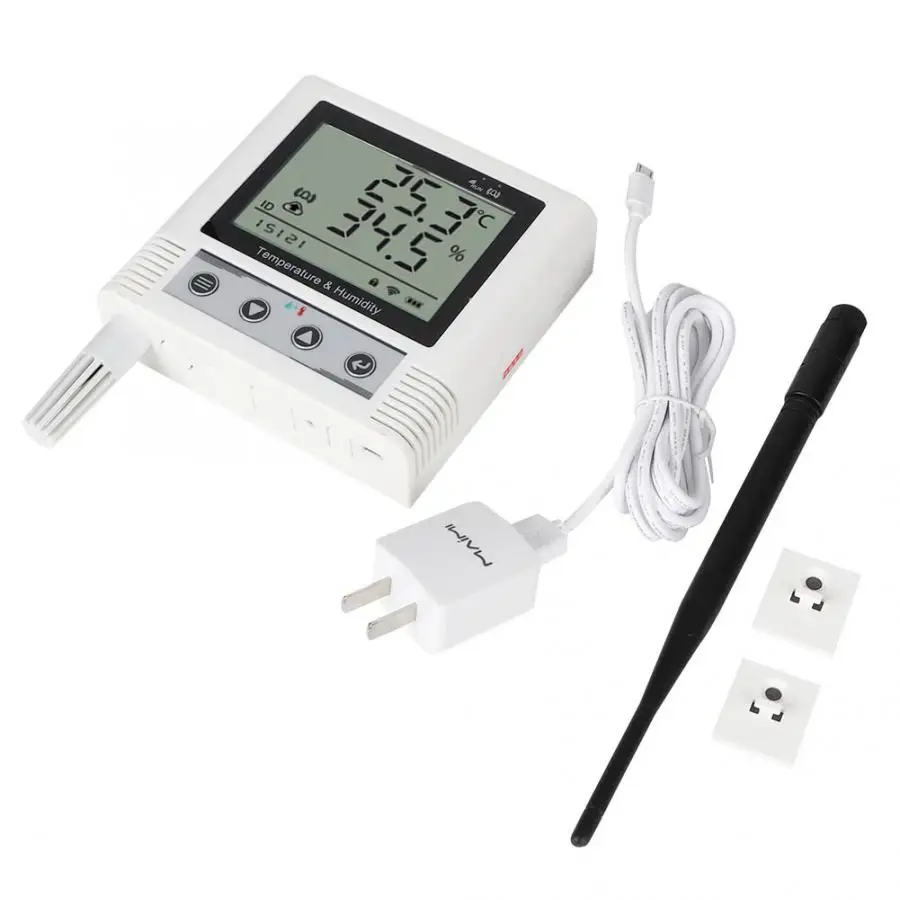

1 x Wireless Temperature and Humidity Sensor 2 x Buckle with Adhesive Tape 1 x Charger Socket 1 x USB Charging Cable 1 x Rod Antenna



Note:

1. Please allow 1-2cm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
