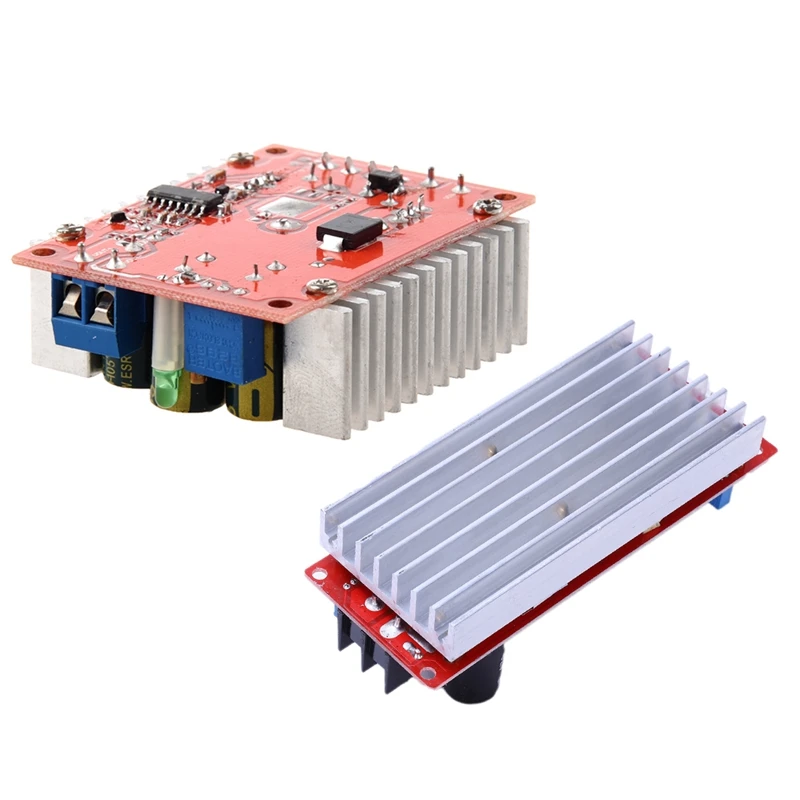

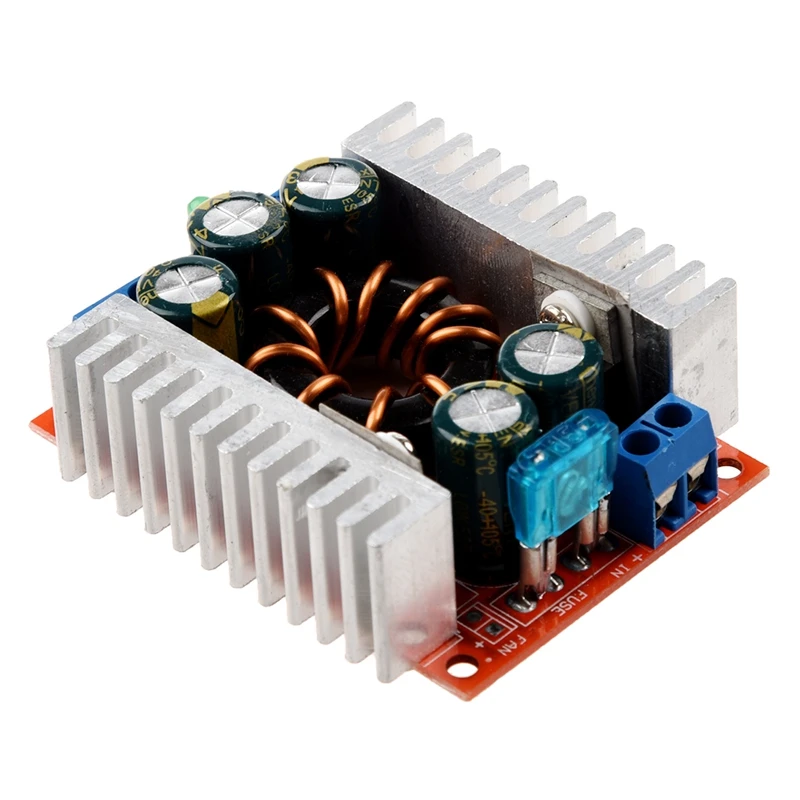

1Pcs 1200W 20a DC Converter Boost Car Step-Up Power Supply Module 8-60V To 12-83V & 15a Buck Adjustable 4-32V 12V 1.2 | Инструменты

1Pcs 1200W 20a DC Converter Boost Car Step-Up Power Supply Module 8-60V To 12-83V & 1Pcs DC 15a Buck Adjustable 4-32V 12V To 1.2

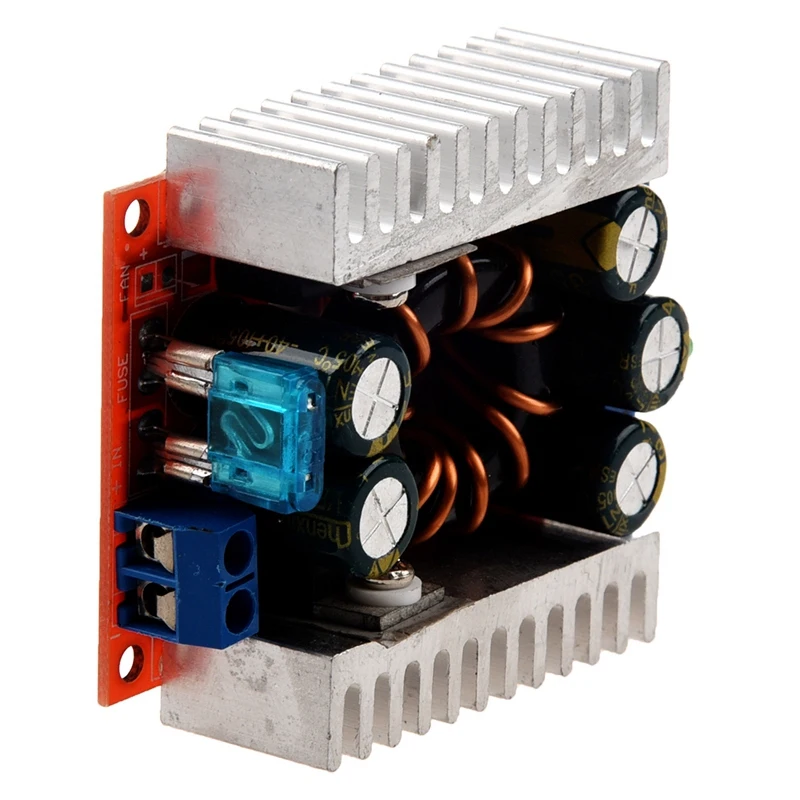

1pcs DC 15A Buck Adjustable 4-32V 12V to 1.2-32V 5V Converter Step Down Module & 1pcs1200W 20A DC Converter Boost Power Supply Module : Material: aluminum alloy, plastic & plastic , Module dimensions:116x52x15mm & length 60mm width 51mm height 22mm
Applications:This module can be applied to the input voltage is higher than the output voltage of the buck areas, such as batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial equipment buck, 12V turn 3.3 V, 12V turn 5V, 24V turn 5V, 24V to 12V and so on
Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)
If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel,The current per module can be adjusted to 15A.
Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security.Input reverse polarity protection: None, (if necessary, please enter the string into the diode), Output Counter filling: Yes, for charging plus blocking diode is not required.Installation: four 3mm screws ,Connection: solderless terminals output
Constant Range: 0.5-20A ,Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz ,Input voltage: 8-60V ,Input Current: 20A
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-83V
Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Type:Voltage Regulator ,Application:Computer
Supply voltage:4-32V ,Operating Frequency: 150KHz
Module : 15A synchronous-rectified buck ,Module Properties: non-isolated step-down module (BUCK)
Input voltage: DC4-32V (Limit 36V) ,Output voltage: DC1.2-32V continuously adjustable
Minimum differential pressure input and output: 1V
Output current :0-15A 10A long natural cooling, the temperature does not exceed 60 degrees, the peak of up to 20A. Decrease the amount of higher ambient temperatures use.Operating temperature: -40 to +85 degrees
Installation: four 3mm screws
Connection: terminals, solderless, V-IN as an input, V-OUT is an output
Material: aluminum alloy, plastic & plastic
Module dimensions:116x52x15mm & length 60mm width 51mm height 22mm

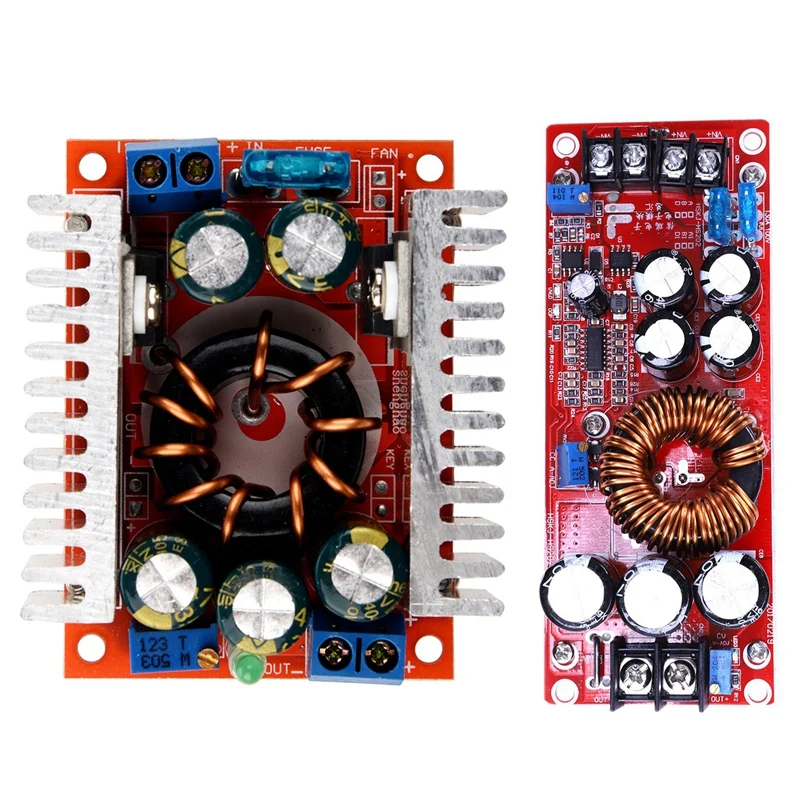

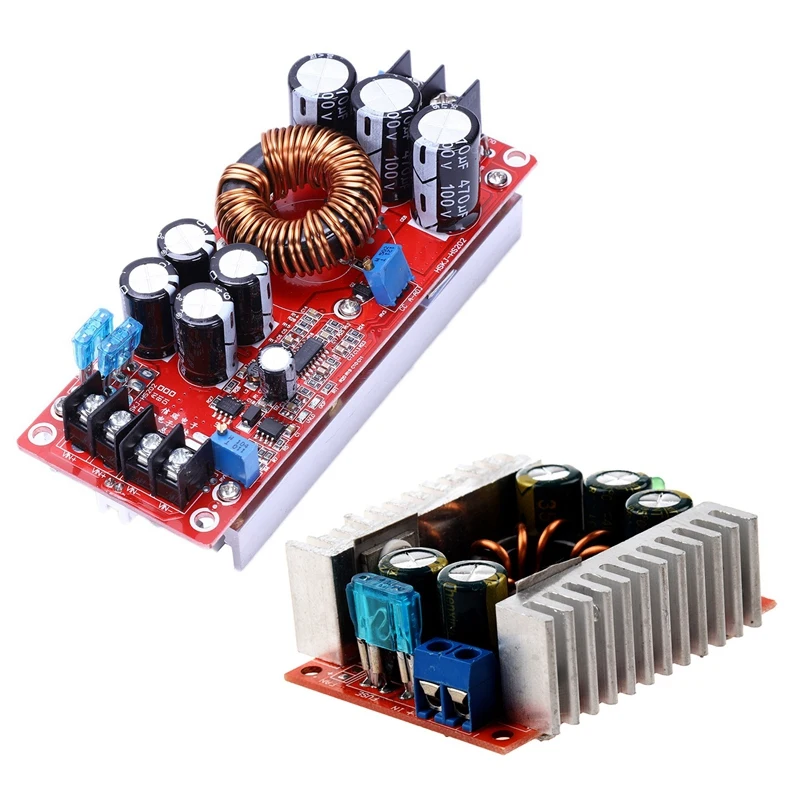

Package includes:

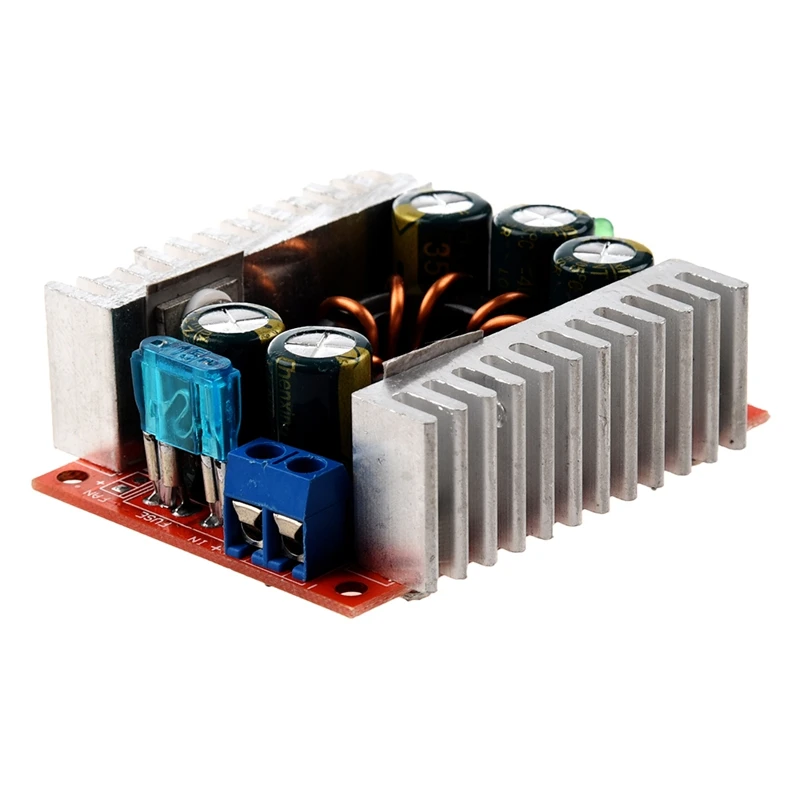

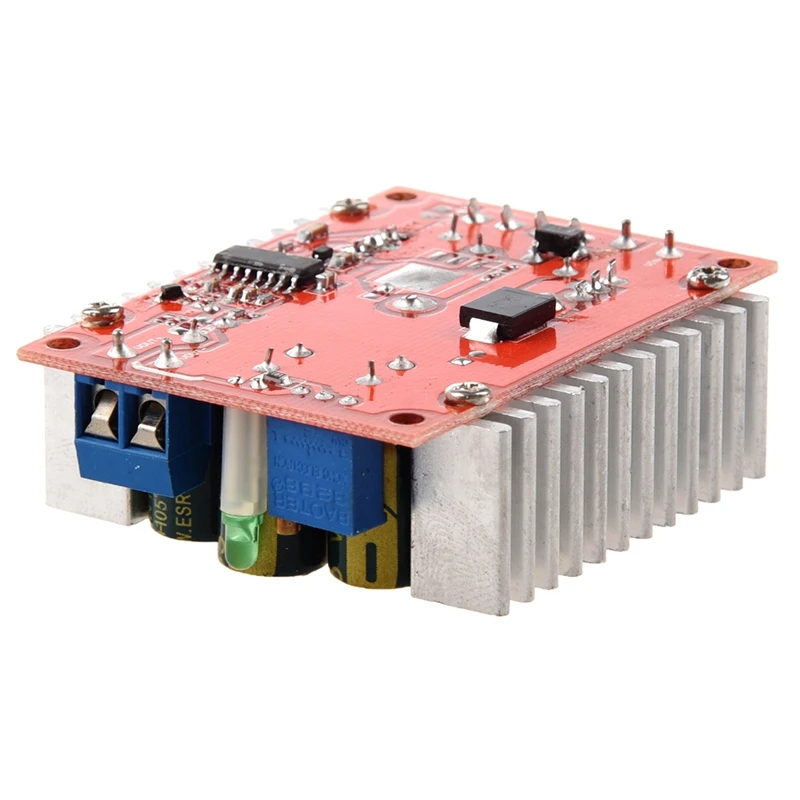

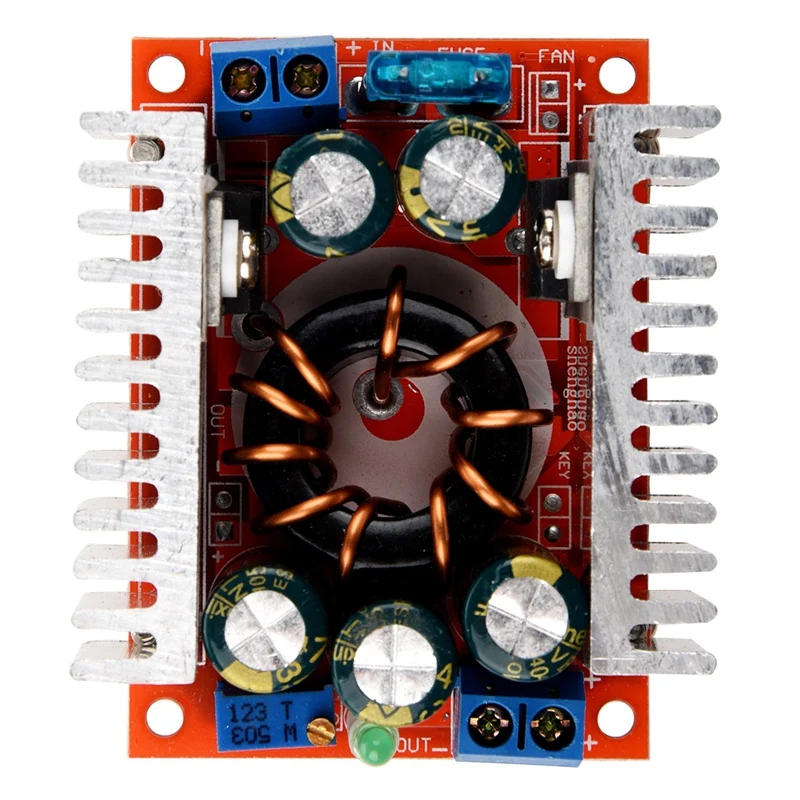

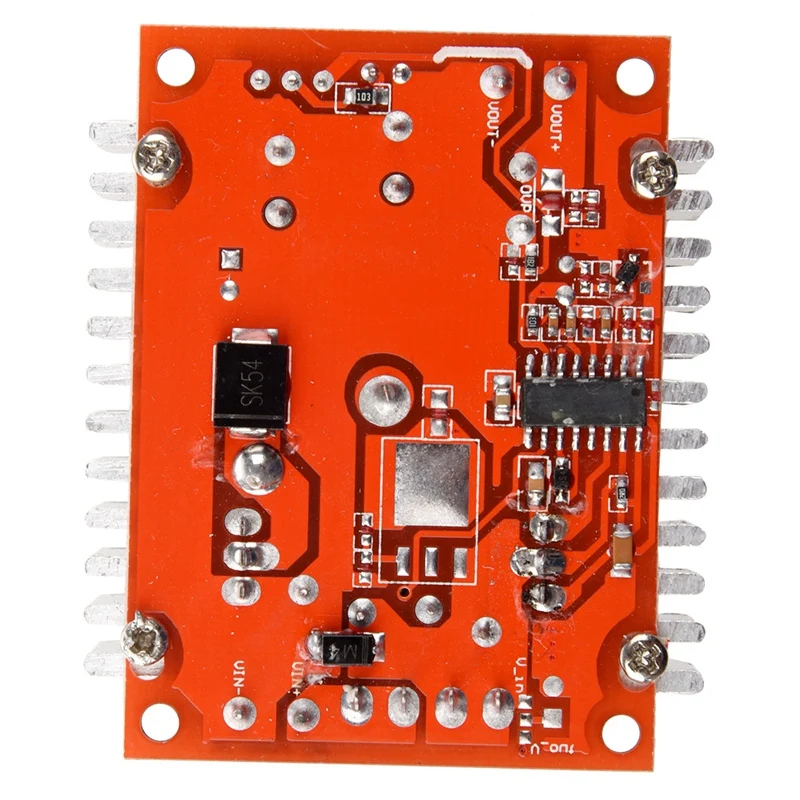

1 x DC 15A Buck Adjustable 4-32V 12V to 1.2-32V 5V Converter Step Down Module

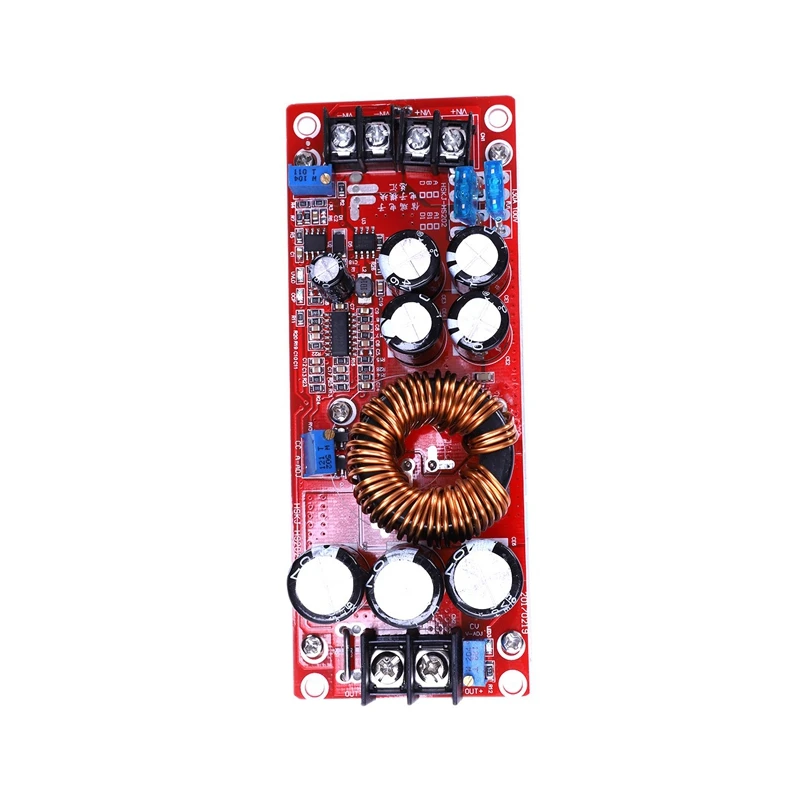

1 x1200W 20A DC Converter Boost Power Supply Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
