    New Original Four-line YR1035 Lithium Battery Internal Resistance Meter Tester YR 1035 Detector 18650 Dry Combination 1 | Инструменты

    Описание товара

    NEW YR1035 Lithium Battery Internal Resistance Test Instrument

    100V Nickel Nickle Hydride Hydrogen Cadmium Button Battery Tester

    (Combination 1)

    (This product has passed the calibration before leaving the factory, so it does NOT need to RESET/ZERO or calibrate again)

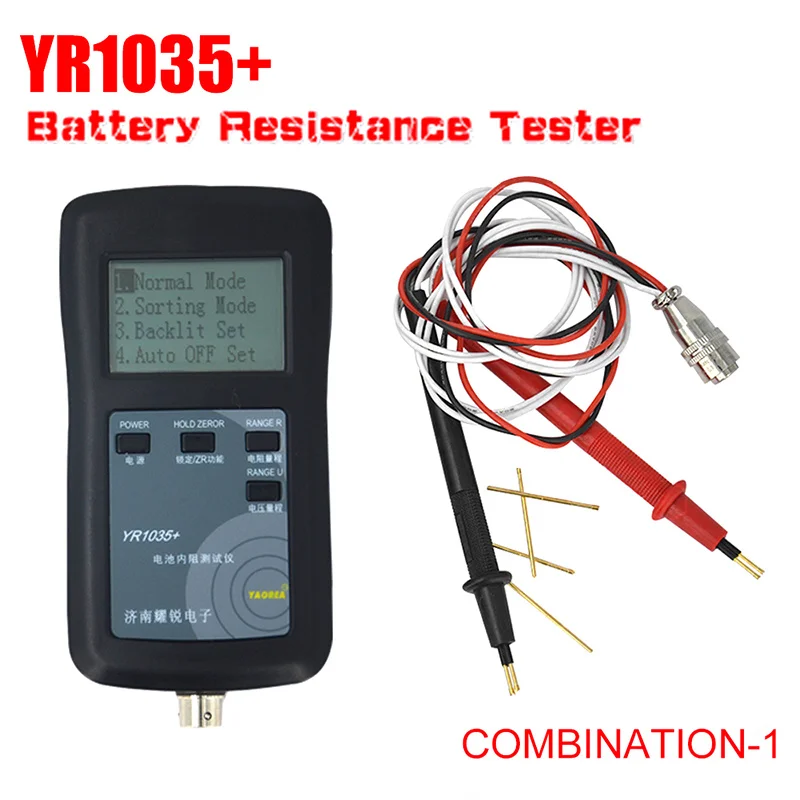

    Combination-1-800

    The built-in battery of the instrument, pay attention to whether the selected express and consignment can be transported, otherwise there is no battery outside the mainland by default. By default, Hong Kong, Macao and Taiwan Xinjiang and overseas regions or other express delivery need to contact customer service to make up the difference. Because the express delivery is not available in Tibet. Direct returns overseas regions do not return non-replacement.



    The machine does not have a charger, charging can be charged with an Android phone charger~ If you have any questions, please contact customer service~



    The default length of the test line is 0.5 meters. If you need longer, please contact customer service to make up the difference.

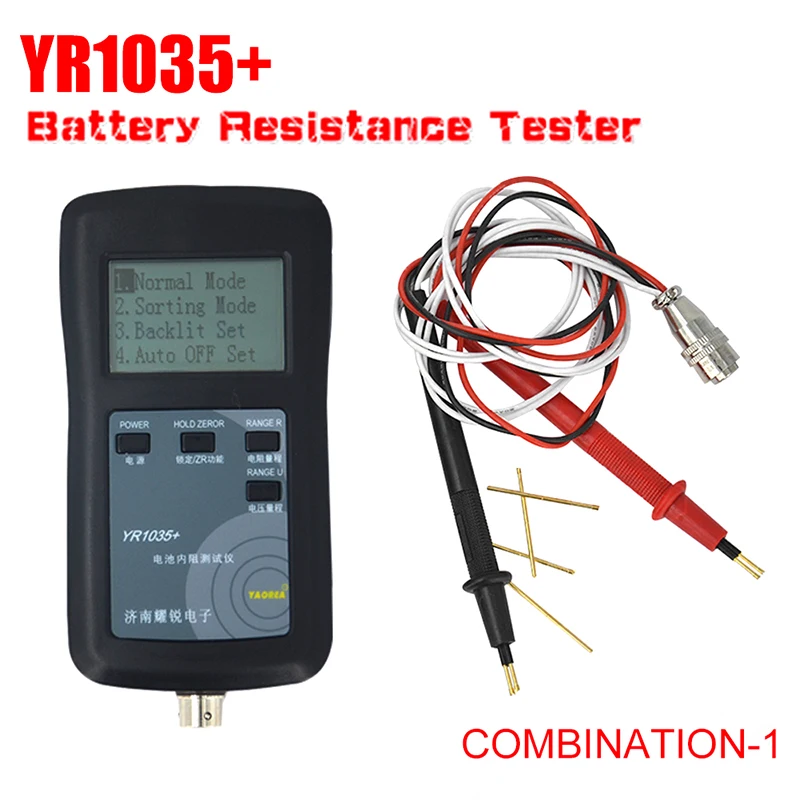

    Combination 1: host + probe test line (suitable for measuring various types of batteries, good versatility. twisted pair of wires to improve anti-interference)



    Combination 2: Host + Kelvin clip (suitable for measuring lead ends, chip tabs, etc. Wires are easy to twist, better accuracy)



    Combination 3: Host + 18650 test stand (for column battery such as 18650, etc. Suitable for one-hand operation, convenient and fast, with sorting function suitable for incoming material detection)



    Combination 4: Host + 18650 test stand + Kelvin clip + probe test line (suitable for measuring more types of batteries, corresponding to various situations)



    Combination 5: Host + Probe Test Line + Kelvin Clip



    Combination 6: Host + 18650 test stand + probe test line



    Combination 7: Host + 18650 Test Stand + Kelvin Clip



    The main parameters:

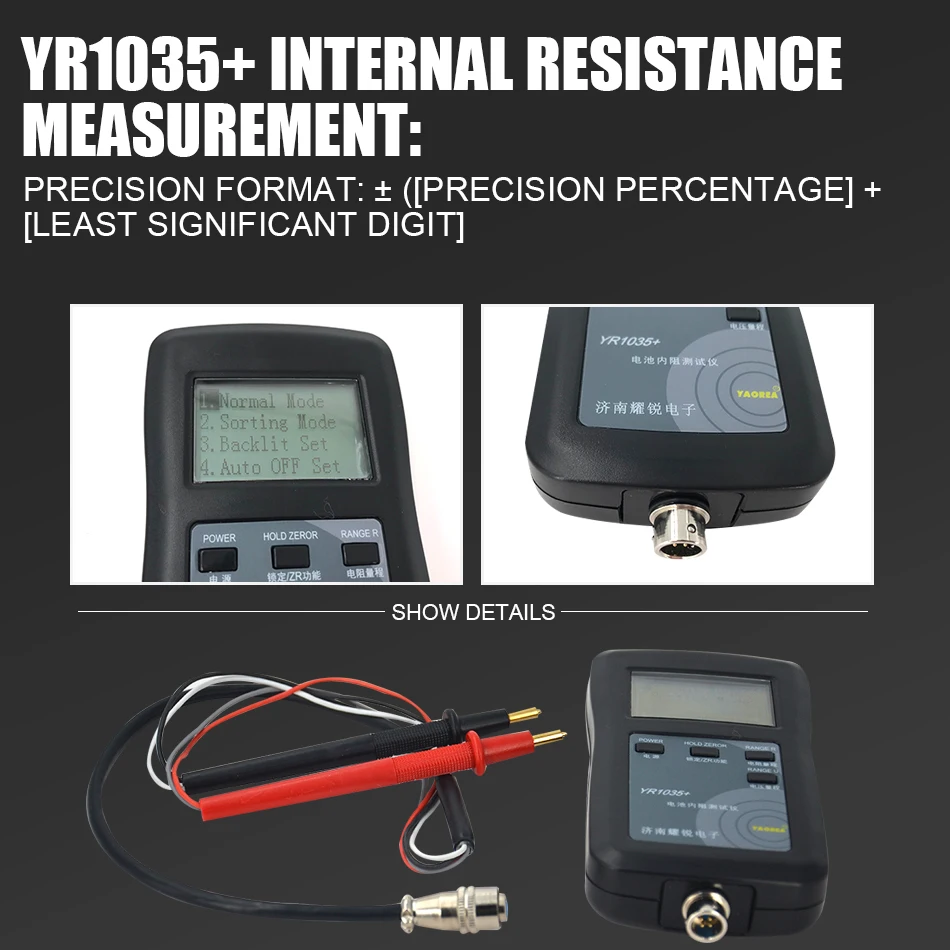

    Internal resistance measurement:



    Precision format: ± ([precision percentage] + [least significant digit]

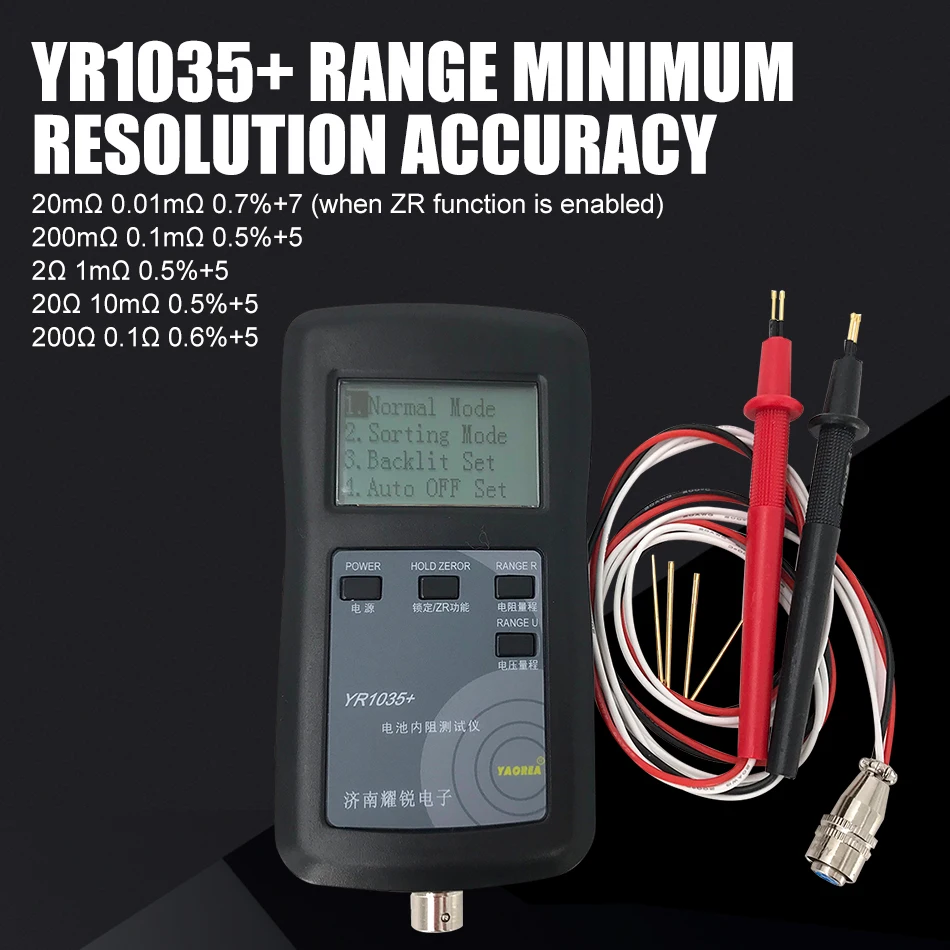

    Range minimum resolution accuracy



    20mΩ 0.01mΩ 0.7%+7 (when ZR function is enabled)



    200mΩ 0.1mΩ 0.5%+5



    2Ω 1mΩ 0.5%+5



    20Ω 10mΩ 0.5%+5



    200Ω 0.1Ω 0.6%+5



    In the range of 5%-95% of the gear position, if it is not within this range (less than 5% gear range range, or greater than 95% gear range range), the error may be greater than the above accuracy.



    Voltage measurement:



    Range Accuracy ± (% reading + % range) 1V 0.35+0.015 10V 0.30+0.010 100V 0.30+0.015 Positive and negative symmetry error ± (0.012% + 5 words)

    Temperature drift within normal use temperature (10 ° C -40 ° C) 100ppm / ° C





    *The tester test resistance from 0.01mΩ --- 200Ω  *The tester test voltagse under 100V .It show 4 digit after decimal point



    Combination 1 : Tester +Test Pin Combination 2: Tester + Kelvin Clip Combination 4: Tester +Test Pin+Kelvin Clip+Test Stand Combination 5: Tester +Test Pin+Kelvin Clip Combination 6: Tester +Test Pin+Test Stand Combination 7: Tester +Kelvin Clip+Test Stand

    YR1035+_01YR1035+_05YR1035+_08YR1035+_09YR1035+_10YR1035+_11YR1035+_13YR1035+_14
