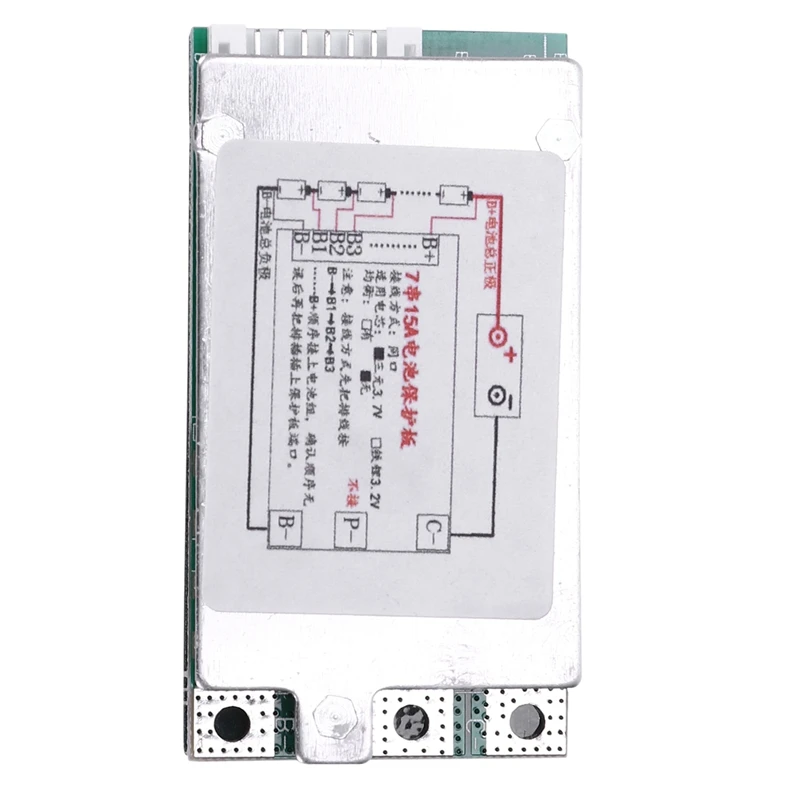

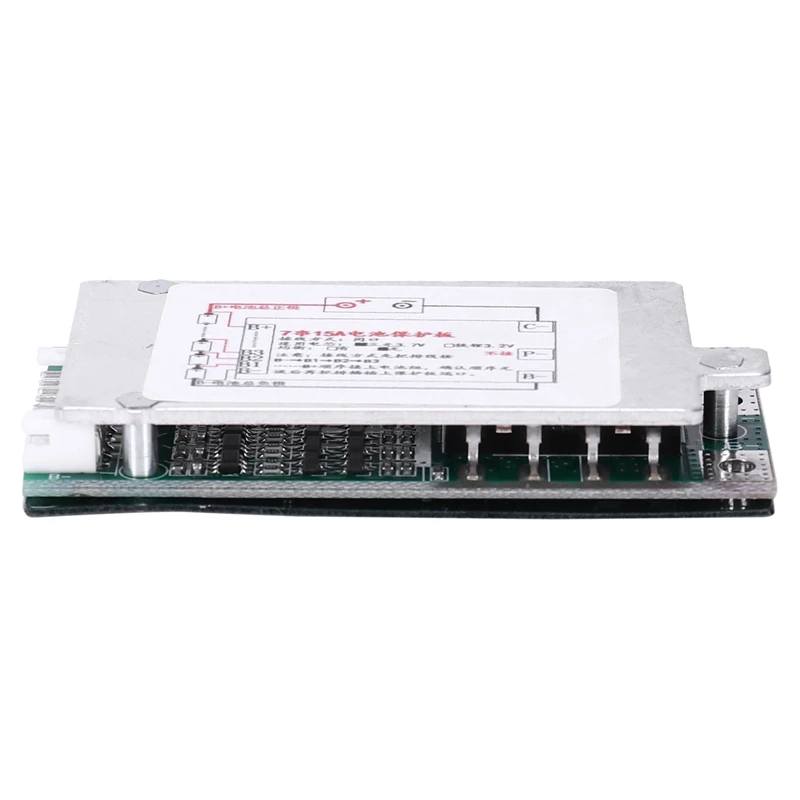

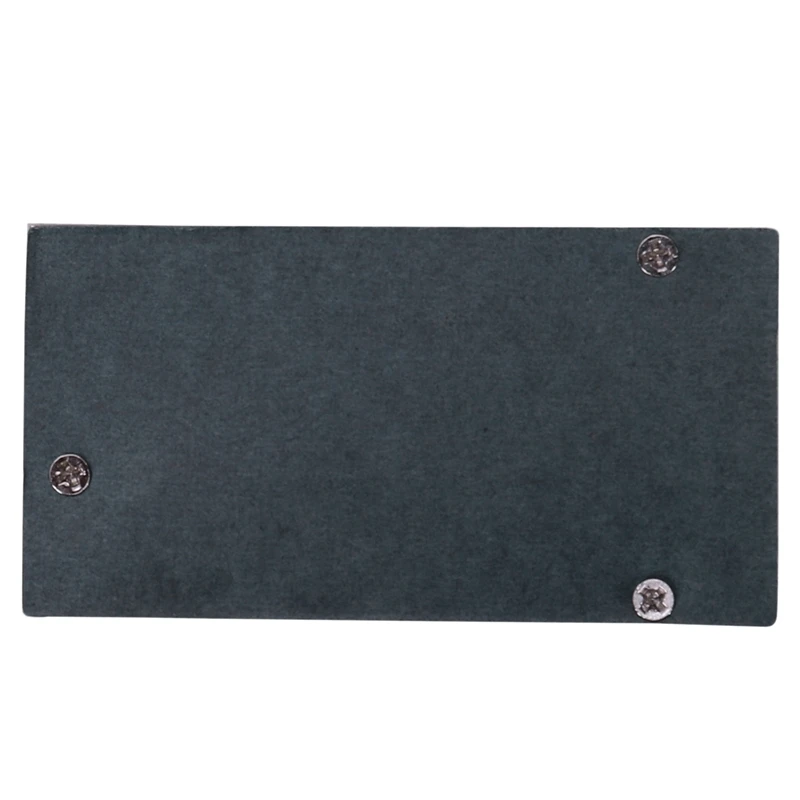

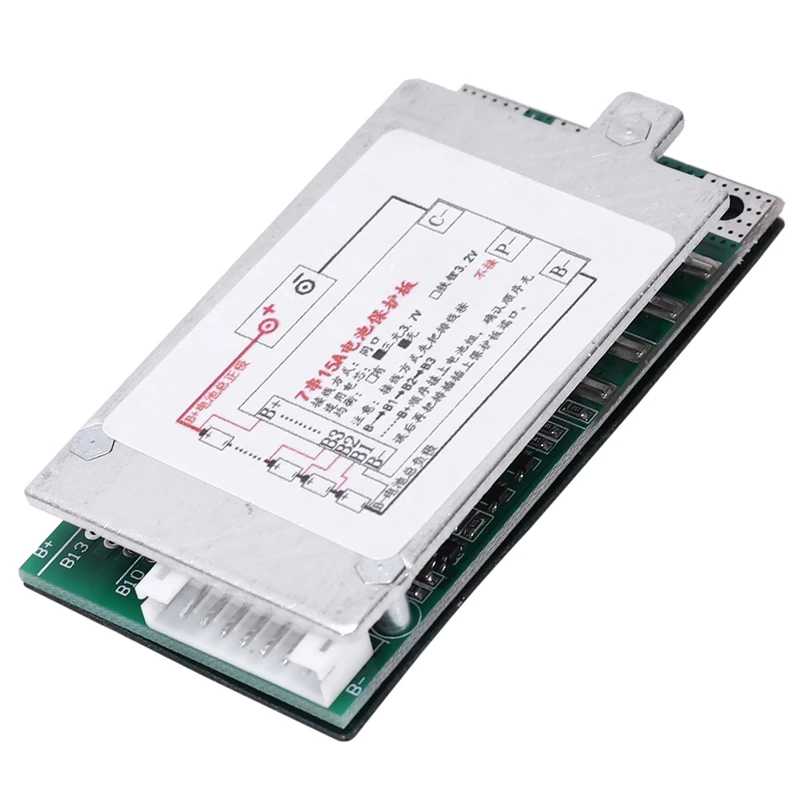

7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения

Сохраните в закладки:

Цена:RUB*

Количество:

Доставка в Эль-Монте, по России и СНГ


  • 7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения - Фото №1
  • 7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения - Фото №1
  • 7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения - Фото №1
  • 7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения - Фото №1
  • 7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения - Фото №1
  • 7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения - Фото №1
  • 7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения - Фото №1
  • История цены

    *История изменения цены! Указанная стоимость возможно, уже изменилось. Проверить текущую цену - >

    Месяц Минимальная цена Макс. стоимость Цена
    Mar-21-2026 0.72 руб. 0.33 руб. 0 руб.
    Feb-21-2026 0.7 руб. 0.70 руб. 0 руб.
    Jan-21-2026 0.0 руб. 0.4 руб. 0 руб.
    Dec-21-2025 0.88 руб. 0.94 руб. 0 руб.
    Nov-21-2025 0.34 руб. 0.36 руб. 0 руб.
    Oct-21-2025 0.35 руб. 0.90 руб. 0 руб.
    Sep-21-2025 0.91 руб. 0.85 руб. 0 руб.
    Aug-21-2025 0.19 руб. 0.59 руб. 0 руб.
    Jul-21-2025 0.60 руб. 0.96 руб. 0 руб.

    Новые товары

    Характеристики

    7S 24V 15A Li-Ion Lithium Battery Protection Board BMS PCB for E-Bike Electric Scooter | Спорт и развлечения

    Описание товара

    body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }


    specification:
    Maximum discharge current: 15A
    Instantaneous discharge current: 70A
    Charging voltage: 28.8V
    Maximum charging current: less than equal 15A
    Overcharge detection voltage: 4.25±0.025V
    Overcharge protection delay: 100ms
    Overcharge release voltage: 4.15±0.05V
    Battery balance detection voltage: /
    Battery balance release voltage: /
    Battery balance current: /
    Overdischarge detection voltage: 2.8 ± 0.08V
    Overdischarge detection delay: 50ms
    Overdischarge release voltage: 3.0±0.1V
    Overcurrent detection voltage: 150mV
    Overcurrent detection delay: 15ms
    Overcurrent protection current: 75±5A
    Overcurrent protection release condition: disconnect load
    Short circuit protection condition: external load short circuit
    Short circuit detection delay: 200uS
    Short circuit protection release condition: disconnect load
    Main circuit conduction internal resistance: less than equal 15mΩ
    Working current: less than equal 50uA
    Temperature range: -30/+80°C
    Size: 63 * 33 * 10mm
    Color: Silver + Green
    Material: metal + PCB
    Package Contents:

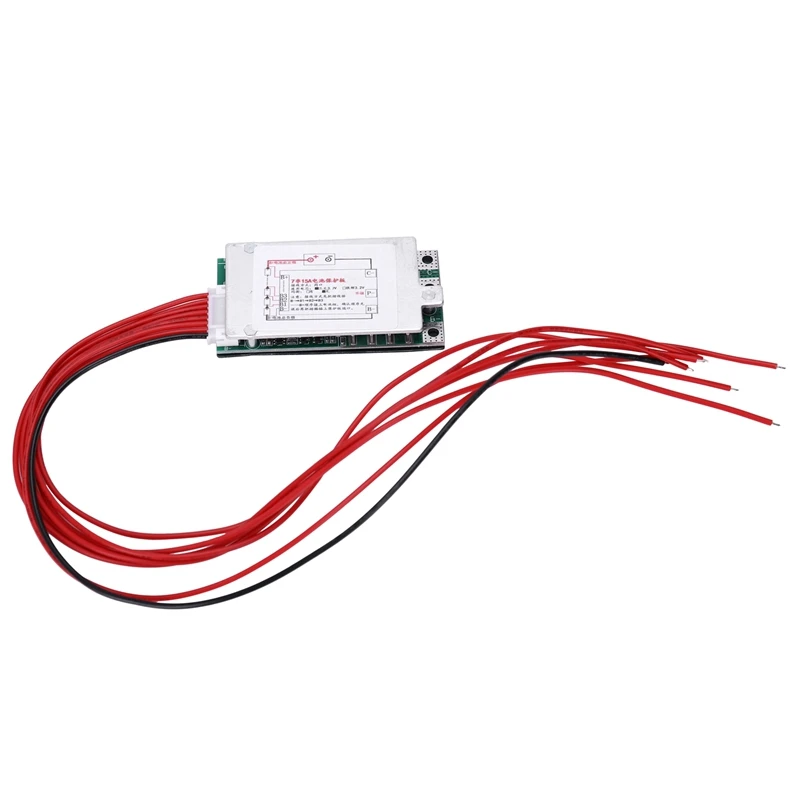

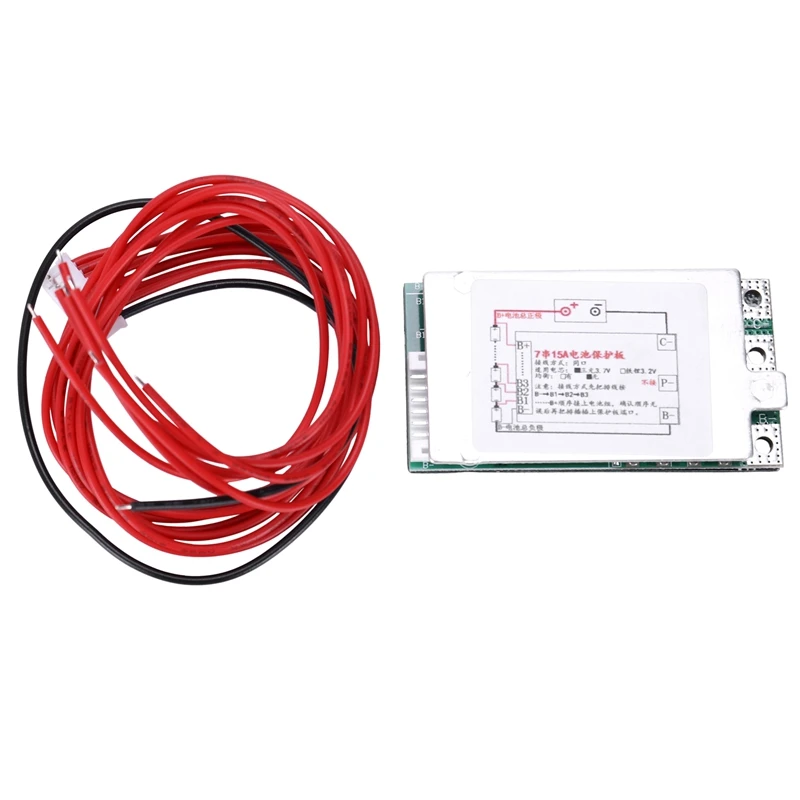

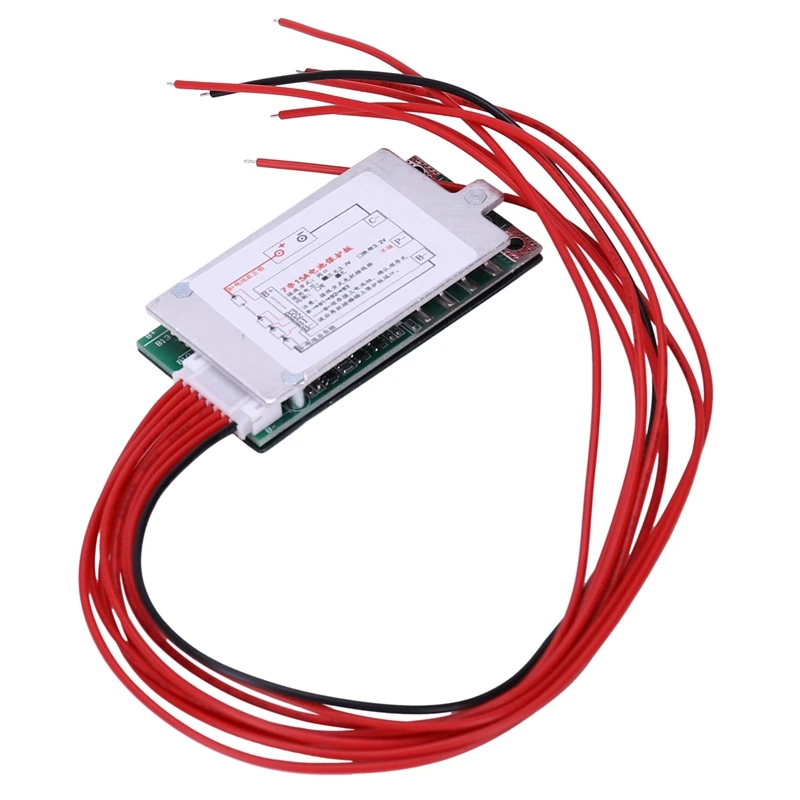

    1 * Li-ion Battery Protection Board
    1 * Cabel wire
    Only the above package content, other products are not included.
    Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
