Dual shaft 0.4N.m(57oz-in) 2phase NEMA17 Stepper Motor 38mm motor length 1.5A 4-lead double shaft

If you need 3D model of the motor, please give us your email address and we will email you it.

General specifications

Step Angle Accuracy: 5%

Temperature rise: 80°c Max

Ambient temperature: -20°c~+50°c

Insulation resistance: 100MΩ Min 500VDC

Dielectric strength: 500V AC 1minute

Shaft Radial Play: 0.02mm Max(450g-load)

Shaft Axial Play: 0.08mm Max(450g-load)

Specifications:

Model

Step

Angle

(°)

Length

(L:mm)

Holding

Torque

(N.m)

Current

(A/Phase)

Resistance/

Phase(Ω)

Inductance/

Phase(mH)

Rotor

Inertia

(g.cm2)

Shaft

Diameter

(D:mm)

Weight

(kg)

Matched

driver

42HS33B41505

1.8

33

0.2

1.5

1.4

1.4

35

5.0

0.22

JB415M

42HS38B41505

38

0.4

1.5

2.3

4.3

54

5.0

0.28

42HS47B41505

47

0.6

1.5

2.2

4.5

68

5.0

0.35

42HS60B41505

60

0.8

1.5

3.0

6.9

102

5.0

0.5

Model

Forward shaft

Rear shaft

Shaft

diameter

(D:mm)

Axis stretch

(mm)

Shaft

Diameter

(D:mm)

Axis stretch

(mm)

42HS33B41505

5.0

Levelling block 0.5x20

5.0

Levelling block 0.5x20

42HS38B41505

5.0

Levelling block 0.5x20

5.0

Levelling block 0.5x20

42HS47B41505

5.0

Levelling block 0.5x20

5.0

Levelling block 0.5x20

42HS60B41505

5.0

Levelling block 0.5x20

5.0

Levelling block 0.5x20

The above are only representative products, we can design according to customers’ requirements

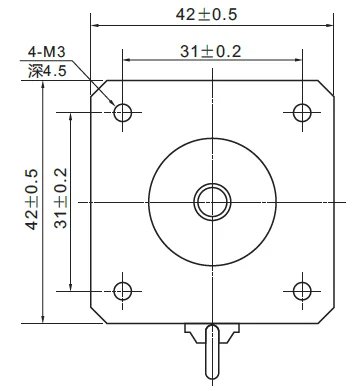

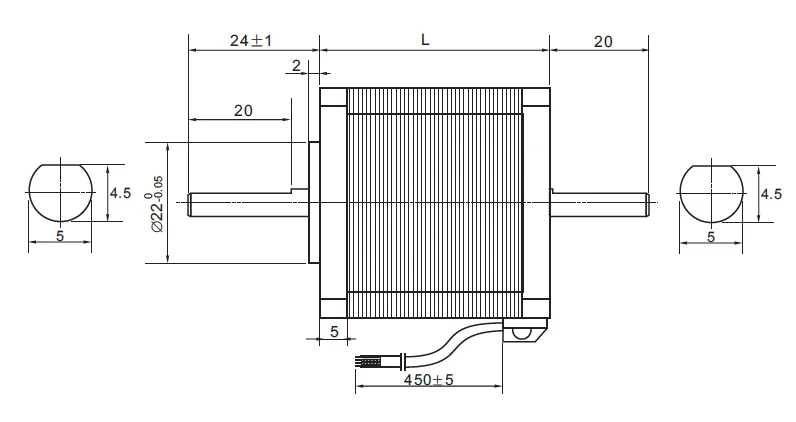

Dimension: unit=mm

Wiring Diagram

Note:

When installing the motor, be sure to fix the position by using the front end cover of motor, and pay attention to the tolerance, strictly guarantee the concentricity of the motor shaft and the load.
