Product Description:

Product information:
Product Name: Mini Digital Multimeter
Product Model: ADM62,ADM66

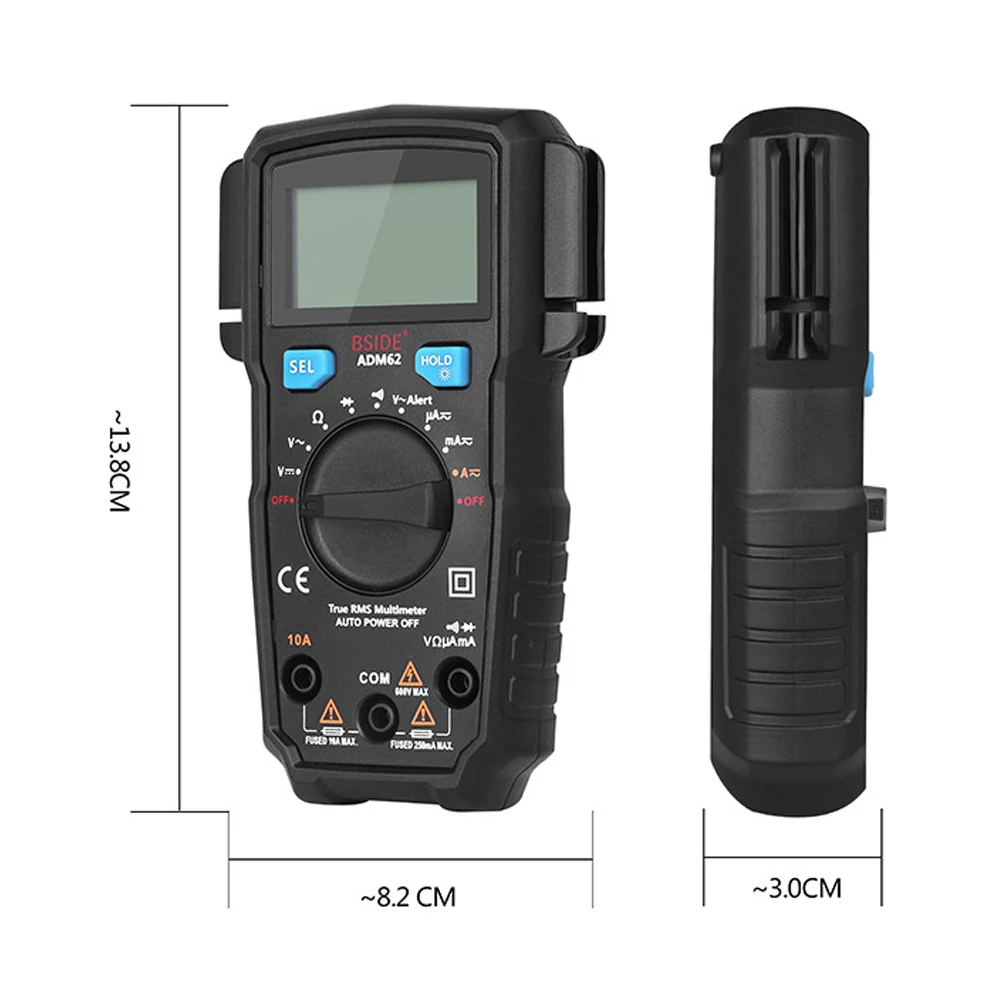

Size: 13.8x8.2x3cm
Material: ABS

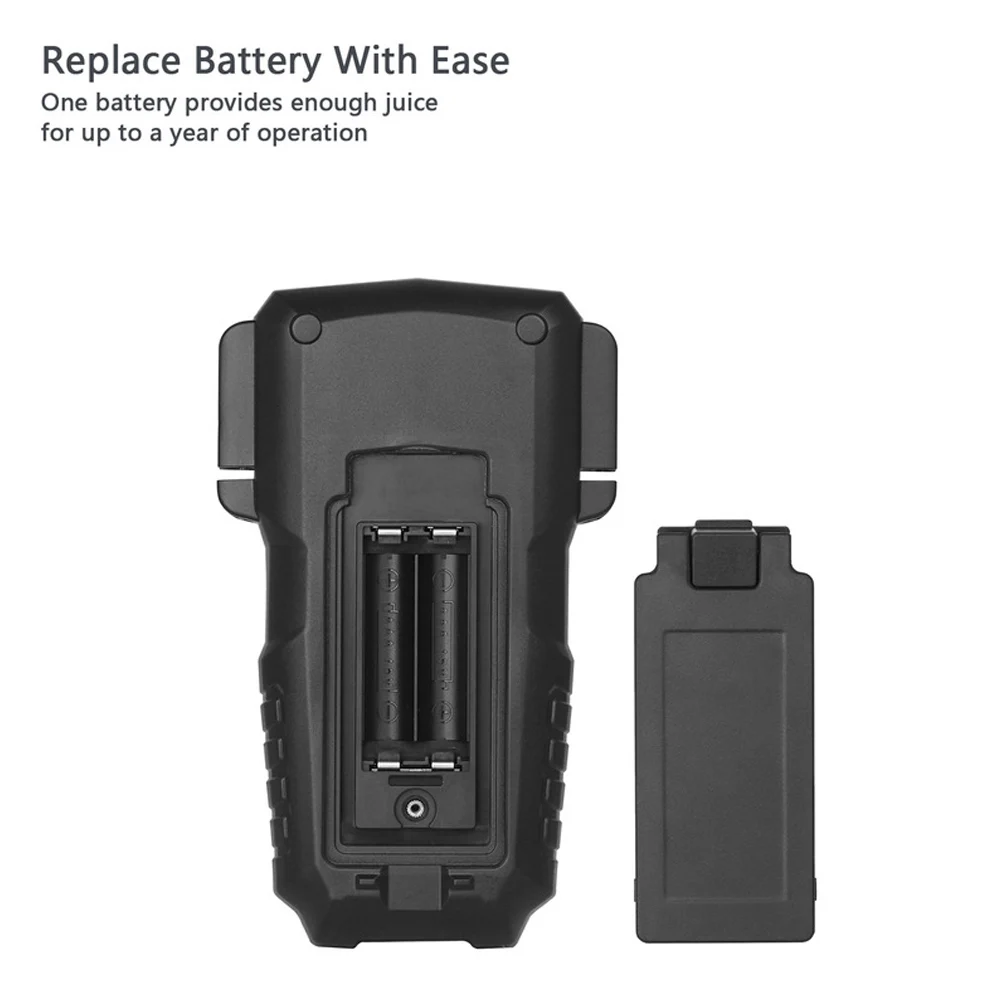

Power: 1.5V (AAA) x 2(Not Included)

ADM62 Specifications:
Max Display: 2000 conuts
DC Current: 200uA/2000uA/20mA/200mA,0.1uA/1uA/0.01mA/0.1mA±(1.0%+5); 10A,0.01A±(2.0%+5)
AC Current: 200uA/2000uA/20mA/200mA,0.1uA/1uA/10uA/100uA±(1.0%+5); 10A,10mA±(3.0%+5)
DC Voltage: 200mV/2V/20V/200V,0.1mV/0.001V/0.01V/0.1V±(0.5%+2); 600V,1V±(0.5%+5)
AC Voltage: 2V/20V/200V,0.001V/0.01V/0.1V±(1%+3); 600V,1V±(1.2%+3)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ,0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ±(0.8%+2); 20MΩ,0.1MΩ±(1%+2)
Diode Test : Less than 1.0V diode automatic identification.(ADMS9CL).(ADMS9CL)
V-Alert(Non-contact Voltage Detection):Intelligent display of dangerous voltage high, medium and low.(beep alarm sounds)
Continuity: Intelligently reminds the cable line to connect or disconnect.(If the resistance is less than 30Ω, the beeper sounds)

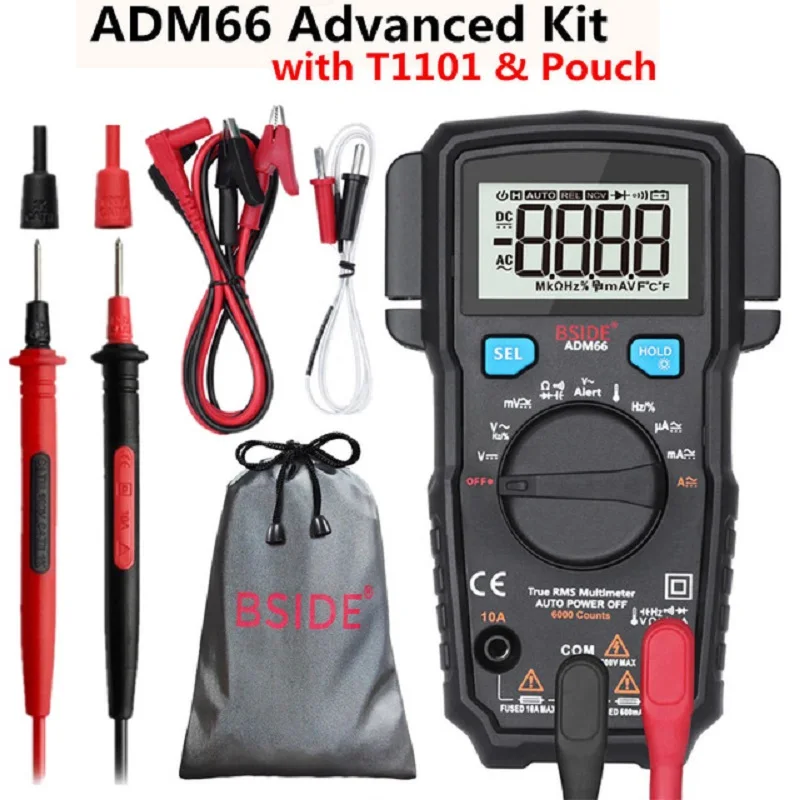

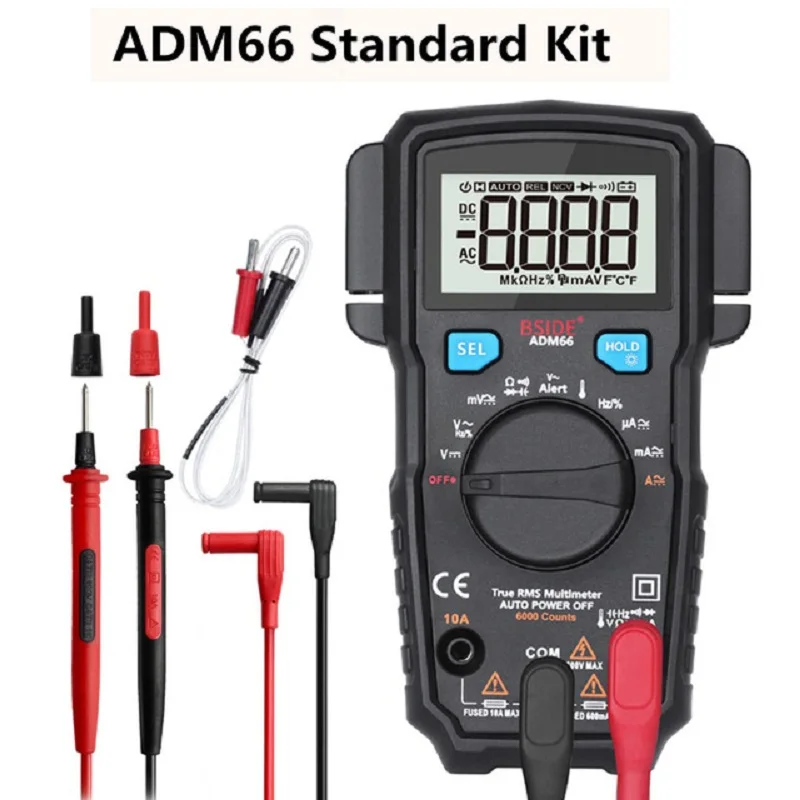

ADM66 Specifications:

Max Display: 6000 counts
DC Current: 600uA/6000uA/60mA/600mA ±(1.0%+5); 10A ±(2.0%+5)
AC Current: 600uA/6000uA/60mA/600mA ±(1.5%+5); 10A ±(3.0%+5)
DC Voltage: 60mV/600mV ±(1.0%+3); 6V/60V/600V ±(0.5%+5)
AC Voltage: 60mV/600mV ±(1.2%+3); 6V/60V ±(1.2%+5); 600V ±(1.5%+5)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+5); 60MΩ ±(1.5%+5)
Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF ±(3.0%+3); 9.999mF/99.99mF ±(4.0%+5)
Frequency(V/Current): 60Hz/600Hz/6kHz/10kHz ±(2.0%+5)
Frequency(Hz): 99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz/99.99M ±(2.0%+5)
Temperature: -30°-0°(-22°-32°) ±(5.0%+3); 0°-400°(32°-752°) ±(1.0%+3); 400°-1000°(752°-1832°) ±(2.0%+2)
Diode Test: Less than 1.0V diode automatic identification.(ADMS9CL).(ADMS9CL)
V-Alert(Non-contact Voltage Detection):Intelligent display of dangerous voltage high, medium and low.(beep alarm sounds)
Continuity: Intelligently reminds the cable line to connect or disconnect.(If the resistance is less than 30Ω, the beeper sounds)

Product Advantages:

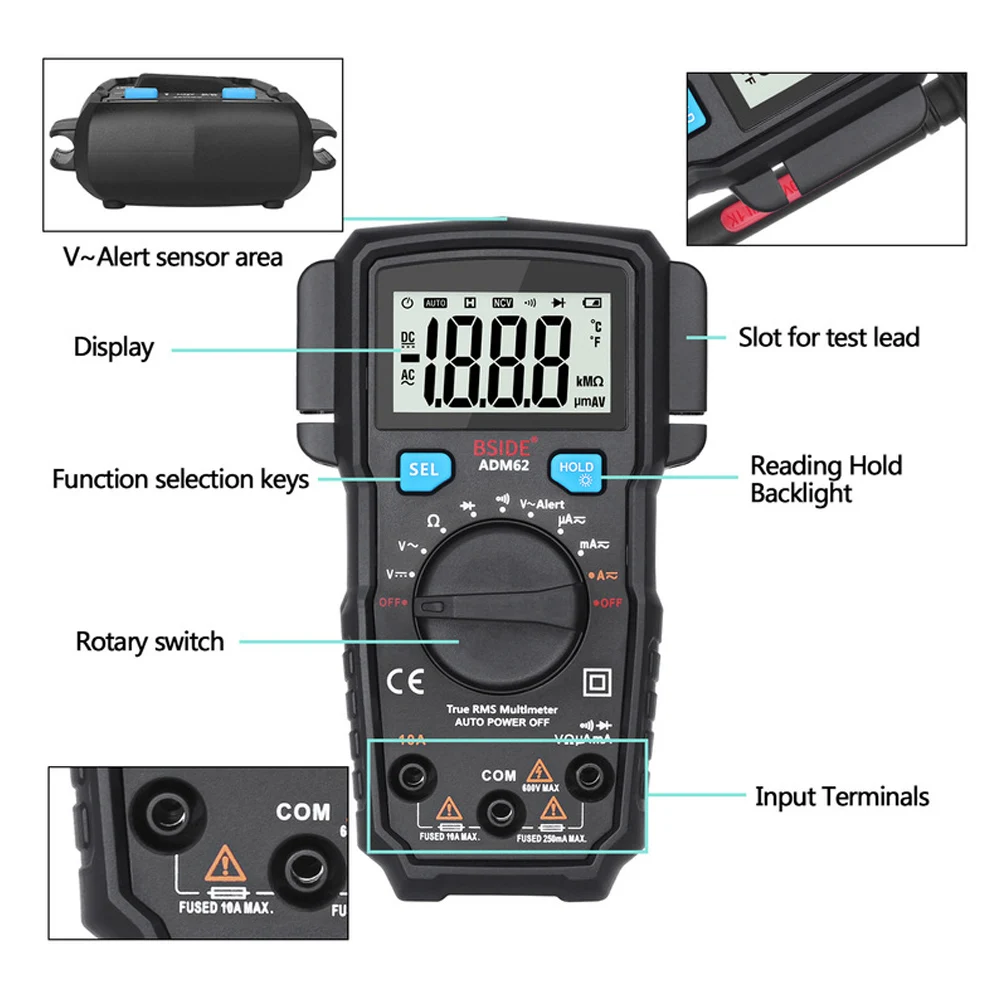

Unique Dual Test Lead Slot Design: Dual side probe holder design, the probe can be fixed in holder for single-hand measurement, or the probe tip is hidden in the holder to prevent being hurt, safe to carry and storage.
Multi-Functions: True-RMS Auto-ranging multimeter can measure AC/ DC current, AC/DC voltage, temperature, capacitance, diode, continuity, V-alert (non-contact AC voltage), frequency, duty cycle, etc.
Protective Case: It features a protective case for protection against shocks, friction and bumps. This case is detachable and easy to replace.
2 Fuses: 2 fused fuses (10A Max, 600mA Max) design, double safety protection.
Double Insulation Probe: The probes are double insulated and 10A maximum, which conforms to the CAT III 600V safety standard. Large LCD with backlight for simple reading Auto range, data hold, Auto power off, polarity and low battery indication Widely reserved in schools, automotive maintenance, factories, etc. Ideal for home users, maintenance enthusiasts, electricians and technician
Main Features:
True-RMS Measurement. LCD Backlight Display. Double insulation protection is safer. Auto Range. Measurement mode:double-integral style A/D transform. Sample rate:3 times per second. Over range indication:OL. Low voltage indication / Data retention / Automatic shutdown. Resistance capacitance frequency file high voltage 550V protection. 10A large current measurement, mA level small current measurement. Polarity identification.
Package included:
1 x Mini Digital Multimeter
