10A Brushed ESC Two Way Speed Controller with Brake RC Vehicle Model Parts For Boat Tank Airplane | Игрушки и хобби

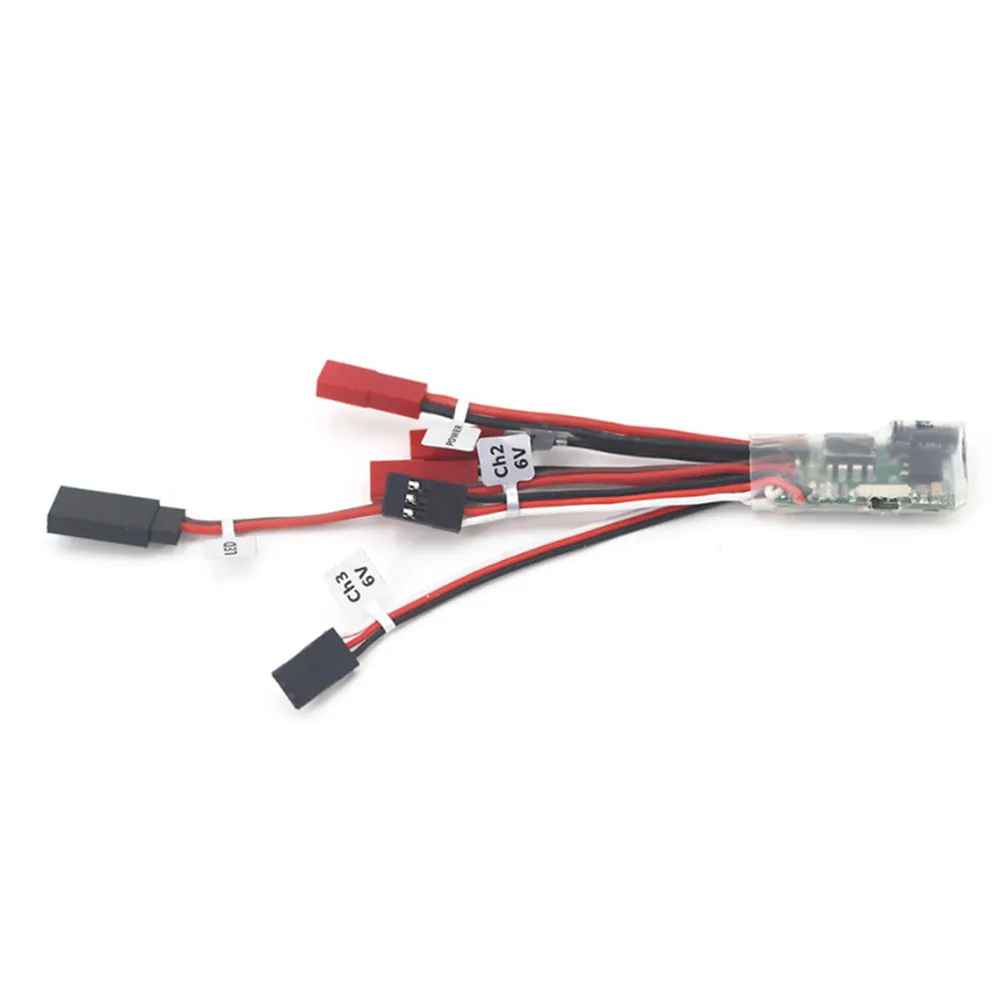

10A Brushed ESC Two Way Speed Controller with Brake RC Vehicle Model Parts

Description:

Item Name:10A brushed ESC

Material:Plastic and metal components

Color:As  the picture shown

Product Size:165*18*8.5mm

Product Weight:About 10g

Fit For:RC Vehicle Models Car Boat Tank Airplane,for 130/180 motor,1/24,1/28 car

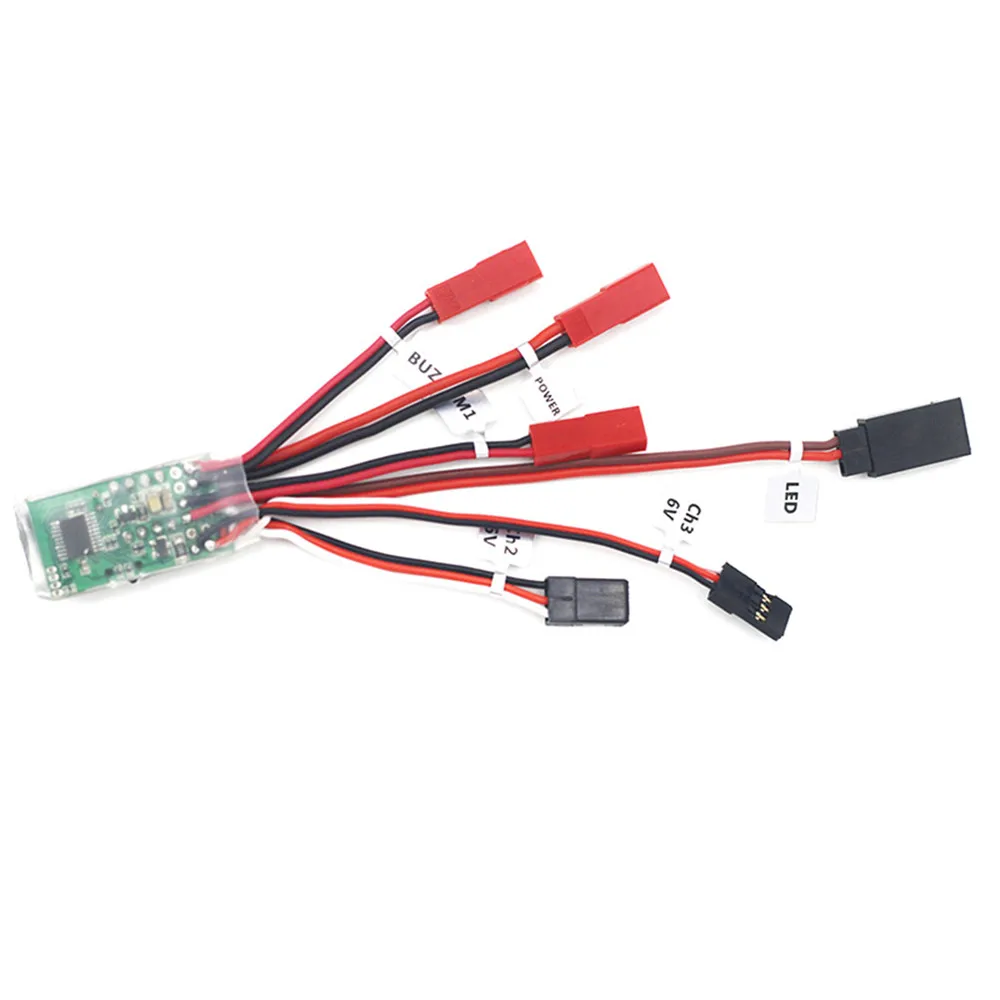

Connection:

CH2: electrically modulated signal line (6V output, supports high voltage)

CH3: enable / disable control signal

LED: connected to headlights (5V output)

M1: Coupling motor

BUZ: beep (low voltage signal)

Power: Connect the battery

Features:

Lipo:2-3s

UBEC:6V

Two way control(forward,reverse)

LED Lamp control

Low voltage alarm

Brake turn on/off

Two types of connection:

Car controller:

CH2: 2 channels

CH3: 3 channels

LED: Headlights

M1: engine

Buz: Low Voltage Alarm

Aircraft control panel:

CH2: 3 channels

CH3: Connecting a two-stage switch

LED: light lamp

M1: engine

Buz: Low Voltage Alarm

Lamp control:

The output voltage of the channel connected to the LED is 5 V, which can be used as a high-level drive relay of the module. Can be connected to LED light, can also be used as an external switch with a high degree of reproduction.

Low voltage signal:

Automatic identification battery 2 S / 3 S, the default alarm voltage of 2 S batteries is 7.2 v, and the default alarm voltage of 3 S batteries is 10.7 v

Package included:

1X 10A ESC
